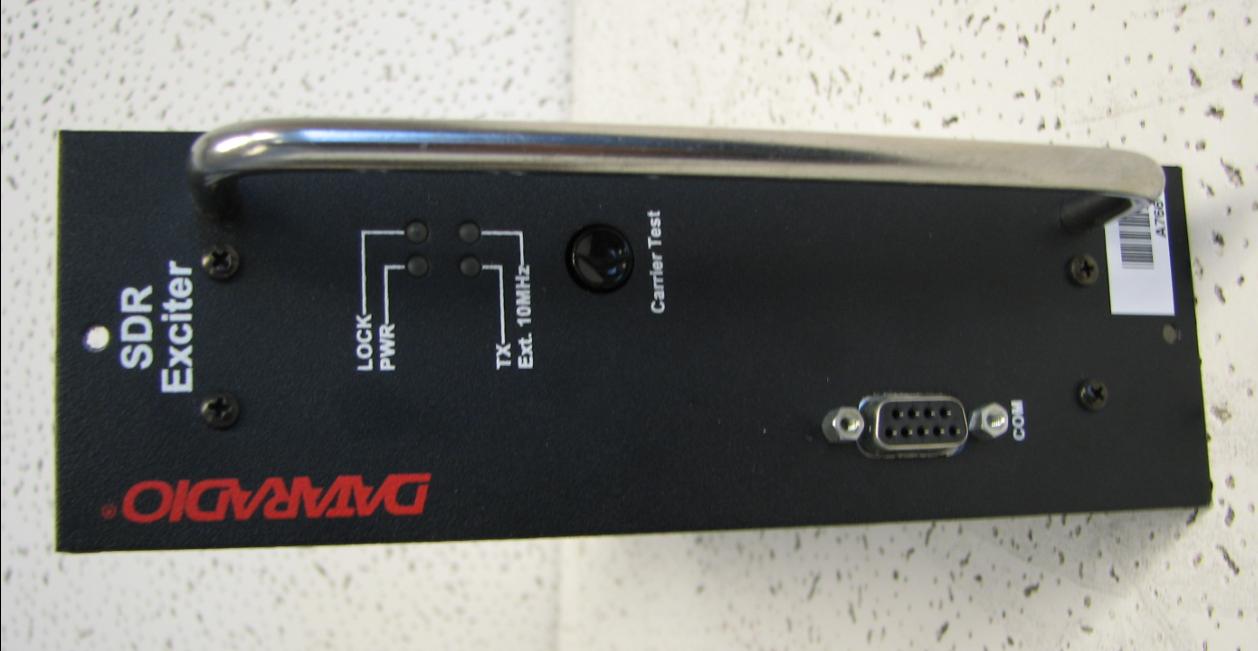

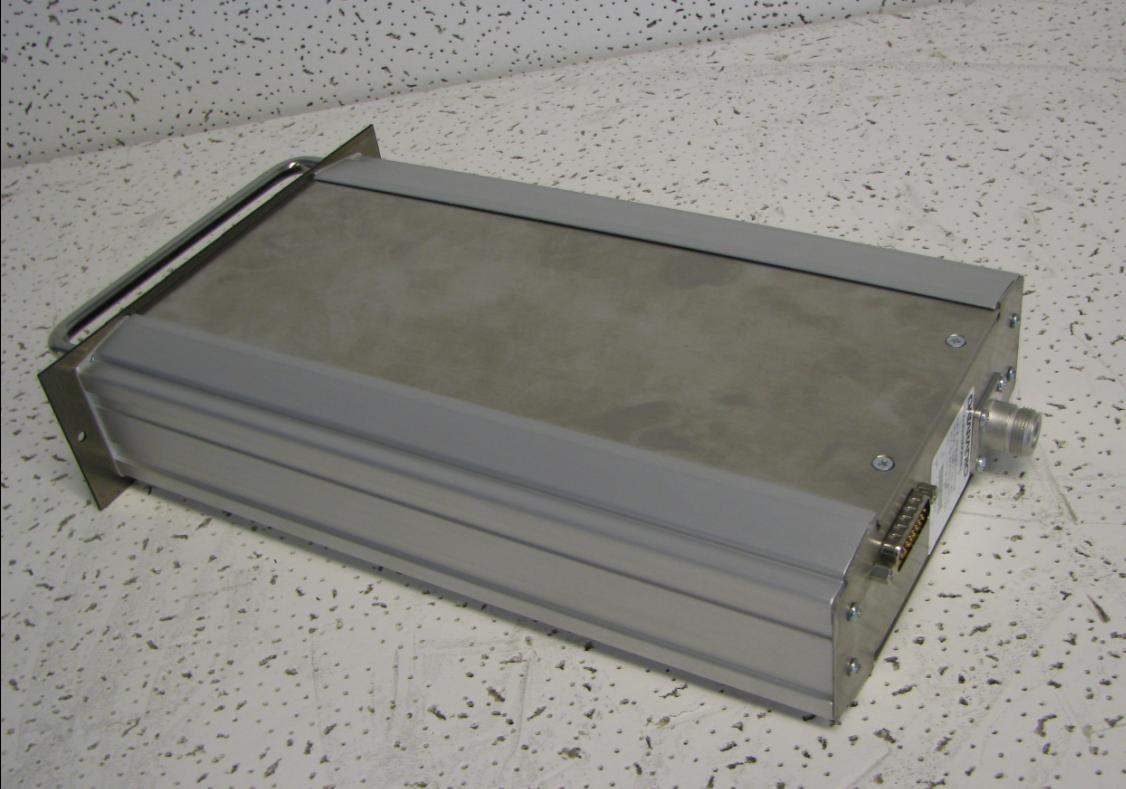

EOTBDP4-EXCT438UHF HIGH SDR Exciter for BDP4 digital base station

AERCEPT DATARADIO LANDCELL OMEGA SMARTLINK 299 Johnson Avenue, Suite 110 | Waseca, MN 56093 | t 507.833.8819 | f 507.833.6748 | calamp.com Dataradio P P a a r r a a g g o o n n 4 4 Data Base Station UHF, 700, and 800 MHz with Crescend Power Amplifier User Manual P/N 001-2019-500 Revision 0 May 2010 Preliminary 001-2019-500 Rev 0 Paragon4 – UHF, 700 & 800MHz User Manual ii 1. PREFACE .............................................................................................................................................................................. V 1.1 COPYRIGHT NOTICE ....................................................................................................................................................................... V 1.2 USER MANUAL STATEMENT ............................................................................................................................................................ V 2. DEFINITIONS ....................................................................................................................................................................... VI 3. PRODUCT OVERVIEW ............................................................................................................................................................ 1 3.1 INTENDED AUDIENCE ..................................................................................................................................................................... 1 3.2 GENERAL DESCRIPTION ................................................................................................................................................................... 1 3.3 SERVICE AND SUPPORT ................................................................................................................................................................... 3 3.4 PACKAGING .................................................................................................................................................................................. 4 4. INSTALLATION ....................................................................................................................................................................... 5 4.1 OVERVIEW ................................................................................................................................................................................... 5 4.2 LOCATION .................................................................................................................................................................................... 5 4.3 REAR VIEWS ................................................................................................................................................................................. 6 4.4 ELECTRICAL CONFIGURATIONS .......................................................................................................................................................... 7 4.5 ANTENNA .................................................................................................................................................................................. 12 4.6 COMPLETING THE PHYSICAL INSTALLATION........................................................................................................................................ 12 4.7 CHECKING OUT NORMAL OPERATION .............................................................................................................................................. 12 5. OPERATING DESCRIPTION ................................................................................................................................................... 13 5.1 RADIO ASSEMBLY ........................................................................................................................................................................ 13 6. OPERATION & CONFIGURATION .......................................................................................................................................... 18 6.1 BROWSER‐BASED INTERFACE ......................................................................................................................................................... 18 6.3 IP NETWORK CONFIGURATION ....................................................................................................................................................... 19 6.4 WEB SERVER LOGIN ..................................................................................................................................................................... 21 6.5 WEB INTERFACE .......................................................................................................................................................................... 22 6.6 UNIT STATUS .............................................................................................................................................................................. 23 6.7 SETUP (BASIC) ............................................................................................................................................................................ 29 6.8 SETUP (ADVANCED) ..................................................................................................................................................................... 34 6.9 SECURITY ................................................................................................................................................................................... 65 6.10 STATISTICS ................................................................................................................................................................................. 67 6.11 MAINTENANCE .............................................................................................................................................…

Text truncated - open the document above for the full version.

DATE : May 3, 2010 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:____ EOTBDP4-EXCT438___ Product Name:__ SDR-T-001-438 Exciter__ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • All files comprised of schematics, block diagrams and technical operational descriptions. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 3 Day of May 20 10 By: Richard Vallée Signature Printed Title: Senior Hardware Engineer On behalf of : CalAmp Corp. Telephone: 514-737-0020 x238 AERCEPT DATARADIO LANDCELL OMEGA SMARTLINK 101‐5540 Ferrier Street, TMR, QC, H4P 1M2, Canada | t 514.737.0020 f 514.737.7883 | www.calamp.com

DATE : May 3, 2010 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:____ EOTBDP4-EXCT438___ Product Name:__ SDR-T-001-438_Exciter__ Frequency Range Listing Calamp is requesting frequency range listing 438 – 512 MHz on the grant of equipment authorization. The operator can’t program and transmit on frequencies, other than those programmed by the manufacturer, service or maintenance personnel. It is a violation of FCC rules if the device operates on unauthorized frequencies. The following table is a list of frequencies covering the applied frequency range and their authorized / non-authorized use.” Frequency Range MHz Rule Part Comments 420 450 90 Private Land Mobile OK --- 97 Amateur N/A 450 454 74D Remote Pickup N/A --- --- 74H Low Power Auxiliary N/A --- --- 90 P P R R I I V V A A T T E E L L A A N N D D M M O O B B I I L L E E O O K K 454 455 22 Public Mobile N/A --- --- 80 Maritime N/A 455 456 74D Remote Pickup N/A --- --- 74H Low Power Auxiliary N/A 456 460 22 Public Mobile N/A --- 80 Maritime N/A --- --- 90 Private Land Mobile OK 460 462.5375 90 Private Land Mobile OK 462.5375 462.7375 95 Personal Radio N/A 462.7375 467.5375 90 Private Land Mobile OK 467.5375 467.7375 95 Personal Radio N/A 467.7375 470 90 Private Land Mobile OK 470 512 22 Public Mobile N/A -- --- 73 Broadcast Radio (TV) N/A --- --- 74G LPTV, TV Translator/Booster N/A --- --- 74H Low Power Auxiliary --- --- 90 Private Land Mobile OK AERCEPT DATARADIO LANDCELL OMEGA SMARTLINK 101‐5540 Ferrier Street, TMR, QC, H4P 1M2, Canada | t 514.737.0020 f 514.737.7883 | www.calamp.com Dated this 3 Day of May 20 10 By: Richard Vallée Signature Printed Title: Senior Hardware Engineer On behalf of : CalAmp Corp. Telephone: 514-737-0020 x238 AERCEPT DATARADIO LANDCELL OMEGA SMARTLINK 101‐5540 Ferrier Street, TMR, QC, H4P 1M2, Canada | t 514.737.0020 f 514.737.7883 | www.calamp.com

DATE : May 25, 2010 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:____ EOTBDP4-EXCT438___ Product Name:__ SDR-T-001-438_Exciter__ Tune Procedure There is no end user tune up procedure. The equipment is tuned at the factory before shipment. Each SDR-T- 001-438 exciter goes through an automatic tune station to be calibrated in power, modulation deviation and frequency error. Tune information for the exciter is stored in non-volatile memory and a record is kept by the manufacturer. If during an annual maintenance check, the exciter’s calibration is found to be off, we recommend to the end user to come into contact with our field support group and initiate an RMA request. Dated this 25 Day of May 20 10 By: Richard Vallée Signature Printed Title: Senior Hardware Engineer On behalf of : CalAmp Corp. Telephone: 514-737-0020 x238 AERCEPT DATARADIO LANDCELL OMEGA SMARTLINK 101‐5540 Ferrier Street, TMR, QC, H4P 1M2, Canada | t 514.737.0020 f 514.737.7883 | www.calamp.com

www.nemko.com Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Report number: 141816-3TRFWL Apparatus: P4 UHF 438–512 MHz exciter module Applicant: Calamp Corporation 5540 Ferrier St, Suite 101 Town of Mont Royal, QC H4P 1M2, Canada FCC ID: EOTBDP4-EXCT438 Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter D – Safety and special radio services Part 90 – Private land mobile services Subpart I – General technical standards − Radiated and conducted spurious emissions Reviewed by: June 4, 2010 Signature Date Kevin Ma, Wireless/EMC Specialist Tested by: Andrey Adelberg, Senior Wireless/EMC Specialist Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any suffered by any third party as a result of decisions made or actions based on this report. This report shall not be reproduced except in full without the written approval of the testing laboratory. Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Report Number: 141816-3TRFWL Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Specification: FCC 90 Page 2 of 19 Table of contents Section 1: Report summary.....................................................................................................................3 Section 2: Equipment under test.............................................................................................................4 2.1 Identification of equipment under test (EUT)...............................................................................4 2.2 Accessories and support equipment...........................................................................................4 2.3 EUT description...........................................................................................................................5 2.4 Technical specifications of the EUT............................................................................................5 2.5 EUT setup diagram.....................................................................................................................6 2.6 Operation of the EUT during testing............................................................................................6 2.7 Modifications incorporated in the EUT........................................................................................6 Section 3: Test conditions.......................................................................................................................7 3.1 Deviations from laboratory tests procedures...............................................................................7 3.2 Test conditions, power source and ambient temperatures..........................................................7 3.3 Measurement uncertainty............................................................................................................8 3.4 Test equipment............................................................................................................................8 Section 4: Result summary......................................................................................................................9 4.1 FCC Part 90: Test results............................................................................................................9 Appendix A: Test results........................................................................................................................10 Clause 90.210 Spurious emissions at the antenna terminal...............................................................10 Clause 90.210 Field strength of spurious radiation.............................................................................14 Appendix B: Block diagrams of test set-ups........................................................................................19 Section 1: Report summary Report Number: 141816-3TRFWL Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Specification: FCC 90 Page 3 of 19 Section 1: Report summary This report contains an assessment of apparatus against specifications based upon tests carried out on samples submitted at Nemko Canada Inc. Test specification: FCC Part 90 Private land mobile services Subpart I – General technical standards Compliance status: Complies Exclusions: Partial tests were performed as per Nemko quote number 14064R.1. Non-compliances: None Report release history: Original release Test location: Nemko Canada Inc. 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Registration number: 176392 (3 m Semi anechoic chamber) These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada I…

Text truncated - open the document above for the full version.

Engineering Test Report for the SDR-T-001 UHF 438-512MHz 0.4W Exciter Modules for the BDP4 Digital Base Station Report Number: 156-90000-921 Apparatus: SDR-T-001 UHF 438-512 MHz exciter module Model number: SDR-T-001-438 Applicant: CalAmp Corporation 5540 Ferrier Street, Suite 101 Town of Mount Royal, QC H4P 1M2, Canada IC ID: EOTBDP4-EXCT438 Test Specification: Title 47 - Telecommunication Part 90 - Private Land Mobile Radio Services Subpart I - General Technical Standards Prepard by: CalAmp Corporation Montreal R/D Department 5540 Ferrier Street, Suite 101 Town of Mount Royal, QC H4P 1M2, Canada Submitted by: ______________________ Richard Vallée: Senior Hardware Engineer Approved by: _______________________________________ Pierre Olivier: R/D Engineering Manager Engineering Test Report EUT: EOTBDP4-EXCT438 FCC submission Section A0: General All applicable test data according to: - Part 2: 2.1046, 2.1047, 2.1049 and 2.1057 - Part 90, Subpart I: 90.205, 90.207, 90.209, 90.213 and 90.214 are provided in this report, while other applicable test data according to Part 2.1051, 2.1053 and Part 90.210 (d)(3) are provided in another report, as shown below: Section- # of Pages Data Contents FCC parts Laboratory A0-1 General. A1-3 Transmitter Rated Power Output 2.1046 (a) (c), 90.205 CalAmp Corp, Montreal R&D A1-2 Frequency Stability vs Variation in Supply Voltage 2.1055 (d)(1), 90.213 CalAmp Corp, Montreal R&D A1-2 Frequency Stability vs Variation in Ambient Temperature 2.1055 (a) (b), 90.213 CalAmp Corp, Montreal R&D A2-3 P4 BSC2 Modulation Source: Modulation Characteristics - Digital Modulation Techniques - Spectrum Efficiency 2.1047, 90.207 - 2.1033 (c)(13) - 90.203 (j)(3) CalAmp Corp, Montreal R&D A3-3 P4_PD+ BDLCslim Modulation Source: Modulation Characteristics - Digital Modulation Techniques - Spectrum Efficiency 2.1047, 90.207 - 2.1033 (c)(13) - 90.203 (j)(3) CalAmp Corp, Montreal R&D A4-26 P4 BSC2 and P4_PD+ BDLCslim Modulation Sources: Occupied bandwidth – Emission Designator – Mask Compliance 2.201, 2.202, 2.1033(c) (14), 2.1041, 2.1049 (h), 90.209 (b)(5), 90.210 (c)(d) CalAmp Corp, Montreal R&D A5- 5 Transient Frequency Behavior 90.214 CalAmp Corp, Montreal R&D B1-24 Transmitter Unwanted Emissions 2.1051, 90.210 (d)(3) 2.1053, 90.210 (d)(3) Nemko Canada Inc, Ottawa Laboratories 69 Total number of report pages 156-90000-921 Page 2 of 46 Engineering Test Report EUT: EOTBDP4-EXCT438 FCC submission Section A1: Transmitter Power and Frequency Stability Summary These tests were conducted on a sample of equipment for the purpose of demonstrating compliance with the restrictions related to the RF power and the frequency stability of the equipment operating in the 406.1-512 MHz range, as defined by the rules found in FCC Part 90. These tests were performed in accordance with ANSI TIA-603 B. The assessment summary is: EQUIPMENT UNDER TEST: SDR-T-001-UHF 438-512MHz exciter module (model name SDR-T-001-438) SERIAL NUMBER (S): Pre-production sample SUPPORT EQUIPMENT: P4 base station controller/modem module, pre- production sample (model name BSC2) SPECIFICATIONS: FCC Part 90 Private Land Mobile Radio Services COMPLIANCE STATUS: Compliant EXCLUSIONS: None NON-COMPLIANCES: None TEST RESULTS SUMMARY: Test name Page No Worst case data Margin Assessment Transmitter Rated Output Power 400mW NA Pass Frequency Stability over voltage 26Hz or 0.06ppm 1.44ppm Pass Frequency stability over temperature 410Hz or 0.89 ppm 0.61ppm Pass The technical data included in this report has been accumulated through tests that were performed by me or under my direction. To the best of my knowledge, all of the data is true and correct PERFORMED BY: ____________________________ DATE: 13/04/10 Richard Vallée 156-90000-921 Page 3 of 46 Engineering Test Report EUT: EOTBDP4-EXCT438 FCC submission NAME OF TEST: Transmitter Rated Power Output RULE PART NUMBER: FCC 2.1046 (a) (c), 90.205 TEST RESULTS: 0.4W adjustable down to 4mW see data below TEST CONDITIONS: Standard Test Conditions TEST EQUIPMENT: 50-Ohm Attenuator, Tenuline Model 8340 / 20 dB / 25 Watt 50-Ohm Attenuator, Tenuline Model 8340 / 10dB / 25 Watt Power Supply, Instek Model GPS-2303 Power Meter, Model HP-436A TEST SET-UP: PERFORMED BY: ______________________________ Date: 05/04/10 156-90000-921 Page 4 of 46 Engineering Test Report EUT: EOTBDP4-EXCT438 FCC submission TEST RESULTS: Band Frequency (MHz) DC Voltage at Exciter (Vdc) DC Current into Exciter (Adc) DC Power into Exciter (W) RF Power Output (mW) 450.0125 13.8 1.09 15.04 393 460 13.8 0.39 5.38 0 460 13.8 0.99 13.66 4 460 13.8 1.11 15.32 400 UHF MID 469.9875 13.8 1.1 15.18 397 156-90000-921 Page 5 of 46 Engineering Test Report EUT: EOTBDP4-EXCT438 FCC submission NAME OF TEST: Frequency Stability with Variation in Supply Voltage RULE PART NUMBER: FCC 2.1055 (d)(1), 90.213 MINIMUM STANDARD: For 12.5KHz channel bandwidths, shall not exceed + 0.000150 % from test frequency, or +1.50 ppm for + 15% change in supply voltage. TEST RESULTS: Meets minimum standard, see data on following page TEST CONDITIONS: Standard Test Conditions, 25 C TEST EQUIPMENT: 50-Ohm Attenuator, Tenuline Model 8340 / 20dB / 25 Watt 50-Ohm Attenuator, Tenuline Model 8340 / 10dB / 25 Watt Frequency Counter, Fluke Model 1920A Digital Voltmeter, Fluke Model 8012A DC Power Supply, Instek Model GPS-2303 PERFORMED BY: ______________________________ Date: 05/04/10 TEST SET-UP: 156-90000-921 Page 6 of 46 Engineering Test Report EUT: EOTBDP4-EXCT438 FCC submission UHF MID: Channel Frequency: 460.00000 MHz tion: Input Voltage Frequency Delta Freq Ppm from assigned Power level: 0.4W Highest Varia0.06 ( Vdc ) ( MHz ) ( Hz ) Frequency 11.7 4 59.999988-12 -0.03 13.8 459.999974 -26 -0.06 15.9 459.999989 -11 -0.02 Spec. limit +1.50 ppm 156-90000-921 Page 7 of 46 Engineering Test Report EUT: EOTBDP4-EXCT438 FCC submission NAME OF TEST: Frequency Stability with Variation in Ambient Temperature RULE PART NUMBER: FCC 2.1055 (a) (b) MINIMUM STANDARD: For 12.5KHz c…
