EP78TQMT-300VHF Marine Transceiver

i M-TECH RADIO MODEL MT-300 DSC VHF Marine Radio Instruction Manual ii Table of Contents Section 1: Installation..................................................................1 Introduction ................................................................................... 1 Powering Your Radio ................................................................ 1 Auxiliary Wires......................................................................... 1 Bracket Installation .................................................................. 2 Antenna.......................................................................................... 3 How to Make a Distress Call........................................................ 4 Section 2: Basic Radio Operation................................................5 Using the Keypad.......................................................................... 5 Power/Volume............................................................................ 6 Squelch ....................................................................................... 6 H/L (High/Low) .......................................................................... 6 WX (Weather) ............................................................................ 6 16/9 (Priority Channel) ............................................................. 6 SCN (Scan)................................................................................. 6 MEM (Memory) ......................................................................... 7 CALL .......................................................................................... 7 DISTRESS ................................................................................. 7 SELECTOR................................................................................ 7 PTT (Press to Talk) ................................................................... 7 DSC Calling vs. non-DSC Calling ................................................ 7 What is a DSC call? ...................................................................7 How DSC works......................................................................... 8 Simplex or Duplex..................................................................... 8 MMSI (Maritime Mobile Service Identity) .................................. 8 MMSI Setup............................................................................... 9 Choosing a Channel.................................................................... 10 Making a Call.............................................................................. 10 Receiving a Call........................................................................... 11 Section 3: Advanced Operation .................................................13 Calls.......................................................................................... 13 Transmission ........................................................................... 13 AllShips Call........................................................................ 13 Directory Call...................................................................... 14 Distress Call........................................................................ 14 Last Call............................................................................... 16 New Call............................................................................... 16 Reception.................................................................................. 18 AllShips Call........................................................................ 18 Distress Call........................................................................ 18 Geographic Call................................................................... 18 Individual Call..................................................................... 19 iii Channels .................................................................................. 19 Channel Bank.......................................................................... 19 Directory .................................................................................. 20 Storing/Editing MMSI Data ............................................... 20 DSC Monitor ............................................................................ 21 GPS Operation......................................................................... 22 H/L............................................................................................ 22 Memory Operation .................................................................. 22 Position Send/Request ............................................................ 23 Transmission ....................................................................... 23 Reception.............................................................................. 24 Priority Channel (16/9) ........................................................... 25 PTT (Push To Talk) ................................................................. 25 Scan .......................................................................................... 25 Weather (Wx)........................................................................... 27 Frequency Charts & Usage .......................................................28 FCC Radio License and MMSI Number Information In U.S. waters, vessels which are not required to carry radio equipment are not required to have an FCC (Federal Communications Commis- sion) ship station license for a VHF marine radio. However, any vessel required to carry a marine radio on an interna- tional voyage, carrying a HF single side band radio telephone or ma- rine satellite terminal must have an FCC license. License application forms for ship and land stations can be downloaded free from the FCC web site at this address: www.fcc.gov/formpage.html. You may also order copies of these forms by calling the FCC Forms Dis- tribution Center at 1-800-418-36…

Text truncated - open the document above for the full version.

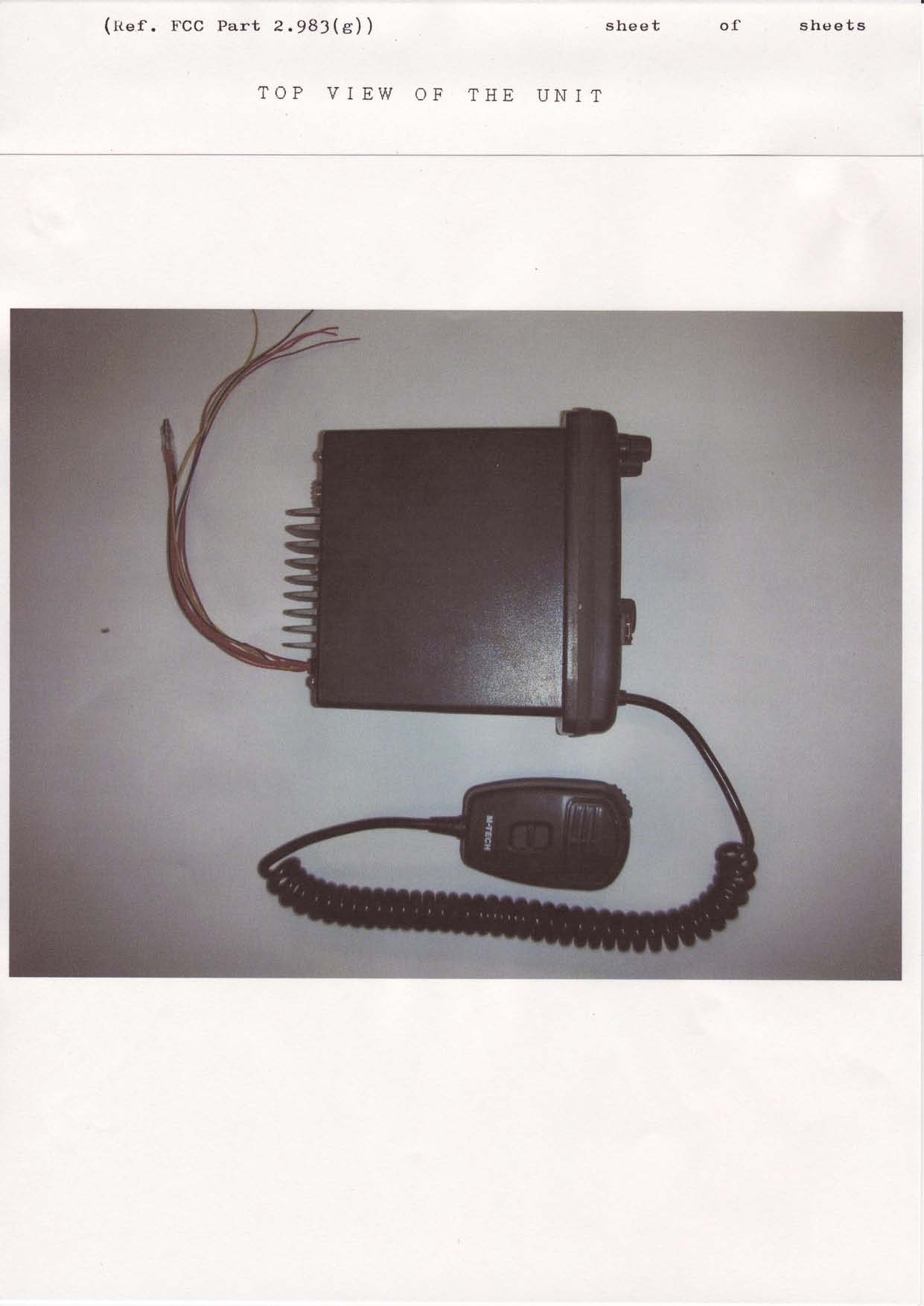

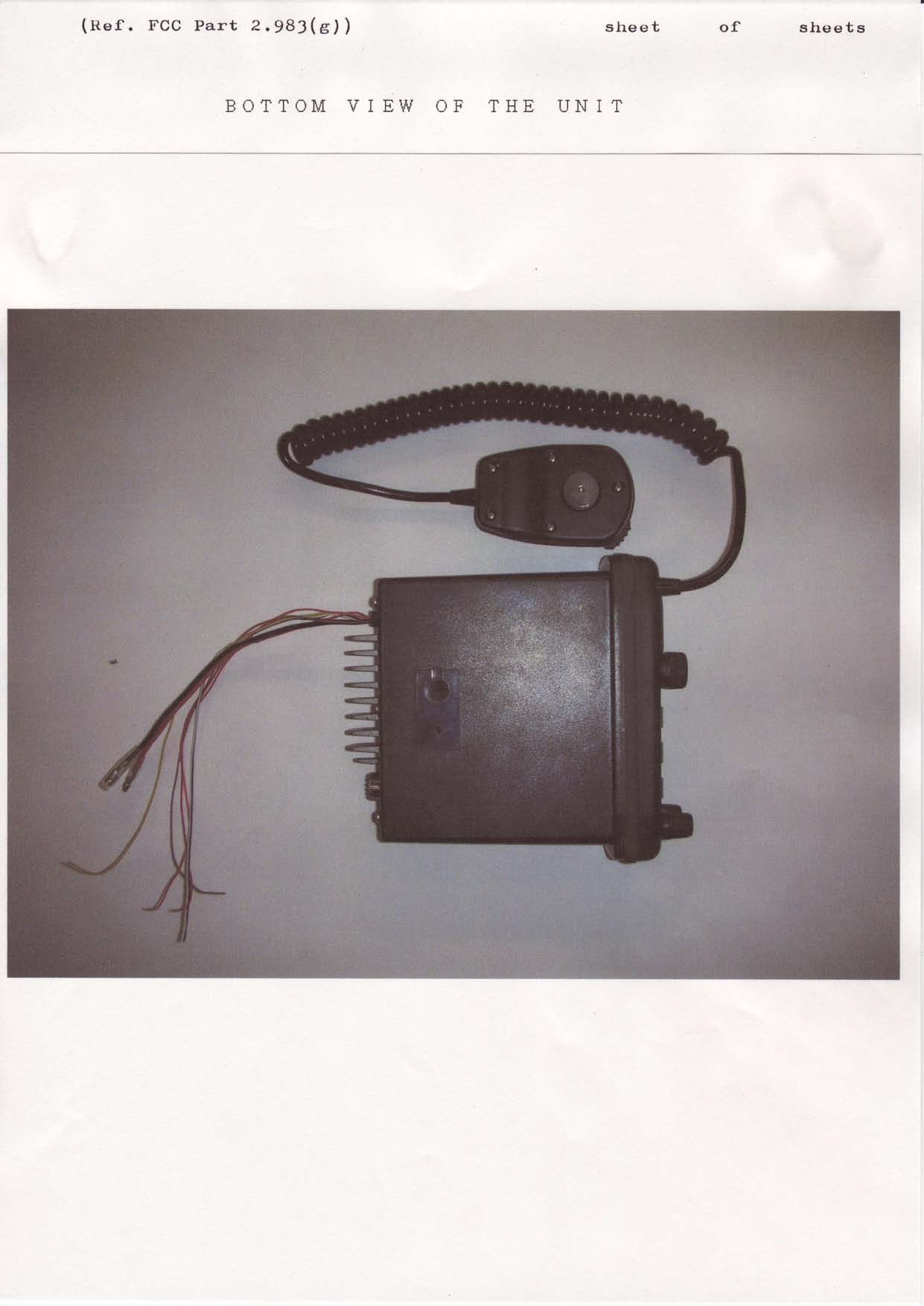

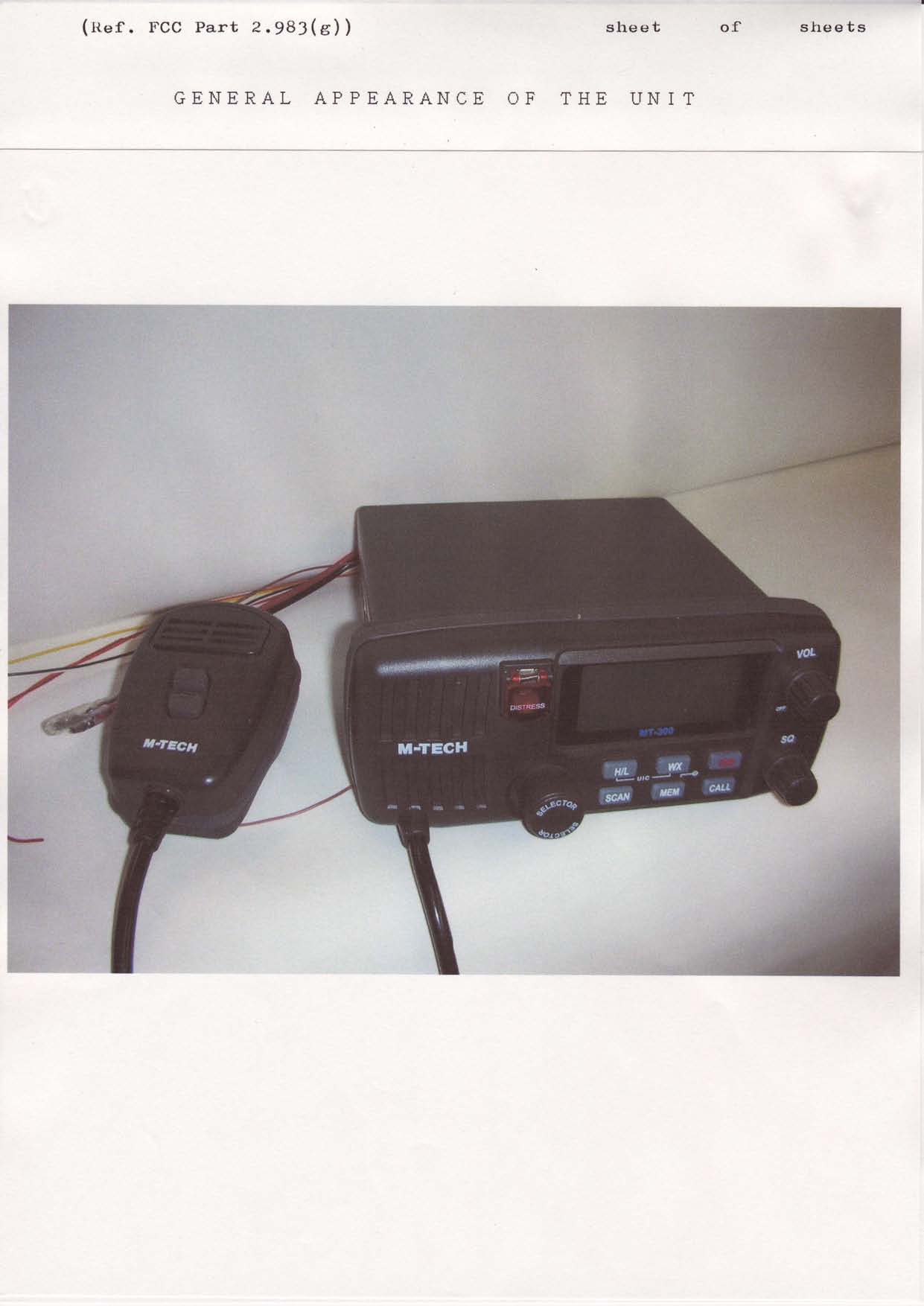

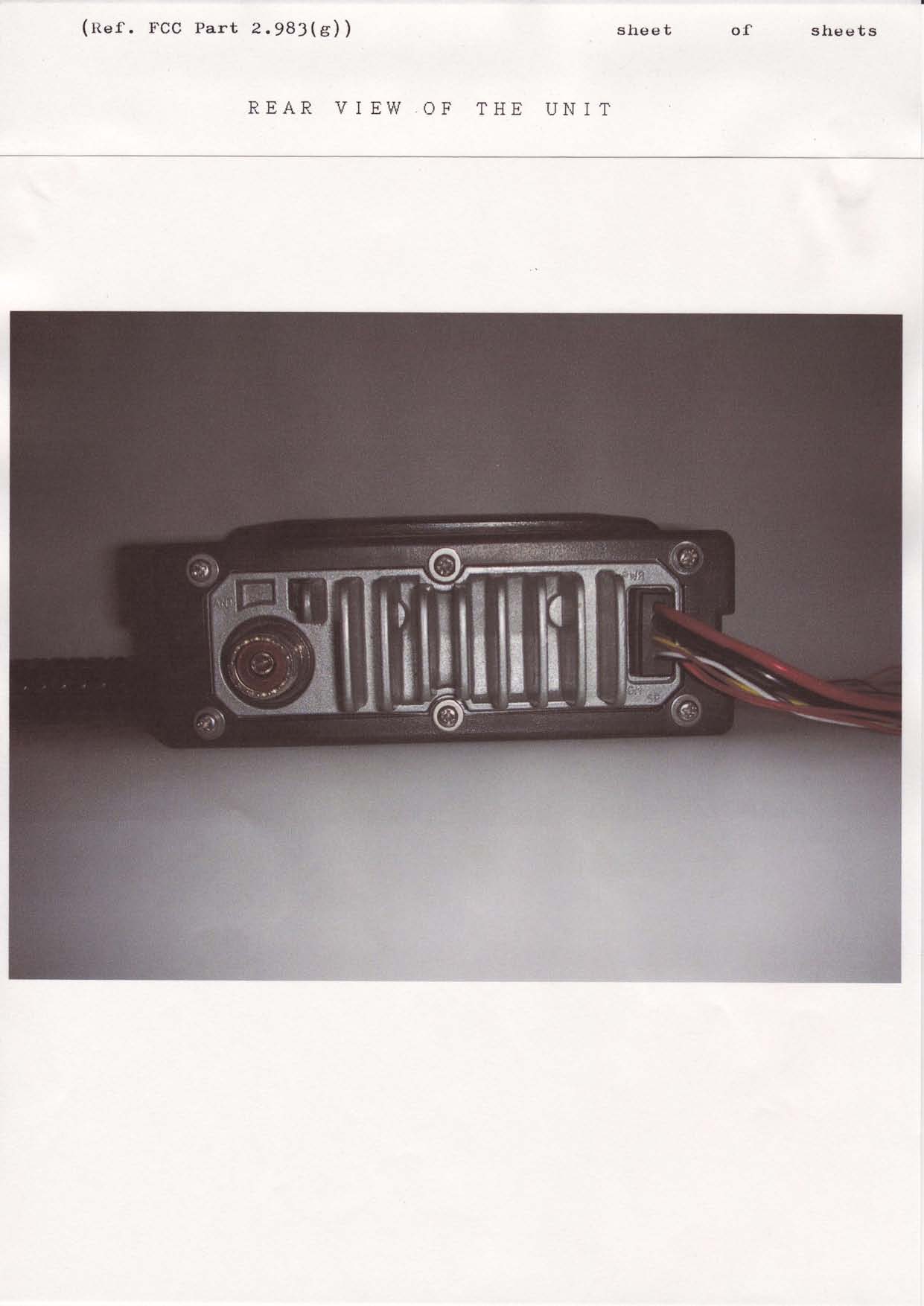

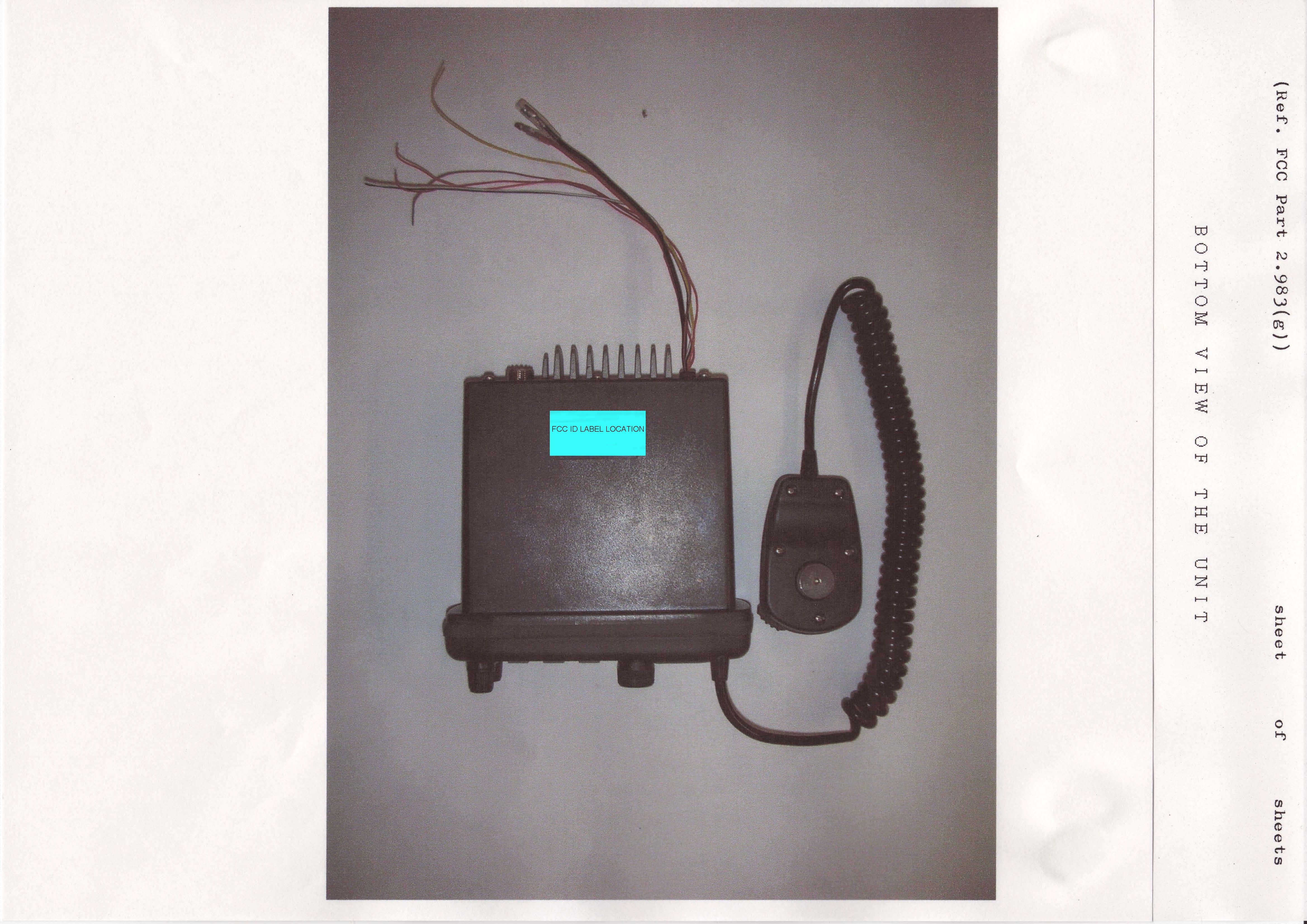

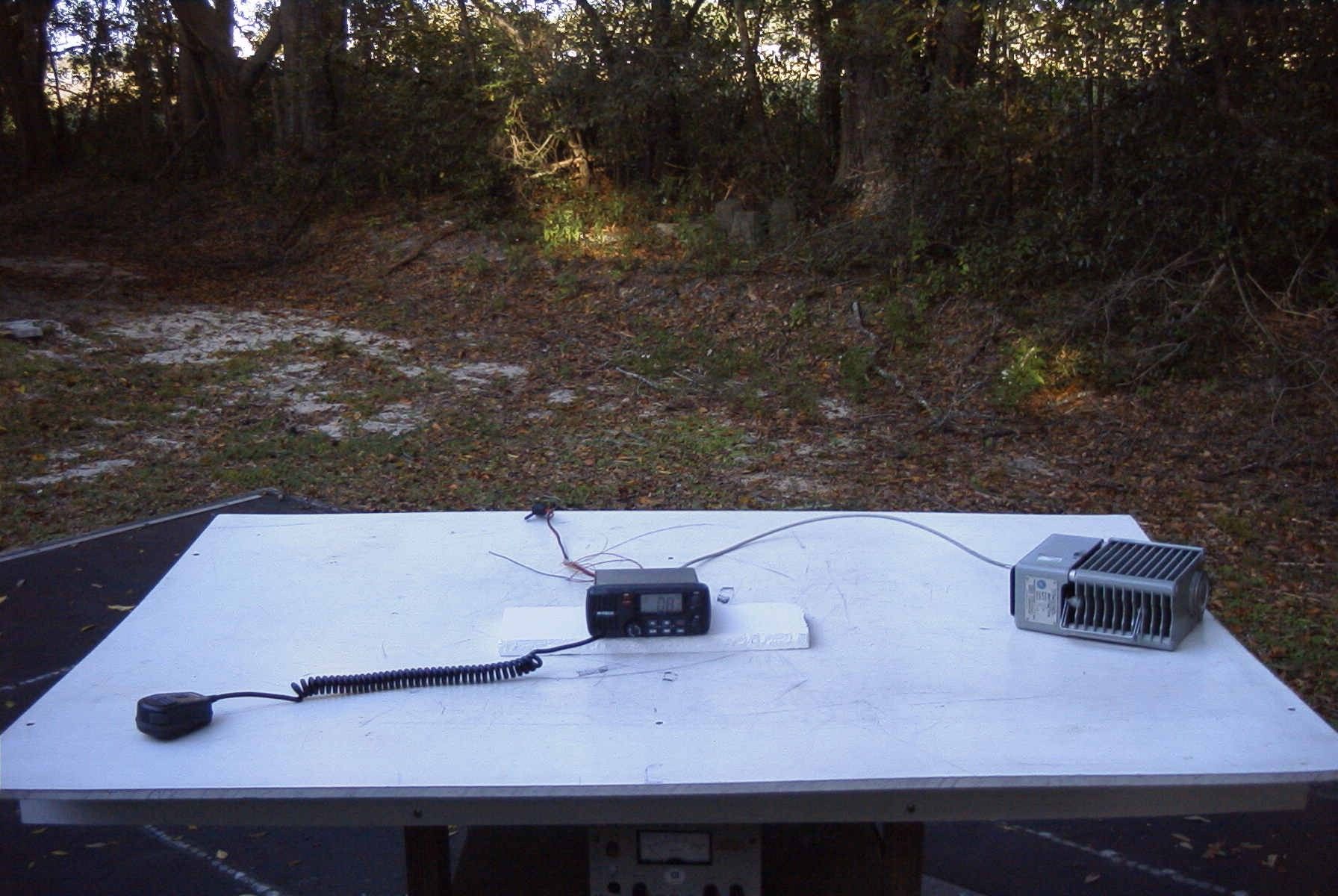

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PONY ELECTRIC CORPORATION FCC ID: EP78TQMT-300 Test Report Product Name: VHF MARINE TRANSCEIVER FCC ID: EP78TQMT-300 Applicant: PONY ELECTRIC CORPORATION NO. 202, 6-28, AKASAKA 9-CHOME MINATO-KU, TOKYO 107 JAPAN Date Receipt: 12/27/05 Date Tested: 12/28/05 REPORT #: P\PONY_EP7\2204AUT5\2204AUT5TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PONY ELECTRIC CORPORATION FCC ID: EP78TQMT-300 TABLE OF CONTENTS LIST APPLICANT: PONY ELECTRIC CORPORATION FCC ID: EP78TQMT-300 TEST REPORT: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3............TECHNICAL DATA PAGE 4............VOICE MODULATION CHARACTERISITICS AUDIO FREQUENCY RESPONSE PAGE 5............AUDIO LOW PASS FILTER PAGE 6............MODULATION LIMITING PAGE 7............OCCUPIED BANDWIDTH PAGE 8............OCCUPIED BANDWIDTH PLOT PAGE 9............SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 10...........METHOD OF MEASURING CONDUCTED SPURIOUS EMISS PAGE 11-12........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 13...........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 14...........FREQUENCY STABILITY PAGE 15-16........MPE CALCULATION PAGE 17...........LIST OF TEST EQUIPMENT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TUNING PROCEDURE TEST SET UP PHOTOGRAPHS GENERAL_INFORMATION REPORT #: P\PONY_EP7\2204AUT5\2204AUT5TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PONY ELECTRIC CORPORATION FCC ID: EP78TQMT-300 2.1033(c) PONY ELECTRIC CORPORATION will sell the FCC ID: EP78TQMT-300 VHF Marine transmitter in quantity, for use under FCC RULES PART 80. 2.1033(c) TECHNICAL_DESCRIPTION (4) Type of Emission: 16K0G3E/16K0F3E Bn = 2M + 2DK M = 3000 D = 4.6KHz (Peak Deviation) K = 1 Bn = 2(3.0K) + 2(4.6K)(1) = 6.0K + 10.0 = 16.0K 80.205 (a) ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. 2.1033(c)(6) Frequency Range: 156.025 – 157.425 MHz 2.1033(c)(7) Power Range and Controls: There is a user Power switch for High/Low Power. Maximum Output Power Rating: High 25 Watts, Low 1 Watt, into a 50 ohm resistive load. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY High Low Vce = 13.8 Volts Vce = 13.8 VDC Ice = 4.23A Ice = 0.92A Pin = 58.37 Watts Pin = 12.69 Watts Function of each electron tube or semiconductor device or other active circuit device is included in the parts list exhibit. REPORT #: P\PONY_EP7\2204AUT5\2204AUT5TestReport.doc Page 1 of 17 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PONY ELECTRIC CORPORATION FCC ID: EP78TQMT-300 2.1033(c)(9) Complete Circuit Diagrams: The circuit diagrams and block diagrams are included. 2.1033(c)(10) Instruction book. The instruction manual is included. 2.1033(c)(11) Tune-up procedure. The tune-up procedure is included. Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description 2.1033(c)(11) Digital modulation. This unit does NOT use digital modulation. The data required by 2.1046 through 2.1055 is submitted below. 2.1046(a) RF_power_output. 80.215 (e)(1) RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: HIGH: 25 W CONDUCTED LOW: 1 W CONDUCTED 80.911 (d)(5) For primary supply voltages, measured in accordance with the procedures in this paragraph, greater than 11.5 volts, but less than 12.6 volts, the required transmitter output power shall be equal or greater than the value calculated below P = 4.375(v) – 35.313 (For 12V this equals 17.2W) METHOD OF MEASURING RF POWER OUTPUT Transmitter 50 ohm under test Resistive Wattmeter Power Supply REPORT #: P\PONY_EP7\2204AUT5\2204AUT5TestReport.doc Page 2 of 17 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PONY ELECTRIC CORPORATION FCC ID: EP78TQMT-300 TECHNICAL DATA: 80.203 (b) External Controls: The transmitter is capable of changing frequency between 156.05 – 157.425 MHz by external control. The available channels are shown in the User Manual description Channel List. These channels are preprogrammed by the manufacturer and change of frequency is inaccessible to the station operator. 80.203 (c) Five minutes continuous transmission test. The antenna was connected to a dummy load and the radio was locked in a transmit PTT mode. An external timer digital clock was used to observe the duration of the un-modulated transmission. The transmitter turned off and the radio went to receive mode at 4 minutes, 58 seconds as displayed by the external digital clock. 80.203 (n) This radio complies with the requirement for DSC capability in the 156 – 162 MHz band and in accordance with 80.225. 80.873; 80.956 Transmitter G3E emission capability: The transmitter was connected to 50 ohm resistive wattmeter and the frequency was set to 156.300 and to 156.800 MHz. With normal modulation, the output power displayed was 25 Watts at the high power setting and 1 watt at low power setting, consistent with previous measurements. The transmitter has been demonstrated to be capable, with normal operating voltages applied, of delivering 25 watts of carrier power into a 50 ohm resistive load over the spe…
