ESD-SA824894S3Rugged handheld computer with integrated wireless

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 9 User’s Manual User’s Guide 0-15-15-0022 REVD Copyright 2000 Melard Technologies, Inc. All rights reserved. This document may not, in whole or part, be photocopied, reproduced, translated or reduced to any electronic medium or machine readable form without prior consent, in writing, from Melard Technologies, Inc. Notice: Melard Technologies reserves the right to make changes in the product described in this manual at any time and without notice. Sidearm All-Terrain Handheld PC is a trademark of Melard Technologies, Inc. Microsoft, Windows and Windows CE are registered trademarks of Microsoft Corp. Intel is a registered trademark of Intel Corp. This equipment conforms to FCC Parts 2 & 90 FCC Class B Part 15 This equipment has been tested and found to comply wi th the limits for a class A digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class B limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your dealer or an experienced technician for help. Contents Getting started...............................................................................1 Unpacking................................................................................2 Power.............................................................................................4 Power options..........................................................................5 Installing the main battery........................................................6 Determining main battery condition..........................................6 Low power management..........................................................6 When the main battery becomes low.......................................7 Charging the main battery.................................................7 Swapping the main battery................................................8 When the backup battery becomes low....................................9 Replacing the backup battery............................................9 Using the Sidearm.......................................................................10 Turning the Sidearm on and off..............................................11 Setting automatic power-off time.....................................11 Understanding the indicators.................................................12 Using the stylus......................................................................13 Accessing the stylus.......................................................13 Calibrating the touchscreen............................................14 Managing the display panel...................................................14 Adjusting brightness........................................................14 Adjusting contrast...........................................................14 Controlling backlighting...................................................15 Setting audio volume..............................................................15 Wireless communications (optional).......................................16 Integrated wireless modems...........................................16 Sidearm’s wireless antenna............................................16 Landline communications (optional).......................................16 Resetting the Sidearm............................................................16 Performing a soft reset....................................................17 Performing a full reset.....................................................17 Restoring unit back to factory settings............................18 Maintaining the Sidearm.............................................................19 Cleaning the Sidearm.............................................................20 Disposing of batteries.............................................................20 Customer support...................................................................21 Availability.......................................................................21 Returning equipment for repair.......................................21 Sidearm specifications...............................................................23 Limited one-year warranty – hardware...................................25 Introduction Melard Technologies’ Sidearm All-Terrain Handheld PC™ is a rugged, Microsoft Windows CE-based handheld computer with integrated wireless communications. It provides a compact and lightweight mobile computing platform for field service operations. System Features n 640 x 240 touch-sensitive transflective display that supports navigation with stylus (included) or finger. n PC Card and CompactFlash slots. n Integrated half-wave dipole antenna (optional). n Internal V.90 56K modem (optional). n IrDA infrared port. n RS232 serial port with DB9 connector. n USB host port. n Power from rechargeable battery or AC adapte…

Text truncated - open the document above for the full version.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 10 Attestation Statements FCC Part 15, Subpart B Certificate of Conformity FCC Part 2 & 22 Statement of Compliance October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 PRODUCT: Rugged handheld computer with integrated wireless communications MODEL: Sidearm ALL-Terrain Handheld PC MANUFACTURER: Melard Technologies Inc. We certify that the pertinent tests have been performed on the above described equipment and that this equipment conforms FCC Parts 2 and 22. See Exhibit 2, Engineering Reports, of this application.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Table of Contents List of Exhibits Submitted E E X X H H I I B B I I T T 1 1 : : C C O O V V E E R R L L E E T T T T E E R R S S a)Application overview b)Equipment: Rugged handheld computer with integrated wireless communications(Using an approved radio modem FCC ID:N7NOEM2) c)Authorization Letter /Agent Designated (Jay Sarkar) d)Request for confidentiality e)Letter from Sierra Wireless. authorizing to use FCC approved (FCC ID N7NOEM2) radio modem in Melard Sidearm ALL-Terrain Handheld PC Exhibit 2:Engineering Reports (Test Reports) a)ERP (2.1046) b)Radiated Spurious Emissions (2.1053) c)Bandwidth (2.1049) Bandwidth Limitations (2.1047) d)Spurious Emissions, Antenna Terminal (2.1051) e)Frequency Stability (2.1055) Exhibit 3: Operational/Technical Description Exhibit 4: ID Label/Location Exhibit 5:External Photographs of the Equipment Internal Photographs of the Equipment Exhibit 6:Block Diagram (Confidential) Exhibit 7: Schematic Diagram (Confidential) Exhibit 8:Parts List (Confidential), Tune–up Procedure Exhibit 9:User’s Manual Exhibit 10:a) Attestation Statement: FCC Part 15 Declaration of Conformance (DoC) certificate b)Attestation Statement: the equipment complies with Part 2 & 22 Exhibit 11:RF Exposure Information: SAR Report (Includes Test Set-up Photographs)

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 1 a)Application overview b)Equipment: Rugged handheld computer with integrated wireless communications(Using an approved radio modem FCC ID:N7NOEM2) c)Authorization Letter /Agent Designated (Jay Sarkar) d)Request for confidentiality e)Letter from Sierra Wireless. authorizing to use FCC approved (FCC ID N7NOEM2) radio modem in Melard Sidearm ALL-Terrain Handheld PC October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 EQUIPMENT PRODUCT: Rugged handheld computer with integrated wireless communications MODEL: Sidearm ALL-Terrain Handheld PC MANUFACTURER: Melard Technologies Inc. FCC ID: ESD-SA824894S3 PRODUCT: Rugged handheld computer with integrated wireless communications MODEL: Sidearm ALL-Terrain Handheld PC with a Sierra Wireless SB300Transmitter (FCC ID: N7NOEM2) EUT TYPE: Licensed Non-Broadcast Station Transmitter (TNB) TX Frequency: 824-849 MHz MEASURED ERP:0.398 W

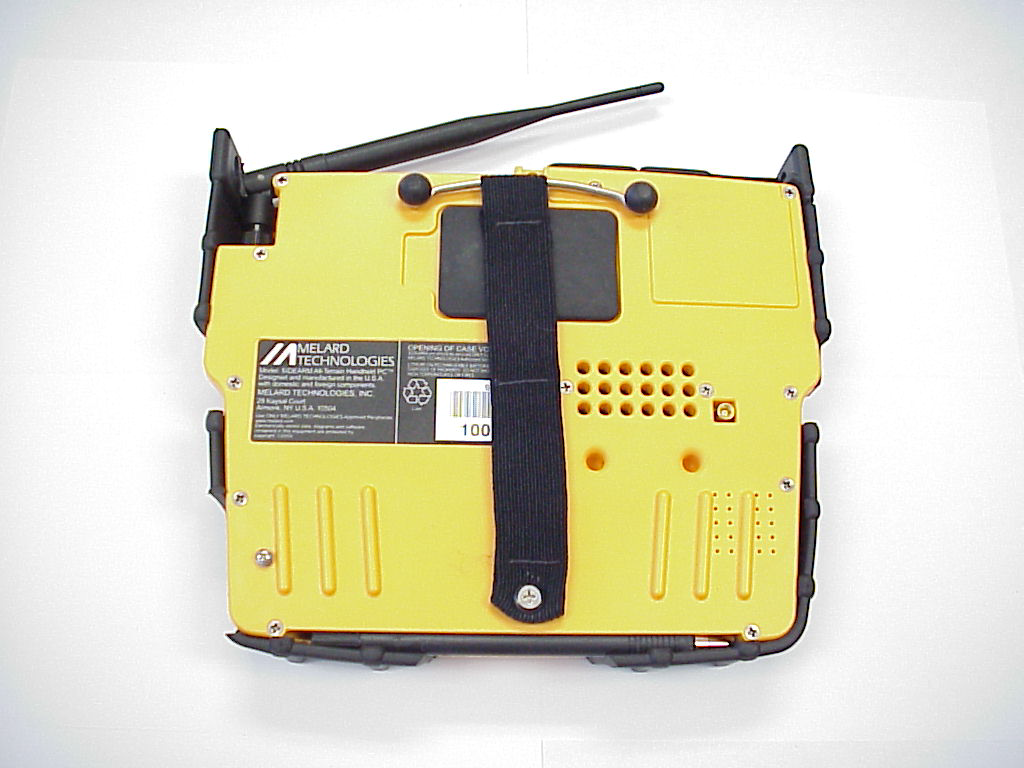

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 5 Photographs of the Equipment External Photos

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 4 FCC ID Label/Location Melard Technologies, Inc. SIDEARM PRODUCT FCC LABEL LOCATION Page 1 of 1 1/10/01 Bottom view of SIDEARM. FCC ID Label to be placed here. Melard Technologies, Inc. SIDEARM PRODUCT FCC LABEL LOCATION Page 2 of 2 1/10/01 Insert radio modem FCC ID labels in this area.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 5 Photographs of the Equipment Internal Photos, Part I LTRECODESCRIPTIONDATE REVISION PROPRIETARY NOTICE INFORMATION DISCLOSED HEREIN IS THE PROPERTY OF MELARD TECHNOLOGIES, INC. IT IS FURNISHED FOR EVALUATION PURPOSES ONLY AND SHALL NOT BE DISCLOSED, COPIED OR USED FOR ANY OTHER PURPOSES, EXCEPT AS SPECIFIED BY WRITTEN CONTRACT BETWEEN THE RECIPIENT AND MELARD TECHNOLOGIES, INC. DUPLICATION OF ANY PORTION OF THIS DATA MUST INCLUDE THIS LEGEND MELARD TECHNOLOGIES, INC. 28 KAYSAL COURT ARMONK, N.Y. 10504 SCALE: NONE SHEET 1 OF 1 SIGNATURES ON FILE IF BOX CHECKED APPROVALSDATE 06/26/00 ENG DRW PAM ECC FINISH: MATERIAL: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. TOLERANCES ARE: FRACTIONS DECIMALS ANGLES +/- 1/64 .XX= +/- .010 +/- 1/2 O .XXX = +/- .005 SideArm Sierra Wireless SB300, personality - Primary Side

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 5 Photographs of the Equipment Internal Photos, Part II LTRECODESCRIPTIONDATE REVISION PROPRIETARY NOTICE INFORMATION DISCLOSED HEREIN IS THE PROPERTY OF MELARD TECHNOLOGIES, INC. IT IS FURNISHED FOR EVALUATION PURPOSES ONLY AND SHALL NOT BE DISCLOSED, COPIED OR USED FOR ANY OTHER PURPOSES, EXCEPT AS SPECIFIED BY WRITTEN CONTRACT BETWEEN THE RECIPIENT AND MELARD TECHNOLOGIES, INC. DUPLICATION OF ANY PORTION OF THIS DATA MUST INCLUDE THIS LEGEND MELARD TECHNOLOGIES, INC. 28 KAYSAL COURT ARMONK, N.Y. 10504 SCALE: NONE SHEET 1 OF 1 SIGNATURES ON FILE IF BOX CHECKED APPROVALSDATE 06/26/00 ENG DRW PAM ECC FINISH: MATERIAL: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. TOLERANCES ARE: FRACTIONS DECIMALS ANGLES +/- 1/64 .XX= +/- .010 +/- 1/2 O .XXX = +/- .005 SideArm Sierra Wireless SB300, personality - Secondary Side LTRECODESCRIPTIONDATE REVISION PROPRIETARY NOTICE INFORMATION DISCLOSED HEREIN IS THE PROPERTY OF MELARD TECHNOLOGIES, INC. IT IS FURNISHED FOR EVALUATION PURPOSES ONLY AND SHALL NOT BE DISCLOSED, COPIED OR USED FOR ANY OTHER PURPOSES, EXCEPT AS SPECIFIED BY WRITTEN CONTRACT BETWEEN THE RECIPIENT AND MELARD TECHNOLOGIES, INC. DUPLICATION OF ANY PORTION OF THIS DATA MUST INCLUDE THIS LEGEND MELARD TECHNOLOGIES, INC. 28 KAYSAL COURT ARMONK, N.Y. 10504 SCALE: NONE SHEET 1 OF 1 SIGNATURES ON FILE IF BOX CHECKED APPROVALSDATE 06/26/00 ENG DRW PAM ECC FINISH: MATERIAL: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. TOLERANCES ARE: FRACTIONS DECIMALS ANGLES +/- 1/64 .XX= +/- .010 +/- 1/2 O .XXX = +/- .005 SideArm Main Board - Primary Side LTRECODESCRIPTIONDATE REVISION PROPRIETARY NOTICE INFORMATION DISCLOSED HEREIN IS THE PROPERTY OF MELARD TECHNOLOGIES, INC. IT IS FURNISHED FOR EVALUATION PURPOSES ONLY AND SHALL NOT BE DISCLOSED, COPIED OR USED FOR ANY OTHER PURPOSES, EXCEPT AS SPECIFIED BY WRITTEN CONTRACT BETWEEN THE RECIPIENT AND MELARD TECHNOLOGIES, INC. DUPLICATION OF ANY PORTION OF THIS DATA MUST INCLUDE THIS LEGEND MELARD TECHNOLOGIES, INC. 28 KAYSAL COURT ARMONK, N.Y. 10504 SCALE: NONE SHEET 1 OF 1 SIGNATURES ON FILE IF BOX CHECKED APPROVALSDATE 06/26/00 ENG DRW PAM ECC FINISH: MATERIAL: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. TOLERANCES ARE: FRACTIONS DECIMALS ANGLES +/- 1/64 .XX= +/- .010 +/- 1/2 O .XXX = +/- .005 SideArm Main Board - Secondary Side

Spectrum Sciences Institute RF Dosimetry Research Board Attention: all comments, suggestions, and inquiries should be addressed to Dr. Jack J. Wojcik or Dr. Paul G. Cardinal 51 Spectrum Way, Nepean, Ontario, K2R 1E6, Canada. tel.:(613)820-2730, fax:(613)820-4161 e-mail: [email protected] Phantom Design Requirements SSI/DRB-TP-D01-031 PART of SAR Measurements Requirements SSI/DRB-TP-D01-030 DRAFT Prepared jointly with: Near Field Measurements Laboratory March 1998 - NOTICE - This draft was prepared to assist the Dosimetry Research Board of SPECTRUM SCIENCES INSTITUTE and specifically the Working Group on SAR Measurements. It is submitted as a basis for discussion only, and is not binding on APREL Inc. Subsequent study may lead to revisions of the document, both in numerical values and/or form, and after continuing study and analysis, APREL Inc. specifically reserves the right to add to, or amend the content of this contribution. SSI/DRB-TP-D01-031 Page 2 of 15 Comments and inquiries should be addressed to:Ref: Project U404-7-0016 -1997 RF Dosimetry Research Board (DRB) Spectrum Sciences Institute 51 Spectrum Way, Nepean, Ontario, Canada K2R 1E6 Tel. (613) 820-6471 Fax (613) 820-4161 e-mail: [email protected] Spectrum Sciences Institute RF Dosimetry Research Board TABLE OF CONTENTS 1.0Introduction3 1.1Purpose And Scope Of The Standard3 1.2Test Facilities3 1.3Test Personnel3 1.4Standard Environmental Conditions3 2.0Background4 3.0References5 4.0Definitions6 5.0Phantoms6 5.1Universal Head-Arm (Unihead) Phantom6 5.1.1Head Simulator6 5.1.2Arm And Hand Simulator10 5.1.3Materials10 5.2Flat Phantom13 5.3Insulated Flat Phantom13 6.0Sar Laboratory Setup13 7.0Test configurations using the Uni-Head15 SSI/DRB-TP-D01-031 Page 3 of 15 Comments and inquiries should be addressed to:Ref: Project U404-7-0016 -1997 RF Dosimetry Research Board (DRB) Spectrum Sciences Institute 51 Spectrum Way, Nepean, Ontario, Canada K2R 1E6 Tel. (613) 820-6471 Fax (613) 820-4161 e-mail: [email protected] Spectrum Sciences Institute RF Dosimetry Research Board 1.0INTRODUCTION 1.1Purpose and Scope of the Standard The purpose of this document is to standardize the phantom(s) required for Specific Absorption Rate (SAR) testing associated with SAR measuring systems. This document defines the parts and dimensions of the phantom, in accordance with industry standards and practices. This Standard defines: - the methodology and procedures used to define a reproducible representation of the human head, hand and arm - the dimensions on the canonical shapes used, and the materials required - the hardware required and the proper setup This Standard is part of a Certification Program Methodology as described in a separate document entitled "SSI/DBR TP-D01-030, Specific Absorption Rate (SAR) Standard For Portable Telecommunications Devices, March 1998". SSI/DBR TP-D01-031 contains specific criteria that must be met for SAR certification. 1.2Test Facilities All calibration work as described in this Standard shall be performed at an ISO/IEC Guide 25 accredited laboratory. 1.3Test Personnel Personnel performing the calibration will be experienced in relevant measurements (e.g. physical properties or RF characteristics) and supervised by a person proficient in SAR measurements. 1.4Standard Environmental Conditions All measurements and calibration should be performed under normal laboratory conditions for physical properties and electrical characteristics as stipulated by ISO/IEC Guide 25. The nominal temperature for physical property measurements and for electrical characterization are 20°C and 23°C, respectively. SSI/DRB-TP-D01-031 Page 4 of 15 Comments and inquiries should be addressed to:Ref: Project U404-7-0016 -1997 RF Dosimetry Research Board (DRB) Spectrum Sciences Institute 51 Spectrum Way, Nepean, Ontario, Canada K2R 1E6 Tel. (613) 820-6471 Fax (613) 820-4161 e-mail: [email protected] Spectrum Sciences Institute RF Dosimetry Research Board 2.0BACKGROUND Portable communication devices used by consumers typically operate over the range of several watts to a milliwatt, or less, using either analog or digital modulation techniques. Most portable telephones have antennas that radiate within a few centimeters of the user's head. The field strength and field distribution near the antenna are highly dependent on the location, orientation and electromagnetic characteristics of adjacent objects. The head and hand are normally in the reactive near-field region of the antenna where the electromagnetic field is non-propagating. The energy absorbed in the head and hand is mainly due to electric fields induced by the magnetic fields generated by currents flowing through the feedpoint, along the antenna and body of the portable device. The RF energy is scattered and attenuated as it propagates through the tissues of the head, and maximum energy absorption is expected in the more absorptive high water-content tissues near the surface of the head or hand. To account for near-field effects portable devices are evaluated with realistic head models called a phantom. A phantom is a device that simulates the size, contours, and electrical characteristics of human tissue at normal body temperature. It is composed of a manikin (solid shell) and a tissue-equivalent synthetic material solution (see SSI/DRB-TP-D01-033). The solid manikin shell is made of a dielectric material, which is transparent to RF energy (i.e. has very low RF absorption), and is as thin as possible while maintaining the strength necessary to hold the mass of simulated tissue. Current phantoms in use are: - Universal Head-arm (UniHead) Phantom for ear independent evaluation of the RF exposure in the head of users by telephone-type devices, as well as RF exposure in the head of users of hand held radios positioned in front of the face, and in the hand of users of hand held portable devices - Flat Phantom for evaluating the RF exposure of other part…

Text truncated - open the document above for the full version.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 2 Engineering Report a)ERP (2.1046) Assessment of Compliance for Effective Radiated Power (ERP) in accordance with the FCC Rules & Regulations Part 2.1046 Rugged handheld computer with integrated wireless communications Sidearm ALL-Terrain Handheld PC Melard Technologies, Inc. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] October 2000 MELB-Sierra CDPD Sidearm-3608 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories  October 2000 Page 2 APREL Project No: MELB –Sierra CDPD Sidearm – 3608 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:ESD-SA824894S3 Applicant:Melard Technologies Inc. Equipment:Rugged handheld computer with integrated wireless communications Model:Sidearm ALL-Terrain Handheld PC™ Standard:FCC Rules and Regulations Part 2.1046 and 22 ENGINEERING SUMMARY This report contains the results of the effective radiated power (ERP) measurement performed on a Melard Rugged handheld computer with integrated wireless communications operating with a built-in Sierra Wireless CDPD radio transmitter. The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1046 and 22. The product was evaluated for ERP when it was set at the maximum power level. Melard Sidearm ALL-Terrain Handheld PC™ was tested for ERP at high, middle, and low frequencies with the maximum ERP obtained at channel No.: 367 with the frequency being 836.01 MHz. The test data is presented in this report under the section: Test Results. The measured ERP is 0.398 W. (The results presented in this report relate only to the sample tested.)  October 2000 Page 3 APREL Project No: MELB –Sierra CDPD Sidearm – 3608 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary RF Power Output as Radiated Ref. Paragraph 2.1046 and 2281 Passed  October 2000 Page 4 APREL Project No: MELB –Sierra CDPD Sidearm – 3608 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the effective radiated power (ERP) measurement conducted on a Melard Technologies Rugged handheld computer with integrated wireless communications model: Sidearm ALL-Terrain Handheld PC™ operating with a built-in Sierra Wireless CDPD radio transmitter. Test Facility The tests were performed for Melard Technologies, Inc. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is: 90416 APREL is accredited by Standard Council of Canada. APREL is also accredited by Industry Canada and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1046 and the appropriate limits (22). Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. - Temperature:25 °C ± 2 - Relative Humidity:30 - 50 % - Air Pressure:101 kPa ± 3  October 2000 Page 5 APREL Project No: MELB –Sierra CDPD Sidearm – 3608 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC SUBMISSION INFORMATION FCC ID:ESD-SA824894S3 EquipmentRugged handheld computer with integrated wireless communications Model:Sidearm ALL-Terrain Handheld PC™ For:Certification Applicant:Melard Technologies Inc. 28 Kaysal Court Armonk, NY 10504 U.S.A. Manufacturer: Melard Technologies Inc. 28 Kaysal Court Armonk, NY 10504 U.S.A. Evaluated by:APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6  October 2000 Page 6 APREL Project No: MELB –Sierra CDPD Sidearm – 3608 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Test:RF Power Output as Radiated (ERP) Ref.:FCC Part 2 paragraph 2.1046 and 22 Criteria:N/A Set-up:See Figure No. 1. Equipment:See Appendix A. Methodology:RF Power Measurement by Radiated Method (ERP): Test site: The radiated RF power measurement was taken at APREL Laboratory’s open area test site (OATS). This open area test site is calibrated to ANSI C63.4 document and a description of the measurement facility is on file with the Federal Communications Commission and is in compliance with the requirement of Section 2.948 of the Commissions rules and regulations. (FCC File No.: 90416) The test was set-up as illustrated in Fig.1. The DUI was configured to operate at maximum power with carrier unmodulated. The equipment under test was placed on a turntable positioned 3 m away from the calibrated receiving antenna, which in turn was connected to the spectrum analyzer. For each transmitter frequency, the received signal was maximised by rotating the turntable and adj…

Text truncated - open the document above for the full version.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: ESD-SA824894S3 Exhibit 2 Engineering Reports b)Radiated Spurious Emissions (2.1053) Assessment of Compliance for Field Strength of Spurious Radiation in accordance with the FCC Rules & Regulations Part 2.1053 Rugged handheld computer with integrated wireless communications Sidearm ALL-Terrain Handheld PC Melard Technologies, Inc. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] October 2000 MELB-Sierra CDPD Sidearm-3609 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories  October 2000 Page 2 APREL Project No: MELB –Sierra CDPD Sidearm – 3609 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:ESD-SA824894S3 Applicant:Melard Technologies Inc. Equipment:Rugged handheld computer with integrated wireless communications Model:Sidearm All-Terrain Handheld PC™ Standard:FCC Rules and Regulations Part 2.1053 and 22 ENGINEERING SUMMARY This report contains the results of Field Strength of Spurious Radiation measurement performed on a MELARD Rugged handheld computer with integrated wireless communications operating with a built-in Sierra CDPD radio transmitter. The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1053 and 22. The product was evaluated for spurious when it was set at the maximum power level. (The results presented in this report relate only to the sample tested.)  October 2000 Page 3 APREL Project No: MELB –Sierra CDPD Sidearm – 3609 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary Field Strength of Spurious Radiation Ref. Paragraph 2.1053 and 2281 Passed  October 2000 Page 4 APREL Project No: MELB –Sierra CDPD Sidearm – 3609 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the Field Strength of Spurious Radiation measurement conducted on a Melard Rugged handheld computer with integrated wireless communications model Sidearm All-Terrain Handheld PC™ operating with a built-in Sierra Wireless CDPD radio transmitter. Test Facility The tests were performed for Melard Technologies Inc. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is 90416 APREL is accredited by Standard Council of Canada. APREL is also accredited by Industry Canada and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1053 and the appropriate limits (22). Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. - Temperature:24 °C ± 2 - Relative Humidity:30 - 50 % - Air Pressure:101 kPa ± 3  October 2000 Page 5 APREL Project No: MELB –Sierra CDPD Sidearm – 3609 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC SUBMISSION INFORMATION FCC ID:ESD-SA824894S3 Equipment:Rugged handheld computer with integrated wireless communications Model:Sidearm ALL-Terrain Handheld PC™ For:Certification Applicant:Melard Technologies Inc. 28 Kaysal Court Armonk, NY 10504 U.S.A. Manufacturer: Melard Technologies Inc. 28 Kaysal Court Armonk, NY 10504 U.S.A. Evaluated by:APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6  October 2000 Page 6 APREL Project No: MELB –Sierra CDPD Sidearm – 3609 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Test:Field Strengt…

Text truncated - open the document above for the full version.
