EWBLN710S17 inch LCD Monitor

CONTENTS SAFETY INSTRUCTION 2 CAUTIONS 4 FCC RF INTERFERENCE STATEMENT 5 CONNECTING WITH EXTERNAL EQUIPMENT 6 RESOLUTIONS 7 CONTROLS AND FUNCTIONS 8 REAR VIEW 13 D-SUB CONNECTOR PIN ASSIGNMENT 14 POWER MANAGEMENT 15 SPECIFICATIONS 16 TROUBLESHOOTING GUIDE 17 1........................................................................................INSTRUCTION MANUAL SAFETY INSTRUCTION 1. Read all of instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions marked on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 5. Do not use this product near water. 6. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. 7. Slots and openings in the cabinet and the back are provided for ventilation : to ensure reliable operation of the product, these openings must not be blocked by placing the product on a bed, sofa, rug or other similar surface This product should never be placed near or over a heat resister. This product should not be placed in a built-in installation unless proper ventillation Is provided. 8. This product should be operated from the type of power source indicated on the Marking label. If you are not sure of the type of power available, consult your dealer or local power company. 9. This product is equipped with a 3 wire grounding type plug having a third(grounding) pin. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug. 10. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. 11. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 10 amperes. 12. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill any kind of liquid on the product. 13. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to service personnel. INSTRUCTION MANUAL.............................................................................................2 This Monitor was Manufactured ISO9001 Certified Factory SAFETY INSTRUCTION 14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since importer adjustmentof other controls may result in damage and will often require extensive work by a qualified technician to restore normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance, indicating a need for service. 44 44 44 44 C C A A U U T T I I O O N N The power supply cord is used as the main disconnect device, ensure that the Socket-outlet is located/installed near the equipment and easily accessible. 3.............................................................................................INSTRUCTION MANUAL CAUTIONS 44NEVER REMOVE THE BACK COVER Removal of the back cover should be carried out only by qualified personnel. 44DO NOT USE IN HOSTILE ENVIRONMENTS To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home. Do not subject the unit to Vibrations, dust of corrosive gases. 44KEEP IN A WELL VENTILATED PLACE Ventilation holes are provided on the cabinet to prevent the temperature from Rising. Do not cover the unit or place anything on the top of unit. 44AVOID HEAT Avoid placing the unit in direct sunshine or near a heating appliance. 44TO ELIMINATE EYE FATIGUE Do not use the unit against a bright back ground and where sunlight or other light Sources will shine directly on the monitor. 44BE CAREFUL OF HEAVY OBJECT Neither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock. INSTRUCTION MANUAL.........................................................................................4 CAUTION TO SERVICE PERSONNEL POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING FCC RF INTERFERENCE STATEMENT 44 44 44 44 N N O O T T E E : : This equipment has tested and found to comply with the limits for a Class B digital device, pursuant to Part 5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, If not iastalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on eor more of the following measures. - Reorient or relocate the receiving antenna. - Increase the seperation between the equipment and receiver. - Connect the…

Text truncated - open the document above for the full version.

LT170E4 (TFT-LCD Panel) Inverter ZTR6 ASX2L-02A(PW164-20R) Analog RGB H-Sync, V-Sync, IIC DC 12V Audio In (Video) Control Signal Speaker *2 ea LVDS RGB*8 bit IIC DC 5V Line Out Lamp Input LN710S TFT-LCD Monitor Block Diagram Audio In (PC) ZVD4 Composite S-Video TV Sound Composite S-Video TV OSD5 IIC, 5V, 3.3V Video(Digital RGB) Panel on/off Control DC 12 V Inverter Control OSD4 DC 12V INPUT CLK :1) MCLK ; 130 MHz 2) DCLK : 90MHz 3) ADC CLK : 54MHz 4) VIDEO CLK : 13.5HMz OUTPUT CLK : 1) PANNEL CLK : 45MHz Main CLK : 24.576MHz Output CLK : 13.5MHz KS0127 POWER Controll MENU CONTROLL

ID Label Sample

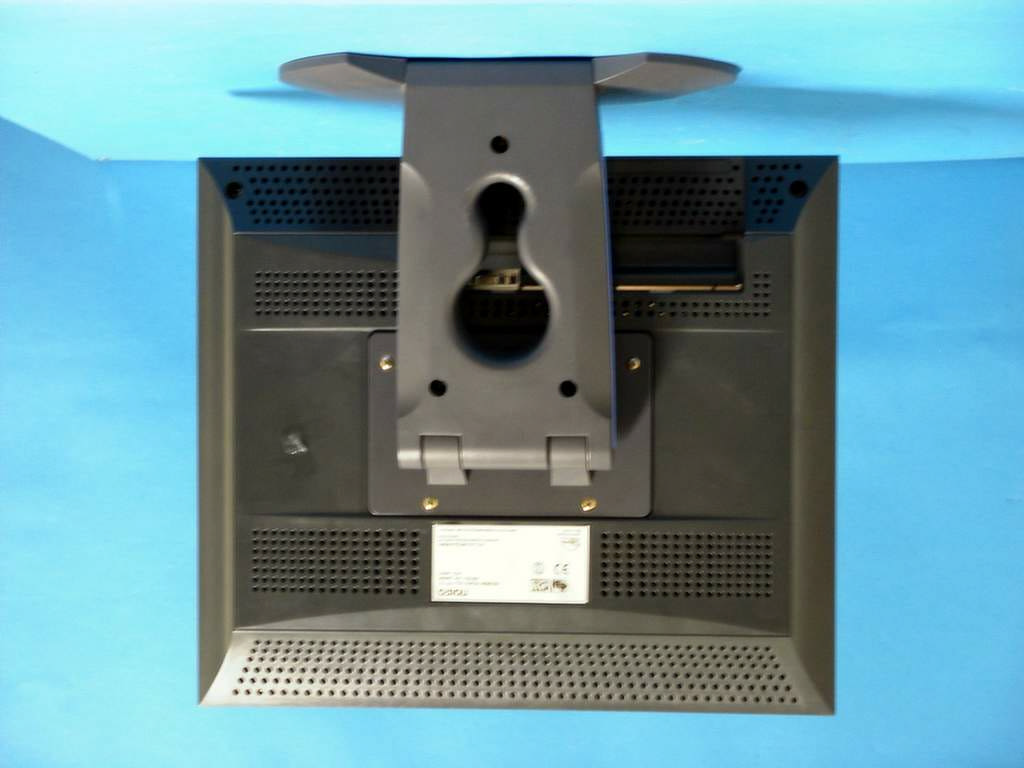

ID Label Location Information

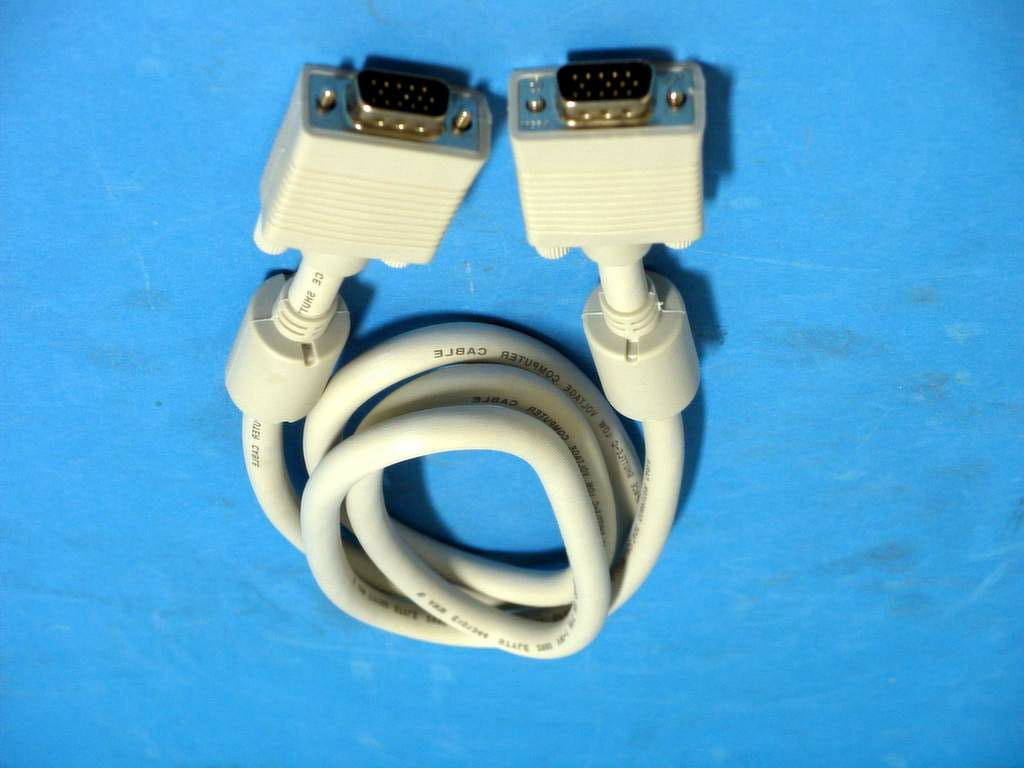

File No. 01-IST-072/FB IST EMC LAB. Page 1 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 01-IST-072/FB Date of issue : June 12, 2001. Model / Type No. Kind of product Applicant Manufacturer Address : LN710S : 17 inch LCD Monitor : Orion Electric Co.,Ltd. : Orion Electric Co.,Ltd. : 165 Gongdan-Dong, Gumi-City, Kyongbuk, Korea Test result according to the regulation(s) n Positive o Negative at page 3. This test report without appendix consists of 13 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 01-IST-072/FB IST EMC LAB. Page 2 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setup (Figures) Summary 2 3 3 4~5 6 7 8 13 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 9 ~ 11 12 C) Appendix File No. 01-IST-072/FB IST EMC LAB. Page 3 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; z - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. Product Information - Power rating : 100~240 Vac, 50/60 Hz / DC 12V, 4.5A - Brand name : Orion - Manufactured by : Orion Electric Co.,Ltd. - Contact person : Charles Hur / Assistant Manager ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 26 42 % 1000 mbar File No. 01-IST-072/FB IST EMC LAB. Page 4 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : z - Shielded room. No.1  - Compact chamber 2 Used testing instruments : Name TypeManufacturerCalibration. DateSerial Number z ESH 3Test ReceiverRohde & SchwarzOct. 08, 2000861742/018 z 3725/2LISNEMCOOct. 08, 20009102-1788 z 3825/2LISNEMCODec. 20, 20009103-1788 z ESH 3-Z2Pulse LimiterRohde & SchwarzJun. 16, 2001357.8810.52 Test - accessories : Type Manufacturer z Aneroid BarometerSato z HygrometerSato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992,“Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50Ω/ 50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : B. K, Bae. / Research Engineer IST EMC Lab. File No. 01-IST-072/FB IST EMC LAB. Page 5 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : z - Open-site 1 - Compact chamber z - 3 meters - 10 meters Used testing instruments : NameTypeManufacturerCalibration. DateSerial Number z ESVPTest ReceiverRohde & Schwarz July. 21, 2000 861744/004 z VULB 9160AntennaSchwarzbeckJuly. 11, 20003048 Test - accessories : TypeManufacturer z Aneroid BarometerSato z HygrometerSato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : B. K, Bae. / Research Engineer IST EMC Lab. File No. 01-IST-072/FB IST EMC LAB. Page 6 of 13 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the 17 inch LCD Monitor of Orion Electric Co., Ltd. LCD Type- 17.0” diagonal AM-TFT - Dot pitch : 0.264mm Resolution- 1280 X 1024, 60Hz Frequency- Horizontal: 31~70kHz, Vertical: 60~85Hz Active Display Area- 338mm X 270mm Dimension- 494mm X 240mm X 537mm Power Rating- 100~240Vac, 50/60Hz (input) - 12Vdc, 4.5A(output, using adaptor…

Text truncated - open the document above for the full version.
