EWBLV520HLV520H LED Monitor

1 CONTENTS SAFETY INSTRUCTION2 CAUTIONS4 FCC RF INTERFERENCE STATEMENT5 CONNECTING WITH EXTERNAL EQUIPMENT6 RESOLUTION7 CONTROLS AND FUNCTIONS8 REAR VIEW12 D-SUB CONNECTOR PIN ASSIGNMENTS13 POWER MANAGEMENT14 SPECIFICATIONS15 TROUBLESHOOTING GUIDE16 This Monito r was Manufactured by ISO 9001 Certified Fact ory °¶2 SAFETY INSTRUCTION 1. Read all of these instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions marked on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 5. Do not use this product near water. 6. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. 7. Slots and openings in the cabinet and the back are provided for ventilation: to ensure reliable operation of the product, these openings must not be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 8. This product should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company. 9. This product is equipped with a 3 wire grounding type plug having a third(grounding) pin. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug. 10. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. 11. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 10 amperes. 12. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill any kind of liquid on the product. 13. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to service personnel. 3 SAFETY INSTRUCTION 14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the Product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance, indicating a need for service. C C A A U U T T I I O O N N The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. A A T T T T E E N N T T I I O O N N Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à proximité du matériel et être facile d`accès CAUTION TO SERVICE PERSONNEL POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING EMISSION CHARACTERISTICS TESTED BY SEMKO THIS PRODUCT HAS BEEN TESTED AND HAS SHOWN COMPLIANCE WITH THE NATIONAL SPECIFICATIONS SUCH AS SWEDISH MPR 1990.10.(MPR•±) I4 CAUTIONS NEVER REMOVE THE BACK COVER Removal of the back cover should be carried out only by qualified personnel. DO NOT USE IN HOSTILE ENVIRONMENTS To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust of corrosive gases. KEEP IN A WELL VENTILATED PLACE Ventilation holes are provided on the cabinet to prevent the temperature from rising. Do not cover the unit or place anything on the top of unit. AVOID HEAT Avoid placing the unit in direct sunshine or near a heating appliance. TO ELIMINATE EYE FATIGUE Do not use the unit against a bright back ground and where sunlight or other light sources will shine directly on the monitor. BE CAREFUL OF HEAVY OBJECT Neither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock. 5 FCC RF INTERFERENCE STATEMENT N N O O T T E E : : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.…

Text truncated - open the document above for the full version.

VGA IN DDC EEPROM Oscilator 50MHz ZOOM SCALER gmZAN1_A LCD Interface MCU1 CRYSTAL 14.7456MHZ Inverter Interface User Interface DC-DC Convert Block +12V DC INPUT ROM EEPROM DDC 1/2B R 0~5 B 0~5 DCLK G 0~5 12V 5V 3.3V ANALOG RGB 12C Serial IO User Buttons Status LED Power S/W ON/OFF Raw 12V 12V, 5V, 3.3V Bright Pwr on/off Status LED Power S/W ON/OFF Pwr on/off BLOCK DIAGRAM BLOCK DIAGRAM FOR MAIN LOGIC BOARD LCD Vcc ON/OFF INVERTER ON/OFF LCD logic Vcc Select Raw 12V 5V Bright INVERTER ON/OFF USER BUTTONS HS(31~60KHz)

Orion Electric Co.,Ltd 257 Gongdan-Dong, Gumi-City, Kyunbuk, Korea (730-030) Tel: 82-54-467-5921 Fax: 82-54-463-0243 January 04, 2001 Underwriters Laboratories Inc. 333 Pfingston Road. Northbrook, Illinois 60062-2096 U.S.A. To whom it may concern: We, the undersigned, hereby authorize IST Co.,Ltd. To act an our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by IST Co.,Ltd., on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to denial of benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998. 21 U.S.C. 862. Sincerely, Charles H. Hur Assistant Manager Monitor development team Orion Electric Co.,Ltd

ID Label Location Information

Label Sample

Operational Description of LV520H 1. Power This parts, a power supply of regulators, make DC voltages (5V, 3.3V) to operate a main board from input voltage DC12V, and a inverter is operated by input voltage. - DC 3.3V is supplied into gmZAN1 and LCD Panel. - DC 5V is supplied into TS80C51RA2(MCU). - DC 12V is supplied into 4-lamp back light in LCD Panel on an inverter. 2. Main Board 1) Video Processing (Image Processor) The gmZAN1 interfaces computer graphics and video inputs in virtually any format to a fixed frequency flat panel display. Computer images from VGA to XGA resolution input to the chip can be resized to fit on the target display device, which can have any resolution up to XGA. The gnZAN1 have an on-chip OSD(On Screen Display) processor. 2) Video Processing (Analog to Digital Converting) This function is integrated into gmZAN1. 3) MCU (Micro Processor Unit) This Unit controls other ICs and memories. 3. Inverter Each LCD Panels have their own inverter to obtain optimum performance and long lifetime. The controller board just supplies the power for inverter logic and controls a light On/Off signal and a brightness control signal. So, it is important to use the inverter that has proper driving capacity and control input signal.

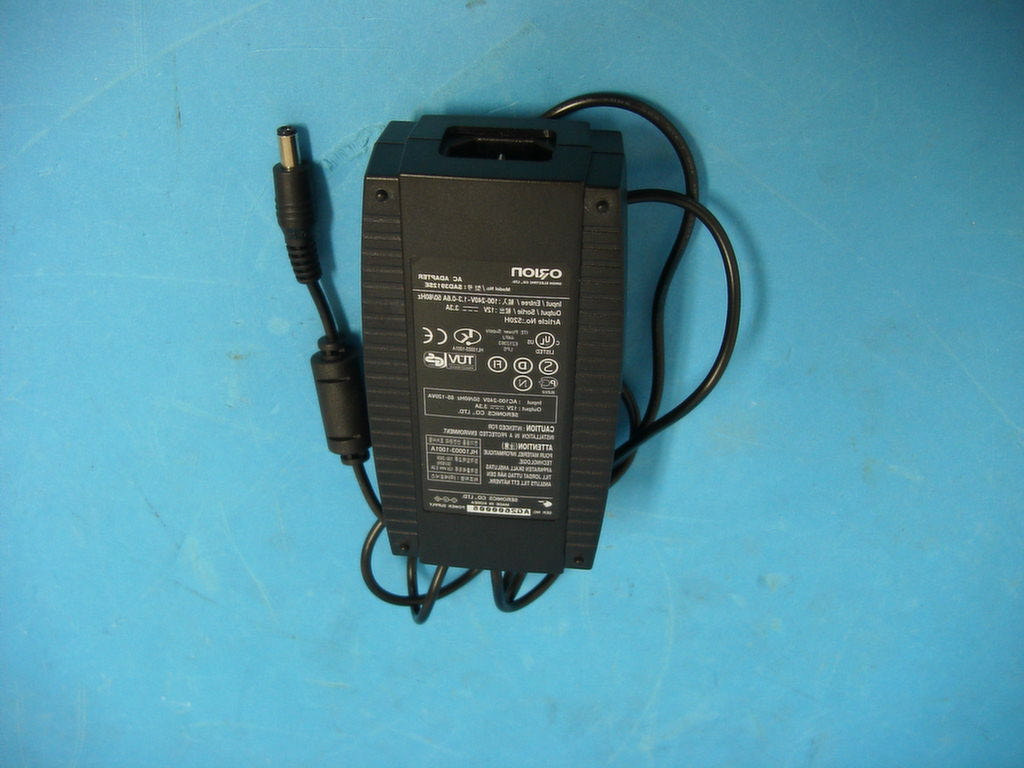

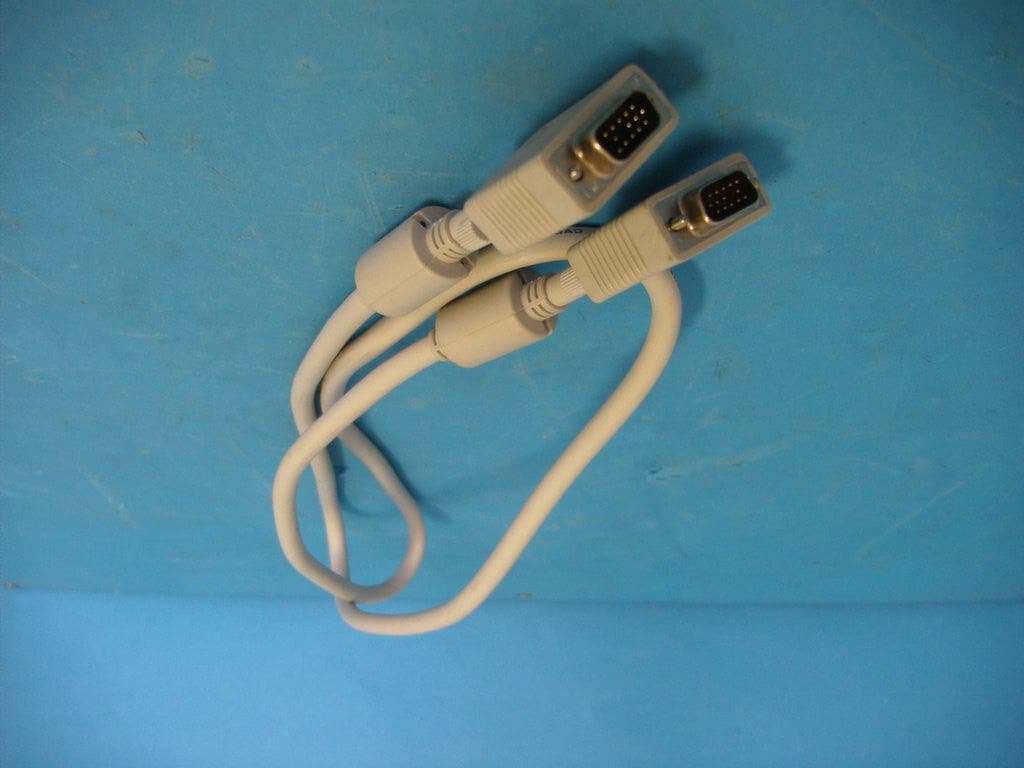

Parts List Model : LV520H Part NameSpecLocation Cord, PowerEU/GRY/6FT/0.75230V TYPE Power SupplyPW160KA1203, SAD3912SE Signal CableOMSC-LV510S A/D Board Ass'yLCD1204E Inverter Ass'ySIC 1541 Bracket LCD Main1-00-055 LTM150X Plate GND4-98-089BKT LCD MAIN FIX Cover Shield Main1-00-004 LCD Module Ass'yEFCDTA LV520H Conn HarnessA/D BOARD-LCD MODULE(XH) LCD ModuleLTM150XH-T01 Control Board Ass'yEFHCPA LV520H CAP. AxialY5V, 104ZF, 50VC101,C102,C103,C104 Switch, TactDHIT-1105TABFSW101,SW102,SW103,SW104,SW105 L.E.D.L-59EGW/SLRG138 Dipole, ZenerGDZJ5.1BD101,D102,D103,D104 PCB (Control)PWB-LC9

8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA NEAR BY DC/DC CAP NEAR BY DC/DC 1. REV 3.0 : TP5-TP10,FB20,FB21 2. 1608 type : C103, C104, R750, R151 ACTIVE LOW ACTIVE LOW LCD1024E-MAIN-H-001C MPU DiCON ELECTRONICS CO., LTD B 17Monday, May 07, 2001 Title SizeDocument NumberRev Date:Sheetof RXD SCL SDA MA11 MA10 MAD1 MA15 MA9 TXD MAD0 MAD7 MA13 MA14 MAD6 MA12 RXD SCL SDA MA14 MA15 MAD6MA6 MA[0..15] MA7MAD7 MAD0 MAD5 MAD[0..7] MA2 MAD3 MAD2 MA3 MAD2 MAD5 MA2 MA11 MA12 MA13 MAD3MA3 MA0 MAD4 MA5 MAD6MA6 MA4 MAD1 MAD0 MA1 MAD1 MA0 MA1 MA9 MA10 MAD4 MAD7 MAD3 MA8 MA7 MAD2 MA8 MAD5 MAD4MA4 MA5 RESET TXD SCL HCLK SDA HDATA0 HFS RESETB IRQ RESET RESET PWRSW MAINON HDATA1 HDATA2 HDATA3 U/D- INC- LED 5V 5V5V5V 5V 5V5V VCC VCC VCC C5 0.1uF 1 2 Q1 MMBT3906LT1 1 3 2 C24 0.1uF 1 2 R4 10K TS80C51RA2 MCU1 35 21 20 10 14 15 16 17 2 3 4 5 6 7 8 9 43 42 41 40 39 38 37 36 24 25 26 27 28 29 30 31 19 18 32 33 13 11 12 34 1 23 EA/VP X1 X2 RESET INT0 P3.2 INT1 P3.3 T0 P3.4 T2 P3.5 P1.0 P1.1 P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7 P2.0 P2.1 P2.2 P2.3 P2.4 P2.5 P2.6 P2.7 RD P3.7 WR P3.6 PSEN ALE/P TXD P3.1 RXD P3.0 NC NC NC NC R1100ohm C8 33pF 1 2 C15 0.1uF 1 2 C11 33pF 1 2 C13 0.1uF 1 2 R16 4.7K C36 0.1uF 1 2 R20 1K 1 2 U1 74HCT373 3 4 7 8 13 14 17 18 1 11 2 5 6 9 12 15 16 19 D0 D1 D2 D3 D4 D5 D6 D7 OC G Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 R22 10K 1 2 U4 TL7705A 3 7 2 1 6 5 CT SEN RESIN REF RST RSET R15 101 12 R17101 12 DIAG1 S3B-PH-SM3-TB 1 2 3 C32 0.1uF 1 2 C2 0.1uF 1 2 Y1 14.7456MHz 1 2 C4 27pF 12 ROM1 W27E512 PLCC SOCKETE 11 10 9 8 7 6 5 4 29 28 24 27 3 30 31 2 13 14 15 18 19 20 21 22 23 25 1 12 17 26 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 CE OE NC NC NC NC C3 27pF 12 R21 10K 1 2 U2 24LC16B-/SN Microchip S-EEPROM 1 2 3 45 6 7 8 A0 A1 A2 VSSSDA SCL WP VCC R19 4.7K R2 R R3 R R14 R C1 0.1uF 1 2 ORION ELECTRIC CO., LTD.

File No. 01-IST-108/FB IST EMC LAB. Page 1 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 01-IST-108/FB Date of issue : Aug. 17, 2001. Model / Type No. Kind of product Applicant Manufacturer Address : LV520H : 15” LCD Monitor : Orion Electric Co.,Ltd. : Orion Electric Co.,Ltd. : 165 Gongdan-Dong, Gumi-City, Kyongbuk, Korea. Test result according to the regulation(s) ! Positive " Negative at page 3. This test report without appendix consists of 14 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. DIRECTORY File No. 01-IST-108/FB IST EMC LAB. Page 2 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setup (Figures) Summary 2 3 3 4 ~ 5 6 7 8 14 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 9 ~ 11 12 ~ 13 C) Appendix File No. 01-IST-108/FB IST EMC LAB. Page 3 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ❚ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 27 47 % 1001 mbar File No. 01-IST-108/FB IST EMC LAB. Page 4 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : ❚ - Shielded room. No.1 ! - Compact chamber 2 Used testing instruments : Name TypeManufacturerCalibration. DateSerial Number ❚ ESH 3Test ReceiverRohde & SchwarzJul. 16, 2001861742/015 ❚ EZMSpectrum MonitorRohde & SchwarzJul. 13, 2001863183/008 ❚ 3725/2LISNEMCOJul. 13, 20019102-1788 ❚ KNW-407LISNHyup-Rip Ele.Jul. 26, 20018-833-10 ❚ ESH 3-Z2Pulse LimiterRohde & SchwarzJul. 13, 2001357.8810.52 Test - accessories : Type Manufacturer ❚ Aneroid BarometerSato ❚ HygrometerSato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992,“Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω / 50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : File No. 01-IST-108/FB IST EMC LAB. Page 5 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. S. G, Kim. / Research Engineer IST EMC Lab. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Test location : ! - Open-site 1 ❚ - Open-site 2 ! - Compact chamber Test distance : ❚ - 3 meters ! - 10 meters ! - 30 meters Used testing instruments : Name TypeManufacturerCalibration. DateSerial Number ❚ ESVPTest ReceiverRohde & Schwarz Jun. 12, 2001 861744/018 ❚ VULB 9160AntennaSchwarzbeckJun. 04, 20013047 Test - accessories : Type Manufacturer ❚ Aneroid BarometerSato ❚ HygrometerSato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : File No. 01-IST-108/FB IST EMC LAB. Page 6 of 15 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. S. G, Kim. / Research Engineer IST EMC Lab. EQUIPMENT UNDER TEST Equipment Description LCD Type- 15.0” viewable - LTM150XH-T01 (Samsung Ele.) Resolution - 1024 X 768, 75Hz Scanning Frequency - Horizontal: 31~50 kHz, Vertical: 60 Hz Input Signal - Video : RGB Analog (0.7Vp-p, 75 • ) Sync : H/V Separate(TTL) Weight- Net 5.3 Kg, Gross 7.5 Kg Active Display Area - 304 mm X 228 mm Dimension (WxDxH) - 392 x 196 x 362 (mm) Power Rating- 100~240 Vac, 50/60Hz (input) - 12 Vdc, 3.3 A (output) Adapter- Model N…

Text truncated - open the document above for the full version.
