EWTTC100-200Remote Control Transmitter

Pƒr…h‡vt D†‡…ˆp‡v‚†
U8 !

6ˆ‡u‚…) A…hx Chpu€rv†‡r… 9h‡r) !%  ((( Avyr) 8)ccuhqiˆpu ‡p!rq‚p Wr…†v‚  !
© Theimeg Viersen, Operating Instructions TC 200 Version 1.01  Version Date Pages Description 1.00 09.10.99 Operating instructions 1.01 20.10.99 Operating instructions 1.02 20.10.99 Revised Contents © Theimeg Viersen, Operating Instructions TC 200 Version 1.01 I 8‚‡r‡† 1 General .....................................................................................................................................1-1 1.1 Principle ............................................................................................................................1-1 1.2 Addressing ........................................................................................................................1-1 1.2.1 Frequency..................................................................................................................1-1 1.3 Standard scope of supply ..................................................................................................1-2 1.4 Warranty............................................................................................................................1-2 2 Safety ........................................................................................................................................2-3 2.1 Fundamental safety information .......................................................................................2-3 2.2 Designated use ..................................................................................................................2-4 2.3 Non-designated use ...........................................................................................................2-4 2.4 Safety instructions for assembly and disassembly ............................................................2-2 2.5 Safety instructions for initial commissioning after assembly ...........................................2-2 2.6 Safety instructions for operation .......................................................................................2-2 3 Standard transmitter ..............................................................................................................3-3 3.1 Operation of the standard transmitter................................................................................3-4 3.1.1 To switch on the standard transmitter .......................................................................3-4 3.1.2 To switch off the standard transmitter ......................................................................3-4 3.1.3 LED flashing sequences ............................................................................................3-4 3.1.4 Transmitter battery ....................................................................................................3-5 3.1.5 Battery replacement ..................................................................................................3-6 3.1.6 Standard recharger ....................................................................................................3-7 3.1.7 Recharging process ...................................................................................................3-7 4 Receiver....................................................................................................................................4-8 4.1 Structure of the receiver ....................................................................................................4-8 4.2 Hardware structure of the receiver ....................................................................................4-9 4.3 Messages/LEDs on the processor card............................................................................4-10 4.4 Processor card: LED indication ......................................................................................4-11 Contents © Theimeg Viersen, Operating Instructions TC 200 Version 1.01 II 4.5 Relay card........................................................................................................................4-12 4.6 Assembly dimensions of receiver ...................................................................................4-13 5 Installation configuration .....................................................................................................5-13 1 General 1-1 © Theimeg Viersen, Operating Instructions TC 200 Version 1.01 Brr…hy The following are examples of equipment that can be remotely controlled by the remote control TC 200: - Machines - Crane installations - Chain hoists - Crane trolleys. The operator is not restricted to a specific location and is able to take up position at a safe distance in order to freely move and control loads and moving installations in accordance with the particular circumstances.  Q…vpvƒyr Serial coded messages are transmitted by the transmitter to the receiver. These messages are decoded in the receiver and output in parallel. The signals are output via a relay interface, analog output, optocoupler output or field bus interface. ! 6qq…r††vt Each installation has its own address and frequency. A unique address is assigned by the manufacturer to each installation. The transmitter and receiver are thus clearly assigned to each other. ! A…r„ˆrp’ Each installation transmits on a set frequency. This can be changed as follows: The appropriate controls are used for setting a different frequency in the transmitter and in the receiver. It is essential to ensure that the transmitter frequency and the receiver frequency are identical. In the event of interference caused by other radio services, it is possible for the frequency to be changed. 1 General 1-2 © Theimeg Viersen, Operating Instructions TC 200 Version 1.01 " T‡hqh…q †p‚ƒr ‚s †ˆƒƒy’ - Portable or stationary transmitter - Stationary receiver - Multiflex – or rod antenna with 8 m coaxial cable - 2 rechargeable batteries - 1 …

Text truncated - open the document above for the full version.

Inglis Vollmacht.doc, KARTMANN, 18.09.98 CERTIFICATION OF AGENCY AGREEMENT I appoint Phillip Inglis to act as agent for our organization in the preparation of applications, including the signing there of, to make representations to the FEDERAL COMMUNICATIONS COMMISSION on our behalf and to receive and exchange data between the two parties: FEDERAL COMMUNICATIONS COMMISSION and CETECOM ICT SERVICES GMBH representing THEIMEG INC. It is further understood that this authorization covers only matters arising with the application of. THEIMEG INC. Dated this: June 1, 2000 . Agency Agreement expiration date: December, 2000 By: Uwe Kartmann SignaturePrinted Title: Dipl.-Ing.Telephone: +49-681-8220 CETECOM ICT Services GmbH Untertuerkheimer Straße 6 - 10 D-66117 Saarbruecken Germany Telefon:+ 49 (0) 6 81 5 98 - 0 Telefax:+ 49 (0) 6 81 5 98 - 90 75 e-mail: e-mail: [email protected] Internet: http://www.cetecom.de Registered in Saarbruecken, Germany Reg.-No.: HRB Saarbruecken 11298 Chairman of the supervisory board: Ivo Rauh Managing Directors: Dr. Harald Ansorge Elisabeth Terodde

June 10, 2000 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re:Theimeg Inc., application for Remote Control Transmitter FCC ID: EWTTC100/200 Gentlemen: Theimeg Inc., PO Box 668, Stowe, VT 05672 herein submits an Application for Equipment Authorization to be followed by submission of a payment of fees in the amount of $1075.00 along with Form 159 for certification of a remote control device under FCC Rules Part 15 as required by the by the FCC Rules. Theimeg Inc., request, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material, as indicated by request for confidentiality of the items during the electronic submission process and further identified below, includes: 1.Circuit diagrams submitted as Equipment Authorization Electronic Filing attachment: "schematics" Exhibit #5 Specifically, this exhibit contains information relating to circuit function and complexity that could be of benefit to competitors. This material contains trade secrets and confidential information that Theimeg does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned by phone at 410-531-3439, by fax at 410-531-0807, by email at [email protected], or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Rega rds, (signed) Phillip Inglis 14085 Howard Rd. Dayton, MD. 21036

August 20, 2000 Federal Communications Commission 7435 Oakland Mills Rd Columbia, MD 21045 In re: Theimeg Inc. Application for certification, FCC ID EWTTC100-200 Correspondence Reference Numbers: 14691 and 14782 Att: Mr. Andy Leimer & Ms. Jaunice Green Gentlemen and Ladies, Theimeg Inc. is asking for an extension of time in which to reply to various issues raised in your correspondence dated 6/21/2000 and 6/27/2000. The delay has been the result of a corporate reorganization that is, among other things, shifting the responsibility for this product from the United States corporate office to the corporate head office in Germany which is undergoing a name change. Theimeg is requesting a 60 day extension of time to provide the information requested in the above referenced correspondence from the Lab. If you need further information, please let me know. Sincerely, Phil Inglis

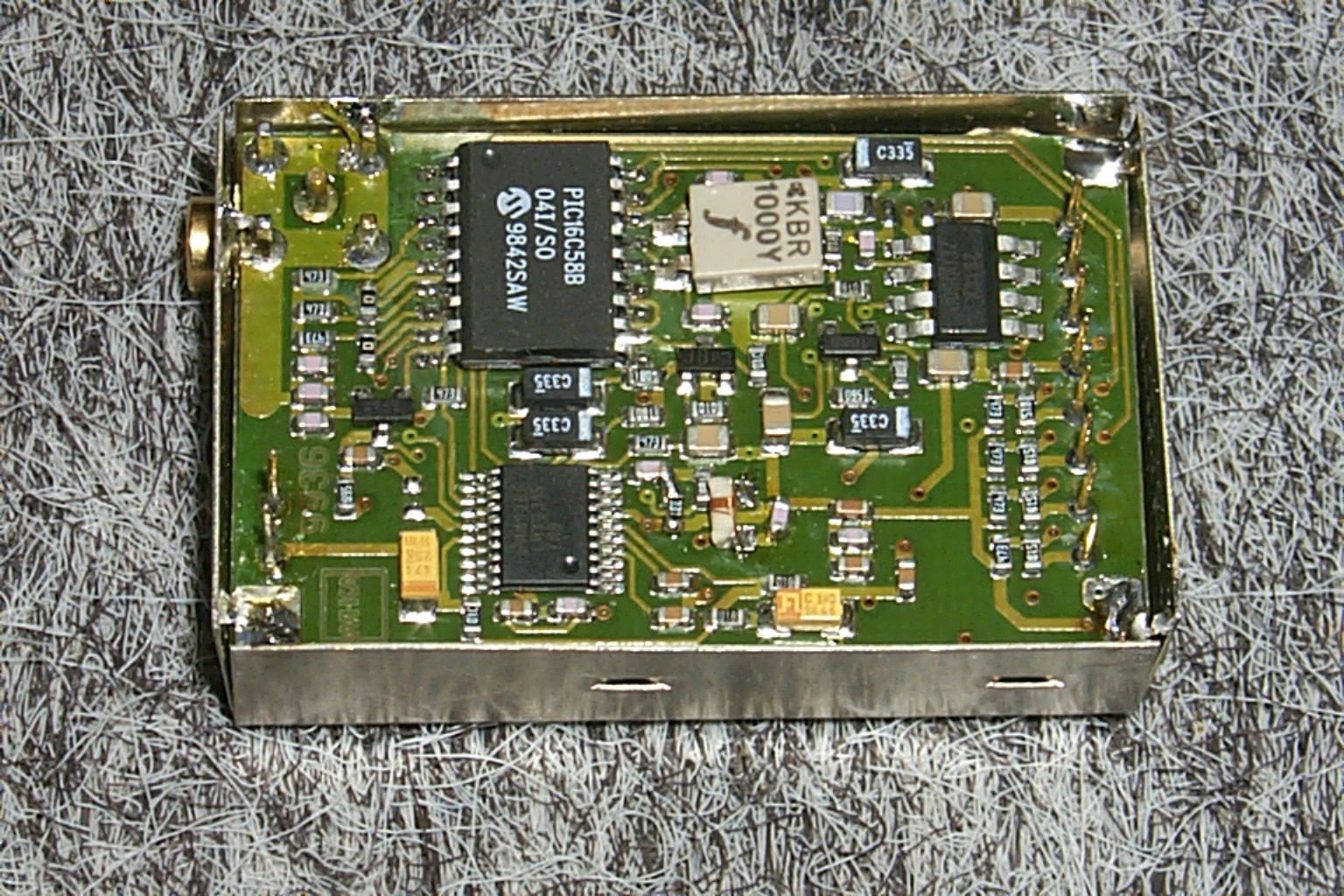

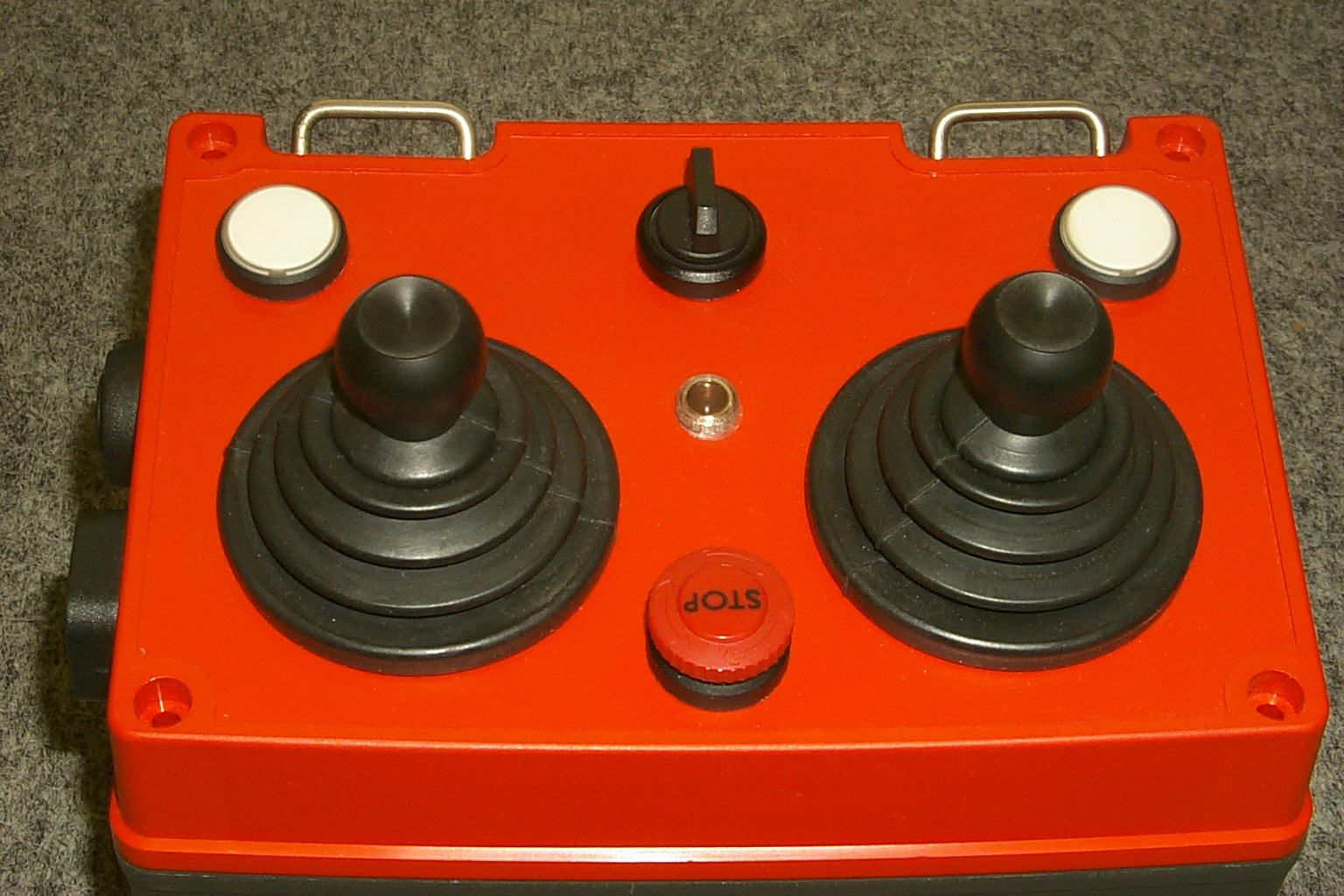

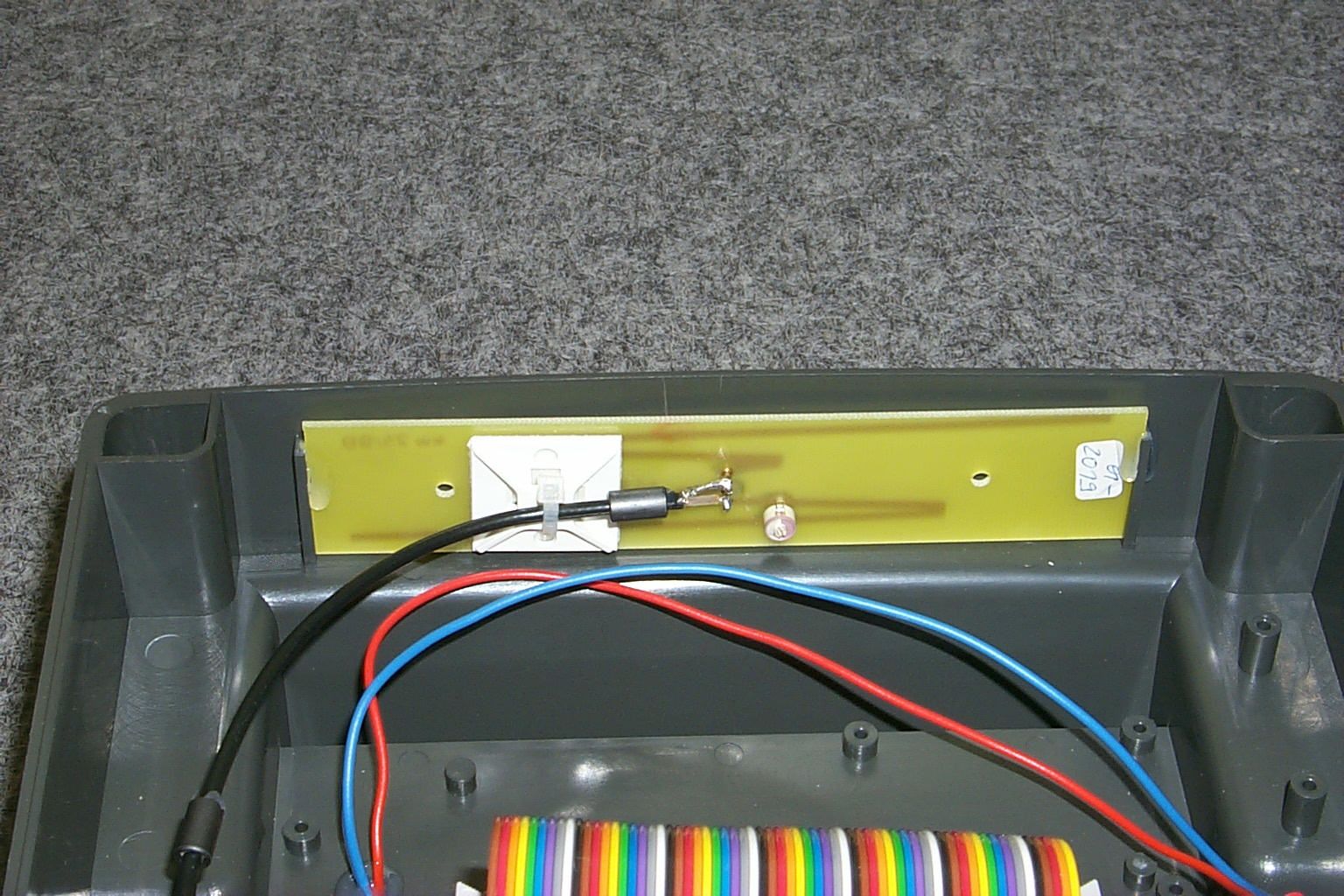

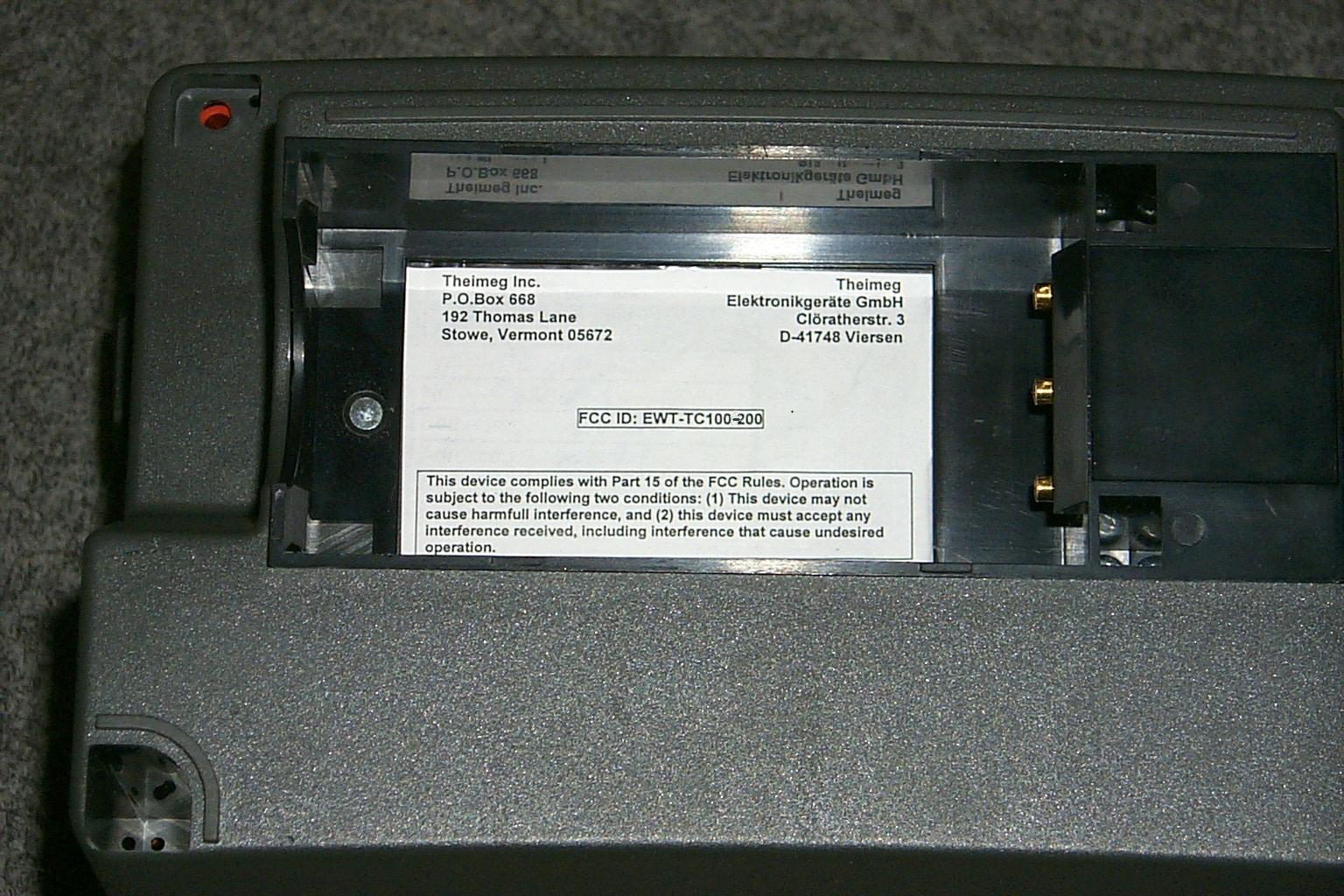

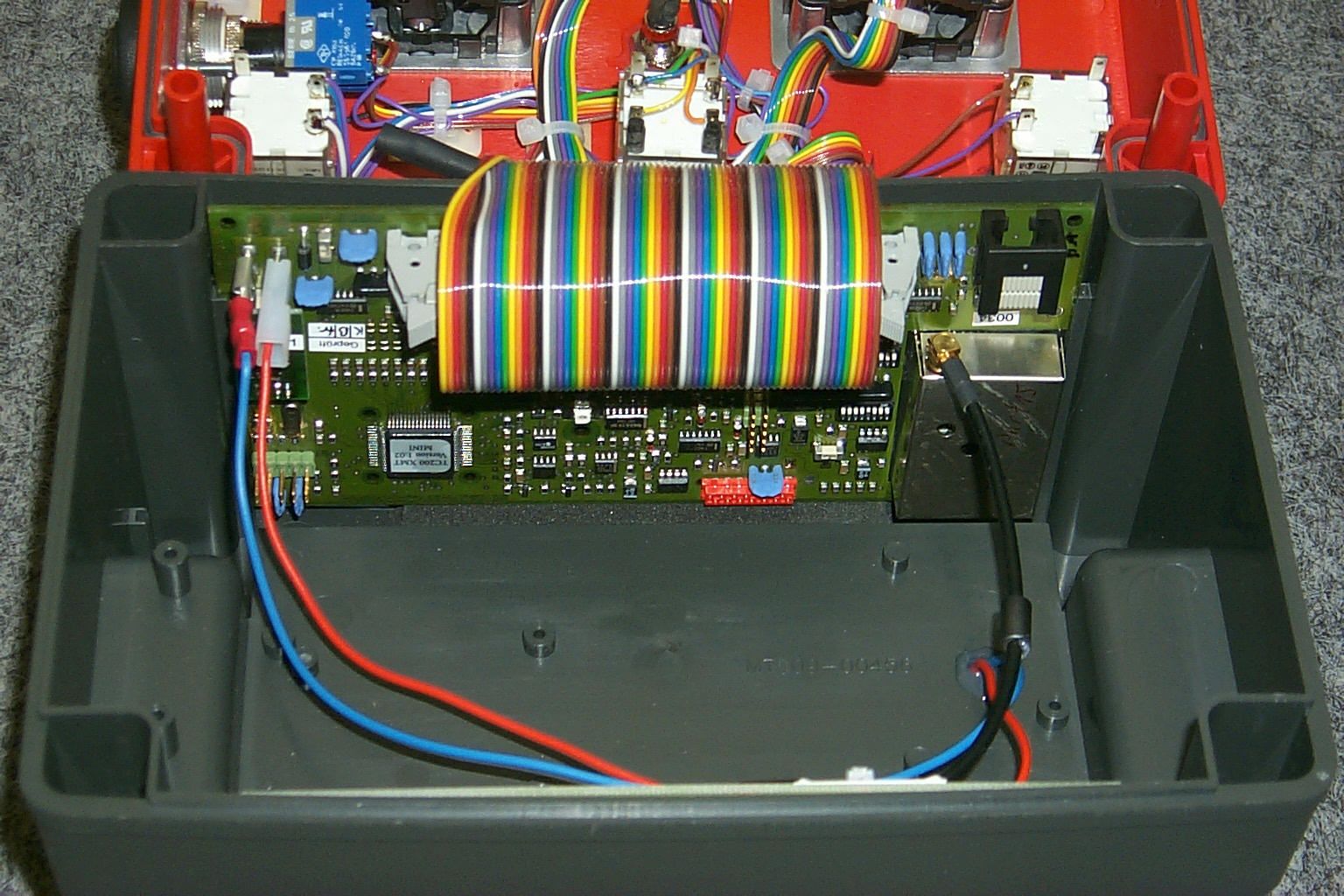

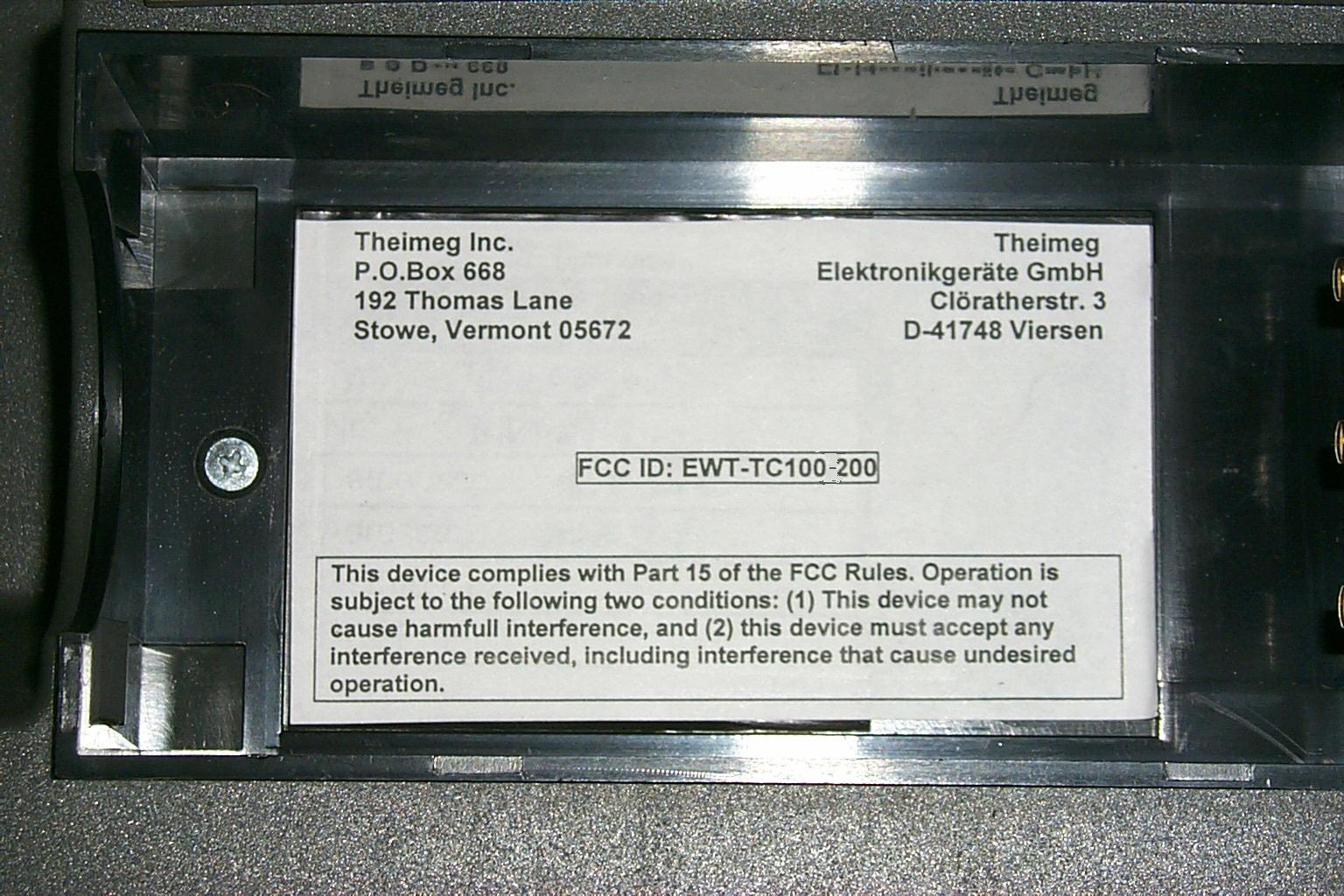

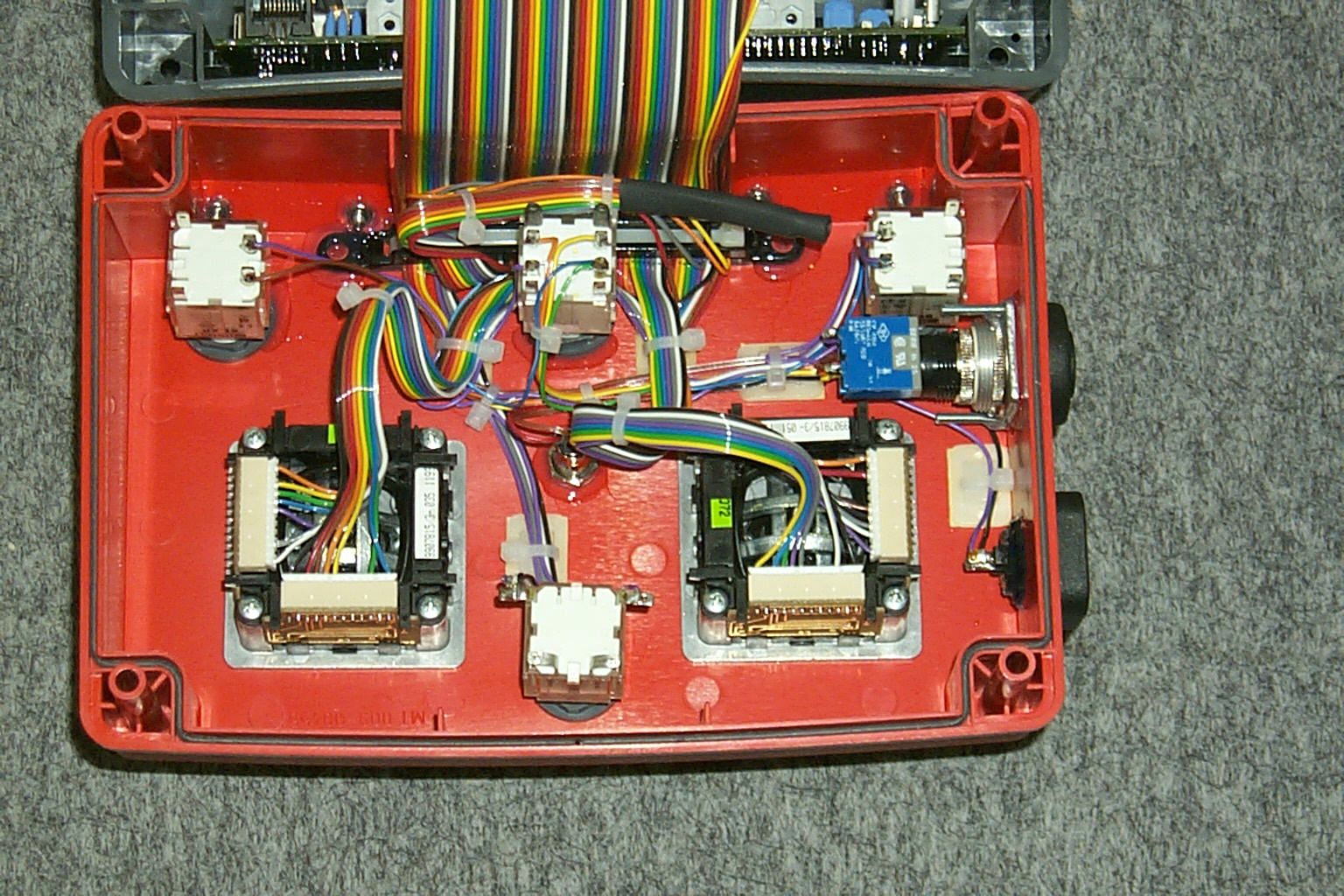

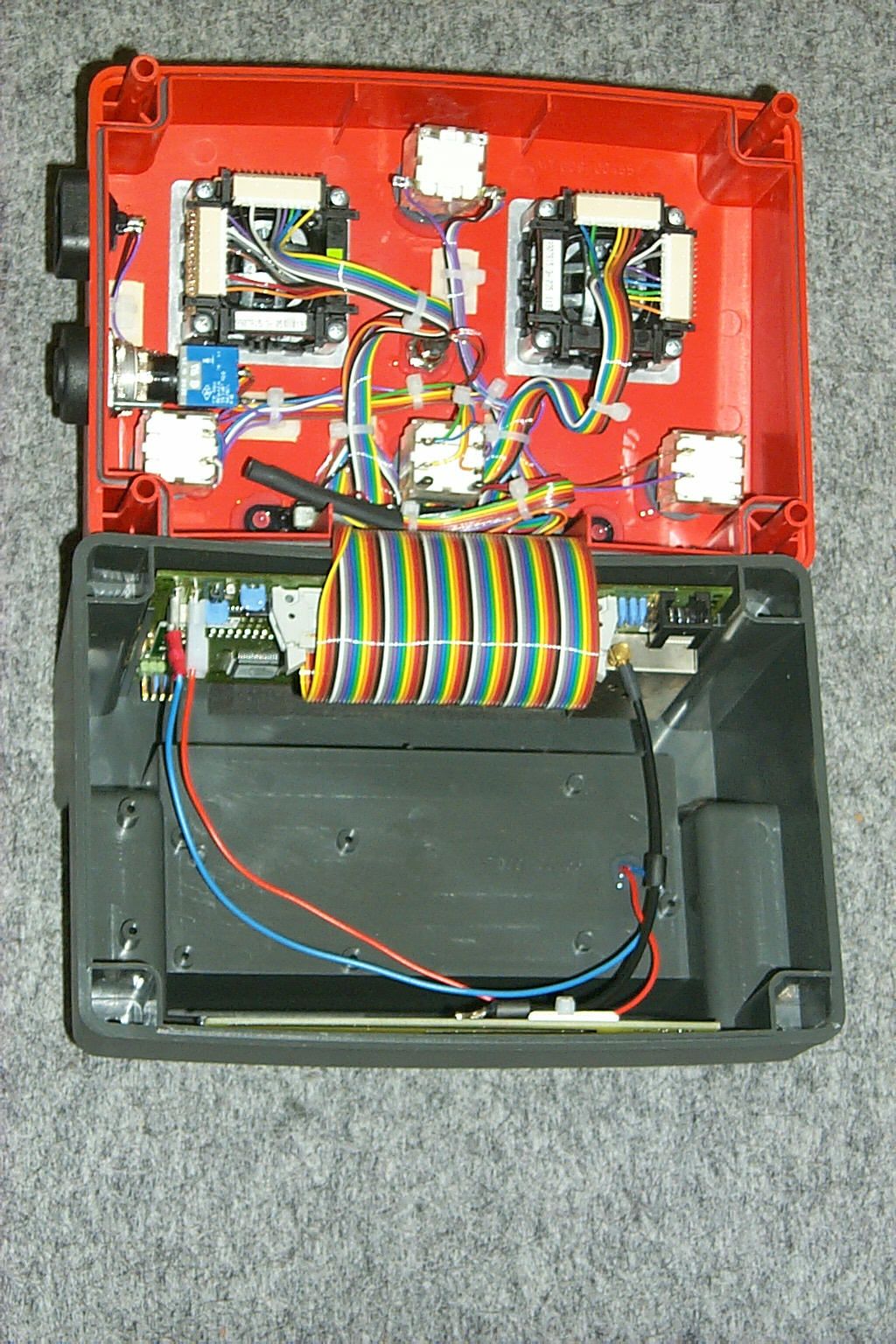

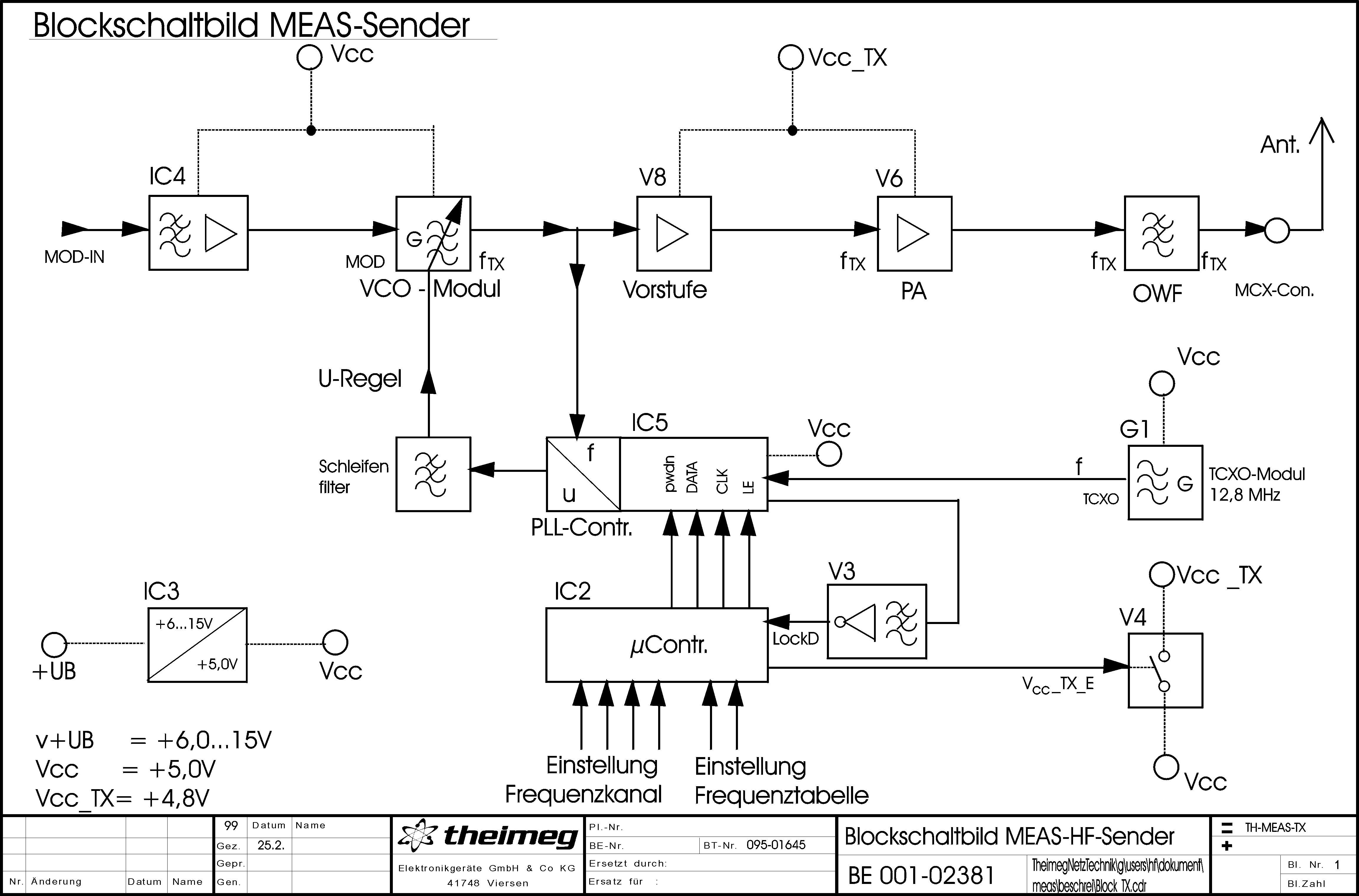

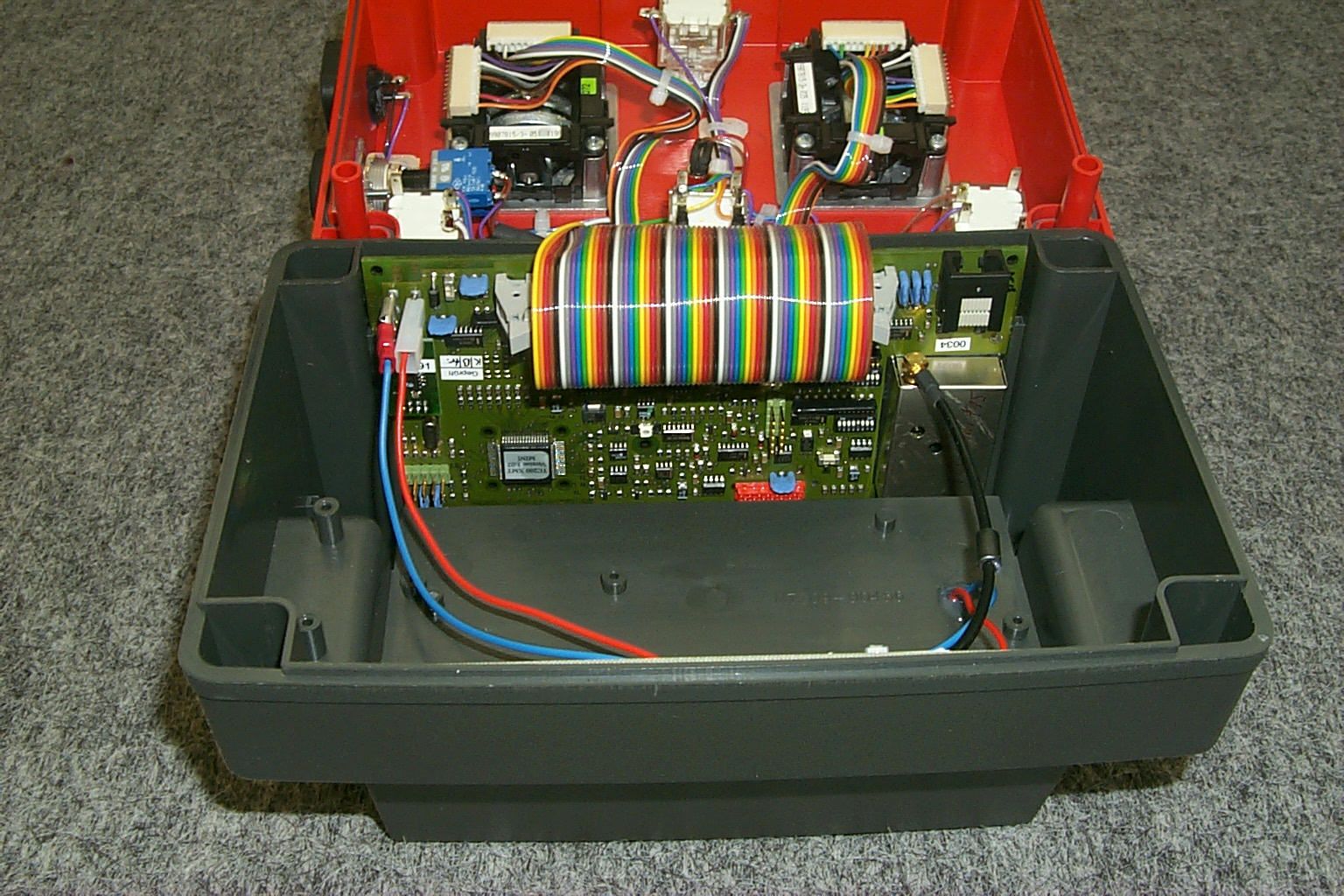

Operational Description: The TC100-200 transmitter is a hand held remote control transmitter used in conjunction with a separate receiver to control the movement of various types of heavy equipment. It uses dual control with a microprocessor that converts the input data to commands with the address and CRC code. A second microprocessor performs a security check and controls the main processor. It is manually activated and automatically cuts off when released. Microprocessors use a 4.9 MHz crystal clock frequency. The VCO system uses a 12.8 MHz crystal to control the frequency through a standard multiplier/divider chain using a PLL. The signal from the PLL is phase modulated, amplified and filtered before transmission. The unit contains a separate voltage regulator to maintain a constant voltage to all components.

CETECOM ICT Services GmbH Radio Satelite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of21 PagesPage 1 (21 ) Test report no.: 2_2035-A/00 FCC Part 15.231 TC 100/200 Akkreditiertes Prüflaboratorium DAR-Registriernummer: TTI-P-G 166/98-00 vom 18.09.98 CETECOM ICT Services GmbH Test report no.: 2_2035-A/009Issue Date: 03.03.2000Page 2 (21) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. CETECOM ICT Services GmbH Test report no.: 2_2035-A/009 Issue Date: 03.03.2000 Page 3 (21) 1.2 Testing laboratory CETECOM ICT Services GmbH 66117 Saarbrücken Untertürkheimer Straße 6 - 10 Deutschland Telefone : + 49 681 598 - 9000 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-00 vom 18.09.98 1.3 Details of applicant Name : Theimeg Elektrogeräte GmbH Street : Clöratherstrasse 3 City : D-41748 Viersen Country : Germany Telephone: +49 2162 3720 Telefax : +49 2162 3724 Contact : Mr. Herrmann Telephone: +49 2161 3720 1.4 Application details Date of receipt of application : 15.02.00 Date of receipt of test item : 03.03.00 Date of test : 03.03.00 1.5 Test item Type of equipment : remote control transmitter Type designation : TC 100/200 Manufacturer : applicant Street : City : Country : Additional information: Frequency : 412 – 469 MHz during test 445.0 MHz Channel separation: opt. 25 kHz 12.5 kHZ Number of channels : max 64 Antenna : build –in (print antenna Power supply : Tx: 12DC NiCd -Accu Type of equipment : . - . Unmodulated carrier : not possible CETECOM ICT Services GmbH Test report no.: 2_2035-A/009Issue Date: 03.03.2000Page 4 (21) 1.6Test standards FCC Part 15.231 and 15.209 The following tests were made to test that the reglementations of the FCC Part15.231 and FCC Part 15.209 are fullfilled . 2 Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 09.12.1999RSC8414Ames H. DateSectionNameSignature 09.12.1999RSC8411Berg M. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 2_2035-A/009Issue Date: 03.03.2000Page 5 (21) 2.2Testreport TEST REPORT FCC Part 15.231 FCC Part 15.209 Testreport no.: 2_2035-A/00 CETECOM ICT Services GmbH Test report no.: 2_2035-A/009Issue Date: 03.03.2000Page 6 (21) TEST REPORT REFERENCE LIST OF MEASUREMENTS The list of measured parameters called for in FCC Part 15.231 and FCC Part15.209 is given below. Paragraph PARAMETER TO BE MEASURED Page Transmitter parameters §15.231 (b) Maximum field strenght of emission7 §15.231 (a)Automatic deactivation8 §15.231 (c)Bandwidth of emission9 Test equipment listing10 Photographs of the equipment12 CETECOM ICT Services GmbH Test report no.: 2_2035-A/009Issue Date: 03.03.2000Page 7 (21) Equipment under test HANDY Ambient temperature : 20 ° °° ° C Relative humidity : 48 % REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 EMISSION LIMITATIONS SUBCLAUSE § 15.231 (b) § 15.209 EMISSION LIMITATIONS all measurements are made up to the 10 th harmonic at 3m f (MHz) polari- zation amplitude of emission (μV/m) limit max. allowed emmision power (interpolation) actual attenuation below frequency of operation (dB)results 445.0vertical1094511660 μV/m-Operating frequency 1335.0vertical54.81166 μV/m 500μV/m (209) 46complies 2670.0vertical64.51166 μV/m 500μV/m (209) 45complies >2707verticalno peak found1166 μV/m 500μV/m (209) complies 412.675vertical1047111660 μV/m-Operating frequency 2063.4vertical58.91166 μV/m 500μV/m (209) 45complies 2476.1vertical66.11166 μV/m 500μV/m (209) 44complies >2476.1verticalno peak found1166 μV/m 500μV/m (209) complies 465.025vertical1035111660 μV/m-Operating frequency 2325.1vertical58.21166 μV/m 500μV/m (209) 45complies 2790.1vertical65.31166 μV/m 500μV/m (209) 44complies >2790.1verticalno peak found1166 μV/m 500μV/m (209) complies Measurement uncertainty± 3dB LIMITSSUBCLAUSE § 15.231 (c) In any 100 kHz bandwidth outside the frequency band at least 20dB below the highest level of the permitted fundamental power. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). All measurements are made with a CISPR quasi-peak equipment. CETECOM ICT Services GmbH Test report no.: 2_2035-A/009Issue Date: 03.03.2000Page 8 (21) Equipment under test HANDY Ambient temperature : 20 ° °° ° C Relative humidity : 48 % REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 AUTOMATIC DEACTIVATION SUBCLAUSE § 15.231 (a) The transmitter is automatically deactivated within 5 seconds of being released. CETECOM ICT Services GmbH Test report no.: 2_2035-A/009Issue Date: 03.03.2000Page 9 (21) Equipment under test HANDY Ambient temperature : 20 ° °° ° C Relative humidity : 48 % REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 Bandwidth of emissions SUBCLAUSE § 15.231 (c) TEST CONDITIONS FREQUENCY (MHz) at which –20 dBc occurs ±1.11125 M…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satelite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of31 PagesPage 1 (31) Test report no.: 2_2035-A/00 FCC Part 15.231 TC 100-200 Akkreditiertes Prüflaboratorium DAR-Registriernummer: TTI-P-G 166/98-00 vom 18.09.98 CETECOM ICT Services GmbH Test report no.: 2_2035-A/00Issue Date:17.08.2000Page 2 (31) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. CETECOM ICT Services GmbH Test report no.: 2_2035-A/00Issue Date:17.08.2000Page 3 (31) 1.2Testing laboratory CETECOM ICT Services GmbH 66117 Saarbrücken Untertürkheimer Straße 6 - 10 Deutschland Telefone: + 49 681 598 - 9000 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-00 vom 18.09.98 1.3Details of applicant Name : Theimeg Elektrogeräte GmbH Street : Krefelder Str. 423 - 425 City : D-41066 Mönchengladbach Country : Germany Telephone: +49 2161 6363-0 Telefax : +49 2161 6363-100 Contact : Mr. Kraus Telephone: +49 2161 6363-0 1.4Application details Date of receipt of application : 15.02.00 Date of receipt of test item : 03.03.00 Date of test: 03.03.00 1.5Test item Type of equipment :remote control transmitter Type designation: TC 100-200 Manufacturer:applicant Street: City: Country: Additional informations:: Frequency:412 – 469 MHz during test 445.0 MHz Channel separation: opt. 25 kHz 12.5 kHZ Number of channels :max 64 Antenna:build –in print antenna Power supply:Tx: 12DC NiCd -Accu Type of equipment :. - . Unmodulated carrier:not possible CETECOM ICT Services GmbH Test report no.: 2_2035-A/00Issue Date:17.08.2000Page 4 (31) 1.6Test standards FCC Part 15.231 and 15.209 The following tests were made to test that the reglementations of the FCC Part15.231 and FCC Part 15.209 are fullfilled . 2 Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 17.08.2000RSC8414Ames H. DateSectionNameSignature 17.08.2000RSC8411Berg M. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 2_2035-A/00Issue Date:17.08.2000Page 5 (31) 2.2Testreport TEST REPORT FCC Part 15.231 FCC Part 15.209 Testreport no.: 2_2035-A/00 CETECOM ICT Services GmbH Test report no.: 2_2035-A/00Issue Date:17.08.2000Page 6 (31) TEST REPORT REFERENCE LIST OF MEASUREMENTS The list of measured parameters called for in FCC Part 15.231 and FCC Part15.209 is given below. Paragraph PARAMETER TO BE MEASURED Page Transmitter parameters §15.231 (b) Maximum field strenght of emission7 §15.231 (a)Automatic deactivation8 §15.231 (c)Bandwidth of emission9 Test equipment listing10 Photographs of the equipment12 CETECOM ICT Services GmbH Test report no.: 2_2035-A/00Issue Date: 17.08.2000Page 7 (31) EMISSION LIMITATIONS SUBCLAUSE § 15.231 (b) § 15.209 EMISSION LIMITATIONS all measurements are made up to the 10 th harmonic at 3m f (MHz) polari- zation amplitude of emission (μV/m) limit max. allowed emmision power (interpolation) actual attenuation below frequency of operation (dB)results 445.0vertical1094511458 μV/m-Operating frequency 1335.0vertical54.81146 μV/m 500μV/m (209) 46complies 2670.0vertical64.51146 μV/m 500μV/m (209) 45complies >2707verticalno peak found1146 μV/m 500μV/m (209) complies 412.675vertical1000710111 μV/m-Operating frequency 2063.4vertical58.91011 μV/m 500μV/m (209) 45complies 2476.1vertical66.11011 μV/m 500μV/m (209) 44complies >2476.1verticalno peak found1011 μV/m 500μV/m (209) complies 465.025vertical1035112293 μV/m-Operating frequency 2325.1vertical58.21229 μV/m 500μV/m (209) 45complies 2790.1vertical65.31229 μV/m 500μV/m (209) 44complies >2790.1verticalno peak found1229 μV/m 500μV/m (209) complies Measurement uncertainty± 3dB LIMITSSUBCLAUSE § 15.231 (c) In any 100 kHz bandwidth outside the frequency band at least 20dB below the highest level of the permitted fundamental power. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). All measurements are made with a CISPR quasi-peak equipment. CETECOM ICT Services GmbH Test report no.: 2_2035-A/00 Issue Date: 17.08.2000 Page 8 (31) AUTOMATIC DEACTIVATION SUBCLAUSE § 15.231 (a) The pulse is activated at 4.7 seconds and deactivates at 6.8 seconds at release. RefLvl 10dBm RefLvl 10dBmSW T 10s RFAtt 40dB A 1A P Uni t dB m 1s/ RB W 50kHz VB W 50kHz -9 0 -8 0 -7 0 -6 0 -5 0 -4 0 -3 0 -2 0 -1 0 0 10 1 Mar ker1[T1] -51.6 0dBm 10.00000 0s Date: 17.AUG .2000 13:05 :47 CETECOM ICT Services GmbH Test report no.: 2_2035-A/00Issue Date: 17.08.2000Page 9 (31) Bandwidth of emissions SUBCLAUSE § 15.231 (c) TEST CONDITIONS 445,0 MHz FREQUENCY (MHz) at which –20 dBc occurs ±1.11125 MHz at 445 MHz low high T nom ( 20 ) 0 CV nom ( 12,0 )V 444.989445.011 Measured frequencies (lowest and highest) f L = 444.989 MHz f H = 445.011MHz 412,675 MHz max ±1.03 MHz at 412 MHz low high T nom ( 20 ) 0 CV nom ( 12,0 )V 412.663412.689 Measured frequencies (lowest and highest) f L = 412.663 MHz f H = 412.689 MHz 465.025 MHz max ±1.163 MHz at 465 MHz low high …

Text truncated - open the document above for the full version.
