F37ABH204Bluetooth Wireless Headset

Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ATTACHMENT L USER’S MANUAL FCC ID: F37ABH204 Contents 1. Introduction 2. What is in the package ? 3. Headset Features 4. Preparation 5. How to use the Headset 6. LED Indication Status 7. Troubleshooting 8. Limited Warranty Acknowledging Special Precautions and the FCC Industry Canada Notice Cautions Modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 1. Introduction Bluetooth Headset ABH-204 can be carried as a wireless headset product based on Bluetooth technology. What is Bluetooth Technology? Bluetooth Technology allows the users to communicate data in the wireless network, which is the wireless network technology can be used in the short-range distance. It is designed to communicate data/voice within short-range distance of 10m to 100m. Bluetooth Technology operates in 2.4GHz ISM(Industrial Scientific Medical) of RF bandwidth, which can be used in most countries without any government regulations. Low cost, low power consumption and Robust data communication are main feature of Bluetooth Technology and Bluetooth allows Home appliance, Handheld PC/PDA, LAN PSTN, Mobile Phone to connect to wireless network, such as internet service. 2. What is in the package ? Our ABH-204 Bluetooth headset package comes equipped with a headset and charging adaptor. In this package you will find : ABH-204Necklace holderBelt clipUser ManualBattery charger Necklace TM 3. Headset Features Talk / Power button Volume down Volume up Indicator light Ear loop Speaker Charging connector Microphone 4. Preparation a) Getting started Before you start using the headset with a phone or other device for the first time, you should: - Charge the headset battery by using a battery charger in the package.. - Pair the headset with a Bluetooth device, such as, a mobile phone. b) Charging The Bluetooth headset is packaged with a built-in rechargeable battery. The battery may not fully charged when you buy the headset. We recommend that you charge the battery until the headset indicator light switched off before using the headset for the first time. To remind you that you will soon need to recharge the battery, the headset indicator light flashes red rapidly if the headset is on. It usually takes 2.5 to 3.0 hours to fully recharge the headset battery. During charging, the indicator shows a steady red light on the indicator light. When the battery is fully charged, the red light turns off and no light on the indicator light. DC adaptor jack How to charge the battery c) Choose right or left ear for wearing the headset. The ABH-204 Bluetooth headset comes configured for wearing on your right & left ear, please follow the instructions as provided : 1. Hold the headset firmly and put the earloop in its open position at your desired degrees for left or right year. 2. Place the earloop behind your ears 3. Remind you that the headset is positioned as indicated in the following picture. For using the earloop for left-ear & right-ear use, please see the picture as provided. d) How to use Necklace holder <Right> <Left> e) How to use Belt clip 5. How to use the Headset Introduction in this user’s guide are based on the headset buttons and phone keys. a) To turn the headset on Press and hold Talk Button for 5 seconds then the light turns to Green flashes five times, and you hear a short high tone followed by Green flashes. b)To turn the headset off Press and hold Talk Button for 5 seconds then the light turns to Red flashes five times, and you hear a short low tone followed by Red flashes. c) Pairing the headset Firstly, you should pair the headset with the device you want to use it with, such as a mobile phone, before you use your headset for the first time. The Bluetooth connection between the headset and a mobile phone can be established by setting up a paired link, Once you have paired your headset with the phone, you do not need to pair it again until you want to use it with another phone. 1. Prepare your phone according to the phone’s user documentation on pairing. PUSH 2. Press Talk button for up to 5 seconds until you hear a short high tone twice and the indicator flashes green and red. Then the headset is ready for paring. 3. For access range, please make you sure that the headset is within 5m(15 feet) ~ 10 m (30 feet) of the phone. 4. Please enter Headset passkey(“0000”) then it starts pairing procedure. 5. For the detail procedures of pairing, please refer to a mobile phone’s manual. d) To reset the headset 1. With the headset turned on, press an…

Text truncated - open the document above for the full version.

4.2V Balun 16MHz X-Tal CL : 10pF Tolerence : 10ppm Band Pass Filter 1 LATEST REVISION JOB NO. REVISIONSNO DATE DESCRIPTION DRAWN :S. H KIM CHECKED : SUKJIN KIM TITLE :ABH204 LED (Red, Green) MIC RECEIVER Li+ Battery 3.7V 170mA DC Jack 5.0V 100mA Hellical Antenna 3.0V Power Management Circuit Power On Off / Talk Switch Volume Up Switch Volume Down Switch CN100 5.0V CN101 2.4GHz LDO IN 3.7V OUT 3.0V Charger RX TX 3.7V Bluetooth Wireless Headset ABH204 v2.4.0Block Diagram CSR BC02- Flash version (Radio+Baseband) 2.4GHz Radio ROM RAM DSP MCU IO 15 bit Audio Codec Voltage Regulator 1.8V core

Auto Electronic Corp. 14F, Hanshin IT Tower, #235, Guro-Dong, Guro-Gu, Seoul, 152-050, KOREA Tel:+82-2-2108-7899 Fax: +82-2-2108-7999 Dec 22, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Auto Electronic Corp. FCC ID : F37ABH204 FCC Part 15 Subpart C Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Auto Electronic Corp. hereby requests confidentiality of the Schematics, Parts list, Part Location of the attached test report. These documents contain detailed system and equipment description and related information about the product which Auto Electronic Corp. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Auto Electronic Corp. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Seok-Jin Kim Research Engineer

Auto Electronic Corp. 14F, Hanshin IT Tower, #235, Guro-Dong, Guro-Gu, Seoul, 152-050, KOREA Tel:+82-2-2108-7899 Fax: +82-2-2108-7999 Dec 22, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for model F37ABH204. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Auto Electronic Corp. Sincerely, Seok-Jin Kim Research Engineer

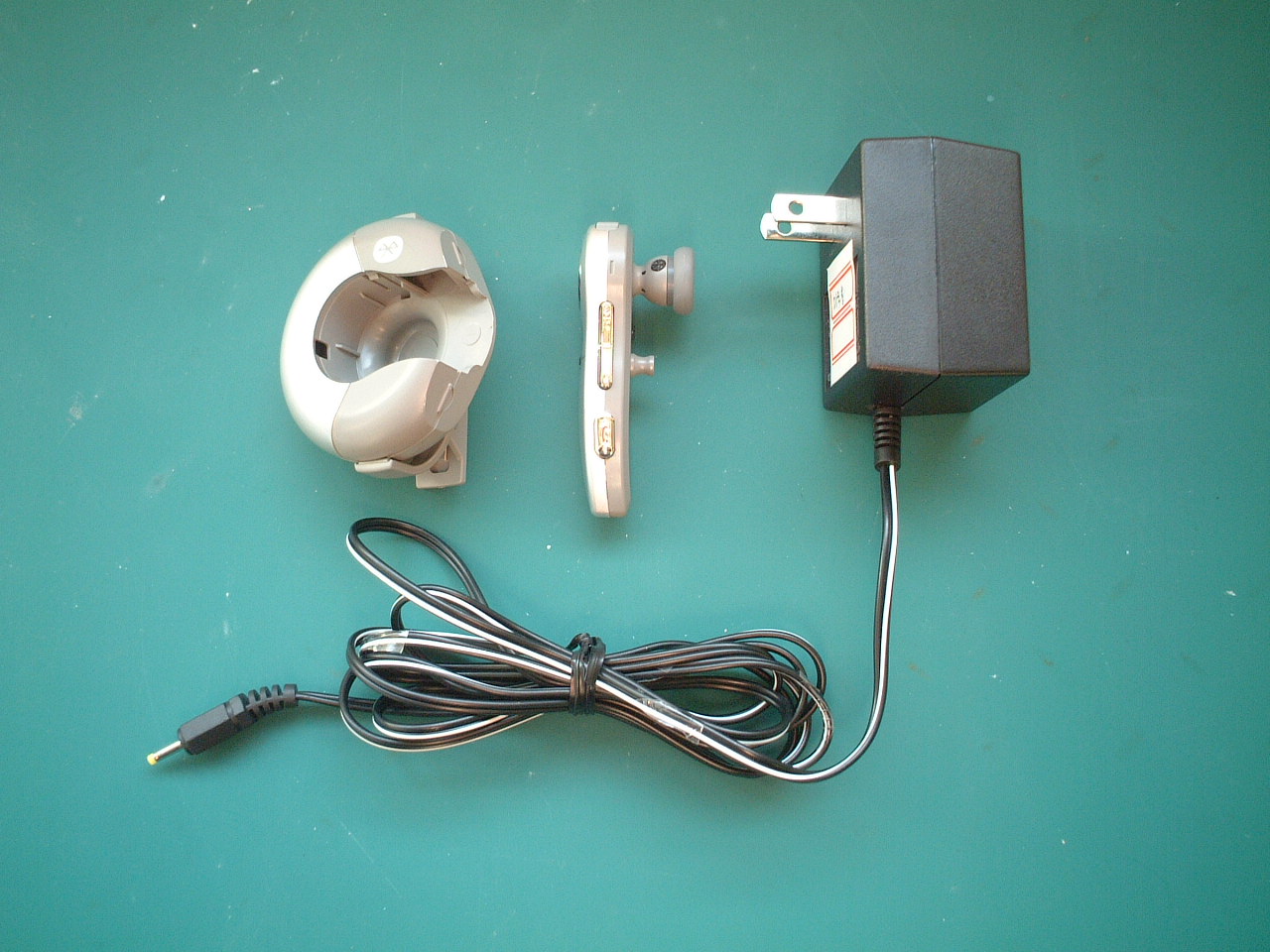

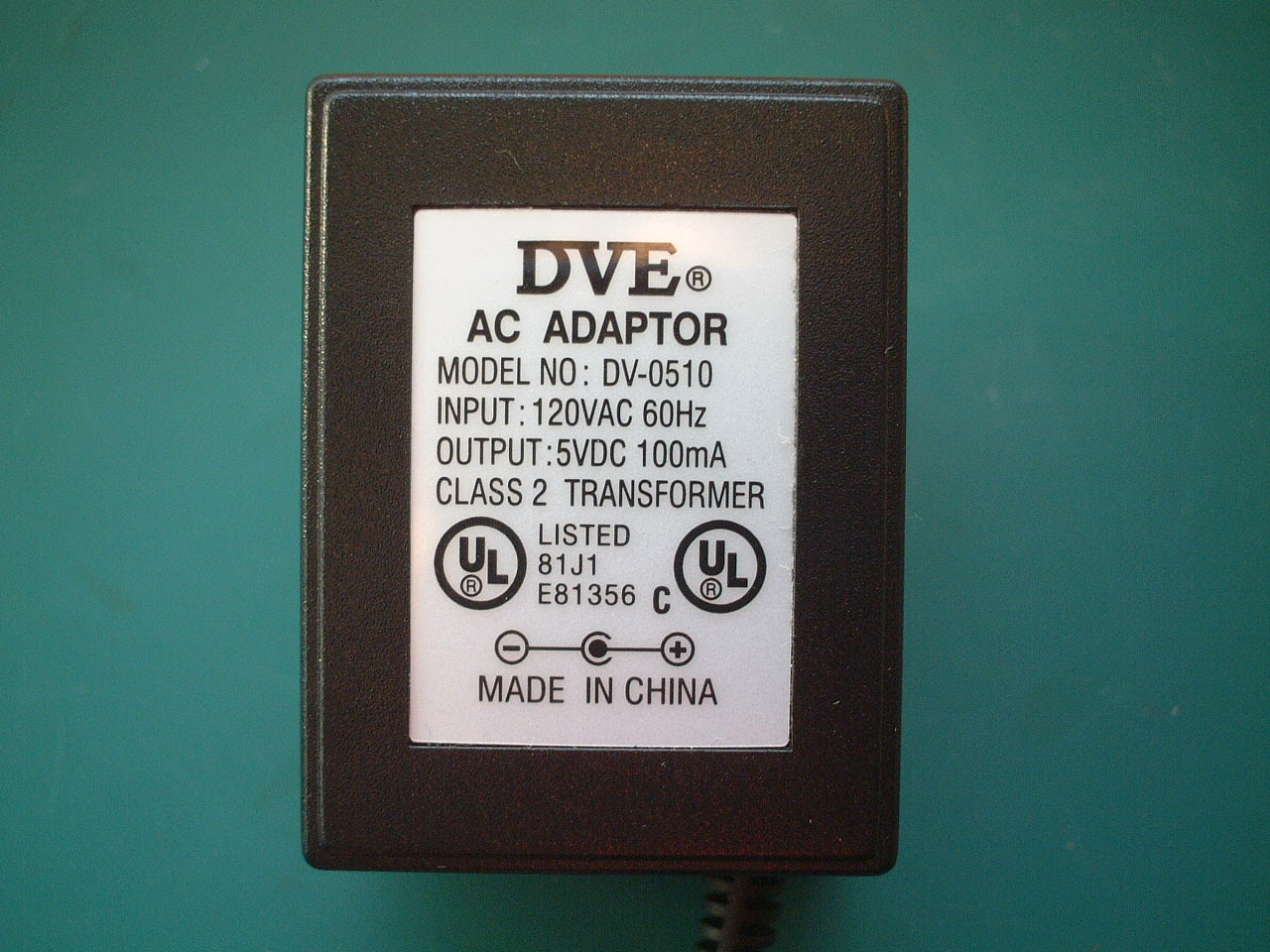

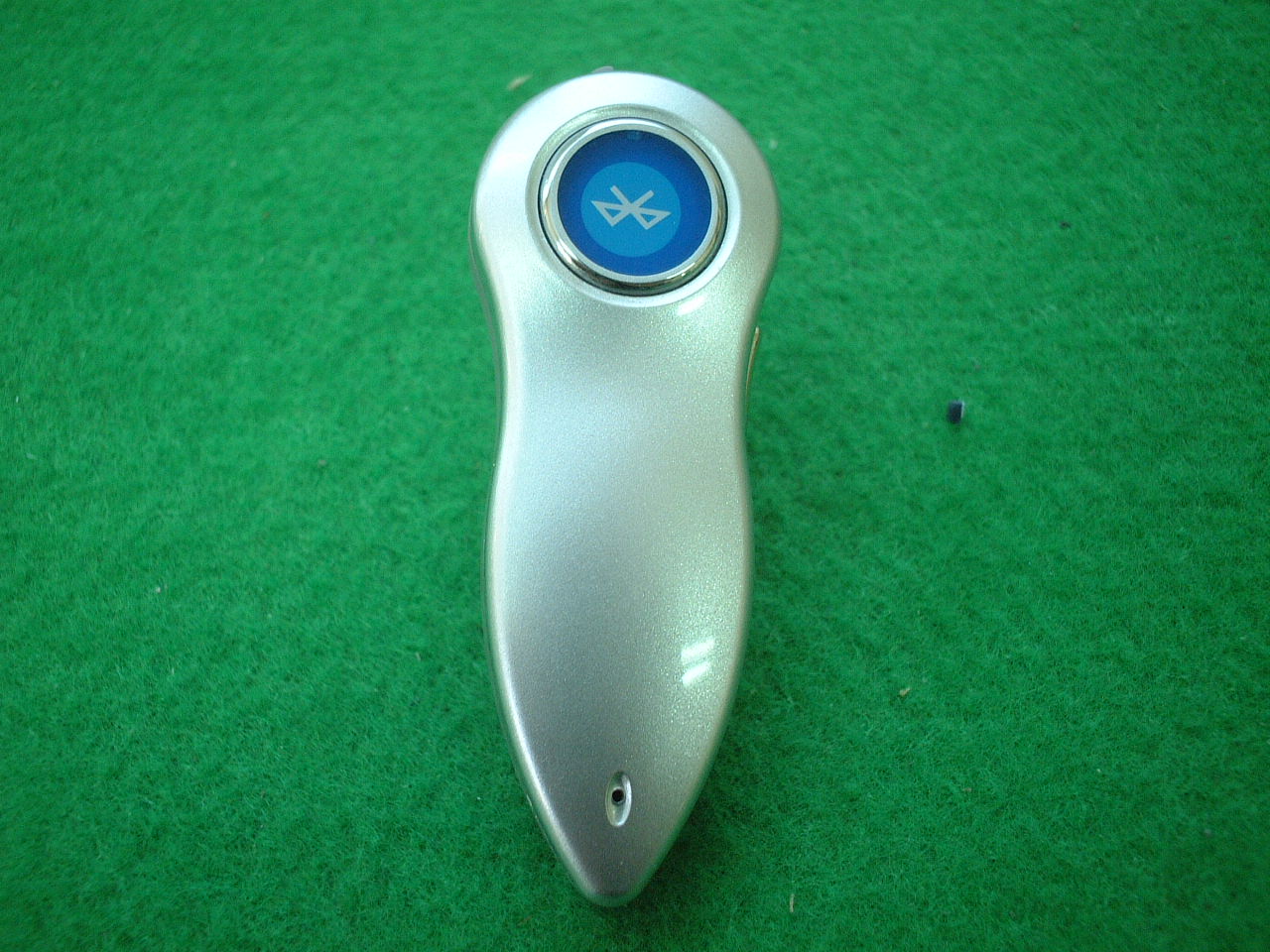

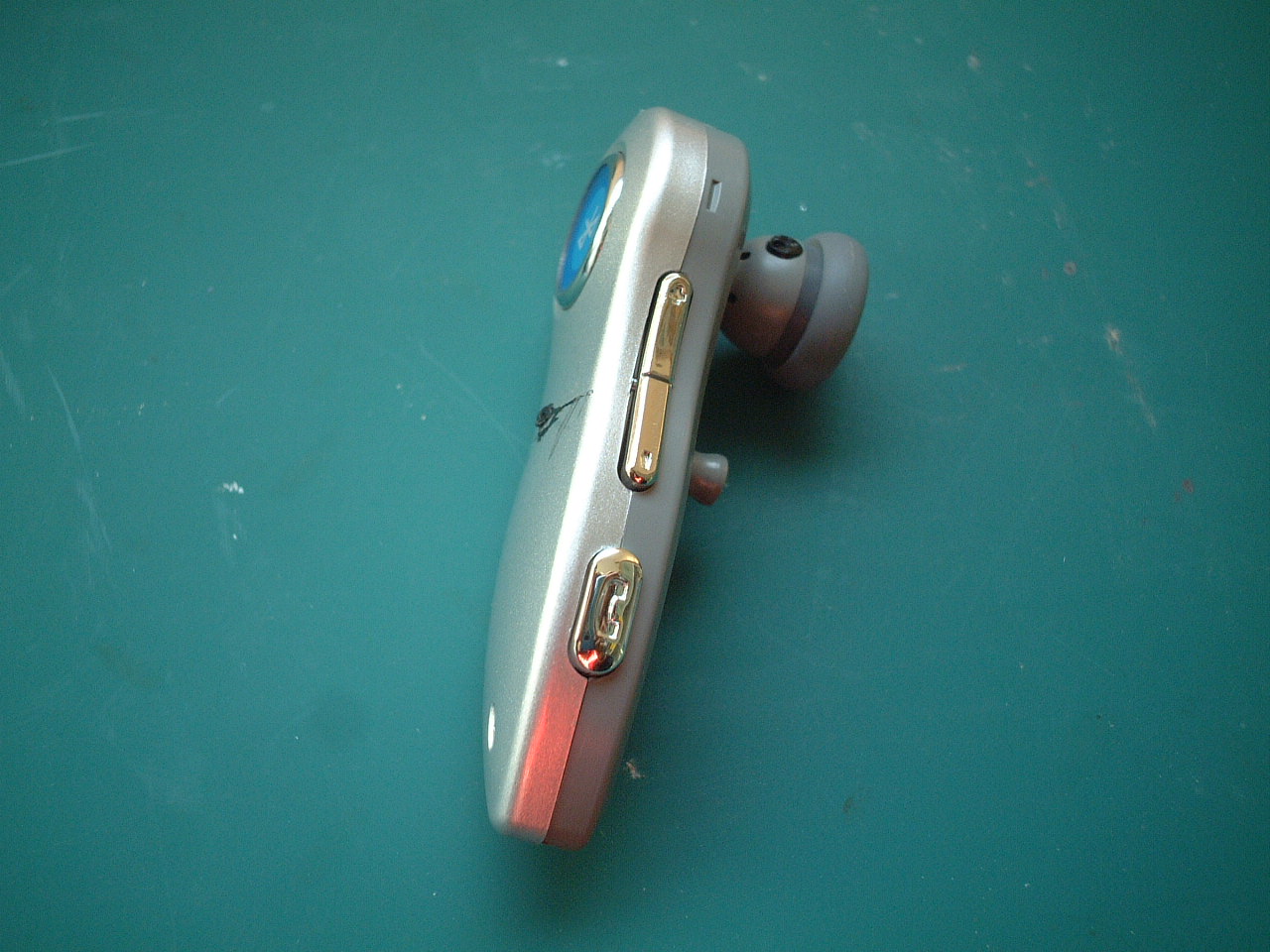

Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ATTACHMENT F EXTERNAL PHOTOGRAPHS FCC ID: F37ABH204 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ABH-204 View 1 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ABH-204 View 2 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ABH-204 View 3

Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ATTACHMENT D FCC ID LABEL & LOCATION FCC ID: F37ABH204 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. Label Description Auto Electronic Corp. MODEL : ABH-204 FCC ID : F37ABH204

Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ATTACHMENT G INTERNAL PHOTOGRAPHS FCC ID: F37ABH204 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ABH-204 View 1 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ABH-204 View 2

Bluetooth Wireless Headset Bluetooth Wireless Headset Product Specification Product ID : ABH-204 Bluetooth Wireless Headset 1. General Specification (1) General This product enables convenient cord-free communication with mobile phone(CDMA/GSM/GPRS) and Bluetooth device that are compliant with Bluetooth Version 1.1 or higher. It is a highly integrated Bluetooth headset for world wide ISM band(2.4GHz). It has designed with low power consumption and most of functions can controlled by microprocessor. It will minimize your exposure to radio frequency(RF) from your mobile. (2) Specifications -Bluetooth™ Qualified : Version 1.1 Compliant(Class2) -Radio Frequency Range : 2.402~2.480 GHz -Transmit Power : Typical 2dBm(1.6mW) -Receive Sensitivity : -78dBm -Service Distance : Up to 10 meters (30feet) at open field -Security : 56 bit encryption -Profile : Headset Profile -Operating Temperature : -10~55°C -Dimension : 68.5 x 26 x 25.3(L x W x H) -Weight : 19grams -Charging Time : 3 hours for 90% capacity -Ta l k Ti m e : Up to 5hrs -Standby Time : Up to 150 hrs (3) Power -Battery : 180mAh rechargeable Lithium Polymer -Charger : DC 5V, 100mA AC adaptor (100~240V) -Charging Current : 100mA -Battery Current (Operating mode) : <30mA -Battery Current(standby mode) : <1mA Bluetooth Wireless Headset 2. General Information Talk / Power button Volume down Volume up Indicator light Ear loop Speaker Charging connecto r Microphone (1) Name of Operating Parts Indicator light : LED displays status of the Headset. Active, Standby and Off mode. Talk / Power Button : Controls a lot of functions of the Headset including Headset ON and OFF, as well as pairing the headset. Volume Up/Down : Adjusts the loudness of the sound level that you hear. Charging Connector : Socket for charging the headset battery. Microphone : For outgoing audio. Speaker : For including audio. Bluetooth Wireless Headset 3. Operation Description 1) General Description It supports Class2 and Class3 radio transmission without the need for an external Power amplifier. Fully integrated synthesizer without external VCO varacter diode, resonator or loop filter. It has designed for use in voice application such as hands-free kits. It has designed with low power consumption and most of can be controlled by microprocessor. 2) Radio Architecture (1) Transmitter Architecture -The Transmitter uses a conventional IQ modulator, as Figure 2.1 Shows. The Baseband Bluetooth signal is generated digitally and modulated in accordance with the Gaussian Frequency Shift Keying(GFSK) modulation scheme employed in Bluetooth. An additional frequency offset of to 1MHz can be added to the digital baseband signal. -The baseband signal is up-converted in the in-phase and quadrature (IQ) modulator to 2.4GHz. An RF amplifier then boosts the signal level and drivers differential TX_A and TX_B. -A conventional PLL synthesizer provides the local oscillator drive to the IQ modulator. The synthesizer produces signals at around 1.2GHz, which are then doubled to 2.4GHz. The 2.4GHz signal passes through a 90 phase splitter to provide the IQ driver to the modulator. The loop filter components for the synthesizer are internal to the chip. DAC Digital Modulator +45 -45 x 2 QI (2402 + Channel - Offset) MHz Loop Filter Phase Comparator /N/N+1 Reference Frequency RF Synthesizer [(1201 + Channel/2) - Offset/2] MHz TX_A TX_B PA + - (2402 +Channel) MH DAC I Q I Q Offset = 0MHz, +/- 0.5MHz, +/- 1MHz Figure 2.1 : Overview of Transmitter Architecture (2) Receiver Architecture -Figure 2.2 shows a receiver of a double conversion design, which uses the same synthesizer as the transmitter. The RF switch enables the use of inputs from either the differential or signal-ended receive ports. The differential ports are the same TX_A and TX_B ports utilized by the transmitter. Single-ended inputs used the RF_IN port. -Both differential and single-ended inputs are amplified by a low noise amplifier (LNA) and Bluetooth Wireless Headset passed to an IQ mixer where the signal is then down-converted to a first intermediate frequency (IF) of 1.5MHz. This signal is amplified and filtered before undergoing a second quadrature mix to 2.5MHz. The 2.5MHz signal is further amplified and filtered. The signal is limited, sampled and then digitally demodulated. The 2.5MHz IF block also provides received signal strength indication(RSSI). LNA TX_A TX_B RF_IN (240 2 + C h an n el - Of fset) M H z Loop Filter Ph ase Co mparator /N/N+1 Reference Frequency RF Synthesizer [(12 01 + C h an n e l/ 2) - Offset / 2] M H z (2402 + C han n el ) M H z +4 5 -45 x 2 QI +4 5 -4 5 QI 4M H z 1. 5M H z2.5MHz AD C Digital Demodulator I Q I Q Figure 2.2 : Overview of Receiver Architecture

Auto Electronic Corp. 14F, Hanshin IT Tower, #235, Guro-Dong, Guro-Gu, Seoul, 152-050, KOREA Tel:+82-2-2108-7899 Fax: +82-2-2108-7999 Dec 22, 2003 attn: Reviewing Engineer Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 RE : RF exposure information FCC ID : F37ABH204 Bluetooth Wireless Headset To whom it may concern: The product stated above, comply with the FCC limits for Human exposure to RF emissions. This device is categorically excluded from routine environmental because it operate at very low power level. The equipment is deemed to comply with the SAR or MPE limits without testing due to this very low power level (EIRP < 2.5 mW) Sincerely, Seok-Jin Kim Research Engineer

DEMC#DR50110312L Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ATTACHMENT C FCC ID: F37ABH204 Test Report Report Number: DR50110312L DEMC#DR50110312L FCC ID: F37ABH204 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 38 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATIO OF COMPLIANCE Auto Electronic Corp. 14F, Hanshin IT Tower, #235, Guro-Dong, Guro-Gu, Seoul, KOREA 152-050 Dates of Tests: December 23~31,2003 Test Report S/N: DR50110312L Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Device name : Bluetooth Wireless Headset Manufacturer : AIRLOGIC Co., Ltd. FCC ID : F37ABH204 Model name : ABH-204 Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2001 Frequency Range : 2402 ~ 2480 MHz Max. Output power : 1.195 mW Conducted Data of issue : January 3, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. F37ABH204 Auto Electronic Corp. DEMC#DR50110312L FCC ID: F37ABH204 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 38 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST RESULT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.6 BAND - EDGE (at 20 dB blow) ---------------------------------------------------------------- 3.2.7 OUT OF BAND EMISSION - RADIATED -------------------------------------------------- 3.2.8 TRANSMITTER POWER SPECTRAL DENSITY ----------------------------------------- 3.2.9 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.3 RECEIVER REQUIREMENTS --------------------------------------------------------------------- 3.3.1 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.3.2 OUT OF BAND EMISSION - RADIATED -------------------------------------------------- ANNEX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5-35 5 6-32 6-7 8-10 11-13 14-17 18-20 21-26 27 28-30 31-32 33-35 33-34 35 36-38 DEMC#DR50110312L FCC ID: F37ABH204 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 38 1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer January 5, 2004 Won -Jong LEE Data Name Signature Report Reviewed By: manager January 5, 2004 Dong -Min JUNG Data Name Signature Ordering party: Company name : Auto Electronic Corp. Address : 14F, Hanshin IT Tower, #235, Guro-Dong, Guro-Gu, Zip code : 152-050 City/town : Seoul Country : Korea Date of order : December 22, 2003 DEMC#DR50110312L FCC ID: F37ABH204 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 38 2. Information’s about test item F37ABH204 2.1 Equipment information Equipment model no. ABH-204 Type of equipment Bluetooth Wireless Headset Frequency band 2402 ~ 2480 MHz Type of Modulation GFSK, BT 0.5 ±1% Channel Spacing 1.0 MHz Type of antenna Internal Helical antenna Power DC 3.7V rechargeable Battery 2.2 Tested frequency Frequency TX RX Low frequency 2402MHz 2402MHz Middle frequency 2441MHz 2441MHz High frequency 2480MHz 2480MHz 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 3.7 V (powered by power supply) 2.4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer AC Adaptor DVR-0510UP-3512 N/A DVE USB Dongle AUD-201A N/A AIRLOGIC Notebook PCG-645P 28360070 7600536 SONY 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> none DEMC#DR50110312L FCC ID: F37ABH204 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 38 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) I. Transmit mode(Tx) Carrier Frequency Separation > 25 kHz C Number of Hopping Frequencies > 75 hops C 20 dB Bandwidth < 1 MHz C 15.247(a) Dwell Time 0.4 seconds within a 30 second period per any frequency C 15.247(b) Transmitter Output Power < 1Watt C Band-edge(or Occupied BW for IC) 2400 < f < 2483.5 MHz C 15.247(c) Out of Band Emissions (Bandwidth at 20 dB blow) The radiated emission to any 100 kHz of outband shall be at least 20dB below the highest inband spectral density. C 15.247(d) Transmitter Power Spectral Density < 8dBm / 3kHz Conducted C 15.205 15.209 General Field Strength Limits (Restricted Bands and Radiated Emission Limit…

Text truncated - open the document above for the full version.

Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ATTACHMENT E TEST SETUP PHOTOGRAPHS FCC ID: F37ABH204 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ABH-204 View 1 FCC ID: F37ABH204 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. ABH-204 View 2
