F37AEUC201ABluetooth USB Dongle with Flash Memory

OPERATING MANUAL General description AirMate is the USB Dongle with Flash memory function from AUTO ELECTRONIC Corp. It enables the combined use of mobile storage media with additional Flash Memory no need of extra installing program. We are sure that you could experience much excellence in convenience and benefits. - Product specification 1) Operating voltage : 5.0V 2) Operating temperature : -10~55 3) Operating frequency range : 2402 ~ 2480MHz 4) Channel frequency : 79CH 5) Occupied channel frequency : 1MHz 6) Output power : +4dBm 7) Modulation : GFSK 8) Duplex type : Half duplex 9) Transmitting distance : 10m 10) Interface : USB - Operating manual ’ Note. This equipment has been tested and found no comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures; - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. INFORMATION TO USER The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION FCC Radio-Frequency Exposure Statement This equipment generates and radiates radio frequency energy. The antenna(s) used for this transmitter must not be operating in conjunction with any other antenna or transmitter. User are not permitted to make changes or modify the system in any way. Note. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Auto Electronic Corp.Model : AEUC-201A USB DATA I/O TX/RX 4M or 8M Bits Flash Memory Regulator OUT IN 3.3V XT1 X-Tal16MHz AT43301 USB 4PORT HUB CONTROLLER Band Pass Filter Balun LoopFilter SMD ANTENNA TX RX 2.4GHz Radio RAM DSP MCU I/O CSR BC02-USB Bluetooth Chip (Radio+Baseband) Data I/O 1.8V Regulator OUT IN USB DATA I/O X1 6MHz X-TAL 16MHz Clock IN USB DATA I/O USB "A" TYPE CONNECTOR 6MHz Clock IN AU9380 MEMORY CONTROLLER XT1 12MHz RESONATOR 12MHz Clock IN FLASH MEMORY 32M/64M/128M DATA I/O 5V 500mA USB POWER Flash MemoryAirMate Memory Bord Bluetooth Module(ABM-200-2xx)Bluetooth Module Board Contact:CN3-CN4PCN1-CN4P Contact: CN1_CN15 + CN2_CN15 BC02_C2_CN30 Bluetooth USB Dongle withFlah Memory(AEUC-201A)AirMate Mainboard Ver 1.0 PIO LINE Chip LED

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality

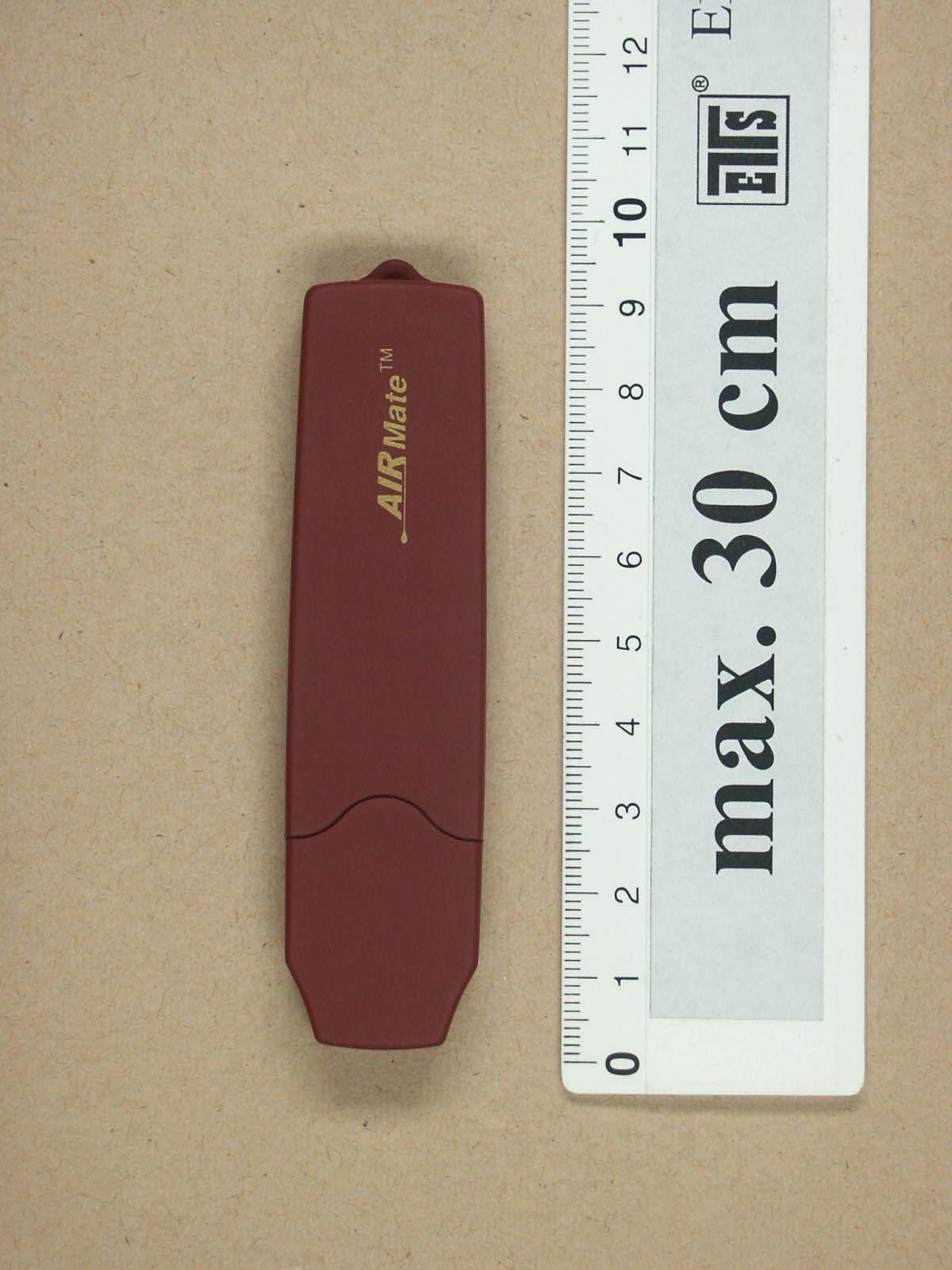

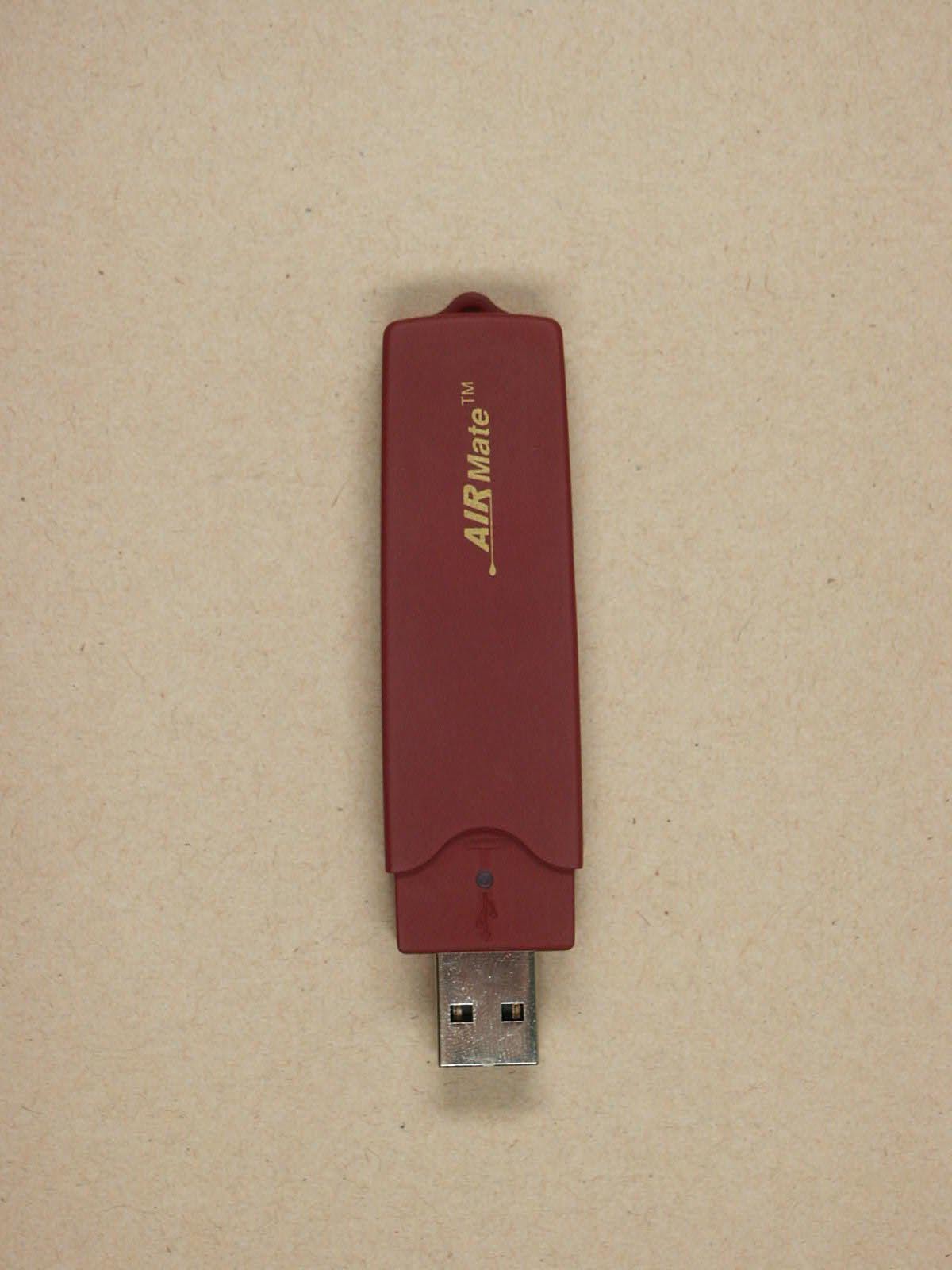

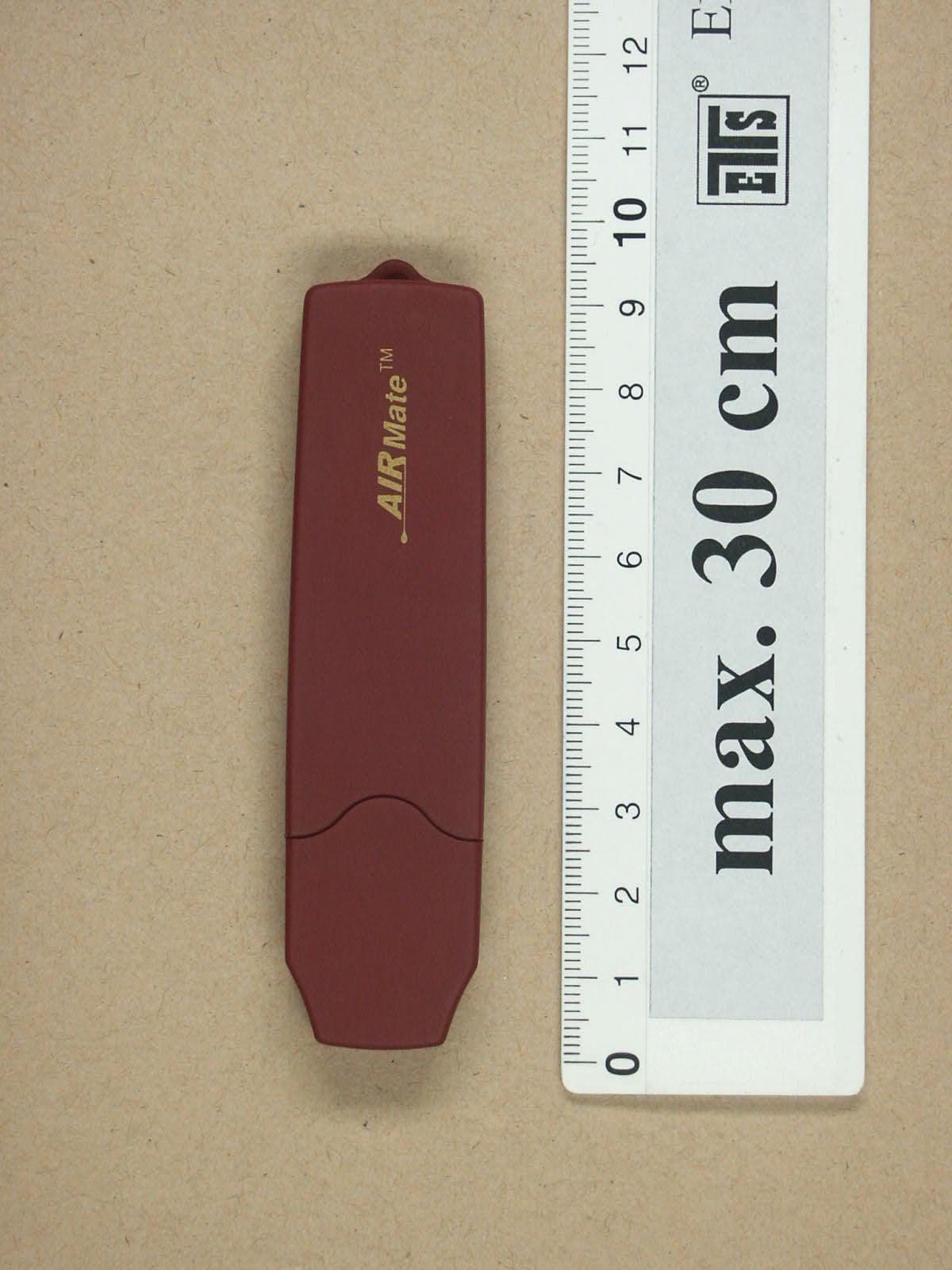

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 1 of 14 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 2 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 3 of 14

AUTO ECECTRONIC CORP. #11-34, dangsandong-5ga, Youngdeungpo-Gu, Seoul, 150-045, Korea E-Mail : [email protected] TEL : (02) 676-5861() FAX : (02) 675-5853 ---------------------------------------------------------------------------------------------------------------------- FCC ID Lable Location Information [ Description of Product /Model No.]

AUTO ECECTRONIC CORP. #11-34, dangsandong-5ga, Youngdeungpo-Gu, Seoul, 150-045, Korea E-Mail : [email protected] TEL : (02) 676-5861() FAX : (02) 675-5853 ---------------------------------------------------------------------------------------------------------------------- FCC ID label sample / Description of Product : Bluetooth USB Dongle with Flash Memory(Portable storage) Model No. AEUC-201A FCC ID : F37AEUC201A

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 4 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 5 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 6 of 14 Intern antenna ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 7 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 8 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 9 of 14

Operation Description 1. Product description. AirMate is kind of Bluetooth USB Dongle which allows the device to connect to Bluetooth enabled devices by being inserted into the USB port of the Computer/PDA. And furthermore, it includes USB Flash Memory Drive on AirMate as well so that the user can use it as a portable storage device all the times. 2. Functions AirMate allows the device to have the following functions(Profiles) such as Information Interchange, File Transfer, Network Access, Dial-Up Networking and etc. and it can be used as a portable storage. GAP(Generic Access Profile) : GEAP indicates the Bluetooth standard requirement in the Protocol Stack to connect between Bluetooth enabled devices, it includes L2CAP, RFCOMM, OBEX in the security layer and all the profiles such as SDAP, SPP, DUN and LAN Access etc. SDAP(Service Discovery Application Profile) SDAP allows the device to search for the device which is available while the system is in connection, and it provides with the information of the service available. SPP(Serial Port Profile) Bluetooth Serial Port application allows the device to establish a wireless serial connection with a remote Bluetooth remote device. DUN(Dial-up Networking) Bluetooth Dial-up Networking application allows the device to use a modem the is physically connected to a remote device to access the internet, log on to a remote network. Fax Profile The Bluetooth Fax Service allows the device to send a fax using a Fax/Modem that is physically connected to a remote device. LAP (LAN Access Profile) The Network Access Service makes it possible for a remote Bluetooth device to use the Local Area Network connection that is physically attached to this computer. GOEP(Generic Object Exchange Profile) GOEP allows the device to exchange objects to the other Bluetooth device, such as Synchronization, File Transfer and Object Push. OPP(Object Push Profile) OPP allows the device to push object(Business Cards...) to the other Bluetooth device by using GOEP. FTP(File Transfer Profile) File Transfer Profile allows the device to perform file operations on the Bluetooth Exchange Folder (and the folders and files it contains) of a remote device, and copy to/from a remote device. Synchronization Profile The Synchronization profile can be used by a remote device to synchronize its Personal Information Manager(PIM) database with the PIM database of the device such as Business cards, Calendar items, Email messages, and Notes. HCRP(Hard Copy Replacement Profile) HCRP includes the following profile services; Discovery and Connection Setup, Service Discovery, Data Channel Flow Control, Control Channel Protocol and Notification Handling.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product AEUC-201A is considered to be a mobile transceiver. The internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the AEUC-201A will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no G5M203010007-T-47 and the accompanying calculations. Company: Auto Electronic Corp.. Address: #11-34, Dangsandong-5ga, Youngdeungpo-Gu, City: Seoul ZIP / Postal code: 150-045 Country: Korea Place, date : Korea / 2003.01.27 Signature

Bluetooth USB Dongle with Flash Memory(Portable storage) /AEUC-201A KRD01-00A05-01IR Antenna Specifications Sheet Object Chip Antenna REV.IR Page 1 of 4 Model name KBI – 114F - 81 Date November 27, 2002 System AEUC-201A Written by H. J. Kwon Electrical Specifications Frequency 2.4 ~ 2.485 (GHz) Bandwidth 85 (MHz) V.S.W.R 1.9 : 1 (min) Gain (max) 0 (dBi) Input Impedance 50 (Ω) Polarization Linear Mechanical Specifications Size 11 X 4 X 2.0 (mm) Weight 0.3 (g) Radiator Material Copper Operation Temperature -30 ~ 90( ) Operation Humidity 10 ~ 90 (%) Option Others Fig. 1. VSWR Fig. 2. Return Loss Fig. 3. Smith Chart Fig. 4. Radiation Pattern AZIMUTH ELEVATION ELEVATION(SIDE)

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C Test report no.: G5M203010007-T-47 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 1 of 26 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 2 of 26 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 06.02.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 06.02.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 3 of 26 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96-00 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Auto Electronic Corp. Street: 8#11-34, dangsandong-5ga, Youngdeungpo-gu Town: 150-045 Seoul Country: Korea Telephone: +82-2-676-5861 Fax: +82-2-675-5853 Contact: Mr. S.D. Kim Telephone: +82-2-676-5861 ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 4 of 26 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 27.01.2003 Date of receipt of test item: 27.01.2003 Date of test: 27.01.2003-29.01.2003 1.5Test item Description of test item: Bluetooth USB Dongle with Flash Memory (Portable storage) Type identification: AEUC-201ABrand Name: AirMate Serial number: without Photos: See Appendix A Technical data Frequency band: 2.4GHz – 2.4835GHz Frequency ( ch A): 2402 MHz Frequency (ch B): 2441 MHz Frequency (ch C): 2480 MHz TransmitterUnom Power (ch A): Conducted: 1.45 dBm Power (ch B): Conducted: 1.77 dBm Power (ch C): Conducted: 1.07 dBm VnomVnom –15 % Vnom +15 % Power (chA) : Radiated: 0.20 dBmRadiated: 0.45 dBmRadiated: 0.46 dBm Power (ch B) : Radiated: -0.66 dBmRadiated: -0.73 dBmRadiated: -0.72 dBm Power (ch C) : Radiated: 0.33 dBmRadiated: 0.32 dBmRadiated: 0.19 dBm Power supply : 5 V DC (powered by USB Port)120 V AC host device (CF-27 Panasonic) Operating mode: duplex Type of modulation: FHSS Antenna gain: 0 dBi ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 5 of 26 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: Street: Town: Country: Additional information:The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronisation procedure and other parameters are determined by Bluetooth Core Specification. The Bluetooth USB Dongle with Flash Memory (Portable storage) AEUC-201A contains the Bluetooth Module ABM- 200-2xx with test report number: G5M203010006-BlueT-71. For testing, the Bluetooth USB Dongle with Flash Memory (Portable storage) AEUC-201A was tested connected to the laptop Notebook CF-27 from Panasonic as test environment. The host device (laptop) has a supply of 120 V AC and provides around 5 V DC to the AEUC-201A. ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 6 of 26 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course ý of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests ̈ performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 5 V (powered by USB Port) Extrem conditions parameters:: test voltage - extrememin.:102 V (Vnom - 15 %) max: 138 V (Vnom + 15 %) ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 7 of 26 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 10 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 11 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 12 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 13 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203010007-T-47Page 14 of 14
