F4Z4K3FDM-2LCS0Wireless Mouse

Forward Electronic RF wireless Keyboard & Optical Mouse User Guide The content of this manual is subject to change without notification. Copyright © Dec., 2002. All rights reserved. Introduction. Your life will be more convenient because of Forward wireless RF keyboard & Optical mouse. Suggest System Requirements: 1. Intel Pentium 90 or higher 2. Microsoft Win 98/2000/ME/XP 3. USB 1.0 or higher 4. 16MB RAM or higher Package Contents: 1. Keyboard 2. Palm rest 3. Mouse 4. Receiver (USB) 5. Batteries (AA*4) 6. User manual Installation: Before the installation start, please turn off your PC/ laptop PC 1. Install the batteries. Keyboard Mouse 2. To install on USB: Find an available USB port and plug in the USB connector. (For Windows OS, you maybe prompted to insert the Windows software CD. Insert CD into the CD Rom drive, then, follow the on-screen instruction. 3. Making connection: i. Press the receiver ‘Learn’ button until the LED flash slowly. ii. Press the keyboard ‘ID’ button to connect with receiver(the LED will flash quickly) iii. Press the mouse ‘ID’ button to connect with receiver(the LED will flash quickly) iv. When finished the procedure, then the RF keyboard and mouse can be operated like general keyboard and mouse. 4. Troubleshooting: Keyboard/mouse do not work. i. Check the batteries ii. Check the receiver’s cable connections. iii. Press the connect button on the receiver, then press the connect button on the keyboard and mouse. (To ensure the connection is probably, please check the distance between receiver and keyboard/mouse is under 1.0 meters) iv. Maker sure the USB port has the proper configuration. Refer to your computer documentation for correct port configuration. You may also have other system devices for conflicts. Please change the setting as required. Warranty: Limited warranty of twelve months is provided by manufacture since the date of produced. FCC Requirements Radio & Television Interference This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation." Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However,, there is no equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1). Reorient or relocate the receiving antenna. 2). Increase the distance between the equipments and receiver. 3). Connect the equipment into a separate power outlet from which the receiver is connected. 4). Consult the dealer or an experienced radio/TV technician for soulation. Note: 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operate the equipments. 2. Shielded interface cable and A.C. power cord, if any, must be used in order to comply with the emission limits.

digaram.tif (3843x2386x2 tiff)

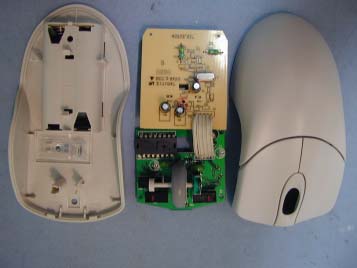

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 PHOTOS OF EUT

FCC ID: F4Z4K3FDM-2LCS0 Operational Description of the equipment This is a wireless mouse which is designed for PC system. The detailed circuit functions are described as below: FREQUENCY BAND 26.96 ~ 27.28 MHz CARRIER FREQUENCY 27.045 MHz NUMBER OF CHANNEL 1 CHANNEL SPACING 41.6 kHz RF OUTPUT POWER (EIRP) -51.7 dBm I.F. & L.O. I.F. 0MHz, L.O. 27.045 MHz MODULATION TYPE FSK BIT RATE OF TRANSMISSION 2k bps ANTENNA TYPE Loop Printed

55 44 33 22 11 4 4 3 3 2 2 1 1 DOUCUMENT NO: CHKD Z2 CHKD DSGD mm 40mil DSGD ANT LOOP UNIT: SYMB CIRCUIT DIAGRAM APPD Z1 CU2L301 DATEAPPD TITLE: SDIO LB SCLK RF_DATA PD LED_P RF_PWR MB VCC RB VCC VCC BAT VCC VCC VCC R13 3.9k C24 1000pF C25 22pF C121000pF Y1 27.045MHZ C28 N/A Q4918 ENCODE R1015K C13 1000pF RB SW2 C20 47pF + C1410uF R0 22K C27 120pF Q3918 R14 10K C11 1uF R20N/A R1 470K R181k CON2 12354 BATRF_PWRVCCRF_DATAGND R2 22K C26 68PF C1822pF Q53904 C21 47pF R17390K C3 0.1uF + C10 1uF C8 0.1uF Y2 18.43MHZ R11 2K L1 100uH LB SW3 R6 47K + C9 10uF Q1 3906 R547K C15 1000pF 20pF RT9261-33CX U3 1 3 2 GND VIN VOUT R15 N/A MB SW1 R7 47K R4 47K D1 SCHOTY DOIDE HBAT54 C7 0.1uF R8 47K GM67516BCHK SUM:89C8 U2 101112131415161718 123456789 RB4RB5RB6RB7VDDQSC2OSC1RA0RA1 RA2 RA3 RTCC MCLR VSS RB0RB1RB2RB9 C30 0.1uF + C2 100uF LZ ADNS-2030 U2 13 14 12 781169 101516 1 VDD R_BIN GND REFAREFB SOC_OUT XY_LED SOC_IN GNDPDSDIOSCLK Q23904 C19 1000pF R12 1K Y3 4.0MHZ L3 4.7uH 20pF C5 0.1uF C23 1000pF + C1610uF R1947K R2110 C29 1000pF L2 0.47uH SETUP SW4 R9 47K R16 100K R3 22K AU926F00 LED C22 120pF C171000pF Bat(-) VCC TX-VCC BAT TX-VCC RF_DATA VCC VCC RF_PWR Bat(+) BAT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02102803 Report No.:FCCA02102803 Page: 1 of 13 Date: Oct. 31, 2002 Product Name: Wireless Mouse Model Number: FDM-2LCS0 Applicant: FORWARD ELECTRONICS CO., LTD. 393, CHUNG CHENG RD., SEC. 1, SANHSIA TOWN, TAIPEI COUNTY, TAIWAN, 237, R.O.C. Date of Receipt: Oct. 28, 2002 Finished date of Test: Oct. 31, 2002 Applicable Standards: 47 CFR Part 15, Subpart C ANSI C63.4:1992 We, Spectrum Research & Testing Laboratory Inc. , hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Checked By : ( James Lee) , Date: Approved By : (Spring Wang ) , Date: ( Harris W. Lai, Director ) Lab Code: 200099-0 FCC ID : F4Z4K3FDM-2LCS0 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02102803 Report No.: FCCA02102803 Page: 2 of 13 Date: Oct. 31, 2002 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................3 1.1 DOCUMENT POLICY.........................................................................................3 1.2 TEST STATEMENT.............................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE......................................................4 2.1 GENERAL DESCRIPTION OF EUT...................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE.....................................................4 2.3 DESCRIPTION OF TEST MODE........................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT..................................................................5 3. DESCRIPTION OF APPLIED STANDARDS......................................................6 4. RADIATED EMISSION TEST.............................................................................6 4.1 RADIATED EMISSION LIMIT..............................................................................6 4.2 TEST EQUIPMENT.............................................................................................7 4.3 TEST SET-UP.....................................................................................................8 4.4 TEST PROCEDURE...........................................................................................9 4.5 EUT OPERATING CONDITION..........................................................................9 4.6 RADIATED EMISSION TEST RESULT.............................................................10 5 BAND EDGE.....................................................................................................11 5.2 BAND EDGE LIMIT..........................................................................................11 5.2 TEST EQUIPMENT...........................................................................................11 5.3 TEST SET-UP...................................................................................................11 5.3 TEST PROCEDURE.........................................................................................11 5.5 EUT OPERATING CONDITION........................................................................11 5.6 BAND EDGE TEST RESULT............................................................................12 6 TERMS OF ABRIVATION..................................................................................13 FCC ID : F4Z4K3FDM-2LCS0 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02102803 Report No.: FCCA02102803 Page: 3 of 13 Date: Oct. 31, 2002 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source, 3V from battery, was used during the test. FCC ID : F4Z4K3FDM-2LCS0 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02102803 Report No.: FCCA02102803 Page: 4 of 13 Date: Oct. 31, 2002 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. FDM-2LCS0 POWER SUPPLY DC 3V from Battery CABLE N/A I/O PORT N/A FREQUENCY BAND 26.96 ~ 27.28 MHz CARRIER FREQUENCY 27.045 MHz NUMBER OF CHANNEL 1 CHANNEL SPACING 41.6 kHz RF OUTPUT POWER (EIRP) -51.7 dBm I.F. & L.O. I.F. 0MHz, L.O. 27.045 MHz MODULATION TYPE FSK BIT RATE OF TRANSMISSION 2k bps ANTENNA TYPE Loop Printed NOTE The EUT is the transmitter part of a Mini optical mouse. For more detailed features, please refer to the User’s Manual of EUT. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) FCC ID : F4Z4K3FDM-2LCS0 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02102803 Report No.: FCCA02102803 Page: 5 of 13 Date: Oct. 31, 2002 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID / DOC CABLE N/A NOTE For the actual test c…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Raditated test
