FBRLCK-EIResponse Keypad Transceiver

Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 1 of 2 File Name: EINK_Manual.doc Date: 6/15/2004 eInstruction cpsRF® Response System User Manual Model LCB100-E1 Base and LCK-E1 Keypad Frequency 2.4 GHz The eInstruction cpsRF Model LCK–E1 keypad is a wireless portable device that along with a base unit Model LCB100-EI makes it possible for a number of people to participate interactively in a class situation. The product accomplishes this by sending keypad switch closure information from the keypad to the base unit employing a wireless transceiver to receive the keypad signal. These signals are processed by the base unit and delivered to a host computer which allows the responses to be stored, analyzed and if desired displayed on a video projector for feedback to the group showing the results of their participation. The cpsRF keypad is housed in a translucent blue plastic enclosure similar in appearance to a small TV remote control device. It is powered by 2 AA battery cells, eliminating external wires or connections. The keypad uses a membrane switch panel for numeric entry and an LCD display for entry display to the user. The system operates on the 2.4 GHz frequency band using frequency hopping spread spectrum. In Canada, to prevent radio interference to any licensed service sharing this band, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. System Setup 1. Unpack the cpsRF base unit and set it on a table or available surface in the vicinity of where the cpsRF keypads will be used. 2. Plug the USB DC power/data cable into an available USB port on a PC; plug the other end into the USB port on the cpsRF base. 3. Open the carrying case containing the response keypads and distribute them to the participants. 4. Turn on the computer and start the application software to control the base unit to poll for keypad responses. The application software will have its own instructions for using the system. Operation 1. Instruct the participants on the usage of the response keypads and procedure for responding. 2. Ask a question and/or send prompts from the base unit for keypad LCD display and allow enough time (at least 10 seconds) for all participants to respond. A self pace testing mode is also available. 3. Observe the results on the screen and optionally save the results for later analysis if desired. 4. Proceed and repeat the process for the next question. 5. Continue until all questions are completed. 6. Analyze the responses for the period and run printouts if desired. Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 2 of 2 File Name: EINK_Manual.doc Date: 6/15/2004 System Shutdown 1. Turn off the power to the computer. 2. Unplug the USB cable from the computer and store it in its carrying case. 3. Store the cpsRF base in the carrying case. 4. Collect the cpsRF keypads and return them to the carrying case. 5. The system is now ready for transporting.

Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 1 of 1 File Name: 447004.DOC Date: 7/6/2004 June 14, 2004 Federal Communications Commission 7435 Oakland Mills Rd. Columbia, MD 21046 Dear Sir or Madam: On the advice of our patent attorney, we would like to have the following exhibits of our application FCC ID: FBRLCK-EI held confidential pursuant to Section .457(d) of the Rules: Operational / technical description Schematics Block diagrams If you have any questions, please call me at 616-820-8237 or fax to 616-820-8300. We look forward to your prompt action on this application. Sincerely, Harry Derks Chief Technical Officer Fleetwood Group, Inc. FLEETWOOD

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 447005.DOC Cover Letter: Page 1 of 2 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer ELITE Electronic Engineering TCB Services 1516 Centre Circle Downers Grove, IL 60515-1082 Re: quote: EEE-Q20555TCB Re: Application for Certification of Fleetwood Group Inc. Transceiver under 47CFR 15.247. FCC ID: FBRLCK-EI Gentlemen: On behalf of the applicant, Fleetwood Group Inc., please find attached the submittal materials for certification of the “eInstruction cpsRF® Response System”, Model LCK-EI. This product, a part of Fleetwood Group’s audience interaction technology, operates as a Frequency Hopping Spread Spectrum device within the 2400-2483.5MHz frequency band. The complete List of the Exhibits in this submittal package appears on Page 2 of this cover letter. Fleetwood Group Inc. has invested considerable resources into developing this product series. Pursuant to 47CRF 0.459, the Fleetwood Group requests that the Circuit Block Diagrams, Operational Description, and Schematics be held confidential. A formal letter addressing this request is reproduced in the file: EINK_Request.doc. The Federal Communications Commission will be notified, in writing, of any changes in the software/programming of the device that could affect the device’s RF characteristics. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 269. 424.7014 email: [email protected], or [email protected] Test report #0400678KF FCC 15.249 for LCK-EI FCC ID: FBRLCK-EI Tested June 18, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 447005.DOC Cover Letter: Page 2 of 2 Table of Contents Cover Letter / Table of Contents Total Pages 2 Letter for Confidentiality Total Pages 1 EXHIBIT A: ID Label / Location [2.925,2.926,2.1033(b2,7),15.19(a3)] EINK_Label.pdf Total Pages 1 EXHIBIT B: Description of Product [2.1033(b6)] Circuit Block Diagram [2.1033(b5)] Description of Operation [2.1033(b4)] EINK_TechDesc.pdf Total Pages 6 Schematic [2.1033(b5)] EINK_Schem.doc Total Pages 2 EXHIBIT C: Product photos [2.1033(b7)] Exterior views; Interior views; Main Printed Circuit Board views; EINK_Photos.pdf Total Pages 2 EXHIBIT D: User’s Manual EINK_Manual.pdf Total Pages 2 EXHIBIT E: Setup photos [2.1033(b8)] Four photos Total Pages 4 EXE_pretest.jpg, EXE_end.jpg, EXE_flat.jpg, EXE_Side.jpg Report of Measurements [2.1033(b6)] Total Pages 19 Table of Contents Page 2 Manufacturer/Applicant [2.1033(b1)] Page 4 Measurement/Test Facility & Equipment Page 4 Configuration/Setup [2.1033(b8)] Page 5 Test Standards / Methodology [2.1033(b6)] Page 7 Test Data [2.1033(b6)] Summary of Results Page 6 Frequency Hopping Characteristics Page 10 Bandedge Page 13 Radiated Field Strength [15.249(b)] Page 16 Test Data of Harmonics EInstruction_RFk.pdf Total Pages 3 Misc. EXHIBIT: RF Exposure Information [2.1093(c)] Total Pages 1

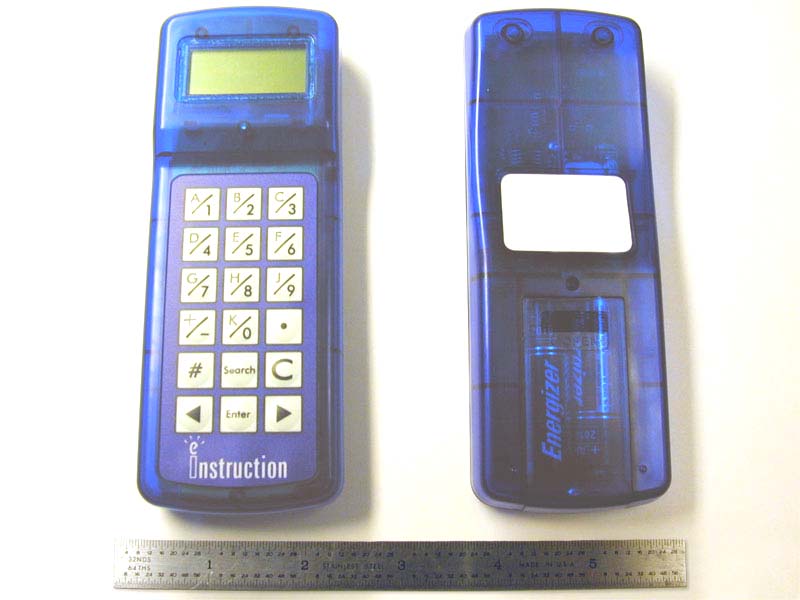

eInstruction Keypad cpsRF Photos Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 1 of 2 File Name: 446999.DOC Date: 7/6/2004 External eInstruction Keypad cpsRF Photos Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 2 of 2 File Name: 446999.DOC Date: 7/6/2004 Internal

Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 1 of 1 File Name: EINK_Label.doc Date: 6/14/2004 Location of label on underside of keypad Label Details: Black text on Vinyl Stock 1.47” X 0.97” Label Corner Radius .12”

eInstruction Keypad cpsRF Photos Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 1 of 2 File Name: 446998.DOC Date: 7/6/2004 External eInstruction Keypad cpsRF Photos Fleetwood Group Inc. FCC ID: FBRLCK-EI Page 2 of 2 File Name: 446998.DOC Date: 7/6/2004 Internal

Test report #0400678KF FCC 15.247 for LCK-EI FCC ID: FBRLCK-EI Tested June 18, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 447022.DOC Misc. EXHIBIT: Page 1 of 1 MISC. EXHIBIT: RF EXPOSURE INFORMATION [2.1093(C)] The manufacturer and applicant: FLEETWOOD GROUP Inc. P.O. Box 1259 Holland, Michigan 49422-1259 Product: FHSS eInstruction Keypad portable Transceiver Model: LCK-EI Applicable Rules: 47CFR Part 15.247 Pursuant to 47CFR Part 1.1307(b), 47CFR Part 2.1093(c), and 47CFR Part 2.1093(c) this transmitting device, compliant to 47CFR Part 15.247, is categorically excluded from evaluation regarding the Maximum Permissible Exposure of RF energy. In addition and as evidence of compliance to the RF exposure guidelines: This device was measured to have a field strength level of 100dBuV/m peak at distance of 3 meters. 103.1BuV/m is 0.143V/m field strength. [ antilog(103.1/20) / 1000000 = 0.143 ] A field strength of 0.143V/m at 3meters suggests an EIRP of 6mW (0.006W). [refer to formula 2 below.] Supplement C to OET Bulletin 65 indicates a device of EIRP < 0.3W is not expected to exceed MPE limits and special instructions and warnings are not be necessary. Formula 2: Equivalent Isotropically Radiated Power PG = (E*d) 2 30 E = antilog(FS(dBuV/m)∕ 20 ) ∕ 1000000 d = 3 meter

Test report #0400678KF FCC 15.247 for LCK-EI FCC ID: FBRLCK-EI Tested June 18, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 447001.DOC EXHIBIT E: Page 1 of 19 EXHIBIT E: REPORT OF MEASUREMENTS [2.1033(B6)] Test Report for FCC ID: FBRLCK-EI FCC Part 2.1031, Part 15 Subpart C(15.247) Report #0400678KF Issued 06/18/04 FREQUENCY HOPPING T RANSCEIVER MODEL LCK-EI Prepared for: Mr. Harry Derks Fleetwood Group Inc. P.O. Box 1259 Holland, MI 49422-1259 Test Date(s): May 12, June 1,2,11,14, 2004 Report prepared by: Report reviewed by Ted Chaffee, NCE Data recorded by: Gordon Helm, NCE Ted Chaffee, NCE Test report #0400678KF FCC 15.247 for LCK-EI FCC ID: FBRLCK-EI Tested June 18, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 447001.DOC EXHIBIT E: Page 2 of 19 TABLE OF CONTENTS EXHIBIT E: Report of Measurements [2.1033(b6)] .....................................................................................1 TABLE OF CONTENTS.........................................................................................................................2 Statements Concerning this Report.......................................................................................................3 Manufacturer/Applicant [2.1033(b1)] ....................................................................................................4 Measurement/Test Site Facility & Equipment........................................................................................4 Test Site [2.948, 2.1033(b6)] ......................................................................................................4 Measurement Equipment Used [2.947(d), 15.31(b)] ....................................................................4 Tested Configuration /Setup: [2.1033(b8)] ............................................................................................5 Support Equipment & Cabling .......................................................................................................5 Setup Diagram ...............................................................................................................................5 Summary of Results: .............................................................................................................................6 Changes made to achieve compliance..........................................................................................6 Standards Applied to Test: [2.1033(b6)]................................................................................................7 Test Methodology: [2.1033(b6)].............................................................................................................7 Radiated.........................................................................................................................................8 FORMULAS AND SAMPLE CALCULATIONS: .............................................................................9 Test Data [2.1033(b6)].........................................................................................................................10 Antenna Characteristics [15.203, 15.204]...................................................................................10 Modulation Characteristics ..........................................................................................................10 Frequency Hopping Characteristics ............................................................................................10 Band Edges [15.247(c)] ...............................................................................................................13 Restricted Bands: [15.205]..........................................................................................................15 Radiated Field Strength / Output Power Measurements: [15.209, 15.247(b,c)] ........................16 Test report #0400678KF FCC 15.247 for LCK-EI FCC ID: FBRLCK-EI Tested June 18, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 447001.DOC EXHIBIT E: Page 3 of 19 Statements Concerning this Report NVLAP Accreditation: NVLAP Lab Code 200129-0 The scope of AHD accreditation is the conducted emissions, radiated emissions test methods of: IEC/CISPR 22: Limits and methods measurement of radio disturbance characteristics of information technology equipment. FCC Method – 47 CFT Part 15 – Digital Devices. AS/NZS 3548: Electromagnetic Interference – Limits and Methods of Measurement of Information Technology Equipment. IEC61000-4-2 and Amend.1: ElectroStatic Discharge Immunity IEC61000-4-5: Surge Immunity Test Data: This test report contains data included in the scope of the NVLAP accreditation. Subcontracted Testing: This report contains data recorded at the University of Michigan Radiation Laboratory. The University of Michigan test facility is located at 8501 Beck Road, Belleville, Michigan 48111. This test facility has been fully described and accepted by the FCC and Industry Canada. This facility was utilized to measure emissions occurring at frequencies greater than 6GHz. Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMA…

Text truncated - open the document above for the full version.

Einstruction Keypad (HP) TX Freq.Ant. Ant.PeakKaKgE3 (Pk)E3lim (Pk)Pass #MHzUsedPol.dBmdB/mdBdBμV/mdBμV/mdBComments 12401.0 Low channel 22438.0 Mid channel 32475.0 High channel 4 52390.0Horn SH/V-21.5-0.6-74.0-Low 62390.0Horn SH/V-21.5-0.6-74.0-Mid 72390.0Horn SH/V-21.5-0.6-74.0-High 82483.5Horn SH/V-21.5-0.6-74.0-Low 92483.5Horn SH/V-21.5-0.6-74.0-Mid 102483.5Horn SH/V-21.5-0.6-74.0-High 114802.0Horn CH/V-25.537.0-74.0-Low 124876.0Horn CH/V-25.537.0-74.0-Mid 134950.0Horn CH/V-25.537.0-74.0-High 147203.0Horn XNH/V-25.536.0-N/A-Low 157314.0Horn XNH/V-28.825.536.067.874.06.3Mid 167425.0Horn XNH/V-31.325.536.065.274.08.8High 179604.0Horn XH/V-25.534.0-N/A-Low 189752.0Horn XH/V-25.534.0-N/A-Mid 199900.0Horn XH/V-25.534.0-N/A-High 2012005.0Horn XH/V-48.625.534.049.974.024.1Low 2112190.0Horn XH/V-49.625.534.048.974.025.1Mid 2212375.0Horn XH/V-55.525.534.043.074.031.0High 2314406.0Horn KuH/V-25.517.3-N/A-Low 2414628.0Horn KuH/V-32.334.0-N/A-Mid 2514850.0Horn KuH/V-32.334.0-N/A-High 2616807.0Horn KuH/V-32.334.0-N/A-Low 2717066.0Horn KuH/V-32.334.0-N/A-Mid 2817325.0Horn KuH/V-32.334.0-N/A-High 2919208.0Horn KH/V-60.632.332.046.774.027.3Low, noise 3019504.0Horn KH/V-61.232.332.046.174.027.9Mid, noise 3119800.0Horn KH/V-58.232.332.049.174.024.9High, noise 3221609.0Horn KH/V-32.332.0-N/A-Low 3321942.0Horn KH/V-32.332.0-N/A-Mid 3422275.0Horn KH/V-54.432.332.052.974.021.1High, noise 3524010.0 Horn Ka H/V-32.332.0-N/A-Low 3624380.0 Horn Ka H/V-32.332.0-N/A-Mid 3724750.0 Horn Ka H/V-32.332.0-N/A-High 38 39 40* Average measurements were not made 41 42 5/21/2004 12 Table 5.1 Highest Emissions Measured Radiated Emissions U. of Mich; Meas. * Peak: measured with 1 MHz RBW and 3 MHz VBW Einstruction Keypad (HP) RX Freq.Ant. Ant.PeakKaKgE3 (Pk)E3lim (Pk)Pass #MHzUsedPol.dBmdB/mdBdBμV/mdBμV/mdBComments 12401.0 Low channel 22438.0 Mid channel 32475.0 High channel 4 52390.0Horn SH/V-21.5-0.6-74.0-Low 62390.0Horn SH/V-21.5-0.6-74.0-Mid 72390.0Horn SH/V-21.5-0.6-74.0-High 82483.5Horn SH/V-21.5-0.6-74.0-Low 92483.5Horn SH/V-21.5-0.6-74.0-Mid 102483.5Horn SH/V-21.5-0.6-74.0-High 114802.0Horn CH/V-25.537.0-74.0-Low 124876.0Horn CH/V-25.537.0-74.0-Mid 134950.0Horn CH/V-25.537.0-74.0-High 147203.0Horn XNH/V-25.536.0-N/A-Low 157314.0Horn XNH/V-55.425.536.041.174.032.9Mid 167425.0Horn XNH/V-53.525.536.043.074.031.0High 179604.0Horn XH/V-25.534.0-N/A-Low 189752.0Horn XH/V-25.534.0-N/A-Mid 199900.0Horn XH/V-25.534.0-N/A-High 2012005.0Horn XH/V-60.925.534.037.674.036.4Low, noise 2112190.0Horn XH/V-61.625.534.036.974.037.1Mid, noise 2212375.0Horn XH/V-62.325.534.036.274.037.8High, noise 2314406.0Horn KuH/V-25.517.3-N/A-Low 2414628.0Horn KuH/V-32.334.0-N/A-Mid 2514850.0Horn KuH/V-32.334.0-N/A-High 2616807.0Horn KuH/V-32.334.0-N/A-Low 2717066.0Horn KuH/V-32.334.0-N/A-Mid 2817325.0Horn KuH/V-32.334.0-N/A-High 2919208.0Horn KH/V-60.632.332.046.774.027.3Low, noise 3019504.0Horn KH/V-61.232.332.046.174.027.9Mid, noise 3119800.0Horn KH/V-58.232.332.049.174.024.9High, noise 3221609.0Horn KH/V-32.332.0-N/A-Low 3321942.0Horn KH/V-32.332.0-N/A-Mid 3422275.0Horn KH/V-54.432.332.052.974.021.1High, noise 3524010.0 Horn Ka H/V-32.332.0-N/A-Low 3624380.0 Horn Ka H/V-32.332.0-N/A-Mid 3724750.0 Horn Ka H/V-32.332.0-N/A-High 38 39 40* Average measurements were not made 41 42 5/21/2004 12 Table 5.1 Highest Emissions Measured Radiated Emissions U. of Mich; Meas. * Peak: measured with 1 MHz RBW and 3 MHz VBW Einstruction Keypad (LP) Freq.Ant. Ant.PeakKaKgE3 (Pk)E3lim (Pk)Pass #MHzUsedPol.dBmdB/mdBdBμV/mdBμV/mdBComments 12401.0 Low channel 22438.0 Mid channel 32475.0 High channel 4 52390.0Horn SH/V-21.5-0.6-74.0-Low 62390.0Horn SH/V-21.5-0.6-74.0-Mid 72390.0Horn SH/V-21.5-0.6-74.0-High 82483.5Horn SH/V-21.5-0.6-74.0-Low 92483.5Horn SH/V-21.5-0.6-74.0-Mid 102483.5Horn SH/V-21.5-0.6-74.0-High 114802.0Horn CH/V-25.537.0-74.0-Low 124876.0Horn CH/V-25.537.0-74.0-Mid 134950.0Horn CH/V-25.537.0-74.0-High 147203.0Horn XNH/V-25.536.0-N/A-Low 157314.0Horn XNH/V-49.625.536.046.974.027.1Mid 167425.0Horn XNH/V-50.925.536.045.674.028.4High 179604.0Horn XH/V-25.534.0-N/A-Low 189752.0Horn XH/V-25.534.0-N/A-Mid 199900.0Horn XH/V-25.534.0-N/A-High 2012005.0Horn XH/V-60.725.534.037.874.036.2Low, noise 2112190.0Horn XH/V-61.225.534.037.374.036.7Mid, noise 2212375.0Horn XH/V-62.825.534.035.774.038.3High, noise 2314406.0Horn KuH/V-25.517.3-N/A-Low 2414628.0Horn KuH/V-32.334.0-N/A-Mid 2514850.0Horn KuH/V-32.334.0-N/A-High 2616807.0Horn KuH/V-32.334.0-N/A-Low 2717066.0Horn KuH/V-32.334.0-N/A-Mid 2817325.0Horn KuH/V-32.334.0-N/A-High 2919208.0Horn KH/V-60.632.332.046.774.027.3Low, noise 3019504.0Horn KH/V-61.232.332.046.174.027.9Mid, noise 3119800.0Horn KH/V-58.232.332.049.174.024.9High, noise 3221609.0Horn KH/V-32.332.0-N/A-Low 3321942.0Horn KH/V-32.332.0-N/A-Mid 3422275.0Horn KH/V-54.432.332.052.974.021.1High, noise 3524010.0 Horn Ka H/V-32.332.0-N/A-Low 3624380.0 Horn Ka H/V-32.332.0-N/A-Mid 3724750.0 Horn Ka H/V-32.332.0-N/A-High 38 39 40* Average measurements were not made 41 42 5/21/2004 12 Table 5.1 Highest Emissions Measured Radiated Emissions U. of Mich; Meas. * Peak: measured with 1 MHz RBW and 3 MHz VBW
