FBRUSB240DLow Power RF Transceiver Module USB240D

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 29 of 37 Appendix L: Manual Please refer to the following pages. USER MANUAL USB240D RF Module ii ©Copyright 2007 Fleetwood Group, Inc., Electronics Division. All rights reserved. Licensed software products are owned by Fleetwood Group, Inc. or its suppliers and are protected by United States copyright laws and international treaty provisions. Fleetwood Group, Inc. products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and pricing are subject to change without notice. Printed in the U.S.A. Fleetwood Group, Inc. Electronics Division 11832 James St. Holland, Michigan 49424 www.fleetwoodgroup.com www.replysystems.com Sales: 1-800-257-6390 Technical Service: 1-888-GO-REPLY (467-3759) Reply ® is a registered trademark of Fleetwood Group, Inc. Other trademarks contained herein are the property of their respective holders. Revision History: Rev Date Description A 1/14/2008 Original iii Table of Contents 1.0 USB240D RF MODULE....................................................................................................................................... 4 1.1 DESCRIPTION....................................................................................................................................................... 4 1.2 FCC, IC, AND EU COMPLIANCE INFORMATION................................................................................................... 4 1.3 STANDARDS AND GUIDELINES............................................................................................................................. 4 1.4 FCC/IC COMPLIANCE.......................................................................................................................................... 5 1.5 EU COMPLIANCE................................................................................................................................................. 5 1.6 EXPLANATION OF EU RESTRICTIONS................................................................................................................... 5 1.7 TECHNICAL SPECIFICATIONS................................................................................................................................6 4 1.0 USB240D RF Module 1.1 Description The USB240D is a low power wireless response base module. The USB240D module is used to interact with an audience so they can provide real time feed back to questions. It communicates at 2.4GHz, GFSK to multiple keypads. The base module polls keypads, and displays result. The overall operation of the USB240D module is controlled by a microcontroller. This microcontroller is powered from the USB interface through a 3V linear regulator, and uses a 20 MHz crystal oscillator. The microcontroller handles control of the RF communications, LEDs, and USB interface. RF communications use the Nordic 2.4 GHz transceiver. The Nordic chip uses a 16 MHz reference crystal oscillator for TX/RX, and is also powered from the 3V linear regulator. The Nordic transceiver uses an integral inverted F antenna on the PCB board. 1.2 FCC, IC, and EU Compliance Information N240D RF Module Responsible Party Pertaining to the Declaration of Conformity Fleetwood Group, Inc. 11832 James Street Holland, MI 49424 Attn: Product Service Coordinator Phone: 888-467-3759 1.3 Standards and Guidelines This device complies with the following European Directives and USA/Canada Regulations: ¾ Directive 1999/5/EC on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity ¾ Directive 2006/95/EC on the harmonization of laws of member states related to electrical equipment designed for use within certain voltage limits ¾ The USA Federal Communications Commission (FCC) Rules and Regulations ¾ Industry Canada Rules and Regulations This device complies with the following national and international standards: ¾ EN 301 489-1 V1.6.1: 2005: EMR; EMC standard for radio equipment and services. Part 1: Common technical requirements. ¾ EN 301 489-3 V1.4.1: 2002 Part 3: Specific conditions for SRD operating on frequencies between 9 kHz and 40 GHz ¾ EN 300 440-1 V1.4.1: 2007: EMR, SRD. Radio equipment to be used in the 1 GHz to 40 GHz frequency range. Part 1: Technical characteristics and test methods ¾ EN 300 440-2 V1.2.1: 2007: Part 2: Harmonized EN under article 3.2 of the R&TTE Directive ¾ EN 301 489-17 V1.2.1: 2002: Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment. ¾ EN 300 328 V1.7.1: 2006: Electromagnetic compatibility and Radio spectrum Matters (ERM);Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques. ¾ EN 60950-1: 2006: Information Technology Equipment- Safety. Part 1: General requirements. ¾ FCC Part 15B, 15.247: 10-01-2006: Radio Frequency devices: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ¾ FCC Part 15.249: 10-01-2006: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. 5 ¾ IC RSS-210 Issue 7: 2007: Low power license-except radio-communications devices (all frequency bands): Category 1 equipment. 1.4 FCC/IC Compliance This device complies with Part 15 of the FCC Rules and RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The user is cautioned that changes or modifications to the device that are not approved by the manufacturer could void the use…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 19 of 37 Appendix B: Agency Authorization Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 20 of 37 Appendix C: FCC Confidentiality Request Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 21 of 37 Appendix D: FCC Modular Approval Request Please refer to the following page. 1/9/08 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: In regards to RF Module, model USB240D. This letter addresses each of the points numbered 1-8 on page 2 of the DA00-1407 Part 15 Unlicensed Modular Transmitter Approval. In response to: “ 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation.” The module uses the ground plane as its RF shield to effectively control emissions. In response to: “2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation.” The USB interface is buffered through its own dedicated interface IC. In response to: “3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed.” The module uses a 3V linear regulator, and the transmitter uses internal constant current sources to regulate its output power. The module also uses its own reference oscillator. In response to: “4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules.” The module uses an internal etched PCB inverted F antenna. In response to: “5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)).” The module shall be tested in a stand-alone configuration. In response to: “6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization.” The module and final assembly shall comply with the stated labeling. In response to: “7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured.” We will retain control of the module and the devices it may be installed into. In response to: “8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 20, 2008 RE: Fleetwood Group, Inc. FCC ID: FBRUSB240D I have a few comments on this Application. 1. In the IC application you list conducted power. I am unable to find this in the test report. Please explain. Response : Please refer to the revised IC application form uploaded with this response that correctly indicates the power is EIRP. 2. Please upload External Photos. Response : An external photo exhibit was uploaded with the other documents. Please refer to the internal photograph exhibit uploaded with this response. As this is a module, the external and internal photo exhibits are the same. 3. Please upload Annex B for Industry Canada RF requirements. Response : Please refer to the form uploaded with this response. Thank you, Douglas E. Noble Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 34 of 37 Appendix N: External Photographs Photograph 5: USB240D Front Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 35 of 37 Photograph 6: USB240D Back Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 36 of 37 Photograph 7: USB240D Left Side Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 37 of 37 Photograph 8: USB240D Right Side

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 25 of 37 Appendix H: Label and Label Location Please refer to the following pages for ID label samples and label locations. “Contains FCC ID” Label Sample and Location

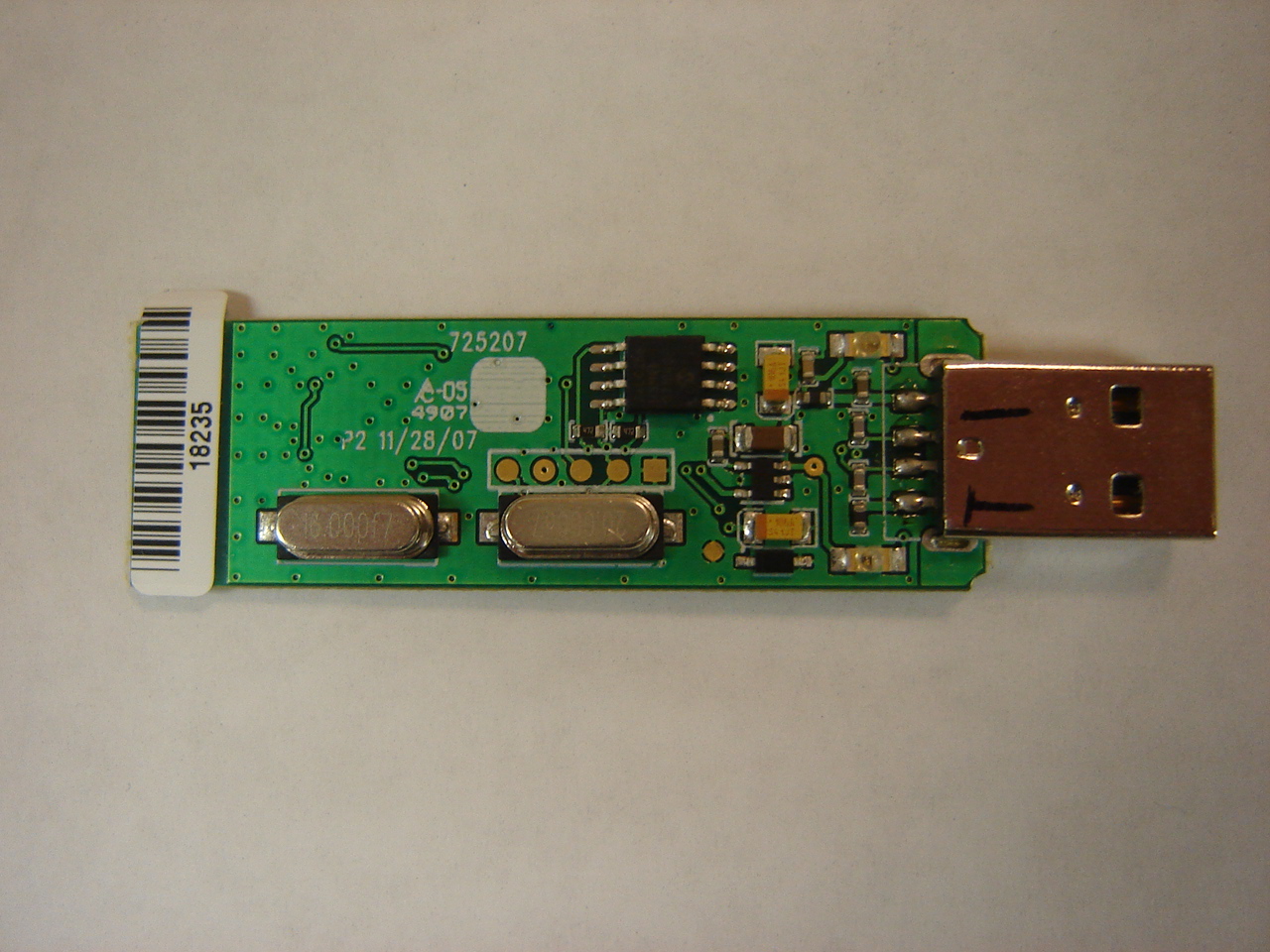

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Appendix O: Internal Photographs Photograph 5: USB240D Front Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Photograph 6: USB240D Back Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Photograph 7: USB240D Left Side Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Photograph 8: USB240D Right Side

Engineering and Testing for EMC and Safety Compliance Accredited under A2LA certificate # 2653.01 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Certification Application Report (Limited Modular Approval) FCC Part 15.249 & Industry Canada RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Herndon, VA 20170 E-Mail: [email protected] http://www.rheintech.com Applicant: Fleetwood Group, Inc. Tel: 616-820-8271 11832 James Street Fax: 616-820-8300 Holland, MI 49424 Contact: Will Buehler Email: [email protected] FCC ID/ IC: FBRUSB240D/ 1859A-USB240D Test Report Date: January 28, 2008 Platform: N/A RTL Work Order #: 2008013 Model: USB240D RTL Quote #: QRTL08-108 American National Standard Institute: ANSI C63.4-2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Classification: DXT – Part 15 Low Power Transceiver FCC Rule Part(s)/Guidance: 15.249: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725- 5875 MHZ, and 24.0-24.25 GHz, October 1, 2006 Industry Canada: RSS-210 Issue 7: Low Power Device (2400-2483.5 MHz) Digital Interface Information: Digital Interface was found to be compliant Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 2401 – 2475 N/A N/A 900KFXD I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15 and ANSI C63.4. Signature: Date: January 28, 2008 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Fleetwood Group, Inc. The test results relate only to the item(s) tested. Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 2 of 37 Table of Contents 1 General Information...............................................................................................................................................4 1.1 Scope...........................................................................................................................................................4 1.2 Description of EUT........................................................................................................................................4 1.3 Test Facility..................................................................................................................................................4 1.4 Related Submittal(s)/Grant(s).......................................................................................................................4 1.5 Modifications.................................................................................................................................................4 2 Test Information.....................................................................................................................................................5 2.1 Description of Test Modes............................................................................................................................5 2.2 Exercising the EUT.......................................................................................................................................5 2.3 Test Result Summary...................................................................................................................................5 2.4 Test System Details......................................................................................................................................6 2.5 Configuration of Tested System...................................................................................................................6 3 Duty Cycle Calculation - FCC §15.35(c), RSS-Gen 4.3.........................................................................................6 4 Radiated Emissions - §15.209, 15.249(a); RSS-210 §6.2.1; ANSI C63.4-2003 Section 8 (Measurement to 1GHz) ...............................................................................................................................................................................7 4.1 Limits of Radiated Emissions Measurement.................................................................................................7 4.2 Radiated Emissions Measurement Test Procedure......................................................................................7 4.3 Radiated Emissions Test Results.................................................................................................................9 4.4 Radiated Emissions Harmonics/Spurious Test Data....................................................................................9 4.5 Radiated Emissions Digital Test Data.........................................................................................................10 5 AC Conducted Emissions - FCC Rules and Regulations Part 15 §15.207; RSS-Gen 7.2.2: Conducted Limits; ANSI C63.4-2003 Section 7.................................................................................................................................11 5.1 Site and Test Description............................................................................................................................11 5.2 Test Limits......................................................................................................................…
