FBRV2420LLow Power RF Module

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 48 of 60 Appendix L: Manual Please refer to the following pages. USER MANUAL V2420L Module ii Copyright 2007 Fleetwood Group, Inc., Electronics Division. All rights reserved. Licensed software products are owned by Fleetwood Group, Inc. or its suppliers and are protected by United States copyright laws and international treaty provisions. Fleetwood Group, Inc. products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and pricing are subject to change without notice. Printed in the U.S.A. Fleetwood Group, Inc. Electronics Division 11832 James St. Holland, Michigan 49424 www.fleetwoodgroup.com Sales: 1-800-257 -6390 Technical Service: 1-888-GO-REPLY (467-3759) Reply ® is a registered trademark of Fleetwood Group, Inc. Other trademarks contained herein are the property of their respective holders. Revision History: Rev Date Description A 2/7/2011 Original iii Table of Contents 1.0 V2420L MODULE ................................................................................................................................................ 4 1.1 DESCRIPTION ....................................................................................................................................................... 4 1.2 POWERING THE V2420L ...................................................................................................................................... 4 1.3 FCC AND IC ......................................................................................................................................................... 4 1.4 STANDARDS AND GUIDELINES ............................................................................................................................. 4 1.5 FCC/IC COMPLIANCE .......................................................................................................................................... 5 4 1.0 V2420L Module 1.1 Description The V2420L is a low power real time locating system Link. The V2420L module is used to identify the location of an individual or asset location. It communicates at 2.4GHz, to a badge module, link module or gateway module. The overall operation of the V2420L module is controlled by a microcontroller. This microcontroller is powered from an internally regulated supply, and uses a 16 MHz reference. The V2420L module is powered from AC mains, and uses an internal AC to 5VDC power module. The microcontroller handles control of the RF communications and indicator LEDs. RF communications use a 2.4 GHz transceiver, and RF power amplifier. The transceiver chip uses a 16 MHz reference oscillator that is shared with the microcontroller for TX/RX, and is also powered by an internally regulated supply. The RF power amplifier is also power by an internally regulated supply. The transceiver uses an integral antenna on the PCB. 1.2 Powering the V2420L The V2420L is powered by the AC mains. To power the module plug the V2420L into an AC receptacle with a voltage of 100-240Vac and 47-63 Hz. 1.3 FCC and IC V2420L Module Responsible Party Pertaining to the Declaration of Conformity Fleetwood Group, Inc. 11832 James Street Holland, MI 49424 Attn: Product Service Coordinator Phone: 888-467-3759 1.4 Standards and Guidelines This device complies with the following USA/Canada Regulations:  The USA Federal Communications Commission (FCC) Rules and Regulations  Industry Canada Rules and Regulations This device complies with the following national and international standards:  FCC 15.247 (10-01 -09)  IC RSS-210 Issue 8 5 1.5 FCC/IC Compliance This device complies with Part 15 of the FCC Rules and RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The user is cautioned that changes or modifications to the device that are not approved by the manufacturer could void the user’s authority to operate the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 38 of 60 Appendix B: Agency Authorization Letter Please refer to the following page. Authority to Act as Agent Date: 3-14-2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Rhein Tech Laboratories, Inc. is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 3/16/2012 (Typically 8 – 12 months) By: _________________________ __Will Buehler________ (Signature 1 ) (Print name) Title: __Chief Technology Officer__ On behalf of: __Fleetwood Group, Inc._____ (Company Name) Telephone: __(616) 396-1142____________

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 39 of 60 Appendix C: FCC Confidentiality Request Letter Please refer to the following page. 3/16/2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Pursuant to FCC 47 CFR §0.457(d) and §0.459 we request the following be held permanently confidential because the information provided contains trade secrets and is proprietary. :  Schematics  Technical Product Description  Block Diagram Sincerely, Will Buehler Chief Technology Officer

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 40 of 60 Appendix D: DA 00-1407 FCC Part 15 Unlicensed Modular Transmitter Approval Please refer to the following pages. Federal Communications Commission 2/9 /2011 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: In regards to RF Module, model V2 420L. This letter addresses each of the points numbered 1-8 on page 2 of the DA00-1407 Part 15 Unlicensed Limited Modular Approval. In response to: “ 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation.” The module uses microstrip shielding, ground plane, and ground plane flooding to effectively control emissions. Spurious emissions have been checked and shown to be compliant. For final products that contain the certified device and do not use a typical enclosure, spurious emissions testing is required to confirm compliance. In response to: “2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation.” All modulation data inputs are internal to the transceiver chip. In response to: “3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed.” The module uses filtered linear voltage regulators, and the transmitter uses internal constant current sources to regulate the affects of applied voltage. Fleetwood Group, Inc. Mail: P.O. Box 1259 Holland, MI 49422-1259 - Ship: 11832 James Street Holland, MI 49424 Phone: (616) 369-1142 - Toll Free (800) 257-6390 - Corporate Fax: (616) 820-8300 In response to: “4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules.” The module uses an internal etched PCB antenna. In response to: “5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)).” The module is AC powered and shall be tested in a stand-alone configuration. In response to: “6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization.” The module and final assembly shall comply with the stated labeling. Fleetwood Group, Inc. Mail: P.O. Box 1259 Holland, MI 49422-1259 - Ship: 11832 James Street Holland, MI 49424 Phone: (616) 369-1142 - Toll Free (800) 257-6390 - Corporate Fax: (616) 820-8300 In response to: “7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured.” We will retain control of the module and the devices it may be installed into. In response to: “8. …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 51 of 60 Appendix N: External Photographs Photograph 3: Top Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 52 of 60 Photograph 4: Bottom Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 53 of 60 Photograph 5: End Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 54 of 60 Photograph 6: Side 1 Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 55 of 60 Photograph 7: Side 2

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 44 of 60 Appendix H: Label and Label Location Please refer to the following pages for an ID label sample and a sample “Contains FCC ID:...” label on a representative host. T

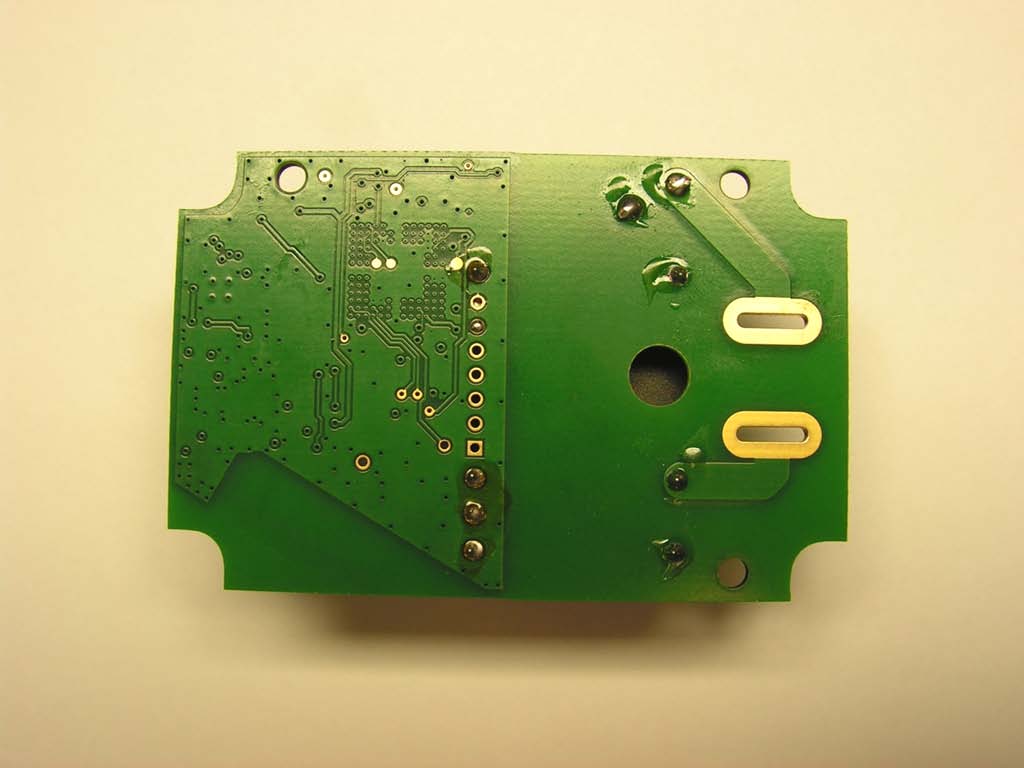

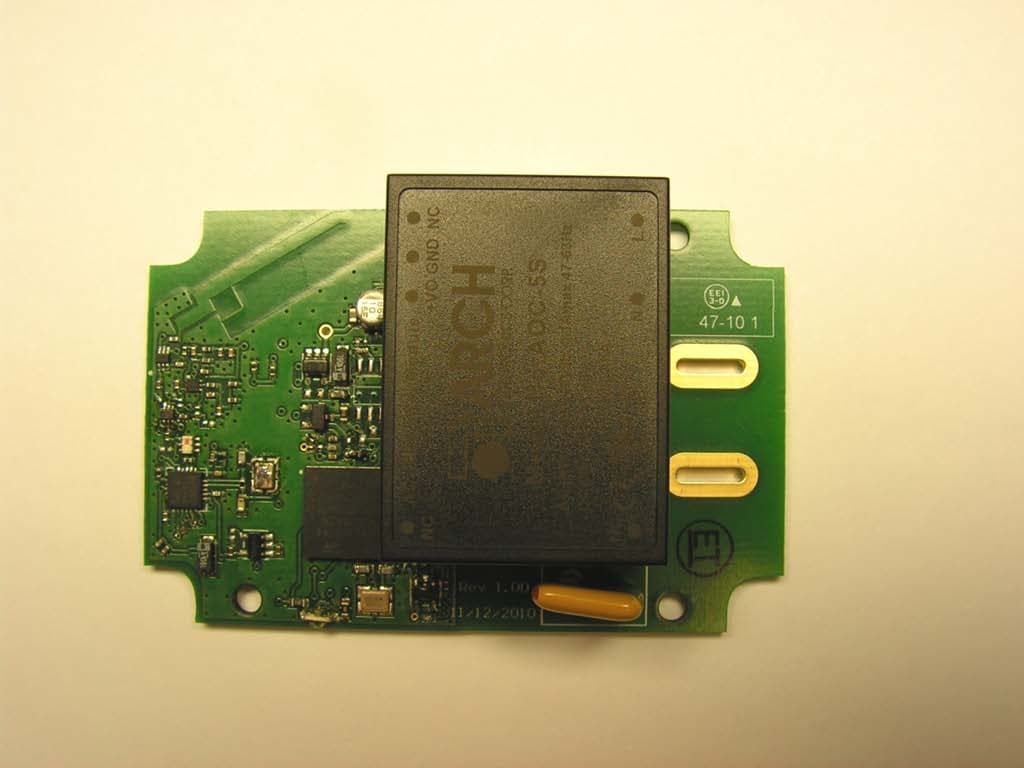

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 56 of 60 Appendix O: Internal Photographs Photograph 8: Top Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 57 of 60 Photograph 9: Bottom Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 58 of 60 Photograph 10: End Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 59 of 60 Photograph 11: Side 1 Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 60 of 60 Photograph 12: Side 2

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 37 of 60 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093; IC RSS-Gen: RF Exposure RF Exposure Evaluation is not required if power is below the following threshold: Note that the EUT has a source-based time averaged duty cycle of not more than 9% (20.9 dB). T he power used for the calculation below has been adjusted for this factor. Tunable Range f(GHz) Low f(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.401 2.475 2.437 24.6 Maximum measured transmitter power: Pout Conducted (mW) (51 mW x 9%) Maximum Antenna Gain (numeric) Pout EIRP (mW) 4.6 1.62 7.4 Threshold at which no RF exposure evaluation required is 24.6 mW. Maximum TX Power is 4.6 mW conducted (9% of 51 mW) and 7.4 mW EIRP. Conclusion: No RF exposure evaluation is required since the maximum Transmitter Pout (both conducted and EIRP) is below the FCC threshold.

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com Limited Modular Approval Certification Application Report FCC Part 15.247 & Industry Canada RSS -210 Test Lab: Rhein Tech Laboratories, Inc. Tel: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Fleetwood Group, Inc. Tel: 616-820-8271 11832 James Street Fax: 616-820-8300 Holland, MI 49424 Contact: Will Buehler FCC ID/ IC: FBRV2420L/ 1859A-V2420L Test Report Date: March 23, 2011 Platform: N/A RTL Work Order #: 2010233 Model: V2420L RTL Quote #: QRTL10-183B American National Standard Institute: ANSI C63.4: Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Classification: DSS – Part 15 Spread Spectrum Transmitter FCC Rule Part(s)/Guidance: FCC Rules Part 15.247: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz Direct Sequence System (10-01-10), DA 00-705 Industry Canada: RSS-210 Issue 8: License-Exempt Radio Apparatus (All Frequency Bands): Category I Equipment Digital Interface Information: Digital Interface was found to be compliant Frequency Range (MHz) Output Power* (W) Frequency Tolerance Emission Designator 2401 – 2475 0.051 N/A 1M00FXD * power is peak conducted I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 15 and ANSI C63.4. Signature: Date: March 23, 2011 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Fleetwood Group, Inc. The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 2 of 60 Table of Contents 1 General Information .......................................................................................................................... 5 1.1 Scope ...................................................................................................................................... 5 1.2 Description of EUT ................................................................................................................... 5 1.3 Test Facility .............................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) ................................................................................................... 5 1.5 Modifications ............................................................................................................................ 5 2 Test Information ............................................................................................................................... 6 2.1 Description of Test Modes ........................................................................................................ 6 2.2 Exercising the EUT................................................................................................................... 6 2.3 Test Result Summary ............................................................................................................... 6 2.4 Test System Details ................................................................................................................. 7 2.5 Configuration of Tested System ................................................................................................ 7 3 Peak Output Power – FCC §15.247(b)(1); RSS-210 §A8.4(2) ........................................................... 8 3.1 Power Output Test Procedure .................................................................................................. 8 3.2 Power Output Test Data ........................................................................................................... 8 4 Antenna Conducted Spurious Emissions – FCC §15.247(d); RSS-210 §A8.5.................................... 9 5 Band-Edge Compliance of RF Conducted Emissions – FCC §15.247(d); RSS-Gen ........................ 10 5.1 Band Edge Test Procedure .................................................................................................... 10 5.2 Test Results ........................................................................................................................... 11 6 20 dB Bandwidth – FCC §15.247(a)(1)(ii); IC RSS-210 §A8.1 ......................................................... 16 6.1 20 dB Bandwidth Test Procedure ........................................................................................... 16 6.2 20 dB Modulated Bandwidth Test Data ................................................................................... 16 6.3 20 dB Bandwidth Plots ........................................................................................................... 17 7 Carrier Frequency Separation - §15.247(a)(1); IC RSS-210 §A8.1(d) .............................................. 23 7.1 Carrier Frequency Separation Test Procedure ........................................................................ 23 7.2 Carrier Frequency Separation Test Data.....…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 49 of 60 Appendix M: Test Photographs Photograph 1: Radiated Testing – Front View Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: V2420L Suite 1400 Standards: FCC 15.247/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRV2420L/1859A-V2420L Report #: 2010233 Page 50 of 60 Photograph 2: Radiated Testing – Back View
