Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: VL4B Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRVL4B/1859A-VL4B Report #: 2010155 Page 27 of 38 Appendix K : Manual Please refer to the following pages. USER MANUAL VL4B Module ii Copyright 2007 Fleetwood Group, Inc., Electronics Division. All rights reserved. Licensed software products are owned by Fleetwood Group, Inc. or its suppliers and are protected by United States copyright laws and international treaty provisions. Fleetwood Group, Inc. products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and pricing are subject to change without notice. Printed in the U.S.A. Fleetwood Group, Inc. Electronics Division 11832 James St. Holland, Michigan 49424 www.fleetwoodgroup.com Sales: 1-800-257-6390 Technical Service: 1-888-GO-REPLY (467-3759) Reply ® is a registered trademark of Fleetwood Group, Inc. Other trademarks contained herein are the property of their respective holders. Revision History: Rev Date Description A 8/11/2010 Original iii Table of Contents 1.0 VL4B MODULE ................................................................................................................................................... 4 1.1 DESCRIPTION ....................................................................................................................................................... 4 1.2 BATTERY REPLACEMENT ..................................................................................................................................... 4 1.3 FCC AND IC ......................................................................................................................................................... 4 1.4 STANDARDS AND GUIDELINES ............................................................................................................................. 4 1.5 FCC/IC COMPLIANCE .......................................................................................................................................... 5 4 1.0 VL4B Module 1.1 Description The VL4B Module is an infrared transmitting badge with a RF supervisory signal. The VL4B Module contains a low power RF transmitter chip which is controlled by a micro processor. The frequency synthesizer for generation of the RF output carrier is received from a low frequency external crystal. A crystal resonator chip runs the micro processor device. When an RF transmission needs to be generated the data from the microprocessor is sent to the RF chip. The modulation used by the radio frequency chip is on/off key at 433.92MHz. The RF antenna is a PCB etched loop. The VL4B is powered by a three-volt battery. Both infrared and RF signals are independent of each other. Both infrared and RF signals contain recognition code to identify the badge, along with motion status, battery status, and switch information. There are two ways that theVL4B Module can send RF transmission packets. The first is an automatic transmission per FCC regulations section 15.231 part (a) paragraph three, which states that the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour of each transmitter. The second type of RF transmission occurs when a button is pressed on the badge. The RF transmission packets cease operation when the button is released. 1.2 Battery Replacement The VL4B is powered from a 3V battery. The battery is replaceable. To replace battery, open the case, remove the old battery, and replace with a new battery noting its polarity. The negative side of the battery should be facing the PCB. 1.3 FCC and IC VL4B Module Responsible Party Pertaining to the Declaration of Conformity Fleetwood Group, Inc. 11832 James Street Holland, MI 49424 Attn: Product Service Coordinator Phone: 888-467-3759 1.4 Standards and Guidelines This device complies with the following USA/Canada Regulations:  The USA Federal Communications Commission (FCC) Rules and Regulations  Industry Canada Rules and Regulations This device complies with the following national and international standards:  FCC Part 15B, 15.231e (10-01-09)  IC RSS-210 Issue 7 5 1.5 FCC/IC Compliance This device complies with Part 15 of the FCC Rules and RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The user is cautioned that changes or modifications to the device that are not approved by the manufacturer could void the user’s authority to operate the device.

Federal Communications Commission 8/16/2010 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: In regards to RF Module, model VL4B, Fleetwood Group, Inc recognizes the required change of increasing the antenna feed resistor from 150 ohm to 180 ohm to achieve compliance, and will ensure the change is in place. Thank you, Will Buehler Chief Technology Officer Fleetwood Group, Inc. Mail: P.O. Box 1259 Holland, MI 49422-1259 - Ship: 11832 James Street Holland, MI 49424 Phone: (616) 369-1142 - Toll Free (800) 257-6390 - Corporate Fax: (616) 820-8300

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: VL4B Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRVL4B/1859A-VL4B Report #: 2010155 Page 16 of 38 Appendix A: Agency Authorization Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: VL4B Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRVL4B/1859A-VL4B Report #: 2010155 Page 17 of 38 Appendix B: Confidentiality Request Letter Please refer to the following page.

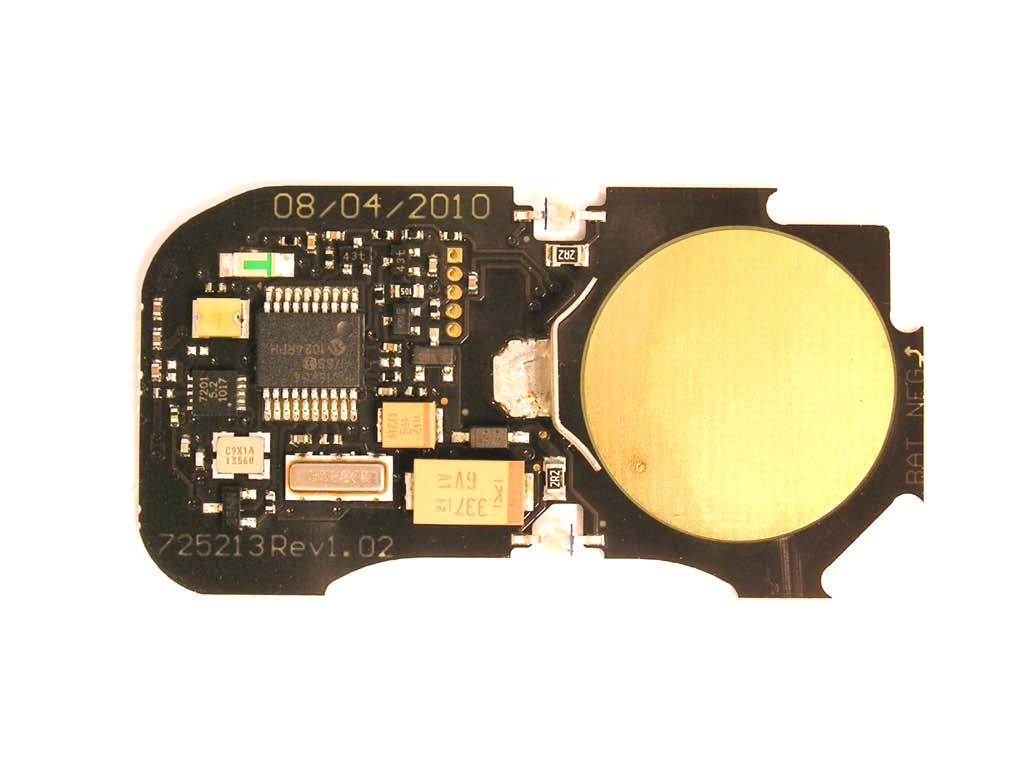

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: VL4B Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC/IC ID: FBRVL4B/1859A-VL4B Report #: 2010155 Page 20 of 38 Appendix E: DA00-1407 Part 15 Unlicensed Modular TX Please refer to the following pages. Federal Communications Commission 8/10/2010 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: In regards to RF Module, model VL4B. This letter addresses each of the points numbered 1-8 on page 2 of the DA00-1407 Part 15 Unlicensed Limited Modular Approval. In response to: “ 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation.” The module uses microstrip shielding, ground plane, and ground plane flooding to effectively control emissions. Spurious emissions have been checked and shown to be compliant. For final products that contain the certified device and do not use a typical enclosure, spurious emissions testing is required to confirm compliance. In response to: “2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation.” Not Applicable. All modulation data inputs are internal to the module with no external electrical interface. In response to: “3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed.” The module is battery powered, and the transmitter uses internal constant current sources to regulate the affects of battery voltage. The grantee will maintain full control of all end products, and will ensure that they are solely battery operated. Fleetwood Group, Inc. Mail: P.O. Box 1259 Holland, MI 49422-1259 - Ship: 11832 James Street Holland, MI 49424 Phone: (616) 369-1142 - Toll Free (800) 257-6390 - Corporate Fax: (616) 820-8300 In response to: “4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules.” The module uses an internal etched PCB loop antenna. In response to: “5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)).” The module is battery powered and shall be tested in a stand-alone configuration. In response to: “6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization.” The module and final assembly shall comply with the stated labeling. Fleetwood Group, Inc. Mail: P.O. Box 1259 Holland, MI 49422-1259 - Ship: 11832 James Street Holland, MI 49424 Phone: (616) 369-1142 - Toll Free (800) 257-6390 - Corporate Fax: (616) 820-8300 In response to: “7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements m…
