FHO-E1201CE1201C ANSLUTA

TRANSMITTER – E1201C ANSLUTA USER INSTRUCTION A. Features 1. Easy and simple to use. 2. Blinking blue LED indicates signal transmission status. B. Diagram & Descriptions i ii No. Description Function i indicator The indicator blinks to indicate signal transmission status. ii 1 OFF，1 ON Switch on and off the appliances connected to channel 1 receiver E1201 C. Operation 1. Configure Press the“ON/OFF Learning Code ”button on the receiver until the LED “Indicator” blinks. Then press any one of the four “OFF” buttons until the red LED “Indicator” goes off. The receiver is trained to respond to the corresponding channel. 2. Control Press the “ON” or “OFF” button to switch on or off the appliance connected to the receiver trained to the corresponding channel. . D. Specifications 1. Battery : 2X AAA 2. Frequency : 433.92 MHz 3. Distance : 20 meters max. (in the open air) E. Holder IKEA of Sweden, AB Manufactory: Everflourish Electrical Co., Ltd. Adress:Renjiu Village, Wuxiang Town, Yinzhou Ningbo 315111 P.R. China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

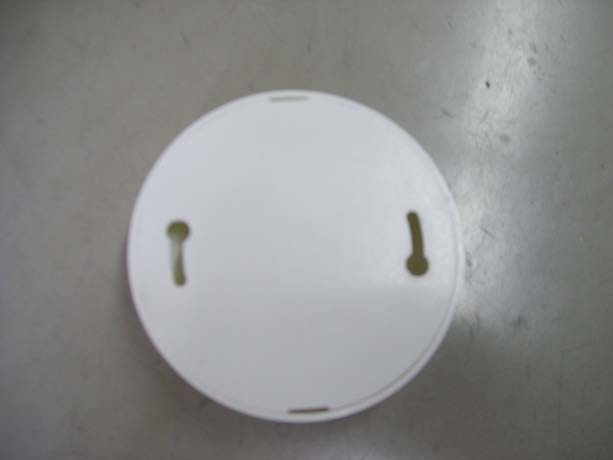

FCC ID: FHO-E1201C IC: 10912A-E1201C Page 1 of 2 External Picture FCC ID: FHO-E1201C IC: 10912A-E1201C Page 2 of 2

FCC ID: FHO-E1201C IC: 10912A-E1201C Page 1 of 2 Internal Picture FCC ID: FHO-E1201C IC: 10912A-E1201C Page 2 of 2

FCC ID: FHO-E1201C IC: 10912A-E1201C Page 1 of 20 EMC TEST REPORT No. SH12010478-002 Applicant : IKEA of Sweden AB P.O. Box 702, S-343 81 Älmhult, SWEDEN Manufacturer : IKEA of Sweden AB P.O. Box 702, S-343 81 Älmhult, SWEDEN Equipment : Remote controller Type/Model : E1201C ANSLUTA SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2011): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: March 18, 2013 Prepared by: Reviewed by: Star Guo (Project Engineer) Daniel Zhao (Reviewer) FCC ID: FHO-E1201C IC: 10912A-E1201C Page 2 of 20 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: FHO-E1201C IC: 10912A-E1201C Page 3 of 20 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 9 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. DEACTIVATING TIME ................................................................................................................................ 12 4.1 Test limit ....................................................................................................................... 12 4.2 Test Configuration ........................................................................................................ 13 4.3 Test procedure and test setup ........................................................................................ 13 4.4 Test protocol ................................................................................................................. 13 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 14 5.1 Limit .............................................................................................................................. 14 5.2 Test configuration ......................................................................................................... 14 5.3 Test procedure and test set up ....................................................................................... 15 5.4 Test protocol ................................................................................................................. 16 6. EMISSION BANDWIDTH ............................................................................................................................. 17 6.1 Test limit ....................................................................................................................... 17 6.2 Test Configuration ........................................................................................................ 17 6.3 Test procedure and test setup ........................................................................................ 17 6.4 Test protocol ................................................................................................................. 18 7. OCCUPIED BANDWIDTH ............................................................................................................................ 19 7.1 Test limit ....................................................................................................................... 19 7.2 Test Configuration ........................................................................................................ 19 7.3 Test procedure and test setup ........................................................................................ 19 7.4 Test…

Text truncated - open the document above for the full version.

FCC ID: FHO-E1201C IC: 10912A-E1201C Page 1 of 10 Test Data FCC ID: FHO-E1201C IC: 10912A-E1201C Page 2 of 10 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES SG120724H5_red MES SG120724H5 pre Frequency Level Transd Limit Margin MHz dBμV/m dB dBμV/m dB 31.943888 22.40 20.3 40.0 17.6 43.607214 16.60 15.3 40.0 23.4 84.428858 14.80 10.7 40.0 25.2 99.979960 19.20 13.9 43.5 24.3 136.913828 18.60 14.7 43.5 24.9 216.613226 26.80 12.7 46.0 19.2 325.470942 45.90 15.9 46.0 0.1 434.328657 79.30 18.8 46.0 -33.3 652.044088 30.80 21.5 46.0 15.2 867.815631 52.60 23.6 46.0 -6.6 FCC ID: FHO-E1201C IC: 10912A-E1201C Page 3 of 10 Restrict band 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 399.9M402M404M406M408M410M Frequency [Hz] x x x x x x x MES SG120321H5_red MES SG120321H5 pre Frequency Level Transd Limit Margin MHz dBμV/m dB dBμV/m dB 400.183367 24.60 18.2 46.0 21.4 402.915832 25.80 18.3 46.0 20.2 404.312425 26.80 18.3 46.0 19.2 406.275752 26.30 18.3 46.0 19.7 406.882966 29.20 18.3 46.0 16.8 409.392786 28.70 18.4 46.0 17.3 FCC ID: FHO-E1201C IC: 10912A-E1201C Page 4 of 10 1000-4500MHz 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.5G4G4.5G Frequency [Hz] xx x x x x x x x x x x x x x x MES SG120321H1_red MES SG120321H1 pre Frequency Level Transd Limit Margin MHz dBμV/m dB dBμV/m dB 1105.210421 29.80 -13.1 54.0 24.2 1112.224449 29.80 -13.1 54.0 24.2 1301.603206 40.50 -12.5 54.0 13.5 1476.953908 30.10 -12.0 54.0 23.9 1631.262525 32.50 -11.0 54.0 21.5 1736.472946 39.00 -10.3 54.0 15.0 2003.006012 33.30 -8.8 54.0 20.7 2171.342685 40.70 -8.4 54.0 13.3 2444.889780 34.10 -7.9 54.0 19.9 2606.212425 48.30 -7.5 54.0 5.7 2991.983968 35.90 -6.9 54.0 18.1 3041.082164 40.40 -6.7 54.0 13.6 3475.951904 42.90 -5.2 54.0 11.1 4016.032064 38.20 -3.6 54.0 15.8 4177.354709 37.80 -3.4 54.0 16.2 FCC ID: FHO-E1201C IC: 10912A-E1201C Page 5 of 10 Vertical 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x MES SG120724V5_red MES SG120724V5 pre Frequency Level Transd Limit Margin MHz dBμV/m dB dBμV/m dB 31.943888 21.60 20.3 40.0 18.4 43.607214 16.60 15.3 40.0 23.4 76.653307 14.10 9.4 40.0 25.9 113.587174 17.70 14.9 43.5 25.8 138.857715 18.20 14.6 43.5 25.3 177.735471 16.60 12.2 43.5 26.9 325.470942 31.80 15.9 46.0 14.2 434.328657 76.80 18.8 46.0 -30.8 652.044088 36.20 21.5 46.0 9.8 867.815631 39.50 23.6 46.0 6.5 FCC ID: FHO-E1201C IC: 10912A-E1201C Page 6 of 10 Restrict band 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 399.9M402M404M406M408M410M Frequency [Hz] x x x x x x x MES SG120321V5_red MES SG120321V5 pre Frequency Level Transd Limit Margin MHz dBμV/m dB dBμV/m dB 399.980962 22.40 18.2 46.0 23.6 402.450301 23.40 18.3 46.0 22.6 404.616032 23.50 18.3 46.0 22.5 406.336473 22.90 18.3 46.0 23.1 406.862725 23.50 18.3 46.0 22.5 409.777355 22.90 18.4 46.0 23.1 FCC ID: FHO-E1201C IC: 10912A-E1201C Page 7 of 10 1000-4500MHz 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.5G4G4.5G Frequency [Hz] x x x x x x x x x x x x x x x x MES SG120321V1_red MES SG120321V1 pre Frequency Level Transd Limit Margin MHz dBμV/m dB dBμV/m dB 1098.196393 29.50 -13.1 54.0 24.5 1119.238477 29.90 -13.0 54.0 24.1 1301.603206 36.60 -12.5 54.0 17.4 1462.925852 29.80 -12.0 54.0 24.2 1624.248497 32.10 -11.1 54.0 21.9 1736.472946 34.20 -10.3 54.0 19.8 1995.991984 32.90 -8.8 54.0 21.1 2171.342685 49.40 -8.4 54.0 4.6 2416.833667 35.00 -7.9 54.0 19.0 2606.212425 49.50 -7.5 54.0 4.5 2802.605210 35.90 -7.2 54.0 18.1 3041.082164 37.40 -6.7 54.0 16.6 3475.951904 50.80 -5.2 54.0 3.2 3812.625251 37.90 -4.1 54.0 16.1 4198.396794 38.40 -3.3 54.0 15.6 FCC ID: FHO-E1201C IC: 10912A-E1201C Page 8 of 10 2. Deactivating time FCC ID: FHO-E1201C IC: 10912A-E1201C Page 9 of 10 3. Emission bandwidth Emission bandwidth = 433.976MHz – 433.925MHz = 51 kHz FCC ID: FHO-E1201C IC: 10912A-E1201C Page 10 of 10 4. Occupied bandwidth

Page 1 of 5 Test Setup Page 2 of 5 1. Radiated Emission 30MHz-1000MHz, X axis 30MHz-1000MHz, Y axis Page 3 of 5 30MHz-1000MHz, Z axis Page 4 of 5 Higher than 1GHz, X axis Higher than 1GHz, Y axis Page 5 of 5 Higher than 1GHz, Z axis
