FHO-E2135Cabinet Lock

SOLSTOL English 4 Français 10 Español 17 4 English Read instructions carefully and keep for future reference. SOLSTOL lock allows the user to easily lock cabinets and drawers with the included pre- paired key tags. SOLSTOL lock can be mounted on most IKEA cabinets and drawers. Product features • The lock comes with two pre-paired key tags. • Other Type-A key tags compliant with ISO/IEC 14443 can be paired with the lock. • Single Type-A key tag compliant with ISO/IEC 14443 can be paired with any number of SOLSTOL locks. • The lock emits a warning signal when the batteries run low. • Safety feature opens the lock before the batteries die. IMPORTANT! • The lock fits cabinet doors and drawer fronts which are less than 30 mm thick. • The lock is not suitable for metal or glass cabinets and drawers. Instructions for use • Install the lock and lock-plate according to the assembly instructions for your product. 5 Ensure that nothing is blocking the lock's pin after installation. If the pin is obstructed when locking/unlocking, the lock will emit a signal that indicates this. • Insert batteries and check that both the pre-paired key tags work with the lock before first use. Note! The package does not include batteries. • Insert batteries and check that both the pre-paired key tags work with the lock before first use. • To lock/unlock, hold the paired key tag close to the reader. If an unpaired key tag is used, the lock will emit a signal that indicates this. • If batteries run low, the lock will emit a low battery warning signal every 4 hours and every time it is locked/unlocked. Replace the batteries promptly. If the batteries are not replaced before they die, the lock will open automatically and remain open. • To reset the lock, press and hold the button for 10 seconds. Note! All paired key tags will have their current pairing erased. TIP! We recommend that you put one of the paired key tags in a safe place as a spare key. Note! there are no spare key tags available at IKEA. Instructions for using other Type-A key tags compliant with ISO/IEC 14443 • Other Type-A key tags compliant with ISO/IEC 14443 (for ex. library card, membership card 6 and public transport card) can be used as a key tag for SOLSTOL lock. You can pair up to 10 key tags at the time with one lock. • Insert batteries and check that both the pre-paired key tags work with the lock before first use. Note! The package does not include batteries. • To add a new key tag, press and hold the button for 2 seconds until a sound signal can be heard. Hold the new key tag close to the reader. The lock will emit a confirmation sound when the new key tag is paired. • To remove the pairing of key tags, reset the lock. WARNING • Discard the product if damaged. • Use only indoors. • Never submerge in water or other liquids. • Children should be supervised to ensure they do not play with the product. • Do not use batteries which are low in charge or empty. • Always insert the batteries into the charging slots according to the polarity indications (+/-). • Risk of explosion if either battery is replaced by an incorrect type. • Do not mix batteries of different capacities, types or date stamps. 7 • Batteries should be handed in for recycling in accordance with local environmental regulations for waste disposal. Care instructions To clean the product, wipe with a dry cloth Good to know • The lock works for approx. 24 months without changing the batteries. This applies when using 2 x LADDA AA HR6 2450 mAh batteries and when the lock is opened/closed 3 times per day. • Operating temperature: 0 °C to 40 °C (32 °F to 104 °F). Recommended battery types LADDA AA HR6 rechargeable batteries. Technical data: Model: SOLSTOL Type: E2135 Input: 2 x AA/HR6 Operating frequency: 13.56 MHz Manufacturer: IKEA of Sweden AB Address: Box 702, SE-343 81 Älmhult, SWEDEN This device complies with Part 15 of the FCC Rules. 8 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference 9 to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the quipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land- fill and minimize any potential negative impact on human health and the environment. For more info…

Text truncated - open the document above for the full version.

Internal IKEA of Sweden AB U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Go Global Compliance, Inc. Contact Name: Peter Merguerian Street Address: 4454 Crabapple Ct. City/Province/Zip: Tracy, CA 95377 Telephone No: (408) 931-3303 Email: [email protected] FRN #: 0033672916 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): Peter Merguerian, President & CEO *This letter must be dated within 1-year (update if other terms apply) of the date the application is submitted to the TCB for device certification The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: IKEA of Sweden AB FRN: 0021625967 FCC ID: FHO-E2135 Contact Name: Ivan Susak Street Address: Box 702, SE-343 81, City/Province/Zip: Älmhult, Sweden Telephone No: +4647681000 Email: [email protected] Applicant Signature: Date: Signed by (Printed Name/Title): Ivan Susak / RA engineering manager Ivan Susak (Jan 16, 2024 14:35 GMT+1) Ivan Susak Jan 16, 2024 Jan 22, 2024

IKEA of Sweden AB Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 2023.11.2 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: FHO-E2135 IKEA of Sweden AB (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely yours, Applicant Signature Printed Name: Ivan Susak Title: RA engineering manager Address: Box 702 SE-343 81, Almhult, Sweden Tel.: +4647681000 Email: [email protected] Ivan Susak (Jan 16, 2024 14:35 GMT+1) Ivan Susak

IKEA of Sweden AB Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: 2023.11.2 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: FHO-E2135 IKEA of Sweden AB (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Ivan Susak Title: RA engineering manager Address: Box 702 SE-343 81, Almhult, Sweden Tel.: +4647681000 Email: [email protected] Ivan Susak (Jan 16, 2024 14:35 GMT+1) Ivan Susak

IKEA of Sweden AB Page 1 of 1 Authority to Act as Agent Date: 2023.3.30 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint Mr. Hongfei Wu of TÜV Rheinland (Shanghai) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with IKEA of Sweden AB (address: Box 702 SE-343 81, Almhult, Sweden). For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 2023.3.30 Agreement is valid for 12 months from the above date. By: __________________________ Ivan Susak (Signature) (Print name) BA Product Engineering Manager +4647681000 (Title) (Telephone) On behalf of: IKEA of Sweden AB (Company Name) Ivan Susak (Apr 3, 2023 08:45 GMT+2) Ivan Susak

IKEA of Sweden AB MS-0044715 Page 1 of 1 Revision 1 Date: 2023.11.2 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: FHO-E2135 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction IKEA of Sweden AB has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________ RA engineering manager __ ___________ Ivan Susak _________________ (Signature/Title) (Print name) Tel: +4647681000 Email: [email protected] Ivan Susak (Jan 16, 2024 14:35 GMT+1) Ivan Susak

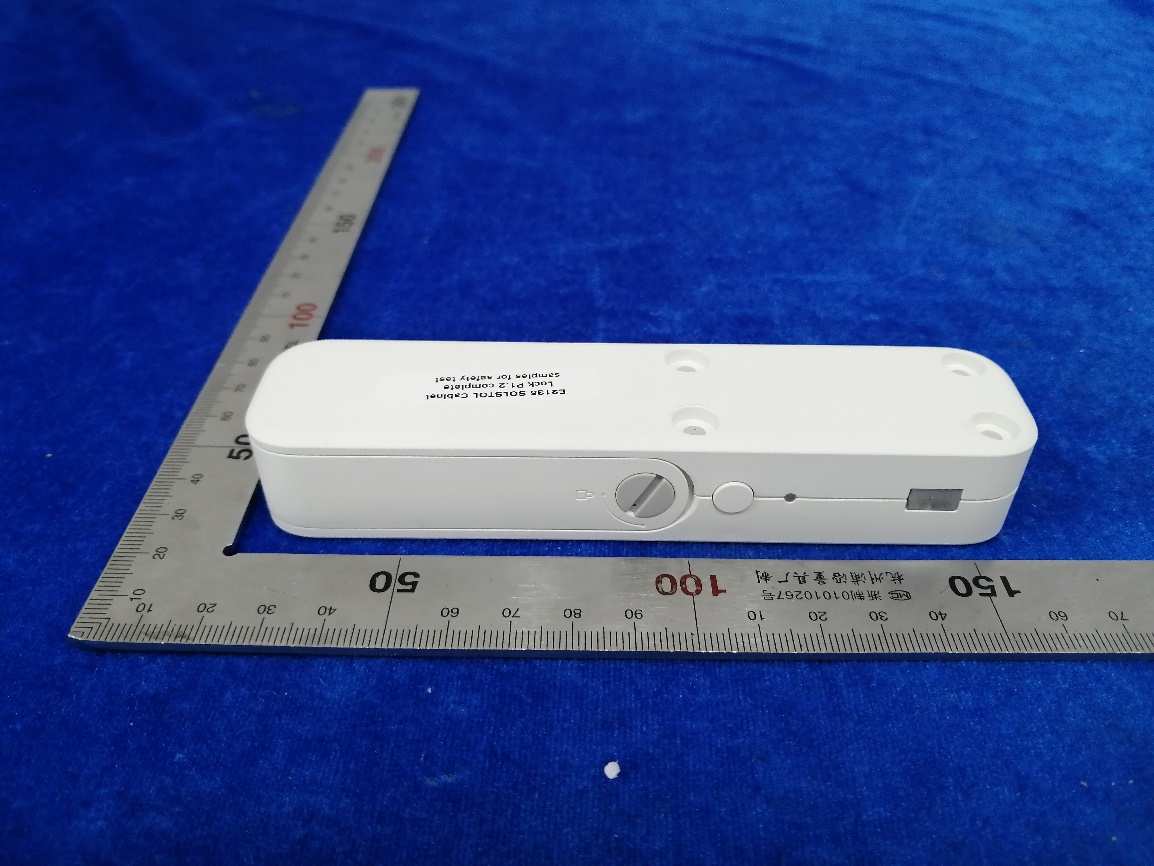

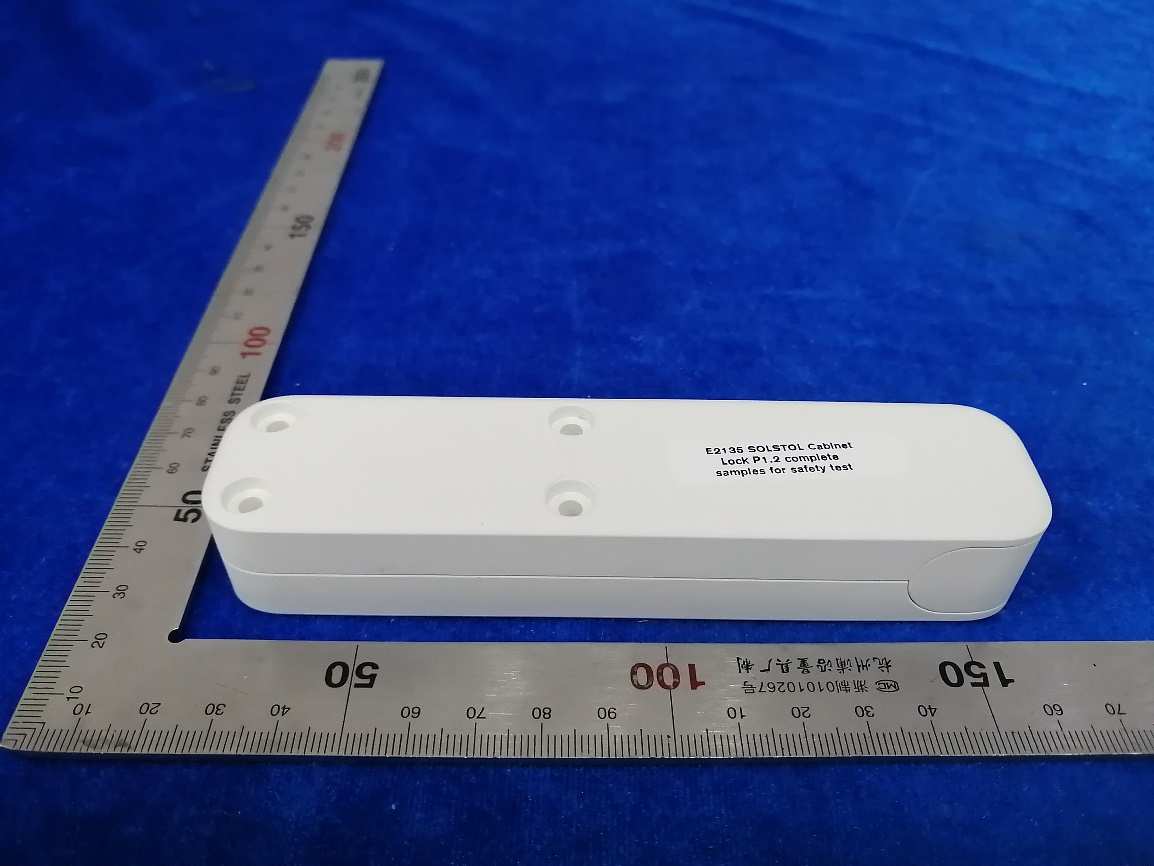

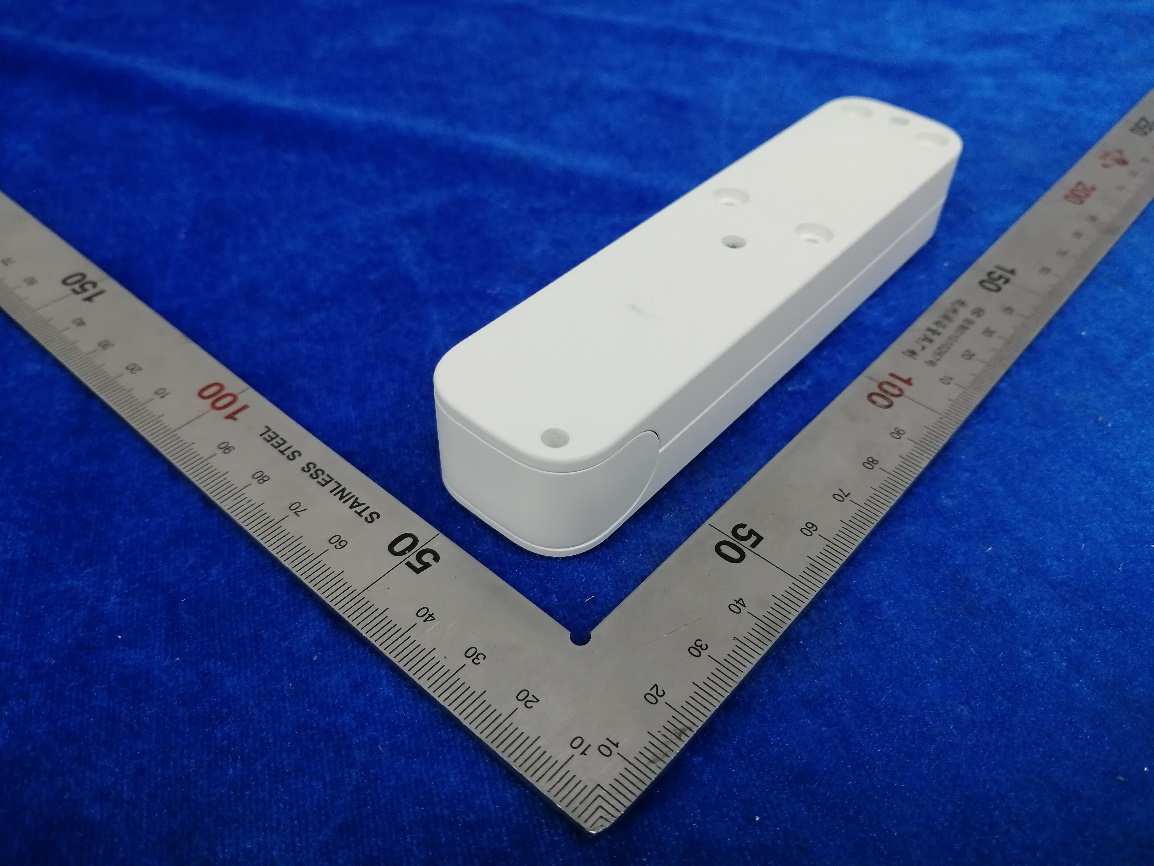

Produkte Products Seite 1 von 2 Page 1 of 2 FOTO-DOKUMENTATION PHOTO-DOCUMENTATION Bild / Picture 1: Overall view Bild / Picture 2: Overall view Produkte Products Seite 2 von 2 Page 2 of 2 FOTO-DOKUMENTATION PHOTO-DOCUMENTATION Bild / Picture 3: Overall view Bild / Picture 4: Overall view
