FHO-ICPSLC2410NA2Electronic control gear for LED

TRÅDFRI 10 W English4 Français7 Español10 4English If you have the TRÅDFRI gateway or DIRIGERA hub Go to App Store or Google Play and download the IKEA Home smart app. The app will take you through the process of installing your product and other devices. How to steer your lighting When the product is connected to the mains, it is possible to turn it ON/OFF with the main switch or the foot switch, but if you want to dim or connect your product to other IKEA Home smart products, you need to buy a separate steering device (e.g. a remote control). The steering device needs to be paired with your wireless product. If you have more than one (1) wireless product, you can pair each one with the steering device so that the entire combination can be turned ON/OFF or dimmed at the same time. Pairing a steering device to your product 1. Connect at least one (1) product to the mains before you begin the pairing. Make sur e that the mains power is turned ON. 2. Locate the pairing symbol on the LED driver . Hold the steering device close to the pairing symbol (no more than 5 cm away). 3. Press and hold the pairing button on the steering device for at least 10 seconds. A red LED light will shine steadily on the steering device. The product will begin to dim and flash one time to indicate that it has being pair ed to the steering device. How to factory reset your driver If the product does not respond or if you want to un-pair the product from a steering device, you might have to perform a factory reset. The unit is forced to factory reset by carefully pushing and holding in the small button (marked RESET) with a tip of pen on the LED driver enclosure and applying slight pressure. A factory reset can also be performed by toggling the main switch 6 times. IMPORTANT! •The product is for indoor use only and can be used in temperatures ranging from 5 °C to 45 °C (41ºF to 113 ºF). • Do not leave the product in direct sunlight or near any heat source, as it may overheat. •The declared radio range between the unit and the steering device is measured in open air. • Different building materials and placement of the units can affect the wireless connectivity range. Care instructions To clean the unit, wipe with a dry soft cloth. Never use abrasive cleaners or chemical solvents as this can damage the product. 5 Product servicing Do not attempt to repair this product yourself. If you open or remove parts, you may expose yourself to dangerous voltage points or other risks. Save these instructions for future use. RF EXPOSURE INFORMATION According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 20 cm from the device. Technical data Type: ICPSLC24-10NA-IL-2 Input: 100-120 VAC, 50/60 Hz, 0.39 A Output: 24.0V DC Max total load: 1.25 A, 10.0 W Radio range: 10 m in open air. Operating frequency: 2400-2483.5MHz Output power: 12 dBm Indoor use only Manufacturer: IKEA of Sweden AB Address: Box 702, SE-343 81 Älmhult, SWEDEN This device complies with Part 15 of the FCC Rules. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interfer ence, and (2) this device must accept any interfer ence received, including interference that may cause undesired operation of the device. WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the quipment off and on, 6 the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or r elocate the receiving antenna. • Incr ease the separation between the equipment and receiver. •Connect the equipment into an outlet on a cir cuit different from that to which the receiver is connected. • Consult the dealer or an experienced r adio/TV technician for help. License rights and limitations NO RIGHTS OR LICENSES, EXPRESS NO RIGHTS OR LICENSES, EXPRESS OR IMPLIED, ARE GRANTED TO USE THIRD-PARTY DEVICES IN COMBINATION WITH THESE PRODUCTS IN A WIRELESS MESH NETWORK, OR TO USE THIRD- PARTY SERVICES TO ACCESS, MONITOR OR CONTROL THESE PRODUCTS IN A WIRELESS MESH NEWORK VIA THE INTERNET OR ANOTHER EXTERNAL WIDE AREA NETWORK. For use pursuant to U.S. Patent Nos.: US 6,914,893 US 7,697,492 US 8,964,708 The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store. 7Français Si vous possédez une passerelle TRÅDFRI ou DIRGERA : rendez-vous sur Google Play ou l'App Store et téléchargez l’application IKEA Home smart. Suivez les différentes étapes indiquées pour installer le produit et d'autres appareils. Comment contrôler votre éclairage Quand le produit est connecté au réseau électrique, il est possible de l'allumer/l'éteindre …

Text truncated - open the document above for the full version.

© Inter IKEA Systems B.V. 2014 March 23 , 2022 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement IKEA of Sweden AB FCC ID: FHO-ICPSLC2410NA2 To Whom It May Concern: We, IKEA of Sweden AB, hereby authorized Intertek Semko AB, Swedens to act as our Agent for the purpose of preparing application for FCC ID number FHO- ICPSLC2410NA2 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is March 23 , 2022. The Limited Agency Agreement expires on September 30 th , 2022, unless sooner terminated or extended by written notice to Intertek Semko AB, Sweden and the Federal Communications Commission. This i s to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Ivan Susak Product engineering manager IKEA of Sweden AB [email protected] +4647681000

© Inter IKEA Systems B.V. 2014 March 23, 2022 Attention: Application Examiner RE: Request for Confidentiality Applicant: IKEA of Sweden AB FCC ID : FHO-ICPSLC2410NA2 To Whom It May Concern: Permanent Confidentiality Request is hereby submitted by IKEA of Sweden AB to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Schematics Detailed Block Diagrams Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by IKEA of Sweden AB to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of Authorization: Test setup photos External photos Internal photos Rationale for request for confidentiality: IKEA of Sweden AB has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential © Inter IKEA Systems B.V. 2014 portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] Sincerely, Ivan Susak Product engineering manager IKEA of Sweden AB [email protected] +4647681000

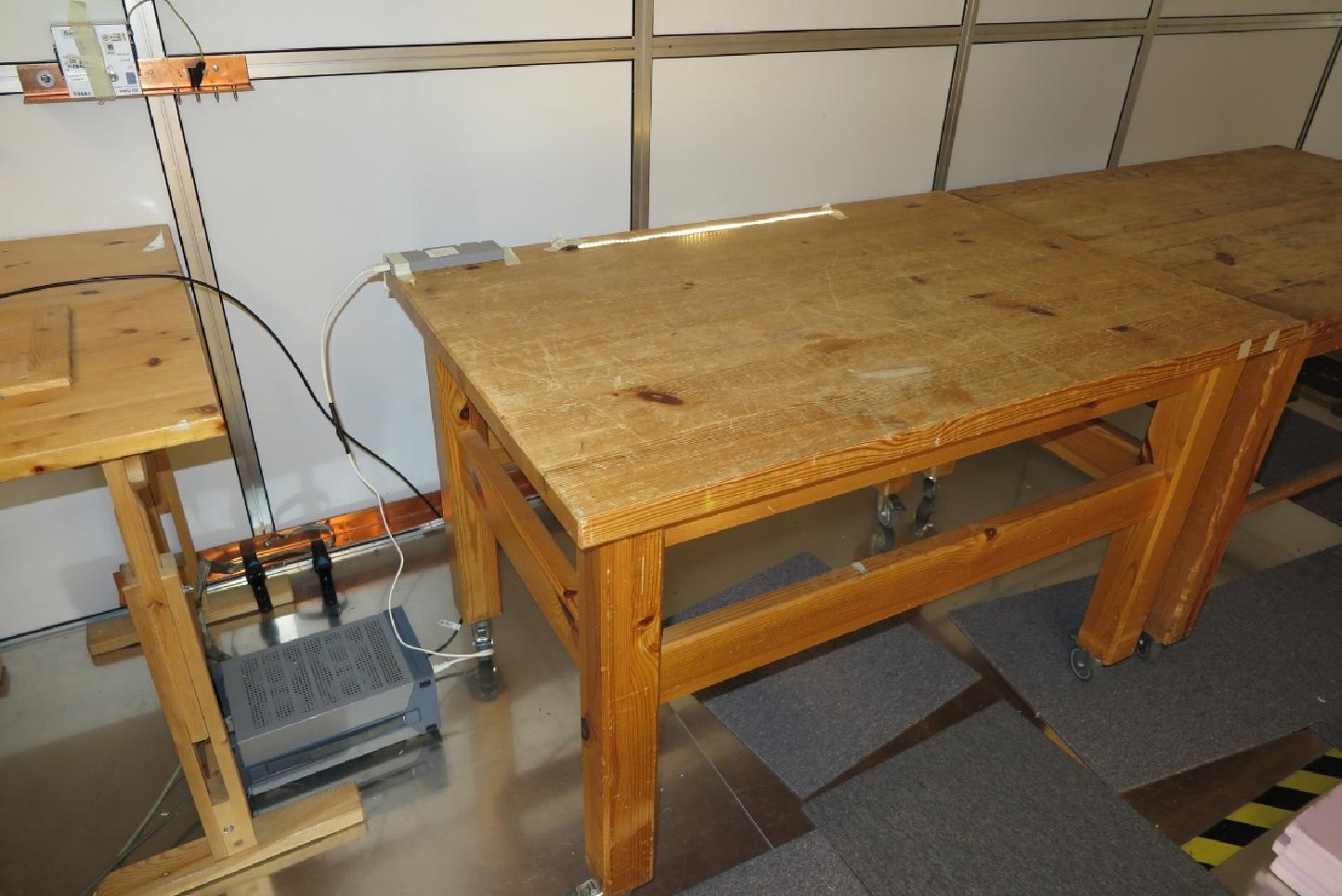

Test report no. 2107583STO-107 Annex 1 Page 1 (3) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se ANNEX 1 Photos of EUT EUT Test report no. 2107583STO-107 Annex 1 Page 2 (3) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Photos of test setup Test setup for conducted emission 150 kHz – 30 MHz Test set up radiated emission 30 MHz – 1 GHz Test report no. 2107583STO-107 Annex 1 Page 3 (3) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Test set up radiated emission 1 GHz – 13 GHz

Revision 2 Revision Comment updated FCC id and module id No. of Changes Checked by Approved by Jonas Filipsson (jonfil) Approved date 2021-11-02 Designed by IKEA of Sweden No. of Pages 1 (1) Tolerance Replaces document Description Electrical Component ♦ Electronic ♦ _____________________________________________________________________________________ Name Label ICPSLC24-10NA-IL-2 Product Name IKEA Parts Library Doc number 2322476 Measurements according to the SI systems. This drawing is IKEA` property and is covered by industrial and intellectual property rights and should, without written consent from IKEA, in no way be copied, reproduced or communicated or otherwise used for any other purpose other than that which has been agreed. A4 Template Version: 1.1 DRAWING

Revision 1 Revision Comment No. of Changes Checked by Approved by Approved date Designed by IKEA of Sweden No. of Pages 1 (3) Tolerance Replaces document Description Driver for wireless control ♦ ♦ _____________________________________________________________________________________ Name ICPSLC24-10NA-IL-2 - Internal Pictures Product Name TRÅDFRI Doc number 2341502 Measurements according to the SI systems. This drawing is IKEA` property and is covered by industrial and intellectual property rights and should, without written consent from IKEA, in no way be copied, reproduced or communicated or otherwise used for any other purpose other than that which has been agreed. A4 Template Version: 3.1 MEASURED IMAGE Revision 1 Revision Comment No. of Changes Checked by Approved by Approved date Designed by IKEA of Sweden No. of Pages 2 (3) Tolerance Replaces document Description Driver for wireless control ♦ ♦ _____________________________________________________________________________________ Name ICPSLC24-10NA-IL-2 - Internal Pictures Product Name TRÅDFRI Doc number 2341502 Measurements according to the SI systems. This drawing is IKEA` property and is covered by industrial and intellectual property rights and should, without written consent from IKEA, in no way be copied, reproduced or communicated or otherwise used for any other purpose other than that which has been agreed. A4 Template Version: 3.1 MEASURED IMAGE Revision 1 Revision Comment No. of Changes Checked by Approved by Approved date Designed by IKEA of Sweden No. of Pages 3 (3) Tolerance Replaces document Description Driver for wireless control ♦ ♦ _____________________________________________________________________________________ Name ICPSLC24-10NA-IL-2 - Internal Pictures Product Name TRÅDFRI Doc number 2341502 Measurements according to the SI systems. This drawing is IKEA` property and is covered by industrial and intellectual property rights and should, without written consent from IKEA, in no way be copied, reproduced or communicated or otherwise used for any other purpose other than that which has been agreed. A4 Template Version: 3.1 MEASURED IMAGE

Test report No. 2107583STO-107 Page 2 (17) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Version 2.05 Revision History Test report no. Release no. Date of issue Description 2107583STO-107 1 January 4, 2022 Test report No. 2107583STO-107 Page 3 (17) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Version 2.05 Terms, definition and abbreviations The following terms, definitions and abbreviations may be used throughout the report. Term/definition/abbreviation Meaning AAN Asymmetrical Artificial Network AC Alternating Current AE Associated Equipment AMN Artificial Mains Network ANSI American National Standards Institute AV Average BW Bandwidth CAV CISPR Average CFR Code of Federal Regulations CISPR Comité international spécial des perbutations radioélectriques CM Common Mode CMAD Common Mode Absorption Device DC Direct Current DM Differential Mode EM Electromagnetic EMC Electromagnetic Compatibility EUT Equipment Under Test F Fail FAR Fully Anechoic Room FCC Federal Communications Commission Highest fundamental frequency generated or used within the EUT, or highest frequency at which it operates ICES Interference-Causing Equipment Standard H Horizontal I ref Reference Current ISN Impedance Stabilizing Network MU Measurement Uncertainty N/A Not Applicable P Pass PE Protective Earth PK Peak Pol. Polarisation QP / QPK Quasi-Peak RBW Resolution Bandwidth RF Radio Frequency RGP Reference Ground Plane RH Relative Humidity RMS Root Mean Square Rx Receiver / Receiving SAC Semi-Anechoic Chamber Tx Transmitter / Transmitting V Vertical VBW Video Bandwidth Test report No. 2107583STO-107 Page 4 (17) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Version 2.05 CONTENTS Page 1. Client Information ............................................................................................................... 5 2. Equipment under test (EUT) ............................................................................................... 5 2.1 Identification of the EUT ........................................................................................... 5 2.2 Test set up and EUT photos .................................................................................... 6 2.3 Additional information about the EUT ...................................................................... 7 2.4 Peripheral/auxiliary equipment ................................................................................. 7 2.5 Decision rule ............................................................................................................ 7 3. Test Specifications ............................................................................................................. 8 3.1 Additions, deviations and exclusions from standards and accreditation ................. 8 3.2 Test site .................................................................................................................... 8 3.3 Mode of operation during the test ............................................................................ 8 4. Test Summary .................................................................................................................... 9 5. Conducted continuous disturbances ................................................................................ 10 5.1 Test results, AC Power input port, Class B ............................................................ 11 5.2 Test equipment ...................................................................................................... 12 6. Radiated rf Emission in the frequency-range 30 MHz – 13 GHz ..................................... 13 6.1 Test results, 30 – 1000 MHz, FCC/ICES-005, Class B ......................................... 15 6.2 Test results, 1 – 13 GHz, FCC, Class B ................................................................ 16 6.3 Test equipment ...................................................................................................... 17 Test report No. 2107583STO-107 Page 5 (17) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Version 2.05 1. CLIENT INFORMATION The EUT has been tested by request of Company IKEA of Sweden AB Box 702 SE-343 81 Älmhult Sweden Name of contact Jonas Filipsson Client observer - 2. EQUIPMENT UNDER TEST (EUT) 2.1 Identification of the EUT Equipment: Electronic control gear for LED Type/Model: ICPSLC24-10NA-IL-2 Brand name: IKEA S/N: - Manufacturer: IKEA of Sweden AB Box 702 SE-343 81 Älmhult Sweden Highest clock frequency, : 38,4 MHz Transmitting freq.: 2405 – 2480 MHz Software version: - Hardware version: - Mounting position: (during normal use) ☐ Table-top ☐ Floor-standing ☐ Wall/ceiling ☐ Hand-held ☒ Other: Various Input ratings Voltage [V] Freq. [Hz] Current [A] Power [W] Coupling ☒ AC 100 – 120 50/60 0.13 - L1 L2 L3 N PE ☒ ☐ ☐ ☒ ☐ ☐ DC V+ V- PE ☐ ☐ ☐ ☐ Battery V+ V- ☐ ☐ ☐ Other: Output ratings Voltage [V] Freq. [Hz] Current [A] Power [W] Coupling ☒ DC 24 - 0 – 0.42 10 V+ V- PE ☒ ☒ ☐ ☐ Other: Supplementary information: Class II Test report No. 2107583STO-107 Page 6 (17) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Version 2.05 Photo/copy of marking/rating plate(s) 2.2 Test set up and EUT photos Test set up and EUT photos are enclosed in Annex 1 to this test report. Test report No. 2107583STO-107 Page 7 (17) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Version 2.05 2.3 Additional information about the EUT The ICPSLC24-10NA-IL-2 is a LED-driver with output of 24 V DC, provided radio remote controlled dimming and on-off. The EUT has the following ports: Port type Port name Length [m] Shielded AC I/O ☒ AC power input AC mains/power supply - ☐ ☐ AC power output ☐ DC I/O ☐ DC power input ☐ ☒ DC power output Load port (1) 3.5 ☐ Signal/control I/O ☐ Signal/control ☐ …

Text truncated - open the document above for the full version.

Test report no. 2107583STO-107 Annex 1 Page 1 (3) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se ANNEX 1 Photos of EUT EUT Test report no. 2107583STO-107 Annex 1 Page 2 (3) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Photos of test setup Test setup for conducted emission 150 kHz – 30 MHz Test set up radiated emission 30 MHz – 1 GHz Test report no. 2107583STO-107 Annex 1 Page 3 (3) Intertek Semko AB Torshamnsgatan 43, Box 1103, SE-164 22 Kista, Sweden www.intertek.se Test set up radiated emission 1 GHz – 13 GHz
