FHO-ICTD-KL-1Remote controller

User manual of Remote Control 1、 Model No.: ICTD-KL-1 2、Technical Parameter a) WORKING VOLTAGE: 1.8~3.6 V(Normal：2X1.5VDC); b) Transmit speed: 250KHz; c) Frequency band: 2436.20 +/- 0.03 MHz 3、Application This Remote Control can match with 10W, 20W and 30W dimmable LED drivers. The match method is following: a) Punched the code button on Receiver, the indicator lighted, you can undertake to code. b) In the case of the receiver indicator light, extended press the button on remote control until the indicator second lighted. Complete send code command. c) Once receiver received the code command, the indicator flash three times showing the code is successful, after lights out. There are three kinds of remote control dimmer. Press the remote control button, dimming state change by the cycle: OFF->35%->100%->35%->OFF. 4、Remote Control Block Diagram: 5、Driver Block Diagram: Caution: This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

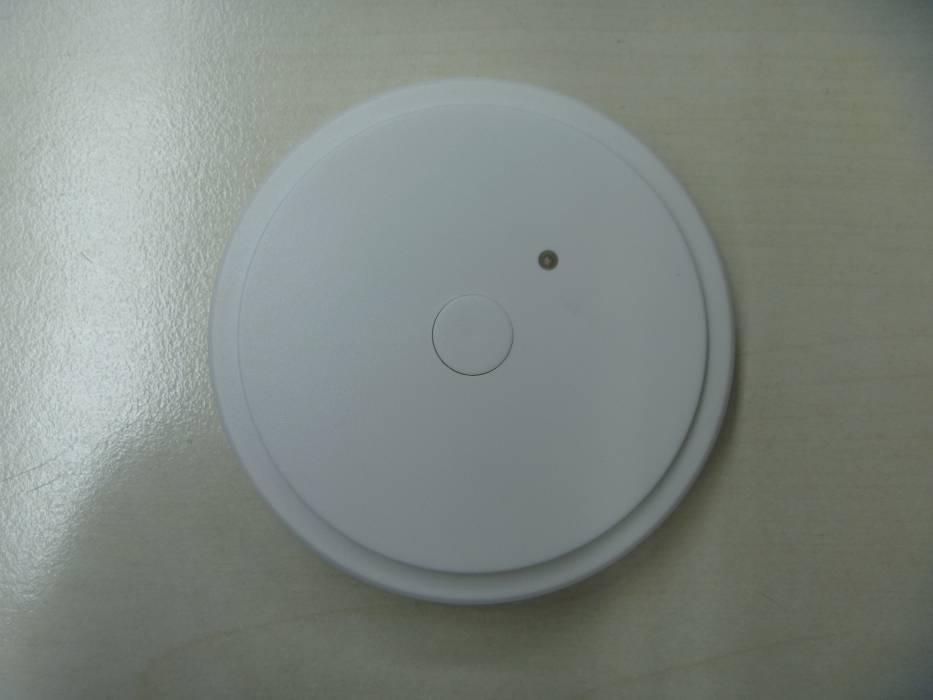

FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 1 of 2 External Picture FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 2 of 2 EUT

4 0 . 0 m m 60.0 mm Label for ICTD-KL-1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ATTENTION: Receiver category:Class 3 Made In China IKEA of Sweden AB SE-343 81 Älmhult 2X1.5VDC LR03 AAA 2713 Remote control Model:ICTD-KL-1 备注：标签如下图贴在产品上， 标签采用透明底黑字印刷。 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ATTENTION: Receiver category:Class 3 Made In China 2X1.5VDC LR03 AAA IKEA of Sweden AB SE-343 81 Älmhult 2713 Remote control Model:ICTD-KL-1 FCC ID:FHO-ICTD-KL-1 IC:10912A-ICTD KL 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ATTENTION: Receiver category:Class 3 Made In China 2X1.5VDC LR03 AAA IKEA of Sweden AB SE-343 81 Älmhult 2713 Remote control Model:ICTD-KL-1 FCC ID:FHO-ICTD-KL-1 IC:10912A-ICTD KL 1

FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 1 of 4 Internal Picture FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 2 of 4 FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 3 of 4 FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 4 of 4

Test report no. 151000372SHA-001 Page 1 of 19 FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 TTRF15.249_V1 EMC TEST REPORT No. 151000372SHA-001 Applicant : IKEA of Sweden AB P.O. Box 702, SE-343 81 Älmhult SWEDEN Manufacturing site : Eaglerise Electronics (Foshan) Co., Ltd. No. 4, East Huanzhen Road, Beijiao, Shunde, Foshan, Guangdong, 528000, China. Product Name : Remote controller Type/Model : ICTD-KL-1 TEST RESULT : PASS SUMMARY The equipment complies with the requirements according to the following standard(s) or specification: 47CFR Part 15 (2014): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radio communication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 4 (December 2014): General Requirements for Compliance of Radio Apparatus Date of issue: October 27, 2015 Prepared by: Reviewed by: Nemo Li (Project Engineer) Daniel Zhao (Reviewer) Test report no. 151000372SHA-001 Page 2 of 19 FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 TTRF15.249_V1 Description of Test Facility Name: Intertek Testing Service Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2402B-1 Name of contact: Jonny Jing Tel: 86 21 61278271 Fax: 86 21 54262353 Test report no. 151000372SHA-001 Page 3 of 19 FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 TTRF15.249_V1 Content SUMMARY ............................................................................................................................................. 1 1 GENERAL INFORMATION ...................................................................................................... 4 1.1 Description of Client ...................................................................................... 4 1.2 Identification of the EUT ............................................................................... 4 1.3 Technical Specification .................................................................................. 5 2 TEST SPECIFICATIONS ............................................................................................................ 6 2.1 Standards or specification .............................................................................. 6 2.2 Mode of operation during the test .................................................................. 6 2.3 Test software list ............................................................................................ 6 2.4 Test peripherals list ........................................................................................ 6 2.5 Instrument list ................................................................................................ 7 2.6 Test Summary ................................................................................................ 8 3 RADIATED EMISSION ...................................................................................................................... 9 3.1 Test limit ........................................................................................................ 9 3.2 Test Configuration ......................................................................................... 9 3.3 Test procedure and test setup ....................................................................... 10 3.4 Test protocol ................................................................................................ 11 4 ASSIGNED BANDWIDTH (20DB BANDWIDTH) ............................................................................... 13 4.1 Limit ............................................................................................................. 13 4.2 Test Configuration ....................................................................................... 13 4.3 Test procedure and test setup ....................................................................... 13 4.4 Test protocol ................................................................................................ 14 5 POWER LINE CONDUCTED EMISSION ........................................................................................... 15 5.1 Limit ............................................................................................................. 15 5.2 Test configuration ........................................................................................ 15 5.3 Test procedure and test set up ...................................................................... 16 5.4 Test protocol ................................................................................................ 17 6 OCCUPIED BANDWIDTH ............................................................................................................... 18 6.1 Test limit ...................................................................................................... 18 6.2 Test Configuration ....................................................................................... 18 6.3 Test procedure and test setup ....................................................................... 18 6.4 Test protocol ................................................................................................ 19 Test report no. 151000372SHA-001 Page 4 of 19 FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 TTRF15.249_V1 1 GENERAL INFORMATION 1.1 Description of Client Applicant : IKEA of Sweden AB P.O. Box 702, SE-343 81 Älmhult SWEDEN Manufacturing site : Eaglerise Electronics (Foshan) Co., Ltd. No. 4, East Huanzhen Road, Beijiao, Shunde, Foshan, Guangdong, 528000, China 1.2 Identification of the EUT Product Name : Remote controller Type/model : ICTD-KL-1 FCC ID : FHO-ICTD-KL-1 IC : 10912A-ICTDKL1 Test report no. 151000372SHA-001 Page 5 of 19 FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 TTRF15.249_V1 1.3 Technical Specification Operation Frequency Band : 2400 – 2483.5M…

Text truncated - open the document above for the full version.

FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 1 of 2 Test Setup FCC ID: FHO-ICTD-KL-1 IC: 10912A-ICTDKL1 Page 2 of 2 1. Radiated Emission 30-1000MHz Above 1GHz
