TRIXIG 1 44 1 2 8 4 3 7 5 6 1 2 3 2.1 English Original instructions 5 Français Instructions originales 24 Español Instrucciones originales 45 5 English TRIXIG screwdriver/drill Li-ion 12V TECHNICAL SPECIFICATIONS - SCREWDRIVER/DRILL Model: TRIXIG Type: P2202 Nominal voltage: 10.8 Vdc Rated voltage 12.0 Vdc Battery type: 1.5 Ah Lithium-Ion Charging time: If you use 5.0V 1.0A charge current – charging time < 360 min If you use 5.0V 2.0A charge current – charging time < 210 min If you use 5.0V 3.0A charge current – charging time < 150 min Chuck capacity: 0.8 - 10 mm (1/32"-3/8") Adjustable torque: 19 + drilling Max. hard torque: approx. 18 Nm Max. rpm (no-load speed): 900/min Holder for screwdriver bits: 6.35 mm (1/4") Weight: approx. 1.035 kg (2.282 lbs) (drill+battery pack only) Vibration (according to EN 62841-1, EN 62841-2-1.: Drilling into metal a h.D =1.1 m/s², K=1.5 m/s² Noise (according to EN 62841-1.: Noise pressure level L pA = 69 dB (A), K pA = 5 dB (A) Noise power level L wA = 80 dB (A), K wA = 5 dB (A.) 6 Technical data Type: ICBL 10.8-16-USBC-P1 Capacity: 1.5Ah Lithium-Ion, 16.2Wh Rechargeable Li-Ion battery cell inside. (Three INR19/66 Li-ion cells connected to a group in series) INDOOR USE ONLY. Recommended charging ratings: 5.0 Vdc / 1.0-3.0A (type C)) charging temperature 0-50°C (32-122F) Product features The numbering of the product features shown refers to the illustration of the screwdriver/drill on the graphic page. 1. Keyless chuck 2. Torque regulator 3. Infinitely variable speed control/trigger 4. Rotational direction switch 5. LED work light 6. Battery pack 7. Front sleeve 8. Magnetic bit holder NOTE! USB-C cable and USB charger are not included. There is an additional storage compartment inside the screwdriver/drill’s box for a supplementary TRIXIG battery pack. AREAS OF USE This cordless screwdriver/drill may be used for drilling in wood, plastic and soft metal materials, and for tightening/ loosening screws. The supplied drill bits are suitable for these applications. 7 Any other application with these drill bits is not recommended. This appliance is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. GENERAL SAFETY INSTRUCTIONS General safety instructions for power tools WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. Work area safety a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. 8 b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gasses or dust. Power tools create sparks which may ignite the dust of fumes. c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 9 Personal safety a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Prevent unintentional starting: Ensure that the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 10 h. Do not let familiarity gained from frequent use of …

Text truncated - open the document above for the full version.

IKEA of Sweden AB Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 2023.6.27 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: FHO-P2202 IKEA of Sweden AB (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely yours, Applicant Signature Printed Name: Ivan Susak Title: BA Product Engineering Manager Address: Box 702 SE-343 81, Almhult, Sweden Tel.: +4647681000 Email: [email protected] Ivan Susak (Jun 29, 2023 08:08 GMT+2) Ivan Susak

IKEA of Sweden AB Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: 2023.6.27 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: FHO-P2202 IKEA of Sweden AB (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Ivan Susak Title: BA Product Engineering Manager Address: Box 702 SE-343 81, Almhult, Sweden Tel.: +4647681000 Email: [email protected] Ivan Susak (Jun 29, 2023 08:08 GMT+2) Ivan Susak

IKEA of Sweden AB U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Go Global Compliance, Inc. Contact Name: Peter Merguerian Street Address: 4454 Crabapple Ct. City/Province/Zip: Tracy, CA 95377 Telephone No: (408) 931-3303 Email: [email protected] FRN #: 0033672916 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): Peter Merguerian, President & CEO *This letter must be dated within 1-year (update if other terms apply) of the date the application is submitted to the TCB for device certification The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: IKEA of Sweden AB FCC ID: FHO-P2202 Contact Name: Ivan Susak Street Address: Box 702, SE-343 81, City/Province/Zip: Älmhult, Sweden Telephone No: +4647681000 Email: [email protected] Applicant Signature: Date: Signed by (Printed Name/Title): Ivan Susak / BA Product Engineering Manager Ivan Susak (Jul 4, 2023 08:49 GMT+2) Ivan Susak Jul 4, 2023 Jul 4, 2023

Date: 2023-06-27 To : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The IKEA of Sweden AB, the undersigned, hereby authorizes Ms. Jessie Xu of TÜV Rheinland Shanghai Co., Ltd, to act on the behalf of the IKEA of Sweden AB solely in matters relating to the application for an FCC equipment authorization for FHO-P2202 including the signing of documents in connection with this Application. Necessary acts carried out by Ms. Jessie Xu of TÜV Rheinland Shanghai Co., Ltd. on our behalf of the IKEA of Sweden AB in connection with the Application shall have the same effect as acts of the IKEA of Sweden AB. The IKEA of Sweden AB also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Name : Ivan Susak Title：Product Engineering Manager Company：IKEA of Sweden AB Ivan Susak (Jun 29, 2023 08:08 GMT+2) Ivan Susak

IKEA of Sweden AB MS-0044715 Page 1 of 1 Revision 1 Date: 2023.6.27 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: FHO-P2202 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction IKEA of Sweden AB has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________ BA Product Engineering Manager __ ____ Ivan Susak _________________ (Signature/Title) (Print name) Tel: +4647681000 Email: [email protected] Ivan Susak (Jun 29, 2023 08:08 GMT+2) Ivan Susak

Report Number: Attachment 1 of CN22C0H8 001 Model: P2202 TRIXIG - Page 1 of 4 - External Photos Report Number: Attachment 1 of CN22C0H8 001 Model: P2202 TRIXIG - Page 2 of 4 - Report Number: Attachment 1 of CN22C0H8 001 Model: P2202 TRIXIG - Page 3 of 4 - Report Number: Attachment 1 of CN22C0H8 001 Model: P2202 TRIXIG - Page 4 of 4 -

Label artwork Label location

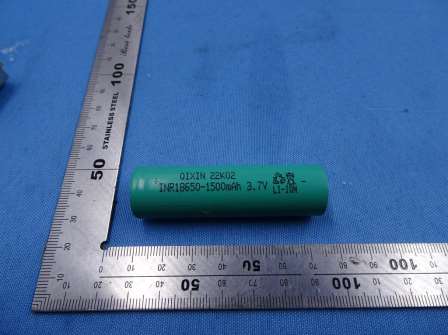

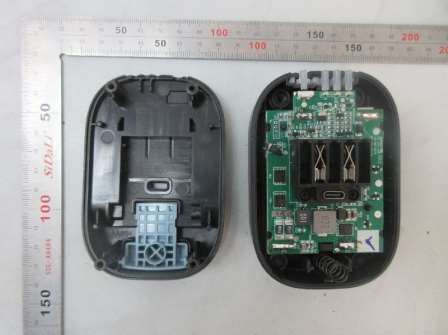

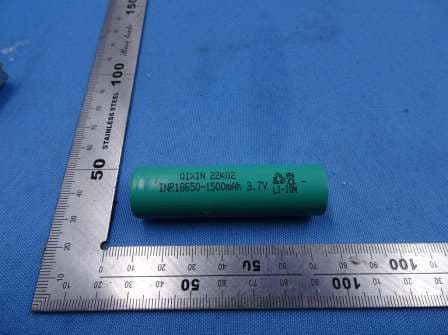

Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 1 of 8 - Internal Photos Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 2 of 8 - Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 3 of 8 - Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 4 of 8 - Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 5 of 8 - Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 6 of 8 - Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 7 of 8 - Report Number: Attachment 2 of CN22C0H8 001 Model: P2202 TRIXIG - Page 8 of 8 -

Prüfbericht - Produkte Test Report – Products Certificate #4301.01 Prüfbericht-Nr.: Test report no.: CN22C0H8 001 Auftrags-Nr.: Order no.: 244459279 Seite 1 von 30 Page 1 of 30 Kunden-Referenz-Nr.: Client reference no.: 1288983 Auftragsdatum: Order date: 2022-11-03 Auftraggeber: Client: IKEA of Sweden AB Box 702, SE-343 81 Älmhult, Sweden Prüfgegenstand: Test item: Cordless Drill Bezeichnung / Typ-Nr.: Identification / Type no.: P2202 TRIXIG Auftrags-Inhalt: Order content: TÜV Rheinland EMC service Prüfgrundlage: Test specification: FCC 47 CFR Part 15, Subpart B:2021 Class B ICES-003:2020 Wareneingangsdatum: Date of sample receipt: 2022-10-30~2023-02-06 Refer to the EUT photos file Prüfmuster-Nr.: Test sample no: A003362538-001 A003366654-011 A003409310-005 A003409310-006 Prüfzeitraum: Testing period: Refer to test report Ort der Prüfung: Place of testing: Refer to clause 1.1 Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2023-06-30 Ausstellungsdatum: Issue date: 2023-06-30 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: FHO-P2202 Test Firm Registration Number: 958801 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shanghai) Co., Ltd. No.177, 178, Lane 777 West Guangzhong Road, Jing'an District,Shanghai, China Mail: [email protected] · W eb: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN22C0H8 001 Test report no.: Seite 2 von 30 Page 2 of 30 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test report is based on the “Zero Guard Band Rule” and “Simple Acceptance” in accordance with ILAC G8:2019 and IEC Guide 115:2021, unless otherwise specified in the applied standard mentioned on Page 1 of this report or requested by the customer. This means that measurement uncertainty is not taken in account and …

Text truncated - open the document above for the full version.

Report Number: Attachment 3 of CN22C0H8 001 Model: P2202 TRIXIG - Page 1 of 1 - Test Set-up Photos Photograph 1: Set-up for measurement of radiated emission
