*6254665A* 6254665A 3 ES: Guía Rápida Siga las instrucciones de este guía para conectar su cable módem o gateway. Antes de comenzar: Lea atentamente el documento Instrucciones de seguridad y avisos legales incluido en el paquete antes de continuar con la instalación su cable módem o gateway. Importante: antes de conectar el dispositivo, cree una cuenta de servicio de Internet con su proveedor de servicios de Internet favorito. Al crear una cuenta, el proveedor de servicios de Internet puede pedirle que le proporcione la información que aparece en la etiqueta del mismo, como el número de serie (S/N) o la dirección MAC del dispositivo. 1 CABLE (): Conecte el cable coaxial RF de la toma de pared al conector CABLE situado en la parte posterior del dispositivo. 2 ETHERNET (): Conecte su computadora al puerto Ethernet en la parte posterior del dispositivo. Si el dispositivo tiene más de un puerto Ethernet, puede conectar más computadoras u otros dispositivos de red a los puertos Ethernet adicionales. 3 TELEPHONE () (opcional): Si el dispositivo admite el servicio de telefonía digital (VoIP), conecte uno de los extremos de un cable de acoplamiento telefónico a una toma telefónica de su domicilio, a un teléfono o a un fax. Conecte el otro extremo del cable al primer puerto TELEPHONE en la parte posterior del dispositivo. El primer puerto puede ser 1 o 1/2 en función del modelo de dispositivo. 4 POWER (/): Conecte el extremo con forma de barril () del adaptador de alimentación (incluido) a la entrada POWER en la parte posterior del dispositivo. A continuación, enchufe el adaptador en una toma de pared. Si el dispositivo tiene un interruptor de alimentación (/) en la parte posterior del dispositivo, asegúrese de que el interruptor esté en la posición ON. 5Espere a que los LED POWER (/) y (en su caso) WIRELESS (), DS ( /), US ( /), ONLINE (/) del panel frontal dejen de parpadear y permanezcan siempre encendidos. Deberá esperar un máximo de 10 minutos para que todos los LED dejen de parpadear. Ya está listo para navegar por Internet y utilizar otros dispositivos de red. Qué hacer en caso de problemas Si tiene problemas, asegúrese de que todas las conexiones estén conectadas correctamente. Si necesita más ayuda, póngase en contacto con su proveedor de servicios. Technicolor Delivery Technologies – www.technicolor.com Copyright © 2019 Technicolor. All rights reserved. DMS3-QIG-25-636 v1.0 All tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. Specifications subject to change without notice. EN: Quick Start Guide1 Technicolor Cable Modems and Gateways FR: Guide d’installation rapide2 Technicolor Modems et Passerelles de Câble ES: Guía Rápida3 Technicolor Cable Módems y Gateways 1 EN: Quick Start Guide Follow the instructions in this Quick Start Guide to connect your cable modem or gateway. Before you start: Carefully read the Safety Instructions and Regulatory Notices document included in your package before continuing with the installation of your cable modem or gateway. Important: Before you connect your device, establish an Internet service account with your preferred Internet service provider. When establishing an account, your Internet service provider may ask you to provide information listed on the device label, such as the device serial number (S/N) or MAC address. 1 CABLE (): Connect the RF coaxial cable from the wall outlet to the CABLE connector on the back of the device. 2 ETHERNET (): Connect your computer to the Ethernet port on the back of the device. If your device has more than one Ethernet port, you may connect additional computers or other networking devices to the extra Ethernet ports. 3 TELEPHONE () (optional): If your device supports digital telephone service (VoIP), connect one end of a telephone cable to a telephone outlet in your home or to a telephone or fax machine. Connect the other end of the cable to the first TELEPHONE port on the back of the device. The first port is labeled 1 or 1/2 depending on the device model. 4 POWER (/): Connect the barrel end () of the power adapter (included) to the POWER input on the back of the device. Then, plug the adapter into a wall outlet. If your device has a power switch (/) on the back of the device, make sure that the switch is in the ON position. 5Wait for the POWER (/) and (if applicable) WIRELESS (), DS ( /), US ( /), ONLINE (/) LEDs on the front panel to stop blinking and remain on continuously. It may take up to 10 minutes for all LEDs to stop blinking. You are now ready to surf the Internet and use other networked devices. Problems? If you encounter problems, make sure that all connections are secure. For further assistance, contact your service provider. 2 FR: Guide d’installation rapide Suivez les instructions de ce guide pour connecter votre modem ou passerelle câble. Avant de commencer : Veuillez lire attentivement les instructions de sécurité et les avis réglementaires contenus dans l'emballage avant de poursuivre l'installation de votre modem ou passerelle câble. Important : Avant de connecter votre périphérique, créez un compte de service Internet auprès de votre fournisseur de service Internet préféré. Lorsque vous créez un compte, votre fournisseur de service Internet est susceptible de vous demander des informations figurant sur le périphérique, telles que son numéro de série (S/N) ou son adresse MAC. 1 CABLE () : Connectez le câble coaxial RF de la prise murale au connecteur CABLE à l'arrière du périphérique. 2 ETHERNET () : Connectez votre ordinateur au port Ethernet à l'arrière du périphérique. Si votre périphérique dispose de plusieurs ports Ethernet, vous pouvez connecter d'autres ordinateurs ou périphériques réseau aux autres ports Ethernet. 3 TELEPHONE () (facultatif) : Si votre périphérique prend en charge le service de téléphone numérique (VoIP), connectez l'extrémité d'un câble téléphonique à une prise téléphonique de votre domicile ou à un téléphone ou…

Text truncated - open the document above for the full version.

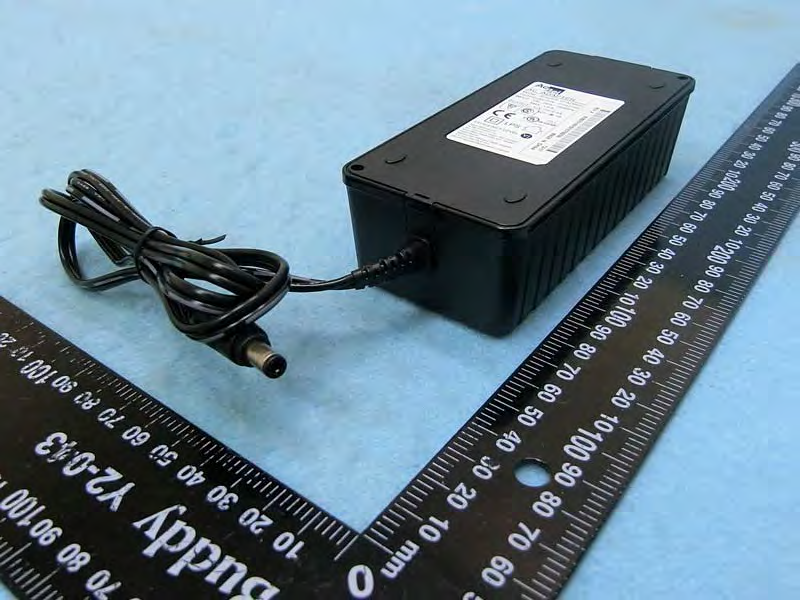

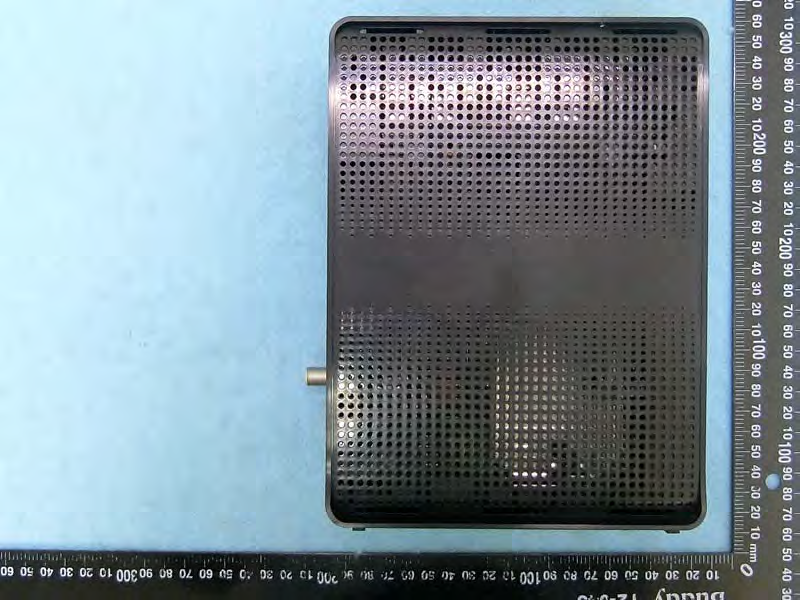

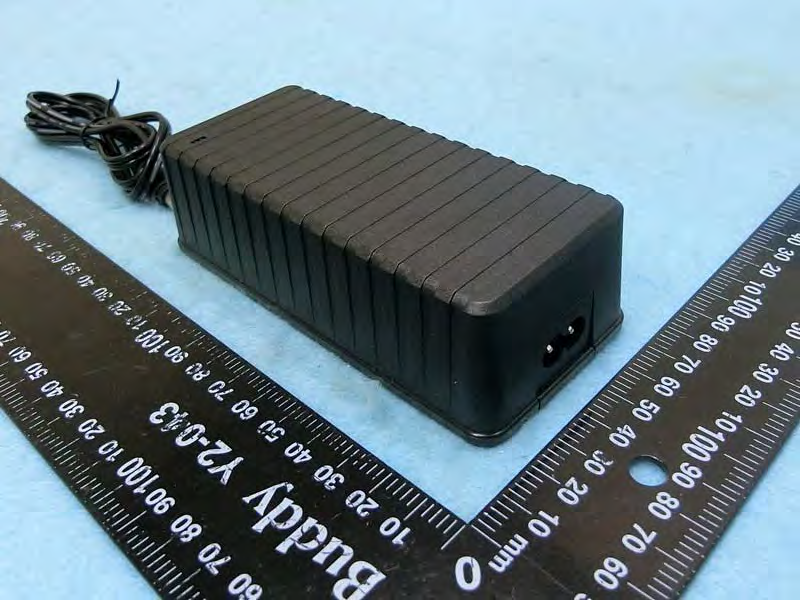

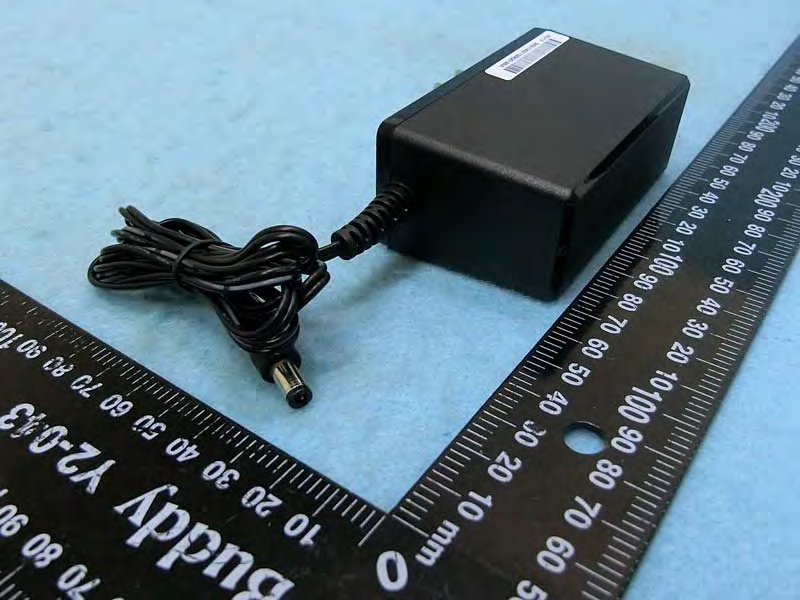

PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 7 TEL : 886-3-656-9065 Issued Date : Jun. 18, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: technicolor Model Name: CGA4236 PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 7 TEL : 886-3-656-9065 Issued Date : Jun. 18, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 7 TEL : 886-3-656-9065 Issued Date : Jun. 18, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 7 TEL : 886-3-656-9065 Issued Date : Jun. 18, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Adapater 1 PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 7 TEL : 886-3-656-9065 Issued Date : Jun. 18, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Adapater 2 PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 7 TEL : 886-3-656-9065 Issued Date : Jun. 18, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 7 of 7 TEL : 886-3-656-9065 Issued Date : Jun. 18, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Power cord (For adapter 2 use)

Label Location

PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: technicolor Model Name: CGA4236 2.4G Ant1 2.4G Ant2 2.4G Ant3 PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 7 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 8 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 9 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 10 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP 5G Ant1 5G Ant2 5G Ant3 5G Ant4 PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 11 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 12 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 13 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 14 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041508 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 15 of 15 TEL : 886-3-656-9065 Issued Date : Jun. 19, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

FCC RADIO EXPOSURE TEST REPORT Report No. : FA041508 TEL : 886-3-656-9065 Page Number : 2 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 18, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Table for Multiple Listing ........................................................................................................................ 5 1.3 Testing Location ..................................................................................................................................... 5 2 Maximum Permissible Exposure ........................................................................................................ 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT v01 FCC RADIO EXPOSURE TEST REPORT Report No. : FA041508 TEL : 886-3-656-9065 Page Number : 3 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 18, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA041508 01 Initial issue of report Jun. 18, 2020 FCC RADIO EXPOSURE TEST REPORT Report No. : FA041508 TEL : 886-3-656-9065 Page Number : 4 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 18, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Viola Huang FCC RADIO EXPOSURE TEST REPORT Report No. : FA041508 TEL : 886-3-656-9065 Page Number : 5 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 18, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 1.2 Table for Multiple Listing Porduct Code Description CGA4236VGW-TCH3 All the porduct code are identical, the difference porduct code as marketing strategy. CGA4236DGW-TCH3 CGA4236-TCH2 From the above list, Porduct Code: CGA4236VGW-TCH3 was selected as representative model for the test and its data was recorded in this report. 1.3 Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Test site registered number IC 4086D with Industry Canada. FCC RADIO EXPOSURE TEST REPORT Report No. : FA041508 TEL : 886-3-656-9065 Page Number : 6 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 18, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Method The MPE was calculated at 30 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   FCC RADIO EXPOSURE TEST REPORT Report No. : FA041508 TEL : 886-3-656-9065 Page Number : 7 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 18, 2020 Report Template No.: CB-A1_1 Ver1.0 Report …

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR041508AB TEL : 886-3-656-9065 Page Number : 2 of 28 FAX : 886-3-656-9085 Issued Date : Jun. 19, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 02 Table of Contents History of this test report.................................................................................................................................3 Summary of Test Result...................................................................................................................................4 1 General Description .............................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Applicable Standards .............................................................................................................................8 1.3 Testing Location Information ..................................................................................................................8 1.4 Measurement Uncertainty ......................................................................................................................8 2 Test Configuration of EUT...................................................................................................................9 2.1 Test Channel Mode ................................................................................................................................9 2.2 The Worst Case Measurement Configuration......................................................................................10 2.3 EUT Operation during Test ..................................................................................................................11 2.4 Accessories ..........................................................................................................................................11 2.5 Support Equipment...............................................................................................................................11 2.6 Test Setup Diagram .............................................................................................................................12 3 Transmitter Test Result .....................................................................................................................15 3.1 AC Power-line Conducted Emissions ..................................................................................................15 3.2 Emission Bandwidth .............................................................................................................................17 3.3 Maximum Conducted Output Power ....................................................................................................18 3.4 Peak Power Spectral Density...............................................................................................................20 3.5 Unwanted Emissions ............................................................................................................................23 4 Test Equipment and Calibration Data ..............................................................................................27 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of Emission Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Peak Power Spectral Density Appendix E. Test Results of Unwanted Emissions Appendix F. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR041508AB TEL : 886-3-656-9065 Page Number : 3 of 28 FAX : 886-3-656-9085 Issued Date : Jun. 19, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 02 History of this test report Report No. Version Description Issued Date FR041508AB 01 Initial issue of report Jun. 18, 2020 FR041508AB 02 Change received date to "Apr. 09, 2020" from "Apr. 20, 2020". Jun. 19, 2020 FCC RADIO TEST REPORT Report No. : FR041508AB TEL : 886-3-656-9065 Page Number : 4 of 28 FAX : 886-3-656-9085 Issued Date : Jun. 19, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 02 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.407(a) Emission Bandwidth PASS - 3.3 15.407(a) Maximum Conducted Output Power PASS - 3.4 15.407(a) Peak Power Spectral Density PASS - 3.5 15.407(b) Unwanted Emissions PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Viola Huang FCC RADIO TEST REPORT Report No. : FR041508AB TEL : 886-3-656-9065 Page Number : 5 of 28 FAX : 886-3-656-9085 Issued Date : Jun. 19, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 02 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number 5150-5250 5180-5240 36-48 [4] 5725-5850 a, n (HT20), ac (VHT20), ax (HEW20) 5745-5825 149-165 [5] 5150-5250 5190-5230 38-46 [2] 5725-5850 n (HT40), ac (VHT40), ax (HEW40) 5755-5795 151-159 [2] 5150-5250 5210 42 [1] 5725-5850 ac (VHT80), ax (HEW80) 5775 155 [1] Band Mode BWch (MHz) Nant 5.15-5.25GHz 802.11a 20 4 5.15-5.25GHz 802.11n (HT20) 20 4 5.15-5.25GHz 802.11n (HT40) 40 4 5.15-5.25GHz 802.11ac (VHT20) 20 4 5.15-5.25GHz 802.11ac (VHT40) 40 4 5.15-5.25GHz 802.11ac (VHT80) 80 4 5.15-5.25GHz 802.11ax (HEW20) 40 4 5.15-5.25GHz 802.11ax (HEW40) 40 4 5.15-5.25GHz 802.11ax (HEW80) 80 4 5.725-5.…

Text truncated - open the document above for the full version.

Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 1 of 3 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 2 of 3 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 30MHz~1GHz Test Mode: Mode 3 FRONT VIEW REAR VIEW Test Photos Appendix F SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 3 of 3 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW ─────THE END─────
