G95-TC8706-CCable Modem

SAFETY INSTRUCTIONS AND REGULATORY NOTICES BEFORE YOU START INSTALLATION OR USE OF THIS PRODUCT, CAREFULLY READ THESE INSTRUCTIONS Directive Unless express and prior approval by Technicolor in writing, you may not: Disassemble, de-compile, reverse engineer, trace or otherwise analyse the equipment, its content, operation, or functionality, or otherwise attempt to derive source code (or the underlying ideas, algorithms, structure or organization) from the equipment, or from any other information provided by Technicolor, except to the extent that this restriction is expressly prohibited by local law; Copy, rent, loan, re-sell, sub-license, or otherwise transfer or distribute the equipment to others; Modify, adapt or create a derivative work of the equipment; Remove from any copies of the equipment any product identification, copyright or other notices; Disseminate performance information or analysis (including, without limitation, benchmarks) from any source relating to the equipment. Such acts not expressly approved by Technicolor will result in the loss of product warranty and may invalidate the user's authority to operate this equipment in accordance with FCC Rules. Technicolor disclaims all responsibility in the event of use that does not comply with the present instructions. Environmental information The batteries use some hazardous substances which pollute the environment. Do not dispose of them with other articles. Take care to dispose them at special collecting points. Safety instructions Climatic conditions This product: Is intended for in-house stationary desktop use; the maximum ambient temperature may not exceed 40°C (104°F). Must not be mounted in a location exposed to direct or excessive solar and/or heat radiation. ! When using this product, always follow the basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following: Always install the product as described in the documentation that is included with your product. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use this product to report a gas leak in the vicinity of the leak. Must not be exposed to heat trap conditions and must not be subjected to water or condensation. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Must be installed in a Pollution Degree 2 environment (Environment where there is no pollution or only dry, nonconductive pollution). Cleaning Unplug this product from the wall socket and computer before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Water and moisture Do not use this product near water, for example near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool. Transition of the product from a cold environment to a hot one may cause condensation on some of its internal parts. Allow it to dry by itself before re-starting the product. Interface classifications The external interfaces of the product are classified as follows: Phone: TNV circuit, not subjected to over voltages (TNV-2) Cable, MoCA, RF: TNV circuit subject to overvoltages (TNV-1) All other interface ports (e.g. Ethernet, USB, etc.), including the low voltage power input from the AC mains power supply: SELV circuits. Electrical powering The powering of the product must adhere to the power specifications indicated on the marking labels. USB The device is to be connected to an identified USB port complying with the requirements of a Limited Power Source. Accessibility The plug on the power supply cord serves as disconnect device. Be sure that the power socket outlet you plug the power cord into is easily accessible and located as close to the equipment as possible. Overloading Do not overload mains supply socket outlets and extension cords as this increases the risk of fire or electric shock. Servicing To reduce the risk of electric shock, do not disassemble this product. None of its internal parts are user-replaceable; therefore, there is no reason to access the interior. Opening or removing covers may expose you to dangerous voltages. Incorrect reassembly could cause electric shock if the appliance is subsequently used. If service or repair work is required, take it to a qualified service dealer. Damage requiring service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power supply or its plug are damaged. When the attached cords are damaged or frayed. If liquid has been spilled into the product. If the product has been exposed to rain or water. If the product does not operate normally. If the product has been dropped or damaged in any way. There are noticeable signs of overheating. If the product exhibits a distinct change in performance. Immediately disconnect the product if you notice it giving off a smell of burning or smoke. Under no circumstances must you open the equipment yourself; you run the risk of electrocution. Regulatory information You must install and use this device in strict accordance with the manufacturer's instructions as described in the user documentation that is included with your product. Before you start installation or use of this product, carefully read the contents of this document for device specific constraints or rules that may apply in the country where you want to use this product. In some situations or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible representatives of the organization. If you are uncertain of the policy that applies on the use of wireless equipment in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this device prior to turning on the equipment. Technicolor is not responsible for any radio…

Text truncated - open the document above for the full version.

cable VOICE DATA VIDEO MediaaccessTc8706 Smart Cable Gateway with Battery Backup Solution Features at a Glance ■DOCSIS® 3.0 certified ■Backward compatible with DOCSIS 2.0 (and older) ■8 downstream and 4 upstream channels ■Voice PacketCable™ 1.5 & 2.0 compliant ■Full band capture ■4 GE LAN ports ■MoCA 2.0 ■Dual band Wi-Fi interface: IEEE 802.11n 2.4 GHz + 5GHz (3x3) ■2 FXS ports (RJ-11) ■(optional) Integrated DECT multiline base station (CAT-iq™ 2.o ready) ■2 USB 2.0 master for hard disk, printer, 3G adapter, ... ■Generic Technicolor feature set ■Dedicated applications core ■HNAP for home security services (optional) ■SNMP ■TR-069 remote management (optional) ■IPv4 and IPv6 support Future-proof Solution for advanced Services over DOcSIS As cable and wireless standards keep evolving, Technicolor presents the TC8706, a DOCSIS 3.0 dual band concurrent wireless embedded Multimedia Terminal Adapter (eMTA) smart gateway with best-in- class performance and dual band concurrent wireless support. A dedicated applications processor and software execution environment make it a powerful and reliable platform in the home, ready for demanding services and applications. The TC8706 has an extended life cycle thanks to its extensive remote management capabilities, including the ability to smoothly upgrade itself and add apps on the go. Moreover, this new generation of smart high-speed data service solutions supports up to eight bonded downstream channels and four bonded upstream channels, and provides full connectivity to devices in the home including set-top boxes via MoCA. The optionally integrated DECT base station offers support for up to five DECT phones. applications core As an easily updatable platform, the TC8706 is capable of providing subscribers with advanced services and apps within the home. Its dedicated applications processor and software service framework put services such as the following at your fingertips: ■DLNA Digital Media Server (DMS) ■Home Security and Automation ■Troubleshooting and Diagnostics ■Customer Self Help MediaaccessTc8706 Smart Cable Gateway with Battery Backup Solution Full band capture Solution Thanks to its fully integrated 1 GHz wideband capture, the TC8706 exceeds SCTE-40+ performance and eliminates all frequency limitations of traditional wideband tuners. The TC8706 enables use of the full radio frequency (RF) spectrum without the need for grouped channels. This helps the operator migrate its entire DOCSIS 3.0 install base from one to eight DOCSIS downstream channels without having to re-align all its broadband channels to accommodate this new service. High-Speed Wireless Interface The TC8706 has a dual band concurrent IEEE 802.11n wireless interface, supporting an industry leading 3x3 spatial stream configuration at both 2.4GHz and 5GHz. Combined with internal amplifiers, the TC8706 takes home networking to a completely new level. The TC8706 also supports multiple SSIDs. Voice Performance The TC8706 is PacketCable 2.0 compliant and is equipped with basic and extended CLASS features such as caller ID and call waiting. Optionally, thanks to its integrated DECT base, new lines can be added by simply pairing new cordless handsets, while legacy fax equipment can still be connected to the FXS port. advanced Security The integrated firewall provides Stateful Packet Inspection (SPI), and an integrated intrusion detection and Prevention System (IDS) engine monitors a wide range of attack patterns, and logs potential security breaches to a local cache or remote server. To secure data exchange between the gateways and the cable operators’ servers, BPi+ communications privacy is used. Moca The TC8706 also includes an integrated MoCA 2.0 interface which enables the gateway to provide connectivity to set-top boxes and client devices connected within the home. WPS With Wi-Fi Protected Setup (WPS) users can easily connect with the TC8706 wireless network by simply pushing a button or entering a PIN code. It allows home users to easily connect to a secure network without any complex configuration and eliminates the need to remember or store their security information in an unsafe way. easy to Use Like all Technicolor modems and gateways, the TC8706 is an easy to use, easy to install gateway. For convenience of the end user, the easy-to-access LEDs provide a clear indication of start-up sequence, connectivity status and channel bonding status. Multiple integrated web pages allow direct access to the status and settings, including privacy and security information. ecO Technicolor offers its customers environmentally friendly products. In addition to carefully selected plastics and packaging to minimize the ecological footprint, the TC8706 benefits from a unique combination of hardware and software features that reduce power consumption substantially. Professional Services To reinforce our extensive portfolio of digital home solutions, Technicolor has a dedicated Professional Services team to make sure that every deployment is a success, from initial provisioning and integration to operations, upgrades, ongoing support and beyond. Our wide array of services spans the entire customer project lifecycle, encompassing: ■Expert consulting ■Seamless system integration ■Warranty on all our products ■Qualified technical support and maintenance ■Efficient repair, refurbishment and recycling MediaaccessTc8706 Smart Cable Gateway with Battery Backup Solution Technical Specifications cable certifications ■Data DOCSIS® 3.0 certified ■Voice PacketCable™ 2.0 compliant ■CMTS interoperability Any qualified DOCSIS® CMTS Hardware Specifications ■Interfaces WAN 1 RF connector F-Type ■Interfaces LAN 4-port auto-MDI/MDI-X 10/100/1000 Base-T port Ethernet LAN switch (RJ-45) MoCA 2.0 for LAN through WAN RF connector F-Type 2 FXS POTS ports (RJ-11) Integrated DECT base station (optional) 2 USB 2.0 master ports Wi-Fi IEEE 802.11b/g/n 2.4GHz + 5GHz 3x3 on-board ■Interfaces other WPS button Reset button ■Dimens…

Text truncated - open the document above for the full version.

We, the undersigned Technicolor USA, Inc. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15C+D+E and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own.

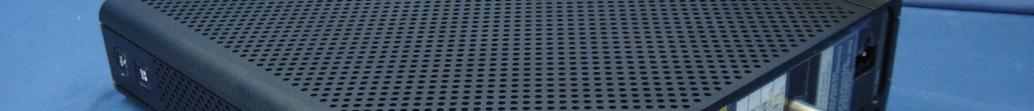

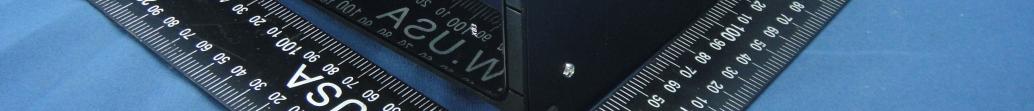

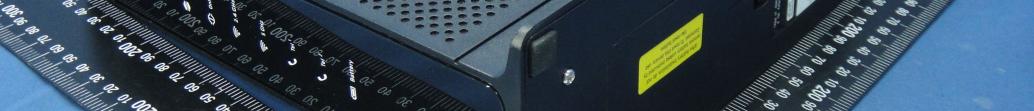

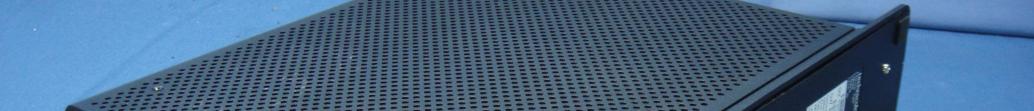

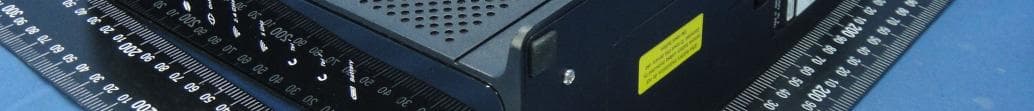

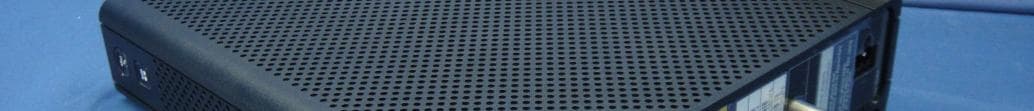

Report No.: 130111E10A C-1 Reference No.: 130522E07 APPENDIX C. PHOTOGRAPHS OF EUT Report No.: 130111E10A C-2 Reference No.: 130522E07

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. Factory ID: Y Made i n Vietnam : TC8706C : 120 V AC, 60Hz, 1.2A : G95-TC8706-C SN: 8700383561G W : BBTC8706C RI Network Name (SSID 1) EncryptionNetwork Key WPS PIN URL H/ W V e r . : HOME-XXXX-2.4 : W P A W P A2-TKIP/AES : 1234567890123456: 12341234 : http://10.0.0.1 : 1.0 Devic e T ype InputFCC ID I.T.E. E199598 Network Name (SSID 2) : HOME-XXXX-5 Model Name : XB3 2 vendor supply Barcod e label U46C222.01 Jenny xie Jenny xie 12.08.22 00 Sunny 500.01567.015 TC8706-C 01 12.11.29 Add text “105+” Jenny xie SN: 8700383561 CM MAC : 00 1 1 1 100ABCD E-M T A MAC : 0022 1 100ABCD W AN MAC : 0044 1 100ABCD 105+ 105+ SN: 8700383561CM MAC : 00 111 100ABCD E-M T A MAC : 0022 1 100ABCD W AN MAC : 0044 1 100ABCD Label location Label location 105+ This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions; (1) this device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation. Factory ID: Y Made i n Vietnam : TC8706C : 120 V AC, 60Hz, 1.2A : Devic e T ype InputFCC ID I.T.E. E199598 Model Name : XB3 G95-TC8706-C 105+ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation. Factory ID: Y Made i n Vietnam : TC8706C : 120 V AC, 60Hz, 1.2A : Devic e T ype InputFCC ID I.T.E. E199598 Model Name : XB3 G95-TC8706-C IMS Only label U46C222.01 Jenny xie Jenny xie 12.08.22 00 Sunny 504.01005.005 TC8706-C (Positioon TBD) Readable Direction Vendor supply Home Alarm Installation label U46C222.01 Jenny xie Jennyxie 12.08.22 00 Sunny 504.01008.005 TC8706-C Vendor supply (position TBD) Readable Direction Battery abel U46C222.01 Jenny xie Jenny xie 12.08.22 00 Sunny 504.00975.015 TC8706-C After battery installation, do not remove battery unless instructed by Comcast. To reset this device, use the reset button. Battery Label Label dimensions ( hxw ) Category Hous ing label Position Bottom side of the plastic housing on the battery door . Text Font Franklin Gothic Medium Text Height 2.0mm 14.9mm x 38.1mm (4x R1.6mm on each corner) As described drawing Battery label Position Printing by vendor (Fig. 1) FCC ID: G95-TC8706-C FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Report No.: 130111E10A C-1 Reference No.: 130522E07 APPENDIX C. PHOTOGRAPHS OF EUT Report No.: 130111E10A C-2 Reference No.: 130522E07 Report No.: 130111E10A C-3 Reference No.: 130522E07 Report No.: 130111E10A C-4 Reference No.: 130522E07 Report No.: 130111E10A C-5 Reference No.: 130522E07 Report No.: 130111E10A C-6 Reference No.: 130522E07 Report No.: 130111E10A C-7 Reference No.: 130522E07 Report No.: 130111E10A C-8 Reference No.: 130522E07 Report No.: 130111E10A C-9 Reference No.: 130522E07 Report No.: 130111E10A C-10 Reference No.: 130522E07 Report No.: 130111E10A C-11 Reference No.: 130522E07 Report No.: 130111E10A C-12 Reference No.: 130522E07 Report No.: 130111E10A C-13 Reference No.: 130522E07 Report No.: 130111E10A C-14 Reference No.: 130522E07 130522E07

This USGv2 is designed to be a standalone device with RF interface to CATV cable network and Ethernet interface to CPE equipments such as PC or LAN devices. 1. CPU, U101, BCM3383Z is to support DOCSIS3.0 function, which have a 1600DMIPS VIPER processor core, scalable clock rates to 800MHz. It needs an external 54MHz crystal of reference. The DOCSIS3.0 core provides an integrated downstream demodulator supporting rates up to 1024 QAM, an upstream modulator supporting rates up to 256QAM, a DOCSIS3.0 MAC with 16 upstream queues, a transmission convergence module which supports mapping for both SCDMA and ATDMA, and a 1GHZ QAM tuner. A complete set of interfaces including an integrated 10/100/1000 Ethernet MAC/PHY. 2. Ethernet, U1001, BCM53124S is to support - 4 Gigabit Ethernet LAN interfaces (with advanced routing capability) 3. SLIC, U701, Si32392 is to support Dual Ringing SLIC device is a dual-channel device optimized to provide battery feed, ringing, and supervision on voice loops found in short-loop VoIP applications. 4. Wireless function 2.4G: BCM4331 support 802.11b/g/n 3x3 internal antenna. 5. Wireless function 5G: BCM4331 support 802.11a/n 3x3 internal antenna. 6. Internal power supply to transfer 120Vac to 12Vdc 7. Battery, 2S2P 4400mha which can support 8 hours standby time and 5 hours talk time when AC power fail 8. DECT 6.0, U2301, SC14441B is to support CAT-iq 2.0/DECT 6.0 hardware. 9. MoCA2.0, U1401, EN2710 is to support MoCA2.0 capability to permit interconnection between the USGv2 and other MoCA enabled devices 7. Application Scenario

D-1 APPENDIX D. SSROM VALUE AND CURPOWER VALUE ======================================= =============SW Version =============== ======================================= CM/80211_hal> wl ver 6.30 RC102.5 wl0: Nov 15 2012 14:01:49 version 6.30.102.5.558.30 WL ver 6.30.102.5.558.30 (WLTEST) ======================================= ===========2.4G Srom Value ============ ======================================= CM/NonVol/802.11 SromNonVol> show WARNING: This will be applied to all 2 registered instances! Do you really want to do this? (yes|no) [no] y Instance: 802.11 SromNonVol Settings (0x87e659dc) +----------------------------------+ | | | WiFi 802.11 Srom NonVol Settings +----------------------------------+ Magic Number = 0x38303253 '802S' Version (Permanent) = 0.1 Version (Dynamic) = 0.1 Bytes used (Permanent) = 452 Bytes used (Dynamic) = 8 Is Default (Permanent) = 0 Is Default (Dynamic) = 0 Is Manufactured (Permanent) = 1 Is Manufactured (Dynamic) = 1 SPROM Contains the parameters for the 4331_2G_HP Wifi Card D-2 28 01 00 00 05 74 14 e4 00 78 ed be 00 00 2b c4 | (....t...x....+. 2a 64 29 64 2c 64 3c e7 46 ff 47 ff 0c 00 08 20 | *d)d,d<.F.G.... 00 30 10 02 9f 28 5d 44 80 80 1d 8f 00 32 01 00 | .0...(]D.....2.. df 00 71 f5 84 00 00 83 85 00 20 10 00 01 ff ff | ..q....... ..... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff 10 10 00 05 ff ff ff ff ff ff ff ff | ................ 43 32 80 00 00 02 00 00 1f 30 18 00 00 00 00 00 | C2.......0...... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 53 72 11 52 12 00 80 00 00 00 00 10 00 10 18 a9 | Sr.R............ 05 06 00 00 00 00 ff ff ff ff ff ff 07 07 02 02 | ................ ff 02 00 77 ff ff ff ff ff ff ff ff ff ff 04 1f | ...w............ 02 21 ff ff ff ff ff ff ff ff 00 01 ff ff ff ff | .!.............. 20 58 fe 88 1c d1 f9 6c 3e 3c 3c 3c fe 78 16 1e | X.....l><<<.x.. fa 84 ff ff ff ff ff ff fe 84 15 94 fa a3 00 00 | ................ 20 58 fe 93 1b 3d f9 ca 3e 3c 3c 3c fe 7a 16 91 | X...=..><<<.z.. fa 6b ff ff ff ff ff ff fe 86 15 80 fa a9 00 00 | .k.............. 20 58 fe 4d 18 f6 f9 f6 3e 3c 3c 3c fe 7d 16 70 | X.M....><<<.}.p fa 79 ff ff ff ff ff ff fe 80 15 d4 fa 8f 00 00 | .y.............. ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 00 00 00 00 00 00 64 20 00 00 64 20 00 00 00 00 | ......d ..d .... 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................ 00 00 00 00 00 00 64 20 00 00 64 20 00 00 64 20 | ......d ..d ..d 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................ 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................ 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff 69 09 | ......i. Instance: 802.11 SromNonVol Settings (0x87e619b0) +----------------------------------+ | | | WiFi 802.11 Srom NonVol Settings +----------------------------------+ D-3 Magic Number = 0x38303254 '802T' Version (Permanent) = 0.1 Version (Dynamic) = 0.1 Bytes used (Permanent) = 452 Bytes used (Dynamic) = 8 Is Default (Permanent) = 0 Is Default (Dynamic) = 0 Is Manufactured (Permanent) = 1 Is Manufactured (Dynamic) = 1 SPROM Contains the parameters for the 4331_5G_HP Wifi Card 28 01 00 00 05 a9 14 e4 00 78 ed be 00 00 2b c4 | (........x....+. 2a 64 29 64 2c 64 3c e7 46 ff 47 ff 0c 00 08 20 | *d)d,d<.F.G.... 00 30 10 02 9f 28 5d 44 80 80 1d 8f 00 32 01 00 | .0...(]D.....2.. df 00 71 f5 84 00 00 83 85 00 20 10 00 01 ff ff | ..q....... ..... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff 10 10 00 05 ff ff ff ff ff ff ff ff | ................ 43 33 80 00 00 02 00 00 1f 30 18 00 00 00 00 00 | C3.......0...... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 53 72 12 03 02 00 90 00 00 00 04 20 00 90 4c 09 | Sr......... ..L. 31 05 00 00 00 00 ff ff ff ff ff ff 07 07 02 02 | 1............... ff 02 00 77 ff ff ff ff ff ff ff ff ff ff ff ff | ...w............ 03 47 ff ff ff ff ff ff ff ff 00 00 ff ff ff ff | .G.............. ff ff ff ff ff ff ff ff 3e 54 54 54 fe 62 17 97 | ........>TTT.b.. fa 0e fe 7d 18 98 f9 f3 fe 6d 18 cd f9 db 00 00 | ...}.....m...... ff ff ff ff ff ff ff ff 3e 54 54 54 fe 6d 19 86 | ........>TTT.m.. f9 bb fe 3f 19 59 f9 94 fe 5b 19 cf f9 91 00 00 | ...?.Y...[...... ff ff ff ff ff ff ff ff 3e 54 54 54 fe 6a 17 65 | ........>TTT.j.e fa 2a fe 74 15 7c f9 b5 fe 70 18 47 fa 0e 00 00 | .*.t.|...p.G.... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64 22 | ..............d" 00 00 64 22 00 00 64 22 00 00 64 22 00 00 64 22 | ..d"..d"..d"..d" 00 00 64 22 00 00 00 00 00 00 00 00 00 00 00 00 | ..d"............ 00 00 64 22 00 00 64 22 00 00 64 22 00 00 64 22 | ..d"..d"..d"..d" 00 00 64 22 00 00 64 22 00 00 64 22 00 00 64 22 | ..d"..d"..d"..d" D-4 00 00 64 22 00 00 00 00 ff ff ff ff ff ff ff ff | ..d"............ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff 48 09 | ......H. ======================================= =========2.4G Curpower Value ========== ======================================= ====================== ====CH1, BW:20MHz===== ====================== CM/80211_hal> wl -a wl0 curpower Power Control: On, HW Current Channel: 1 BSS Channel: (null) BSS Local Max: 30.0 dBm BSS Local Constraint: 0.0 dB Channel Width: 20MHz User Target: 31.75 dBm SROM Antgain 2G: 2.0 dB SROM Antgain 5G: 0.0 dB SAR: - Current rate: [DSSS1] rate 1 Mbps Tx Exp 0 Regulatory Limits: Rate Chains 20MHz DSSS 1 22.50 OFDM 1 18.50 MCS0_7 1 18.50 VHT8_9SS1 1 18.50 DSSS_MULTI1 2 21.50 OFDM_CDD1 2 17.50 MCS0_7_CDD1 2 17.50 VHT8_9SS1_CDD1 2 17.50 MCS0_7_STBC 2 17.50 VHT8_9SS1_STBC 2 17.50 MCS8_15 2 17.50 D-5 VHT8_9SS2 2 17.50 DSSS_MULTI2 3 21.0 OFDM_CDD2 3 17.0 MCS0_7_CDD2 3 17.0 VHT8_9SS1_CDD2 3 17.…

Text truncated - open the document above for the full version.

D-1 APPENDIX D. SSROM VALUE AND CURPOWER VALUE ======================================= =============SW Version =============== ======================================= CM/80211_hal> wl ver 6.30 RC102.5 wl0: Nov 15 2012 14:01:49 version 6.30.102.5.558.30 WL ver 6.30.102.5.558.30 (WLTEST) ======================================= ===========2.4G Srom Value ============ ======================================= CM/NonVol/802.11 SromNonVol> show WARNING: This will be applied to all 2 registered instances! Do you really want to do this? (yes|no) [no] y Instance: 802.11 SromNonVol Settings (0x87e659dc) +----------------------------------+ | | | WiFi 802.11 Srom NonVol Settings +----------------------------------+ Magic Number = 0x38303253 '802S' Version (Permanent) = 0.1 Version (Dynamic) = 0.1 Bytes used (Permanent) = 452 Bytes used (Dynamic) = 8 Is Default (Permanent) = 0 Is Default (Dynamic) = 0 Is Manufactured (Permanent) = 1 Is Manufactured (Dynamic) = 1 D-2 SPROM Contains the parameters for the 4331_2G_HP Wifi Card 28 01 00 00 05 74 14 e4 00 78 ed be 00 00 2b c4 | (....t...x....+. 2a 64 29 64 2c 64 3c e7 46 ff 47 ff 0c 00 08 20 | *d)d,d<.F.G.... 00 30 10 02 9f 28 5d 44 80 80 1d 8f 00 32 01 00 | .0...(]D.....2.. df 00 71 f5 84 00 00 83 85 00 20 10 00 01 ff ff | ..q....... ..... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff 10 10 00 05 ff ff ff ff ff ff ff ff | ................ 43 32 80 00 00 02 00 00 1f 30 18 00 00 00 00 00 | C2.......0...... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 53 72 11 52 12 00 80 00 00 00 00 10 00 10 18 a9 | Sr.R............ 05 06 00 00 00 00 ff ff ff ff ff ff 07 07 02 02 | ................ ff 02 00 77 ff ff ff ff ff ff ff ff ff ff 04 1f | ...w............ 02 21 ff ff ff ff ff ff ff ff 00 01 ff ff ff ff | .!.............. 20 58 fe 88 1c d1 f9 6c 3e 3c 3c 3c fe 78 16 1e | X.....l><<<.x.. fa 84 ff ff ff ff ff ff fe 84 15 94 fa a3 00 00 | ................ 20 58 fe 93 1b 3d f9 ca 3e 3c 3c 3c fe 7a 16 91 | X...=..><<<.z.. fa 6b ff ff ff ff ff ff fe 86 15 80 fa a9 00 00 | .k.............. 20 58 fe 4d 18 f6 f9 f6 3e 3c 3c 3c fe 7d 16 70 | X.M....><<<.}.p fa 79 ff ff ff ff ff ff fe 80 15 d4 fa 8f 00 00 | .y.............. ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 00 00 00 00 00 00 64 20 00 00 64 20 00 00 00 00 | ......d ..d .... 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................ 00 00 00 00 00 00 64 20 00 00 64 20 00 00 64 20 | ......d ..d ..d 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................ 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 | ................ 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff 69 09 | ......i. Instance: 802.11 SromNonVol Settings (0x87e619b0) +----------------------------------+ | | | WiFi 802.11 Srom NonVol Settings D-3 +----------------------------------+ Magic Number = 0x38303254 '802T' Version (Permanent) = 0.1 Version (Dynamic) = 0.1 Bytes used (Permanent) = 452 Bytes used (Dynamic) = 8 Is Default (Permanent) = 0 Is Default (Dynamic) = 0 Is Manufactured (Permanent) = 1 Is Manufactured (Dynamic) = 1 SPROM Contains the parameters for the 4331_5G_HP Wifi Card 28 01 00 00 05 a9 14 e4 00 78 ed be 00 00 2b c4 | (........x....+. 2a 64 29 64 2c 64 3c e7 46 ff 47 ff 0c 00 08 20 | *d)d,d<.F.G.... 00 30 10 02 9f 28 5d 44 80 80 1d 8f 00 32 01 00 | .0...(]D.....2.. df 00 71 f5 84 00 00 83 85 00 20 10 00 01 ff ff | ..q....... ..... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff 10 10 00 05 ff ff ff ff ff ff ff ff | ................ 43 33 80 00 00 02 00 00 1f 30 18 00 00 00 00 00 | C3.......0...... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 53 72 12 03 02 00 90 00 00 00 04 20 00 90 4c 09 | Sr......... ..L. 31 05 00 00 00 00 ff ff ff ff ff ff 07 07 02 02 | 1............... ff 02 00 77 ff ff ff ff ff ff ff ff ff ff ff ff | ...w............ 03 47 ff ff ff ff ff ff ff ff 00 00 ff ff ff ff | .G.............. ff ff ff ff ff ff ff ff 3e 54 54 54 fe 62 17 97 | ........>TTT.b.. fa 0e fe 7d 18 98 f9 f3 fe 6d 18 cd f9 db 00 00 | ...}.....m...... ff ff ff ff ff ff ff ff 3e 54 54 54 fe 6d 19 86 | ........>TTT.m.. f9 bb fe 3f 19 59 f9 94 fe 5b 19 cf f9 91 00 00 | ...?.Y...[...... ff ff ff ff ff ff ff ff 3e 54 54 54 fe 6a 17 65 | ........>TTT.j.e fa 2a fe 74 15 7c f9 b5 fe 70 18 47 fa 0e 00 00 | .*.t.|...p.G.... ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64 22 | ..............d" 00 00 64 22 00 00 64 22 00 00 64 22 00 00 64 22 | ..d"..d"..d"..d" 00 00 64 22 00 00 00 00 00 00 00 00 00 00 00 00 | ..d"............ 00 00 64 22 00 00 64 22 00 00 64 22 00 00 64 22 | ..d"..d"..d"..d" D-4 00 00 64 22 00 00 64 22 00 00 64 22 00 00 64 22 | ..d"..d"..d"..d" 00 00 64 22 00 00 00 00 ff ff ff ff ff ff ff ff | ..d"............ ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff | ................ ff ff ff ff ff ff 48 09 | ......H. ======================================= ========== 5G Curpower Value ========== ======================================= ====================== ====CH36, BW:20MHz==== ====================== CM/80211_hal> wl -a wl1 curpower Power Control: On, HW Current Channel: 36 BSS Channel: (null) BSS Local Max: 17.0 dBm BSS Local Constraint: 0.0 dB Channel Width: 20MHz User Target: 31.75 dBm SROM Antgain 2G: 0.0 dB SROM Antgain 5G: 2.0 dB SAR: - Current rate: [MCS8] ht mcs 16 Tx Exp 0 BW 20 Regulatory Limits: Rate Chains 20MHz DSSS 1 - OFDM 1 15.50 MCS0_7 1 15.50 VHT8_9SS1 1 - DSSS_MULTI1 2 - OFDM_CDD1 2 12.50 MCS0_7_CDD1 2 12.50 VHT8_9SS1_CDD1 2 12.50 D-5 MCS0_7_STBC 2 12.50 VHT8_9SS1_STBC 2 12.50 MCS8_15 2 12.50 VHT8_9SS2 2 12.50 DSSS_MULTI2 3 - OFDM_CDD2 3 10.50 MCS0_7_CDD2 3 10.50 VHT8_9SS1_CDD2 3 10.50 MCS0_7…

Text truncated - open the document above for the full version.

Report No.: SA130111E10A B-1 Report Format Version 5.0.0 Reference No.: 130522E07 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE REPORT NO.: SA130111E10A MODEL NO.: TC8706-C FCC ID: G95-TC8706-C RECEIVED: May 22, 2013 TESTED: May 23 to 27, 2013 ISSUED: July 24, 2013 APPLICANT: Technicolor USA, Inc. ADDRESS: 101 West 103rd Street Indianapolis, IN 46290 U…

Text truncated - open the document above for the full version.
