G95DCI401COM2wirelessly controlled converter box

XFINITY TV User Guide XDTA OOBE SIK 1010.indd 19/30/10 3:03 PM Contents 3 Welcome to XFINITY ™ TV 4 Using Your Remote Control 5 Troubleshooting 6 Comcast Customer Guarantee 7 How to Read Your Bill 8-9 DTA Set-Top Box Connections XDTA OOBE SIK 1010.indd 29/30/10 3:03 PM What You Need to Know We’re enhancing our network so you will have access to a new level of entertainment. To enjoy the great benefits of this enhancement, you need the right digital equipment on each of your TVs — like a set-top box or this digital adapter. With this digital adapter, you’ll receive: •Crispdigitalpictureandsound. • Yourcurrentchannels,plusaccesstoadditionalchannels. Comcast, America’s leading enhanced fiber-optic network for TV, Internet and phone. What You Need to Do To keep receiving the channels you’re used to, you’ll need to make sure that every TV in your home is equipped with one of our all-digital devices (either a DTA, like the one in this kit, or a Digital Set-Top Box). Every TV Will Need One Device XFINITY Digital Set-Top BoxDigital Transport Adapter (DTA) An XFINITY Digital Set-Top Box will allow you to receive the channels you currently have as well as On Demand programming and our On-Screen Channel Guide. Living Room XFINITY Digital Set-Top Box A DTA (like the one in this kit) will allow you to receive the channels you currently have. It will not display On Demand programming or our On-Screen Channel Guide. Bedroom DTA only If you currently have one of our Analog Cable Boxes, you’ll need to replace it with either a DTA or a Digital Set- Top Box. If you’re not sure what type of cable box you currently have, or have any questions related to your DTA, please visit comcast.com/digitalnow for more information. XFINITY service not available in all areas. Not all services available with all XFINITY packages. Comparisons to Comcast’s offerings prior to recent network upgrades. On Demand selections subject to charge indicated at time of purchase. Compatible devices required for Mobile App features. Airtime charges may apply. Check with your carrier. 3 Welcome to XFINITY TM TV XDTA OOBE SIK 1010.indd 39/30/10 3:03 PM Your remote may vary slightly from the one pictured here, but the basic functions should remain the same. Some features require your remote to be programmed for operation and may not be available in all areas. Indicator light: This button flashes red during the programming sequences and when any key on the remote is pressed. POWER: Turns your TV on or off (it will not turn your DTA off, the DTA is always on). SET: Programs the remote control for your TV — programming instructions and a complete list of TV programming codes are available at comcast.com/ digitalnow and are included with your remote. INFO: Displays the channel number and station call letters. Keypad (0-9): Directly selects the channel you want to view (i.e. 09 or 025). ENTER: Directly tunes to a channel (i.e. 1-0-9 ENTER). LAST: Recalls the last channel watched. VOL +/VOL – : Turns the volume up or down. CH +/CH – : Selects the next higher or lower channel. MUTE: Turns the sound on your TV off or on. LANG: Switches between different languages and audio options available for that channel. If there is not an audio option available, it may mute the channel — if you do not hear sound, try pressing the MUTE button first to restore sound. If that doesn’t work, try pressing the LANG button. Using the Remote Control Signal Receiver If you need or want to hide the DTA behind the TV, or if the DTA will not reach the front of the TV, you can hide it by using the Remote Control Signal Receiver. Plug the smaller end of the Remote Control Signal Receiver into the “IR In” port on the back of the DTA. Position the other end of the Remote Control Signal Receiver where it can be seen from the front of the TV. 4 Using Your Remote Control XDTA OOBE SIK 1010.indd 49/30/10 3:03 PM If the remote control does not work: • Makesurethebatteriesareinsertedcorrectly. • Makesureyourremotecan“see”thefrontoftheDTA(orthefrontofthe Remote Control Signal Receiver). • IfyouareusingtheRemoteControlSignalReceiver,makesureitis connected firmly to the DTA. If there is no light illuminated on the front of the DTA: • MakesurethepowercordisattachedtotheDTAandpluggedintoalive electrical outlet. If the audio is in a language you don’t expect to hear: • Youmayhaveaccidentlychangedittoanalternatelanguageoption.Press the LANG button on your remote control one or two times. If there is no picture on the TV and the light on the DTA is blinking: • MakesureyouhavecontactedComcasttoactivatetheDTA. • Waitafewminutes.Ifthelightisstillblinking,callComcastat1-888-634- 4434. If there is no picture on the TV and the light on the DTA is solid: • MakesuretheT VandDTAarebothsettothesamechannel(both3,or both 4). • TryswitchingtheT VandDTAtootherchannel(3or4). • Ifyou’realsoconnectedtoaVCR,makesuretheVCRisturnedon. • MakesuretheDTAisconnecteddirectlytothecablewalloutlet. • Makesureallthecablesarefirmlyconnected. If you need additional support, go to comcast.com/digitalnow or call 1-888-634-4434. 5 Troubleshooting XDTA OOBE SIK 1010.indd 59/30/10 3:03 PM *$25 credit provided in Comcast systems in Illinois. THE COMCAST CUSTOMER GUARANTEE We are committed to providing you with a consistently superior customer experience. If for any reason something goes wrong, we will work to resolve the issue as quickly and professionally as we can. 1. We will give you a 30-day, money-back guarantee on all our services. If you’re not satisfied and wish to cancel service for any reason, you can do so in the first 30 days and get your money back. Simply return all equipment in good working order and we’ll refund the monthly recurring fee for your first 30 days of service and any charges you paid for standard installation. 2. We will…

Text truncated - open the document above for the full version.

Important Safety Instructions  Read these instructions.  Keep these instructions.  Heed all warnings.  Follow all instructions.  Do not use this apparatus near water.  Clean only with dry cloth.  Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.  Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.  Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.  Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.  Only use attachments/accessories specified by the manufacturer.  Unplug this apparatus during lightning storms or when unused for long periods of time.  Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.  If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.  To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.  Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.  Warning: Use only the power supply that came with your unit. If the power supply needs to be replaced, contact your service operator or dealer to obtain an authorized replacement.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. 2  This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Ensuring optimum performance  Disconnect the product from the power before you connect the product to (or disconnect it from) any other equipment. Avoid any contact with the power, which can be lethal or cause severe electric shock.  Do not insert anything into any opening of the case.  Leave the power socket accessible so that you can unplug the set quickly.  Leave 2 to 3 inches around the product to ensure proper ventilation to it.  To clean the product, use a dry clean soft cloth with no cleaning solvent or abrasive products. Clean the ventilation openings regularly. Environmental information  The batteries use some hazardous substances which pollute the environment. Do not dispose of them with other articles. Take care to dispose them at special collecting points. Technical specifications Model type DCI401xxxx Operating voltage 120V AC / 60 Hz / 0.5A Typical Power consumption 5.0W (typical)max 6.0W (max) Weight 0.42 Lb Dimensions (W x H x D) 4.33 x 0.96 x 3.19 Inches Operating temperature range 59 to 104° F / 15 to 40°C Storage temperature range -4 to 158°F / -20 to 70°C Manufactured under license from Dolby Laboratories. 3 ! FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is intended to be attached to a receiver that is not used to receive over-the-air broadcast signals. Connection of this device in any other fashion may cause harmful interference to radio communications and is in violation of the FCC Rules, part 15. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Responsible party (contact for FCC matter only): Technicolor USA, Inc. 101 W. 103rd St. Indianapolis, IN 46290 U.S.A. Tel: 866-670-4844 Meaning of symbols This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product housing that may be of sufficient magnitude to constitute a risk of shock. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions accompanying the product.

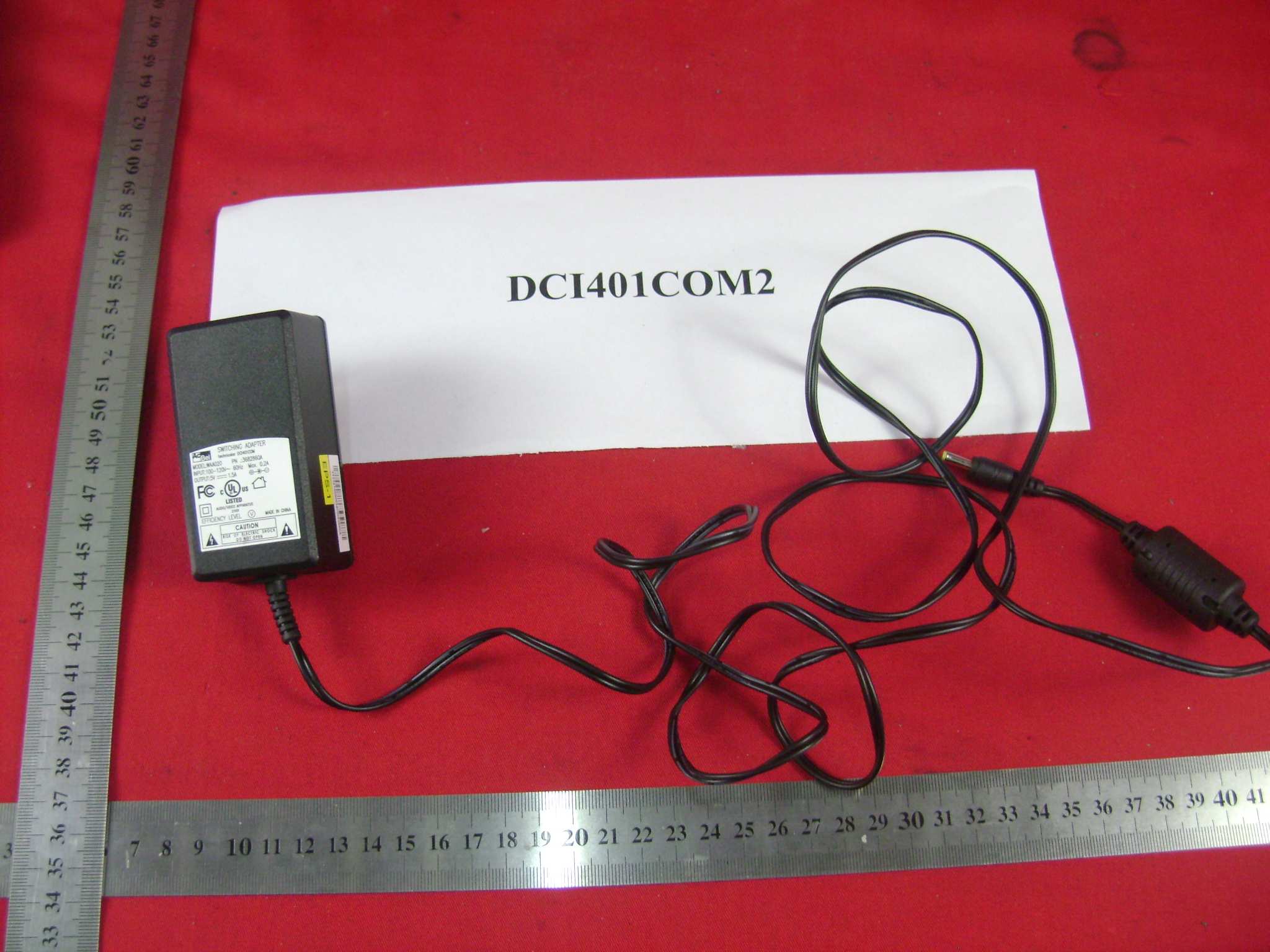

EXTERNAL POTO DOCUMENTATION 16800338 001 for DCI401COM2 Technicolor USA, Inc. This documentation consists of 4 pages (excluding this cover page). Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 1of 4- Pic1: Top view of DCI401COM2 Pic2: Bottom view of DCI401COM2 Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 2of 4- Pic3: Front view of DCI401COM2 Pic4: Rear view of DCI401COM2 Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 3of 4- Pic5: Left view of DCI401COM2 Pic6: Right view of DCI401COM2 Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 4of 4- Pic7: AC adapter of DCI401COM2 Pic8: Remote control of DCI401COM2

For DCI401COM2: Label size: 30*20mm

INTERNAL POTO DOCUMENTATION 16800338 001 for DCI401COM2 Technicolor USA, Inc. This documentation consists of 4 pages (excluding this cover page). Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 1of 4 - Pic1: Overview (1) of DCI401COM2 Pic2: Overview (2) of DCI401COM2 Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 2of 4 - Pic3: Top cover of DCI401COM2 Pic4: Shielding component of DCI401COM2 Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 3of 4 - Pic5: PCB component side (with shielding) of DCI401COM2 Pic6: PCB component side (without shielding) of DCI401COM2 Photo Documentation Report Number: 16800338 001 Model: DCI401COM2 - Page 4of 4 - Pic7: PCB trace side of DCI401COM2

TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Produkte Products Prüfbericht - Nr.: Test Report No.: 16800338 002 Seite 1 von 20 Page 1 of 20 Auftraggeber: Client: Technicolor USA, Inc. 101 West 103 rd Street, Indianapolis, IN 46290, United States Gegenstand der Prüfung: Test item: Set Top Box Bezeichnung: Identification: DCI401COM2 Serien-Nr.: Serial No.: Engineering Sample Wareneingangs-Nr.: Receipt No.: 1143005145 Eingangsdatum: Date of receipt: 2010-12-08 Prüfort: Testing location: Refer to section 1.1 Prüfgrundlage: Test specification: FCC Part 15 Subpart B Section 15.107 FCC Part 15 Subpart B Section 15.109 FCC Part 15 Subpart B Section 15.115 Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test items passed the test specification(s). Prüflaboratorium: Testing Laboratory: Refer to section 1.1 geprüft/ tested by: 2011-06-27 Yang, Kai/PE kontrolliert/ reviewed by: 2011-07-01 Sun, Lixun/Reviewer Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges/ Other Aspects: Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. Produkte Products Prüfbericht - Nr.: Test Report No. 16800338 002 Seite 2 von 20 Page 2 of 20 TEST SUMMARY 4.1.1 RADIATED EMISSIONS RESULT: Passed 4.1.2 OUTPUT AND SPURIOUS CONDUCTED LEVEL RESULT: Passed 4.2.1 CONDUCTED EMISSIONS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 16800338 002 Seite 3 von 20 Page 3 of 20 Contents 1. TEST SITES...................................................................................................................... 4 1.1 TEST FACILITIES............................................................................................................... 4 1.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................... 4 1.3 TRACEABILITY.................................................................................................................. 5 1.4 CALIBRATION................................................................................................................... 5 1.5 MEASUREMENT UNCERTAINTY........................................................................................... 5 2. GENERAL PRODUCT INFORMATION.................................................................................... 6 2.1 PRODUCT FUNCTION AND INTENDED USE........................................................................... 6 2.2 RATINGS AND SYSTEM DETAILS........................................................................................ 6 2.3 INDEPENDENT OPERATION MODES.................................................................................... 7 2.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS....................................................... 7 2.5 SUBMITTED DOCUMENTS.................................................................................................. 7 3. TEST SET-UP AND OPERATION MODES.............................................................................. 8 3.1 PRINCIPLE OF CONFIGURATION SELECTION........................................................................ 8 3.2 TEST OPERATION AND TEST SOFTWARE............................................................................ 8 3.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.......................................................... 8 3.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE......................................................... 9 3.5 TEST SETUP DIAGRAM......................................................................................................9 4. TEST RESULTS............................................................................................................... 11 4.1 EMISSION IN THE FREQUENCY RANGE ABOVE 30 MHZ...................................................... 11 4.1.1 Radiated emissions ....................................................................................................................11 4.1.2 Output and spurious conducted level.........................................................................................14 4.2 EMISSION IN THE FREQUENCY RANGE UP TO 30 MHZ....................................................... 15 4.2.1 Conducted emissions .................................................................................................................15 5. PHOTOGRAPHS OF THE TEST SET-UP.............................................................................. 18 6. LIST OF TABLES............................................................................................................. 20 7. LIST OF FIGURES............................................................................................................ 20 8. LIST OF PHOTOGRAPHS.................................................................................................. 20 Produkte Products Prüfbericht - Nr.: Test Report No. 16800338 002 Seite 4 von 20 Page 4 of 20 1. Test Sites 1.1 Test Facilities Laboratory: The State Radio Monitoring Center Testing (SRTC) (FCC Registration No.: 910917) Address: No.98 BeiLishi Road, Xicheng District, Beijing 100037 The used test equipment i…

Text truncated - open the document above for the full version.

Photograph 1: Set-up for Conducted Emissions Photograph 2: Set-up for Radiated Emissions, 30MHz-1GHz Photograph 3: Set-up for Radiated Emissions 1GHz – 2GHz
