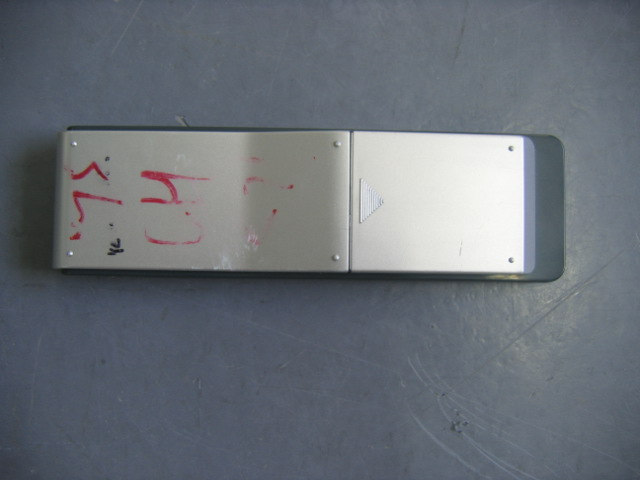

G95RS2100ARemote Controller for 2.4GHz Wireless Audio System

37.4mm 2.8mm

SGS-CSTC EMC Lab (Shenzhen) t: +86 (0) 755 2601 2053 f: +86 (0) 755 2671 0594 Member of the SGS Group 通标标准技术服务有限公司 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch EMC Lab No.1 Workshop, M-10, Middle Section, Science & Technology Park, Tel.: +86 (0) 755 2601 2053 Shenzhen, China P.C. 518057 Fax: +86 (0) 755 2671 0594 For RF Exposuer (Portable Unit: for controller part) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. Measurement Result: This is a portable device and the Max peak output power is 0.004 mW (-23.69 dBm) lower than low threshold 60/fGHz mW (25mW), d<2.5cm in general population category； The SAR measurement is not necessary.

Report No.: SZEMO060400784AVF-2 Page: 1 of 34 FCC ID: G95RS2100A Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf. This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 8215 5555 Fax: +86 (0) 20 8207 5059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 556682 FCC TEST REPORT Application No.: SZEMO060400784AV Applicant: Thomson Industry (Shenzhen) Co., Ltd. Fundamental Frequency : 2.401GHz to 2.470GHz FCC ID: G95RS2100A Equipment under Test (EUT): Name: audio system with 2.4G wireless* Model: RS2100 * This report is only about the Remote controller of the audio system with 2.4G wireless. Standards: FCC PART 15, SUBPART C : 2006 Date of Receipt: 25 April 2006 Date of Test: 26 April to 14 June 2006 Date of Issue: 15 June 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO060400784AVE-2 Page: 2 of 34 FCC ID: G95RS2100A 2 Test Summary Test Test Requirement Stanadard Paragraph Result Number of hopping Frequency FCC PART 15 2006 Section 15.247 PASS Occupied Bandwidth FCC PART 15 2006 Section 15.247 (a2) PASS Channnel Separated FCC PART 15 2006 Section 15.247(a) PASS Occupied Time FCC PART 15 2006 Section 15.247(a1) PASS Band edge FCC PART 15 2006 Section 15.247 PASS Maximum Peak Output Power FCC PART 15 :2006 Section 15.247 (b) PASS Radiated Emission (30MHz to 25GHz) FCC PART 15 :2006 Section 15.107 PASS The test result is only about the remote controller of the audio system with 2.4G wireless. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEMO060400784AVE-2 Page: 3 of 34 FCC ID: G95RS2100A 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY.................................................................................................................................................2 3 CONTENTS...........................................................................................................................................................3 4 GENERAL INFORMATION................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................4 4.2 DETAILS OF E.U.T.........................................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS................................................................................................................4 4.4 TEST LOCATION.............................................................................................................................................6 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER...............................................................................6 4.6 TEST FACILITY................................................................................................................................................6 5 TEST RESULTS...................................................................................................................................................7 5.1 TEST INSTRUMENTS.......................................................................................................................................7 5.2 E.U.T. OPERATION........................................................................................................................................7 5.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................8 5.3.1 Number of Hopping Frequency............................................................................................................8 5.3.2 Pseudorandom Hopping Algorithm....................................................................................................10 5.3.3 Channel Separation..............................................................................................................................11 5.3.4 Occupied Bandwith..............................................................................................................................12 5.3.5 Occupancy Time...................................................................................................................................16 5.3.6 Bandwidth of Frequency Band Edges.......…
