GAFMIC2Wireless Microphone

U.S. HEAD OFFICE : 174 MILBAR BLVD.,FARMINGDALE, NY 11735. U.S.A. TEL.: 631-501-5000 FAX: 631-501-5040 H.K. OFFICE: RM801B, EMPIRE CENTRE, 68 MODY ROAD, TSIMSHATSUI EAST, KOWLOON, H.K. TEL.: 852 2305 0923, 852 2305 0623 FAX: 852 2493 1453 EMAIL: [email protected] ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ U.S. HEAD OFFICE: 174 MILBAR BLVD., FARMINGDALE, NY 11735. U.S.A TEL (HK): 852 2305 0923, 852 2305 0623 FAX(HK): 852 2493 1453 EMAIL : [email protected] July 27,2004 Hong Kong Standards and Testing Centre. 10 Dai Wang Street, Taipo Industrial Estate, NT, Hong Kong Tel: (852) 2666 1888 Fax: (852) 2665 0848 Attention: To Whom It May Concern Re: 200KHz Bandwidth requirement (Wireless Microphone) As requested, please find the following information: 1. The sound signal is input by microphone, amplified by Q1, Q2 transistor, then through R7, C3, D1 attenuator, at last the loud voice is filtrated by C5, C6, thus in this way to avoid the bandwidth exceeded 200KHz. The sound signal is transmitted by Q3 transistor to reach frequency modulation. (Please refer to the diagram). 2. The transistor oscillator circuit is composed of Q3, R11, C7, C8, L2, C11, and C13. FM signal is combined by C10, after resonated by L1, C12, C15, then through L3 and antenna to be launched outside. (see the diagram) Chinese version: 1. 声音信號經過咪頭輸入後, 經過Q1, Q2三極管放大, 再經R7,C3,D1衰減音頻信號後再經C5, C6 過濾 “高音”, 以防調幅超過200KHZ。 声音信號通過晶體管Q3, 逹到調頻(見圖). 2. Q3, R11, C7, C8,L2,C11,C13構成晶體振動綫路。調頻信號由C10耦合，再經過L1,C12,C15諧振 後經L3, 天綫發射出去。 Thank you for your support. Best Regards, Karen / Fanny, Columbia Telecommunications Ltd.

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: GAFMIC2 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

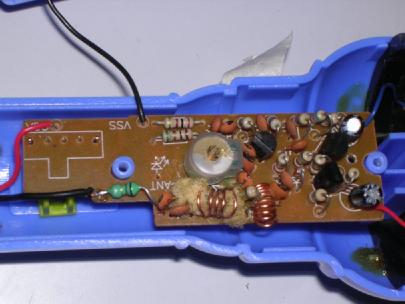

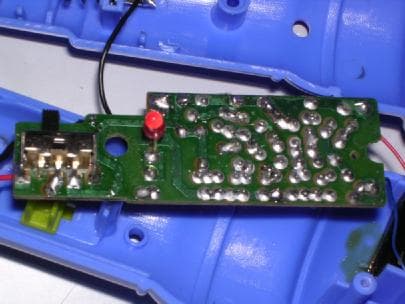

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: GAFMIC2 Circuit Description The 98MHz LCR oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by MIC. The output of Q3 has the matching network consisting of C15 and C12 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AAA” size battery x 2) primary battery

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-07-21 TEST REPORT Page 1 of 16 No. : HM150928 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Columbia Telecommunications Group Inc. 174 Milbar Blvd. Farmingdale New York United States 11735 Description of Samples: Model name: FM Microphone Model no.: MIC-LM Brand name: Columbia Telecommunications FCC ID: GAFMIC2 Date Samples Received: 2004-04-29 Date Tested: 2004-05-11 to 2004-06-28 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-07-21 TEST REPORT Page 2 of 16 No. : HM150928 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 1.0 General Details 1.1 Test Laboratory Page 4 of 16 1.2 Applicant Details Page 4 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 16 Description of EUT operation 1.4 Date of Order Page 5 of 16 1.5 Submitted Samples Page 5 of 16 1.6 Test Duration Page 5 of 16 1.7 Country of Origin Page 5 of 16 1.8 Additional Information of EUT Page 6 of 16 2.0 Technical Details 2.1 Investigations Requested Page 7 of 16 2.2 Test Standards and Results Summary Page 7 of 16 3.0 Test Results 3.1 Emission Page 8-11 of 16 3.2 Bandwidth Measurement Page 12-13 of 16 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-07-21 TEST REPORT Page 3 of 16 No. : HM150928 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 14 of 16 Appendix B Photographs Page 15-16 of 16 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-07-21 TEST REPORT Page 4 of 16 No. : HM150928 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Columbia Telecommunications Group Inc. 174 Milbar Blvd. Farmingdale New York United States 11735 HKSTC Code Number for Applicant COT008 Manufacturer HONORGENS TOYS LTD. Rm.502, 5/F, No.1 Hung To Road, Kwun Tong, Kowloon, Hong Kong 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-07-21 TEST REPORT Page 5 of 16 No. : HM150928 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: FM Microphone Manufacturer: HONORGENS TOYS LTD. Brand Name: Columbia Telecommunications Model Number: MIC-LM Input Voltage: 3Vd.c (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Columbia Telecommunications Group Inc., FM Microphone. The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic. and type is frequency modulation. 1.4 Date of Order 2004-04-29 1.5 Submitted Sample(s): 4 Samples per model 1.6 Test Duration 2004-05-11 to 2004-06-28 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-07-21 TEST REPORT Page 6 of 16 No. : HM150928 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-07-21 TEST REPORT Page 7 of 16 No. : HM150928 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quota…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
