1 XT-4850CUserGuide Model: XT-4850C FCC ID: GKM-XT4850C IC:IC: 10281A-XT4850C Version2 2 Table of Contents Document Change History..........................................................................................3 1 Introduction............................................................................................................4 1.1 Feature Matrix.................................................................................................................................................................................4 2 Hardware Description..............................................................................................5 2.1 Hardware Specifications.............................................................................................................................................................6 2.2 Cable Harness Description.........................................................................................................................................................7 2.3 LED Description..............................................................................................................................................................................7 3 Device Mounting Options........................................................................................8 3.1Screw Mounting..............................................................................................................................................................................8 3.2 Magnetic Mounting........................................................................................................................................................................8 3.3 Optional Cradle Mounting...........................................................................................Error! Bookmark not defined. 4 Quick Start Guide.....................................................................................................9 4.1 Device Wakeup...............................................................................................................................................................................9 4.2 Configuring the Device via SMS..............................................................................................................................................10 3 Document Change History RevisionDateAuthorChanges 1.04/21/15N BarakatDocument Creation 4 1Introduction XT-4850Cis an energy harvesting global multi-band 3G platform supporting long term, remote deployments without the need to replace the self-charging battery. Thisinstallationguidedescribes the physical hardware, associated parts,the different mounting options available, anda quick start-up procedure. 1.1Feature Matrix Feature Description Base Unit Zigbee® Upgrade 3G Communication Module with 2G Rollback  GPS Receiver for Tracking Applications  Supports SMS, TCP, UDP,FTP  Over-the-air Configuration and FW Upgrade  Location Polling  Periodic Reporting  Wired or Virtual Ignition On/Off Reporting  Direction Change Alerts  Speed Threshold Alerts  Mileage Threshold Alerts  Main BatteryDisconnect Alerts  Heartbeat and Power-up/Reset Alerts  Ignition Idle Alert (wired ignition only)  Towing Start/Stop Alerts(wired ignition only)  Movement Start/Stop Alerts(wired ignition only)  2 Digital Inputs  Park Time Alerts(wired ignition only)  Virtual Odometer  Motion  Sleep/Wake Configuration Settings  Geofence (Radial, Rectangular, and Polygonal)  Device Diagnostics(Battery voltage, connectivity,etc.)  Wireless Sensor Connectivity  Inter-deviceCommunication  5 2HardwareDescription Belowis a depiction of key interfaces of the XT-4850C: TheAssociated Cable Harness that interfaces with the unit is shown below: Solar Panel LEDIndicators Device Label Wake-up/ Zigbee Pairing Button Zigb 7-Pin Bayonet Connector 6 2.1Hardware Specifications TechnologyCDMA 1xRTT ModelXT-4850C Frequency BandDual-band Support: 850/1900 GPS Specification Receiver 50 channels50 channels Receiver tracking Sensitivity -161 dBm Accuracy+/-2.5m CEP(50% ,-130 dBm, > 6 Satellites) Cold Start<33 sec Hot Start< 1 sec Power Requirements D.C. Power8-24V, 12 V nominal BatteryInternal6600mAh rechargeable Li-Ion Physical Connection InterfaceConnector8-pin attached harness Cellular/GPS AntennaInternal SIM AccessInternal ProgrammingSerial(UART Logic Level) Mechanical Case MaterialABS plastic with weather-proofing for outdoor use Dimension7.6” X4.9” X 1.4” Weight< 18oz. Operating Temperature-30°C to +70°C Certifications ProductFCC IC IP67 CarrierVerizon/Sprint 7 2.2Cable Harness Description Pin # Wire Color Pin NameFunctional DescriptionPort Characteristic 1WhiteIN1Ignition Sense8v to 24v,Internally pulled low 2YellowIN2 Input port2.4 to 24V, < 0.2 V Note: Internally pulled high 3BlackGroundGround 4GreenOutOutput Port (Defaulted open circuit) 5BlueUART-Rx External battery negative terminal3.3V Logic Interface Com PortSettings: Baud rate: 115200 bps; Flow control: None; 8N1 6BrownUART-Tx 3.3V Logic Interface Com Port Settings: Baud rate: 115200 bps; Flow control: None;8N1 7RedVBATTMain battery voltage, DC8-24 V 8OrangeADCAnalog Input8-24 V 2.3LED Description LEDDescriptionStatus Cellular(Blue) Searching for Cellular NetworkLED OFF Cellular Carrier LockFast Blinking once every 1 second GPS(Green) Searching for satelliteSolid GPS LockBlinking Zigbee(Aurburn)TBDTBD 8 3DeviceMounting Options 3.1Screw Mounting TheXT-4850Chas two flanges(two holes per)at each end of the housingfor screw mounting the device to the mounting surface. 3.2Magnetic Mounting TheXT-4850Ccan also be equipped with magnets whichsupport a loadup to 10kg. 9 Quick Start Guide 4.1DeviceWakeup To start up the device, simply hold the blackbuttonlocated near the circular connector on the side panel of the device for 3 seconds. You should see the blue “C” LED light up and then fade out. The LED will fa…

Text truncated - open the document above for the full version.

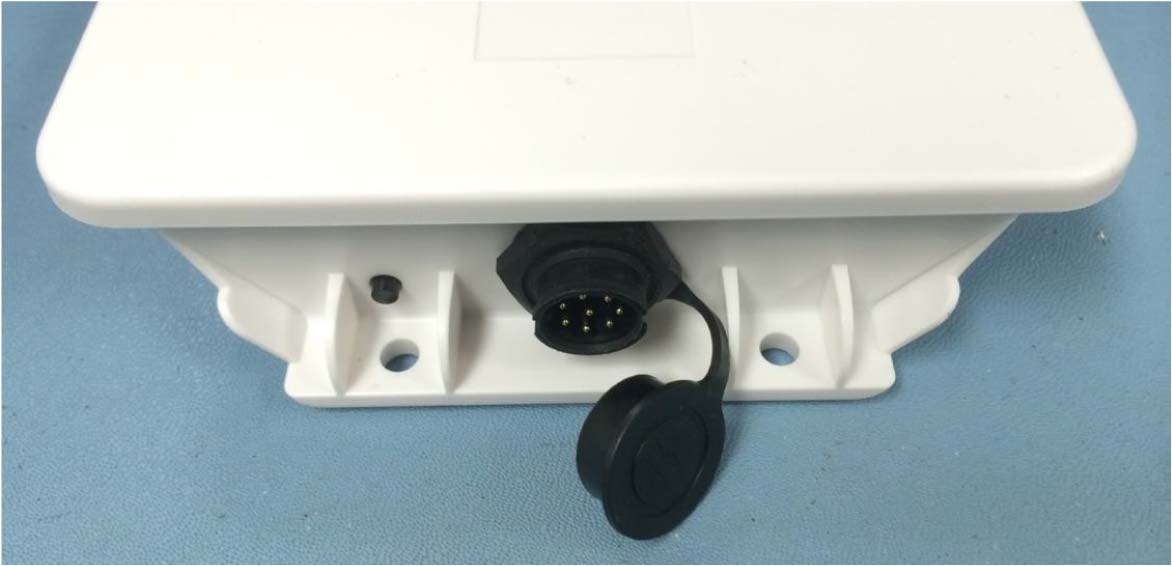

XT‐4850C FCC ID: GKM-XT4850C IC: 10281A-XT4850C

XT-4850CLabel Specification Model: XT-4850C FCC ID: GKM-XT4850C IC: IC: 10281A-XT4850C Face Sensor Size:1.5”x1.0” Size:1.25”x2.25”

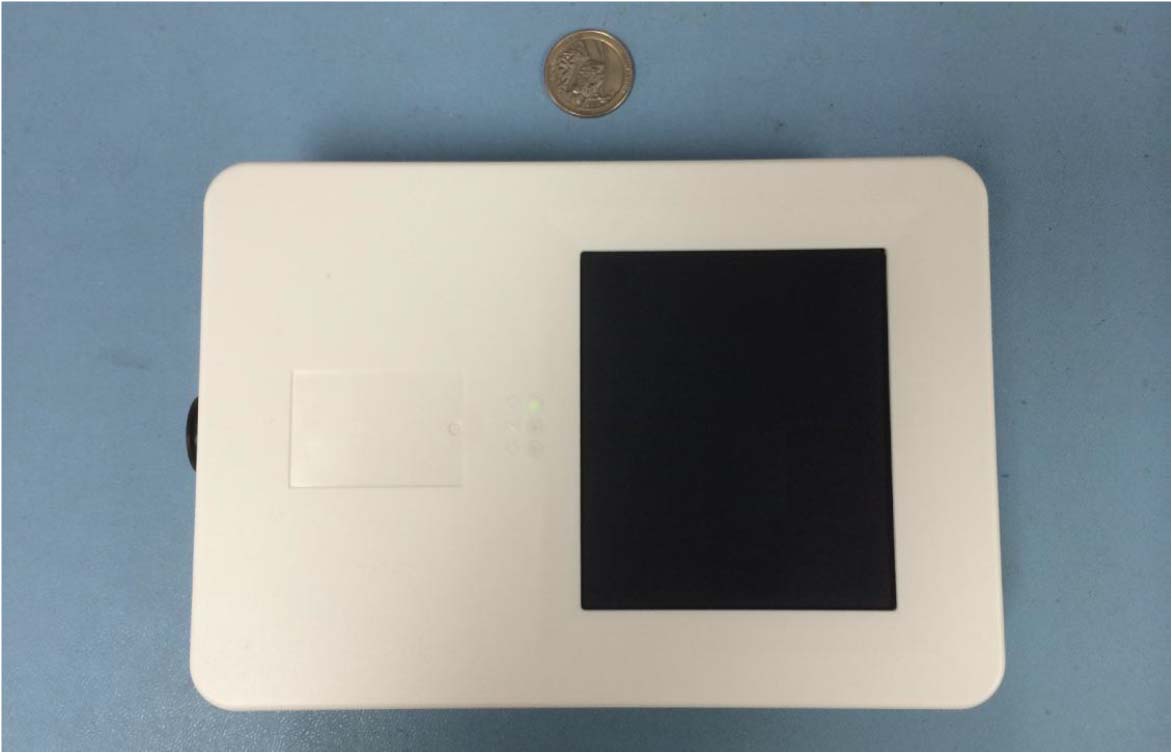

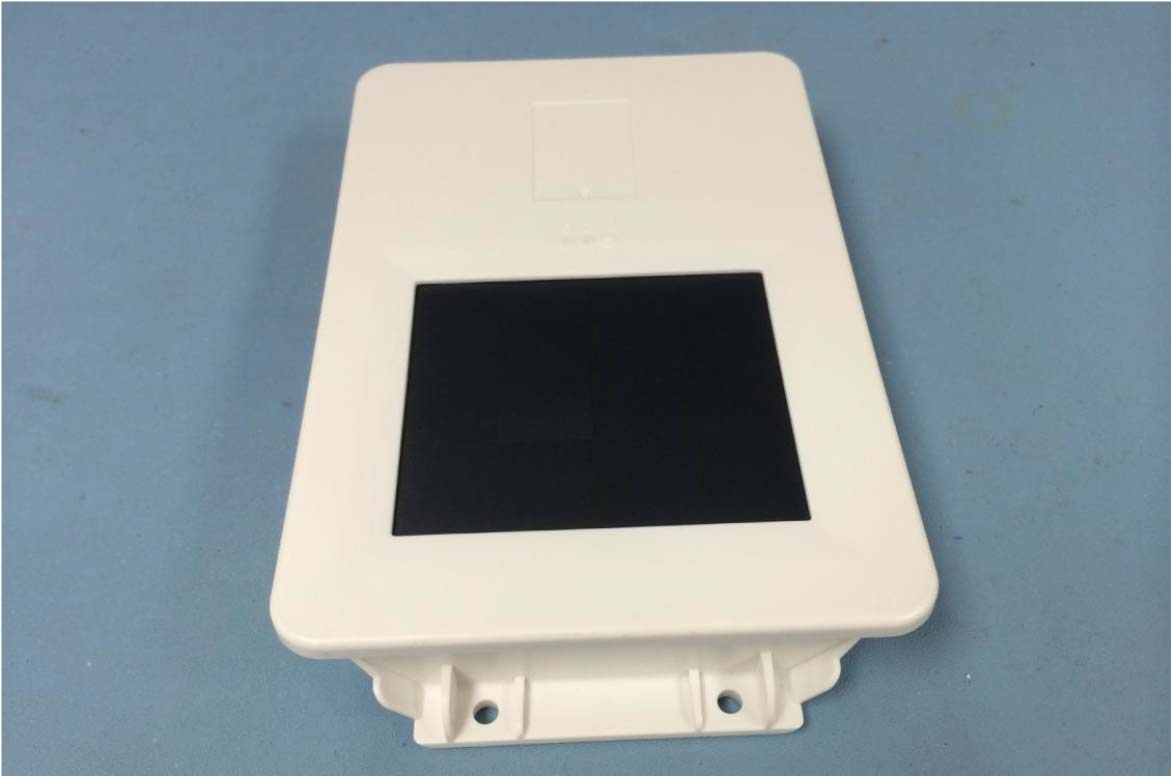

XT‐4850C FCC ID: GKM-XT4850C IC: 10281A-XT4850C

Radio Frequency Exposure Evaluation Report For Xirgo Technologies, Inc GPS Asset Tracking Device FCC ID: GKM-XT4850C IC ID: 10281A-XT4850C Model No.: XT-4850C Applied Rules and Standards CFR Part Part 1 (1.1307 &1.1310), Part 2 (2.1091), FCC KDB 447498 D01 General 24 RF Exposure Guidance v05r02 Industry Canada RSS-102, Issue 5 of March 2013 Report number: EMC_XIRGO-093-15001_MPE DATE: 05-13-2015 Test Report #: EMC_ XIRGO-093-15001_MPE FCC ID: GKM-XT4850C Date of Report: 5-13-2015 IC ID: 10281A-XT4850C Page 2 of 7 1 Administrative Data 1.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Address: 6370 Nancy Ridge Drive San Diego, CA 92121 U.S.A. Telephone: +1 (858) 362 2400 Fax: +1 (858) 687-4809 Compliance Manager: Franz Engert Responsible Project Leader: Douglas Antioco 1.2 Identification of the Client / Manufacturer Applicant’s Name: Xirgo Technologies, Inc Street Address: 188 Camino Ruiz City/Zip Code Camarillo, CA/ 93012 Country USA Contact Person: Nader Barakat Phone No. 805-233-0583 Fax: e-mail: [email protected] Test Report #: EMC_ XIRGO-093-15001_MPE FCC ID: GKM-XT4850C Date of Report: 5-13-2015 IC ID: 10281A-XT4850C Page 3 of 7 2 Equipment under Assessment Marketing Name / Description: GPS Asset Tracking Device FCC-ID: GKM-XT4850C IC certification no.: 10281A-XT4850C Model Number: XT-4850C Product Description: GPS Asset Tracking Device Transmitter information: 1. pre-certified CDMA 1xRTT 800/1900 Mhz radio module uBlox LISA-C200; FCC ID: R5Q-LISAC200A / IC ID: 8595B-LISAC200A 2. ZigBee IEEE 802.15.4 (2.4GHz); 3. GPS 1575.42 MHz Antennae: Internal Monopole, 850MHz: -2 dBi 1900MHz: 0 dBi Co-located Transmitters/ Antennas?  Yes  No Device Category:  Fixed Installation  Mobile (mark mobile if both possible)  Portable mixed Mobile and Portable Exposure Category:  Occupational/ Controlled  General Population/ Uncontrolled Rated Operating Voltage: Vmin: 9VDC/ Vnom: 12VDC/ Vmax: 24VDC Rated Operating temperature range: Tmin: -30 o C / Tmax: 70 o C Test Sample Status: Pre-production Test Report #: EMC_ XIRGO-093-15001_MPE FCC ID: GKM-XT4850C Date of Report: 5-13-2015 IC ID: 10281A-XT4850C Page 4 of 7 3 Assessment This RF Exposure evaluation report provides information about compliance of the below identified device with the RF Exposure limits for mobile devices as defined in FCC CFR Part 1 (1.1307 &1.1310), Part 2 (2.1091) and IC standard RSS-102 issue 5 under given conditions (measured or rated RF output power, antenna gain, distance towards human body, multiple transmitter information as presented by the applicant). In addition, maximum antenna gain or minimum distance towards the human body is calculated, respectively, where relevant. The device meets the limits as stipulated by the above given FCC and IC rule parts based on available specifications. Company Description Model # Xirgo Technologies, Inc GPS Asset Tracking Device XT-4850C Report reviewed by: 2015-05-13 Compliance Heiko Strehlow (Chief Operating Officer) Signing on Behalf of Franz Engert (Compliance Manager) Date Section Name Signature Responsible for the Report: 2015-05-13 Compliance Douglas Antioco (EMC Engineer) Date Section Name Signature Test Report #: EMC_ XIRGO-093-15001_MPE FCC ID: GKM-XT4850C Date of Report: 5-13-2015 IC ID: 10281A-XT4850C Page 5 of 7 4 RF Exposure Limits and FCC and IC Basic Rules For the specific described radio apparatus the following basic limits and rules apply for both, FCC and IC where not indicated differently. 4.1 Power Density Limits acc. to FCC 1.1310(e) / RSS-102 i5, cl. 4: FCC Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100.000 1.0 30 IC 300 – 6000 0.02619 x f (MHz) 0.6834 6 1500 – 100.000 1.0 30 4.2 Routine Environmental Evaluation Categorical Exclusion Limits acc. to FCC 2.109(c) / RSS-102, cl. 2.5 (rounded to 1 decimal point): FCC operating frequency < 1.5GHz: excluded if ERP < 1.5W / 31.8dBm; operating frequency > 1.5GHz: excluded if ERP < 3.0W / 34.8dBm; IC 300MHz < = operating frequency < 6 GHz: excluded if EIRP < 0.0131 x f (MHz) 0.6834 4.3 EMC Output Power Limits (ERP/EIRP) acc. to FCC part 22/24 / IC RSS-132, RSS-133 (to be additionally taken into account for maximum antenna gain considerations) part 22: 7W ERP / 38.5dBm (IC: 11.5W / 40.6dBm EIRP) part 24: 2W EIRP / 33.0dBm Per KDB 447498 D01 FCC allows calculative estimation of RF exposure for mobile applications when routine environmental evaluation categorical exclusion applies and also for fixed applications. When categorical exclusion can not be claimed for mobile applications MPE measurement is required for TCB approval. RSS-102 of Industry Canada does generally not require RF exposure evaluation for fixed or mobile applications which stay below the given exclusion limits. 4.4 RF Exposure Estimation (MPE Estimation) Having available the source based average output power and peak antenna gain or the ERP/EIRP of the specified device and for a known minimum distance of it’s radiating structures from the body of persons according to it’s use cases (at least 20cm) the power density at that distance can be estimated by the following formula for plane-wave equivalent conditions (far-field conditions), when ground reflection is neglected. Test Report #: EMC_ XIRGO-093-15001_MPE FCC ID: GKM-XT4850C Date of Report: 5-13-2015 IC ID: 10281A-XT4850C Page 6 of 7 2 4R PG S   where: S = power density (mW/cm 2 or W/m 2 ) P = power input to the antenna (mW or W) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm or m) 5 Evaluations 5.1 Routine Environmental Evaluation Applicability Based on the maximum EIRP results from the associate emc report provided with this filing. Transmission Mode max. EIRP duty cycle total EIRP simul taneous trans missions intra- band (worst cases only) FCC / IC Limits fo…
