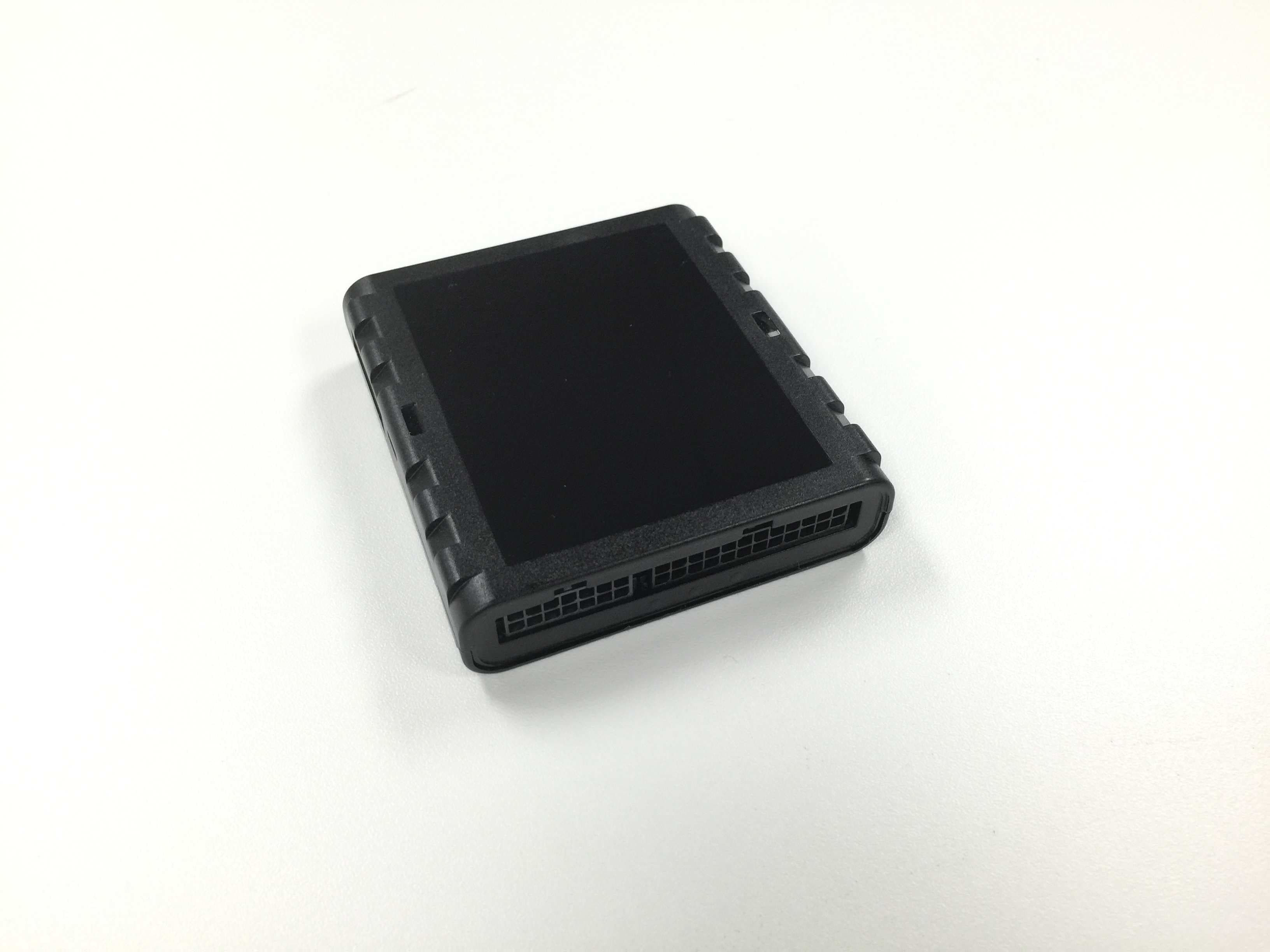

GKM-XT6350Vehicle GPS/Cellular Tracking Device with BT

188 Camino Ruiz Camarillo, CA 93012 www.xirgotech.com [email protected] XT6350 User Guide Version 2.0 1 Sales Engineering [email protected] Contents Document Change History..........................................................................................................................2 Hardware Specification...............................................................................................................................3 ConnectorIOInterface.................................................................................................................................4 Cable Harness Specification........................................................................................................................6 LED Defentition...........................................................................................................................................7 Current Consumption.................................................................................................................................7 Device mounting..........................................................................................................................................7 PCDeviceConfiguration.............................................................................................................................8 Feature Matrix.............................................................................................................................................8 Device Configuration...................................................................................................................................9 Parameter File...........................................................................................................................................13 Messages.....................................................................................................................................................14 Script File...................................................................................................................................................10 Parameter File...........................................................................................................................................13 Appendices..............................................................................................................................................................13 7 Regulatroy Statements..............................................................................................................................28 2 Sales Engineering [email protected] Document Change History RevisionDateChanges 1.02/2/2015Initial Release 2.03/18/2015Updates by NBfor FCC/ICC compliance 3 Sales Engineering [email protected] 4 Sales Engineering [email protected] Hardware Specification: CellularWireless Technology: 2G/GSM/GPRS/EGPRS:850/900/1800/1900Bands-Models: XT6350/ XT6355 3G (UMTS):850/1900 Bands(Bands V, II)-Models: XT6360 CDMA (1xRTT):850/1900 Bands-Models: XT6350 ParameterSpec GPS Specification Receiver56channels Receiver tracking sensitivity -162dBm ReceiverCold Start-148dBm CEPAccuracy+/-2.5m TTFF -Cold Start -Hot Start <29sec < 1 sec HW Options: 3-axis Accel. BT/BTLE LastGasp Back-up Battery Internal 250 mAh rechargeable Li- Ion Power Requirements D.C. Power9-32V Physical Connection Data Connector24-pinMolex Main 14-pinMolexOBD/J-Bus Antenna: Cellular/GPS/BT Internal SIM Access(2G/3G)N/A ProgrammingSerial Xirgo Device Manager (XDMI) Mechanical Case MaterialPC2407, Black Dimension3.05”x 3.08”x 0.8” Weight3 oz. Operating Temperature -30C to +75C Certifications Product(CDMA)FCC ID: GKM-XT6350 (3G): FCC ID:GKM-XT6360 IC:10281A-XT6350 CarrierVerizon, ATT Notes: TTTF:All satellites at-130 dBm;Accuracy:CEP,50%, 24 hours static,-130 dBm, > 6 SVs 5 Sales Engineering [email protected] ConnectorsIOInterface: Main24-pinMolex Connector(IO Interface): Pin No.Pin NameComments 112/24 Volt Power 2LED+12V w/5K limiting resistor (panic LED) 3Ground Main Battery GND 4Ign Out Buzzer +12V/24Vwith 560 ohm 5IN0 Ignition Sense 6IN1 7IN2 8IN3 Panic:pin3on panic 4-pin Molex 9IN4 10OUT0 Buzzer GND 11OUT1 12OUT2 Panic:pin4 (LED)on panic 4-pin Molex 13Garmin PWR 12V/2A Switched 14Serial Port-1 TX Garmin FMI Tx 15Serial Port-1 RX Garmin FMI Rx 16Serial Port-1 GND Garmin FMI GND 17Serial Port-2 TX 18Serial Port-2 RX 19Serial Port-2 GND 201-Wire Serial Main iButton Data (default) 211-Wire Serial Sec. 22Ext. ADC 23Spare GND Panic GND 24Spare GND 6 Sales Engineering [email protected] OBD14-pinMolex connector(OBD2/JBUS/SWC): J1962OBD2 PinNo. XT6350 PinsXT6350Pin Description 9 Pin J-Bus6 Pin J-Bus 61CAN_HS_HC 2J1708_RXDGB 3J1708_TXDFA 154L_LINE 105J1850_NEG 26J1850_POS 7 148CAN_HS_LD 39CAN_MS_H 1110CAN_MS_L 111SWC_BUS 712K_LINE 5&413GNDAE 1614Vehicle Power(VBAT)BC 7 Sales Engineering [email protected] Cable HarnessSpecification: 24-pin Microfit: Molex 43025-2400 Panic SW/LED Button Conn. Molex43020-0401 (4 pin 2 row female shell) I-Button Conn.: Molex43640-0201 (2 pin Female Shell) Buzzer Conn.: Molex43640-0301 (3 pin Female Shell) Garmin Conn. Molex 43020-1001(10 pin 2 row female shell) Garmin pins 2 and 4 looped-in (black wire, 26 AWG) Molex male pins: 43031-0002 Total length: 5 ft. Pins 1, 3, and 5 are 18 AWG, All others are 24 AWG. Fuse: 3A inline with pinswith pins 1 (red) and 5 (white), 7 in. from wire end Wires 1, 3,and 5 to be jacketed up to the fuse 24-pin No. ColorLengthAWGPin functionCommentsI-ButtonBuzz.Panic SW LED Garmin 1Red60 in.18VBAT3A fuse, 7 in. from end 2Orange7 in.20LED+12V3 3Black60 in.18Ground 4White7 in.20Ign Out1 5White60 in.18IN03A fuse, 7 in. from end 6Gray60 in.20IN1 7Brown60 in.20IN2 8Blue7 in.20IN31 9Red60 in.20IN4 10Brown7 in.20OUT0Buzzer GND2 11Orange60 in.20OUT1 12Yellow7 in.20OUT24 13Red7 in.20Garmin PWR12V/2A Switched5 14White/Brown7 in.20Serial Port-1 TX Garmin FMI Tx1 15Green7 in.20Serial Por…

Text truncated - open the document above for the full version.

Model: XT6350 FCC ID: GKM-XT6350 IC ID: 10281A-XT6350

Model: XT6350 FCC ID: GKM-XT6350 IC: 10281A-XT6350 Size: 2.83”x2.24”

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com MPE Calculation § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) 1.1 Test Procedure An MPE evaluation for was performed in order to show that the device was compliant with §2.1091. The maximum power density was calculated for each transmitter at a separation distance of 20cm. For each transmitter the maximum RF exposure at a 20 cm distance using the formula: 10/)( 10 dBmowerConductedP mW PowerConducted= 2 )20(4 . cm mW GainAntPowerConducted tyPowerDensi × × = π 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com 1.2 Results: The device contains Cellular and Bluetooth transmitters which can transmit simultaneously. The following calculations show that the total power density from each transmitter at 20cm is less than the limit for general population / un-controlled exposure. With the worst case Cellular and Bluetooth radios transmitting simultaneously, the MPE calculations are less than the applicable limit. The device meets the RF exposure limit at a 20cm separation distance as required by part 2.1091 of the FCC rules with all modules transmitting simultaneously 1 . The total sum of the ratio of the power densities to the corresponding limit for all radios capable of transmitting simultaneously was computed as follows: Total = (CDMA Power Density / Limit CDMA) + (Bluetooth Power Density / Limit Bluetooth) Total = 0.0573 + 0.0045 = 0.062 Compliance is shown by the sum of the radio of the power densities for all radios that can transmit simultaneously being less than 1. 1 The cellular radio is only capable of transmitting in one mode at a time (Cell band or PCS band). 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com Individual Radio Test Results: CDMA Cell Band Transmitter: Frequency 824.7 MHz Limit 0.550 mW/cm^2 Distance 20 cm Maximum Scaled Power 24 dBm TX Ant Gain -2 dBi EIRP 22 158.4893 mW Power Density 0.0315 mW/cm^2 at 20cm MPE / Limit Ratio 0.0573 CDMA PCS Band Transmitter: Frequency 1851.25 MHz Limit 1.000 mW/cm^2 Distance 20 cm Maximum Scaled Power 24 dBm TX Ant Gain 0 dBi EIRP 24 251.1886 mW Power Density 0.0500 mW/cm^2 at 20cm MPE / Limit Ratio 0.0500 Bluetooth Transmitter: Frequency 2412 MHz Limit 1.000 mW/cm^2 Distance 20 cm Power 12 dBm TX Ant Gain 1.5 dBi EIRP 13.5 22.38721 mW Power Density 0.0045 mW/cm^2 at 20cm MPE / Limit Ratio 0.0045

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Xirgo Technologies on the XT6350 Page 1 of 41 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 101978620LEX-003 Project Number: G101978620 Report Issue Date: 3/9/2015 Product Name: XT6350 Standards: Title 47 CFR Part 15 Subpart C, RSS-210 Issue 8 Radios Under Test: Bluetooth Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Xirgo Technologies 188 Camino Ruiz Camarillo, CA 93012 Report prepared by Report reviewed by Bryan Taylor, Team Leader Jason Centers, Staff Engineer Intertek Report Number: 101978620LEX-003 Issued: 3/9/2015 EMC Report for Xirgo Technologies on the XT6350 Page 2 of 41 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Output Power .............................................................................................................................. 6 5 20dB Bandwidth ................................................................................................................................. 10 6 Channel Separation ........................................................................................................................... 14 7 Number of Hopping Channels .......................................................................................................... 17 8 Time of Occupancy ............................................................................................................................ 19 9 Conducted Spurious Emissions ....................................................................................................... 23 10 Radiated Spurious Emissions (Transmitter) ............................................................................... 27 11 AC Powerline Conducted Emissions ........................................................................................... 36 12 Antenna Requirement per FCC Part 15.203 ................................................................................. 39 13 Measurement Uncertainty.............................................................................................................. 40 14 Revision History ............................................................................................................................. 41 Intertek Report Number: 101978620LEX-003 Issued: 3/9/2015 EMC Report for Xirgo Technologies on the XT6350 Page 3 of 41 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Output Power § 15.247(b)(1) RSS210 (A8.4) Pass 10 20dB Bandwidth § 15.247(a)(1) RSS210 (A8.1) Pass 14 Channel Separation § 15.247(a)(1) RSS210 (A8.1) Pass 17 Number of Hopping Channels § 15.247(a)(1)(iii) RSS210(A8.1) Pass 19 Time of Occupancy § 15.247(a)(1)(iii) RSS210 (A8.1) Pass 23 Conducted Spurious Emissions § 15.247(d) RSS210 (A8.5) Pass 27 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (A8.5) Pass 36 AC Powerline Conducted Emissions § 15.107, § 15.207 RSS-Gen (7.2.4) Pass 39 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.2) Pass Intertek Report Number: 101978620LEX-003 Issued: 3/9/2015 EMC Report for Xirgo Technologies on the XT6350 Page 4 of 41 3 Description of Equipment Under Test Equipment Under Test Manufacturer Xirgo Technologies Model Number XT6350 Serial Number…
