GMLRM-88GSM 850/900/1800/1900MHz Cellphone w/BT

FCC DRAFT Nokia E62 User Guide 9242115 Issue 1 file:///C:/USERS/MODEServer/mehowell/ 14385651/rm-88_texas/en/issue_1/ rm-88_texas_en_1.xml Page 1 Jan 16, 2006 10:36:24 PM FCC DRAFT DECLARATION OF CONFORMITYWe, NOKIA CORPORATION declare under our sole responsibility that the product RM-88 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from www.nokia.com/phon es/declaration_of_conformity/. The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at theproduct end-of-life. This applies to your device but also to an y enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. Copyright © 2006 Nokia. All rights reserved.Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior w ritten permission of Nokia is prohibited. Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other prod uct and company names mentioned herein may be trademarks or tradenames of their respective owners. Nokia tune is a sound mark of Nokia Corporation. This product includes software licensed from Symbian Software Lt d (c) 1998-2004. Symbian and Symbian OS are trademarks of Symbi an Ltd. Includes RSA BSAFE cryptographic or secu rity protocol software from RSA Security. Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. This product is licensed under the MPEG-4 Visual Patent Portfo lio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and ( ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additiona l information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com. Nokia operates a policy of ongoing developm ent. Nokia reserves the right to make changes and improvements to any of the product s described in this document without prior notice.Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or i ndirect damages howsoever caused.The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either exp ress or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the acc uracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice 0434 file:///C:/USERS/MODEServer/mehowell/ 14385651/rm-88_texas/en/issue_1/ rm-88_texas_en_1.xml Page 2 Jan 16, 2006 10:36:24 PM FCC DRAFT The availability of particular products may vary by re gion. Please check with the Nokia dealer nearest to you. EXPORT CONTROLSThis device may contain commodities, technology, or software subj ect to export laws and regulations from the US and other count ries. Diversion contrary to law is prohibited.FCC/INDUSTRY CANADA NOTICEYour device may cause TV or radio interfer ence (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interfere nce. Any changes or modifications not expressly approved by Nokia could void th e user's authority to operate this equipment. 9242115/Issue 1 file:///C:/USERS/MODEServer/mehowell/ 14385651/rm-88_texas/en/issue_1/ rm-88_texas_en_1.xml Page 3 Jan 16, 2006 10:36:24 PM FCC DRAFT ContentsFor your safety..................................................................7About your device........................................................................8NETWORK SERVICES.......................................................................8Enhancements, batteries, and chargers................................8Get started..........................................................................9Insert the SIM card and battery...............................................9Insert and remove a memory card.......................................10Switch on your device..............................................................11Get started (part 2).......................................................12Charge the battery.....................................................................12Enter basic settings...................................................................12CD-ROM..........................................................................................12Nokia support and contact information.............................12Your device......................................................................13Keys and parts.............................................................................13Keypad lock (Keyguard)...........................................................15Common actions in several applications............................15 Write text.....................................................................................16Help and tutorial........................................................................17Volume control...........................................................................17Connectors...................................................................................17Type label.....................................................................................…

Text truncated - open the document above for the full version.

January 17, 2006 RE: FCC ID: GMLRM-88_ATCB003101 Attention: Elizabeth Parish I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the power listed for the BT device is incorrect. Page 21 of the BT report shows that the conducted power of the device is -1.72dBm. This would equate to 0.67mW. the power listed however is 1.42mW which would be +1.72dBm. Please explain. 2. Please provide the calibration data for the dipole and probe used in SAR measurements. 3. Please note that the label does not have the DoC FCC label. Also, the application does not list part 15B as part of the certification. Please verify if Part 15B is to be in the certification or if it is a DoC. IF DoC the label will have to show the DoC FCC logo. If it is to be certified, then the appropriate information will have to be provided. Please explain. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 (1) January 17, 2006 NOKIA, INC. 6000 Connection Drive Irving, Texas 75039 972-894-5000 RE: FCC ID: GMLRM-88 Response to ATCB Question (ATCB003101) Dated January 17, 2006 1. Please note that the power listed for the BT device is incorrect. Page 21 of the BT report shows that the conducted power of the device is -1.72dBm. This would equate to 0.67mW. the power listed however is 1.42mW which would be +1.72dBm. Please explain. • Test Report, Form 731, and IC Form updated and uploaded to ATCB website. 2. Please provide the calibration data for the dipole and probe used in SAR measurements. • Calibration data uploaded to ATCB website. Elizabeth Parish Senior Certification Engineer Nokia Dallas

RM-88 TYPE LABEL LOCATION 1 (1) 12-January-2006 FCC Type Label Location and Artwork Suggested Area For Die-cut Type Label z` Exhibit XX Type Label Location FCCID: GMLRM-88 Applicant: Nokia Corporation IC: 661N-RM88 Copyright © 2006 Nokia. All Rights Reserved

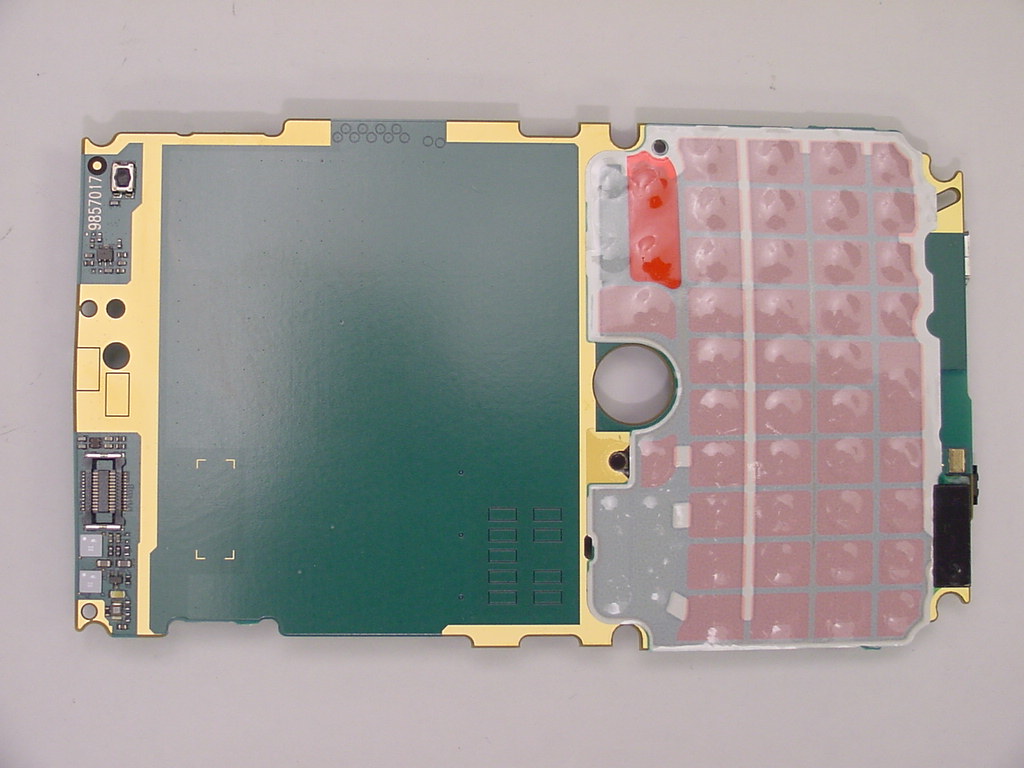

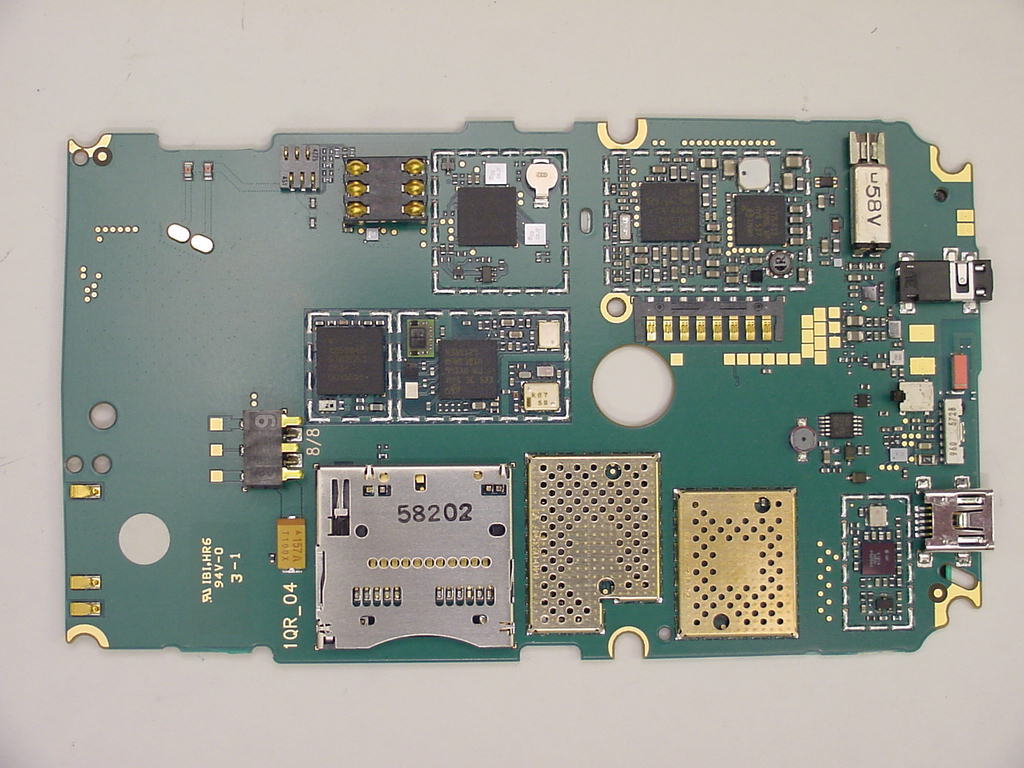

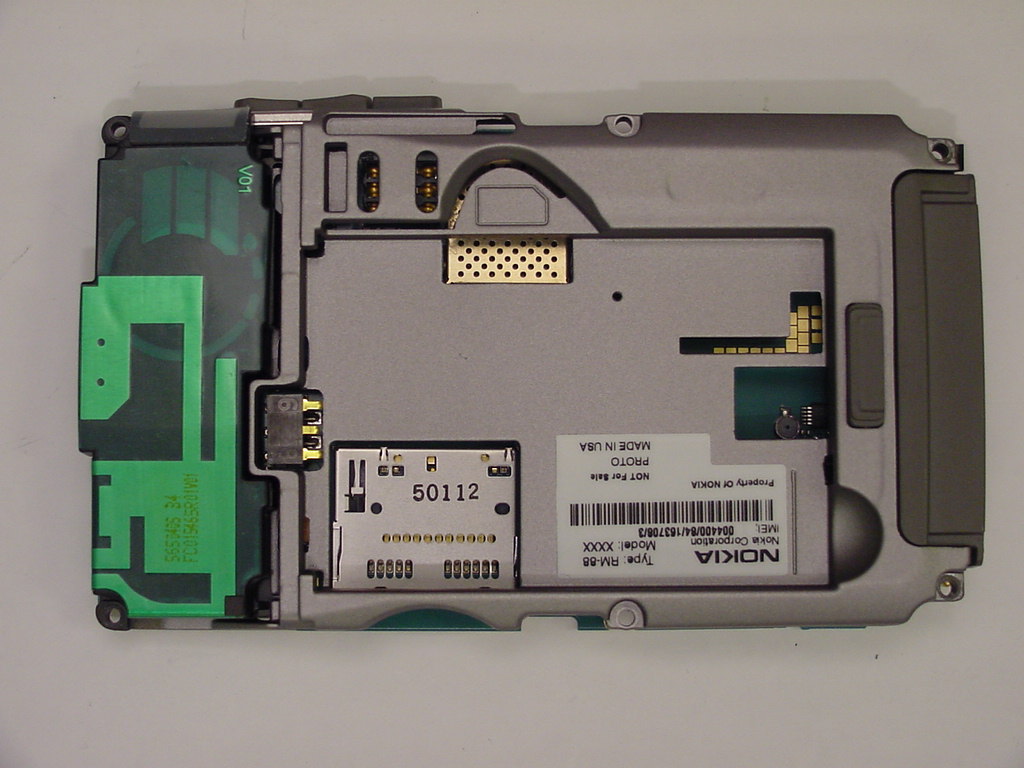

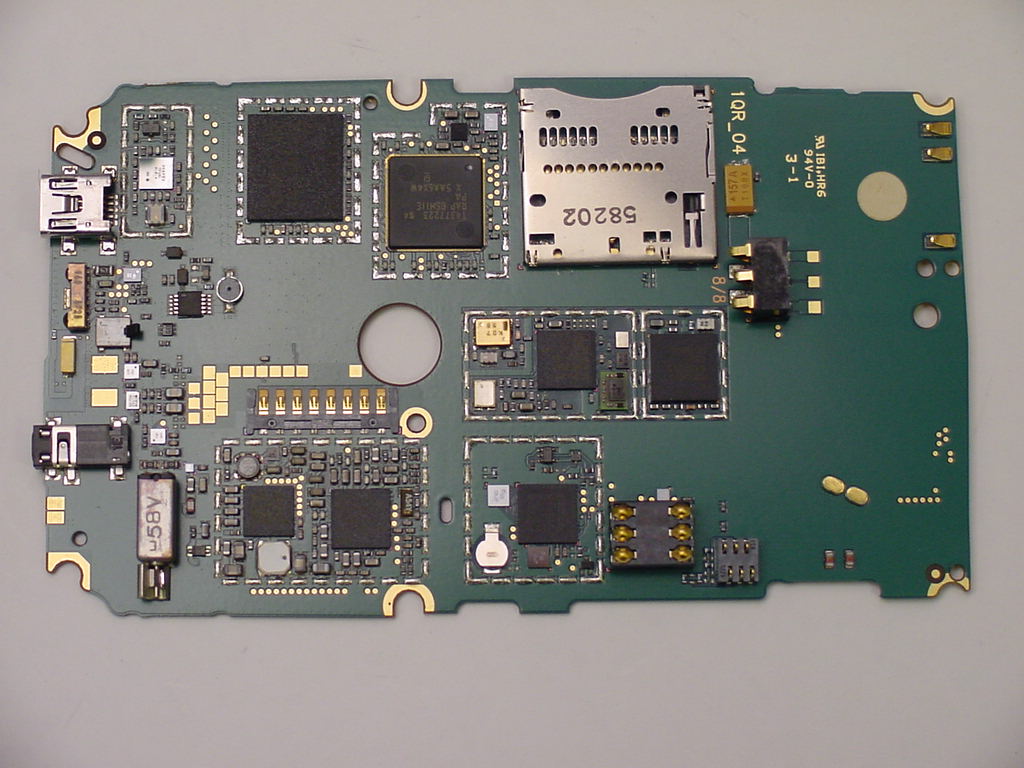

COMPANY CONFIDENTIAL 1 (5) January 3, 2006 Exhibit 9 Internal Photographs FCC ID: GMLRM-88 Applicant: Nokia, Inc. IC: 661N-RM-88 Copyright © 2005-2006. All Rights Reserved COMPANY CONFIDENTIAL 2 (5) January 3, 2006 Exhibit 9 Internal Photographs FCC ID: GMLRM-88 Applicant: Nokia, Inc. IC: 661N-RM-88 Copyright © 2005-2006. All Rights Reserved COMPANY CONFIDENTIAL 3 (5) January 3, 2006 BT Antenna Exhibit 9 Internal Photographs FCC ID: GMLRM-88 Applicant: Nokia, Inc. IC: 661N-RM-88 Copyright © 2005-2006. All Rights Reserved COMPANY CONFIDENTIAL 4 (5) January 3, 2006 GSM Antenna Exhibit 9 Internal Photographs FCC ID: GMLRM-88 Applicant: Nokia, Inc. IC: 661N-RM-88 Copyright © 2005-2006. All Rights Reserved COMPANY CONFIDENTIAL 5 (5) January 3, 2006 Exhibit 9 Internal Photographs FCC ID: GMLRM-88 Applicant: Nokia, Inc. IC: 661N-RM-88 Copyright © 2005-2006. All Rights Reserved

TCC Company Confidential 1 ( 32) FCC ID: GMLRM-88 Test & Certification Center (TCC) - Dallas Test Report #: WR895.002 Amended A 17-Jan-06 Accredited Laboratory Certificate Number: 1819-01 Ver 2.0 Bluetooth Test Report Test Report Number: WR895.002 Terminal device: FCC ID: GMLRM-88 Model: E 62-1 Type: RM-88 HW: 4004 SW: Vp5.4002.00 (Detailed information is listed in section 4). Originator: Michael Sundstrom Function: TCC - Dallas – EMC Version/Status: 1.0 / Approved Location: TCC Directories Date: 17-Jan-06 Change History: Version Date Status Handled By Comments 0.1 14-Dec-05 Draft Michael Sundstrom 0.2 14-Dec-05 Review Hai To 1.0 14-Dec-05 Approved Hai To 1.1 17-Jan-06 Reviewed Michael Sundstorm 2.0 17-Jan-06 Approved Hai To ATCB003101 Testing laboratory: Test & Certification Center (TCC) Dallas Nokia Mobile Phones 6021 Connection Drive Irving, Texas 75039 U.S.A. Tel. 972-894-5000 Fax. Client: Nokia Inc. Nokia Mobile Phones 6021 Connection Drive Irving, Texas 75039 U.S.A. Tel. 972-894-5000 Date and signatures: 17-Jan-06 For the contents: Michael Sundstrom Operator Review Hai To Technical Review CFR 47 Part 15.247 Test Report © 2006 Nokia Mobile Phones TCC Company Confidential 2 ( 32) FCC ID: GMLRM-88 Test & Certification Center (TCC) - Dallas Test Report #: WR895.002 Amended A 17-Jan-06 Accredited Laboratory Certificate Number: 1819-01 Ver 2.0 TABLE OF CONTENTS 1. GENERAL.................................................................................................................................................................. 4 1.1 QUALITY SYSTEM.................................................................................................................................................. 4 1.2 OBJECTIVE........................................................................................................................................................... 4 1.3 TEST SUMMARY.................................................................................................................................................... 4 2. STANDARDS BASIS................................................................................................................................................. 5 3. LIST OF ABBREVIATIONS, ACRONYMS AND TERMS......................................................................................... 6 3.1 ABBREVIATIONS.................................................................................................................................................... 6 3.2 ACRONYMS........................................................................................................................................................... 6 3.3 TERMS................................................................................................................................................................. 6 4. EQUIPMENT-UNDER-TEST (EUT)........................................................................................................................... 7 4.1 DESCRIPTION OF TESTED DEVICE(S):..................................................................................................................... 7 5. TEST EQUIPMENT LIST........................................................................................................................................... 8 6. EUT TEST SETUPS................................................................................................................................................... 9 6.1 EUT TEST SET-UP A (CONDUCTED MEASUREMENT)................................................................................................. 9 7. CARRIER FREQUENCY SEPARATION................................................................................................................. 10 7.1 SETUP................................................................................................................................................................ 10 7.2 TEST RESULTS................................................................................................................................................... 10 7.3 EUT OPERATION MODE....................................................................................................................................... 10 7.4 PASS/FAIL CRITERIA........................................................................................................................................... 11 7.5 RESULTS............................................................................................................................................................ 11 8. NUMBER OF HOPPING FREQUENCIES............................................................................................................... 12 8.1 SETUP................................................................................................................................................................ 12 8.2 TEST RESULTS................................................................................................................................................... 12 8.3 EUT OPERATION MODE....................................................................................................................................... 12 8.4 PASS/FAIL CRITERIA........................................................................................................................................... 12 8.5 RESULTS............................................................................................................................................................ 13 9. TIME OF OCCUPANCY........................................................................................................................................... 14 9.1 SETUP................................................................................................................................................................ 14 9.2 TEST RESULTS..............…

Text truncated - open the document above for the full version.

TCC Company Confidential 1 (11) Test & Certification Center (TCC) - Dallas Test Report #: WR-896.004 DTX-1276-EN-1.0 December 14, 2005 Accredited Laboratory Certificate Number: 1819-01 Ver 1.0 CFR 47 Part 15.247 Test Report © 2005 Nokia Mobile Phones Bluetooth Test Report Test Report Number: WR-896.004 Terminal device: FCC ID: GMLRM-88 Model: E62-1 Type: RM-88 Build: 4.0 SW: 5.4002 (Detailed information is listed in section 4). Originator: Cindy Trinh Function: TCC - Dallas – EMC Version/Status: Approved Location: TCC Directories Date: December 14, 2005 Change History: Version Date Status Handled By Comments 0.1 13-Dec-05 Draft Cindy Trinh 0.2 13-Dec-05 Proposal Cindy Trinh 0.3 14-Dec-05 Review Mark Severson 1.0 14-Dec-05 Approved Mark Severson Testing laboratory: Test & Certification Center (TCC) Dallas Nokia Mobile Phones 6021 Connection Drive Irving, Texas 75039 U.S.A. Tel. 972-894-5000 Fax. Client: Nokia Inc 6021 Connection Drive Irving, Texas 75039 U.S.A. Tel. 972-894-5000 Date and signatures: December 14, 2005 For the contents: Cindy Trinh Test Engineer Mark Severson Technical Review TCC Company Confidential 2 (11) Test & Certification Center (TCC) - Dallas Test Report #: WR-896.004 DTX-1276-EN-1.0 December 14, 2005 Accredited Laboratory Certificate Number: 1819-01 Ver 1.0 CFR 47 Part 15.247 Test Report © 2005 Nokia Mobile Phones TABLE OF CONTENTS 1. GENERAL .................................................................................................................................................................. 3 1.1 QUALITY SYSTEM.................................................................................................................................................. 3 1.2 OBJECTIVE........................................................................................................................................................... 3 1.3 TEST SUMMARY.................................................................................................................................................... 3 2. STANDARDS BASIS ................................................................................................................................................. 4 3. LIST OF ABBREVIATIONS, ACRONYMS AND TERMS ......................................................................................... 5 3.1 ABBREVIATIONS.................................................................................................................................................... 5 3.2 ACRONYMS........................................................................................................................................................... 5 3.3 TERMS................................................................................................................................................................. 5 4. EQUIPMENT-UNDER-TEST (EUT) ........................................................................................................................... 6 4.1 DESCRIPTION OF TESTED DEVICE(S):..................................................................................................................... 6 5. TEST EQUIPMENT LIST ........................................................................................................................................... 6 6. EUT TEST SETUPS ................................................................................................................................................... 7 6.1 EUT TEST SET-UP (RADIATED MEASUREMENT)........................................................................................................ 7 7. RADIATED EMISSIONS ............................................................................................................................................ 8 7.1 SETUP.................................................................................................................................................................. 8 7.2 TEST RESULTS..................................................................................................................................................... 9 7.3 EUT OPERATION MODE......................................................................................................................................... 9 7.4 PASS/FAIL CRITERIA............................................................................................................................................. 9 7.5 RESULTS............................................................................................................................................................ 10 © No part of this report shall be reproduced out of the context of the report without the written approval of Nokia Mobile Phones, Inc., Dallas Product Creation, TCC – Dallas. TCC Company Confidential 3 (11) Test & Certification Center (TCC) - Dallas Test Report #: WR-896.004 DTX-1276-EN-1.0 December 14, 2005 Accredited Laboratory Certificate Number: 1819-01 Ver 1.0 CFR 47 Part 15.247 Test Report © 2005 Nokia Mobile Phones 1. GENERAL 1.1 Quality System The quality system in place for TCC-Dallas conforms to ISO/IEC 17025 and has been audited to the standard by A2LA (American Association of Laboratory Accreditation). TCC - Dallas has also been audited using the ISO 9000 Quality System, as part of Nokia Mobile Phones, Inc., by ABS (American Bureau of Shipping) Quality Evaluations Inc. TCC-Dallas is a recognized laboratory with the Federal Communications Commission in filing applications for Certification under Parts 15 and 18, Registration Number 100060, and Industry Canada, Registration Number IC 661. 1.2 Objective All tests and measurement data shown was performed to determine whether the selected handset was in compliance as specified in FCC: CFR47 Parts 15.207 and 15.247. 1.3 Test Summary Test Results: The test result relates only to those tested devices mentioned in Section 4 of this test report. Test Pe…

Text truncated - open the document above for the full version.

COMPANY CONFIDENTIAL 1 (2) FCC ID: GMLRM-88 IC: 661N-RM88 December 14, 2005 WR 895 Part 15 set-up: Part 2 Set-up: COMPANY CONFIDENTIAL 2 (2) FCC ID: GMLRM-88 IC: 661N-RM88 December 14, 2005 Part 2 BT Set-up:

TCC Company Confidential 1 ( 2) FCC ID: GMLRM-88 Test & Certification Center (TCC) - Dallas Test Report #: WR-896 Accredited Laboratory DTX15927-EN-1.0 December 12, 2005 Certificate Number: 1819-01 Ver 1.0 Phone setups part 15,2, 22 and 24 Tested Device RM-88 TCC Company Confidential 2 ( 2) FCC ID: GMLRM-88 Test & Certification Center (TCC) - Dallas Test Report #: WR-896 Accredited Laboratory DTX15927-EN-1.0 December 12, 2005 Certificate Number: 1819-01 Ver 1.0 AC-4U HS-40
