GPI-M5P001Wireless hand hygiene monitor

Welcome to MedSense Dear MedSense user, We would like to thank you for using our product and welcome you to the MedSense community. We share your goal of achieving the highest possible level of hygiene in your hospital, and we hope using our product makes your life simpler. Sincerely, The MedSense Team Contents Welcome to MedSense Inventory Checklist How MedSense Works Setting Up MedSense Step #1 – web registration Step #2 – Beacon installation Step #3 – Dispenser Monitor installation Step #4 – connecting your Base Using MedSense Beacon Dispenser Monitor Base Badge Privacy Policy Legal Statements Inventory Checklist • Badge • Badge battery • Badge clip • Sheet of badge labels • Dispenser Monitor • Dispenser Monitor brackets • Beacon • Beacon brackets • Base • Ethernet cable • Base power supply How MedSense Works MedSense is a combination of four easy-to-use wireless devices that monitor and record compliance performance at point-of-care areas. These devices take advantage of low-power wireless communication and the latest web technologies to offer you a simple, powerful, and accurate hand hygiene compliance monitoring solution. The MedSense Badge The MedSense Badge, worn like an identity card, collects hand hygiene compliance data as the healthcare worker delivers care around the hospital. The MedSense Beacon The MedSense Beacon is a low-profile, battery-powered device that is placed above a patient bed or other point of care with a semi-permanent adhesive backing. The Beacon establishes a wireless patient zone that allows the Badge to identify hand hygiene opportunities. The MedSense Dispenser Monitor The MedSense Dispenser Monitor acts as a holster for sanitizer bottles. When a healthcare worker uses a sanitizer bottle, the Dispenser Monitor signals the user’s Badge, which in turn records a hand hygiene action. The MedSense Base The MedSense Base functions as a wireless base station through which Badges upload compliance data to MedSense HQ. The Base also functions as a battery charger for the Badge, capable of charging up to sixteen Badge batteries to full capacity in two hours. MedSense HQ MedSense HQ, General Sensing’s cloud-based web application, is what ties all four devices together. Setting Up MedSense Step #1: Registering Your Devices Log into MedSense HQ and follow prompts to register each component of the MedSense system. You will need the 8-digit ID numbers found on each device in order to complete the registration process. Step #2: Installing and Calibrating your Beacon 1. Locate the Beacon on the wall behind the patient’s bed, or near the center line of the bed. Keep a clear line of sight between the Beacon and the Badges. 2. Install brackets at heights between 1.5 and 2.5 meters, using either the screws or adhesive provided. 3. Supply power to the Beacon using only the provided power supplies, either by plugging into the wall or using batteries. Step #3: Installing your Dispenser Monitor 1. Mount the Dispenser Monitor, either on a table top or using the brackets provided to anchor it to a vertical surface, such as a wall or bed frame. 2. Insert a 500 mL pump bottle. Step #4: Setting up your Base Station 1. Locate the Base centrally, such as on a nursing station. Do not place the base within a metal box, as this will cause connection problems. 2. The base can be mounted on either a table top or on the wall, using the screws provided. 3. Connect the Base station to the Ethernet port using the Ethernet cable provided. 4. The Base is connected once the light turns green. Step #5: Attaching your Badge 1. Write the health care worker’s name on a label provided and adhere the label to the Badge. 2. Clip a battery onto the Badge. 3. Locate the Badge on the torso, hanging in portrait mode and facing out, for the most accurate connection. 4. Placing the Badge in a pocket is not recommended. Using MedSense MedSense Beacon Power When the Beacon is fully charged and working properly, you will see a blue blinking light. If it is battery powered, batteries will last approximately six months. A blinking red light means low power and maintenance is needed promptly. To change the batteries, remove the Beacon from the wall and unscrew the battery door. Replace the batteries with six AA batteries, either Alkaline or rechargeable. Care Instructions To clean the Beacon, wipe down in place with a cloth. MedSense Dispenser Monitor Use The Dispenser Monitor blinks blue when it detects dispensing soap or alcohol to user. Power The expected battery life for the Dispenser Monitor is more than five years. If the light blinks red when product is dispensed, the battery is low. Maintenance is required to change two AA batteries. If no light is flashing when product is dispensed, try cleaning the Dispenser Monitor. If, after cleaning, it is still not activating, contact maintenance. Care Instructions Run water through the top of the device. [Remove pump bottle?] MedSense Base Charging Batteries The Base can charge up to sixteen Badge batteries to full capacity in two hours. Individual indicator lights on each battery slot indicate charging status. A blinking blue light means a battery is charging, with a solid blue light indicating a fully charged battery. Base Connection Status 1. Base Station Online ............................................................................Green, Solid 2. Base Station Attempting to Connect ...................................................Amber, Solid 3. User Attention Required ...................................................................Green, Blinking 4. Base Station Internal Error ...........................................................Amber, Blinking Troubleshooting LED State: Solid Amber Status: Base Station Attempting to Connect Explanation: Your Base Station is trying to connect to MedSense servers on the Internet. The Base Station will go through this step during normal operation, but it should transition to Online (solid green) after about 8 seconds…

Text truncated - open the document above for the full version.

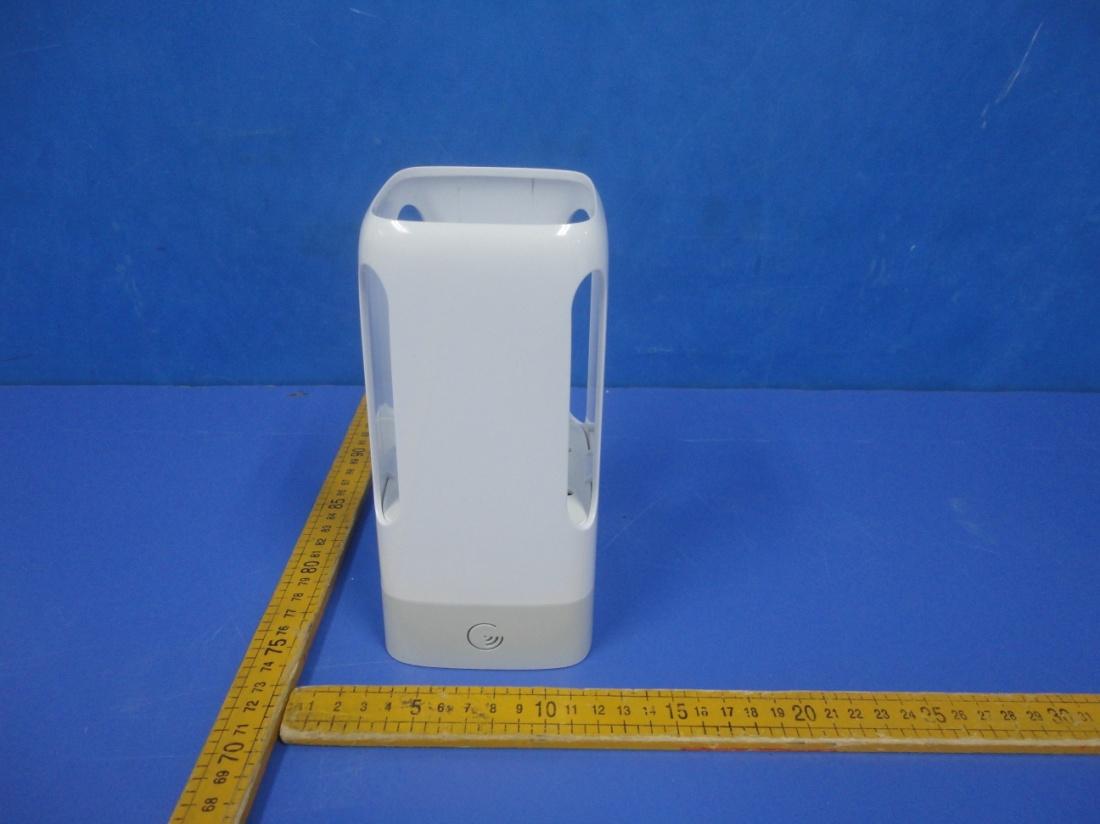

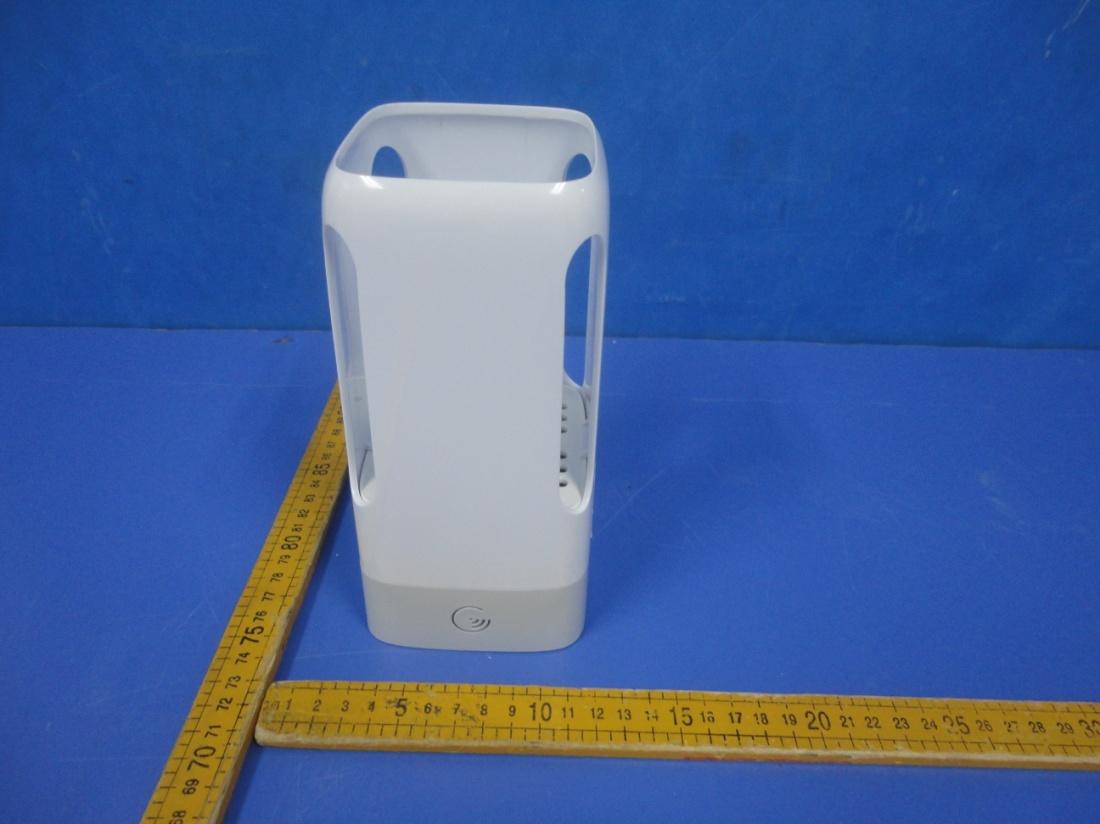

External Photos of M5P001

Pump bottle Detail: 3D Detail positioning 38.0 60.0 9.0 4.0 33.0 8.8 21.0 R2 16 www.wilddesign.cn 2012 /MAR /08              

Label location Label location

Internal Photos of M5P001 Antenna 1 Antenna 3 Antenna 2 Antenna 4

Report Number: 68.760.12.168.01 Page 1 of 34 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC/IC - TEST REPORT Report Number : 68.760.12.168.01 Date of Issue: 17 October 2012 Model : M5P001 Product Type : Medsense Dispenser Monitor Applicant : General Sensing Limited Address : Unit 716, Cyberport 1, 100 Cyberport Road, Pok Fu Lam, Hong Kong Manufacture : General Sensing Limited Address : Unit 716, Cyberport 1, 100 Cyberport Road, Pok Fu Lam, Hong Kong Test Result :  Positive  Negative Total pages including Appendices : 34 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.760.12.168.01 Page 2 of 34 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents.......................................................................................... 2 2 Details about the Test Laboratory..................................................................... 3 3 Description of the Equipment Under Test............................................................ 4 4 Summary of Test Standards............................................................................. 5 5 Summary of Test Results................................................................................ 6 6 General Remarks.......................................................................................... 7 7 Technical Requirements................................................................................. 8 7.1 Field strength of emissions and Restricted bands ....................................... 8 7.2 Receiver Spurious Emissions ................................................................. 18 7.3 Out of band emissions .......................................................................... 24 7.4 20dB Bandwidth & 99% bandwidth .......................................................... 30 8 System Measurement Uncertainty................................................................... 34 Report Number: 68.760.12.168.01 Page 3 of 34 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Test site1: Company name: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test site2: Company name: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.760.12.168.01 Page 4 of 34 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: Medsense Dispenser Monitor Model no.: M5P001 Brand Name: Medsense Options and accessories: NIL Rating: 3.0VDC(Supplied by 2*1.5V AA batteries) RF Transmission Frequency: 2401.999MHz - 2480.920MHz Total three frequencies: 2401.999MHz, 2440.294MHz, 2480.920MHz Antenna Gain: 5dBi Description of the EUT: NIL Auxiliary Equipment Used during Test: DESCRIPTION MANUFACTURER MODEL NO.(SHIELD) S/N(LENGTH) --- --- --- --- Report Number: 68.760.12.168.01 Page 5 of 34 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 4 Summary of Test Standards Test Standards FCC Part 15 Subpart C 10-1-2011 Edition PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-Gen Issue 3 December 2010 General Requirements and Information for the Certification of Radio Apparatus RSS-210 Issue 8 December 2010 RSS-210 — Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment Report Number: 68.760.12.168.01 Page 6 of 34 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 5 Summary of Test Results Technical Requirements FCC Part 15 Subpart C, RSS-Gen, RSS-210 Test Condition Pages Test Site Test Result Pass Fail N/A 15.207 & RSS-Gen …
