GSO300037Remote Control,433MHz

FCC Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. IC Warning: -English: " This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." -French:" Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'app areil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouilla ge radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctio nnement."

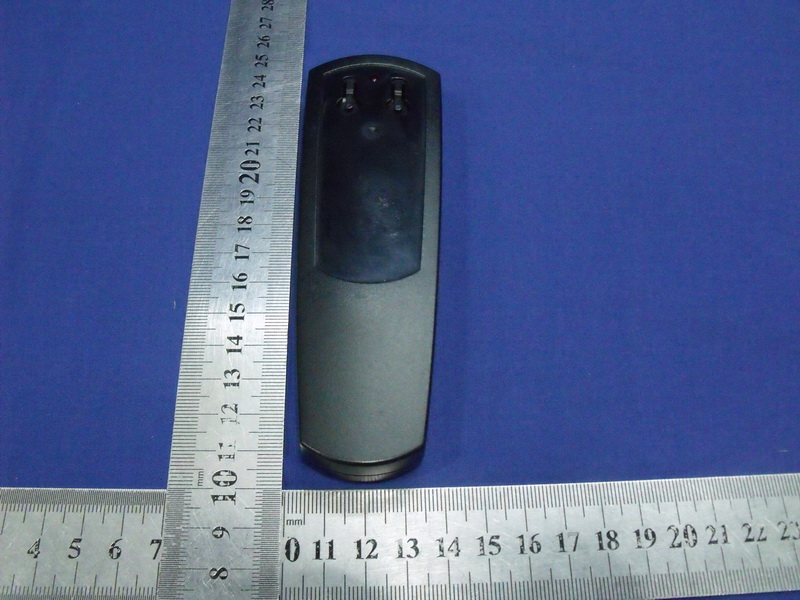

External of EUT

FCC ID Label 40x60mm Remote Control, 433MHz FCC ID: GSO300037 IC: 10286A-DF2690T DF2690-T

Lable location

Internal of EUT Internal of EUT

SHENZHEN EMTEK Co., Ltd. REPORT NO.: ES120320090F FCC ID: GSO300037 DATE: 04/10/2012 Page 1 of 24 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Remote Control, 433MHz MODEL No.: DF2690-T Tr a d e mar k : Dimplex FCC ID: GSO300037 REPORT NO: ES120320090F ISSUE DATE: April 05, 2012 Prepared for Shenzhen Yitoa Intelligent Control Co., Ltd. A1 Building, Longma Industry Estate, Shiyan Town, Baoan District, Shenzhen, China Prepared by SHENZHEN EMTEK Co., Ltd. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK Co., Ltd. REPORT NO.: ES120320090F FCC ID: GSO300037 DATE: 04/10/2012 Page 2 of 24 VERIFICATION OF COMPLIANCE Applicant: Shenzhen Yitoa Intelligent Control Co., Ltd. A1 Building, Longma Industry Estate, Shiyan Town, Baoan District, Shenzhen, China Product Description: Remote Control, 433MHz Model Number: DF2690-T Serial Number: N/A Modulation: ASK File Number: ES120320090F Date of Test: March 20, 2012 to April 05, 2012 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved By David Lee/ Q.A. Manager SHENZHEN EMTEK Co., Ltd. SHENZHEN EMTEK Co., Ltd. REPORT NO.: ES120320090F FCC ID: GSO300037 DATE: 04/10/2012 Page 3 of 24 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM................................................................................................... 10 3. SUMMARY OF TEST RESULTS ....................................................................................... 11 4. DESCRIPTION OF TEST MODES .................................................................................... 11 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 12 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 12 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 12 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 12 5.4 MEASUREMENT RESULT:....................................................................................................................... 12 5.5 CONDUCTED MEASUREMENT PHOTOS: ...................................................................................................... 12 6. RADIATED EMISSION TEST ............................................................................................ 13 6.1 MEASUREMENT PROCEDURE................................................................................................................. 13 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 14 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 6.4 CALCULATION OF AVERAGE FACTOR.................................................................................................... 15 6.5 MEASUREMENT RESULT........................................................................................................................ 17 7. DEACTIVATION TESTING ............................................................................................... 19 7.1 REQUIREMENT....................................................................................................................................... 19 7.2 TEST SET-UP ............................................................................................................................................. 19 7.3 MEASUREMENT EQUIPMENT USED: .........................................................…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST RADIATED EMISSION TEST
