GSS-VS181882.4G & 5G WiFi ViewBoard Cast Button

ViewBoard® Cast Button VS18188 & VS18189 User Guide Brugervejledning Handleiding Käyttöopas Manuel utilisateur Bedienungsanleitung Manuale utente Brukerveiledning Podręcznik użytkownika Руководство пользователя Guía del usuario Användarguide Kullanım Kılavuzu Device Requirements • Windows 7/8/10 • MacOS 10.10 or later • ViewSonic IFP/CDE series device(s) with vCastReceiver installed and activated. • VS18188: Device supports fully featured USB Type-C function that covers USB & DP. • VS18189: Device supports HDMI & USB Type-A. Pairing Windows PC and MacBook Pairing VS18188 Figure 1 VS18189 Figure 2 1. Plug-in the ViewBoard® Cast Button into your Windows PC or MacBook to pair. • For VS18188: Please plug-in to the USB Type C port (Figure 1). • For VS18189: Please plug-in to both the HDMI out and USB Type A ports (Figure 2). 2. If it is the first time to pair the ViewBoard® Cast Button with your Windows PC, please double click “ViewBoard Cast.exe” in: PC > CD Drive > ViewBoard Cast. NOTE: If running on a MacBook, please enter the user password to access the application installation permission. 3. For PC, with the application installed, ViewBoard® Cast will launch automatically after the ViewBoard® Cast Button is plugged into the PC. 4. The pairing dialogue box will pop up on your PC. Please enter the Network Name, Password, and the vCastReceiver IP address shown on the IFP/CDE device(s) home screen. 5. Click OK to complete the pairing of the ViewBoard® Cast Button and the IFP/CDE device(s) (Figure 3). Figure 3 6. Remove the ViewBoard® Cast Button and then plug it in again to start sharing (Figure 4). Figure 4 7. If the ViewBoard® Cast Button has been paired, and you would like to pair it with another IFP/CDE device, please click the “Pairing-Switch Button” at the bottom right corner (Figure 5) and re-enter the network information to re-pair the ViewBoard® Cast Button (Figure 6). After the ViewBoard® Cast Button is re-paired, please remove it and plug it in again to start sharing. Figure 5 Figure 6 ViewBoard IFP/CDE Pairing You can also plug-in the ViewBoard® Cast Button into IFP/CDE device(s) to pair if the IFP/CDE device(s) is connected to a LAN (Ethernet cable). For VB-WPS-001: 1. Attach the USB Type C to USB Type A adapter to the VS18188 ViewBoard® Cast Button (Figure 7). 2. Then plug the ViewBoard® Cast Button into the IFP/ CDE device’s USB port for pairing. Figure 7 NOTE: The USB Type C to USB Type A adapter is for optional IFP/CDE device pairing only. For VS18189: 1. Plug the USB Type A cable into the IFP/CDE device’s USB port for pairing. 2. A “Pairing” dialogue box will appear. 3. Enter the Network Name and Password, then select Save to pair (Figure 8). Figure 8 Screen Sharing Figure 1 Figure 2 Figure 3 Figure 4 NOTE: Ensure the ViewBoard® Cast Button is plugged into your Windows PC/MacBook. 1. When the ViewBoard® Cast Button is connecting to your device, the LED indicator will be flashing blue. Your device is ready for screen sharing when the LED indicator changes to static blue (Figure 1). 2. Tap the button of the ViewBoard® Cast Button to share your device’s screen to another display. The LED indicator will change from blue to white when it’s successfully connected and sharing (Figure 2). 3. If the LED indicator only flashes white and fails to connect, please ensure the IFP/CDE device(s) are working correctly and that the pairing information is entered correctly (Figure 3 and 4). Regulatory and Service Information FCC Compliance Statement NOTE: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. Canadian Regulatory Statements This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio ex…

Text truncated - open the document above for the full version.

ViewSonic Corporation 10 Pointe Drive, Suite 200, Brea, CA 92821, United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Dec. 08, 2020 Subject: Declaration Operating Channel Limitation FCC ID: GSS-VS18188 To Whom it may concern, This device is acting as slave/client device under the control of a master. The operating channels in 802.11 b/g/n mode for this device marketed to the US are firmware limited to channel 1 ~ 11 (2412 ~ 2462 MHz). The end-user has no possibility to select any other operating channels. If you have any questions, please feel free to contact me. Thank you. Sincerely, Signatory ViewSonic Corporation Contact person: Sophia Wu Title: Compliance Assistance Manager

ViewSonic Corporation 10 Pointe Drive, Suite 200, Brea, CA 92821, United States Agent Authorization Company: ViewSonic Corporation Address: 10 Pointe Drive, Suite 200, Brea, CA 92821, United States Product Name: ViewBoard Cast Button Model Number(s): VS18188 Product Description: 2.4G & 5G WiFi ViewBoard Cast Button We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec. 08, 2020 Name: Sophia Wu Title: Compliance Assistance Manager Company: ViewSonic Corporation

ViewSonic Corporation 10 Pointe Drive, Suite 200, Brea, CA 92821, United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Dec. 08, 2020 Subject; Request for Confidentiality FCC ID: GSS-VS18188 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Software Security Description Parts List In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sophia Wu Title: Compliance Assistance Manager

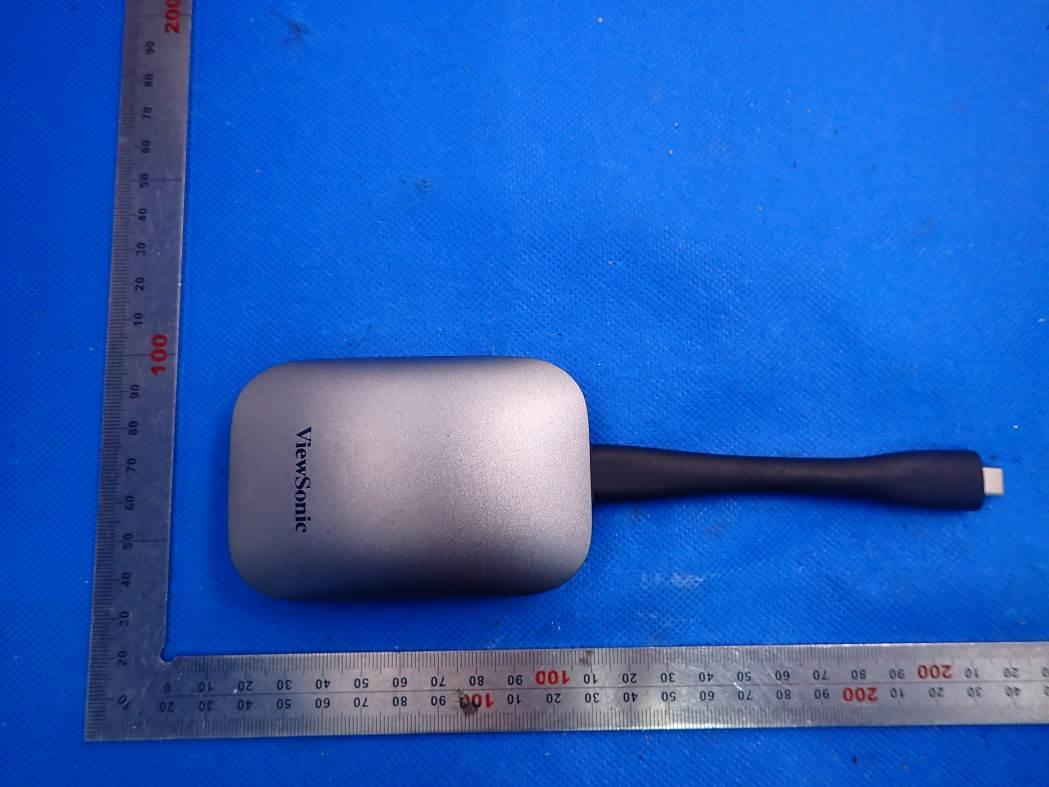

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID and IC Label Location 35mm*10mm ViewBoard Cast Button / Botón de Cast / Bouton Cast / 無線投屏器 Model No. / Número de modelo / Numéro de modèle / 產品型號: VS18188 Rating / Potencia nominal / Puissance nominale / 額定電源: 5V 650mA Serial No. / Número de serie / Numéro de série / 序號 : Made in China / Hecho en China / Fabriqué en Chine / 製造地中國 VB-WPS-001 ViewSonic Corporation 10 pointe Drive,Suite 200, Brea, CA 92821, United States ViewSonic Europe Limited / UK 1st Floor, Salamanca Place, 9 Alert Embankment, London Se1 7SP, United Kingdom IC: 4280A-VS18188 FCC ID: GSS-VS18188 CAN ICES-3(B)/NMB-3(B)

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description ViewBoard Cast Button Model Name VS18188 FCC ID GSS-VS18188 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. 2.4G WIFI Antenna Gain=3dBi (Numeric 2), π=3.14 5G WIFI Antenna Gain=3dBi (Numeric 2), π=3.14 Note: 1. Only the worst case recorded. 2. The 2.4GHz WIFI band and 5GHz band can transmit simultaneously: 0.0166/1+0.0187/1=0.0353<1 3. conclusion Compliance the RF exposure requirement Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2462 16.19 41.59 0.0166 1 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 5775 16.72 46.99 0.0187 1

Page 1 of 76 Report No.: AGC10540201101FE05 FCC ID : GSS-VS18188 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : ViewBoard Cast Button BRAND NAME : ViewSonic MODEL NAME : VS18188 APPLICANT : ViewSonic Corporation DATE OF ISSUE : Dec. 04, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd FCC Test Report Report No.: AGC10540201101FE05 Page 2 of 76 EPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 04, 2020 Valid Initial Release Report No.: AGC10540201101FE05 Page 3 of 76 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................... 7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 7 2.5. TEST METHODOLOGY ............................................................................................................................. 7 2.6. SPECIAL ACCESSORIES ......................................................................................................................... 7 2.7. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.8. ANTENNA REQUIREMENT....................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. OUTPUT POWER ........................................................................................................................................... 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 6 DB BANDWIDTH ......................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 16 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 22 Report No.: AGC10540201101FE05 Page 4 of 76 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 22 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 22 9.3. MEASUREMENT EQUIPMENT USEDJN ................................................................................................ 22 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 22 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 35 10.1 MEASUREMENT PROCEDURE ............................................................................................................ 35 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 35 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 35 10.4 LIMITS AND MEASUREMENT RESULT ................................................................................................. 35 11. RADIATED EMISSION ................................................................................................................................. 42 11.1. MEASUREMENT PROCEDURE............................................................................................................ 42 11.2. TEST SETUP .................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC10540201101FE05 Page 51 of 76 12.3. TEST RESULT EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2412MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 52 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2412MHZ Antenna Vertical PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 53 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2462MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 54 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2462MHZ Antenna Vertical PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 55 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2412MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 56 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2412MHZ Antenna Vertical PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 57 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2462MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 58 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2462MHZ Antenna Vertical PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 59 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n 20 with data rate 6.5 2412MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 60 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n 20 with data rate 6.5 2412MHZ Antenna Vertical PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 61 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n 20 with data rate 6.5 2462MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 62 of 76 EUT ViewBoard Cast Button Model Name VS18188 Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n 20 with data rate 6.5 2462MHZ Antenna Vertical PK AV RESULT: PASS Report No.: AGC10540201101FE05 Page 63 of 76 13. FCC LINE CONDUCTED EMISSION TEST 13.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P.( dBuV) Average( dBuV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 13.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST EUT & Support Units Report No.: AGC10540201101FE05 Page 64 of 76 13.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per ANSI C63.10 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2. Support equipment, if needed, was placed as per ANSI C63.10. 3. All I/O cables were positioned to simulate typical actual usage as per ANSI C63.10. 4. All support equipments received AC120V/60Hz power from a LISN, if any. 5. The EUT received DC 5V power from PC which received AC120V/60Hz power from a LISN. 6. The test program was started. Emissions were measured on each current carrying line of the EUT using a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 ohm load; the second scan had Line 1 connected to a 50 ohm load and Line 2 connected to the Analyzer / Receiver. 7. Analyzer / Receiver scanned from 150 kHz to 30MHz for emissions in each of the test modes. 8. During the above scans, the emissions were maximized by cable manipulation. 9. The test mode(s) were scanned during the preliminary test. Then, the EUT configuration and cable configuration of the above highest emission level were recorded for reference of final testing. 13.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. EUT and support equipment was set up on the test bench as per step 2 of the preliminary test. 2. A scan was taken on both power lines, Line 1 and Line 2, recording at least the six highest emissions. Emission frequency and amplitude were recorded into a computer in which correction factors were used to calculate the emission level and compare reading to the applicable limit. If EUT emission level was less –2dB to the A.V. limit in Peak mode, then the emission signal was re-checked using Q.P and Average detector. 3. The test data of the worst case condition(s) was reported on the Summary Data page. Report No.: AGC10540201101FE05 Page 65…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
