VB-WIFI-005 WiFi module Quick Start Guide Model No. VS19147 2 Thank you for choosing ViewSonic® As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well. Once again, thank you for choosing ViewSonic®! 3 Installation 1 3 2 4 4 5 6 7 5 Specifications Model name VB-WIFI-005 Model No. VS19147 Dimension Physical Packaging 99x11x77mm 3.90x0.43x3.03 in 90x16x157mm 3.54x0.63x6.18 in Weight 30g OPERATING CONDITION 32°F to 104°F (0°C to 40°C) 10% ~ 90% non-condensing STORAGE / SHIPPING CONDITION -4°F to 140°F (-20°C to 60°C) 10% ~ 90% non-condensing Antenna 2T2R dipole antenna Wi-Fi Standard 802.11 a/b/g/n/ac/ax Frequency 2.4G/5G Modulation 11b: DBPSK, DQPSK and CCK and DSSS 11a/g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11n: BPSK, QPSK,16QAM,64QAM and OFDM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM and OFDM 11ax:BPSK, QPSK, 16QAM, 64QAM, 256QAM, OFDM and OFDMA BT: FHSS, GFSK, DPSK, DQPSK Power 5V DC, 900mA 6 Regulatory and Service Information Compliance Information NOTE: This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Industry Canada Statement CAN ICES-003(B) / NMB-003(B) Contains FCC ID : GSS-VS19147 IC : 4280A-VS19147 7 CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU and Radio Equipment Directive (RED) 2014/53/EU. The full Declaration of Conformity can be found at the following website: https://www.viewsonicglobal.com/public/products_download/safety_ compliance/acc/VB-WIFI-005_VS19147 _CE_DOC. pdf The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. In all EU member states, operation of 5150-5350MHz is restricted to indoor use only. Warning: This equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: SubstanceProposed Maximum Concentration Actual Concentration Lead (Pb)0.1%< 0.1% Mercury (Hg)0.1%< 0.1% Cadmium (Cd)0.01%< 0.01% Hexavalent Chromium (Cr6⁺)0.1%< 0.1% Polybrominated biphenyls (PBB)0.1%< 0.1% Polybrominated diphenyl ethers (PBDE)0.1%< 0.1% Bis (2-ethylhexyl) phthalate (DEHP)0.1%< 0.1% Butyl benzyl phthalate (BBP)0.1%< 0.1% Dibutyl phthalate (DBP)0.1%< 0.1% Diisobutyl phthalate (DIBP)0.1%< 0.1% 8 • Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound. •Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher. Indian Restriction of Hazardous Substances Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more. USA & Canada: https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program Europe: http://www.viewsoniceurope.c…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.0.docx ViewSonic Corporation FCC Software Configuration Control Declaration Date: Mar. 28, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: VB-WIFI-005 Model No.: VS19147 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: Mar. 28, 2022 Name:Sophia Wu Title: Compliance Assistance Manager Signature of applicant

Co m Ad d Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Vie dress: 10 P oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: ewSonic Co Pointe Dr. S e: VB-WIFI- er(s): VS191 ription: VB MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Sophia W u Complianc ViewSonic Vie Agen orporation Suite 200.B -005 147 B-WIFI-005 bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect u ce Assistan c Corporatio ewSonic C nt Auth Brea, Califo Boulder Co erning the c allowed to f regulatory a cation. Any t as acts of ce Manage on Corporation horizat ornia 92821 ourt, Pleasa certification forward all i agencies as and all acts our own. er n tion United Sta anton, Califo of above na information s required a s carried ou Date: ates ornia 94566 amed equip related to t nd to discu ut by MiCOM Mar. 28, 20 6, USA, to pment. the approva ss any M Labs on 022 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: C o of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: GSS-VS1 om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio SOFTW r understand pondence du ents and thi zation is iss ely, ure: Sophia Wu ompliance A ing Techno cations Com s Road 046 for Confiden 19147 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri WARE SECU ding that all uring the ce s informatio sued. Assistance View logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption URITY DES l measurem ertification re on will be av Manager wSonic Cor ssion’s rule old the follow nitely. m and equi e equipmen ould give co SCRIPTION ment test rep eview proce vailable for rporation s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: Mar. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 28, 2022 0.459, we al dered as documents the market . ntial quipment .

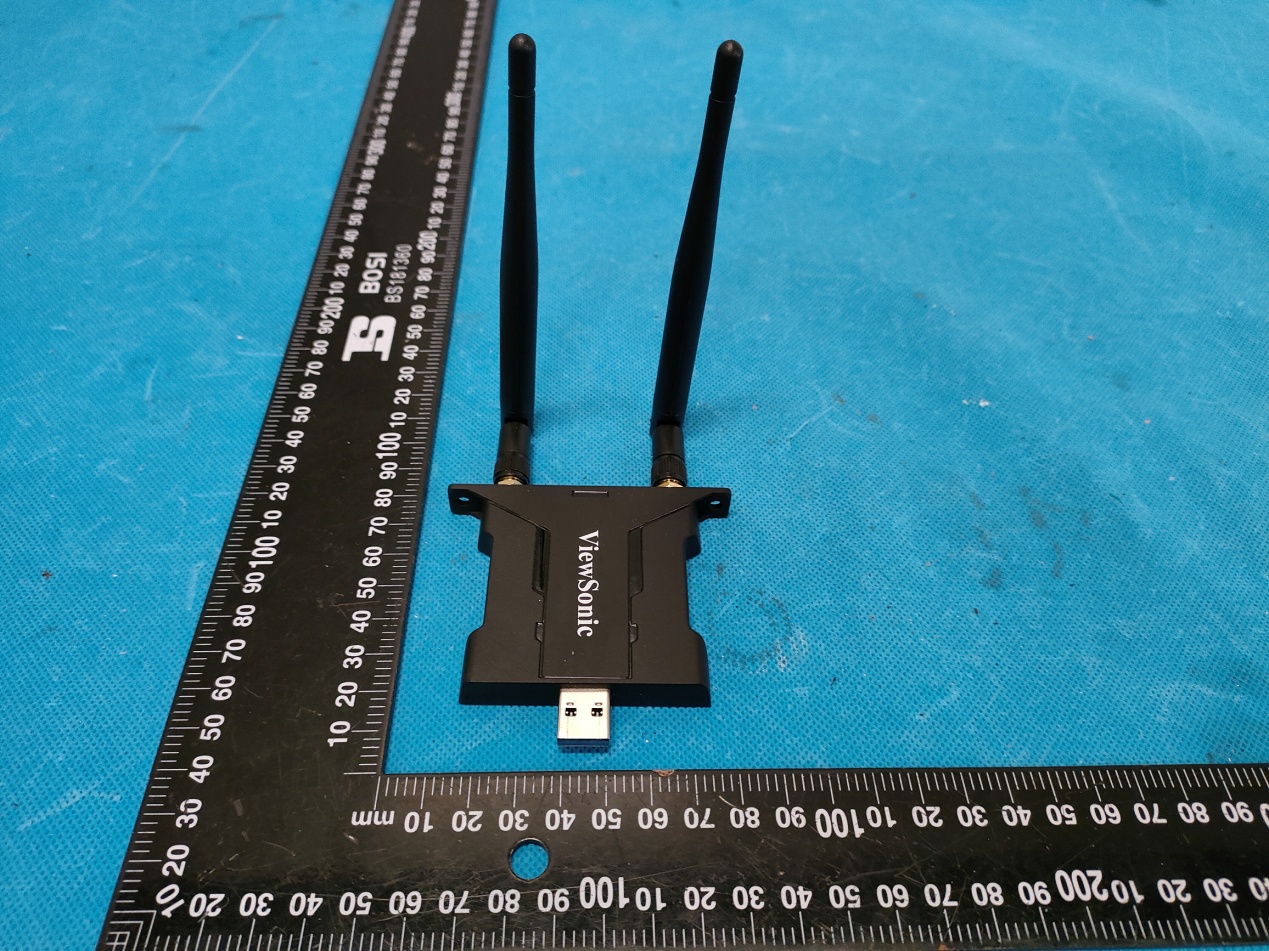

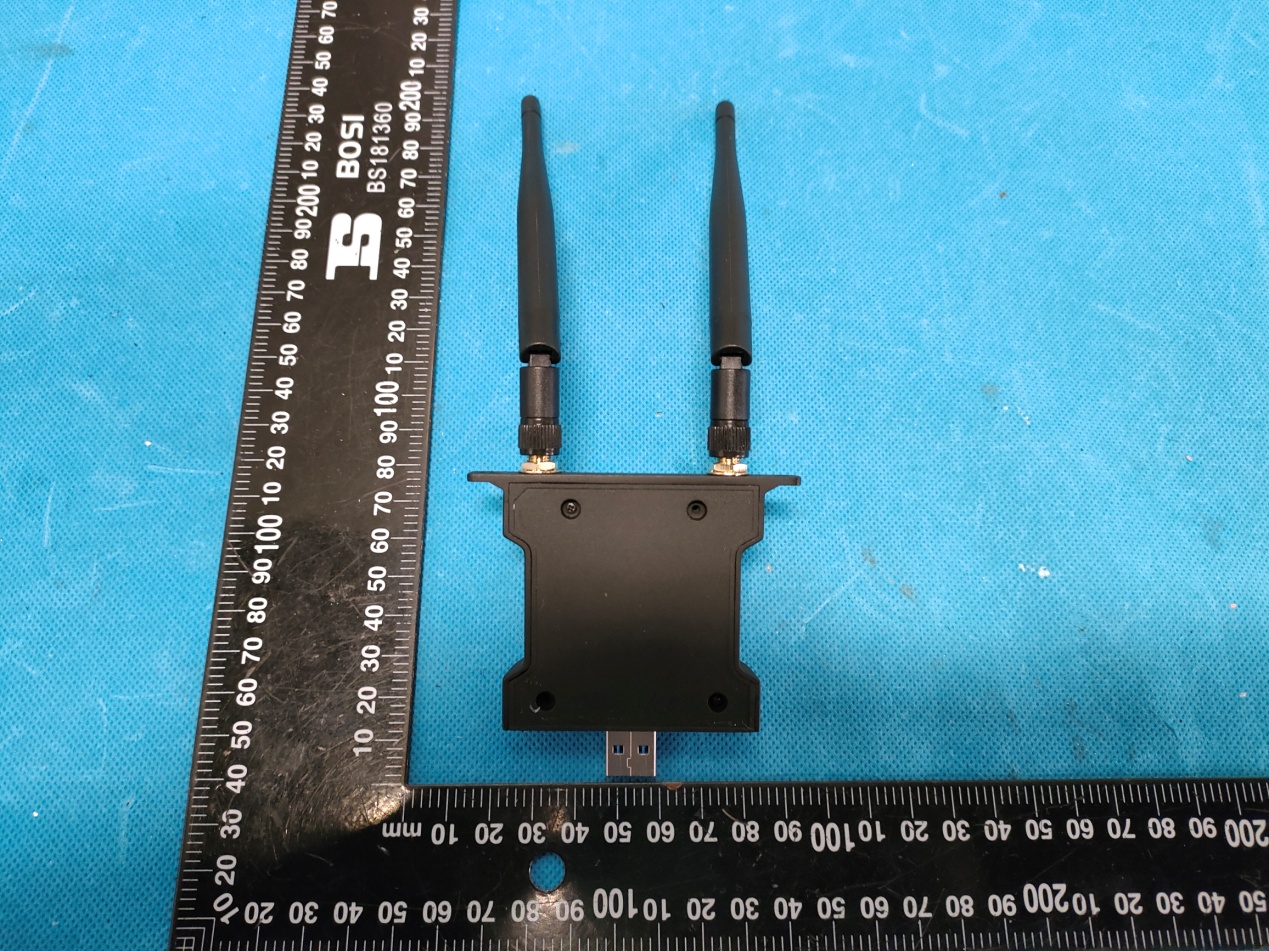

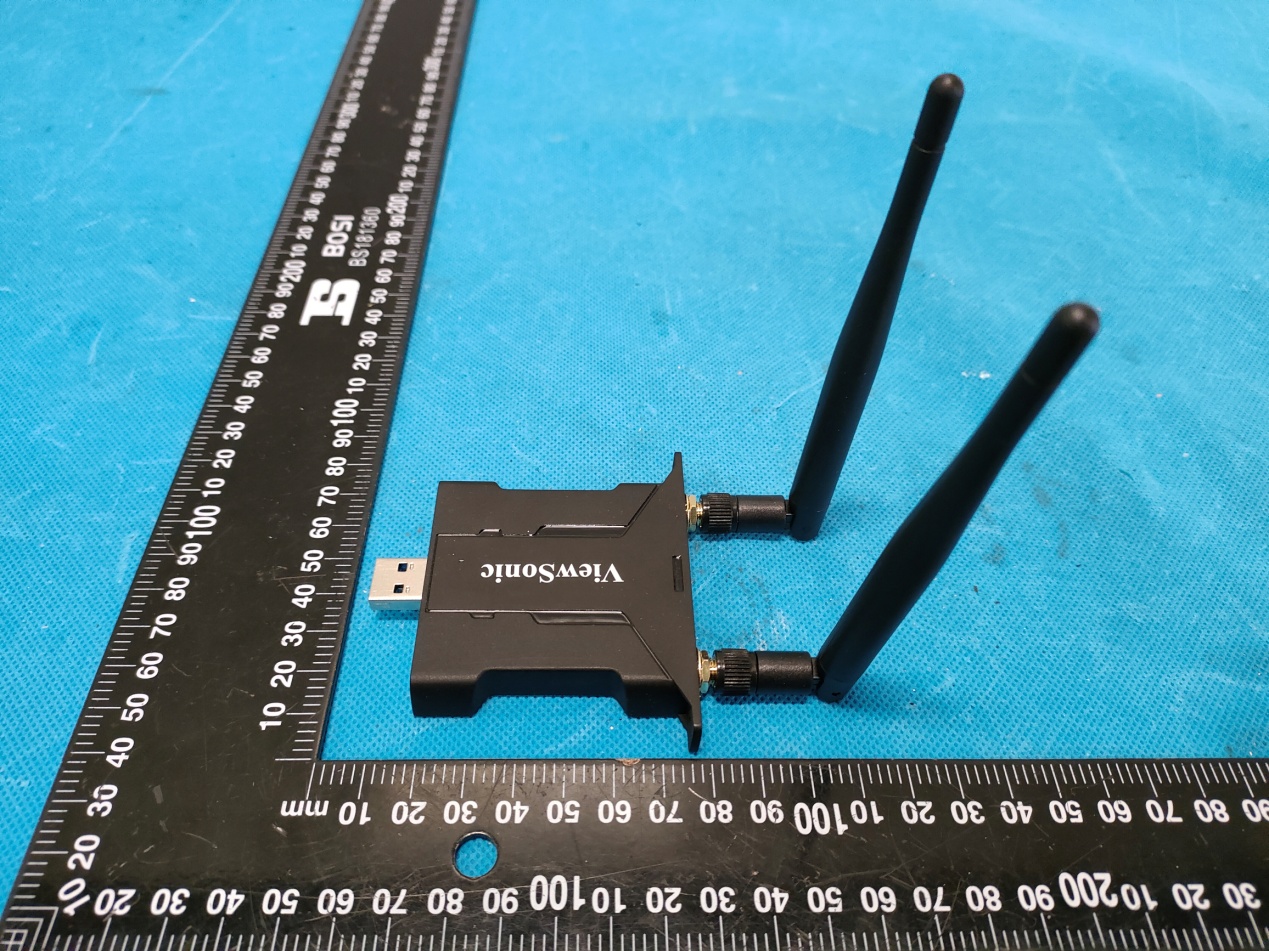

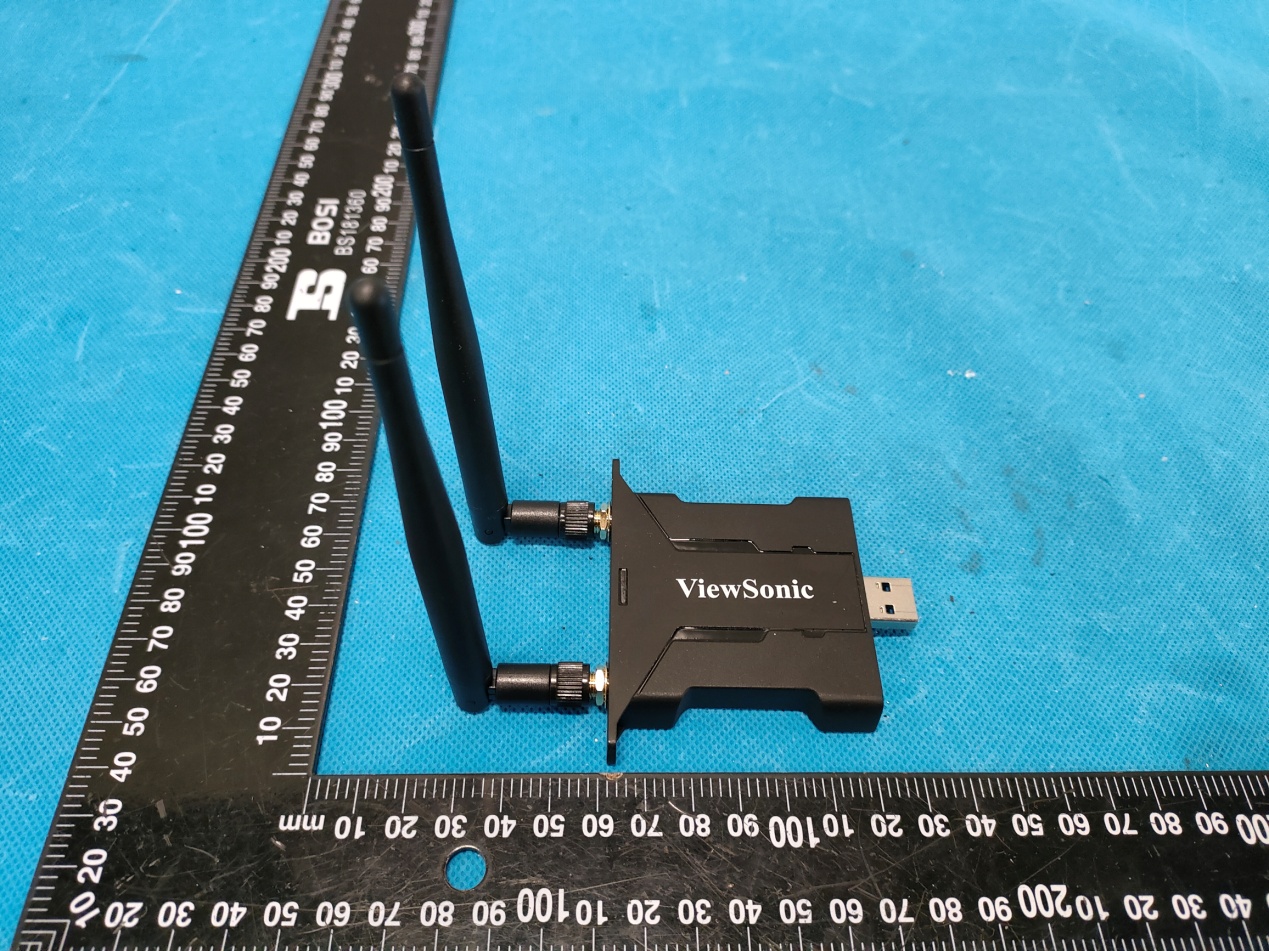

Annex A External Photos Test Model No.: VS19147 Page 1 of 3 Test Model No.: VS19147 Page 2 of 3 Test Model No.: VS19147 Page 3 of 3

FCC ID LABEL: Label Location FCC ID: GSS-VS19147

Annex B Internal Photo Test Model No.: VS19147 Page 1 of 3 Antenna 2.4G/5G Antenna Test Model No.: VS19147 Page 2 of 3 BT Antenna Test Model No.: VS19147 Page 3 of 3

MPE ESTIMATION FCC ID: GSS-VS19147 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result For 2.4G /5GWIFI/BT: Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 2.4G WIFI Ant 1 15.67 15±1(16) 39.81 3 2 0.01581 2.4G WIFI Ant 2 17.55 17±1(18) 63.10 3 2 0.02506 MIMO / / / / / 0.04087 5.2G WIFI Ant 1 14.55 14±1(15) 31.62 3.68 2.33 0.01469 5.2G WIFI Ant 2 12.23 12±1(13) 19.95 3.68 2.33 0.00927 MIMO / / / / / 0.02395 5.8G WIFI Ant 1 14.15 14±1(15) 31.623 3.68 2.33 0.01469 5.8G WIFI Ant 2 12.1 12±1(13) 19.953 3.68 2.33 0.00927 MIMO / / / / / 0.02395 EDR 7.82 7±1(8) 6.31 1.8 1.51 0.0019 BLE 5.32 5±1(6) 3.981 1.8 1.51 0.0012 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2202220572-1E/2E/3E/4E/5E, 2.4Gantenna gain=3dBi. 5Gantenna gain=3.68dBi. BTantenna gain=1.8dBi. WiFi and BT Simultaneous evaluation: 0.04087 mW/cm²+0.0019 mW/cm²=0.04277 mW/cm²<1. when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.04277 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. Note: the device could not transmit simultaneously in 2.4G and 5G. -------The End-------

Page 1 of 144 Report No.: HK2202220572-2E FCC TEST REPORT Test report On Behalf of ViewSonic Corporation For VB-WIFI-005 Model No.: VS19147 FCC ID: GSS-VS19147 Prepared For : ViewSonic Corporation 10 Pointe Dr. Suite 200.Brea, California 92821 United States Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Feb. 22, 2022 ~ Mar. 24, 2022 Date of Report: Mar. 24, 2022 Report Number: HK2202220572-2E Applican Address . Manufac t Address . Product d Trade Ma Product n Model an d Standard This publi the Shenz source of and will n o reproduce Date of Te Date (s) o Date of Is Te s t R e su t’s name ... .................. ture's Nam .................. description rk: ame ............ d/or type re ds ............... ication may zhen HUAK the materia ot assume ed material est ............. of performan ssue ............ ult ................ TES ............... : ............... : me ............. : ............... : n ................. : eference . : ............... : be reprod u K Testing Te al. Shenzhe liability for d due to its p .................. nce of tests .................. .................. Prepa r Review Approv ST RESU ViewSonic 10 Pointe D ViewSonic 10 Pointe D ViewSoni c VB-WIFI-0 VS19147 FCC Rule s ANSI C63 uced in who chnology C en HUAK Te damages re placement a ............. : ............. : ............. : ............. : red by: wed by: ved by: Page 2 of 1 ULT CER c Corporatio Dr. Suite 20 c Corporatio Dr. Suite 20 c 005 s and Regu .10: 2013 ole or in part Co., Ltd. is a esting Techn esulting from and context. Feb. 22, 2 0 Mar. 24, 20 Pass Pr Pro Te 144 RTIFICAT n 00.Brea, Cal n 00.Brea, Cal ulations Part t for non-co acknowledge nology Co., m the reade 022 ~ Mar. 2 022 roject Engi oject Supe chnical Di r Report TION lifornia 9282 lifornia 9282 t 15 Subpar ommercial p ed as copyr Ltd. takes er's interpret 24, 2022 ineer ervisor rector t No.: HK220 21 United S 21 United S rt E Section purposes as right owner no respons tation of the 02220572-2E States States n 15.407 s long as and ibility for e E Page 3 of 144 Report No.: HK2202220572-2E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION FREQUENCY EACH OF CHANNEL ............................................................................ 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.3. 6DB EMISSION BANDWIDTH .......................................................................................................... 19 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH .............................................................. 20 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 37 4.6. BAND EDGE ..................................................................................................................................... 59 4.7. SPURIOUS EMISSION ................................................................................................................... 114 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................. 139 4.9. ANTENNA REQUIREMENT ........................................................................................................... 141 5. PHOTOGRAPHS OF TEST SETUP ....................................................... 142 6. PHOTOS OF THE EUT .......................................................................... 144 Page 4 of 144 Report No.: HK2202220572-2E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Mar. 24, 2022 Jason Zhou Page 5 of 144 Report No.: HK2202220572-2E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) N/A 26dB Emission Bandwidth& 99% Occupied Bandwidth §15.407(a) PASS Power Spectral Density §15.407(a) PASS Band edge §15.407(b)/15.209/15.205 PASS Radiated Emission §15.407(b)/15.209/15.205 PASS Frequency Stability §15.407(g) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Tes…

Text truncated - open the document above for the full version.

Page 48 of 144 Report No.: HK2202220572-2E ANT 2 Configuration Band I (5150 - 5250 MHz ) Mode Test channel Level [dBm/MHz] Limit (dBm/MHz) Result 11a CH36 10.4 17 PASS 11a CH40 9.81 17 PASS 11a CH48 9.19 17 PASS 11n(HT20) CH36 8.56 17 PASS 11n(HT20) CH40 9.42 17 PASS 11n(HT20) CH48 8.98 17 PASS 11n(HT40) CH38 8.65 17 PASS 11n(HT40) CH46 8.19 17 PASS 11ac(HT20) CH36 9.07 17 PASS 11ac(HT20) CH40 9.19 17 PASS 11ac(HT20) CH48 8.73 17 PASS 11ac(HT40) CH38 9.73 17 PASS 11ac(HT40) CH46 9.05 17 PASS 11ac(HT80) CH42 8.9 17 PASS 11ax(HT20) CH36 10.82 17 PASS 11ax(HT20) CH40 10.59 17 PASS 11ax(HT20) CH48 9.54 17 PASS 11ax(HT40) CH38 9.6 17 PASS 11ax(HT40) CH46 10.53 17 PASS 11ax(HT80) CH42 8.64 17 PASS Test plots a Band I （5 as follows: 5150 – 5250 MHz） Page 49 of 1 802.11a Low Mid High 144 Report t No.: HK220 02220572-2E E 8 Page 50 of 1 02.11n(HT2 Low Mid High 144 20) Report t No.: HK220 02220572-2E E 80 Page 51 of 1 02.11n(HT4 Low High 144 40) Report t No.: HK220 02220572-2E E 80 Page 52 of 1 02.11ac(HT Low Mid High 144 20) Report t No.: HK220 02220572-2E E 80 Page 53 of 1 02.11ac(HT Low High 144 T40) Report t No.: HK220 02220572-2E E 80 Page 54 of 1 02.11ac(HT Low 144 T80) Report t No.: HK220 02220572-2E E 80 Page 55 of 1 02.11ax(HT Low Mid High 144 20) Report t No.: HK220 02220572-2E E 80 Page 56 of 1 02.11ax(HT Low High 144 T40) Report t No.: HK220 02220572-2E E 80 Page 57 of 1 02.11ax(HT Low 144 T80) Report t No.: HK220 02220572-2E E Page 58 of 144 Report No.: HK2202220572-2E For MIMO antenna port 1+antenna port 2 Configuration Band IV (5150 - 5250MHz ) Mode Test channel Power Density (dBm) Limit (dBm/MHz) Result 11n(HT20) CH36 12.40 16.31 PASS 11n(HT20) CH40 11.99 16.31 PASS 11n(HT20) CH48 11.59 16.31 PASS 11n(HT40) CH38 11.81 16.31 PASS 11n(HT40) CH46 11.13 16.31 PASS 11ac(HT20) CH36 12.75 16.31 PASS 11ac(HT20) CH40 12.46 16.31 PASS 11ac(HT20) CH48 11.62 16.31 PASS 11ac(HT40) CH38 12.25 16.31 PASS 11ac(HT40) CH46 11.69 16.31 PASS 11ac(HT80) CH42 11.93 16.31 PASS 11ax(HT20) CH36 13.92 16.31 PASS 11ax(HT20) CH40 13.41 16.31 PASS 11ax(HT20) CH48 12.70 16.31 PASS 11ax(HT40) CH38 13.29 16.31 PASS 11ax(HT40) CH46 12.51 16.31 PASS 11ax(HT80) CH42 12.22 16.31 PASS Note: 1 According to KDB 662911, Result power = 10log(10 (ant1/10 +10 (ant2/10) ). 2 Result unit: W, The end result is converted to units of dBm. limit=17dBm-(direction gain-6dBi)=17-(3.68+10log2-6)=16.31dBm Note: This product supports antenna 1 and antenna 2 launch, but only support 802.11 n/ac/ax for MIMO mode, not support 802.11 a for MIMO mode. 4.6. BAN 4.6.1. Tes Test Re Test M Limit: Test Se Test M ND EDGE st Specific equiremen ethod: etup: ode: E cation nt: FCC CF ANSI C6 (1) For tr emission an e.ir.p. (2) For t r emission an e.i.r.p (3) For t r emission an e.i.r.p (4) For t r (i) All em MHz or m to 10 dBm from 25 M a level of edge, an linearly t o The limit bands s h Transm Page 59 of 1 FR47 Part 63.10 2013 ransmitters o s outside of of -27 dBm/ ransmitters o s outside of . of-27 dBm/ ransmitters o s outside of . of-27 dBm/ ransmitters o issions shal more above m/MHz at 25 MHz above o f 15.6 dBm/M d from 5 MH o a level of 2 of frequenc hould compli itting mode 144 15E Sectio 3 operating in f the 5.15-5. /MHz. operating in f the 5.15-5. /MHz. operating in f the 5.47-5. /MHz. operating in l be limited or below th e 5 MHz abov or below the MHz at 5 MH Hz above or 27 dBm/MH cy below 1G ies 15.209. e with mod Report on 15.407 the 5.15-5.2 35 GHz ban the 5.25-5.3 35 GHz ban the 5.47-5.7 725 GHz ba the 5.725-5 to a level of e band edge ve or below t e band edge Hz above or below the b z at the ban Hz and whic dulation t No.: HK220 25 GHz ban nd shall not e 35 GHz ban nd shall not e 725 GHz ba and shall not 5.85 GHz ba f-27 dBm/M e increasing the band ed increasing r below the b band edge in nd edge. ch fall in rest 02220572-2E d: All exceed d: All exceed nd: All t exceed nd: Hz at 75 linearly ge, and linearly to band ncreasing tricted E Page 60 of 144 Report No.: HK2202220572-2E Test Procedure: 1. The EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. 2. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. 3. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. 4. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rota table was turned from 0 degrees to 360 degrees to find the maximum reading. 5. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 6. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi peak or average method as specified and then reported in a data sheet. Test Result: PASS Page 61 of 144 Report No.: HK2202220572-2E 4.6.2. Test Instruments Radiated Emission Test Site (966) Name of Equipment Manufacturer Model Serial Number Calibration Date Calibration Due Receiver R&S ESRP3 HKE-005 Dec. 09, 2021 Dec. 08, 2022 Spectrum analyzer Agilent N9020A HKE-048 Dec. 09, 2021 Dec. 08, 2022 Preamplifier EMCI EMC051845S E HKE-015 Dec. 09, 2021 Dec. 08, 2022 Preamplifier Agilent 83051A HKE-016 Dec. 09, 2021 Dec. 08, 2022 Loop antenna Schwarzbeck FMZB 1519 BHKE-014 Dec. 09, 2021 Dec. 08, 2022 Broadband antenna Schwarzbeck VULB 9163 HKE-012 Dec. 09, 2021 Dec. 08, 2022 Horn antenna Schwarzbeck 9120D HKE-013 Dec. 09, 2021 Dec. 08, 2022 Antenna Mast Keleto CC-A-4M N/A N/A N/A Position controller Taiwan MF MF7802 H…
