GU6-9855M5EThingMagic M5e

Monarch ® 9855 ® RFID Printer TC9855RFIDOH Rev. AE 12/07©2005 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp. All rights reserved. Each product and program carries a respective written warranty, the only warranty on which the customer can rely. Paxar reserves the right to make changes in the product, the programs, and their availability at any time and without notice. Although Paxar has made every effort to provide complete and accurate information in this manual, Paxar shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual. ©2005 Paxar Americas Inc. a subsidiary of Avery Dennison Corp. All rights reserved. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the prior written permission of Paxar Americas, Inc. WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipmentgenerates, uses, and can radiate radio frequency energy and, if not installed and used inaccordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CANADIAN D.O.C. WARNING This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériquesde la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada. Trademarks Monarch® and 9855 are trademarks of Paxar Americas, Inc. Paxar® is a trademark of Paxar Corporation. Avery Dennison® is a trademark of Avery Dennison Corporation. EPCglobal, Inc.™and Electronic Product Code™(EPC) are trademarks of Uniform Code Council, Inc. Uniform Code Council, Inc.®is a trademark of Uniform Code Council, Inc. I CODE® is a registered trademark of Philips Electronics N.V. Avery Dennison Printer Systems Division 170 Monarch Lane Miamisburg, OH 45342 i TABLE OF CONTENTS GETTING ST ARTED ..................................................................................... 1-1 Audience ................................................................................................ 1-2 Using this Manual ................................................................................... 1-2 Unpacking the Pr inter .............................................................................. 1-3 Shipping the Pr inter ............................................................................. 1-3 9445™ Printer Online Emulation ............................................................... 1-4 Ordering Programme r's Manual s............................................................... 1-4 About Monarch® MPCL™ T oolbox Utilit ies................................................. 1-4 Connecting the Powe r Cable .................................................................... 1-4 Establishing Comm unications ................................................................... 1-5 Connecting the Communi cation Cabl e .................................................... 1-5 Using the Cont rol Panel ........................................................................... 1-6 Printer Status Lights ............................................................................ 1-6 Button Func tions ................................................................................. 1-6 Display ............................................................................................... 1-7 Selecting a F unction ................................................................................ 1-7 Exiting an Op tion .................................................................................... 1-8 LOADING SUPPLIES .................................................................................... 2-1 Loading Labels or Tags ........................................................................... 2-2 Loading Labels for the Opti onal Peel Mode ............................................ 2-6 Adjusting the Wide /Narrow K nobs ............................................................. 2-8 LOADING RIBBON ....................................................................................... 3-1 Loading Ribbon ....................................................................................... 3-2 ii SETTING SUPPLY OPTIONS......................................................................... 4-1 Supply Ty pe ........................................................................................... 4-3 Ribbon ................................................................................................... 4-4 Speed .................................................................................................... 4-5 Feed Mode ............................................................................................. 4-6 Backfeed ................................................................................................ 4-7 Positioni ng ............................................................................................. 4-8 Print Posi tion ...................................................................................... 4-8 Supply Posi tion ................................................................................. 4-10 Margin Posi tion ................................................................................. 4-11 C…

Text truncated - open the document above for the full version.

TC9800RCD Rev. AK DRAFT 9/10 2007 Avery Dennison Corp. All rights reserved. REGULATORY COMPLIANCE INFORMATION Avery Dennison products are designed to be compliant with the rules and regulations in the locations into which they are sold and will be labeled as required. Any changes or modifications to Avery Dennison equipment not expressly approved by Avery Dennison could void the user authority to operate the equipment. Follow all cautions and instructions marked on the product. Do not operate Avery Dennison products without the covers in place. It may damage the product or cause personal injury. Never push objects of any kind through openings in the equipment. Dangerous voltages might be present and cause fire, electric shock, or damage to the printer. Do not block or cover the openings of the equipment. Do not place the product near a radiator or heat register. It could cause the product to overheat. Avery Dennison products are designed to work with power systems that have a grounded neutral (grounded return for DC- powered products). Do not plug an Avery Dennison product into any other type of power system. This could cause electric shock. Contact your facilities manager or qualified electrician if you are not sure what power supply you have. The power cord serves as the primary disconnect for the product. Plug the power cord into a nearby grounded power outlet. Do not connect the power cord when the power supply has been removed from the product. Reflected light from the display may cause annoyance or discomfort. Take steps to minimize the glare, such as moving the printer. The product is not suitable for use at visual display workplaces according to §2 of the German Ordinance for Work with Visual Display Units. DRAFT 2 WEEE Symbol Copyright Information Each product and program carries a respective written warranty, the only warranty on which the customer can rely. Avery Dennison Corp. reserves the right to make changes in the product, the programs, and their availability at any time and without notice. Although Avery Dennison Corp. has made every effort to provide complete and accurate information in this manual, Avery Dennison Corp. shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the prior written permission of Avery Dennison Corp. Information in this document supercedes information in previous versions. Trademark Credits Monarch, MonarchNet2, 7411, 9825, 9844, 9854, 9855, 9860, and 9864 are trademarks of Avery Dennison Retail Information Services LLC. Avery Dennison® is a trademark of Avery Dennison Corporation. Avery Dennison Printer Systems Division 170 Monarch Lane Miamisburg, OH 45342 Waste Electrical and Electronic Equipment (WEEE) for European Union (EU) Customers Avery Dennison is fully committed to achieving the EU mandated WEEE directives. This product, its components, and accessories must be sent to a designated collection facility for proper disassembly and disposal in accordance with the WEEE directives. Any product or accessory marked with the WEEE symbol must DRAFT 3 be returned to a designated collection facility. For proper disposal of the printer outside of the U.S., send the printer and its accessories to: EMEA, 4 Awberry Court Croxley Business Park, Hatters Lane, Watford, WD18 8PD FCC Regulations – Class A WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to local radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense. CANADIAN D.O.C. WARNING This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada. DRAFT 4 802.11b/g Regulatory Compliance Information (if installed) This section details the regulatory compliance information specific to the wireless components in your printer. It may not apply to other RF devices in the printer. Refer to the documentation provided with those other RF devices for regulatory information. Avery Dennison RF products are designed to be compliant with the rules and regulations in the locations into which they are sold and will be labeled as required. The majority of Avery Dennison RF devices are type approved and do not require the user to obtain a license or authorization before using the equipment. Check your local regulations for more specific information. Any changes or modifications to Avery Dennison equipment not expressly approved by Avery Dennison could void the user authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Exposure Guidelines To comply with FCC and Industry Canada exposure requirements, if this device is a table-top device, it is approved for operation when there is 20 cm or more between the antenna and the user’s body. Declaration of Conformity for RF Exposure: The radio module has been evaluated under FCC Bul…

Text truncated - open the document above for the full version.

Avery Dennison Retail Information Services, LLC, a Subsidiary of Avery Dennison Corporation 170 Monarch Lane Miamisburg, OH 45342 Phone 1.937.865.2123 Fax 1.937.865.2048 October 26, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Avery Dennison hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description: RFID Module, model: 129383) , FCC ID : GU6-9855M5E We affirm that between SIEMIC and Avery Dennison, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, James A Bacher Senior Engineer Avery Dennison RIS LLC 170 Monarch Lane Miamisburg, Ohio 45342 1-937-865-2020 (voice) 1-937-865-2048 (fax)

Avery Dennison Retail Information Services, LLC, a Subsidiary of Avery Dennison Corporation 170 Monarch Lane Miamisburg, OH 45342 Phone 1.937.865.2123 Fax 1.937.865.2048 October 8, 2010 SIEMIC Inc. 2206 Ringwood Avenue San Jose, CA 95131 Tel:+1(408)526 1188 Fax:+1(408)526 1088 R ef: 9855RFMP with ThingMagic M5e (FCC ID : HU6-9855M5E) T o Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Technical Product Description • Block Diagram • Schematics If you have any questions or concerns, please contact me by email at [email protected]; phone at 1-937-865-2020; or by fax at 1-937-865-2048. Sincerely, James A Bacher Senior Engineer Avery Dennison RIS LLC 170 Monarch Lane Miamisburg, Ohio 45342 1-937-865-2020 (voice) 1-937-865-2048 (fax) [email protected]

Avery Dennison Retail Information Services, LLC, a Subsidiary of Avery Dennison Corporation 170 Monarch Lane Miamisburg, OH 45342 Phone 1.937.865.2123 Fax 1.937.865.2048 November 3, 2010 SIEMIC Inc. 2206 Ringwood Avenue San Jose, CA 95131 Tel:+1(408)526 1188 Fax:+1(408)526 1088 Ref: 9855RFMP with ThingMagic M5e Reference: DA 00-1407 Released: June 26, 2000 PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL FCC TCB To Whom It May Concern: Below are the eight elements a module is required to meet to comply with Part 15, Unlicensed Modular Approval notice, DA 00-1407, Dated June 26, 2000. Also included are my arguments on why our module meets the requirements. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. a. The Transmitter provided by ThingMagic is provided with an enclosure that provides the required shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Avery Dennison Retail Information Services, LLC, a Subsidiary of Avery Dennison Corporation a. The inputs are buffered and the data is processed by a microprocessor in the ThingMagic M5e, thereby eliminating excessive data rates or over modulation. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. a. We provide an I/O board that regulates the supply voltage from 24 volts down to the 5 volts the ThingMagic M5e module needs. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. a. The antenna uses MMCX connectors. In this application the customer will never change the antenna. The reason is, if they change it to a higher gain antenna, they will program more than one tag at a time, which will prevent their RFID tags from working properly. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). Avery Dennison Retail Information Services, LLC, a Subsidiary of Avery Dennison Corporation a. Avery Dennison Retail Information Services LLC tested the RFID module inside one of our printer during the tests at Siemic due to the need to confirm it could be co-located with another transmitter. During the tests it was powered by the printers 24VDC power supply, using the Avery Dennison I/O board to further reduce the supply voltage to 5VDC (see note in item 3 above). The dual regulation will provide a stable operating voltage for the module. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. a. This module will only be used in Avery Dennison RIS LLC printers and will be under Avery Dennison RIS LLC control. We will include the required external label as well as label the module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231…

Text truncated - open the document above for the full version.

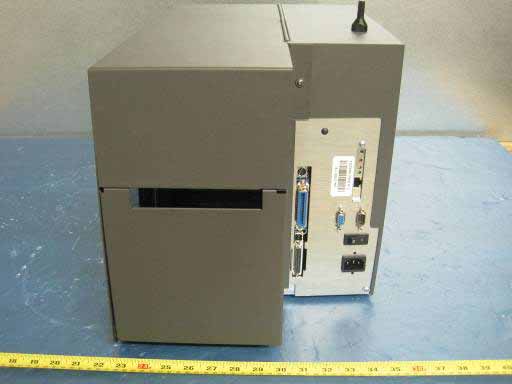

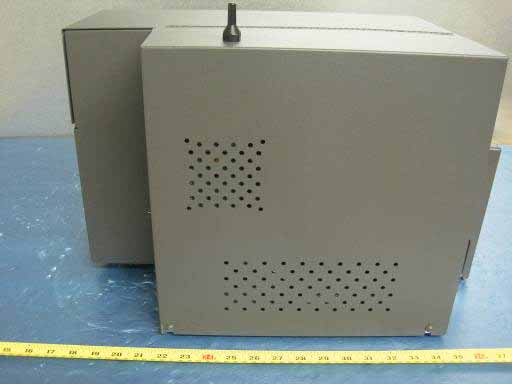

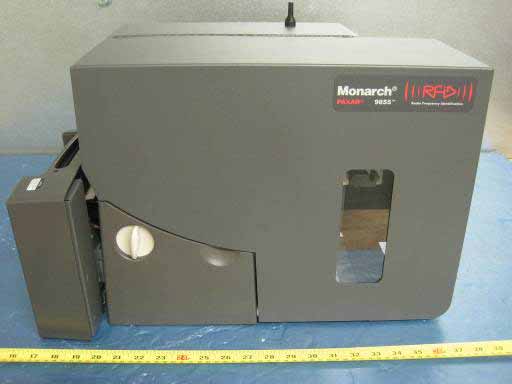

HOST PRINTER MODEL: 9855RFMP EUT - Front View EUT - Back View EUT - Right View EUT - Left View

Label Drawing and label location FCC ID: GU6-9855M5E IC: 1502A-9855M5E

EUT PCBA EUT (9855RFMP): RF Module PCBA Component View (Cover On) EUT (9855RFMP): RF Module PCBA Component View (Cover Off) EUT (9855RFMP): RF Module PCBA Solder View This table has been left blank intentionally. EUT (9855RFMP): UHF RFID Antenna Component View EUT (9855RFMP): UHF RFID Antenna Solder View

MPE CALCULATION RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 2402!2480 MHz , 902.75~927.25 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 ! 100,000 MHz Power Density Limit: 1 mW / cm 2 ; 0.6 1 mW / cm 2 Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Prediction distance 20cm WLAN , Power = 16.90 dBm , antenna = 2.14 dBi , Power density = 0.016 mW/cm 2 RFID , Power = 27.93dBm , Antenna = !20dBi , Power Density = 0.123 mW/cm 2 , (note , 0dBi was used in MPE instead) Effective MPE ratio = 0.016 /1 + 0.123 / 0.6 = 0.221 , which is less than 1 . The Above Result had shown that Device complied with MPE requirement. Completed By : Dan Coronia Date : Oct 29, 2010

AVERY DENNISON RETAIL INFORMATION SERVICES LLC Host Printer Model: 9855RFMP with UHF RFID Module Model: 129383 October 22 2010 Report No.: SL10071703-AVE-008-1A (FCC 15.247) UHF RFID (This report supersedes NONE ) This Test Report is Issued Under the Authority of: Dan Coronia Compliance Engineer Leslie Bai Director of Certification Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: RF Test Report Avery Dennison Retail Information Services LLC , model : 129383 To FCC 15.247 2010, RSS'210 Issue 7: 2007 Serial# SL10071703'AVE'008'1A (FCC 15.247) UHF RFID Issue Date October 22 2010 Page 2 of 70 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley , with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one'stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China , Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom Title: RF Test Report Avery Dennison Retail Information Services LLC , model : 129383 To FCC 15.247 2010, RSS'210 Issue 7: 2007 Serial# SL10071703'AVE'008'1A (FCC 15.247) UHF RFID Issue Date October 22 2010 Page 3 of 70 www.siemic.com This page has been left blank intentionally. Title: RF Test Report Avery Dennison Retail Information Services LLC , model : 129383 To FCC 15.247 2010, RSS'210 Issue 7: 2007 Serial# SL10071703'AVE'008'1A (FCC 15.247) UHF RFID Issue Date October 22 2010 Page 4 of 70 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ............................................................................................................ 6 2 TECHNICAL DETAILS.................................................................................................................................................. 7 3 MODIFICATION ........................................................................................................................................................... 8 4 TEST SUMMARY ......................................................................................................................................................... 9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................................... 10 ANNEX A. TEST INSTRUMENT & METHOD......................................................................................................................... 45 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................................... 49 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................................... 49 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM ................................................................................................... 53 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES ........................................................................................................... 54 Title: RF Test Report Avery Dennison Retail Information Services LLC , model : 129383 To FCC 15.247 2010, RSS'210 Issue 7: 2007 Serial# SL10071703'AVE'008'1A (FCC 15.247) UHF RFID Issue Date October 22 2010 Page 5 of 70 www.siemic.com This page has been left blank intentionally. Title: RF Test Report Avery Dennison Retail Information Services LLC , model : 129383 To FCC 15.247 2010, RSS'210 Issue 7: 2007 Serial# SL10071703'AVE'008'1A (FCC 15.247) UHF RFID Issue Date October 22 2010 Page 6 of 70 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Avery Dennison Retail Information Services LLC , Host Printer Model: 9855RFMP with UHF RFID Module, and Model: 129383 against the current Stipulated Standards. The Host Printer Model: 9855RFMP with UHF RFID Module have demonstrated compliance with the FCC 15.247 2010, RSS'210 Issue 7: 2007. EUT Information EUT Description : Avery Dennison Retail Information Services LLC will use the 129383 radio module within Avery Host Printer Model: 9855RFMP with UHF RFID Module. The radio will be installed inside the product and will not be user accessible. The antenna is an internal antenna and will not be user accessible The Monarch 9855RFMP printer/encoder is compatible with a full range of inlays to complement your specific application. See user manual for more details. Model No : 129383 Serial No : N/A Input Power : Input: 115'230VAC; 5/2.5A ; 50/60Hz Output: 24'30V/6.25A W/O Fan 150W Max. 24'30V/8.34 With 18.7 CFM Min Classification P er Stipulated Test Standard : Spread Spectrum System / Device Title: RF Test Report Avery Dennison Retail Information Services LLC , model : 129383 To FCC 15.247 2010, RSS'210 Issue 7: 2007 Serial# SL10071703'AVE'008'1A (FCC 15.247) UHF RFID Issue…

Text truncated - open the document above for the full version.

Radiated Emission (30MHz to 1GHz) Host: 9855RFMP Radiated Emission Test Setup – Front View Host: 9855RFMP Radiated Emission Test Setup – Rear View Radiated Emission (Above 1GHz) Host: 9855RFMP Radiated Emission Test Setup – Front View Host: 9855RFMP Radiated Emission Test Setup – Rear View Conducted Emission Host: 9855RFMP Conducted Emission Test Setup – Front View Host: 9855RFMP Conducted Emission Test Setup – Rear View
