GU6-RFID-HFHF RFID LABEL PRINTER

Quick Reference Quick Reference ® Monarch ® 9855 RFID Printer TC9855RFIDQR Rev. AL 5/07 ©2007 Paxar Americas, Inc. All rights reserved. Each product and program carries a respecti ve written warranty, the only warranty on which the customer can rely. Paxar reserves the right to make changes in the product, the programs, and their availability at any time and without notice. Although Paxar has made every effort to provide complete and accurate information in this manual, Paxar shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual.  2007 Paxar Americas, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the prior written permission of Paxar Americas, Inc. WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CANADIAN D.O.C. WARNING This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada. Trademarks Monarch  and 9855 are trademarks of Paxar Americas, Inc. Paxar  is a trademark of Paxar Corporation. EPCglobal, Inc.  and Electronic Product Code™ (EPC) are trademarks of Uniform Code Council, Inc. Uniform Code Council, Inc.  is a trademark of Uniform Code Council, Inc. Rafsec is a trademark of Rafsec. Symbol and Matrics are trademarks of Symbol Technologies, Inc. Impinj, ZumaRFID, and MonzaRFID are trademarks of Impinj, Inc. TI-RFid is a trademark of Texas Instruments. I • CODE  is a trademark of Philips Electronics N.V. OMRON is a trademark of OMRON Corporation. Avery Dennison is a trademark of Avery Dennison Corporation. Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 Visit www.paxar.com for sales, service, supplies, information, and telephone numbers for our International locations. TOLL FREE: 1-800-543-6650 (U.S.A.) 1-800-363-7525 (Canada) 2 Introduction This Quick Reference contains supply loading and general maintenance procedures. Additional RFID documents are available on the enclosed Monarch  Tabletops RFID Demo CD-ROM and on our Web site ( www.paxar.com ). Check our Web site for the latest documentation and release information. Note: Information in this document supercedes information in previous versions. RFID Overview Your printer has been engineered to program (encode) an RFID (Radio Frequency Identification) label (commonly called “RFID tags”) before the label’s format is printed. RFID tags contain an embedded RFID inlay (chip and antenna). RFID is only available on the Monarch  9855  printer using die cut or black mark supplies. Linerless supplies are not current ly supported. The RFID printer is also capable of printing standard (non-RFID) supplies. For more information about supplies, see “RFID Supply Specifications.” The UHF printer supports multi-protocol encoding, including Class 1 Generation 1 (C1Gen1), Class 1 Generation 2 (C1Gen2), and EM4122 supplies. The HF printer supports multi-protocol encoding, including ISO15693 and I•CODE® UID protocols. About Professional Services Our Professional Services group can develo p custom RFID scripts (applications) or other types of data manipulation script s. Our experts can ensure your RFID requirements are met. Custom programming can be factory-loaded at the time of shipment. Call Customer Service for more information. 3 Web Sites with RFID Information Paxar A leader in bar code/RFID printers and supply solutions. www.paxar.com AIM Global The association for Automatic Identification and Mobility. www.aimglobal.org EPCglobal, Inc.  A joint venture between EAN International and the Uniform Code Council, Inc., creating RFID standards for the Electronic Product Code™ (EPC). www.epcglobalinc.org RFID Journal An independent media company specializing in RFID. www.rfidjournal.com Uniform Code Council, Inc.  A global standards organization in supply chain management. www.uc-council.org Avicon Provides software to translate legacy codes to electronic product codes (EPC) for Class 1 96-bit (and more) representations. www.epctranslator.com Connecting the Cables The power supply automatically switches between 115V or 230V. There are no operator settings required. 1. Plug the power cable into the socket. Plug the other end of the cable into a grounded electrical outlet. 2. Connect the communication cable into the appropriate port. Secure the cable with the connecting screws (serial) or spring clips (parallel). If you are communicating with the host through the serial port, make sure the printer's communication values match those at the host. The factory default values are 9600 Baud, 8 bit data frame, 1 stop bit, no parity, and DTR flow control (9600, N, 8, 1, DTR). Set the communication values on the printer to match those at the host. The printer also has a USB (Universal Serial Bus) version 2.0 communications port, which is backwards compatible with version 1.1. Drivers are available on our Web site for a variety of operating syst…

Text truncated - open the document above for the full version.

TC9800RCD Rev. AB 6/07  2007 Paxar Americas, Inc. All rights reserved. REGULATORY COMPLIANCE INFORMATION Paxar products are designed to be complian t with the rules and regulations in the locations into which they are sold and will be labeled as required. Any changes or modifications to Paxar equipment not expressly approved by Paxar could void the user authority to operate the equipment. Follow all cautions and instructions marked on the product. Do not operate Paxar products without the covers in place. It may damage the product or cause personal injury. Never push objects of any kind through openings in the equipment. Dangerous voltages might be present and cause fire, electric shock, or damage to the printer. Do not block or cover the openings of the equipment. Do not place the product near a radiator or heat register. It could cause the product to overheat. Paxar products are designed to work wi th power systems that have a grounded neutral (grounded return for DC-powered products). Do not plug a Paxar product into any other type of power system. This could cause electric shock. Contact your facilities manager or qualified electrician if you are not sure what power supply you have. The power cord serves as the primary disconnect for the product. Plug the power cord into a nearby grounded power outlet. Do not connect the power cord when the power supply has been removed from the product. Copyright Information Each product and program carries a respecti ve written warranty, the only warranty on which the customer can rely. Paxar reserves the right to make changes in the product, the programs, and their availability at any time and without notice. Although Paxar has made every effort to provide complete and accurate information in this manual, Paxar shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual. No part of this publication may be reproduc ed, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the prior written permission of Paxar Americas, Inc. Note: Information in this document supercedes information in previous versions. 2 Trademark Credits Monarch  , MonarchNet2, 7411, 9825, 9855, and 9860 are trademarks of Paxar Americas, Inc Paxar® is a trademark of Paxar Corporation. Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 Waste Electrical and Electronic Equipment (WEEE) for European Union (EU) Customers Paxar Corporation is fully committed to achieving the EU mandated WEEE directives. This product, its components, and accessories must be sent to a designated collection facility for proper disassembly and disposal in accordance with the WEEE directives. Any product or accessory marked wi th the WEEE symbol must be returned to a designated collection facility. For proper disposal of the prin ter outside of the U.S., send the printer and its accessories to: Paxar EMEA, 4 Awberry Court Croxley Business Park, Hatters Lane, Watford, WD18 8PD U.S. Battery Recycling Information Do not throw in trash. Recycle to your local regulations. The Rechargeable Battery Recycling Corporation (RBRC  ) is a non-profit organization created to promote recycling of rechargeable batteries. For more information about how to recycle batteries in your area, visit www.rbrc.org . Batteries can also be returned postage- paid to: ERC 200 Monarch Lane Door #39 Miamisburg, OH 45342 WEEE Symbol 3 FCC Regulations – Class A WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial en vironment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to local radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case th e user will be required to correct the interference at his own expense. CANADIAN D.O.C. WARNING This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicte par le ministère des Communications du Canada. 4 802.11b/g REGULATORY COMPLIANCE INFORMATION This section details the regulatory compliance information specific to the wireless components in your printer. It may not apply to other RF devices in the printer. Refer to the documentation provided with those other RF devices for regulatory information. Paxar RF products are designed to be compliant with the rules and regulations in the locations into which they are sold and wi ll be labeled as required. The majority of Paxar RF devices are type approved and do not require the user to obtain a license or authorization before using the equipment. Check your local regulations for more specific information. Any c hanges or modifications to Paxar equipment not expressly approved by Paxar could void the user authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Information in this document supercedes information in previous versions. FCC RF Exposure Guidelines To comply with FCC and Industry Canada ex posure requirements, if this device is a table-top device, it is approved for operation when there is 20 cm or more between the antenna and the user’s body. Declaration of Conformity for RF Exposure: The radio module has been evaluated under FCC Bull…

Text truncated - open the document above for the full version.

June 4, 2007 To: Federal Communications Commission 7435 Oakland Mills Road Colubia, MD Dear Examiner: Paxar Americas, Inc. hereby requests confidentiality with regard to the following documents in the filling package for equipment approval identified by FCC Identification Number: GU6-RFID-HF as provided under FCC Section 0.459. - Block Diagram – For whole system - Block Diagram - For module - Schematics – For whole system - Schematics – For module - Operational Description – For whole system - Operational Description – For module - Technical Specification – For Module The information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Should you have any question, please feel free to contact us. Sincerely, James Bacher / Senior Engineer Paxar Americas, Inc. 170 Monarch Lane, Miamisburg, OH 45342

June 4, 2007 To: Federal Communications Commission 7435 Oakland Mills Road Colubia, MD FCC ID: GU6-RFID-HF IC: 1502A-RFIDHF TIMCO Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 To Whom It May Concern: This letter is to ascertain that the Paxar Printer 9855HF has been the unit used for conducting FCC 15.225 and IC RSS210 compliance testing. If you have any question or concerns, please contact me. Sincerely, James Bacher / Senior Engineer Paxar Americas, Inc. 170 Monarch Lane, Miamisburg, OH 45342

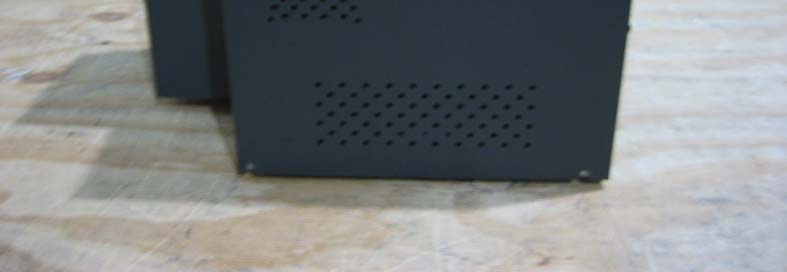

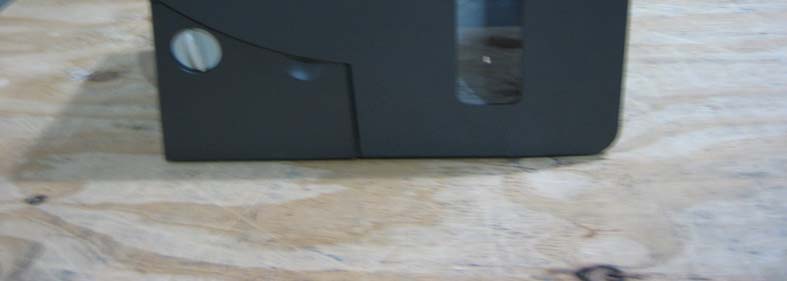

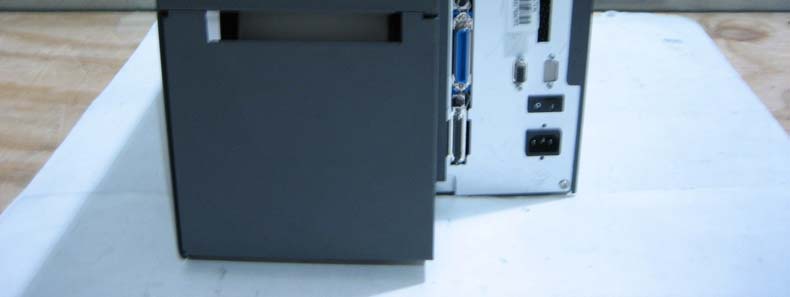

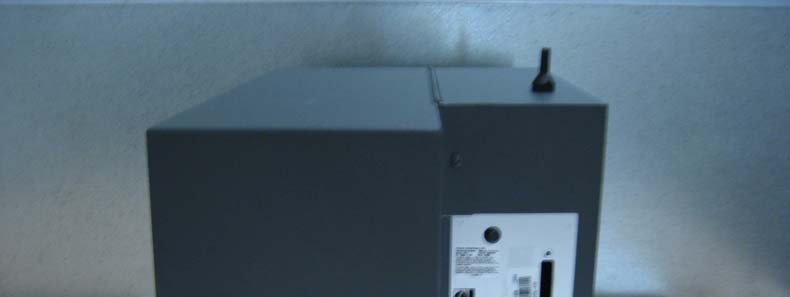

EUT Front View EUT Back View EUT Left Side View EUT Right Side View

aw-09625 pn-12495713 Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 937 865-8025 FAX 937 865-2048 ID Artmaster Graphic Number Rev Rev Dwg Size Scale Designer Client Name Date Ref. Number Label-FCC, HF RFID S. Fowler GB Arnold 1/29/07 1:1 8.5 x 11 AB Note: This label is similar to aw-09411C. Label is designed to be “made” in-house on Monarch TUFF-MARK material. Graphics available in formatted program. LocSymChangeEn No.DateByChk A B C D 23 6 4 5 7 236 4 5 7 A B C D Design Notes: 1. Artwork shown represents size and style of finished product only. 2. Artwork does not necessarily reflect manufacturing process and/or tooling requirements. 3. Please refer to product drawing for location on part and color. 4. Dimensions are for reference only. This information is the confidential, restricted, and sole property of Paxar Americas, Inc. It should be used by the recipient only for the purposes benefiting Paxar, and shall not be disclosed, reproduced, or used by others without prior written approval. Notice: Notes: 1. Outline for graphic location only. Do not print. 2. Dimensions are for reference. See part drawing for complete part description. 3.Label for SIRIT RFID HF FCC and IC numbers. Background: Silver Graphics: Black ~~Color Sample~~ 25mm x 35mm (std tuff-mark) 25mm 35mm Paxar Americas, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operations. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le material broilleur du Canada. Model: 9855HF FCC ID: GU6-RFID-HF IC: 1502A-RFIDHF Paxar Americas, Inc. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le material broilleur du Canada. Model: 9855HF FCC ID: GU6-RFID-HF IC: 1502A-RFIDHF A A Change two items: 1- “IC: 1502A-RFID-HF” to “”IC: 1502A-RFIDHF”. 2- “2) this device must accept any interference that may cause undesired operations.” to “2) this device must accept any interference received, including interference that may cause undesired operation.” 6/12/07 GBA SF & JB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operations.

Cover Removed Right Side View Cover Removed Left Side View Main CPU Board Top View Main CPU Board Bottom View Attenuation Board Top View Attenuation Board Bottom View Radio Module Top View Radio Module Bottom View Control Board Top View Control Board Bottom View RFID Antenna Top View RFID Antenna Bottom View

47 CFR 1.1307(b) 47 CFR 1.1310 FCC OST/OET Bullentin Number 65 13.56MHz 15.3dBuV/m (Field strength @ 3 meter) 0.000000008 Watts -27.8dBi 20cm Limit for General Population / Uncontrolled Exposure : =180 / f**2 (MHz) ==>0.978933 mW/cm2 or 9.789334 W/m2 = P*G/ (4 * 3.141 * R**2) Where, S= power density P = Power inoput to Antenna G = Antenna Gain R = distance to the center of radiated antenna EUT Power density =2.64181E-08 W/m2 The EUT Complied with 20cm distance exposure. Calculated By :Benjamin Date :June 05 2007 MPE Calculation RF Exposure Requirement : Eut Antenna Gain : Distance from Antenna to Human Body: Power density Calculation : RFID Printer, Model: 9855HF GU6-RFID-HF For : FCCID : RF Radiation Exposure Limit : RF Radiation Exposure Guideline : EUT Frequnecyt Band : EUT Measured Output power or EIRP :

TEST REPORT FROM FOR Paxar Americas, Inc. RFID Printer Model: 9855HF TO 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Test Report Serial No.: SL07051001-PAX-004 This report supersedes None Remarks: Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: ............................................................................................................. Tested by: Benjamin Jing, Test Engineer ............................................................................................................. Reviewed by: Snell Leong, Reviewer Issue date: 4 June 2007 Manufacturer: Paxar Americas, Inc. This test report may be reproduced in full only. Registration No. 783147 Registration No. 4842 RTA No. D23/16V Lab Code: KR0032 Title: Paxar Americas, Inc FCCID: GU6-RFID-HF To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07051001-PAX-00404 Issue Date 4 June 2007 Page 2 of 28 www.siemic.com This page has been left blank intentionally. Title: Paxar Americas, Inc FCCID: GU6-RFID-HF To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07051001-PAX-00404 Issue Date 4 June 2007 Page 3 of 28 www.siemic.com CONTENTS EXECUTIVE SUMMARY ................................................................................................................................................. 5 1 TECHNICAL DETAILS ............................................................................................................................................. 6 2 TESTS REQUIRED ..................................................................................................................................................... 7 3 ANTENNA REQUIREMENT..................................................................................................................................... 8 4 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .................................................................. 9 5 TEST INSTRUMENTATION .................................................................................................................................. 19 APPENDIX A: EUT TEST CONDITIONS .................................................................................................................... 20 APPENDIX B: TEST SET-UP PHOTOS ....................................................................................................................... 21 APPENDIX C: EXTERNAL PHOTOS .......................................................................................................................... 22 APPENDIX D: CIRCUIT/BLOCK DIAGRAMS.......................................................................................................... 23 APPENDIX E: INTERNAL PHOTOS............................................................................................................................ 24 APPENDIX F: PRODUCT DESCRIPTION .................................................................................................................. 25 APPENDIX G: FCC LABEL LOCATION .................................................................................................................... 26 APPENDIX H: USER MANUAL .................................................................................................................................... 27 Title: Paxar Americas, Inc FCCID: GU6-RFID-HF To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07051001-PAX-00404 Issue Date 4 June 2007 Page 4 of 28 www.siemic.com This page has been left blank intentionally. Title: Paxar Americas, Inc FCCID: GU6-RFID-HF To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07051001-PAX-00404 Issue Date 4 June 2007 Page 5 of 28 www.siemic.com Executive Summary The purpose of this test programme was to demonstrate compliance of the Paxar Americas, Inc., RFID Printer, model 9855HF against the current 47 CFR 15.225:2006 & RSS-210 Issue 6:2005. The 9855HF demonstrated compliance with the 47 CFR 15.225:2006 & RSS-210 Issue 6:2005. Paxar Americas, Inc. is the applicant and claimed manufacturer of this tested product. For the detailed description of this product, please refer to the 9855HF User Manual. The equipment under test operating frequency is 13.56 MHz, its size is 44.5 cm X 33 cm X 29.5 cm, its weight is 10 kg . The test has demonstrated that this unit complies with stipulated standards. FRONT BACK RFID Printer Sample Title: Paxar Americas, Inc FCCID: GU6-RFID-HF To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07051001-PAX-00404 Issue Date 4 June 2007 Page 6 of 28 www.siemic.com 1 Technical Details Purpose Compliance testing of 9855HF with 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Applicant / Client Paxar Americas, Inc. 170 Monarch Lane. Miamisburg, OH 45342 Manufacturer Paxar Americas, Inc. 170 Monarch Lane. Miamisburg, OH 45342 Laboratory performing the tests SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test location(s) SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test report reference number SL07051001-PAX-004 Date EUT received 28 May 2007 Standard applied 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Dates of test (from – to) 29 May 2007 to 4 June 2007 No of Units: 1 Equipment Category: DXX Trade/Product Name: 9855HF Type/Model Name/No: 9855HF Technical Variants: FCC ID No. GU6-RFID-HF IC ID No. 1502A-RFIDHF Title: Paxar Americas, Inc FCCID: GU6-RFID-HF To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07051001-PAX-00404 Issue Date 4 June 2007 Page 7 of 28 www.siemic.com 2 Tests Required The product was tested in accordance with the following specifications. The test results recorded in this Test Report are exclusively referred to the tested sample(s). Test Standard Description Pass / Fail 47 CFR Part 15.225: 2006 RSS 210 Issue 6: 2005 15.203 Antenna Requirement Pass 15.207(a) RSSGen(7.2.2) Conducted Emissions Voltage Pass 15.225(a) RSS210(A2.6) Limit in the band of 13.553 – 13.567 MHz Pass 15.225(b) RSS210…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup View ( 30 – 1000 MHz) Radiated Emission Test Setup View ( < 30 MHz ) AC Line Conducted Emission Test Setup Front View AC Line Conducted Emission Test Setup Rear View Frequency Stability Test Set-up
