GU66037LA30212.4 GHz Wireless Scanner/Printer

December 2, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: MONARCH MARKING SYSTEMS, INC. FCC ID: GU66037LA3021 Gentlemen: Attached herewith, on behalf of MONARCH MARKING SYSTEMS, INC. is an application for Part 15.247 Certification of the following 2.4 GHz Wireless Scanner (FHSS). Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, part’s list (confidential), block diagrams, schematic diagrams (confidential), operational description (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Monarch Marking Systems, Inc.

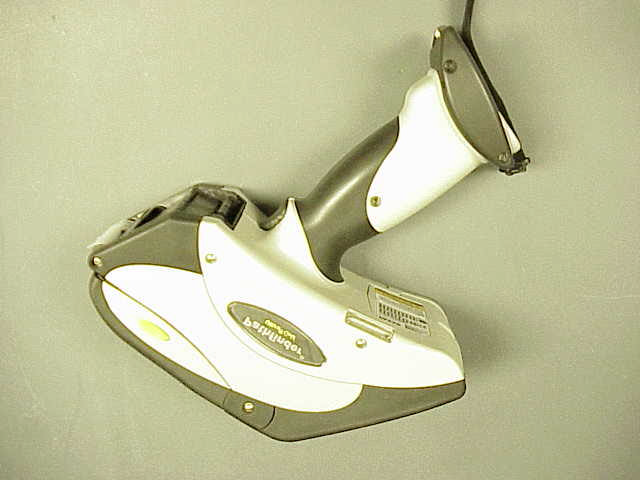

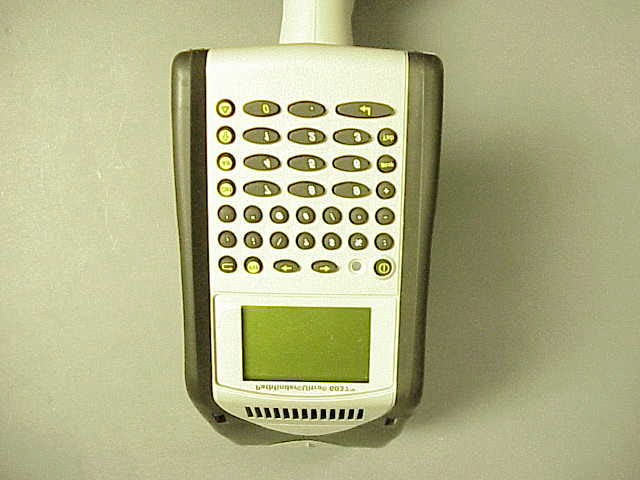

FCC ID: GU66037LA3021 Page 1 of 3 Exterior Photo FCC ID: GU66037LA3021 Page 2 of 3 Exterior Photo – Top View FCC ID: GU66037LA3021 Page 3 of 3 Exterior Photos – Side View

Label Placement FCC ID: GU66037LA3021

FCC ID: GU66037LA3021 Page 1 of15 Disassembly Photo 1 FCC ID: GU66037LA3021 Page 2 of15 Disassembly Photo 2 FCC ID: GU66037LA3021 Page 3 of15 Disassembly Photo 3 FCC ID: GU66037LA3021 Page 4 of15 Disassembly Photo 4 FCC ID: GU66037LA3021 Page 5 of15 Disassembly FCC ID: GU66037LA3021 Page 6 of15 Disassembly FCC ID: GU66037LA3021 Page 7 of15 Disassembly FCC ID: GU66037LA3021 Page 8 of15 Antenna FCC ID: GU66037LA3021 Page 9 of15 Board stack FCC ID: GU66037LA3021 Page 10 of15 Board stack FCC ID: GU66037LA3021 Page 11 of15 Board Stack FCC ID: GU66037LA3021 Page 12 of15 Print Engine Board Primary Side FCC ID: GU66037LA3021 Page 13 of15 Print Engine Board Secondary Side FCC ID: GU66037LA3021 Page 14 of15 DOS Board Primary Side FCC ID: GU66037LA3021 Page 15 of15 DOS Board Secondary Side

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220520311.GU6 Test Dates: May 21, 2002 Equipment Type: Wireless Scanner FCC ID: GU66037LA3021 Page 1 of 22 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Monarch Marking Systems Inc. Dates of Tests: May 21, 2002 170 Monarch Lane Test Report S/N: SAR.220520311.GU6 Miamisburg, Ohio 45342 Test Site: PCTEST Lab, Columbia, MD USA Attn: James A. Bacher, Senior Engineer FCC ID: GU66037LA3021 APPLICANT: MONARCH MARKING SYSTEMS, INC. EUT Type: 2.4 GHz Wireless Scanner (FHSS) Tx Frequency: 2402 — 2480 MHz Rx Frequency: 2402 — 2480 MHz Max. RF Output Power: 112 mW Max. SAR Measurement: 0.0851W/kg Body SAR; Trade Name/Model(s): PAXAR Model: M06037 w/ SYMBOL PCMCIA Card Model: LA-3021-100-US FCC Classification: Part 15 Spread Spectrum Transmitter (FHSS) FCC Rule Part(s): §2.1093; ET Docket 96.326 Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220520311.GU6 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220520311.GU6 Test Dates: May 21, 2002 Equipment Type: Wireless Scanner FCC ID: GU66037LA3021 Page 2 of 22 © 2002 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 6 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment ................................................................................... 14 Controlled Environment........................................................................................ 14 11. MEASUREMENT UNCERTAINTIES ....................................................................... 15 SAR Measurement U…

Text truncated - open the document above for the full version.

MONARCH FCC ID: GU66037LA3021 -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0195 mW/g, SAR (10g): 0.0081 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: M06037 w/ Symbol LA-3021-100-US Low Channel, 2402MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 112mW; Spacing = Touch keypad of EUT to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.20E-3 3.60E-3 6.00E-3 8.40E-3 1.08E-2 PCTEST Engineering Laboratory, Inc. MONARCH FCC ID: GU66037LA3021 -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0214 mW/g, SAR (10g): 0.0094 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: M06037 w/ Symbol LA-3021-100-US Mid Channel, 2441MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 112mW; Spacing = Touch keypad of EUT to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.00E-3 3.00E-3 5.00E-3 7.00E-3 9.00E-3 PCTEST Engineering Laboratory, Inc. MONARCH FCC ID: GU66037LA3021 -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0200 mW/g, SAR (10g): 0.0083 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: M06037 w/ Symbol LA-3021-100-US High Channel, 2480MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 112mW; Spacing = Touch keypad of EUT to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.40E-3 4.20E-3 7.00E-3 9.80E-3 1.26E-2 PCTEST Engineering Laboratory, Inc. MONARCH FCC ID: GU66037LA3021 -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0674 mW/g , SAR (10g): 0.0281 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: M06037 w/ Symbol LA-3021-100-US Low Channel, 2402MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 112mW; Spacing = Touch underside of EUT keypad to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.30E-3 2.49E-2 4.15E-2 5.81E-2 7.47E-2 PCTEST Engineering Laboratory, Inc. MONARCH FCC ID: GU66037LA3021 -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0851 mW/g, SAR (10g): 0.0289 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: M06037 w/ Symbol LA-3021-100-US Mid Channel, 2441MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 112mW; Spacing = Touch underside of EUT keypad to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.30E-3 2.49E-2 4.15E-2 5.81E-2 7.47E-2 PCTEST Engineering Laboratory, Inc. MONARCH FCC ID: GU66037LA3021 -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0825 mW/g, SAR (10g): 0.0329 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: M06037 w/ Symbol LA-3021-100-US High Channel, 2480MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 112mW; Spacing = Touch underside of EUT keypad to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 7.20E-3 2.16E-2 3.60E-2 5.04E-2 6.48E-2 PCTEST Engineering Laboratory, Inc.

© 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021 2.4 GHz Wireless Scanner (FHSS) Model: M06037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021 2.4 GHz Wireless Scanner (FHSS) Model: M06037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021 2.4 GHz Wireless Scanner (FHSS) Model: M06037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021 2.4 GHz Wireless Scanner (FHSS) Model: M06037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021 2.4 GHz Wireless Scanner (FHSS) Model: M06037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021 2.4 GHz Wireless Scanner (FHSS) Model: M06037

2450MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450MHz Brain: σ = 1.79 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 13.0 mW/g, SAR (10g): 7.60 mW/g 2450MHz Brain Dipole Validation (D-2450S, S/N: 105 ) Frequency: 2450MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C PCTEST Brain Tissue Simulating Liquid [05/21/2002] SAR Tot [mW/g] 9.87E-1 3.84E+0 6.40E+0 8.98E+0 1.14E+1 PCTEST Engineering Laboratory, Inc.
