GU66037LMC3522.4 GHz Wireless Scanner (FHSS)

Monarch  Pathfinder  Ultra  Gold Printer TC6037EM Rev. AA 7/02 ©2002 Paxar Corporation. All rights reserved. FCC ID: GU66037LMC352 Each product and program carries a respective written warranty, the only warranty on which the customer can rely. Monarch reserves the right to make changes in the product and the programs and their availability at any time and without notice. Although Monarch has made every effort to provide complete and accurate information in this manual, Monarch shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual. ©2002 Paxar Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the written permission of Paxar Corporation. Trademarks Monarch®, Pathfinder®, Ultra®, 6037, 6076, 9462, and 9464 are registered trademarks of Monarch Marking Systems, Inc. Paxar is a trademark of Paxar Corporation. RBRC® is a trademark of Rechargeable Battery Recycling Corporation. Paxar Corporation 170 Monarch Lane Miamisburg, OH 45342 Table of Contents i TABLE OF CONTENTSIntroduction .....................................................................................1-1 Getting Started ...............................................................................1-1Using this Manual ...........................................................................1-2 Using Batteries ................................................................................2-1 Using the Main Battery ....................................................................2-1 Charging the Main Battery............................................................2-2Changing the Main Battery ...........................................................2-2 Using the Backup Battery ................................................................2-3 Changing the Backup Battery .......................................................2-4 Battery and Safety Information .........................................................2-6 Using Supplies .................................................................................3-1 Loading Supplie s ............................................................................3-1 Loading for Peel Mode .................................................................3-3Loading for Non-Peel Mode ..........................................................3-6 Removing Supplies .........................................................................3-6 Basic Operations..............................................................................4-1 Using the Keypad ...........................................................................4-1 Entering Data .............................................................................4-2 Using the Display ...........................................................................4-3 Reading the Status Line...............................................................4-3 Scanning Bar Codes .......................................................................4-3 Certification Note............................................................................4-5Printing .........................................................................................4-6Power Management ........................................................................4-6 ii Table of Contents Radio Frequency Communications ....................................................4-6Attaching the Safety Strap ...............................................................4-7Helpful Reminders ..........................................................................4-8 Care and Maintenance ......................................................................5-1 Cleaning ........................................................................................5-1 Printhead ...................................................................................5-2Platen Roller ..............................................................................5-3Pinch and Feed Rollers................................................................5-4Sensors .....................................................................................5-4Scanner Window .........................................................................5-5 Clearing Supply Jams .....................................................................5-6Storing the Printer ..........................................................................5-7 Troubleshooting ...............................................................................6-1 Error Codes ................................................................................6-2 Glossary ..........................................................................................6-1Reference Information ......................................................................6-3 Specifications.................................................................................6-3Accessories/Options .......................................................................6-4 Introduction 1-1 INTRODUCTIONThe Monarch® Pathfinder® Ultra® Gold 6037™ printer prints, scans bar codes, collects data, a nd communicates with other devices. Your System Administrator must configure it for you to use. This manual describes how to use these printers.Getting StartedTo start using the printer, you must:1. Charge the main battery. See “Charging the Main Battery” in Chapter 2. NOTE: You must charge the battery before using it. For optimal batterylife, charge the battery within three months of receipt . 2. Insert the main battery and the backup battery in the printer. See“Changing the Main Battery” and “Changing the Backup Battery” inChapter 2. 3. Attach the safety strap found in the documentation package. See“Attaching the Safety Strap” in Chapter 4. 1 1-2 Introduction4. Load supp…

Text truncated - open the document above for the full version.

May 16, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Katie Hawkins SUBJECT: Paxar Americas, Inc. FCC ID: GU66037LMC352 731 Confirmation No.: TC462437 Correspondence Reference No.: 8039 Request for Tech. Info.: 04/25/03 Dear Katie: Transmitted herewith, on behalf of Paxar Americas, Inc. is an amendment provided in response to the request for technical information, dated April 25, 2003. 1. Please find attached the Spread Spectrum Test Report for FCC ID: LDK102042 performed by Rhein Tech Laboratories with additional radiated data performed by PCTEST Engineering Laboratory, Inc. Please note that this Cisco module card is installed in the Paxar Wireless Scanner. Both modules are identical except for the antenna. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Paxar Americas, Inc.

November 18, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Katie Hawkins SUBJECT: Paxar Americas, Inc. FCC ID: GU66037LMC352 731 Confirmation No.: TC462437 Correspondence Reference No.: 9721 Request for Tech. Info.: 10/24/03 Dear Katie: Transmitted herewith, on behalf of Paxar Americas, Inc. is an amendment provided in response to the request for technical information dated October 24, 2003. 1. We confirm that the hopping function was disabled for SAR testing. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Paxar Americas, Inc.

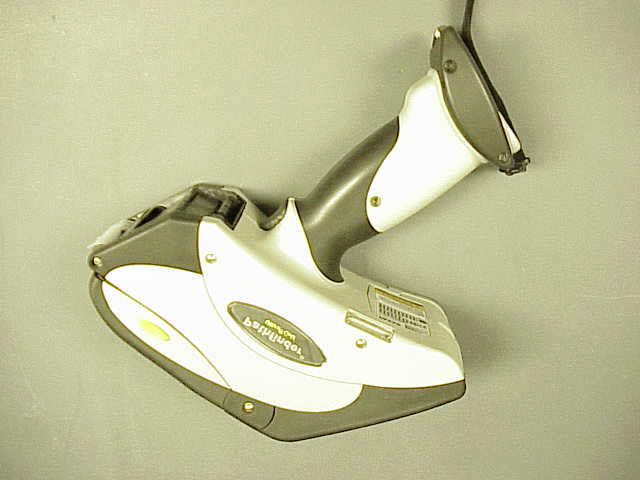

FCC ID: Gu66037LMC352 Page 1 of 2 Exterior Photo – Top View FCC ID: Gu66037LMC352 Page 2 of 2 Exterior Photos – Side View

© 2002PCTEST Lab SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

FCC ID: Gu66037LMC352 Page 1 of18 Disassembly Photo 1 FCC ID: Gu66037LMC352 Page 2 of18 Disassembly Photo 2 FCC ID: Gu66037LMC352 Page 3 of18 Disassembly Photo 3 FCC ID: Gu66037LMC352 Page 4 of18 Disassembly Photo 4 FCC ID: Gu66037LMC352 Page 5 of18 Disassembly Photo 5 FCC ID: Gu66037LMC352 Page 6 of18 Cisco Card FCC ID: Gu66037LMC352 Page 7 of18 Disassembly FCC ID: Gu66037LMC352 Page 8 of18 Disassembly FCC ID: Gu66037LMC352 Page 9 of18 Antenna FCC ID: Gu66037LMC352 Page 10 of18 Antenna FCC ID: Gu66037LMC352 Page 11 of18 FCC ID: Gu66037LMC352 Page 12 of18 Board stack FCC ID: Gu66037LMC352 Page 13 of18 Board stack FCC ID: Gu66037LMC352 Page 14 of18 Board Stack FCC ID: Gu66037LMC352 Page 15 of18 Print Engine Board Primary Side FCC ID: Gu66037LMC352 Page 16 of18 Print Engine Board Secondary Side FCC ID: Gu66037LMC352 Page 17 of18 DOS Board Primary Side FCC ID: Gu66037LMC352 Page 18 of18 DOS Board Secondary Side

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220520312.GU6 Test Dates: May 21, 2002 Equipment Type: Wireless Scanner FCC ID: GU66037LMC352 Page 1 of 22 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Monarch Marking Systems Inc. Dates of Tests: May 21, 2002 170 Monarch Lane Test Report S/N: SAR.220520312.GU6 Miamisburg, Ohio 45342 Test Site: PCTEST Lab, Columbia, MD USA Attn: James A. Bacher, Senior Engineer FCC ID: GU66037LMC352 APPLICANT: MONARCH MARKING SYSTEMS, INC. EUT Type: 2.4 GHz Wireless Scanner (FHSS) Tx Frequency: 2412 — 2465 MHz Rx Frequency: 2412 — 2465 MHz Max. RF Output Power: 100 mW Max. SAR Measurement: 0.0123W/kg Body SAR; Trade Name/Model(s): PAXAR Model: 6037 w/ CISCO PCMCIA Card FCC Classification: Part 15 Spread Spectrum Transmitter (FHSS) FCC Rule Part(s): §2.1093; ET Docket 96.326 Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220520311.GU6 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220520312.GU6 Test Dates: May 21, 2002 Equipment Type: Wireless Scanner FCC ID: GU66037LMC352 Page 2 of 22 © 2002 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS.......................... ...................................10 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment ................................................................................... 14 Controlled Environment........................................................................................ 14 11. MEASUREMENT UNCERTAINTIES ....................................................................... 15 SAR Measurement Uncertainties .......................................................................... 15 12. SYSTEM VERIFICATION ............................…

Text truncated - open the document above for the full version.

MONARCH Model: 6037 w CISCO -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0027 mW/g, SAR (10g): 0.0004 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: 6037 w_CISCO Low Channel, 2412MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 100mW; Spacing = Touch keypad of EUT to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.00E-4 1.20E-3 2.00E-3 2.80E-3 3.60E-3 PCTEST Engineering Laboratory, Inc. MONARCH Model: 6037 w CISCO -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0010 mW/g , SAR (10g): -0.00 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: 6037 w_CISCO Mid Channel, 2437MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 100mW; Spacing = Touch keypad of EUT to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.00E-4 6.00E-4 1.00E-3 1.40E-3 1.80E-3 PCTEST Engineering Laboratory, Inc. MONARCH Model: 6037 w CISCO -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0014 mW/g , SAR (10g): -0.00 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: 6037 w_CISCO High Channel, 2465MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 100mW; Spacing = Touch keypad of EUT to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.00E-4 9.00E-4 1.50E-3 2.10E-3 2.70E-3 PCTEST Engineering Laboratory, Inc. MONARCH Model: 6037 w CISCO -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0123 mW/g, SAR (10g): 0.0033 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: 6037 w_CISCO Low Channel, 2412MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 100mW; Spacing = Touch underside of EUT keypad to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 6.00E-4 1.80E-3 3.00E-3 4.20E-3 5.40E-3 PCTEST Engineering Laboratory, Inc. MONARCH Model: 6037 w CISCO -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0083 mW/g, SAR (10g): 0.0021 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: 6037 w_CISCO Mid Channel, 2437MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 100mW; Spacing = Touch underside of EUT keypad to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.00E-4 1.50E-3 2.50E-3 3.50E-3 4.50E-3 PCTEST Engineering Laboratory, Inc. MONARCH Model: 6037 w CISCO -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.98 mho/m ε r = 52.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.0087 mW/g , SAR (10g): 0.0011 mW/g Monarch 2.4GHz FHSS Wireless Scanner Model: 6037 w_CISCO High Channel, 2465MHz [CW Mode]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 100mW; Spacing = Touch underside of EUT keypad to flat phantom, No Holster/No BeltClip Test Date -- 05/21/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 6.00E-4 1.80E-3 3.00E-3 4.20E-3 5.40E-3 PCTEST Engineering Laboratory, Inc.

© 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021-100 2.4 GHz Wireless Scanner (FHSS) Model: PAXAR 6037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021-100 2.4 GHz Wireless Scanner (FHSS) Model: PAXAR 6037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021-100 2.4 GHz Wireless Scanner (FHSS) Model: PAXAR 6037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021-100 2.4 GHz Wireless Scanner (FHSS) Model: PAXAR 6037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021-100 2.4 GHz Wireless Scanner (FHSS) Model: PAXAR 6037 © 2002 PCTEST Lab MONARCH FCC ID: GU66037LA3021-100 2.4 GHz Wireless Scanner (FHSS) Model: PAXAR 6037

2450MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450MHz Brain: σ = 1.79 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 13.0 mW/g, SAR (10g): 7.60 mW/g 2450MHz Brain Dipole Validation (D-2450S, S/N: 105 ) Frequency: 2450MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C PCTEST Brain Tissue Simulating Liquid [05/21/2002] SAR Tot [mW/g] 9.87E-1 3.84E+0 6.40E+0 8.98E+0 1.14E+1 PCTEST Engineering Laboratory, Inc.

PRODUCT SERVICE TEST RESULT SUMMARY EUROPEAN STANDARD EN 55022: 1998 + Amd. 1: 2000 AS/NZS 3548: 1995 + A1 & A2: 1997 VCCI V-3/99.05 FCC PART 15 SUBPART B Class A Limit MANUFACTURER'S NAMEMonarch Marking Systems, Inc, dba Paxar Corporation NAME OF EQUIPMENTUltra Gold Thermal Barcode Printer with Cisco Radio Card MODEL NUMBERM06037 (Printer) LMC352 (Cisco Radio Card) MANUFACTURER'S ADDRESS170 Monarch Lane Miamisburg, OH 45342 TEST REPORT NUMBERNC202932.1 TEST DATE28 & 29 May 2002 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 15, VCCI V-3/99.05, AS/NZS 3548 and European Standard EN 55022. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15, VCCI V-3/99.05, AS/NZS 3548 and European Standard EN 55022: "Limits and Methods of Measurement of Radio Interference Characteristics of Information Technology Equipment". Date:05 August 2002 Location:Taylors Falls MNR M JohnsonT. K. Swanson USATest TechnicianTest Technician Not Transferable File No. NC202932.1, Page 1 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No.: NC202932.1 Date of issue: 05 August 2002 Model / Serial No.: M06037 (Printer) / LMC352 (Cisco Radio Card) / Product Type : Ultra Gold Thermal Barcode Printer with Cisco Radio Card Applicant: Monarch Marking Systems, Inc, dba Paxar Corporation Manufacturer: Monarch Marking Systems, Inc, dba Paxar Corporation License holder: Monarch Marking Systems, Inc, dba Paxar Corporation Address: 170 Monarch Lane : Miamisburg, OH 45342 Test Result: nn Positiveoo Negative Test Project Number: Reference(s) NC202932.1 Total pages including Appendices 34 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. NC202932.1, Page 2 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 - 10 Directory2 Test Regulations3 Deviations from standard / Summary10 Test-setups (Photos)11 - 12 Test-setup (drawing)Appendix A B)Test data Conducted emissions10/150 kHz - 30 MHz5, 9 Radiated emissions10 kHz - 30 MHz5, 9 Radiated emissions30 MHz - 1000 MHz6, 9 Interference power30 MHz - 300 MHz6, 9 Equivalent Radiated emissions1 GHz - 18 GHz7, 9 C)Appendix A Test Data Sheets and Test Setup Drawing(s) A2 – A13 D)Appendix B Constructional Data Form(s) and/or Product Information Form(s) B2 – B7 E)Appendix C Measurement ProtocolC1 - C2 File No. NC202932.1, Page 3 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- o - EN 50081-1 / 1991 o - EN 55011 / 1998o - Group 1o - Group 2 w/Amendment A1:1999o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B n - EN 55022 / 1998n - Class Ao - Class B o - BS n - VCCIn - Class Ao - Class B n - FCCn - Class Ao - Class B n - AS 3548 (1995)n - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B n - CISPR 22 (1993) n - Class Ao - Class B File No. NC202932.1, Page 4 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature: 21 °C Relative Humidity: 34 % Atmospheric pressure: 99.0 kPa Power supply system: 50/60 Hz – 230/115 VAC – 1 Phase Sign Explanations: o - not applicable n - applicable File No. NC202932.1, Page 5 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: o - Test not applicable o - Wi…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 APPLICATION FOR FCC CERTIFICATION DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER Part 15 Unlicesned Modular Transmitter Approval (DA00-1407 June 26, 2000) CISCO Systems, Inc. 3875 Embassy Parkway Suite 350 Akron, OH 44333 330-664-7362 (Jim Nicholson) Model: AIR-MPI352 FCC ID:LDK102042 February 28, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 RADIO FREQUENCY DEVICES FCC 97-114 GUIDANCE ON MEASUREMENTS FOR DIRECT SEQUENCE SPREAD SPECTRUM SYSTEMS ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS RSS-210, Issue 3: 2000 LOW POWER LICENCE-EXEMPT RADIOCOMMUNICATION DEVICES (ALL FREQUENCY BANDS) RSS-102, Issue 1: 1999 EVALUATION PROCEDURE FOR MOBILE AND PORTABLE RADIO TRANSMITTERS FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator Part 15.247 2412 to 2462 MHz 0.109 Canadian Sections Frequency Range Output Power (W) Freq. Tolerance Emission Designator 6.2.2 (o) 2412 to 2462 MHz 0.109 This report concerns (check one): Original Grant: X Class II Change: Equipment Type: PCI Board Deferred grant requested per 47 CFR 0.457 (d) (1) (ii) Yes: No: X If yes, defer until: Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR. [10-1-90 Edition] provision. REPORT PREPARED BY: EMC Engineer: Rachid Sehb Signature: Supervising Engineer: Desmond A. Fraser Signature: Document Number:2001041 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 2 Document Number: 2001041 Revision 3 TABLE OF CONTENTS 1 INTRODUCTION....................................................................................................................................................4 1.1 RELATED SUBMITTAL (S)/GRANT (S).....................................................................................................4 1.2 TEST METHODOLOGY.................................................................................................................................4 1.3 TEST FACILITY...............................................................................................................................................4 1.4 EMISSIONS EQUIPMENT LIST....................................................................................................................5 2 SYSTEM TEST CONFIGURATION...................................................................................................................8 2.1 JUSTIFICATION...............................................................................................................................................8 2.2 EUT EXERCISE SOFTWARE........................................................................................................................8 2.3 SPECIAL ACCESSORIES...............................................................................................................................8 2.4 TEST SYSTEM DETAILS........................................................................................................…

Text truncated - open the document above for the full version.
