GU698559311RFID Reader Module

User’s Guide MP9311 Low-Power UHF Reader Module THEPOWERTOCHOOSE SAMSys MP9311 Low-Power UHF Reader Module User’s Guide First Edition (October 4, 2005) © Copyright 2005 SAMSys Technologies, Inc. All Rights Reserved. Disclaimer and Limitation of Liability The content of this manual is for information use only and is subject to change without notice. SAMSys assumes no responsibility or liability for any errors or inaccuracies that may appear in this publication. No part of this manual may be reproduced in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of SAMSys. SAMSys products are not designed, intended, authorized or warranted to be suitable for life support applications or any other life critical applications which could involve potential risk of death, personal injury, property damage, or environmental damage. About SAMSys SAMSys Technologies, Inc. is a world-leading provider of RFID reader hardware solutions in the LF, HF, and UHF segments of the RFID marketplace. SAMSys is a public company listed on the Toroto Stock Exchange under the symbol SMY. SAMSys Technologies, Inc. 44 East Beaver Creek Rd., Unit 11 Richmond Hill, Ontario L4B 1G8 Canada Phone: (905) 707-0404 Toll Free: (877) 367-4342 Fax: (905) 707-9944 E-mail: [email protected] Web: www.samsys.com Part Number: MP9311-01-UG-V1.0a FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. REGULATORY NOTICE Changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate the equipment. Trademarks SAMSys is a trademark of SAMSys Technologies, Inc. HyperTerminal ® is a registered trademark of Hilgraeve, Inc. EPC is a trademark of EPCglobal, Inc. Other company, product or service names appearing in this manual may be trademarks or service marks of their respective owners. MP9311 User’s Guide i Contents Chapter 1 – Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Unpacking the Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 About the MP9311 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Chapter 2 – Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Reader Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Connecting Power to the MP9311 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Connecting an RS-232 Serial Link to the MP9311 . . . . . . . . . . . . . . . . . . 7 Connecting the Digital Input and Output Lines . . . . . . . . . . . . . . . . . . . . 8 Reader Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Low-Power UHF Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing the RF Command Suite Application . . . . . . . . . . . . . . . . . . . . . . . . 11 Setting Transmit Power - TD0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Setting Antenna Gain - TG0 (MP9311-Wxx only) . . . . . . . . . . . . . . . . . . . . . 12 Selecting ETSI Frequency Bands (MP9311-Wxx only) . . . . . . . . . . . . . . . . . 13 Single Frequency Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Frequency Hopping Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Chapter 3 – Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 MP9311 Power Up and Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Setting the RF Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Selecting Tag Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Enabling Tag Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Configuring Specific Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Reading Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Tag Reading Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Reading Tags Using RF Command Suite . . . . . . . . . . . . . . . . . . . . . . . . . 18 External Triggered Tag Inventory Operation . . . . . . . . . . . . . . . . . . . . . . 19 Writing Blank Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Modifying Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Resetting the MP9311 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Chapter 4 – Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 General Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Contact Us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Chapter 5 – Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Reader Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Antenna Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Power and In…

Text truncated - open the document above for the full version.

Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 1-937-865-2123 FAX 1-937-865-2048 SIEMIC Inc. 2206 Ringwood Avenue San Jose, CA 95131 Tel:+1(408)526 1188 Fax:+1(408)526 1088 Ref: 9855 with Samsys MP9311 September 12, 2005 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Technical Product Description • Block Diagram • Schematics If you have any questions or concerns, please contact me by email at [email protected]; phone at 1-937-865-2020; or by fax at 1-937-865-2048. Sincerely, James A. Bacher Senior Engineer Paxar Americas, Inc. cc: H. Dayton L. Neuhard

Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 1-937-865-2123 FAX 1-937-865-2048 SIEMIC Inc. 2206 Ringwood Avenue San Jose, CA 95131 Tel:+1(408)526 1188 Fax:+1(408)526 1088 Ref: 9855 with Samsys MP9311 September 12, 2005 Reference: DA 00-1407 Released: June 26, 2000 PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL FCC TCB To Whom It May Concern: Below are the eight elements a module is required to meet to comply with Part 15, Unlicensed Modular Approval notice, DA 00-1407, Dated June 26, 2000. Also included are my arguments on why our module meets the requirements. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. a. The Transmitter provided by Watkins Johnson is provided with an enclosure that provides the required shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. a. The inputs are buffered RS232 and the data is processed by a microprocessor in the Watkins Johnson module, thereby eliminating excessive data rates or over modulation. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. a. We provide an I/O board that regulates the supply voltage from 24 volts down to the 6 volts the Watkins Johnson transmitter needs. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. a. The antenna uses MMCX connectors. In this application the customer will never change the antenna. The reason is, if they change it to a higher gain antenna, they will program more than one tag at a time, which will prevent their RFID tags from working properly. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). a. Paxar tested the RFID module outside of our printer during the tests at Rhein Tech. During the tests it was powered by the printers 24VDC power supply, using the Paxar I/O board to further reduce the supply voltage to 6VDC (see note in item 3 above). 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. a. This module will only be used in Paxar printers and will be under Paxar control. We will include the required external label as well as label the module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. a. All of the timing is controlled by software in the Watkins Johnson unit and is not adjustable by the user. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), r…

Text truncated - open the document above for the full version.

External Photos Photo 1: Top Photo 2: Bottom Photo 3: Left Photo 4: Right

ID Label/Location Information Label Location Label Sample Label Location

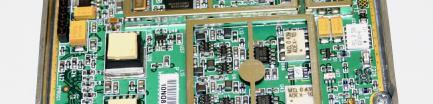

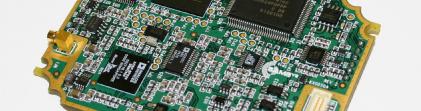

Internal Photos Photo 1: Internal with shielding Photo 2: Internal without shielding Photo 3: PCB Top Photo 4: PCB Bottom

TEST REPORT FROM d For MP9311 To FCC Part 15.247, 15.207, 15.209, IC RSS-210 Test Report Serial No.: SL05061102-PAX-002R1 This report supersedes SL05061102-PAX-002 Remarks: Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: .......................................................................................................... Tested by: Alvin Ilarina, Test Enginner .......................................................................................................... Reviewed by: Leslie Bai, Lab Manager Issue date: 5 October 2005 Equipment Details: Manufacturer: Paxar Americas, Inc. This test report may be reproduced in full only. Registration No. 783147 Registration No. 2195 Registration No. 4842 RTA No. D23/16V Lab Code: KR0032 Title: Paxar Americas, Inc. MP9311 To: FCC Part 15.247, 15.207, 15.209, IC RSS-210 Serial#SL05061102-PAX-002R1 Issue Date 5 October 2005 Page 2 of 34 This page has been left blank intentionally. Title: Paxar Americas, Inc. MP9311 To: FCC Part 15.247, 15.207, 15.209, IC RSS-210 Serial#SL05061102-PAX-002R1 Issue Date 5 October 2005 Page 3 of 34 CONTENTS EXECUTIVE SUMMARY..............................................................................................................................................5 1 TECHNICAL DETAILS..........................................................................................................................................6 2 TESTS REQUIRED..................................................................................................................................................7 3 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.................................................................8 4 TEST INSTRUMENTATION................................................................................................................................27 APPENDIX A: EUT TEST CONDITIONS.................................................................................................................28 APPENDIX B: EXTERNAL PHOTOS........................................................................................................................29 APPENDIX C: CIRCUIT/BLOCK DIAGRAMS.......................................................................................................30 APPENDIX D: INTERNAL PHOTOS.........................................................................................................................31 APPENDIX F: PRODUCT DESCRIPTION...............................................................................................................32 APPENDIX H: FCC LABEL LOCATION..................................................................................................................33 APPENDIX I: USER MANUAL...................................................................................................................................34 Title: Paxar Americas, Inc. MP9311 To: FCC Part 15.247, 15.207, 15.209, IC RSS-210 Serial#SL05061102-PAX-002R1 Issue Date 5 October 2005 Page 4 of 34 This page has been left blank intentionally. Title: Paxar Americas, Inc. MP9311 To: FCC Part 15.247, 15.207, 15.209, IC RSS-210 Serial#SL05061102-PAX-002R1 Issue Date 5 October 2005 Page 5 of 34 Executive Summary The purpose of this test programme was to demonstrate compliance of the Paxar Americas, Inc., MP9311 against the current FCC Part 15.247, 15.207, 15.209, IC RSS-210. The MP9311 demonstrated compliance with the FCC Part 15.247, 15.207, 15.209, IC RSS-210. Paxar Americas, Inc. is the applicant and claimed manufacturer of this tested product. For the detailed description of this product, please refer to the MP9311 User Manual. This equipment was tested with: Paxar Americas, Inc. Model 126351 Antenna The test has demonstrated that this unit complies with stipulated standards. Title: Paxar Americas, Inc. MP9311 To: FCC Part 15.247, 15.207, 15.209, IC RSS-210 Serial#SL05061102-PAX-002R1 Issue Date 5 October 2005 Page 6 of 34 1 Technical Details Purpose Compliance testing of MP9311 with FCC Part 15.247, 15.207, 15.209, IC RSS-210 Applicant / Client Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 Manufacturer Paxar Americas, Inc. Laboratory performing the tests SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test location(s) SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test report reference number SL05061102-PAX-002R1 Date EUT received 12 September 2005 Standard applied FCC Part 15.247, 15.207, 15.209, IC RSS-210 No of Units: 1 Equipment Category: DSS Trade/Product Name: MP9311 Type/Model Name/No: MP9311 Technical Variants: None FCC ID No. GU698559311 Title: Paxar Americas, Inc. MP9311 To: FCC Part 15.247, 15.207, 15.209, IC RSS-210 Serial#SL05061102-PAX-002R1 Issue Date 5 October 2005 Page 7 of 34 2 Tests Required The product was tested in accordance with the following specifications. The test results recorded in this Test Report are exclusively referred to the tested sample(s). Test Standard Description Pass / Fail 47CFR Part 15, General Conditions 15.207 Power Line Conducted Emissions Pass 15.209, 15.205 Radiated Spurious Emissions Pass 47CFR Part 15, §15.247 15.247(a)1 Carrier Frequency Separation Pass 15.247(a)1 20 dB Bandwidth Pass 15.247(a)1 Number of Hopping Frequencies Pass 15.247(a)1 Time of Occupancy Pass 15.247(b)(1) Power Output Pass 15.247(c) Conducted Spurious Emissions Pass 15.247(c) Radiated Spurious Emissions Pass ANSI C63.4: 2001 Notes: Deviations to above standards are outlined in specific test sections if applicable. Cable loss and external attenuation are compensated for in the measurement system when applicable. Title: Paxar Americas, Inc. MP9311 To: FCC Part 15.247, 15.207, 15.209, IC RSS-210 Serial#SL05061102-PAX-002R1 Issue Date 5 October 2005 Page 8 of 34 3 Measurements, Examinations and Derived Results 3.1 General observations Equipment serial number(s) Module:…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emissions Radiated Emissions Conducted Emissions Voltage
