GU6RFIDALN1RFID Frequency Hopping Transceiver

Avery Dennison Retail Information Services, LLC
RFID Frequency Hopping Transceiver - FCC ID GU6RFIDALN1 - Avery Dennison Retail Information Services, LLC
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Aug 23, 2004
Application Purpose
Original Equipment
Date of Application
Aug 23, 2004
Equipment Note
RFID Frequency Hopping Transceiver
Frequency Range
902.80000000 - 927.60000000
Company
Avery Dennison Retail Information Services, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗
↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 44 of 59 APPENDIX I: MANUAL Please refer to the following pages. Monarch  9855  RFID Printer TC9855RFIDQR Rev. AA 3/04 ©2004 Paxar Americas, Inc. All rights reserved. BETA Each product and program carries a respecti ve written warranty, the only warranty on which the customer can rely. Paxar re serves the right to make changes in the product, the programs, and their availabilit y at any time and without notice. Although Paxar has made every effort to provide complete and accurate information in this manual, Paxar shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual.  2004 Paxar Americas, Inc. All rights reserv ed. No part of this publication may be reproduced, transmitted, stored in a retr ieval system, or translated into any language in any form by any means, without the prior written permission of Paxar Americas, Inc. WARNING This equipment has been tested and found to comply wi th the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to prov ide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can r adiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful in terference in which case the user will be required to correct the interference at his own expense. CANADIAN D.O.C. WARNING This digital apparatus does not exceed the Class A limits for radio noise em issions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n'ém et pas de bruits radioélectr iques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicte par le mini stère des Communications du Canada. Regulatory Compliance Paxar RF products are designed to be compliant with the rules and regulations in the locations into which they are sold and will be labeled as required. The majority of Paxar RF devices are type approved and do not require the user to obtain license or authorization before using the equipment. Any changes or modifications to Paxar equipment not expressly approved by Paxar could void the user authority to operate the equipment. FCC RF Exposure Guidelines To comply with FCC exposure requirement s, antennas that are mounted externally at remote locations or operating near users at stand-alone desktop of similar configurations must operate with a minimu m separation distance of 20 cm from all persons. Declaration of Conformity for RF Exposure: The radio module has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set fo rth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. Radio Frequency Interference Requirements This device complies with Part 15 of the F CC Rules. Operation is subject to the following two conditions: 1) this device ma y not cause harmful interference, and 2) this device must accept any interfer ence that may cause undesired operations. CAUTION: The Part 15 radio device operates on a non-i nterference basis with other devices operating at this frequency when using the listed antenna. Collocation Statement: This device must not be collocated wi th any other antenna or transmitters. Radio Frequency Interference Requirements - Canada This device complies with RSS 210 of Industr y Canada. Operation is subject to the following two conditions: (1) this device ma y not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class A digital apparatus meet s the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe A especte toutes les exigencies du Reglement sur le Materiél Brouilleur du Canada. Trademarks Monarch  is a registered trademark of Paxar Americas, Inc. 9855 is a trademark of Paxar Americas, Inc. Paxar  is a trademark of Paxar Corporation. Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 Visit www.paxar.com for sales, service, supplies, information, and telephone numbers for our locations throughout the world. TOLL FREE: 1-800-543-6650 (U.S.A.) 1-800-363-7525 (Canada) 1 This Quick Reference contains supply loading and general care and maintenance procedures. For more detailed information, the Operator’s Handbook is on the optional Tabletops Documentation CD-ROM or can be downloaded from our Web site. Check the Web site for the latest release/addendum information. Connecting the Cables The power supply automatically switc hes between 115V or 230V. There are no operator settings required. 1. Plug the power cable into the socket. Plug the other end of the cable into a grounded electrical outlet. 2. Connect the communication cable into the appropriate port. Secure the cable with the connecting screws (serial) or spring clips (parallel). If you are communicating with the host through the serial port, make sure the printer's communication values match those at the host. The factory default values are 9600 Baud, 8 bit data frame, 1 stop bit, no parity, and DTR flow control. Set the communication values on the printer to match those at the host. The printer also has a USB (Universal Serial Bus) Version 1.1 communications port. Drivers are available on our Web site for a variety of operating systems. 3. Turn on the printer. Press ( I ) to turn on and ( O ) to turn off the printe…

Text truncated - open the document above for the full version.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 24, 2004 RE: Paxar Corporation FCC ID: GU6RFIDALN1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The application appears to be for Paxar, but the FRN matches Monarch. Please explain. Response : For a period of time, Paxar was doing business as (DBA) Monarch Marking Systems. The FRN has now been updated. 2) It is uncertain if the Voltage Regulator board mentioned is part of the EUT or a separate board. If it is separate, then this approval will be a “limited modular approval” specific to Paxar Corporation or their OEM integrators since the responsibility of other parties to ensure this regulation can not be guaranteed. Please confirm or explain. Response : Per section 1.3 of the test report, this application is for “limited modular approval”. The voltage regulator is not part of the module, and Paxar will maintain control of all host devices. 3) The antenna cable appears to contain a removable 9 dB attenuation. Given this application is for modular approval, how can integration of this attenuator into all units be assured (i.e., will the connection be made permanent, will only the applicant or their OEM integrator install this device, etc. Response : Since the application is for “limited modular approval”, Paxar will ensure that the 9 dB attenuation is installed in all end products. 4) If the device is for general modular approvals for other manufacturers other than Paxar, then an OEM installation manual should be provided. Response : N/A – application is for “limited modular approval”. 5) If this device is a module designed for use in a variety of devices, please provide justification of only Class A emissions for the digital device emissions. How can use in only Class A digital device be insured in all devices? Note - users manual shows Class A compliance. Response : Please see attestation letter from Paxar uploaded with this response. 6) Even if the Digital device emissions are only subject to Class A emissions, All emissions caused by the RX (LO’s, LO harmonics, etc.), must meet with limits equivalent to Class B. How was this test performed to ensure that all frequencies from the RX part of the device meet with the more stringent limits? Response : Please note that this device will only be used in commercial, industrial or business environments. Receiver emissions were tested to 15.109 Class B limits; all receiver emissions complied with these limits. Upon clarification from the manufacturer, the digital emissions in question were harmonics from the microprocessor clock (40 MHz). 15.109 Class A limits were applied to these digital emissions; these digital emissions met 15.109 Class A limits. American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 7) AC power line emissions must meet the limits of 15.207 (equivalent to Class B, not Class A from 15.107). Please correct. Currently peak results exceed the average limits. Please review, correct, and provide additional measurements as necessary. Response : The EUT was re-tested to 15.207. Please see revised test report uploaded with this response. 8) Please explain compliance of the FCC requirement that “the system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals.” Response : The manufacturer states that the reader uses a CW homodyne architecture with 400KHz channel spacing. Thus the channels are +/-200KHz, and the receiver input bandwidth is greater than 7dB down at +/-200KHz from channel center--the receiver and transmitter channel have the same bandwidth. Additionally, the reader uses a single oscillator signal simultaneously for the transmit carrier and receiver local oscillator (LO) frequencies. This guarantees that the transmit and receiver frequencies are always identical and shift in a synchronized manner. 9) FYI. Section 7.3 of the test report mentions a 60 second sweep which appears to be irrelevant. Response : Thank you for this information. 10) FYI. 6 dB bandwidth requirements are not necessary for DSSS systems. This data was not reviewed. Response : Thank you for this information. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 6, 2004 RE: Paxar Corporation FCC ID: GU6RFIDALN1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The application appears to be for Paxar, but the FRN matches Monarch. Please explain. 2) It is uncertain if the Voltage Regulator board mentioned is part of the EUT or a separate board. If it is separate, then this approval will be a “limited modular approval” specific to Paxar Corporation or their OEM integrators since the responsibility of other parties to ensure this regulation can not be guaranteed. Please confirm or explain. 3) The antenna cable appears to contain a removable 9 dB attenuation. Given this application is for modular approval, how can integration of this attenuator into all units be assured (i.e., will the connection be made permanent, will only the applicant or their OEM integrator install this device, etc. 4) If the device is for general modular approvals for other manufacturers other than Paxar, then an OEM installation manual should be provided. 5) If this device is a module designed for use in a variety of devices, please provide justification of only Class A emissions for the digital device emissions. How can use in only Class A digital device be insured in all devices? Note - users manual shows Class A compliance. 6) Even if the Digital device emissions are only subject to Class A emissions, All emissions caused by the RX (LO’s, LO harmonics, etc.), must meet with limits equivalent to Class B. How was this test performed to ensure that all frequencies from the RX part of the device meet with the more stringent limits? 7) AC power line emissions must meet the limits of 15.207 (equivalent to Class B, not Class A from 15.107). Please correct. Currently peak results exceed the average limits. Please review, correct, and provide additional measurements as necessary. 8) Please explain compliance of the FCC requirement that “the system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals.” 9) FYI. Section 7.3 of the test report mentions a 60 second sweep which appears to be irrelevant. 10) FYI. 6 dB bandwidth requirements are not necessary for DSSS systems. This data was not reviewed. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 38 of 59 APPENDIX C: AGENCY AUTHORIZATION LETTER Please refer to the following page. Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 800 543-6650 FAX 937-865-2048 February 26, 2004 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re: Agent Authorization To Whom It May Concern: Paxar Americas, Inc. hereby authorizes Rhein Tech Laboratories, Inc. (RTL), 360 Herndon Parkway, Suite 1400, Herndon, VA 20170 to act as agent. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes: FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant. No party to the application is subject to a denial of federal benefits that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). If you have any questions or concerns, please contact me by email at [email protected]; phone at 1-937-865-2020; or by fax at 1-937-865-2048. Sincerely, James A. Bacher Senior Engineer Paxar Americas, Inc. A division of Paxar Corp. cc: H. Dayton J. Duckett L. Neuhard

Cover Letter(s)

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 39 of 59 APPENDIX D: CONFIDENTIALITY REQUEST LETTER Please refer to the following page. Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 800 543-6650 FAX 937-865-2048 March 04, 2004 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Technical Product Description • Block Diagram If you have any questions or concerns, please contact me by email at [email protected]; phone at 1-937-865-2020; or by fax at 1-937-865-2048. Sincerely, James A. Bacher Senior Engineer Paxar Americas, Inc. A division of Paxar Corp. cc: H. Dayton J. Duckett L. Neuhard

Cover Letter(s)

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 August 12, 2004 To Whom It May Concern: Paxar attests to the use of the Alien ALR-9932-A RFID module only in Class A locations. Sincerely, James A. Bacher, Senior Engineer Paxar Corporation 170 Monarch Lane Miamisburg, Ohio 453452 1-937-865-2020 1-937-865-2048 [email protected]

External Photos

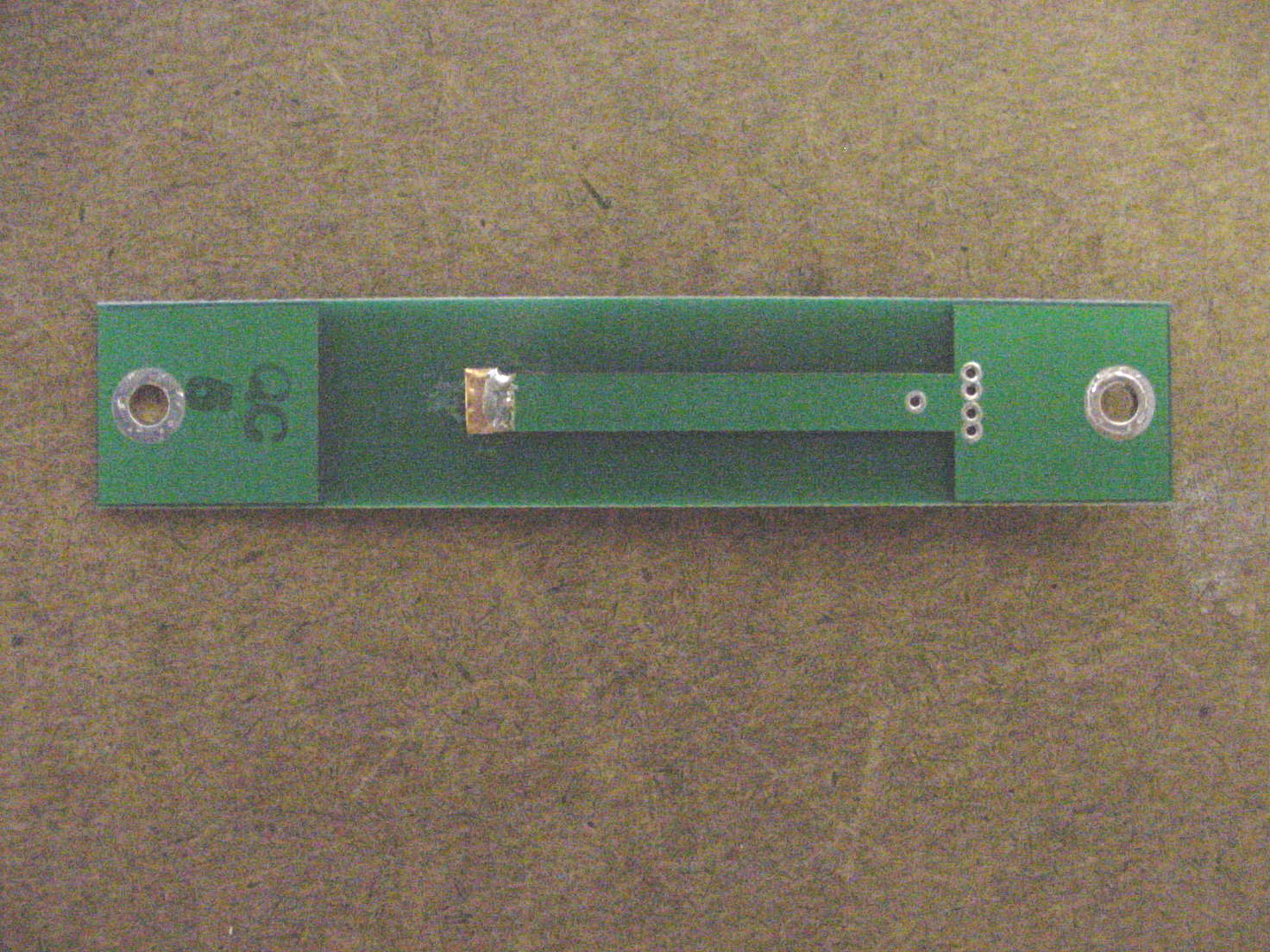

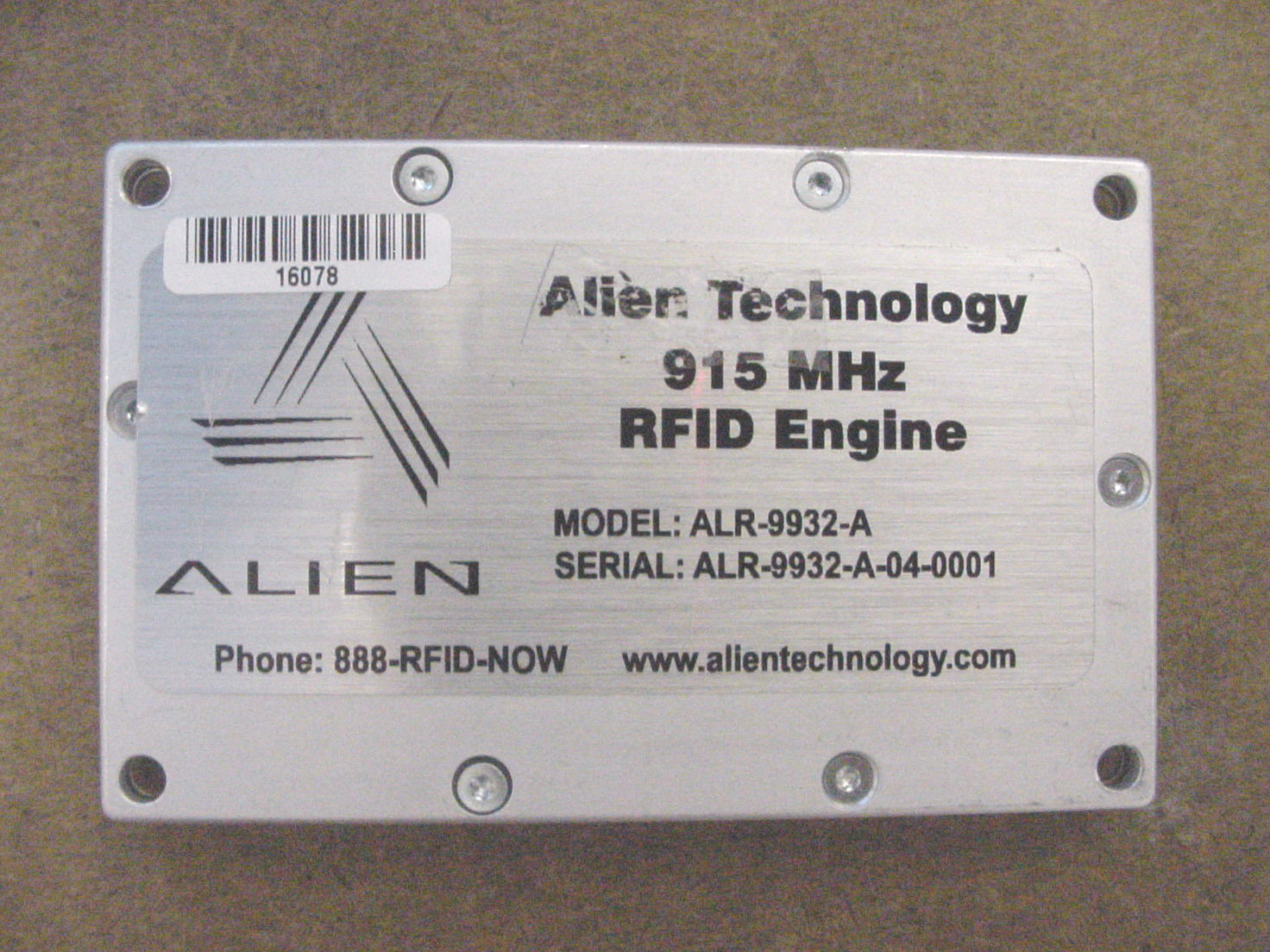

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 51 of 59 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 8: RFID MODULE FRONT Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 52 of 59 PHOTOGRAPH 9: RFID MODULE BACK Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 53 of 59 PHOTOGRAPH 10: ANTENNA FRONT Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 54 of 59 PHOTOGRAPH 11: ANTENNA BACK

External Photos

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 55 of 59 PHOTOGRAPH 12: ANTENNA WITH 9 DB ATTENUATOR Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 56 of 59 PHOTOGRAPH 13: INLINE WITH ANTENNA SMA 9 DB ATTENUATOR Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 57 of 59 PHOTOGRAPH 14: POWER SUPPLY

ID Label/Location Info

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 40 of 59 APPENDIX E: LABEL AND LABEL LOCATION PHOTOGRAPH 1: LABEL LOCATION Please see the following page for a sample of the FCC Identification Label. FCC ID LABEL HERE Paxar Americas, Inc. FCC ID: GU6RFIDALN1 IC: 1502A-RFIDALN1 Trade Name: ALIENC1915 RFID: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference that may cause undesired operations. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le material broilleur du Canada. 0681 Paxar Americas, Inc. FCC ID: GU67410 IC: 1502A-741001 Trade Name 7410-01 Rlan: XI-325 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference that may cause undesired operations. This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le material broilleur du Canada. 0681 VARIABLE FIELD VARIABLE RFID FCC Label2 Tom Keller AW-09526 Graphic Number Rev Rev Dwg Size Scale Designer Client Name Date Ref. Number GB Arnold LocSymChangeEn No.DateByChk A B C D 23 6 4 5 7 236 4 5 7 A B C D Paxar Americas, Inc. 170 Monarch Lane Miamisburg, OH 45342 937 865-8025 FAX 937 865-2048 ID Artmaster 1:1 8.5 x 11 Design Notes: 1. Artwork shown represents size and style of finished product only. 2. Artwork does not necessarily reflect manufacturing process and/or tooling requirements. 3. Please refer to product drawing for location on part and color. 4. Dimensions are for reference only. This information is the confidential, restricted, and sole property of Paxar Corporation. It should be used by the recipient only for the purposes benefiting Paxar, and shall not be disclosed, reproduced, or used by others without prior written approval. Notice: 7/30/04 ~~1:1 Color Sample~~ pn-124956-12 35mm 25mm R2.5mm This is designed as a make label on Monarch ̈ TuffMark permanent adhesive material. Background- silver Graphics- black Notes: 1- Outline for location on part only. Do not print. Please see part drawing for details. 2- For REV 1 Alien hardware with box antenna.

Internal Photos

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 58 of 59 APPENDIX L: INTERNAL PHOTOGRAPHS PHOTOGRAPH 15: ALIEN RFID CARD SIDE 1 Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 59 of 59 PHOTOGRAPH 16: ALIEN RFID CARD SIDE 2

RF Exposure Info

Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 36 of 59 APPENDIX A: RF EXPOSURE COMPLIANCE FCC Rules and Regulations Part 1.1307, 1.1310, 2.1091, 2.1093: From FCC 1.1310 Table 1B, the maximum permissible RF exposure for an uncontrolled environment for a device operating at this frequency range is 0.61 mW/cm 2 . The actual power density for the EUT with the antenna is calculated as shown below at 20 cm. The EUT is a mobile device per 2.1091 operating at 902.8 – 927.6 MHz. )4/()( 2 dGPS×××=π where: S = power density P = transmitter conducted power in (W) G = antenna numeric gain d = distance to radiation center (m) Antenna Manufacturer Antenna Type Gain (dBi) Numeric Gain Power (W) Separation Distance (m) Power Density (W/m 2 ) Power Density (mW/cm 2 ) Paxar Dipole -14.9 0.03 0.92 0.2 0.06 0.005 WARNING: It is the responsibility of the professional installer to ensure that when using the outdoor antennas in the United States (or where FCC rules apply), only the antenna specified above may be used. The use of any other antenna is expressly forbidden in accordance with FCC rules CFR 47 part 15.204. Proposed RF exposure safety information to include in User’s Manual: CAUTION: Antenna Installation Requirement The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Test Report

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 CERTIFICATION APPLICATION REPORT FCC PART 15.247 CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: Paxar Americas, Inc. Phone: 937-865-2123 x2020 170 Monarch Lane Fax: 937-865-2048 Miamisburg, OH 45342 Email: [email protected] Contact: James A. Bacher FCC ID: GU6RFIDALN1 GRANTEE FRN NUMBER: 0003583150 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2004117 MODEL(S): Alien ALR-9932-A RTL QUOTE NUMBER: QRTL04-281 DATE OF TEST REPORT: August 13, 2004 American National Standard Institute: ANSI C63.4: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Classification: DSS – Part 15 Spread Spectrum Transmitter Frequency Hopping FCC Rule Part(s): Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Frequency Hopping System Industry Canada Standard: RSS-210: Low Power License-Exempt Radio Communication Devices (All Frequency Bands) Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Output Power* (W) Frequency Tolerance Emission Designator 902.8-927.6 0.920 N/A N/A * output power is maximum peak conducted I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 15, Industry Canada RSS-210, ANSI C63.4, ANSI/TIA/EIA603, and ANSI/TIA/EIA 603-1. Signature: Date: August 13, 2004 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without written approval from Rhein Tech Laboratories, Inc. Rhein Tech Laboratories Client: Paxar Americas, Inc. 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: GU6RFIDALN1 Herndon, VA 20170 http://www.rheintech.com Model : ALR-9932-A Page 2 of 55 TABLE OF CONTENTS 1 GENERAL INFORMATION .............................................................................................................................................................5 1.1 SCOPE ........................................................................................................................................................................................5 1.2 TEST FACILITY ........................................................................................................................................................................5 1.3 RELATED SUBMITTAL(S)/GRANT(S)...................................................................................................................................5 1.4 MODIFICATIONS .....................................................................................................................................................................5 2 TEST INFORMATION.......................................................................................................................................................................6 2.1 TEST JUSTIFICATION .............................................................................................................................................................6 2.2 EXERCISING THE EUT ............................................................................................................................................................6 2.3 TEST RESULT SUMMARY ......................................................................................................................................................6 2.4 TEST SYSTEM DETAILS .........................................................................................................................................................7 2.5 CONFIGURATION OF TESTED SYSTEM ..............................................................................................................................7 3 COMPLIANCE WITH THE RESTRICTED BAND EDGE – FCC §15.205; IC RSS-210 §6.3 ...................................................8 3.1 TEST PROCEDURE...................................................................................................................................................................8 3.2 BAND EDGE TEST EQUIPMENT............................................................................................................................................8 3.3 COMPLIANCE WITH THE RESTRICTED BAND EDGE TEST DATA ................................................................................8 4 CONDUCTED LIMITS – FCC §15.207; IC RSS-210 §6.6 AND 7.4 .............................................................................................11 4.1 CONDUCTED TEST DATA ....................................................................................................................................................11 5 RADIATED EMISSION LIMITS; SPURIOUS AND HARMONICS – FCC §15.247; IC RSS-210 §6.3 .................................15 5.1 RADIATED SPURIOUS EMISSION LIMITS TEST PROCEDURE......................................................................................15 5.2 RADIATED SPURIOUS TEST EQUIPMENT ........................................................................................................................15 5.3 RADIATED EMISSIONS HARMONICS/SPURIOUS TEST DATA .....................................................................................16 6 CARRIER FREQUENCY SEPARATION - §15.247 (A)…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Michael Ouziel(Regulatory Engineer)
[email protected]937-865-2157Fax: 937-865-2048

Technical Contact

Rhein Tech LaboratoriesDesmond Fraser
[email protected]703-689-0368

360 Herndon Parkway · Herndon, Virginia · United States

Non-Technical Contact

Rhein Tech LaboratoriesKathy Grzovic
[email protected]703-689-0368

Test Firm

Rhein Tech Laboratories, Inc.Galina Yushina
[email protected]7036890368Fax: 7036892056

Technical Specifications

#Rule PartsFrequency RangePower Output
115C902.8 MHz - 927.6 MHz920.00 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited Modular Approval (LMA). Power Output listed is conducted. Approval is limited to installation only within Paxar devices which also provide regulated 6 VDC to the module to guarantee stable power supply according to the requirements of DA 00-1407. This device must include the attenuation in the antenna line as shown in this application for all installations. Additionally, this device is only approved for mobile configurations where the antenna(s) used for this transmitter are installed to provide a separation distance of at least 20 cm from all persons during transmission and is not collocated or operating in conjunction with any other antenna or transmitter. Only the antennas documented in the filing are approved for use with this device. Compliance of this device in all final host configurations is the responsibility of the Grantee. Information must not be provided to the end user regarding how to install or remove this RF module. End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
