GX9BRAFL1

Climax Technology Co Ltd

Telecare Alarm System

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Sep 30, 2025
Application Purpose: Original Equipment
Equipment Note: Telecare Alarm System
Frequency Range: 699.70000000 - 715.30000000
Company: Climax Technology Co Ltd
Country: Taiwan

Documents & Files

Select a file to view

Attestation Statements

Cover Letter(s)

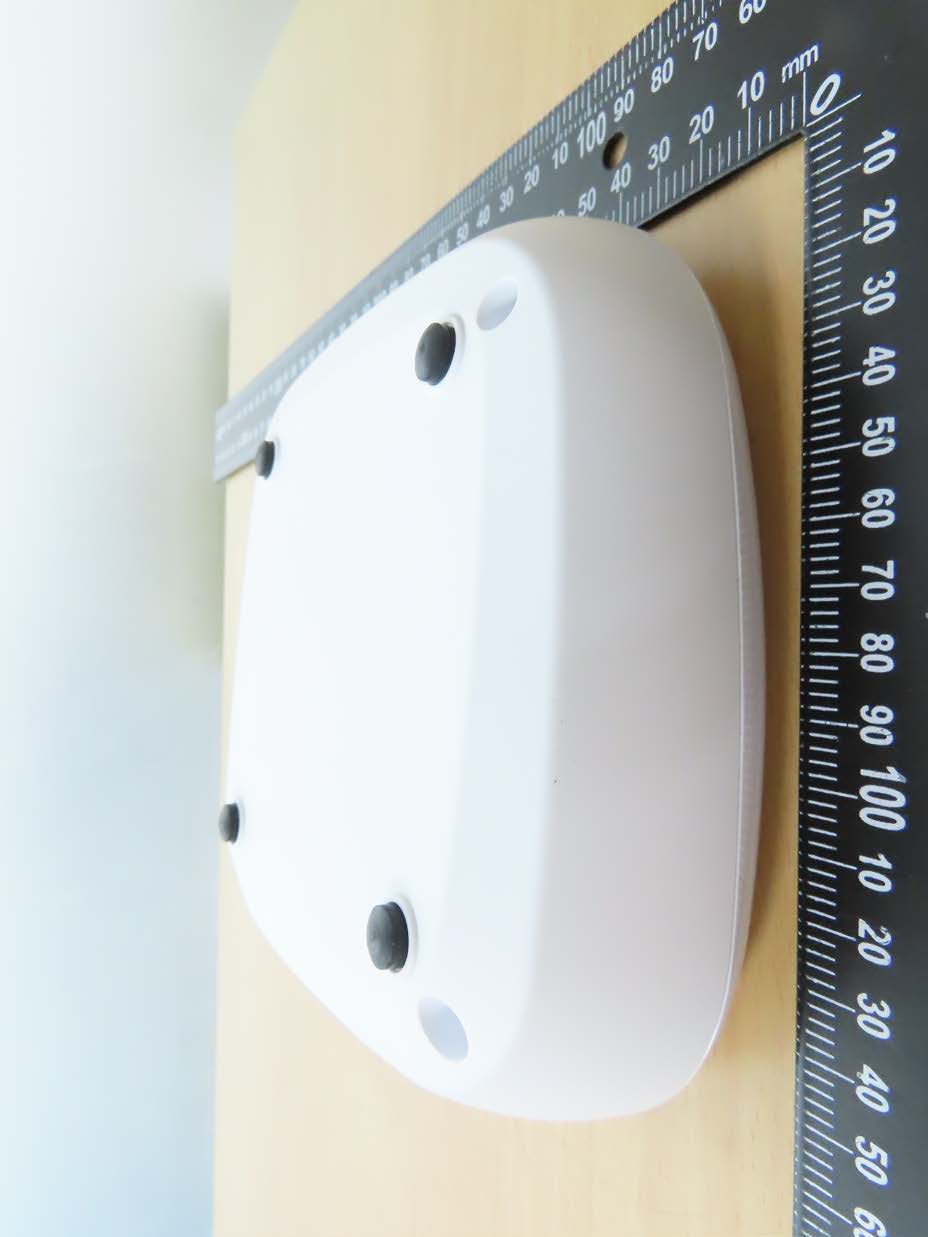

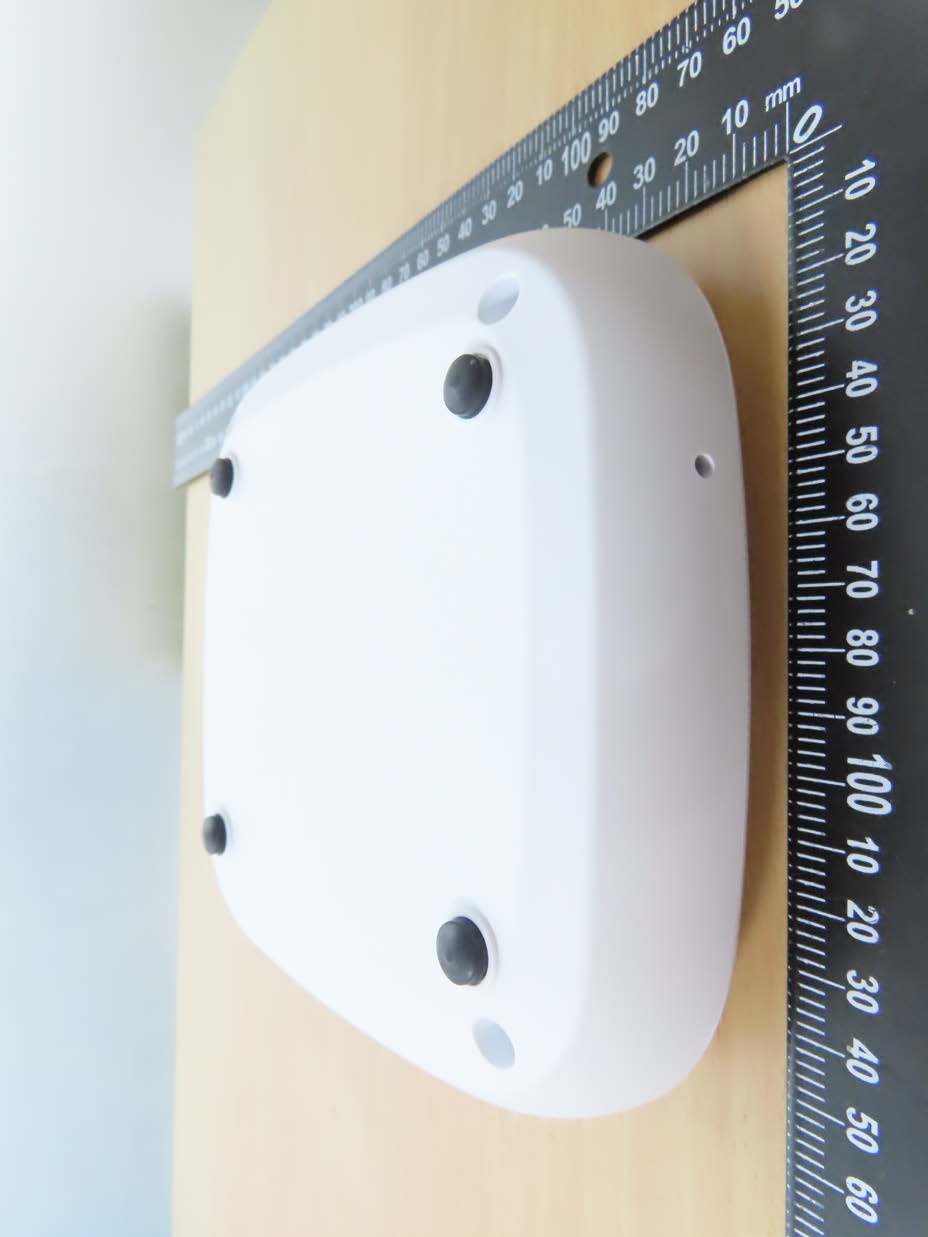

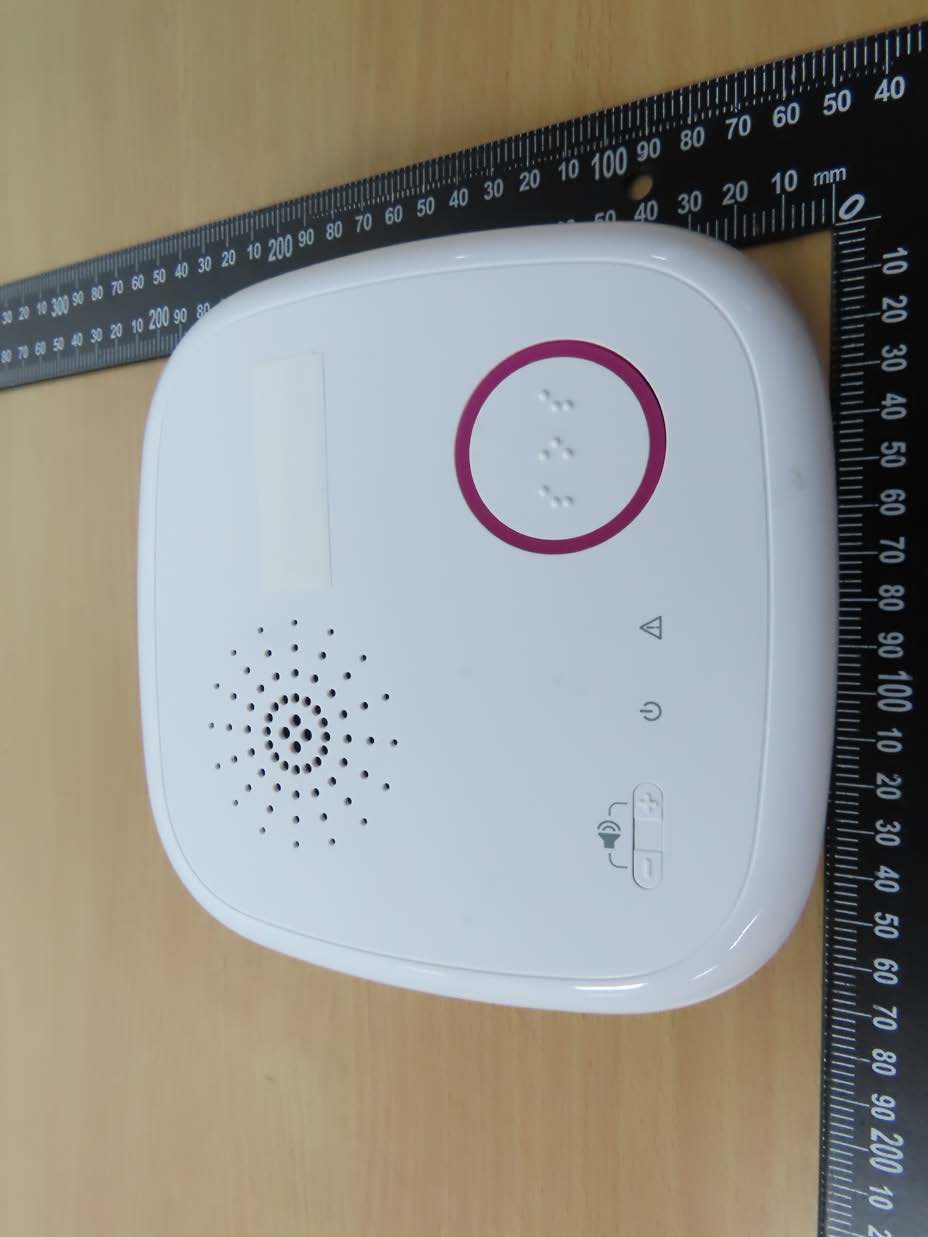

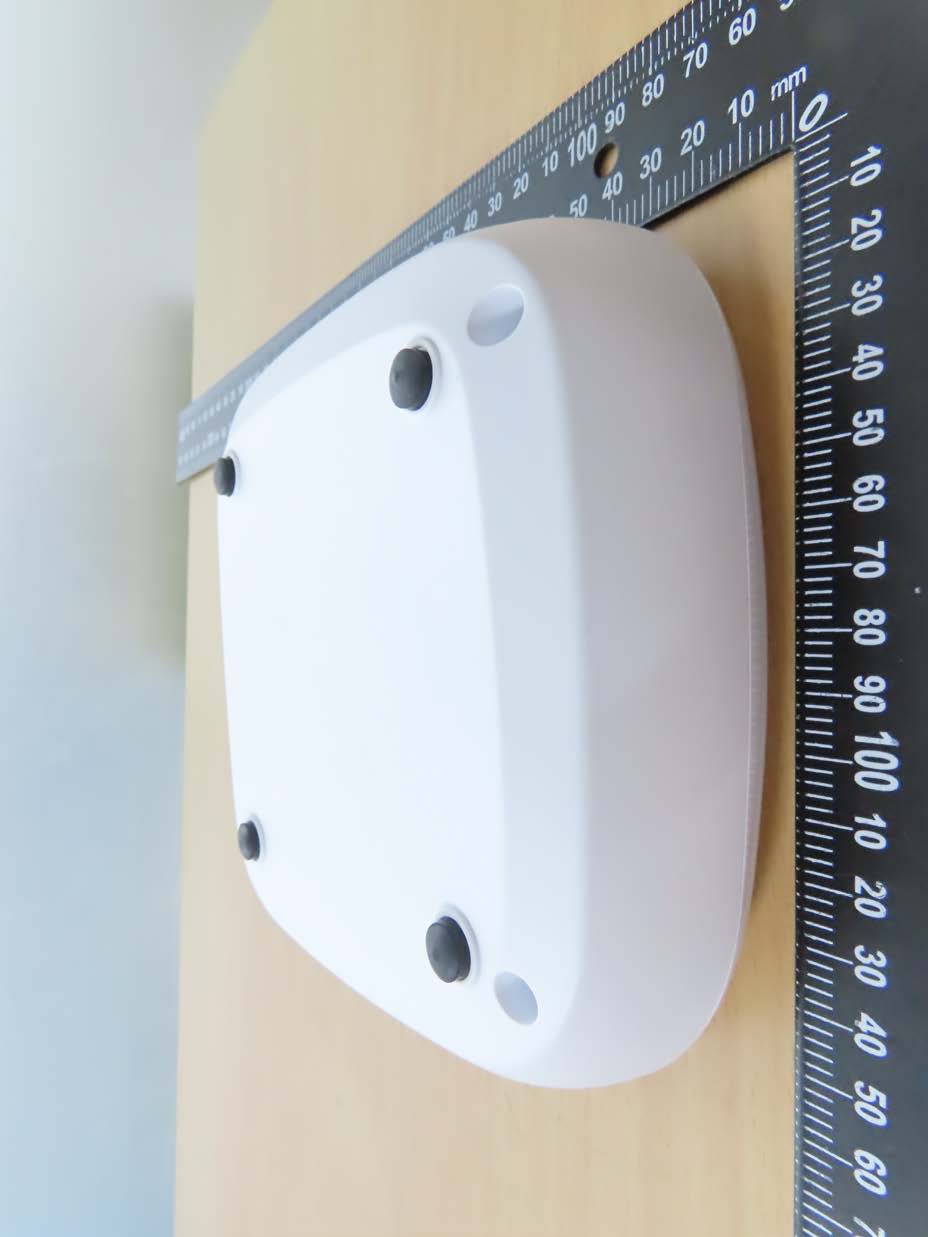

External Photos

ID Label/Location Info

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

George Lin(Hardware Engineer)

[email protected]Fax: 886-2-2794-5512

Technical Contact

Worldwide Testing Services (Taiwan) Co., Ltd.Chieh Tseng

[email protected]Fax: 886-2-6606-8879

6F., No.58, Lane 188, Ruey Kuand Rd., · Taiwan

Test Firm

Worldwide Testing Services (Taiwan) Co., Ltd.Rex Kao

[email protected]Fax: 886-2-6606-8879

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	406.00 mW	18M5G7D	0.004ppm
2	24E	1.85 GHz - 1.91 GHz	303.00 mW	3M33W7D	0.004ppm
3	24E	1.85 GHz - 1.91 GHz	425.00 mW	13M5G7D	0.004ppm
4	27	1.71 GHz - 1.75 GHz	570.00 mW	18M5G7D	0.003ppm
5	27	1.71 GHz - 1.75 GHz	436.00 mW	3M35W7D	0.003ppm
6	27	1.71 GHz - 1.75 GHz	588.00 mW	13M5G7D	0.003ppm
7	22H	824.7 MHz - 848.3 MHz	196.00 mW	9M04G7D	0.004ppm
8	22H	824.7 MHz - 848.3 MHz	152.00 mW	2M34W7D	0.004ppm
9	22H	824.7 MHz - 848.3 MHz	200.00 mW	1M11G7D	0.004ppm
1	27	699.7 MHz - 715.3 MHz	159.00 mW	9M07G7D	0.005ppm
11	27	699.7 MHz - 715.3 MHz	127.00 mW	2M36W7D	0.005ppm
12	27	699.7 MHz - 715.3 MHz	164.00 mW	4M50G7D	0.005ppm
13	27	699.7 MHz - 715.3 MHz	128.00 mW	1M10W7D	0.005ppm
14	27	779.5 MHz - 784.5 MHz	197.00 mW	9M04G7D	0.004ppm
15	27	779.5 MHz - 784.5 MHz	140.00 mW	2M36W7D	0.004ppm
16	27	779.5 MHz - 784.5 MHz	144.00 mW	4M49W7D	0.004ppm

Confidentiality

Long Term

Grant Notes

Output power is ERP for Part 22 and Part 27, EIRP for Part 24 and Part 27. The antenna(s) used for this transmitter must be used to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users must be provided with specific operating instructions for satisfying RF exposure compliance.
