H3YADYTECH699T900MHZ Wireless Speaker System ( Transmitter)

Intertek Testing Services ETL SEMKO November 2,1999 Dear sir / madam, On October 27,1999, we sent the electronic file to apply the FCC certification. The FCCID is H3YADYTECH699T. But we found that there has some typing errors on the report page 13 and 14, now we sent two correct pages to you and saved with filename: report1.doc. Thank you for your kindly attention and help. Best Regards, Prudence S. M. Poon

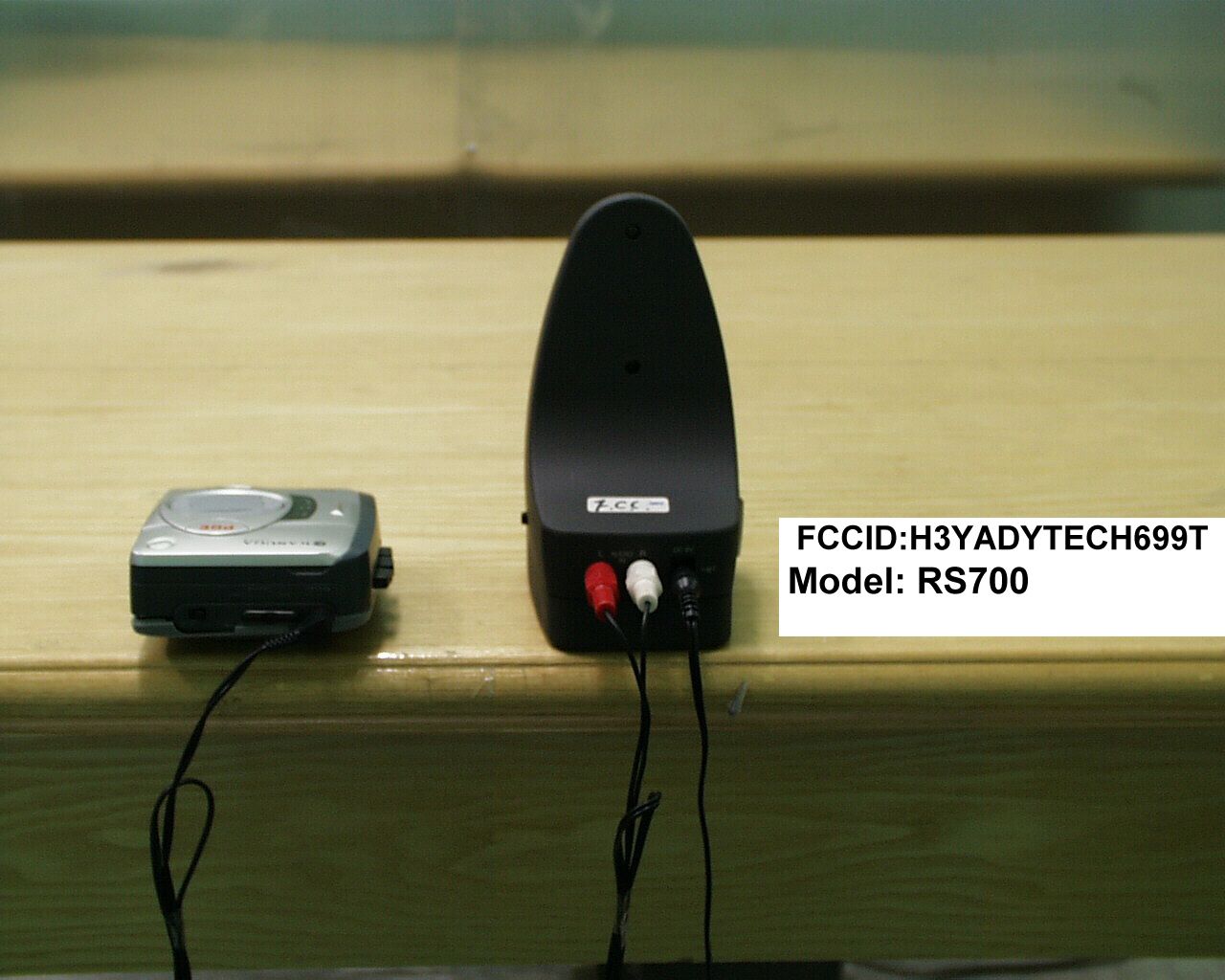

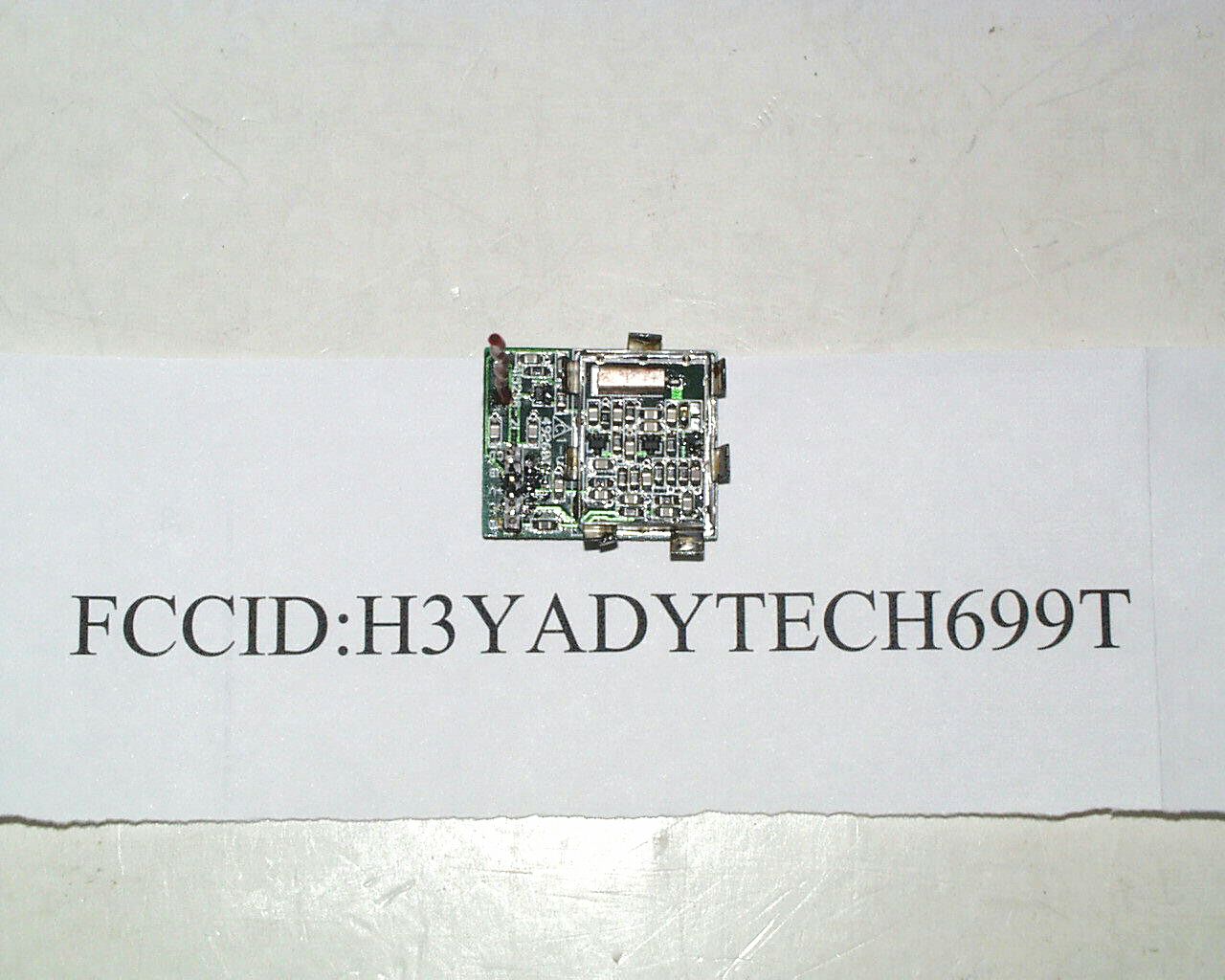

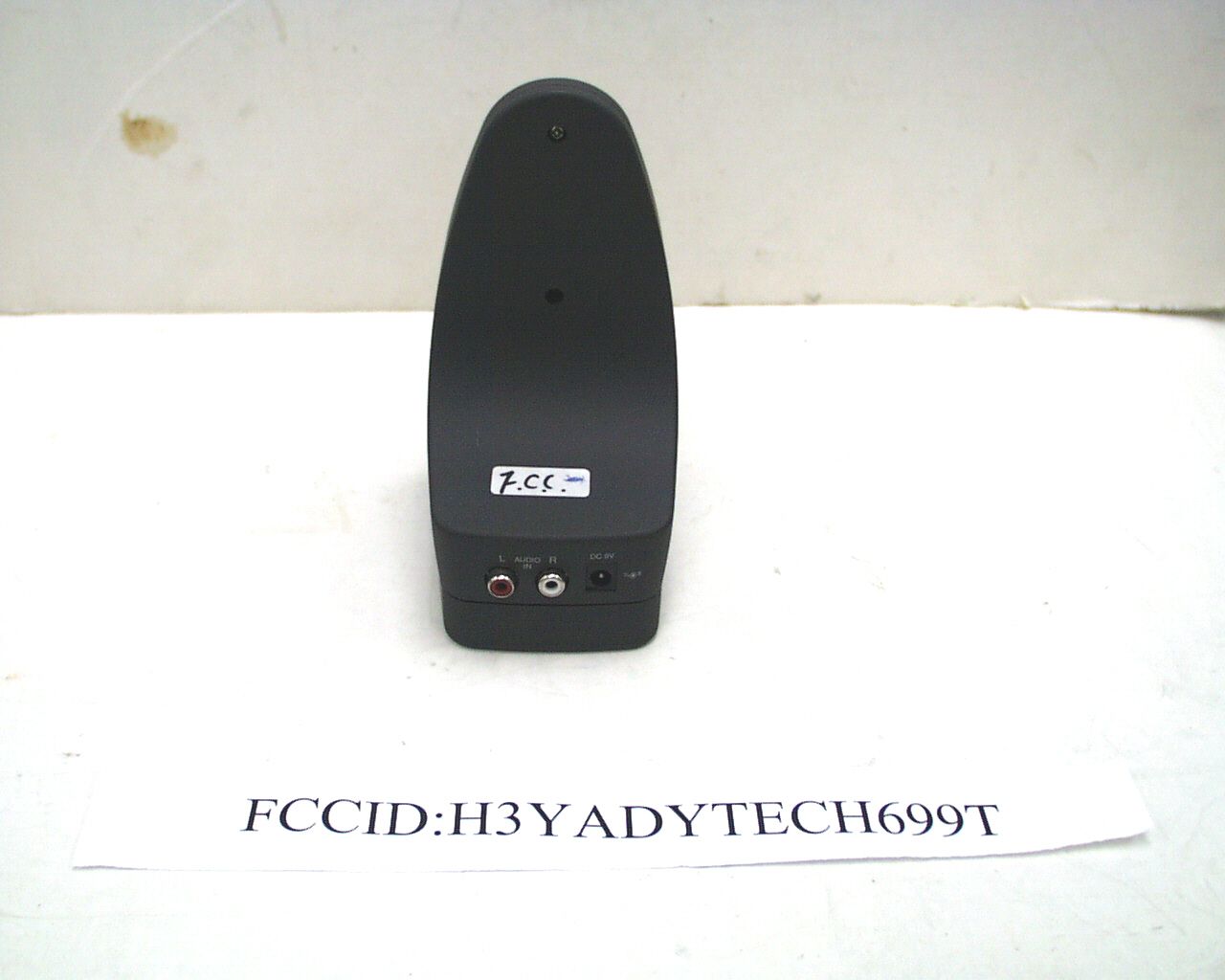

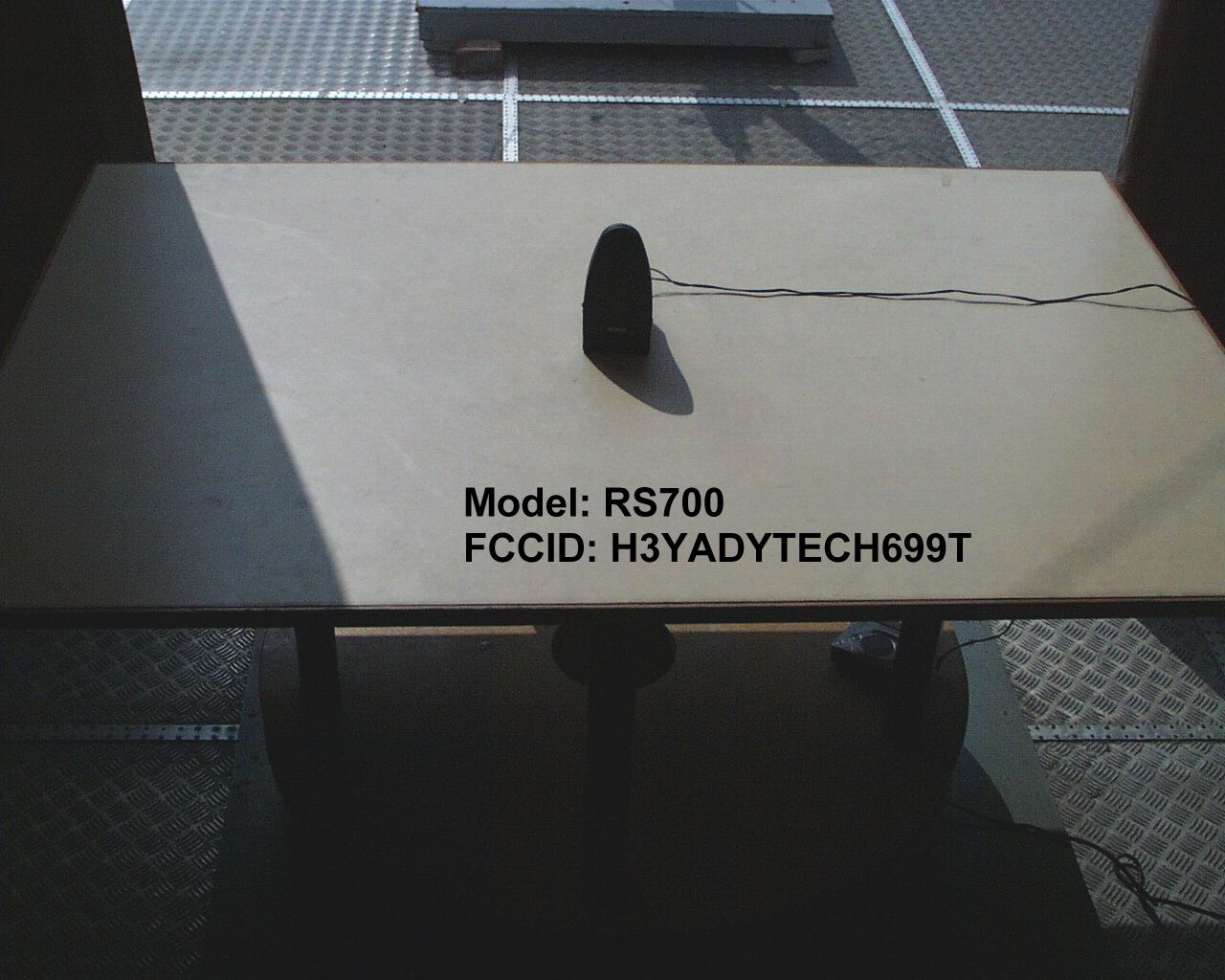

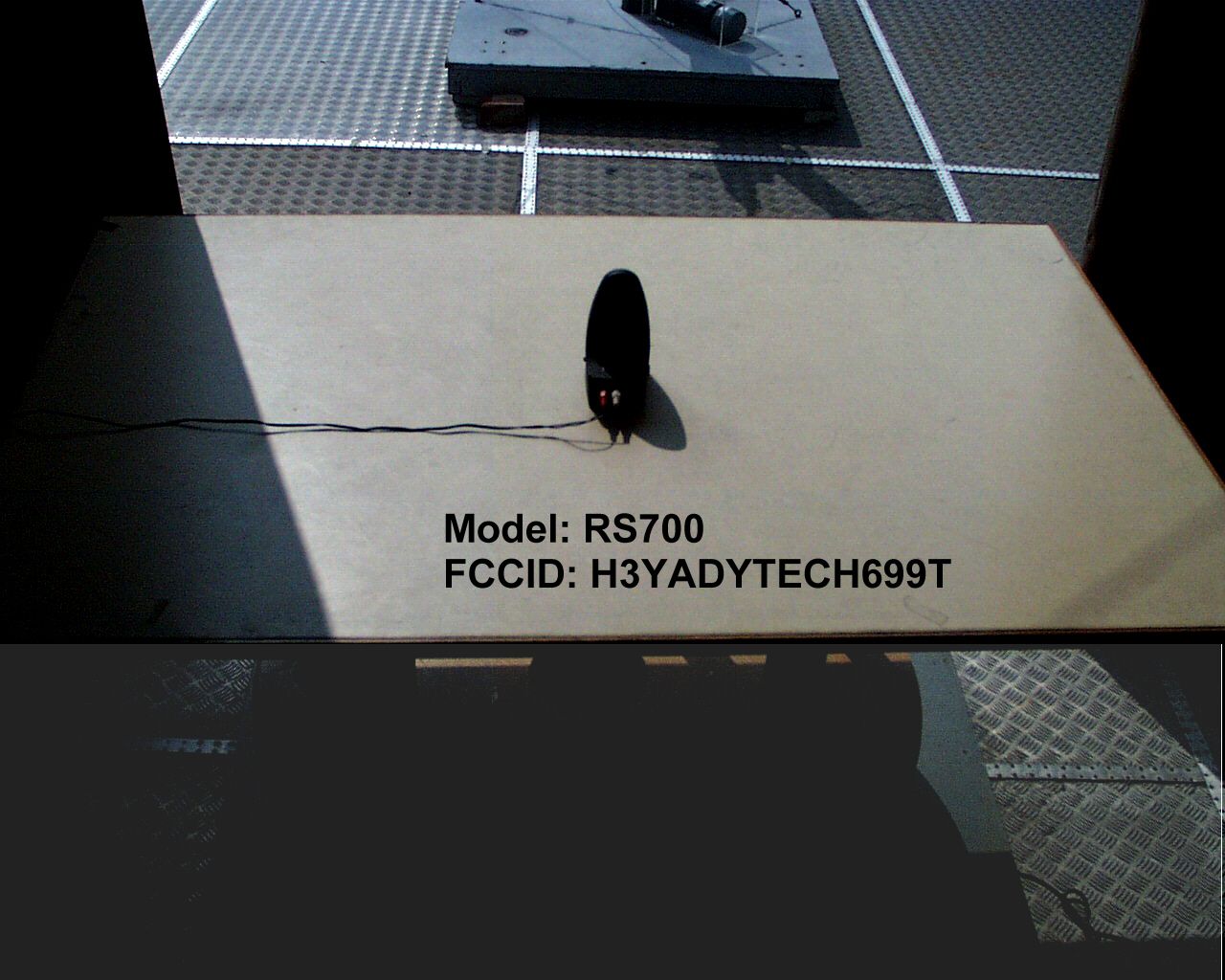

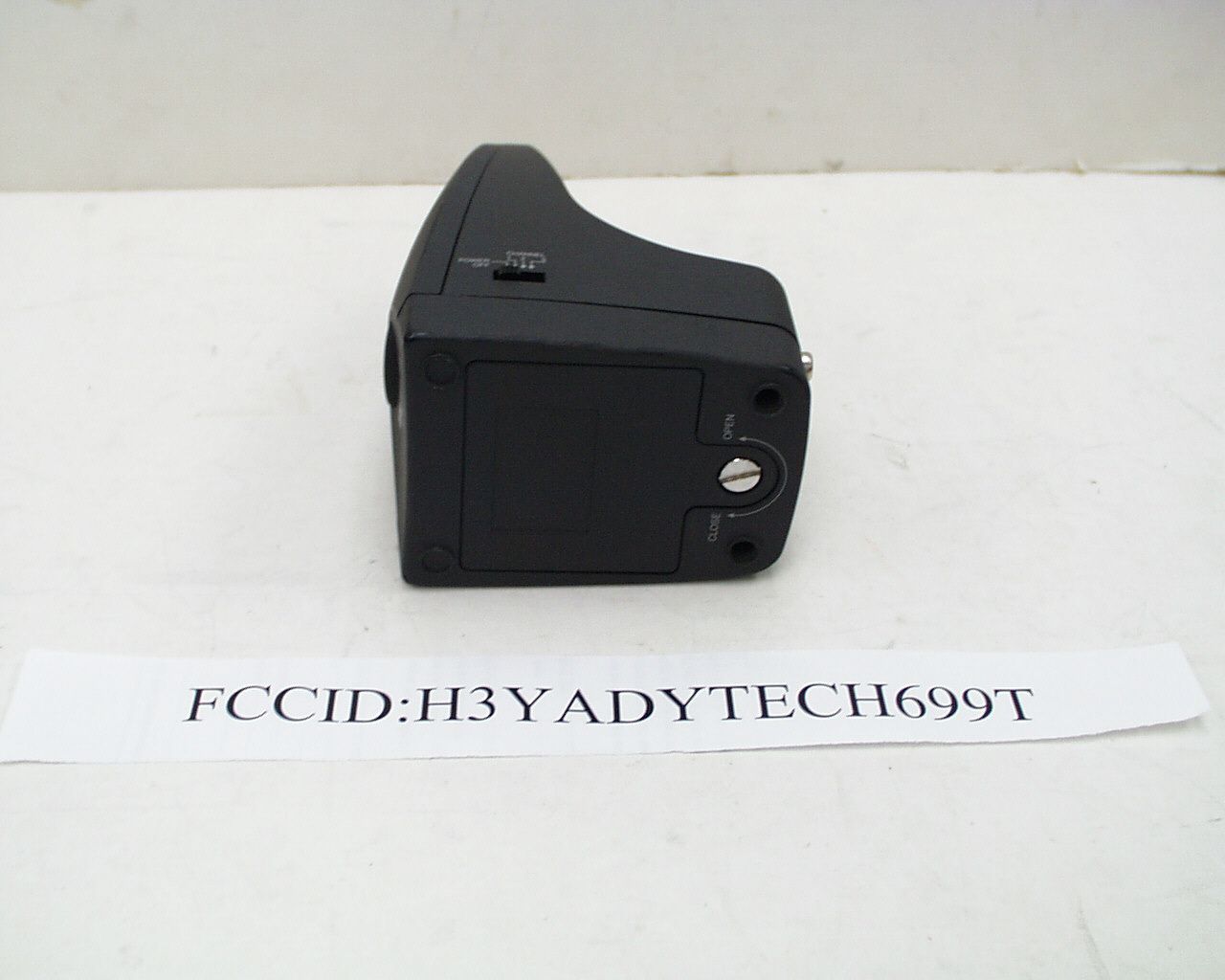

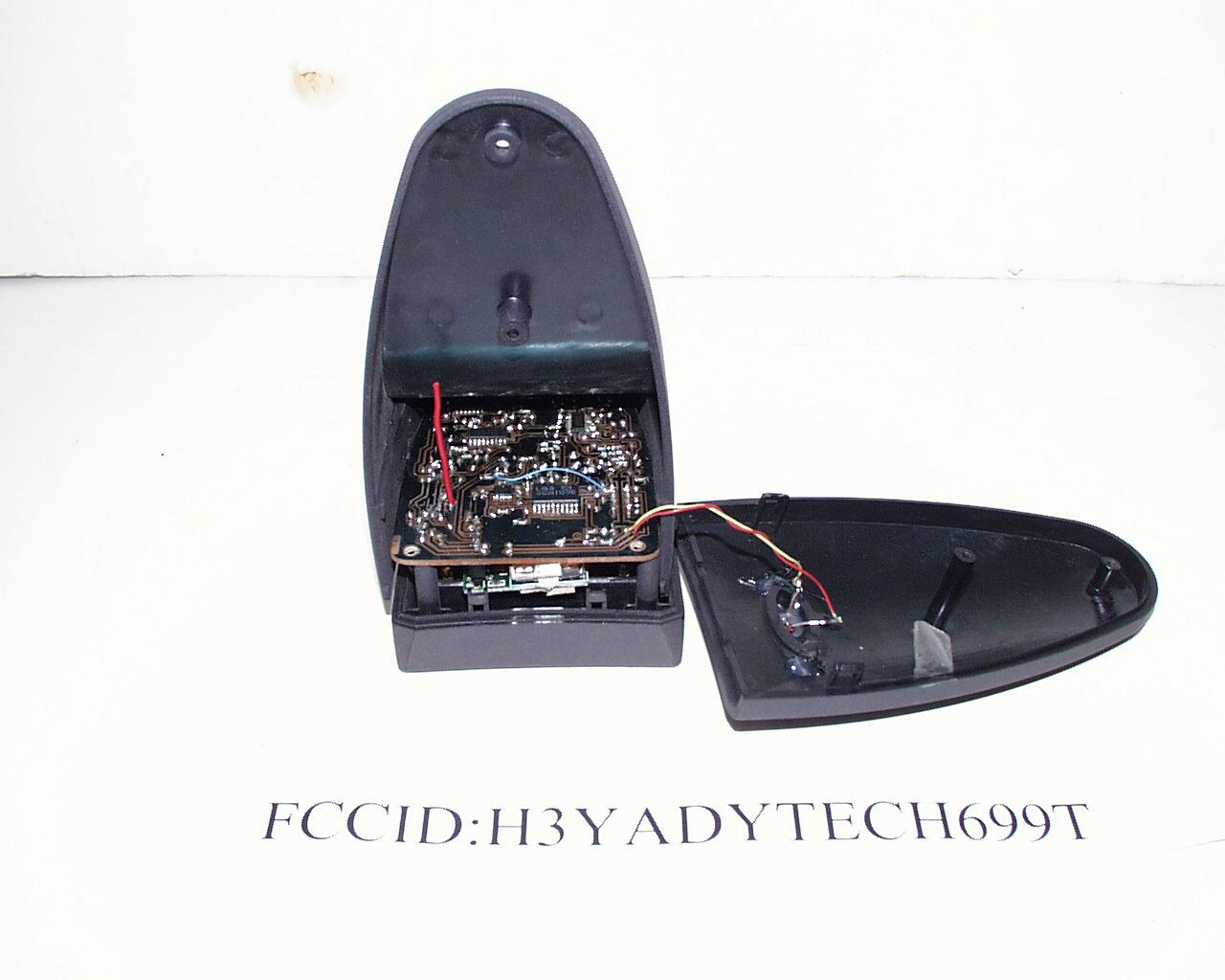

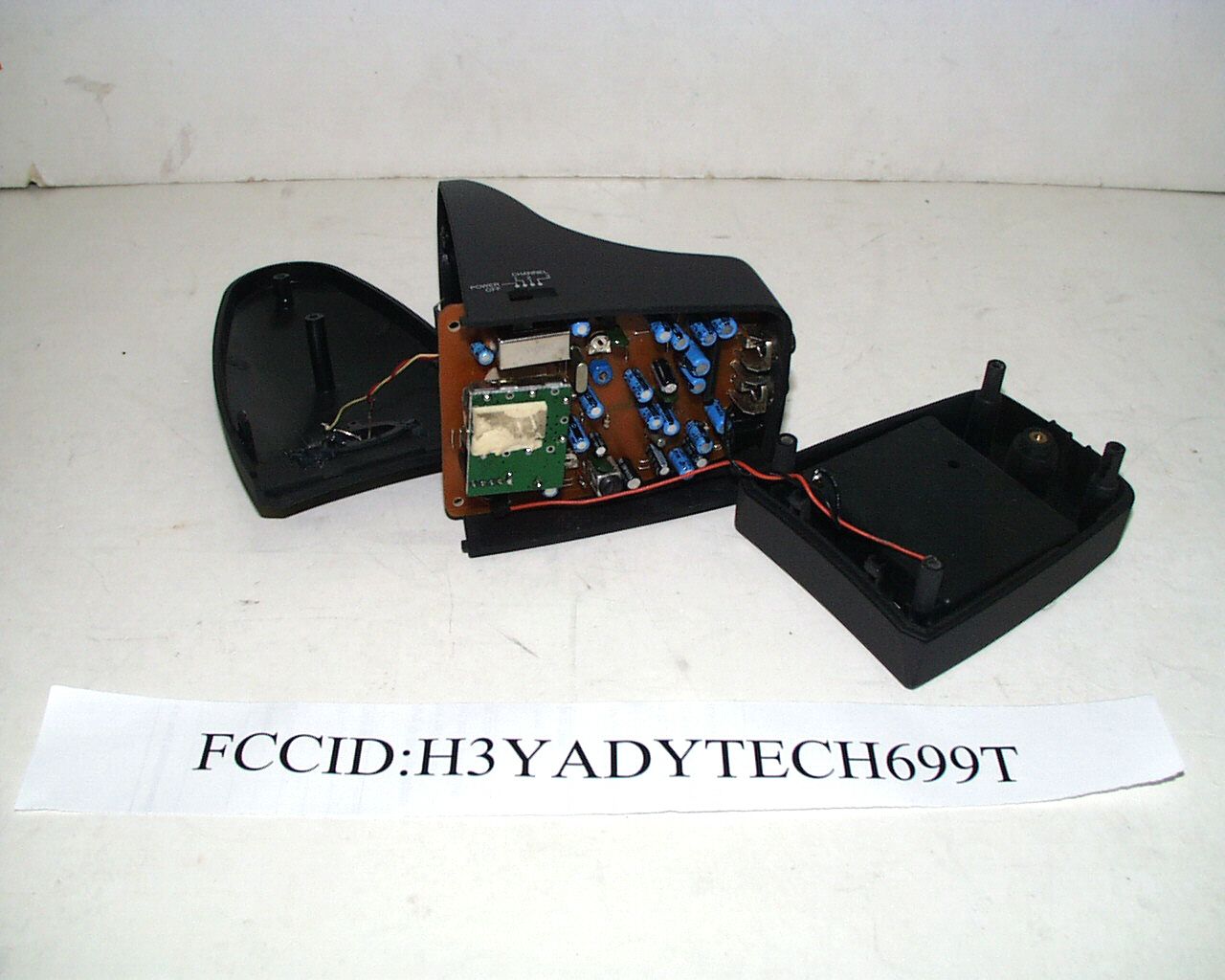

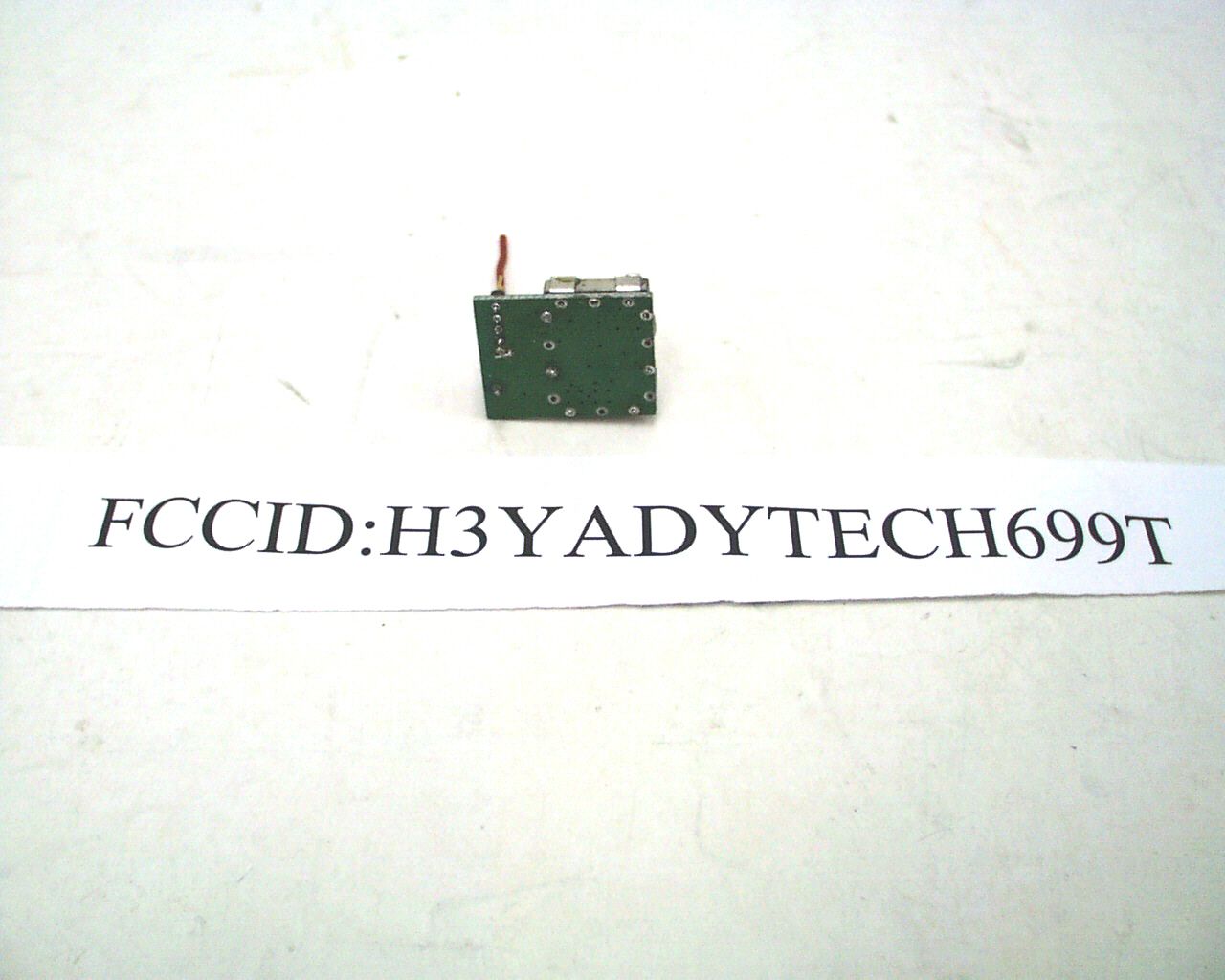

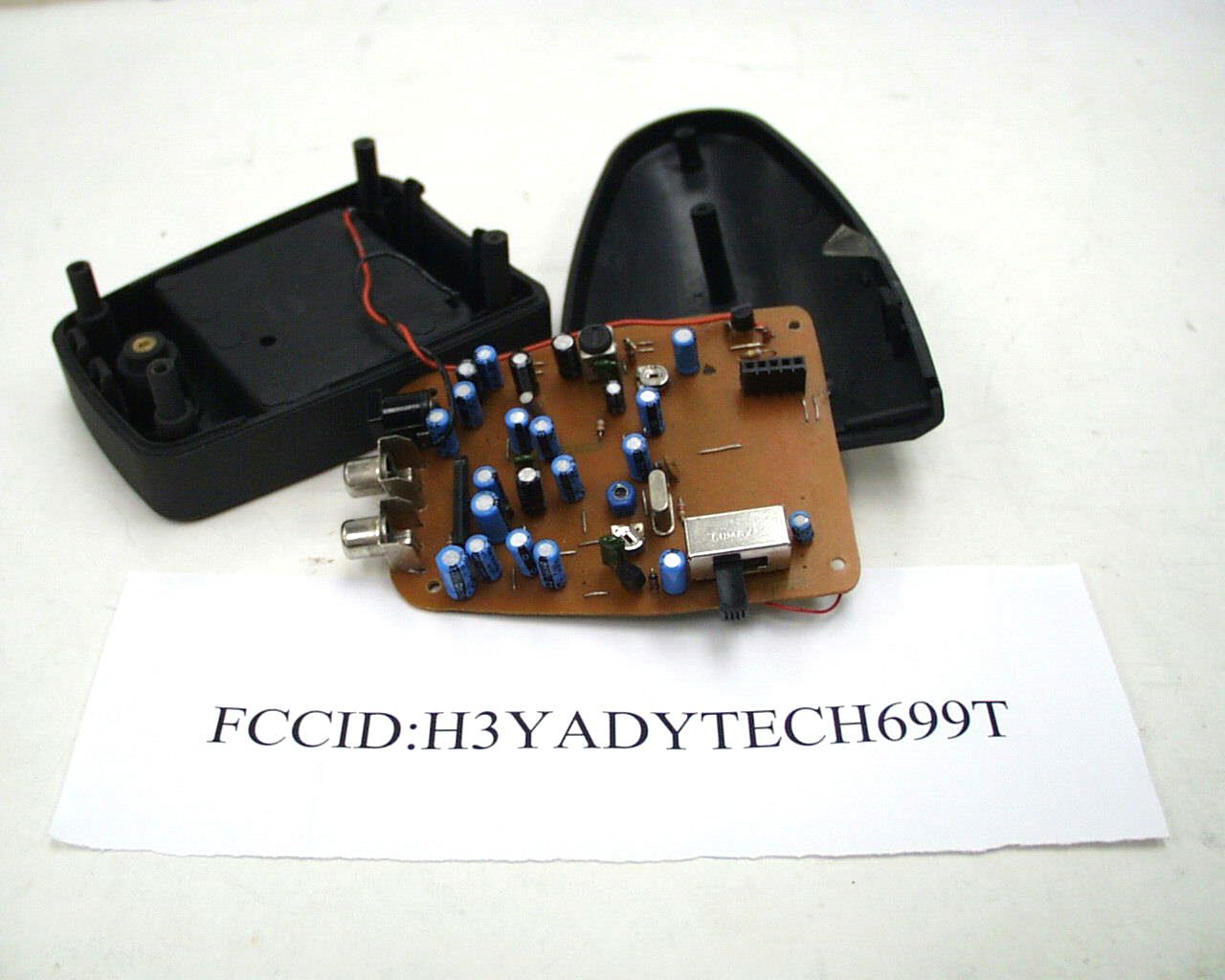

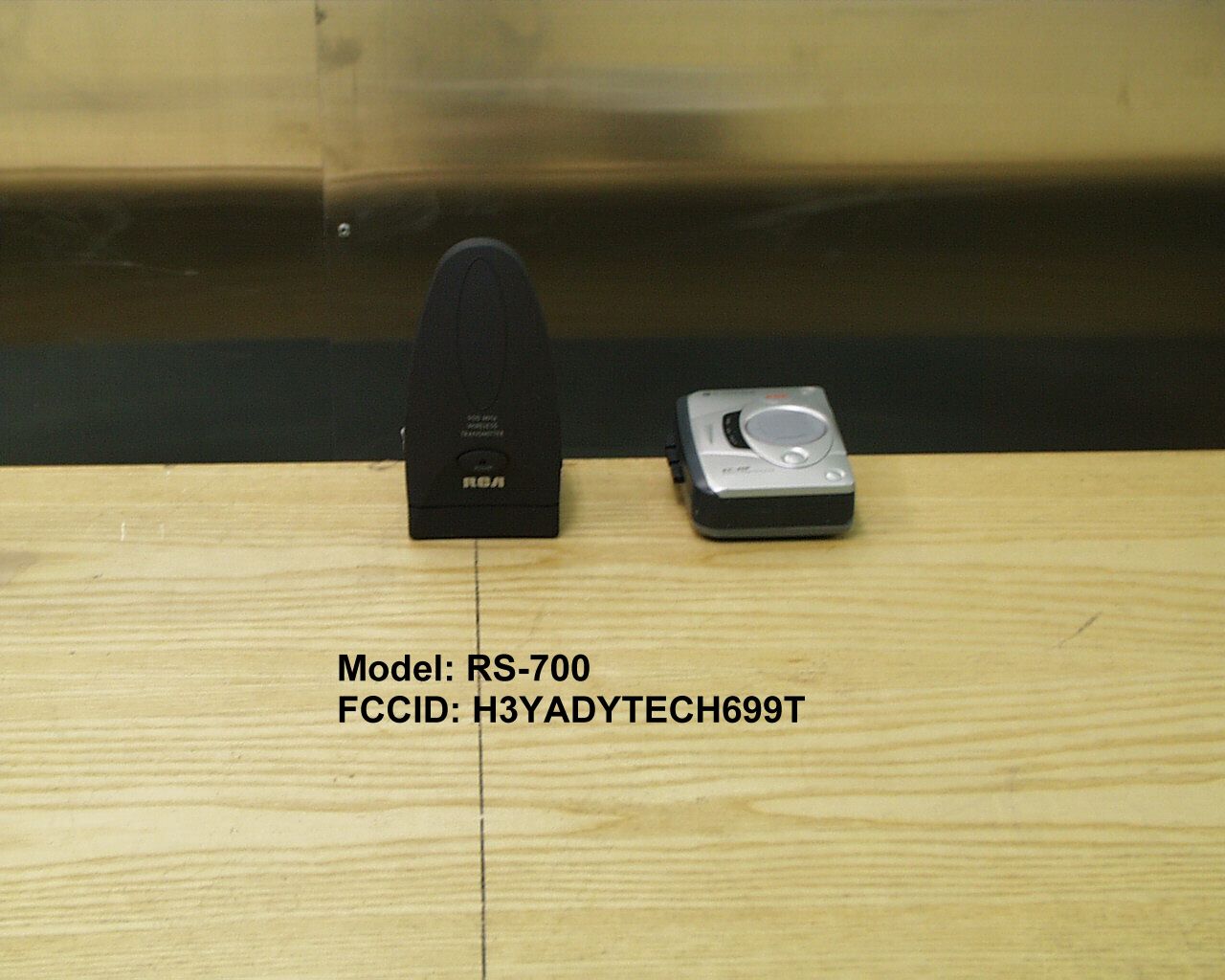

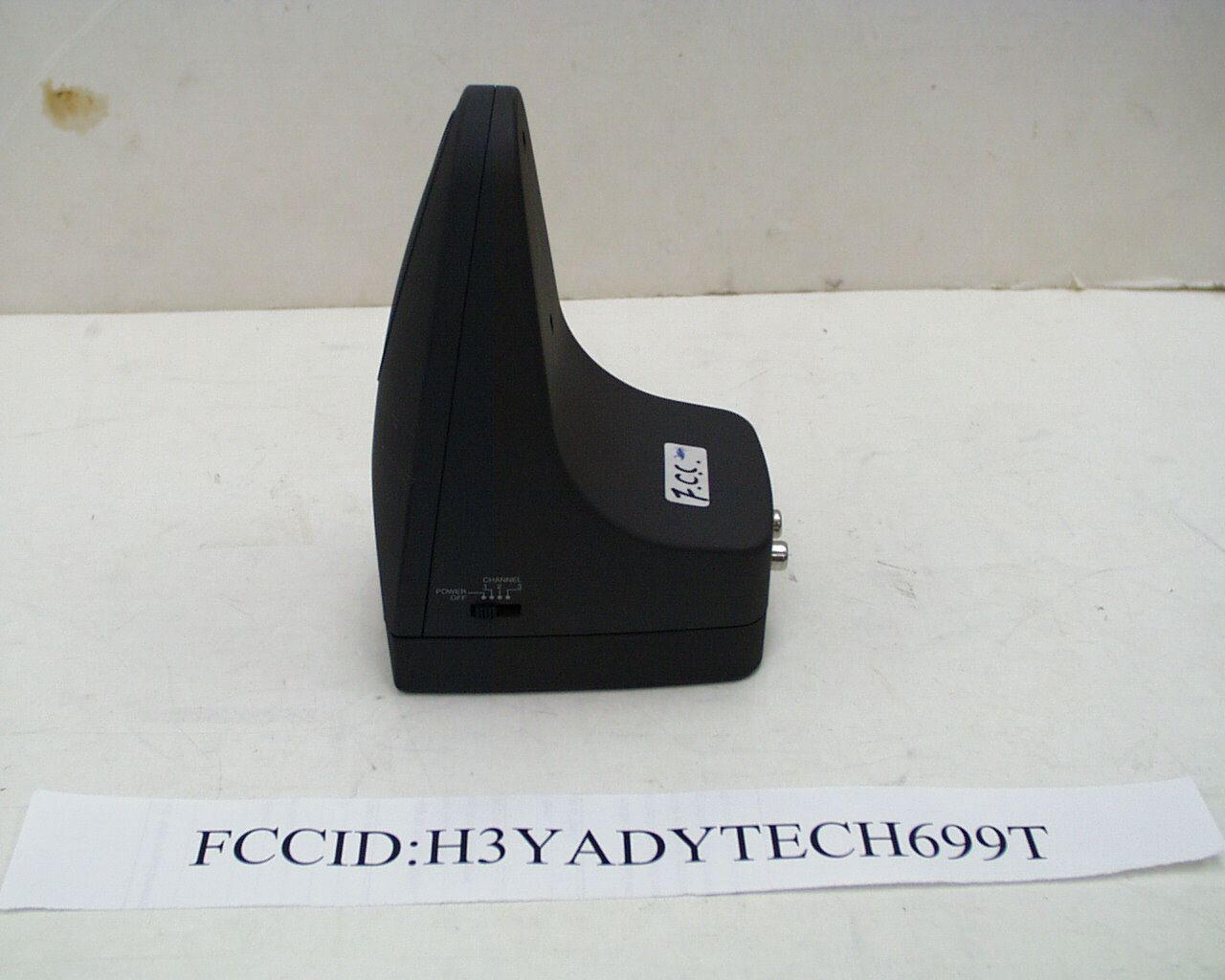

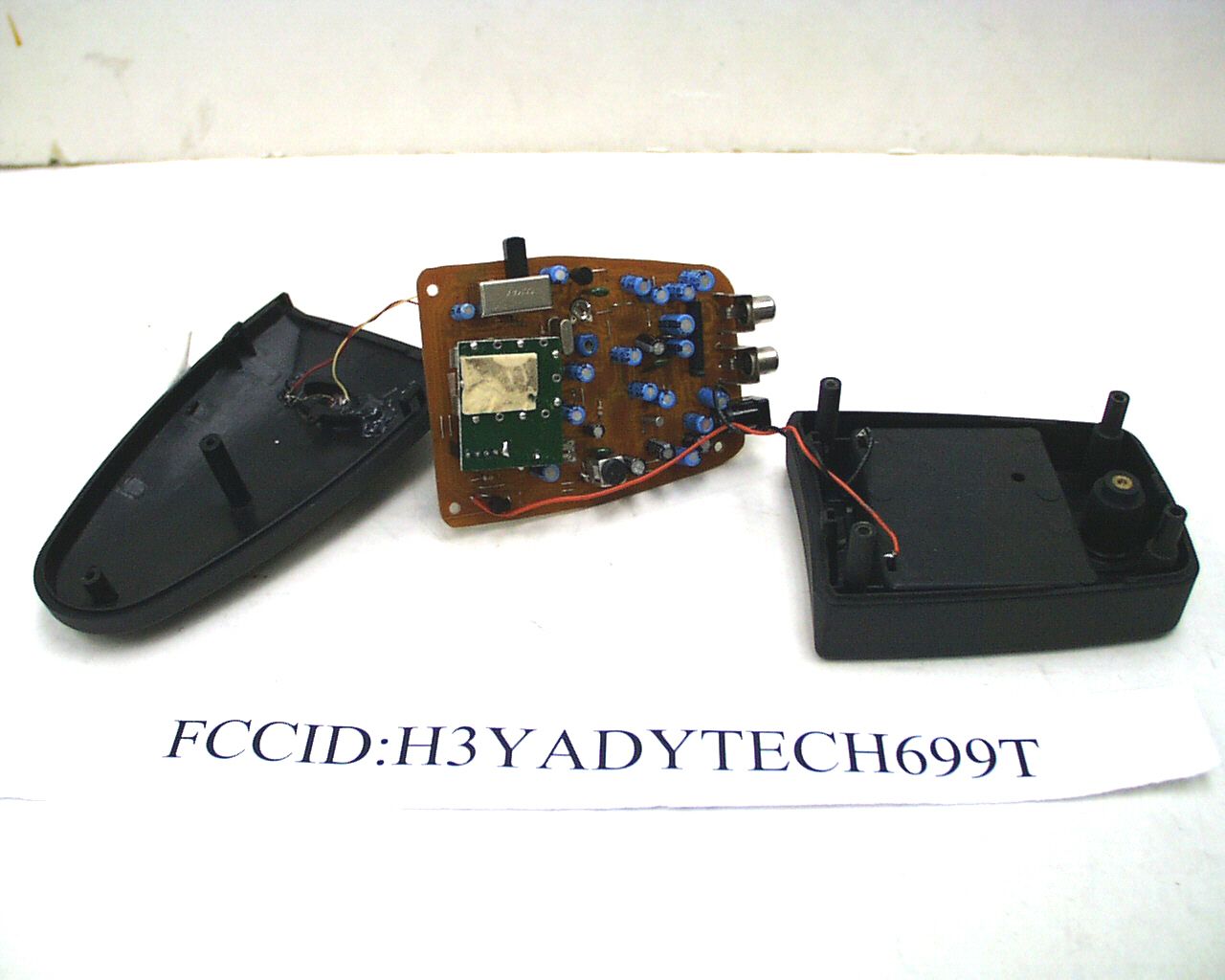

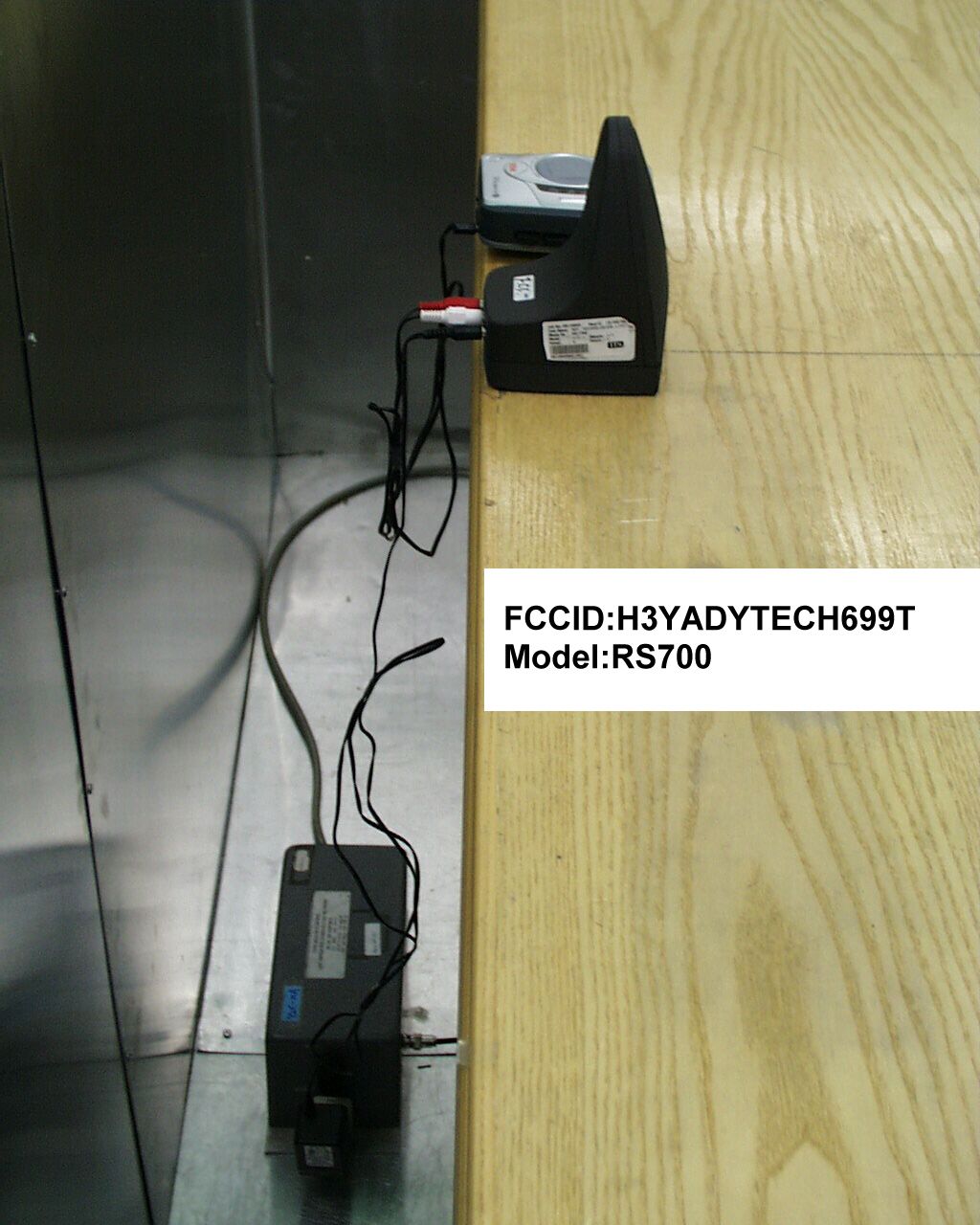

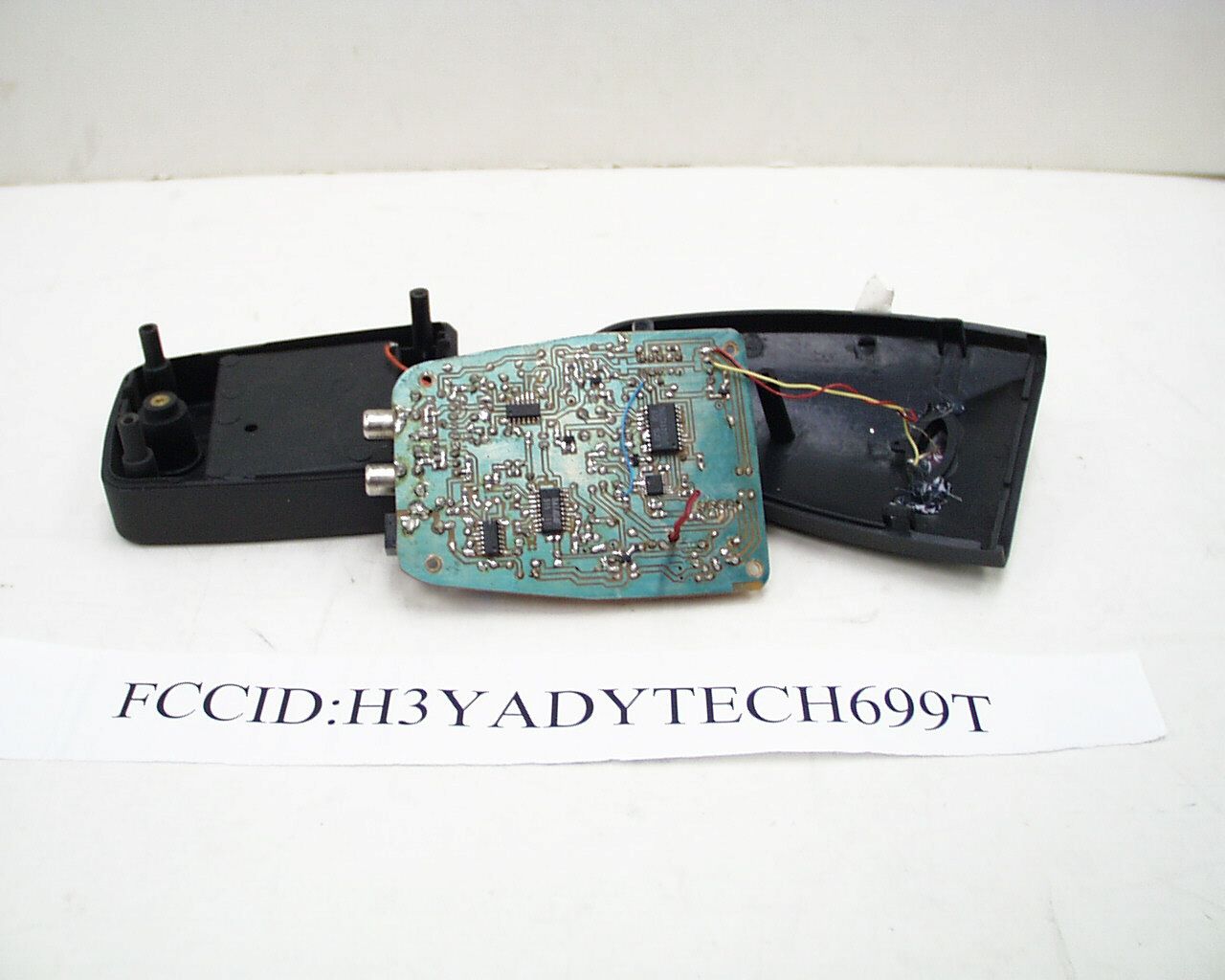

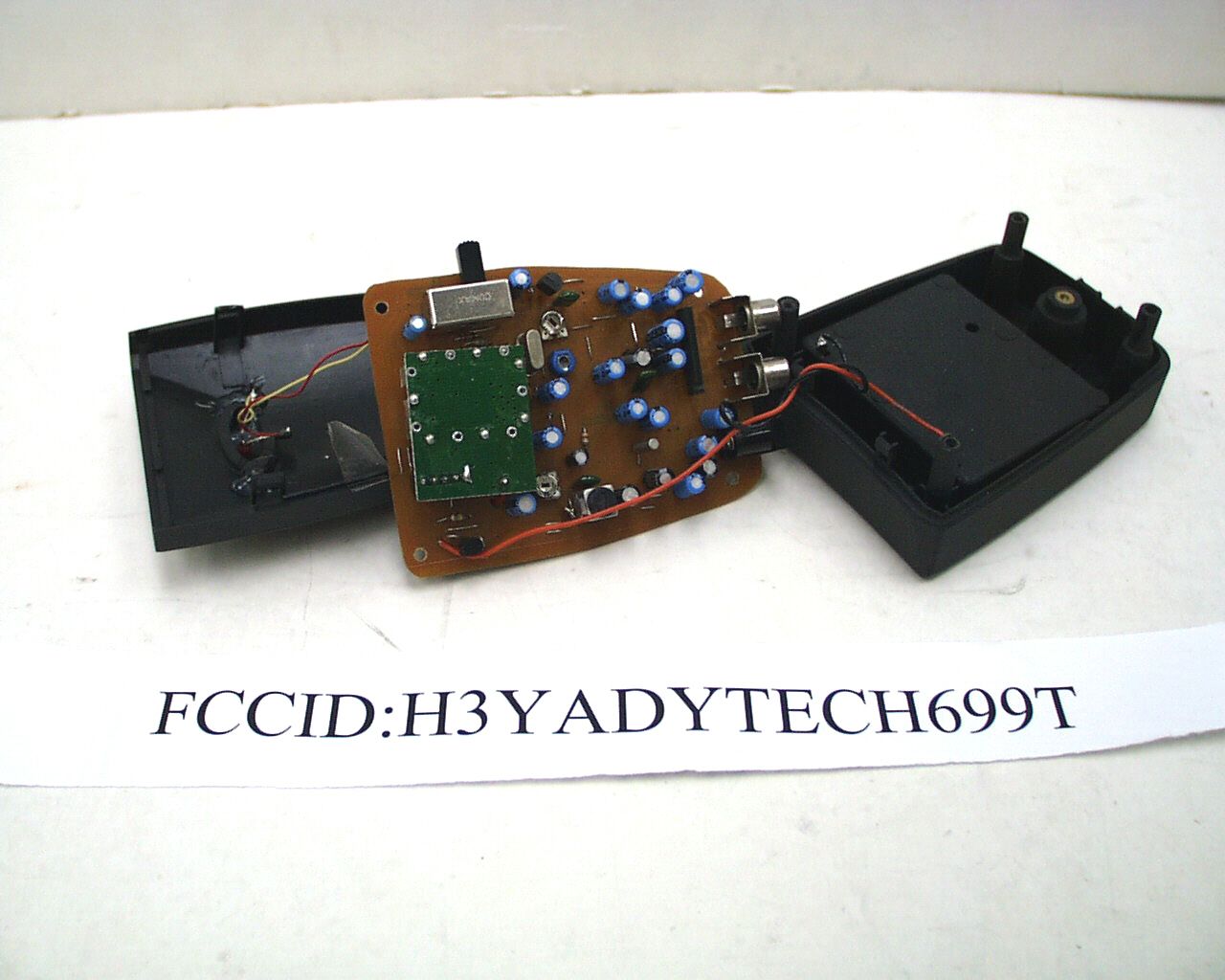

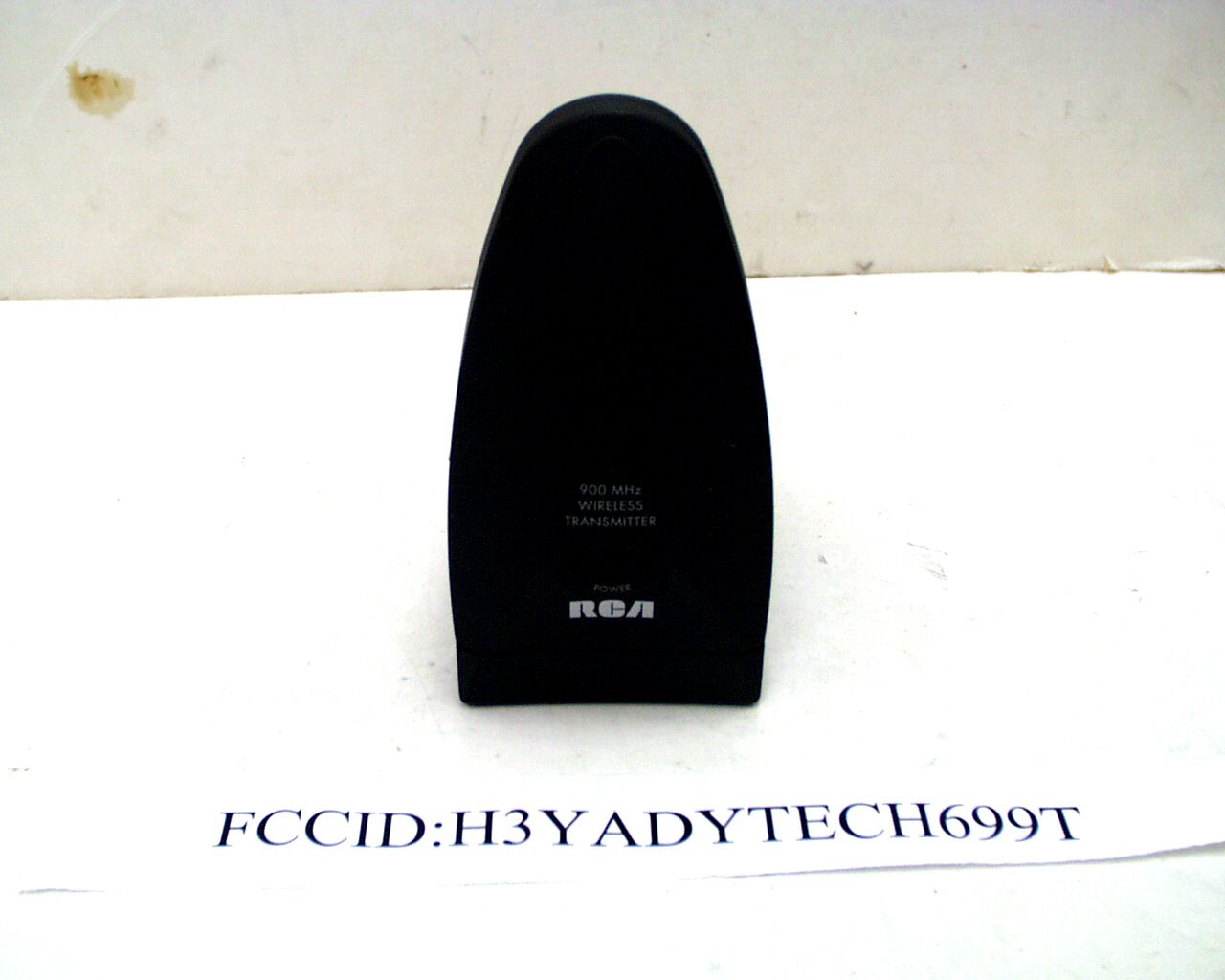

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited FCC ID : H3YADYTECH699T ADY Technologies Limited Application For Certification (FCC ID: H3YADYTECH699T) Transmitter WO# 9910009 DY/kl October 7, 1999 INTERTEK TESTING SERVICES FCC ID: H3YADYTECH699T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: H3YADYTECH699T ii MEASUREMENT/TECHNICAL REPORT ADY Technologies Limited - MODEL: ADY Technologies Limited RS-700 FCC ID: H3YADYTECH699T October 7, 1999 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-98 Edition] provision. Report prepared by:Daniel Yau Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong Phone: 852-2173-8542 Fax:852-2371-0914 INTERTEK TESTING SERVICES FCC ID: H3YADYTECH699T iii Table of Contents 1.0 General Description................................................................................................................. 2 1.1 Product Description ................................................................................................................ 2 1.2 Related Submittal(s) Grants .................................................................................................... 2 1.3 Test Methodology ................................................................................................................... 3 1.4 Test Facility ............................................................................................................................ 3 2.0 System Test Configuration...................................................................................................... 5 2.1 Justification............................................................................................................................. 5 2.2 EUT Exercising Software ....................................................................................................... 5 2.3 Special Accessories................................................................................................................. 5 2.4 Equipment Modification ......................................................................................................... 6 2.5 Support Equipment List and Description ................................................................................ 6 3.0 Emission Results....................................................................................................................... 8 3.1 Field Strength Calculation....................................................................................................... 9 3.1 Field Strength Calculation (cont) ..........................................................................................10 3.2 Radiated Emission Configuration Photograph ...................................................................... 11 3.3 Radiated Emission Data ........................................................................................................ 12 3.4 Line Conducted Configuration Photograph (cont)................................................................. 15 3.5 Line Conducted Emission Data .................................................................................................17 4.0 Equipment Photographs........................................................................................................ 19 5.0 Product Labelling................................................................................................................... 21 6.0 Technical Specifications......................................................................................................... 23 7.0 Instruction Manual................................................................................................................ 25 8.0 Miscellaneous Information.................................................................................................... 27 8.1 Measured Bandwidth ............................................................................................................ 28 8.2 Discussion of Pulse Desensitization...................................................................................... 29 8.3 Calculation of Average Factor ..............................................................................................30 8.4 Emissions Test Procedures.................................................................................................... 31 8.4 Emissions Test Procedures (cont'd)....................................................................................... 32 INTERTEK TESTING SERVICES FCC ID: H3YADYTECH699T iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated1.jpg and radiated2.jpg Test Setup PhotoConducted Emissionconduct1.jpg, conduct2.jpg, conduct3.jpg. Test ReportConducted Emission Test Result conduct.pdf Test ReportBandwidth Plot…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES FCC ID: H3YADYTECH699T 13 Company: ADY Technologies LimitedDate of Test: September 21, 1999 Model: ADY Technologies Limited RS-700 Worst-Case Operating Mode : Transmitting - Channel Table1 Radiated Emissions FrequencyReadingAntennaPre-AmpNet LimitMargin PolarityFactorGainat 3mat 3m (MHz)(dBμV)(dB)(dB)(dBμV/m) (dBμV/m)(dB) V914. 50950. 233. 01667. 294. 0-26. 8 V1829. 01842. 226. 53434. 754. 0-19. 3 V*2743. 64247. 529. 13442. 654. 0-11. 4 V*3658. 24148. 732. 83447. 554. 0-6. 5 V*4572. 65346. 934. 03446. 954. 0-7. 1 Notes:1. Peak Detector Data unless otherwise stated. 2. All measurements were made at 3 meter. Harmonic emissions not detected at the 3-meter distance were measured at 0.3-meter and an inverse proportional extrapolation was performed to compare the signal level to the 3-meter limit. No other harmonic emissions than those reported were detected at a test distance of 0.3-meter. 3. Negative value in the margin column shows emission below limit. 4. Horn antenna and average detector are used for the emission over 1000MHz. *Emission within the restricted band meets the requirement of part 15.205. The corresponding limit as per 15.209 is based on Quasi peak detector data for frequencies below 1000 MHz and average detector data for frequencies over 1000 MHz. Test Engineer: Prudence S. M. Poon INTERTEK TESTING SERVICES FCC ID: H3YADYTECH699T 14 Company: ADY Technologies LimitedDate of Test: September 21, 1999 Model: ADY Technologies Limited RS-700 Worst-Case Operating Mode : Transmitting - Channel B Table 1 Radiated Emissions FrequencyReadingAntennaPre-AmpNet LimitMargin PolarityFactorGainat 3mat 3m (MHz)(dBμV)(dB)(dB) (dBμV/ m)(dBμV/m)(dB) V912. 71148. 733. 01665. 794. 0-28. 3 V1825. 42243. 026. 53435. 554. 0-18. 5 V*2738. 26748. 629. 13443. 754. 0-10. 3 V*3650. 94444. 132. 83442. 954. 0-11. 1 V*4563. 86245. 734. 03445. 754. 0-8. 3 Notes:1. Peak Detector Data unless otherwise stated. 2. All measurements were made at 3 meter. Harmonic emissions not detected at the 3-meter distance were measured at 0.3-meter and an inverse proportional extrapolation was performed to compare the signal level to the 3-meter limit. No other harmonic emissions than those reported were detected at a test distance of 0.3-meter. 3. Negative value in the margin column shows emission below limit. 4. Horn antenna and average detector are used for the emission over 1000MHz. *Emission within the restricted band meets the requirement of part 15.205. The corresponding limit as per 15.209 is based on Quasi peak detector data for frequencies below 1000 MHz and average detector data for frequencies over 1000 MHz. Test Engineer: Prudence S. M. Poon
