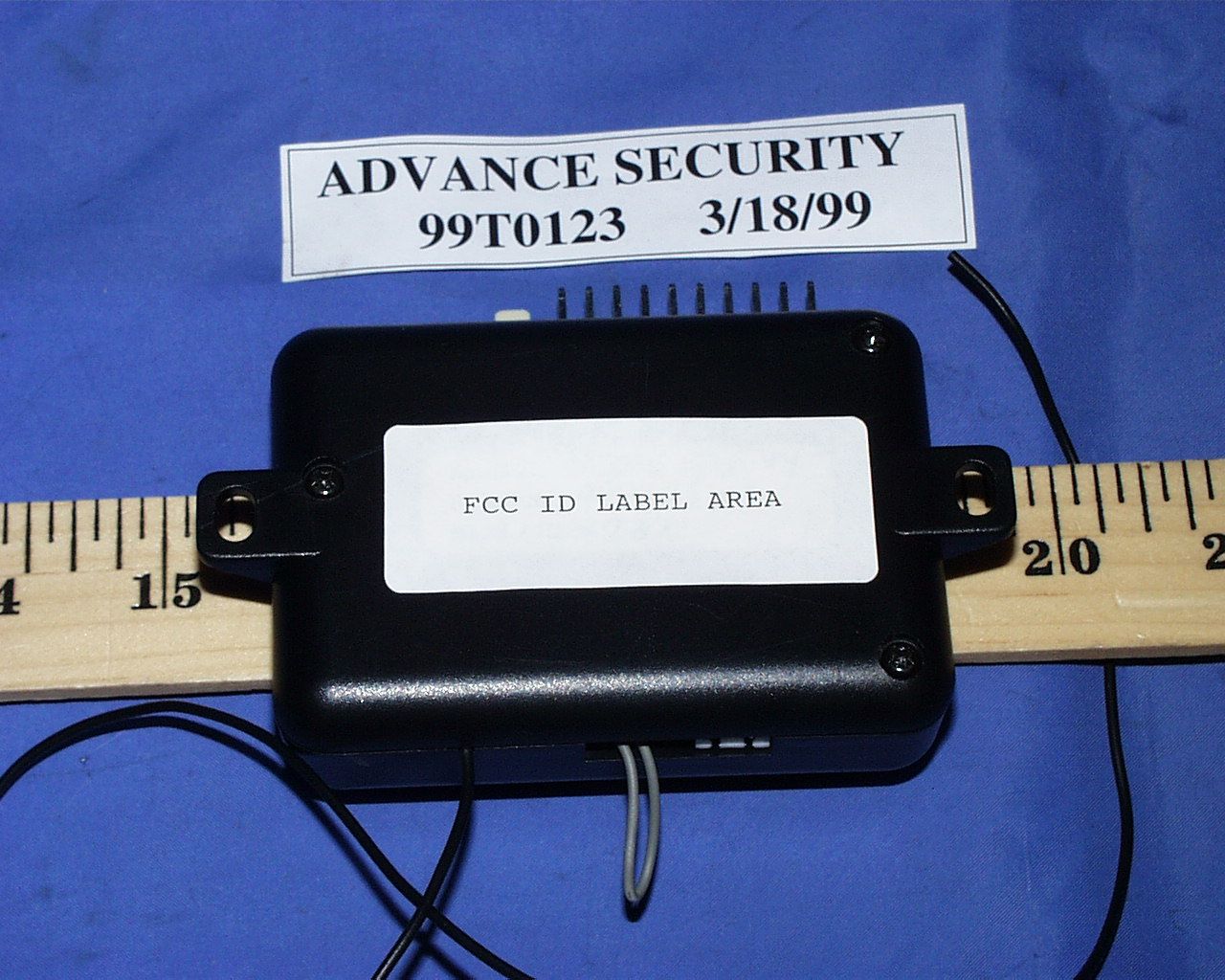

PROPOSED FCC ID LABEL AND LOCATION ADVANCE SECURITY INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: H5OR25

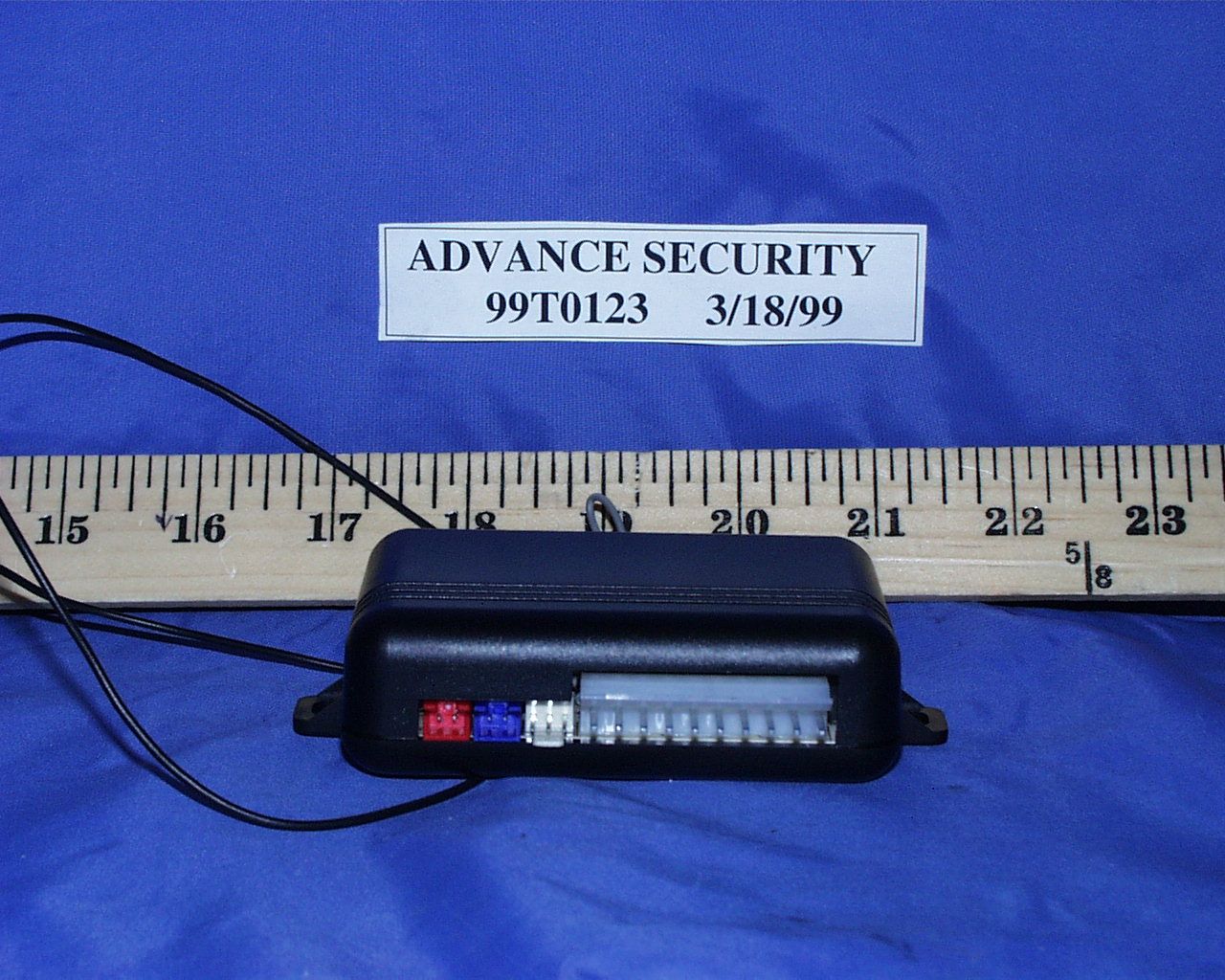

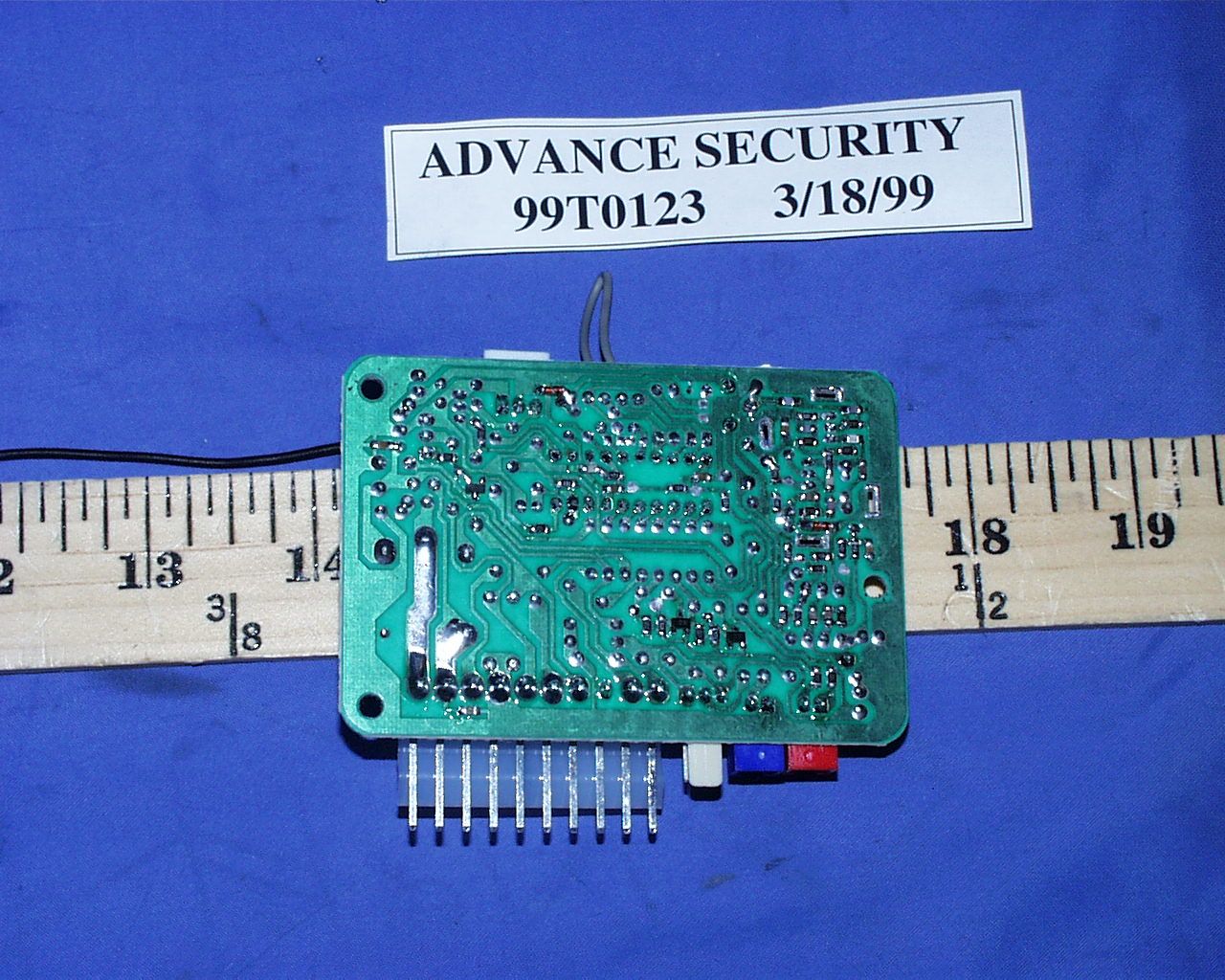

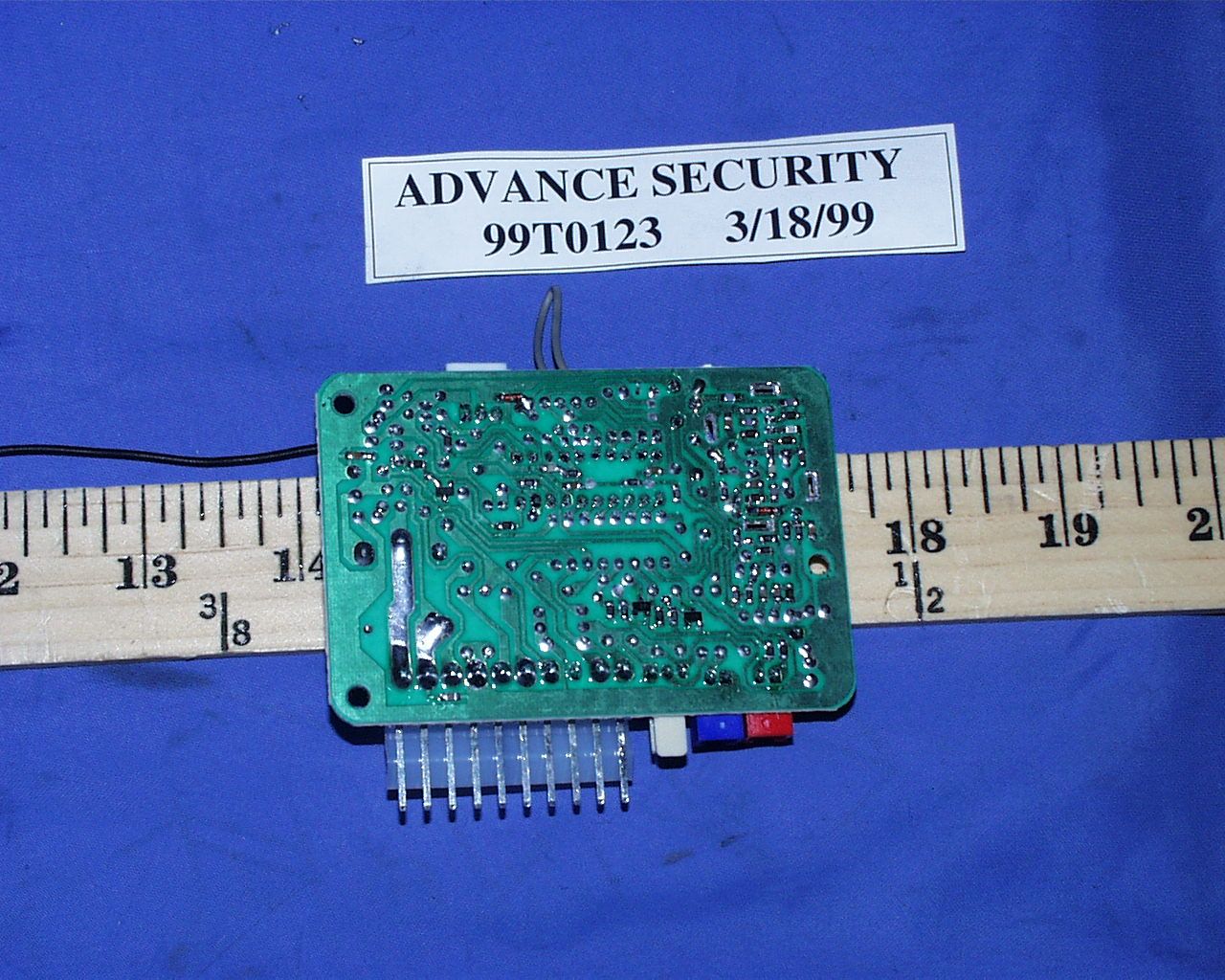

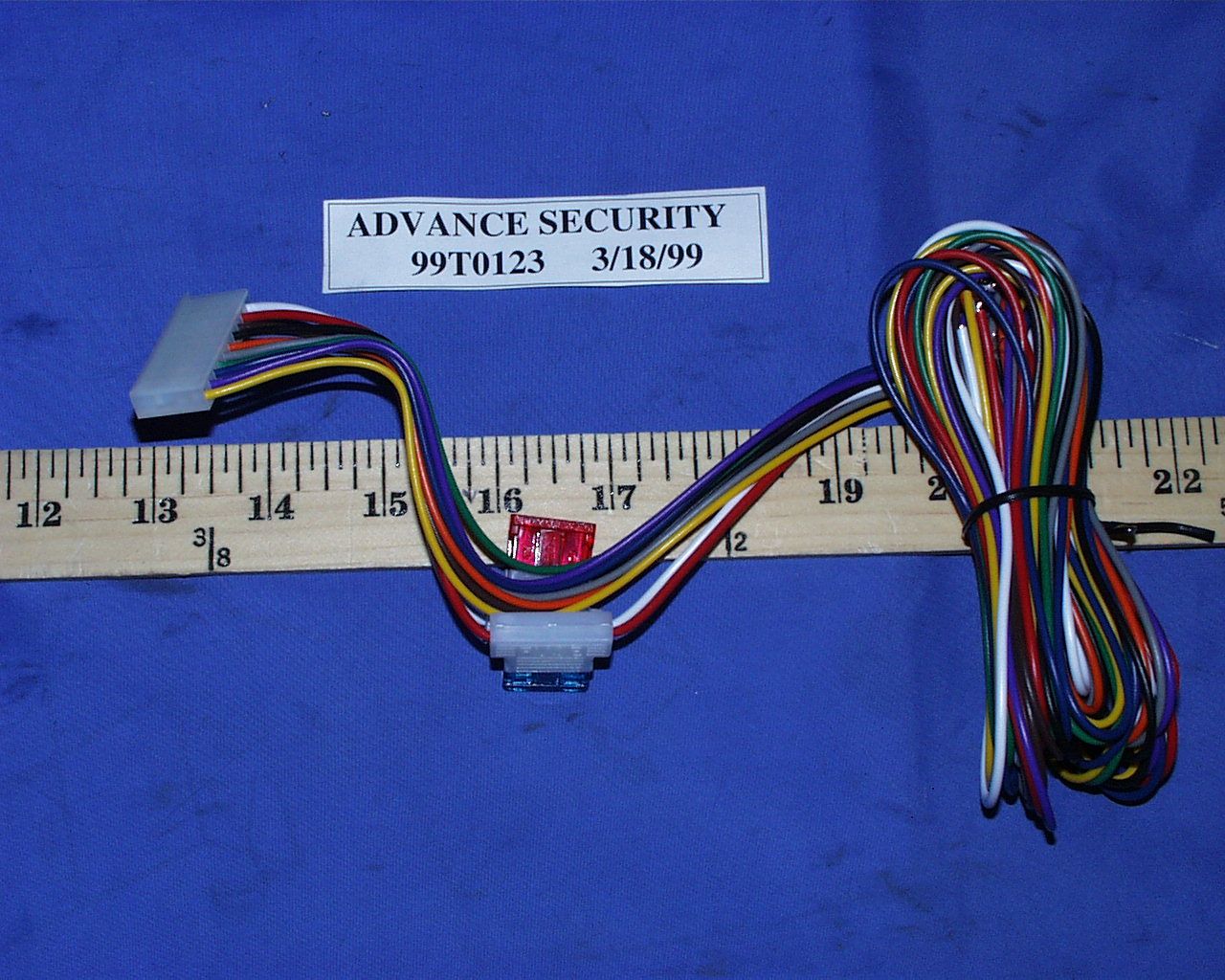

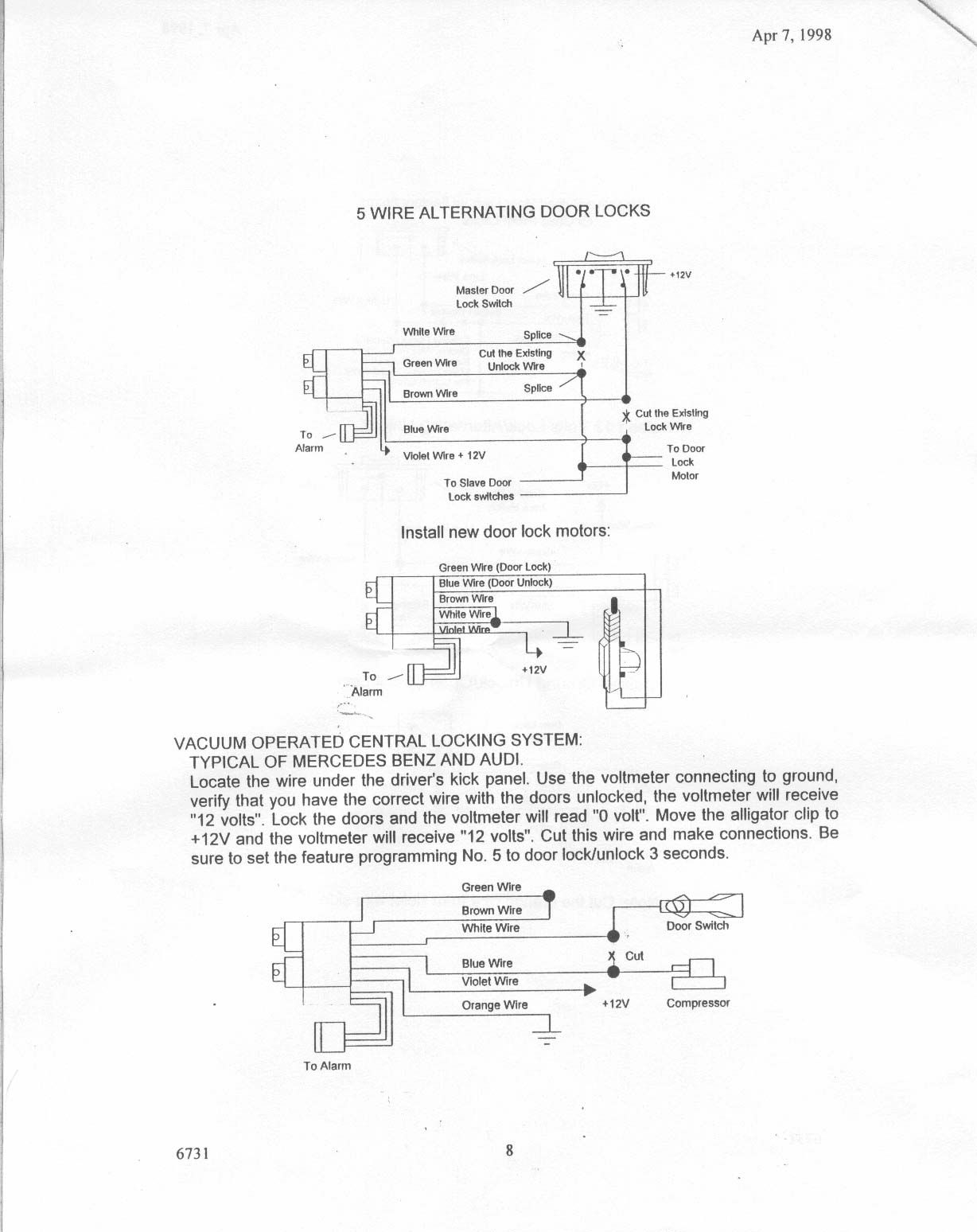

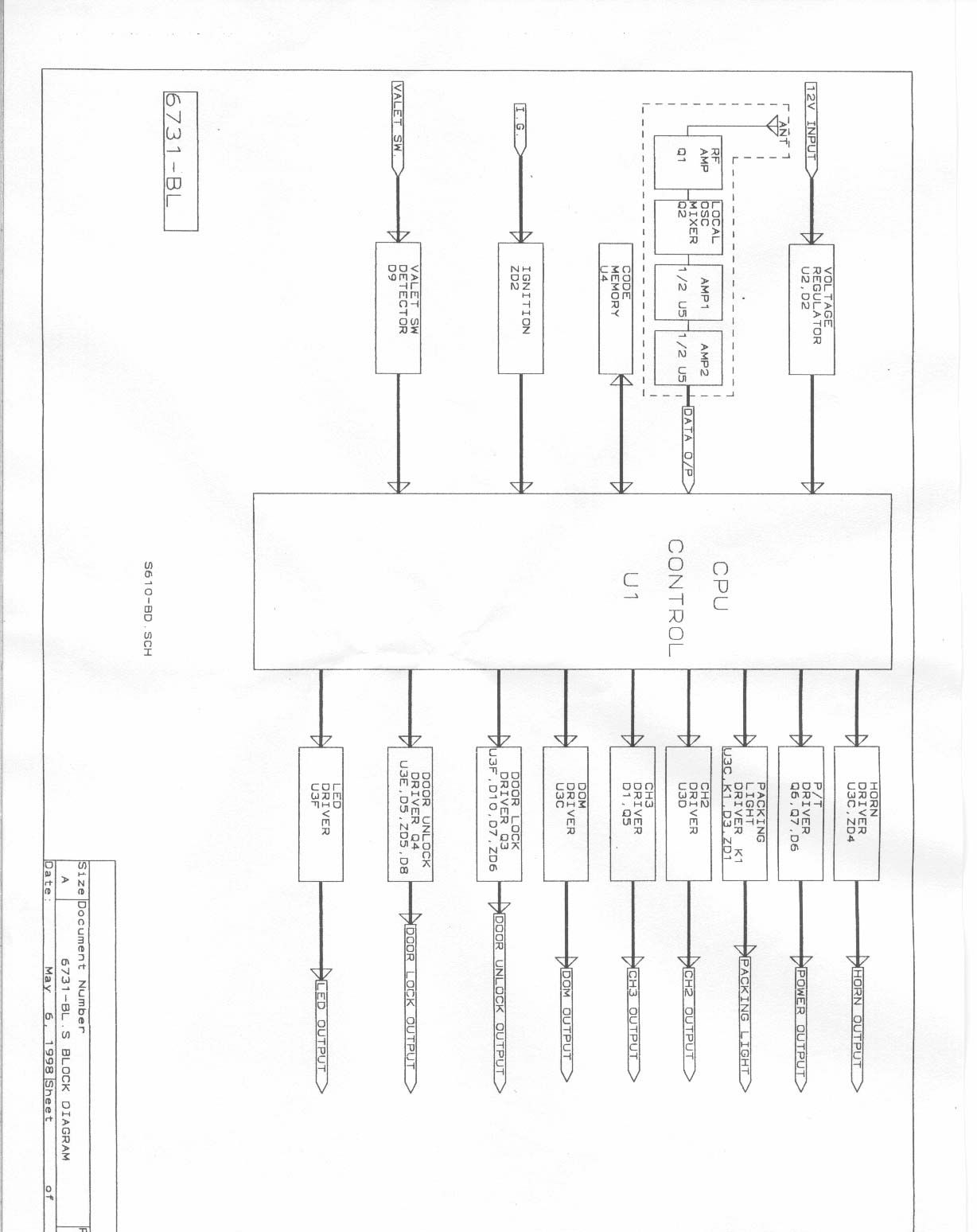

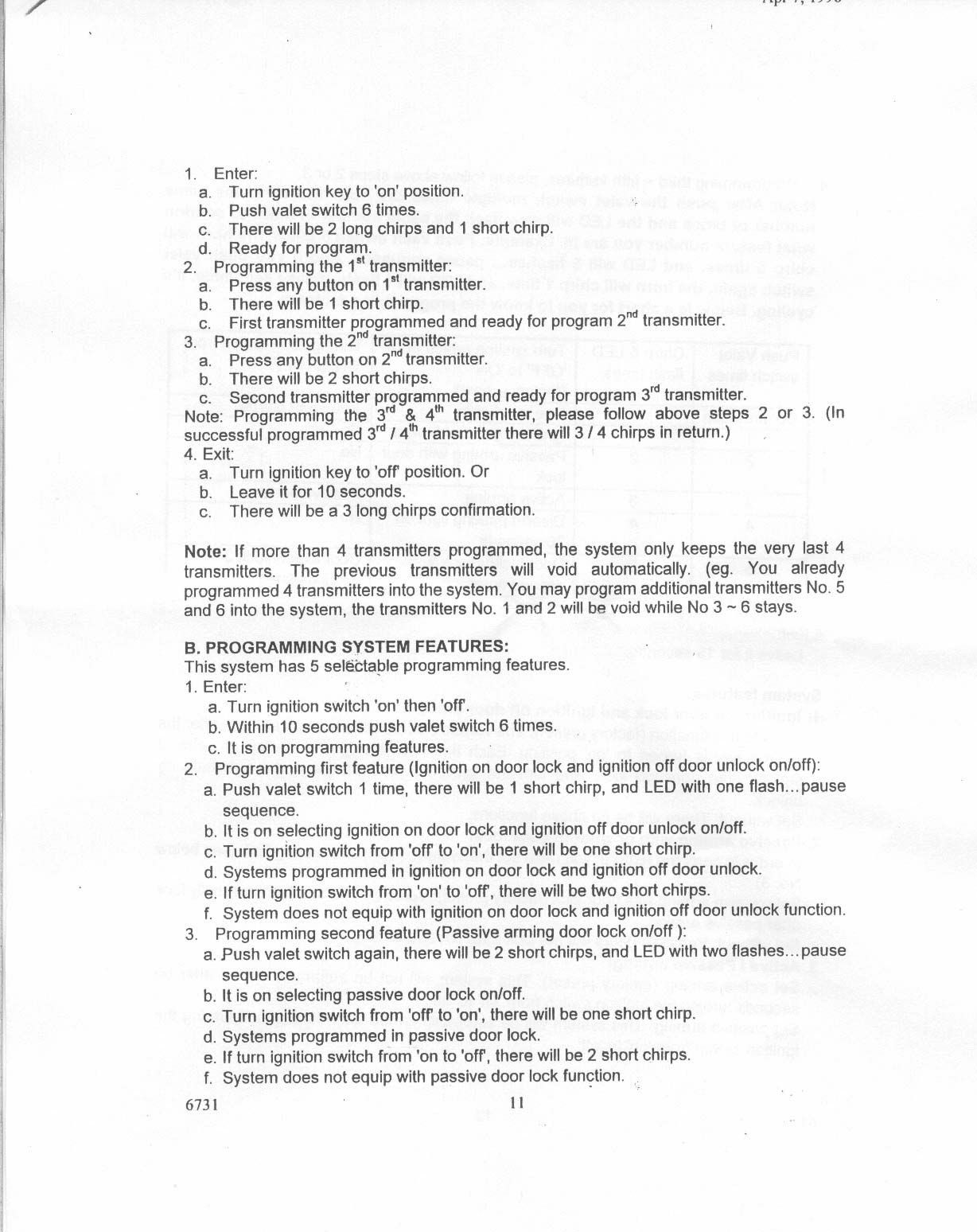

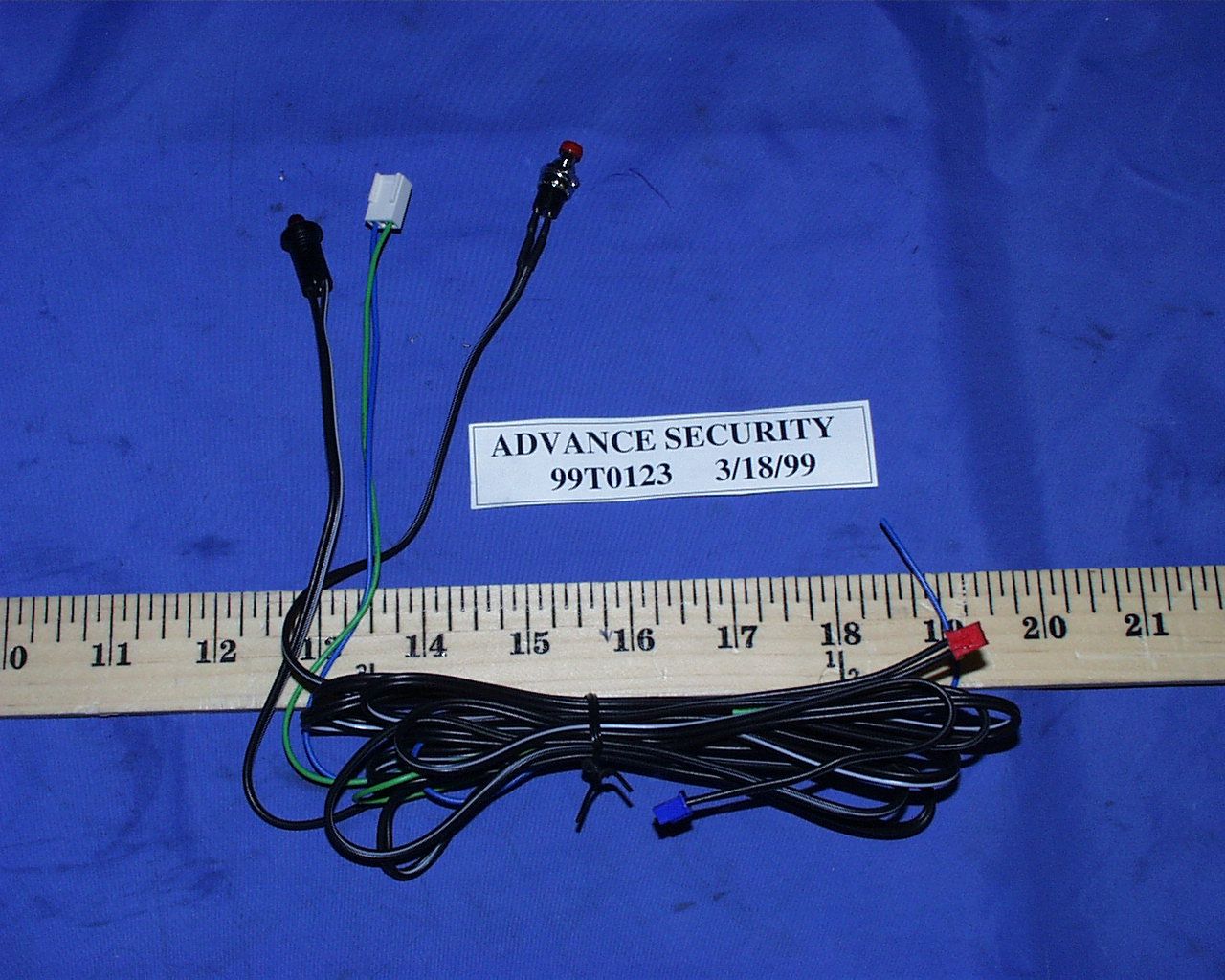

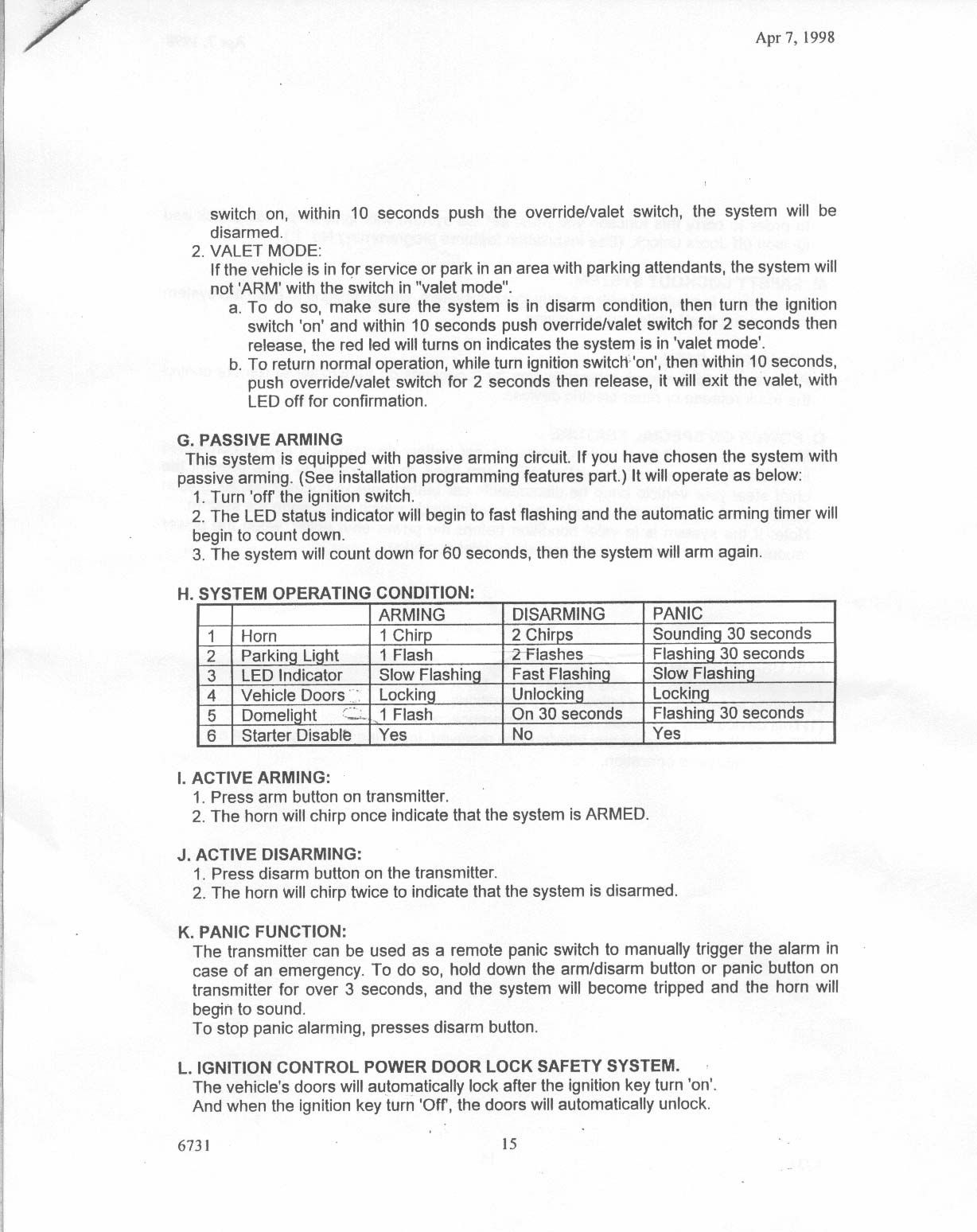

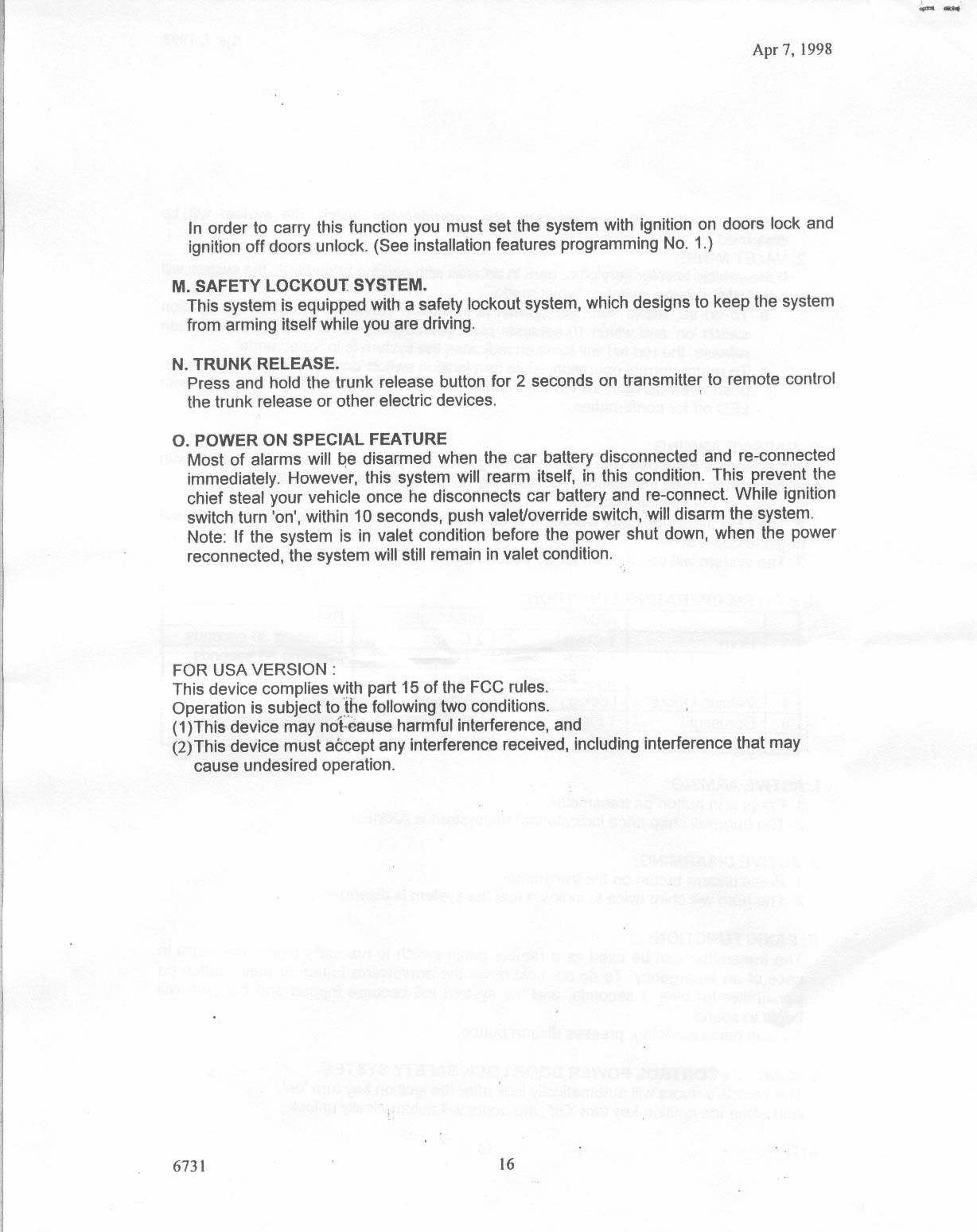

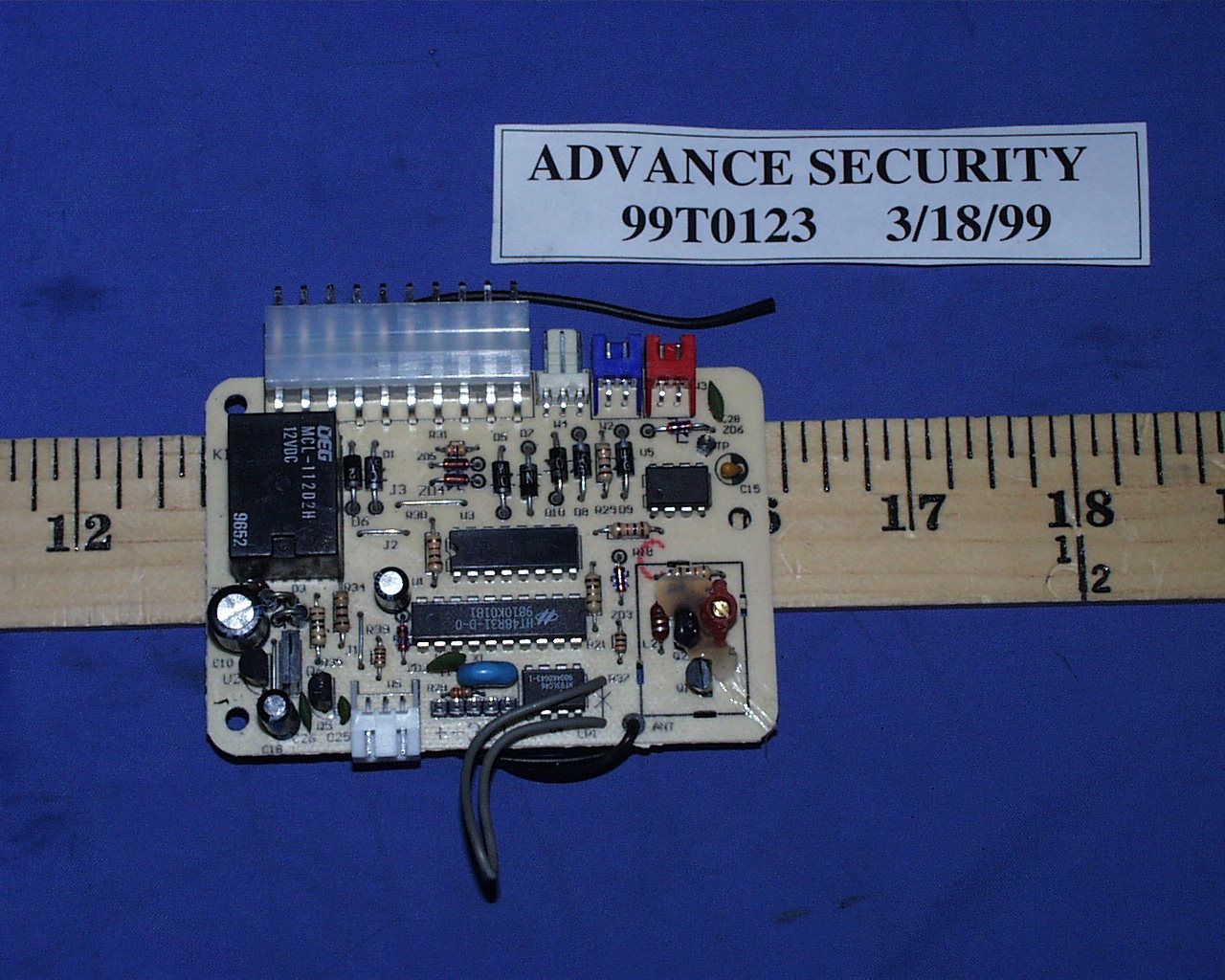

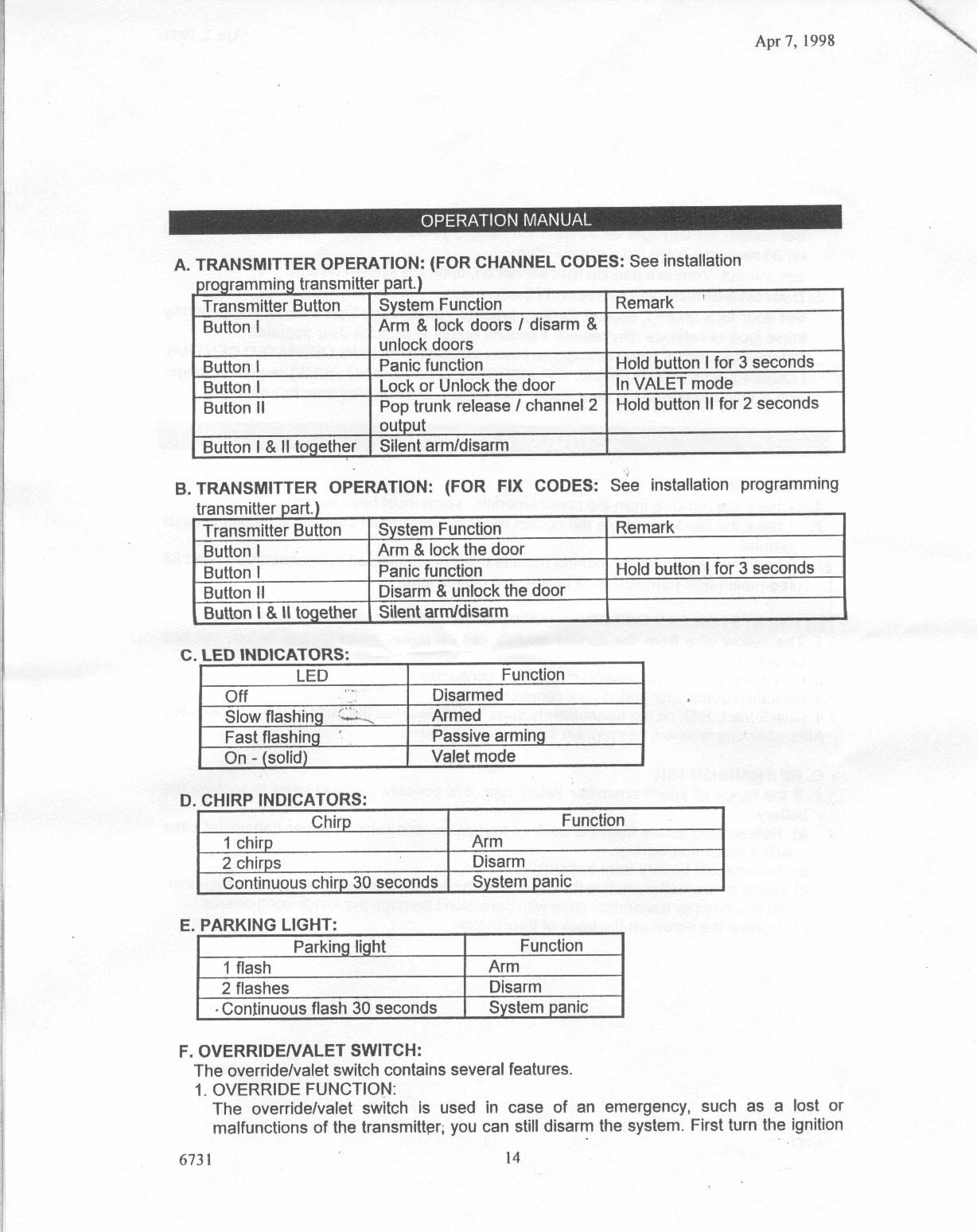

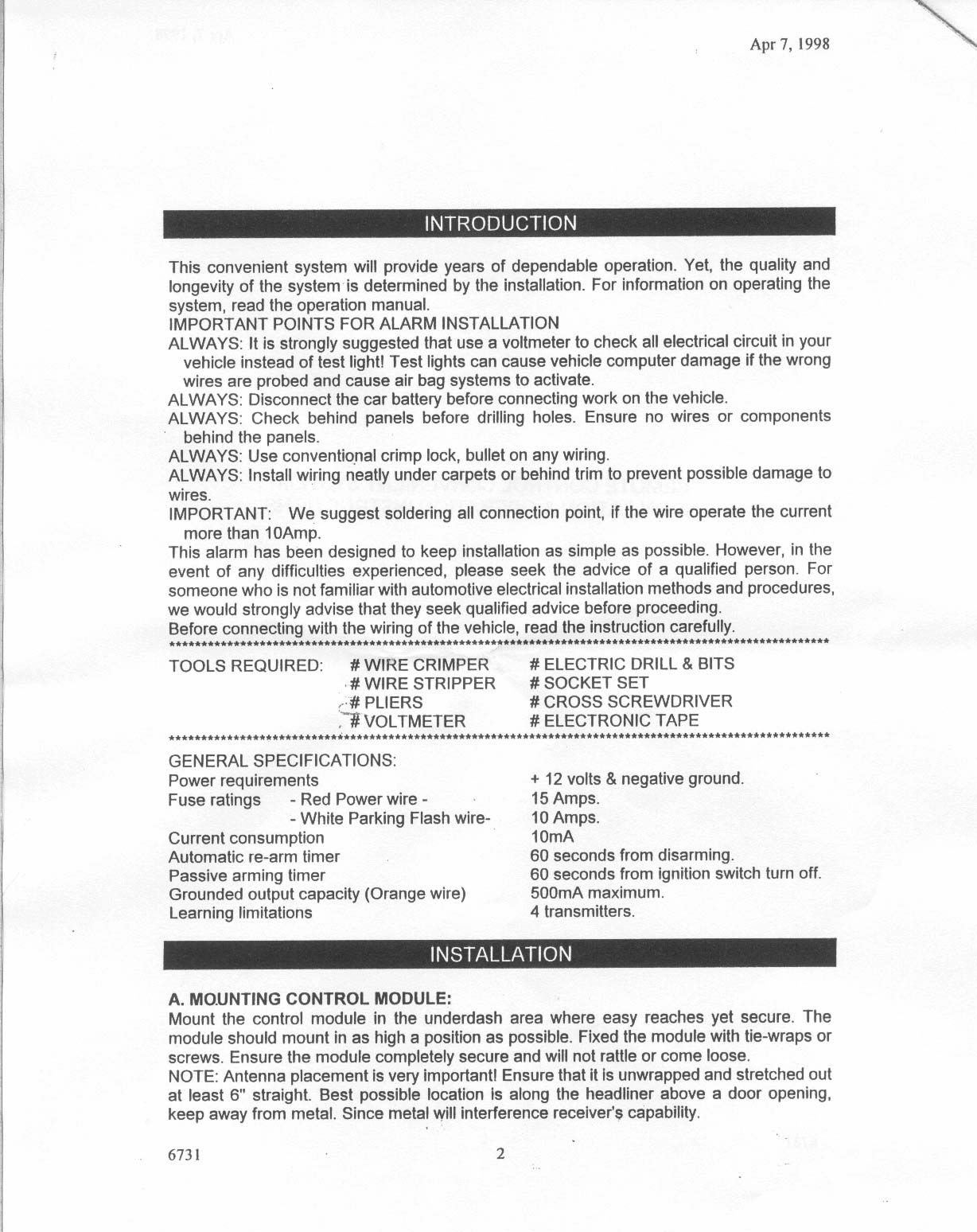

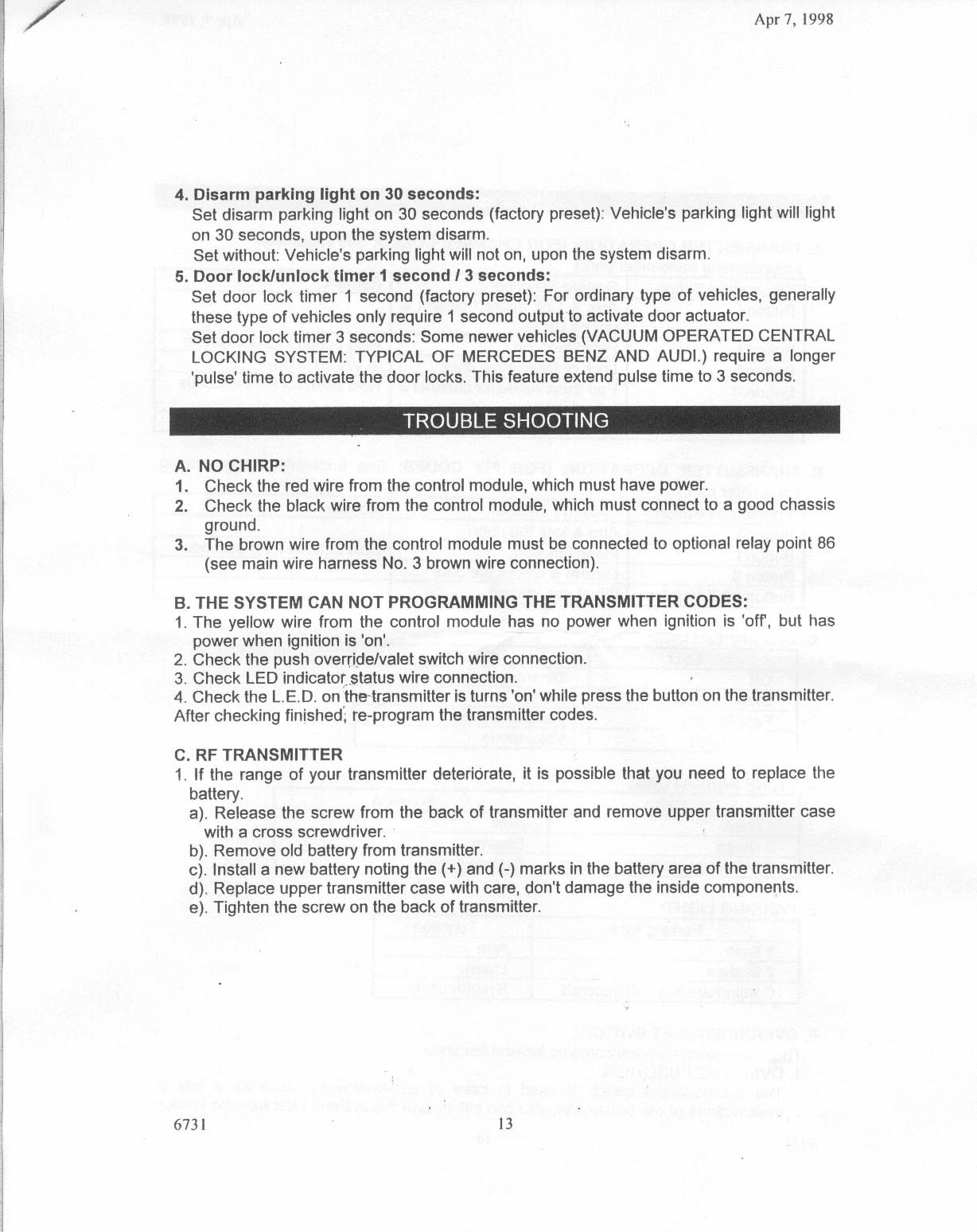

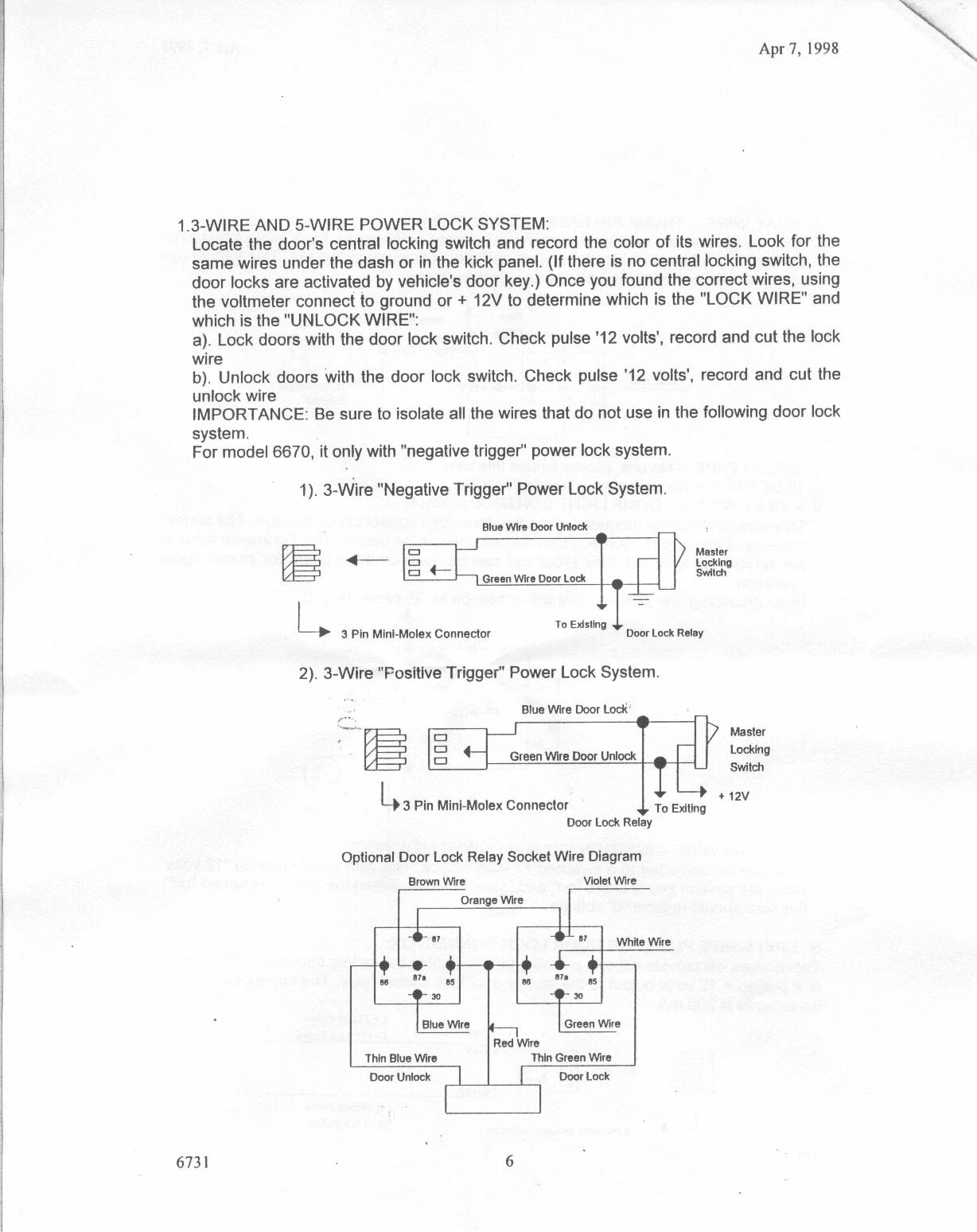

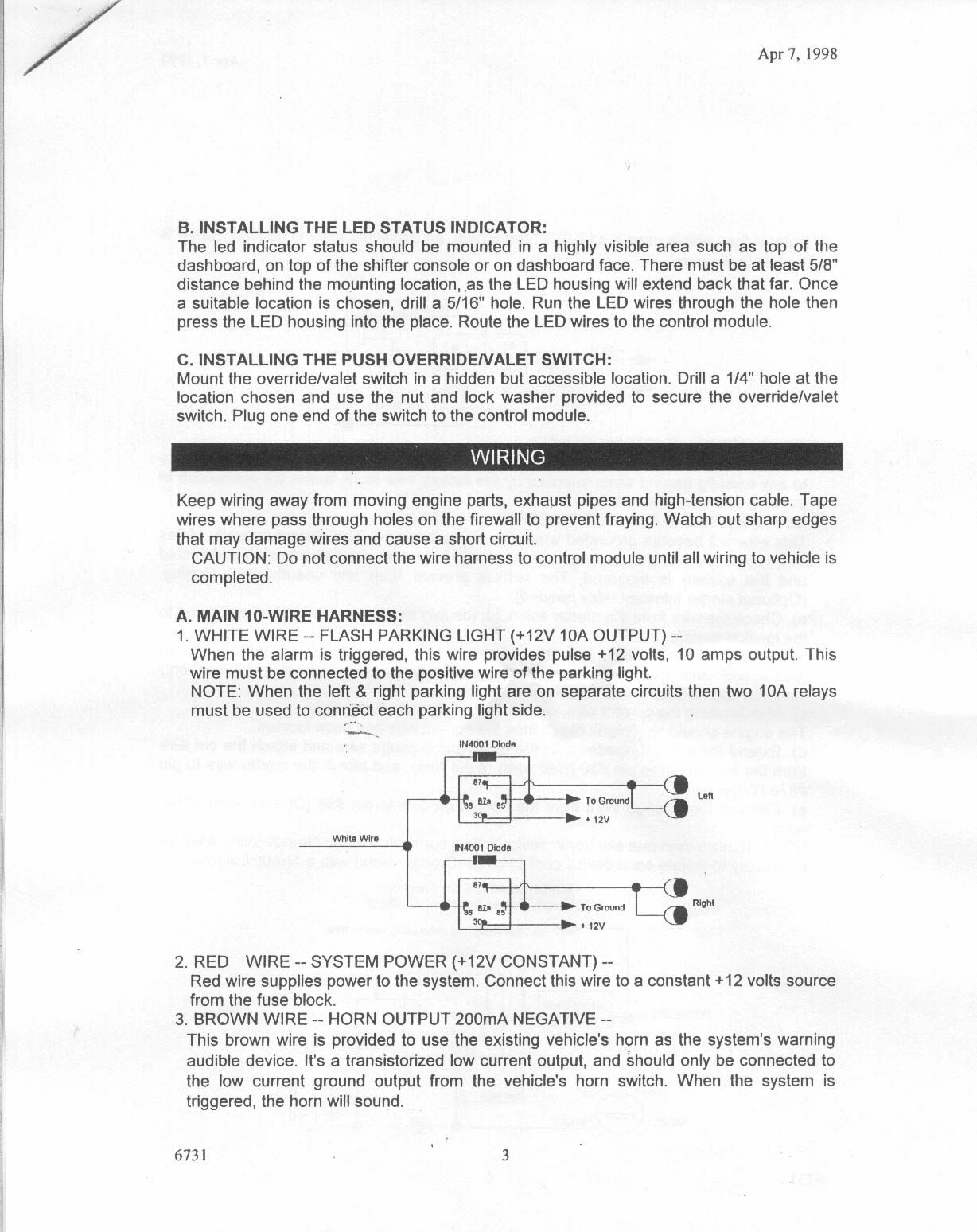

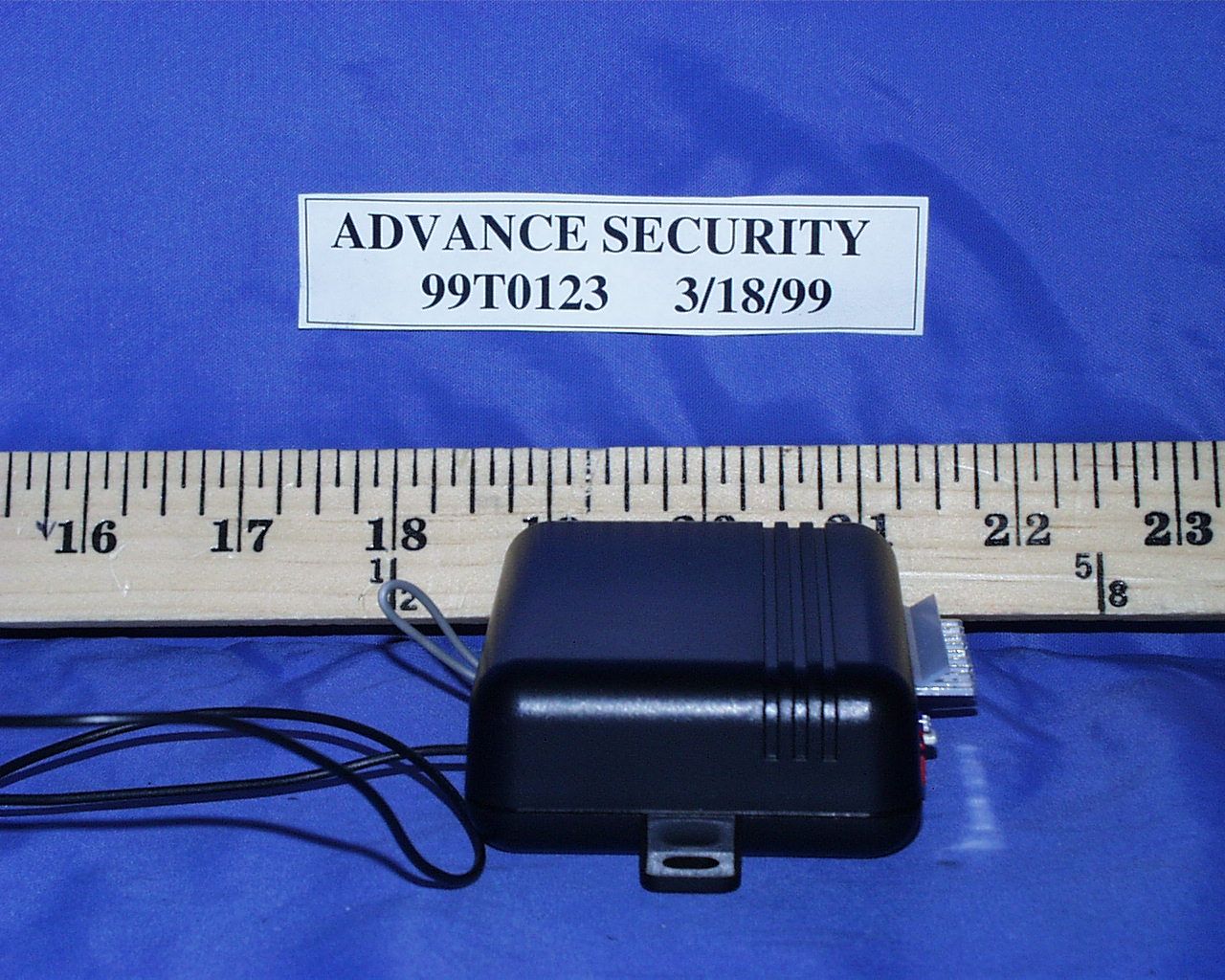

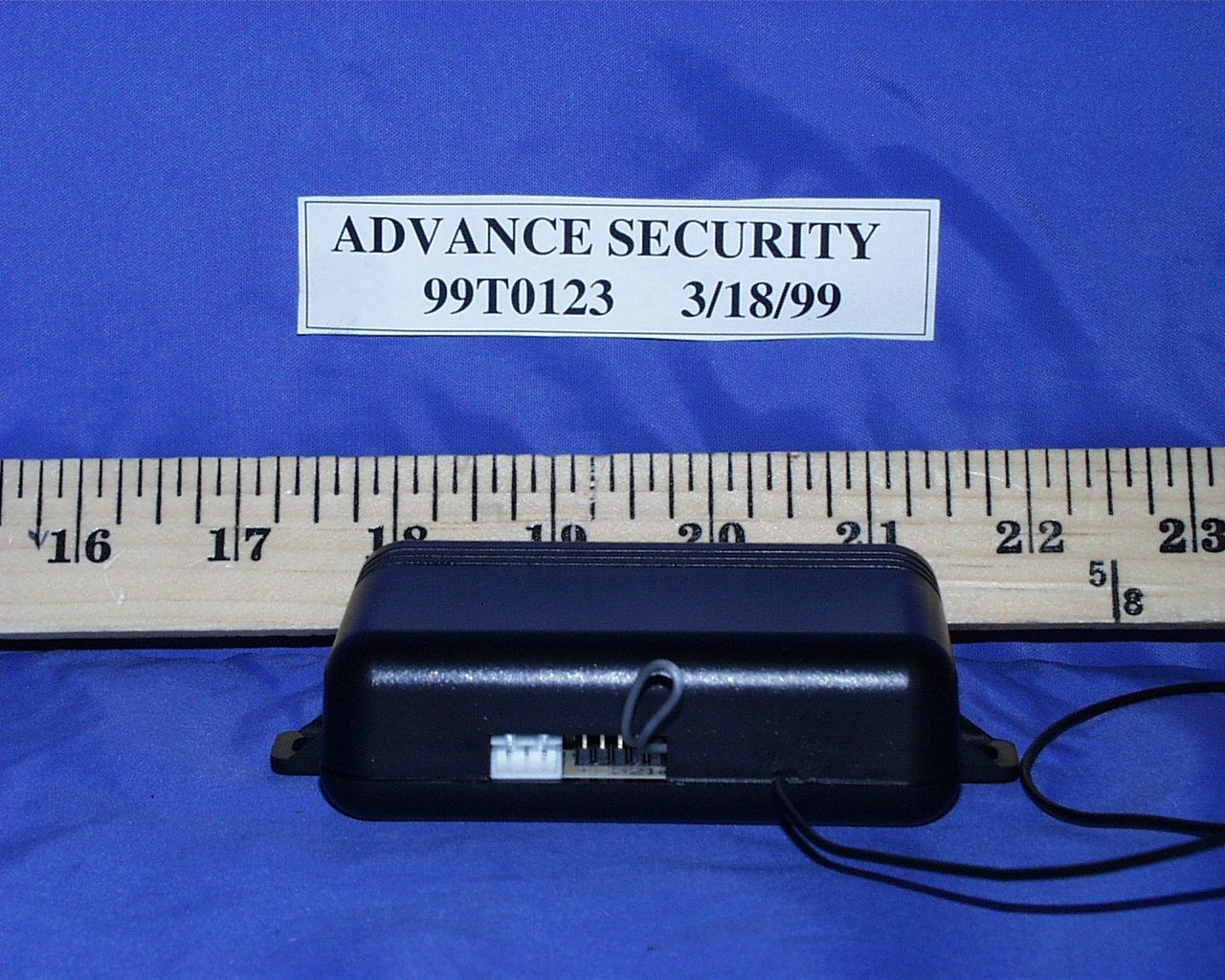

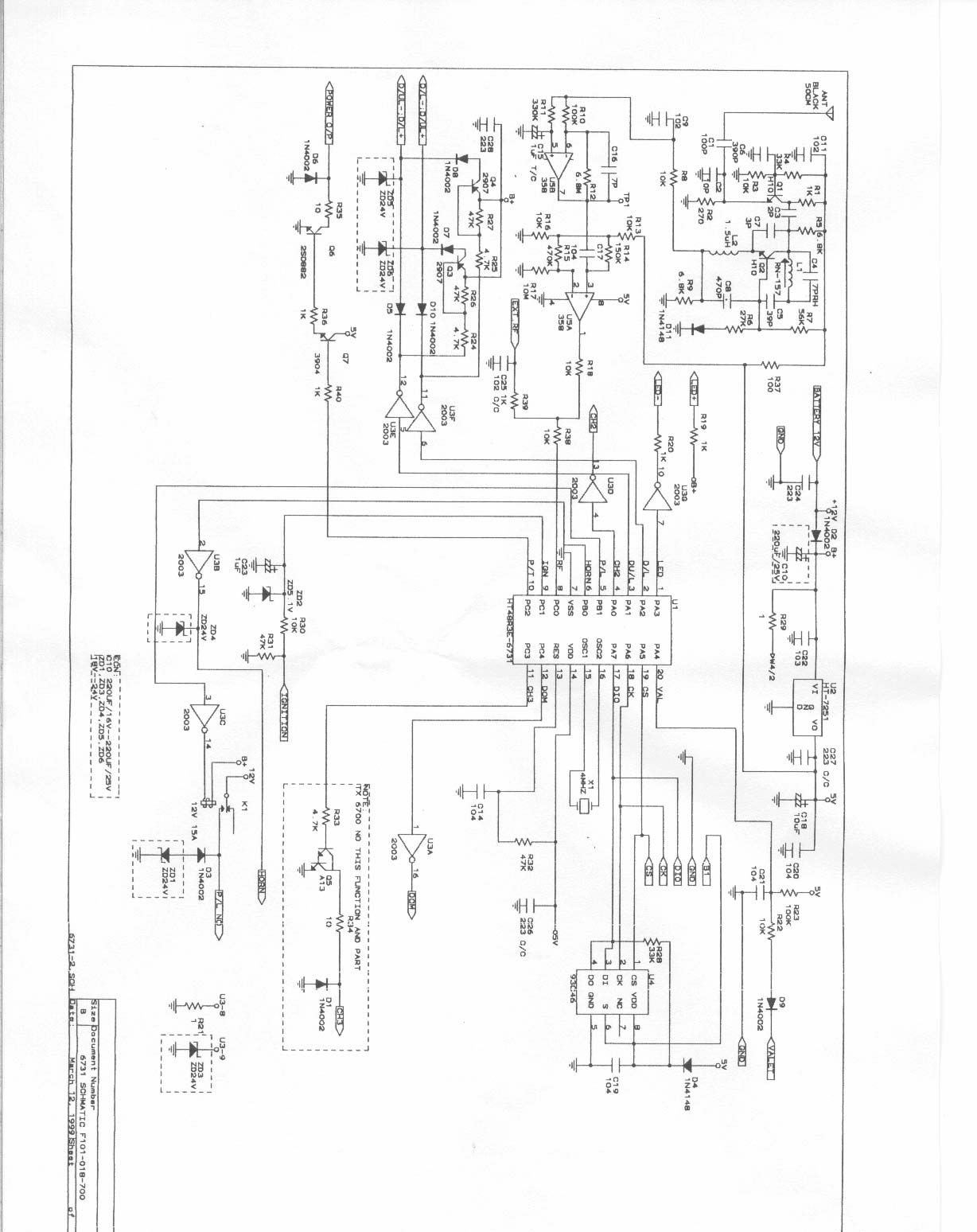

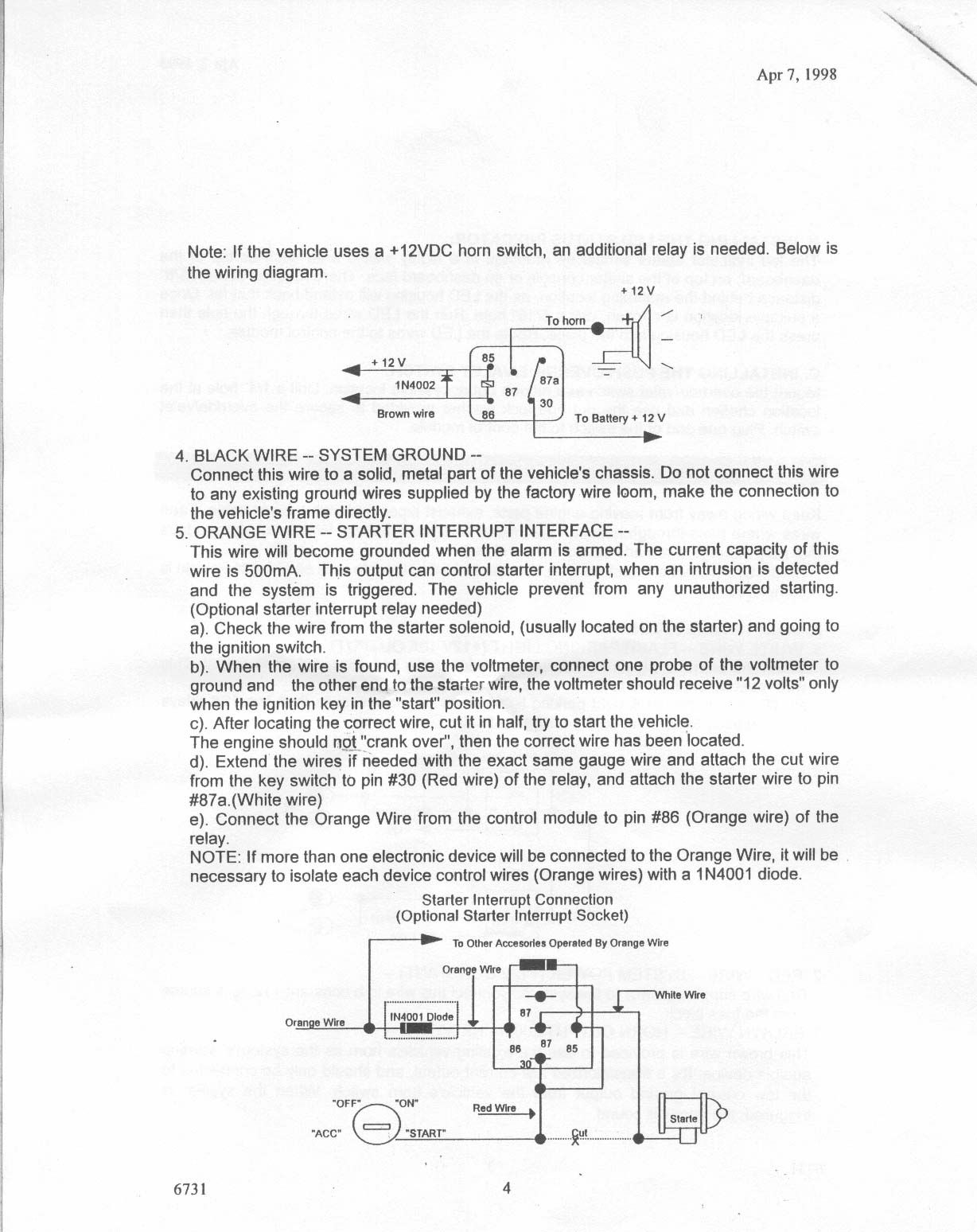

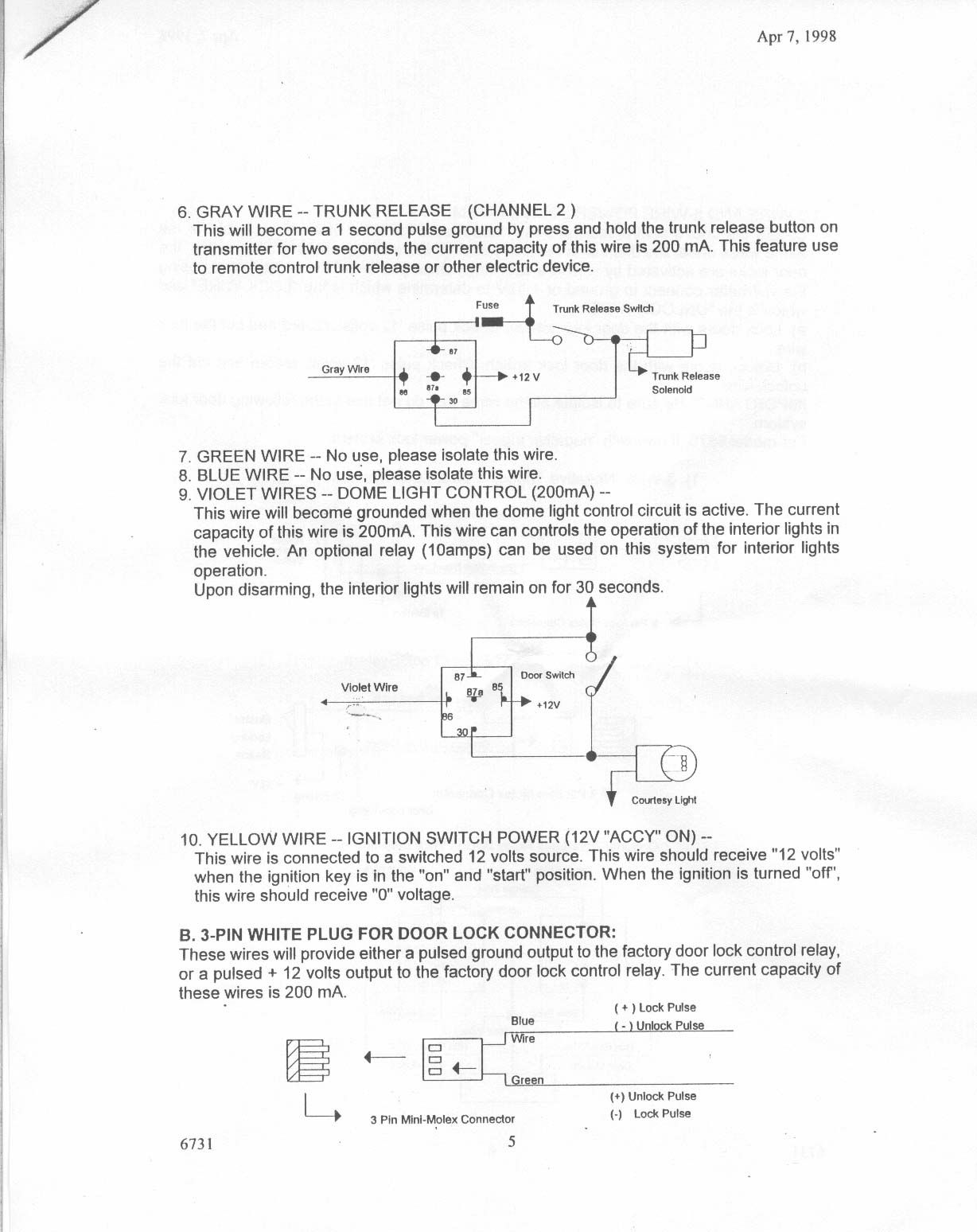

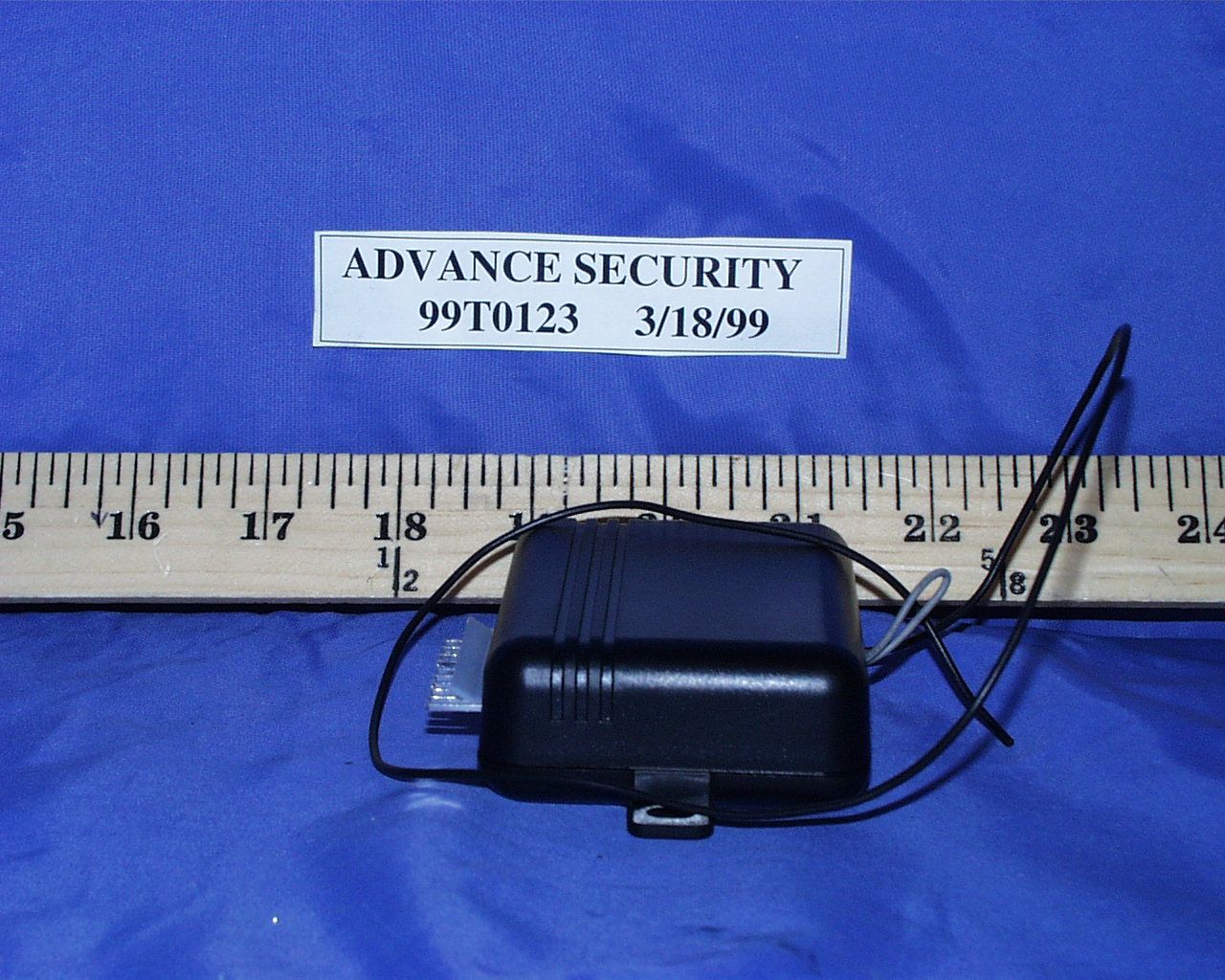

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR AUTO ALARM SYSTEM RECEIVER MODEL: 6731 FCC ID NO: H50R25 REPORT NO: 99T0123-1 ISSUE DATE: MARCH 17, 1999 Prepared for ADVANCE SECURITY INC. 3F, 48, TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN, R.O.C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:99T0123-1 FCC ID:H50R25 DATE:MARCH 17, 1999 EUT: AUTO ALARM SYSTEM RECEIVER PAGE NO:0 COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. TABLE OF CONTENTS 1.VERIFICATION OF COMPLIANCE ............................................................................................................ 1 2.PRODUCT DESCRIPTION............................................................................................................................. 2 3.TEST FACILITY .............................................................................................................................................. 2 4.MEASUREMENT EQUIPMENT USED ........................................................................................................ 2 5.TEST CONFIGURATION ............................................................................................................................... 3 6.TESTS CONDUCTED ...................................................................................................................................... 3 7. RADIATED EMISSION TEST PROCEDURE .............................................................................................. 4 8.COHERENT TESTS......................................................................................................................................... 4 9.EQUIPMENT MODIFICATIONS .................................................................................................................. 4 10.TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST)..................................................... 5 TEST DATA • Fundamental Frequency Plot • Radiated Emission Data Proposed FCC ID Label.........................EXHIBIT 1 Agent Authorization Letter....................EXHIBIT 2 Marketing Statement & Modification Report.....EXHIBIT 3 User Manual...................................Attachment A Block Diagram/Schematics......................Attachment B REPORT NO:99T0123-1 FCC ID:H50R25 DATE:MARCH 17, 1999 EUT: AUTO ALARM SYSTEM RECEIVER PAGE NO:1 COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:ADVANCE SECURITY INC. 3F, 48, TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN, R.O.C. CONTACT PERSON:JESSIE CHIU/SALES MANAGER TELEPHONE NO.:886-2-643-8192 EUT DESCRIPTION:AUTO ALARM SYSTEM RECEIVER MODEL NAME/NUMBER :6731 FCC ID:H50R25 DATE TESTED :MARCH 17, 1999 REPORT NUMBER:99T0123-1 TYPE OF EQUIPMENTSECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE310 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:99T0123-1 FCC ID:H50R25 DATE:MARCH 17, 1999 EUT:AUTO ALARM SYSTEM RECEIVER PAGE NO:2 COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 2.PRODUCT DESCRIPTION ADVANCE SECURITY INC., Model 6731 is the receiving portion of a multi-purpose security device. The associated Transmitter is manufactured by Advance Security Inc, Model No: 603, FCC ID: H50603. It can be used with any 677X series alarms. 3.TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4.MEASUREMENT EQUIPMENT USED Manufacturer Model Number DescriptionCal Due Date H.P.E4432ASignal Generator (0.5 - 1024 MHz) 08/99 H.P.8566BSpectrum Analyzer (100Hz - 22GHz) 08/99 EMCO3146Antenna (200-1000 MHz) 10/99 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/99 ARADRG-18/AAntenna(1 - 18GHZ)12/99 H.P.8449BPreamplifier (1-26.5GHZ)03/00 REPORT NO:99T0123-1 FCC ID:H50R25 DATE:MARCH 17, 1999 EUT:AUTO ALARM SYSTEM RECEIVER PAGE NO:3 COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 5.TEST CONFIGURATION Set frequency generator to 310 MHz, EUT receiving transmission continuously. All the wires are placed on the turn table to their maximum length to simulate the worse emission conditions. 6.TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS CONDUCTED AT 3 METERS REPORT NO:99T0123-1 FCC ID:H50R25 DATE:MARCH 17, 1999 EUT:AUTO ALARM SYSTEM RECEIVER PAGE NO:4 COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO:…

Text truncated - open the document above for the full version.

Project No. : 99T0123 Compliance Engineering Services Inc. Report No. : 990317C1 Date : 03/17/1999 Time : 13:48 >> 3 M RADIATED EMISSION DATA << Test Engr : PETE K Company : ADVANCE SECURITY INC Equipment Under Test : 310MHZ RX 6731 Test Configuration : EUT ONLY Type of Test : FCC CLASS B Mode of Operation : RX/ W/ 309 TO 310MHZ SWEPT CW SIGNAL Freq. dBuV PreAmp Ant Cable dBuV/m Limit Margin Pol Hgt(m) Az LP 9107-3163 ; Pre-pamp = 8447D-P5 2944A06550: 619.34 29.70 -28.29 18.98 3.46 23.84 46.00 -22.16 V 1.0 0 309.67 33.60 -27.05 14.05 2.37 22.97 46.00 -23.03 V 1.0 0 929.01 29.00 -27.69 22.60 4.34 28.25 46.00 -17.75 V 1.0 0 309.67 30.90 -27.05 14.04 2.37 20.26 46.00 -25.74 H 1.5 0 619.34 32.80 -28.29 19.67 3.46 27.63 46.00 -18.37 H 1.0 0 928.94 29.20 -27.69 23.41 4.34 29.25 46.00 -16.75 H 1.0 0 Total # of data 6 SCANNED HORIZONTAL AND VERTICAL 30 TO 2000MHZ V. c2.2
