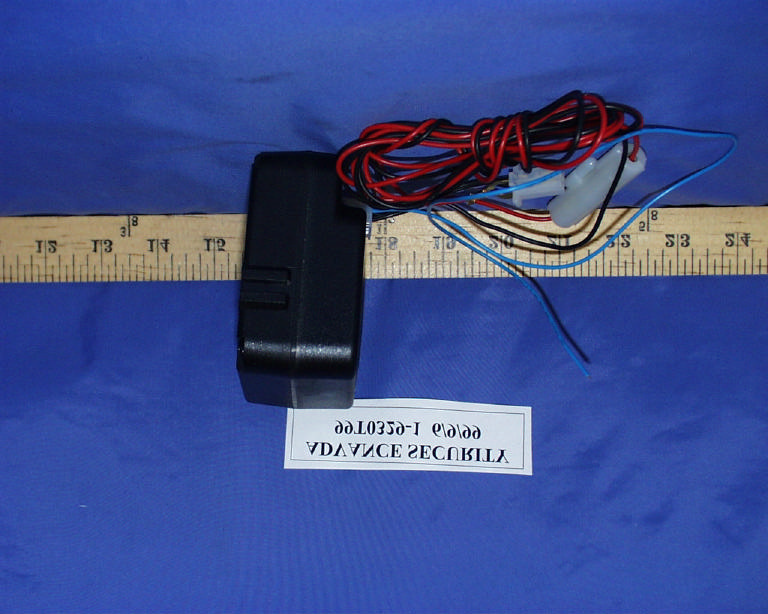

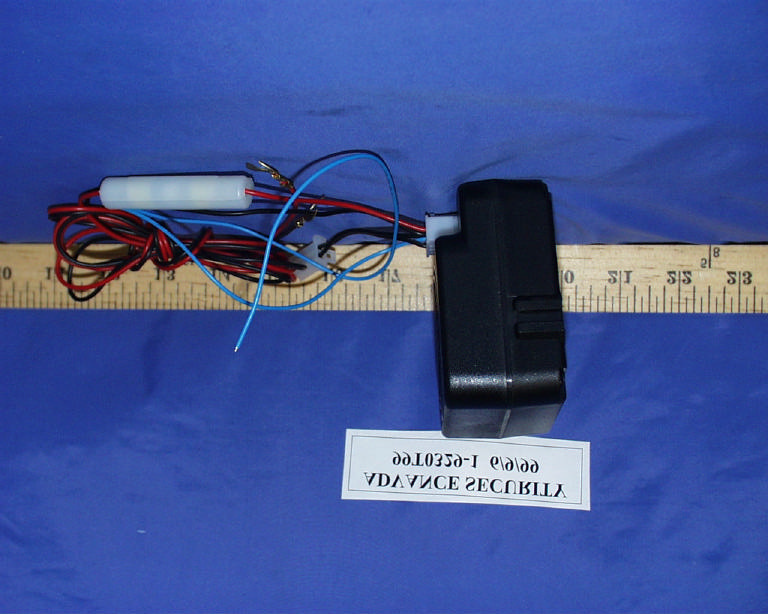

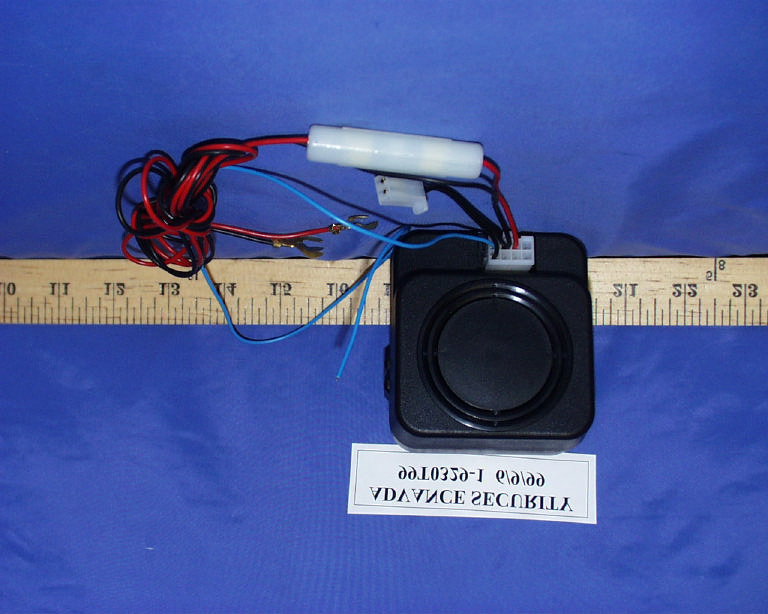

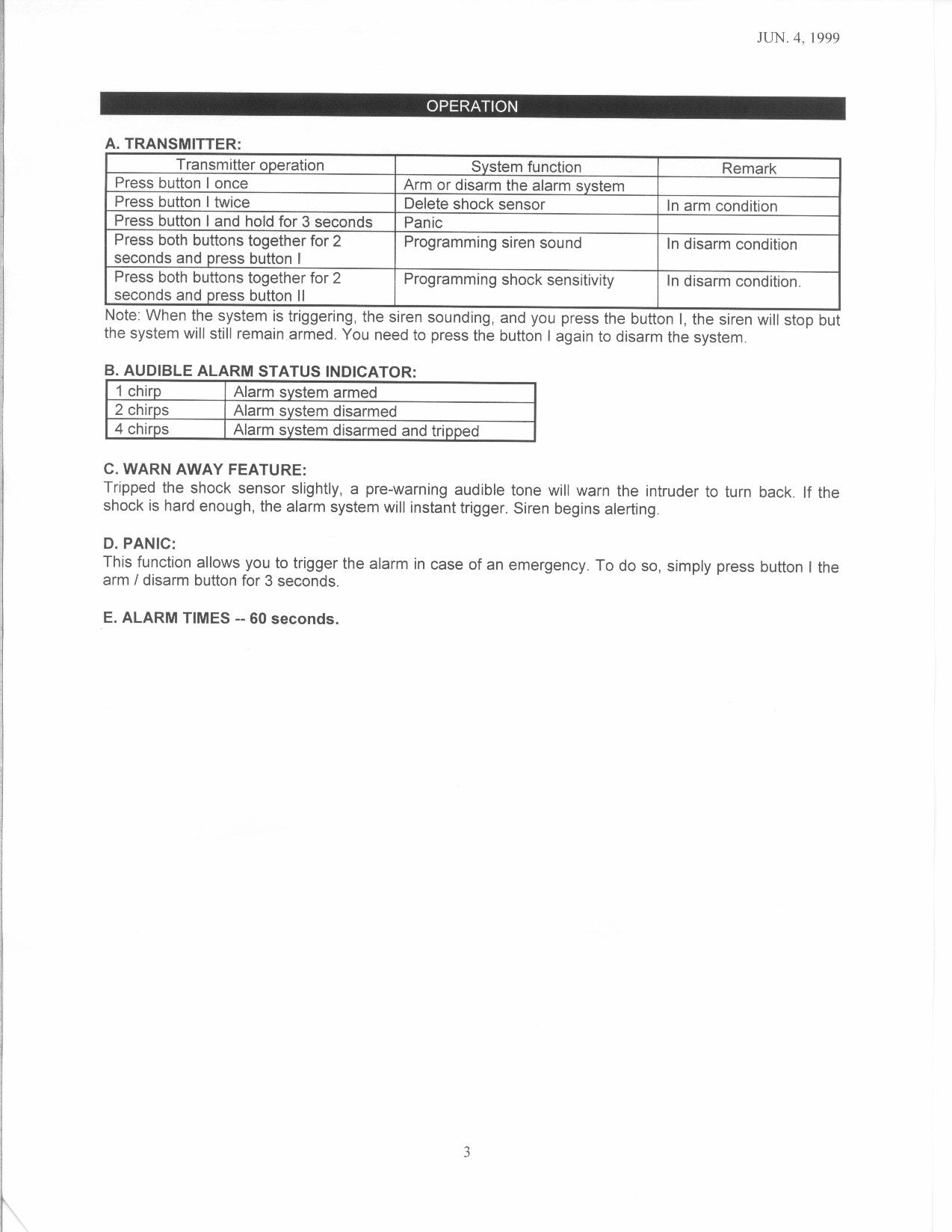

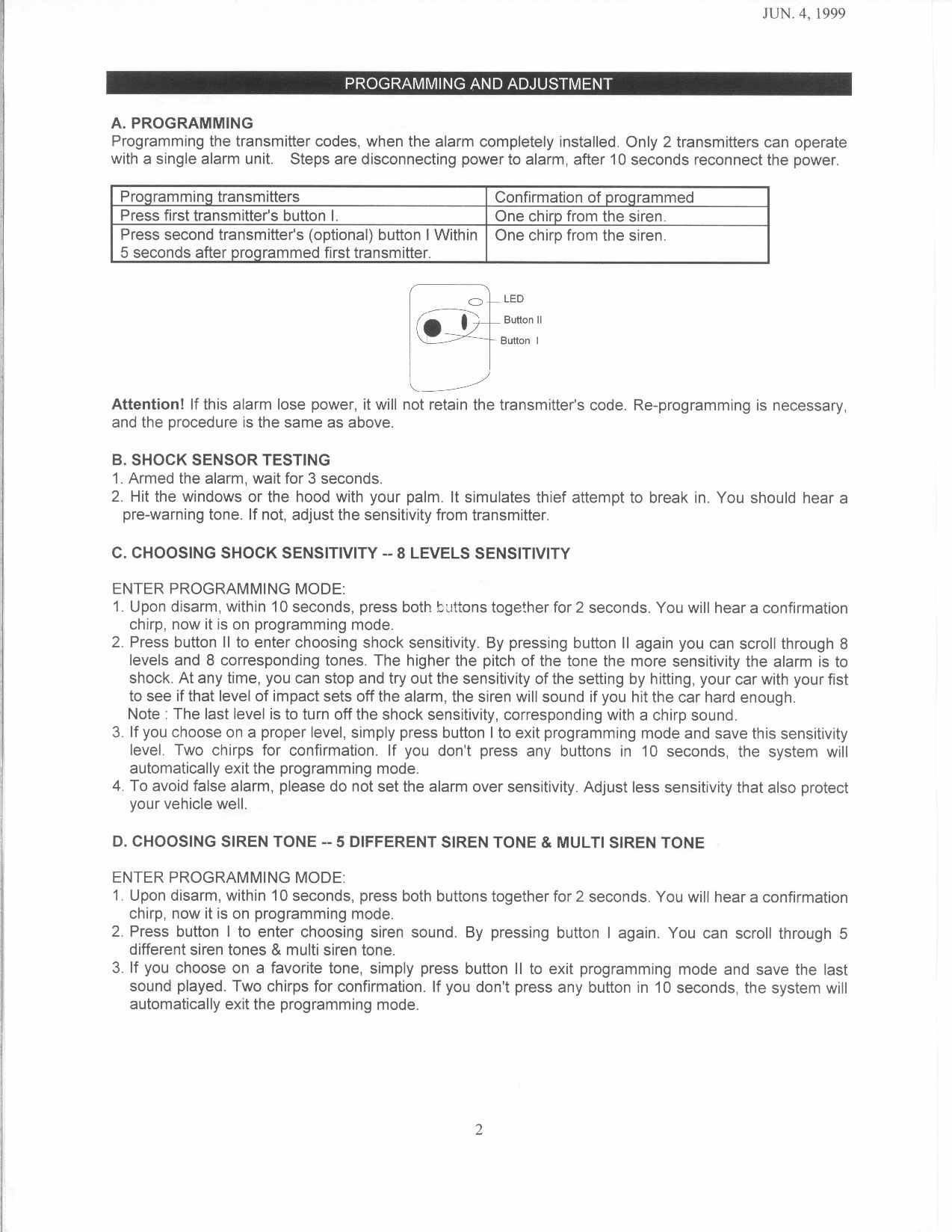

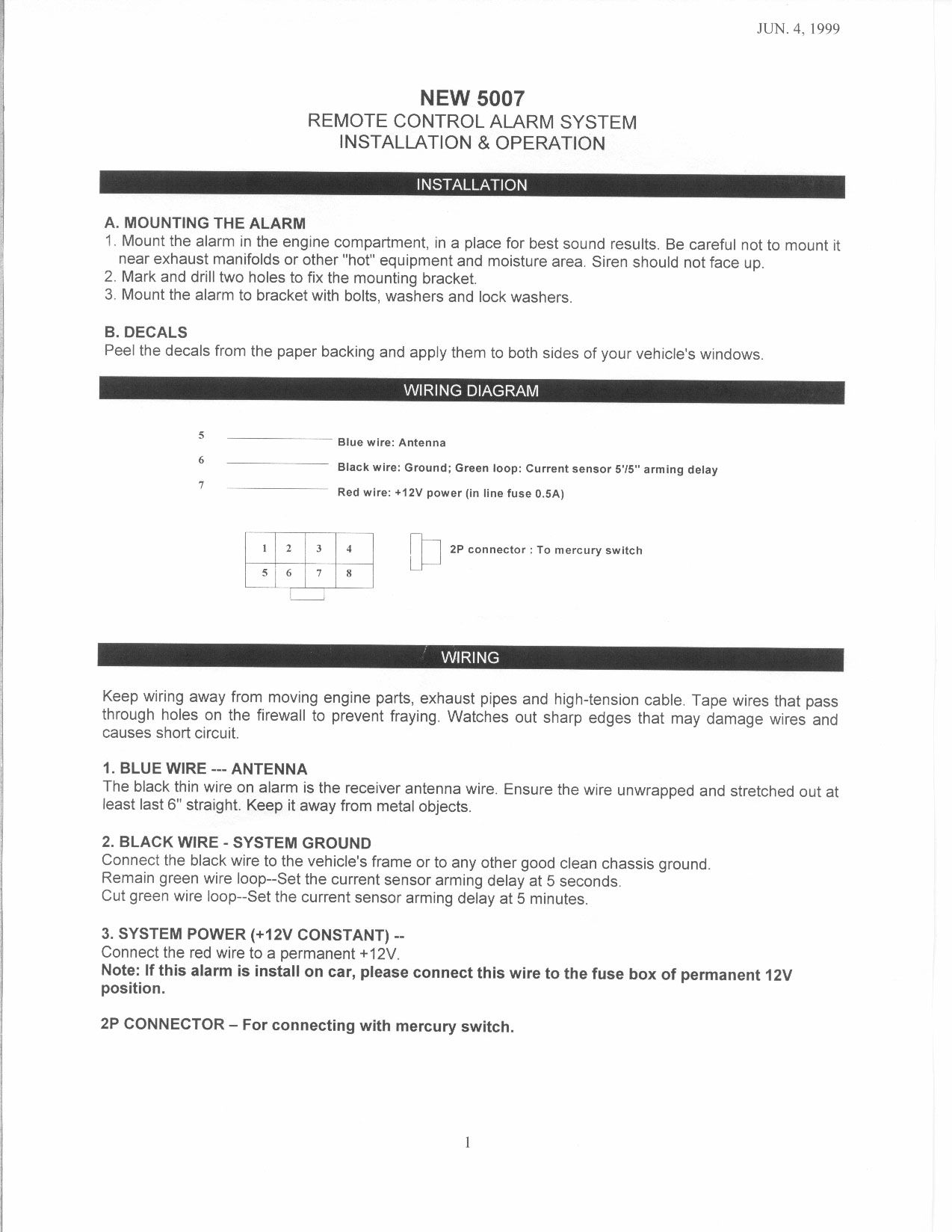

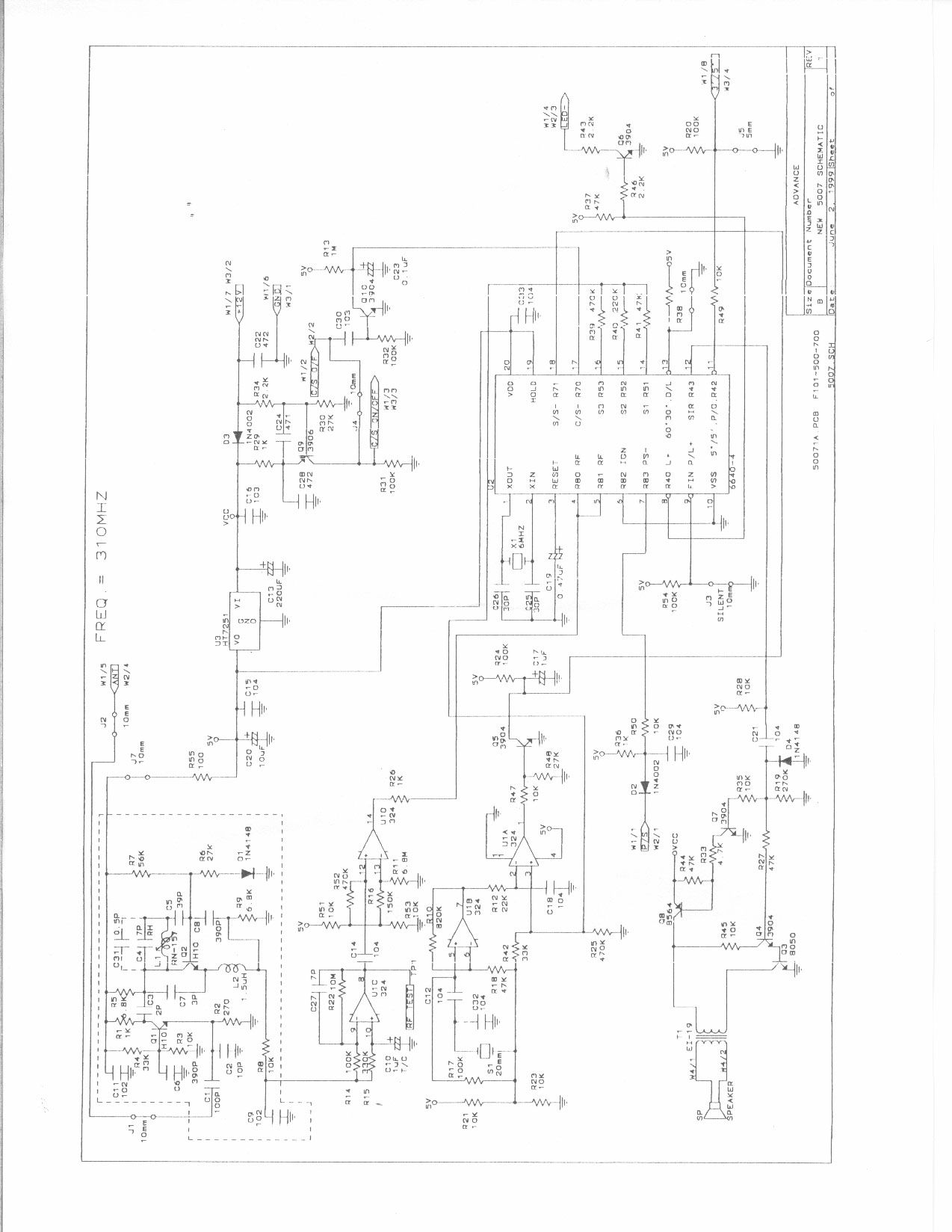

H5OR27Auto Alarm Receiver

PROPOSED FCC ID LABEL AND LOCATION ADVANCE SECURITY INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: H5OR27 FCC ID LABEL AREA

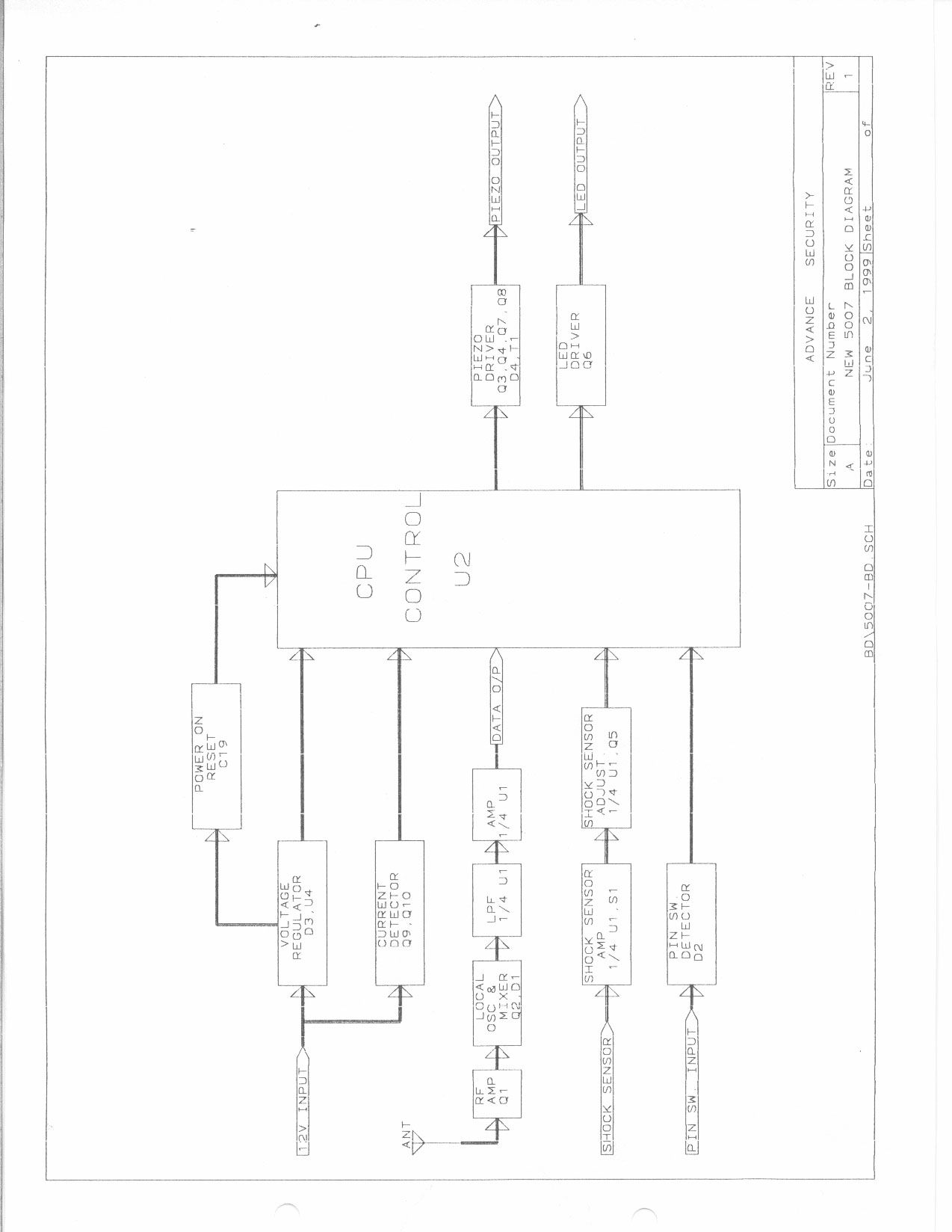

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR AUTO ALARM SYSTEM RECEIVER MODEL: NEW 5007 FCC ID NO: H5OR27 REPORT NO: 99T0329-1 ISSUE DATE: June 9, 1999 Prepared for ADVANCE SECURITY INC. 3F, 48, TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN, R.O.C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:99T0329-1 FCC ID:H5OR27 EUT:AUTO ALARM SYSTEM RECEIVER DATE:JUNE 9, 1999 PAGE NO: 0 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. TABLE OF CONTENTS 1.VERIFICATION OF COMPLIANCE ............................................................................................................ 1 2.PRODUCT DESCRIPTION............................................................................................................................. 2 3.TEST FACILITY .............................................................................................................................................. 2 4.MEASUREMENT EQUIPMENT USED ........................................................................................................ 2 5.TEST CONFIGURATION ............................................................................................................................... 3 6.TESTS CONDUCTED ...................................................................................................................................... 3 7. RADIATED EMISSION TEST PROCEDURE .............................................................................................. 4 8.COHERENT TESTS......................................................................................................................................... 4 9.EQUIPMENT MODIFICATIONS .................................................................................................................. 4 10.TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST)..................................................... 5 ATTACHMENT: Proposed FCC ID Label Agent Authorization Letter Test data • Fundamental Frequency Plot • Radiated Emission Data Block Diagram/Schematics User Manual REPORT NO:99T0329-1 FCC ID:H5OR27 EUT:AUTO ALARM SYSTEM RECEIVER DATE:JUNE 9, 1999 PAGE NO: 1 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:ADVANCE SECURITY INC. 3F, 48, TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN, R.O.C. CONTACT PERSON:JESSIE CHIU/SALES MANAGER TELEPHONE NO.:886-2-643-8192 EUT DESCRIPTION:AUTO ALARM SYSTEM RECEIVER MODEL NAME/NUMBER :NEW 5007 DATE TESTED :June 9, 1999 REPORT NUMBER:99T0329-1 TYPE OF EQUIPMENTSECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE310 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:99T0329-1 FCC ID:H5OR27 EUT:AUTO ALARM SYSTEM RECEIVER DATE:JUNE 9, 1999 PAGE NO: 2 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 2.PRODUCT DESCRIPTION ADVANCE SECURITY INC., Model NEW 5007 is the receiving portion of a multi- purpose security device. The associated Transmitter is manufactured by Advance Security Inc, Model No: 603, FCC ID: H50603. It can be used with any 677X series alarms. 3.TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4.MEASUREMENT EQUIPMENT USED Manufacturer Model Number DescriptionCal Due Date H.P.E4432ASignal Generator (0.5 - 1024 MHz) 08/99 H.P.8566BSpectrum Analyzer (100Hz - 22GHz) 08/99 EMCO3146Antenna (200-1000 MHz) 10/99 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/99 ARADRG-18/AAntenna(1 - 18GHZ)12/99 H.P.8449BPreamplifier (1-26.5GHZ)03/00 REPORT NO:99T0329-1 FCC ID:H5OR27 EUT:AUTO ALARM SYSTEM RECEIVER DATE:JUNE 9, 1999 PAGE NO: 3 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 5.TEST CONFIGURATION Set frequency generator to 310 MHz, EUT receiving transmission continuously. All the wires are placed on the turn table to their maximum length to simulate the worse emission conditions. 6.TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS CONDUCTED AT 3 METERS REPORT NO:99T0329-1 FCC ID:H5OR27 EUT:AUTO ALARM SYSTEM RECEIVER DATE:JUNE 9, 1999 PAGE NO: 4 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 7. RADIATED…

Text truncated - open the document above for the full version.

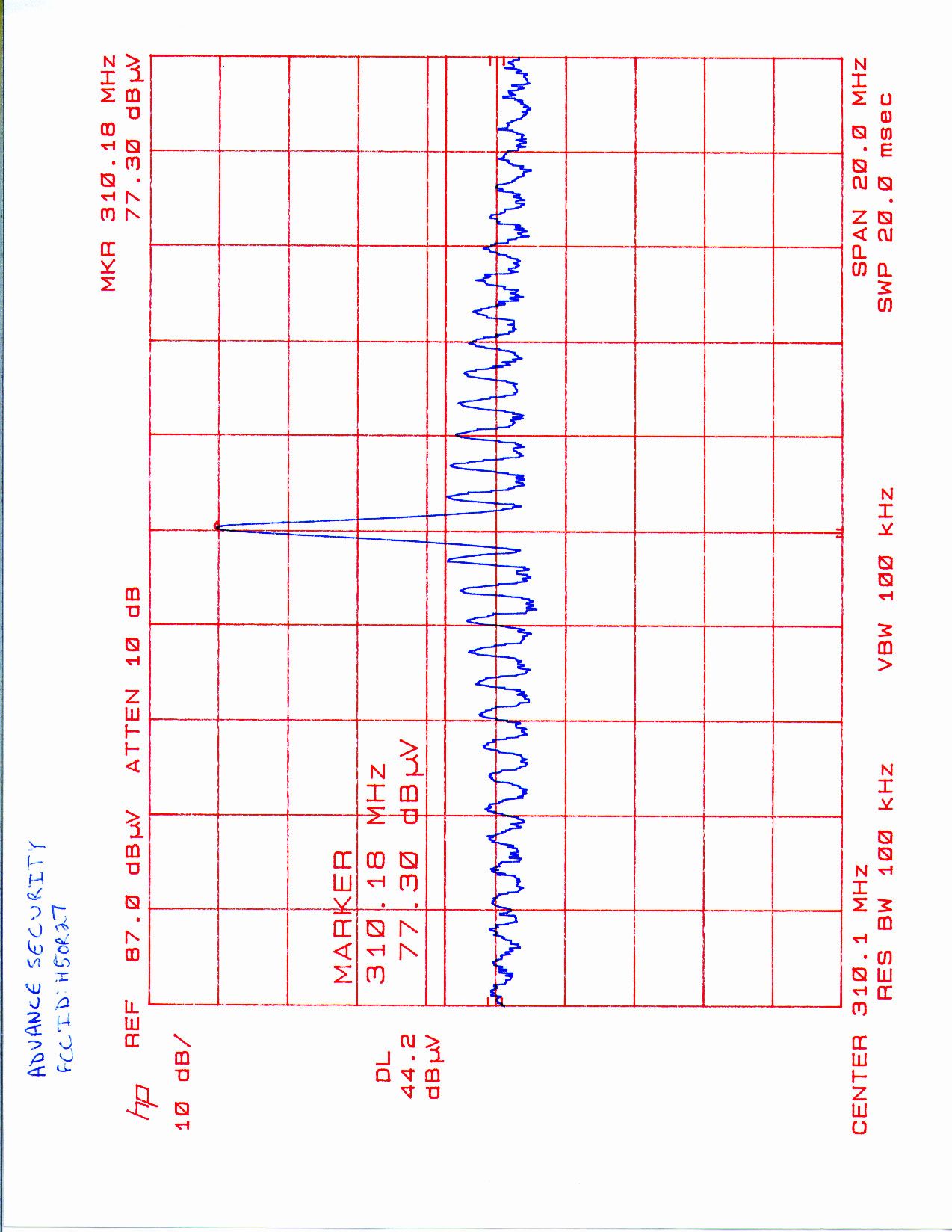

Project No. : 99T0329 Compliance Engineering Services Inc. Report No. : 990609F1 Date : 06/09/1999 Time : 10:41 >> 3 M RADIATED EMISSION DATA << Test Engr : JESSE SALDIVAR Company : ADVANCE SUCURITY INC. Equipment Under Test : 310MHZ RECEIVER MODEL: NEW 5007 Test Configuration : EUT/SIGNAL GENERATOR/POWER SUPPLY Type of Test : FCC CLASS B Mode of Operation : RX Freq. dBuV PreAmp Ant Cable dBuV/m Limit Margin Pol Hgt(m) Az 6 WORST EMISSIONS: 309.48 44.10 -30.13 16.49 3.90 34.37 46.00 -11.63 H 1.0 180 308.86 42.30 -30.13 16.48 3.90 32.56 46.00 -13.44 H 1.0 180 308.20 41.30 -30.12 16.47 3.90 31.54 46.00 -14.46 H 1.0 180 310.84 44.20 -30.13 16.52 3.91 34.50 46.00 -11.50 H 1.0 180 311.48 43.70 -30.14 16.53 3.92 34.01 46.00 -11.99 H 1.0 180 312.12 42.90 -30.14 16.54 3.92 33.22 46.00 -12.78 H 1.0 180 Total # of data 6 V. f2.2
