H5OR36Car Alarm Receiver

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

PROPOSED FCC ID LABEL AND LOCATION ADVANCE SECURITY INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: H5OR36 FCC ID LABEL

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 433.92 CAR ALARM RECEIVER MODEL: ALA210 FCC ID NO: H5OR36 BRAND NAME: ADVANCE REPORT NO: 02T1176-1 ISSUE DATE: FEBRUARY 20, 2002 Prepared for ADVANCE SECURITY INC. 3F, 48 TA AN STREET HSI-CHIH, TAIPEI HSIEN TAIWAN, R. O. C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:02T1176-1 FCC ID: H5OR36 DATE: FEBRUARY 20, 2002 EUT: 433.92 MHz CAR ALARM RECEIVER PAGE NO: 0 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE............................................................................................................1 2. PRODUCT DESCRIPTION............................................................................................................................2 3. TEST FACILITY..............................................................................................................................................2 4. MEASUREMENT EQUIPMENT USED........................................................................................................2 5. TEST CONFIGURATION...............................................................................................................................3 6. TESTS CONDUCTED......................................................................................................................................3 7. RADIATED EMISSION TEST PROCEDURE.............................................................................................4 8. COHERENT TESTS.........................................................................................................................................4 9. EQUIPMENT MODIFICATIONS..................................................................................................................4 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST)....................................................5 REPORT NO:02T1176-1 FCC ID: H5OR36 DATE: FEBRUARY 20, 2002 EUT: 433.92 MHz CAR ALARM RECEIVER PAGE NO: 1 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : ADVANCE SECURITY 3F, 48 TA AN STREET HSI-CHIH, TAIPEI HSIEN, TAIWAN. R. O. C. CONTACT PERSON : MICHAEL CHEN/PRESIDENT TELEPHONE NO. : 02-8648-1688 EUT DESCRIPTION : 433.92 MHz CAR ALARM RECEIVER MODEL NAME/NUMBER : ALA210 DATE TESTED : 02/15/2002 REPORT NUMBER : 02T1176-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Tested By: CHIN PANG EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES REPORT NO:02T1176-1 FCC ID: H5OR36 DATE: FEBRUARY 20, 2002 EUT: 433.92 MHz CAR ALARM RECEIVER PAGE NO: 2 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 2. PRODUCT DESCRIPTION CLIFFORD ELECTRONICS, INC., Model H5OR36 is the receiving portion of a multi- purpose security device. The associated Transmitter is manufactured by Advance Security Inc., FCC ID: H5OT17. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4. MEASUREMENT EQUIPMENT USED TEST EQUIPMENTS LIST Name of EquipmentManufacturerModel No.Serial No.Due Date Spectrum AnalyzerHP 0.1K - 1.5GHz8568B2732A036615/10/02 Spectrum DisplayHP85662A2816A166965/4/02 Quasi Peak AdapterHP 9K - 1GHz85650A2811A011555/4/02 Pre-Amplifier,25 dBHP0.1 - 1300MHz8447D (P5) 2944A06550 9/19/01 Antenna, LPEMCO200 - 2000MHz31469107-31638/10/01 Signal GeneratorHP8640B2322A224024/10/02 REPORT NO:02T1176-1 FCC ID: H5OR36 DATE: FEBRUARY 20, 2002 EUT: 433.92 MHz CAR ALARM RECEIVER PAGE NO: 3 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 5. TEST CONFIGURATION Set frequency generator to 433.65 MHz, EUT receiving transmission continuously. All the wires are placed on the turn table to their maximum length to simulate the worse emission conditions. 6. TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS CONDUCTED AT 3 METERS REPORT NO:02T1176-1 FCC ID: H5OR36 DATE: FEBRUARY 20, 2002 EUT: 433.92 MHz CAR ALARM RECEIVER PAGE NO: 4 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, wit…

Text truncated - open the document above for the full version.

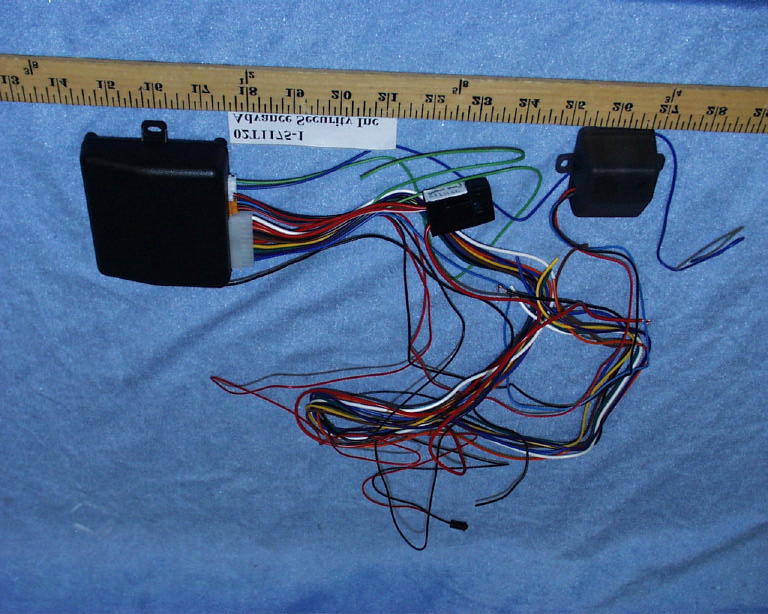

REPORT NO:02T1176-1 FCC ID: H5OR36 DATE: FEBRUARY 20, 2002 EUT: 433.92 MHz CAR ALARM RECEIVER PAGE NO: 5 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 10. TEST CONFIGURATION PHOTOS (Radiated Emission Test)
