H5OR37Car Alarm Receiver

JULY. 19. 2002 560A 1 OPERATION: A. REGULAR TRANSMITTER OPERATION: Transmitter Button System Function Remark Lock Doors & Arm System with Chirp Press & release within 1 seconds Lock Doors & Arm System without Chirp Press & release over 1 seconds - Arm and Delete The 2 Stage Shock Sensor Press twice within 3 seconds. (3-second) Panic function Press and Hold for 3 seconds Unlock Doors & Disarm System with Chirp Press & release within 1 seconds Unlock Doors & Disarm System without Chirp Press & release over 1 seconds - Two Steps Door Unlock & Disarm System Press twice within 3 seconds. (2-second) Channel 2 (Trunk) Timer Control Press and Hold for 2 seconds - Activate or Turn Off The Remote Start or Press twice within 3 seconds. B. LED display: LED Function LED Function Off Disarmed Zone 1: Warn-Away Trigger Slow Flash Armed 2 flashes... pause Zone 2: Trigger on Trunk/Hood Fast Flash Passive Arming 3 flashes... pause Zone 3: Trigger on Door Switch On (Solid) Valet Mode 4 flashes... pause Zone 4: Trigger on Optional Sensor 5 flashes... pause Zone 5: Trigger on Ignition Switch C. CHIRP INDICATORS: D. PARKING LIGHT: Chirp Function Parking light Function 1 chirp Arm 1 flash Arm 2 chirps Disarm 2 flashes Disarm 3 chirps Defective Reminder 3 flashes Disarm / Triggered 4 chirps Disarm / Triggered 12 flashes Car Locator Constant On Under Remote Start E. ALARM OPERATING CONDITION: Siren, Horn Parking Light LED Doors Starter Dome Light 1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disable 2. Disarming 2 or 4 Chirps 2 or 3 Flashes Fast Flash Unlocking Turns on for 30-second 3. Trigger Alarming Flashes Slow Flash Disable Flashes 4. Panic Alarming Flashes Flashes F. ACTIVE LOCK & ARM: 1.Press button on the transmitter. 2.The horn will chirp once and parking light will flash once indicating that the system is now armed. The vehicle doors will lock upon arming when interfaced with the security system. SILENT ARMING / DISARMING: Press and hold the or button on the transmitter over 1 second will arm or disarm your security system, No chirp sound will be heard, arm / disarm confirmation will be through the vehicles parking lights only. DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar. (See Alarm Feature “I - 4 Programming) SHOCK SENSOR / OPTIONAL SENSOR BY-PASS: Press the button once: The siren chirps once, The system is armed. JULY. 19. 2002 560A 2 Press the button a second time within 3 seconds: The siren chirps twice, the Shock Sensor is now bypassed. The sensor bypass feature is programmed to activate for one arming cycle only. The security system will return to normal operation during the next arming cycle. H. PASSIVE ARMING Active arming / disarming is controlling your security system via the remote transmitter. This security system is equipped with an optional Passive Arming feature, which allows the security system to arm 30 seconds after the last door is closed. Operation is as follows. 1. Turn the ignition to the “OFF” position and exit the vehicle. 2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once the vehicle all entrances are closed. 3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren will chirp [1] time and the parking lights will flash [1] time. PASSIVE ARMING WITH PASSIVE DOOR LOCKING (See Alarm Feature “I - 2” Programming): The vehicle doors will automatically lock after passive arming cycle has been completed. G. ACTIVE UNLOCK & DISARM: 1. Press button on the transmitter. 2. The horn will chirp twice and parking light will flash twice to indicating that the security system is now disarmed. The vehicle doors will unlock and dome light wills turns on for 30 seconds upon disarming when interfaced with the security system. TAMPER DISARMING: If alarm triggered, upon disarm the system, siren chirp 4 times, parking light flash 3 times. PATHWAY ILLUMINATION (See Alarm Feature “II - 4” Programming): This feature turns the parking light “ON” for 30 seconds upon a unlock signal and for 10 seconds upon the lock signal. TWO STEPS DOOR UNLOCK (See Alarm Feature “III - 3” Programming):: This feature will independently unlock the drives door only when disarming the security system. Pushing the button a second time within 3 seconds will unlock the entire vehicle. H. DISARMING WITHOUT A TRANSMITTER The Override function may be used if the remote transmitter is lost or inoperative. 1. Enter the vehicle and turn the ignition switch to 'ON’ position. 2. Within 10 seconds push and release the valet switch The alarm will enter the disarm mode. You can now start and operate the vehicle normally. I. VALET MODE: (System in Disarm or Valet mode) The valet switch allows you to temporarily bypass all alarm function, eliminating the need to hand your transmitter to parking attendants or garage mechanics. When the system is in valet mode, all alarm function and remote start function are bypassed, however the remote panic feature and remote door locks will remain operational. To use the valet mode, the system must first be disarmed either by using you remote transmitter, or by operating the Manual override sequence. Enter Valet Mode: 1.From the disarmed condition, turn the ignition to “ON” position. 2.Push and hold valet switch for 2 seconds until the LED turns on. The LED wills remain on as long as the system is in 'valet mode'. Exit Valet Mode: 1.Return to normal operation, turn ignition 'on'. 2.Push and hold valet switch for 2 seconds, The LED wills turns off indicate the system are exiting the valet mode. J. PANIC FUNCTION: The transmitter can be used as a remote panic switch to manually trigger the alarm in case emergency. JULY. 19. 2002 560A 3 1. Press and hold the button for 3 second. The alarm will immediately sound. 2. During panic mode, the normal functio…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION ADVANCE SECRUITY INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: H5OR37 FCC ID LABEL

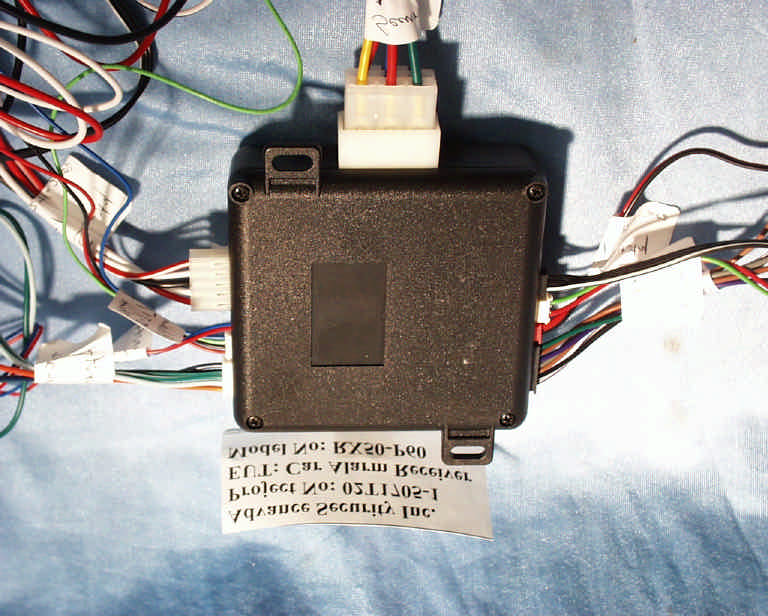

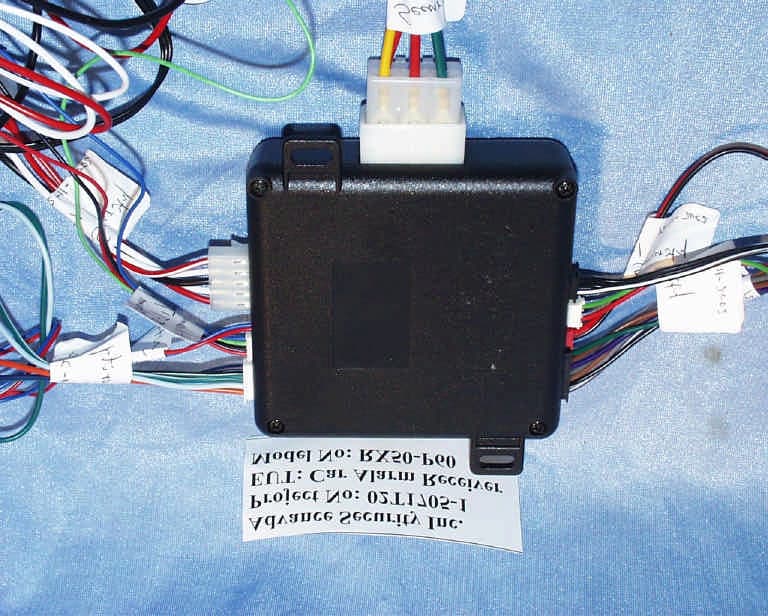

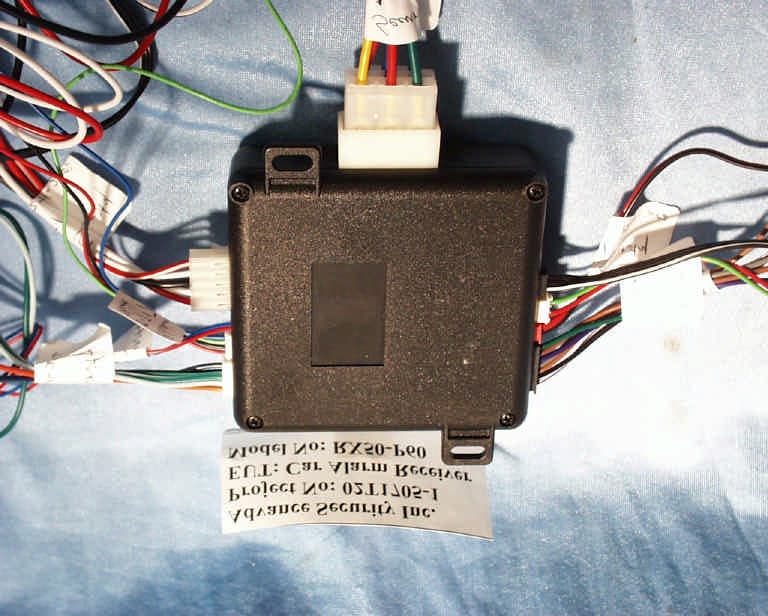

(RX-50 Receiver Module) Operational Description Model RX-P60 is the receivering portion of a muti-purose security device. The associated Transmitter is manufacture by advance Security Inc. Model No:tx764s, FCC ID:GOH-PAN04. It can be used with any P-50 P-60 & strxxx alaxxx series alarms. The radio frequency car-alarm is a system that it controllers locking(arm) and unlocking(disarm) the door of vehicle by wireless remote controller. This system consists of transmitter and receiver. The receiver (EUT) is fixed inside the vehicle and powered 12V from car battery. It works intermittently to prevent the battery exhaustion and check the vehicle status. It is designed to operate on a single fixed frequency 433.92 MHz by frequency modulation. It runs continuously to receive the signals completely, when the receiving module in receiver detects several synchronous codes, unique identification code, security code and function code transmitted from transmitter. After receiving the signal, the 8bit CPU in receiver decides which operation will be performed. And then driving circuit in receiver performs selected operations by pressing the button of the remote transmitter. All tuning and verification are performed by the manufacturer and there are no adjustments which can be made by the user. External ground is the chassis of vehicle and receiving antenna is fixed on enclosure of the receiver.

+- +-

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 433.92 MHz CAR ALARM RECEIVER MODEL: RST520 FCC ID NO: H5OR37 REPORT NO: 02T1705-1 ISSUE DATE: JUNE 17, 2003 Prepared for ADVANCE SECRUITY INC. 3F, 48, TA AN STREET, HSI CHIH CITY TAIPEI 114 TAIWAN Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 02T1705-1 DATE: JUNE 17, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: H5OR37 PAGE NO: 2 of 20 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE.........................................................................................................................3 2. PRODUCT DESCRIPTION............................................................................................................................................4 3. TEST FACILITY................................................................................................................................................................4 4. MEASUREMENT EQUIPMENT USED.....................................................................................................................4 5. TEST CONFIGURATION...............................................................................................................................................5 6. TESTS CONDUCTED......................................................................................................................................................5 7. RADIATED EMISSION TEST PROCEDURE.........................................................................................................6 8. COHERENT TESTS..........................................................................................................................................................6 9. EQUIPMENT MODIFICATIONS................................................................................................................................6 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST)...........................................................7 REPORT NO: 02T1705-1 DATE: JUNE 17, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: H5OR37 PAGE NO: 3 of 20 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : ADVANCE SECRUITY INC. 3F, 48, TA AN STREET, HSI CHIH CITY TAIPEI 114 TAIWAN EUT DESCRIPTION : 433.92 MHz CAR ALARM RECEIVER MODEL NAME/NUMBER : RST520 DATE TESTED : 06/17/2003 TYPE OF EQUIPMENT SECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Tested By: CHIN PANG EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02T1705-1 DATE: JUNE 17, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: H5OR37 PAGE NO: 4 of 20 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 2. PRODUCT DESCRIPTION The radio frequency car-alarm is a system that it controllers locking(arm) and unlocking(disarm) the door of vehicle by wireless remote controller. This system consists of transmitter and receiver. Model RX50-P60 is the receiving portion of the system. It is designed to operate on a single fixed frequency 433.92 MHz by frequency modulation. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4. MEASUREMENT EQUIPMENT USED REPORT NO: 02T1705-1 DATE: JUNE 17, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: H5OR37 PAGE NO: 5 of 20 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 5. TEST CONFIGURATION Set frequency generator to 434.11 MHz, EUT receiving transmission continuously. All the wires are placed on the turn table to their maximum length to simulate the worse emission conditions. 6. TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS CONDUCTED AT 3 METERS REPORT NO: 02T1705-1 DATE: JUNE 17, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: H5OR37 PAGE NO: 6 of 20 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 7. RADIATED EMISSION TEST PROCEDURE The EUT and all other support equipment are placed on a wooden table 80 cm above the ground screen. Antenna to EUT distance i…

Text truncated - open the document above for the full version.

REPORT NO: 02T1705-1 DATE: JUNE 17, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: H5OR37 PAGE NO: 7 of 20 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 10. TEST CONFIGURATION PHOTOS (Radiated Emission Test) REPORT NO: 02T1705-1 DATE: JUNE 17, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: H5OR37 PAGE NO: 8 of 20 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS.
