H5OR45Car Alarm Receiver

OWNER’S MANUAL Models: 4900 Series 4961 Series Vehicle Immobilizers This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 4900-UM.qxp 4/1/05 16:19 Page 1 Silencer products have been designed to provide the consumer with years of trouble-free operation. This manual will provide reference for the operation and maintenance of your new Silencer vehicle immobilizer system. Please, take a moment to read this manual so you will be familiar with the opera- tion of your new system. Automatic Arming Once you have turned the ignition key to the “Off” position, your Silencer engine immobilizer will become armed within 30 seconds. Upon arming, the device will emit 1 soft chirp. Turning the igni- tion back on before 30 seconds will stop the timer and reset it. Note:If your system was supplied with an “Automatic Disarm Transmitter”, you will need to leave the vicinity of your vehicle (approx. 60 feet) before the automatic arming function will execute. (Remaining in close proximity of your vehicle could prevent it from arming). The distance require- ment may prevent you from hearing the soft arming chirp. Disar m Valet On Valet Off 3-Button Transmitter 2 3-Button Transmitter: When you return to your vehicle to start the engine, press the “Disarm” but- ton on the 3-button transmitter. When the system is disarmed, the device will emit 2 chirps indi- cating it’s disarmed. 1-Button Transmitter: When you return to your vehicle to start the engine, press the transmitter but- ton. When the system is disarmed, the device will emit 2 chirps indicating it’s disarmed. Manual Disarming 1-Button Automatic Disarm Transmitter 1-Button Transmitter 1-Button Automatic Disarm Transmitter: When you return to your vehicle, at some point, between a distance of approx. 60 feet and the time you insert your ignition key to start the engine, the auto- matic disarm transmitter will disarm your system. Once disarmed, the device will emit 2 soft chirps. No action is required by the operator. Note:In areas of high radio frequency noise, the automatic disarm function of the transmitter may get blocked and not disarm your system. In this event, press the transmitter button to perform a manual disarm. Automatic Disarming (Automatic Disarm Transmitter Required) Note:Depending on the type of consumer transmitter package your dealer provided you with, you may have each one of the transmitters pictured above, or two of the same type transmitter. Confirm this with your dealer. 4900-UM.qxp 4/1/05 16:19 Page 2 3 Each time the system is disarmed using the transmitter the device will begin a protection mode countdown. This is a timed secondary protection mode. If you do not start your vehicle within 60 seconds, your Silencer system will become rearmed and your engine will become disabled again. Note:If your system operates from a “Automatic Disarm Transmitter”, the 60 second RF protection timer will not time-out and will rearm your system if you remain within 60 feet of your vehicle. Radio Frequency (RF) Protection Rearm Timer Automatic/Manual Disarm Transmitter Programming If your transmitter package contains one or more of the 1-button automatic disarm transmitters, the default operating mode will be “Manual Mode” (to preserve the battery life while not in use). To change the operating mode to “Automatic Mode”, follow these steps: 1. Press the middle area of the button and hold it down until the LED light on the side of the but- ton becomes solid red. Release the button. 2. Press and release the center of the button 3 times. You will notice that the red LED light will be off. 3. Press and hold the center of the button until the LED flashes. Release the button. 3 flashes= The transmitter is in “Automatic Disarm” mode. 1 flash= The transmitter is in “Manual Disarm” mode. 4. Confirm the mode of the transmitter. Press and release the center of the button and watch the flash sequence of the LED. 5. The transmitter operating mode can be changed at any time by following steps 1-3. Confirm the mode by following step 4. 4900-UM.qxp 4/1/05 16:19 Page 3 4 The Valet Mode allows you to temporarily turn off the passive arming function, eliminating the need to give your transmitter to a parking attendant or garage mechanic. To enter the Valet Mode, follow these steps: 1. Press the “Disarm” button on your transmitter to insure the device is disarmed (you will hear 2 beeps). 2. Within 3 seconds of pressing the disarm button, press and release the “Valet On” button 3 times slowly. The device will emit 3 long beeps to indicate the Valet Mode is “On”. To exit the Valet Mode, follow these steps: 1. Press the “Disarm” button on your transmitter (you will not hear any beeps). 2. Within 3 seconds of pressing the disarm button, press and release the “Valet Off” button 3 times slowly. The device will emit 1 long beep to indicate the Valet Mode is “Off”. Valet Mode 3-Button Transmitter To enter the Valet Mode, follow these steps: 1. Press the button on your transmitter to insure the device is disarmed (you will hear 2 beeps). 2. Within 3 seconds of pressing the button, turn ignition On/Off 3 times and wait about 3 seconds, the device will emit 3 long beeps to indicate the Valet Mode is “On”. To exit the Valet Mode turn the ignition On/Off 3 times and wait about 3 seconds, the device will emit 1 long beep to indicate the valet mode is “Off”. 1-Button Transmitter (Includes Automatic Disarm Transmitter) 4900-UM.qxp 4/1/05 16:19 Page 4 When this Silencer model is armed, the engine will not crank over. This is how to identify a 4900 sys- tem. Perform t…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA ANT 12V INPUT DATA O/P BUZZER OUTPUT IGNITION I/P ST-CUT OUTPUT PROGRAM I/P

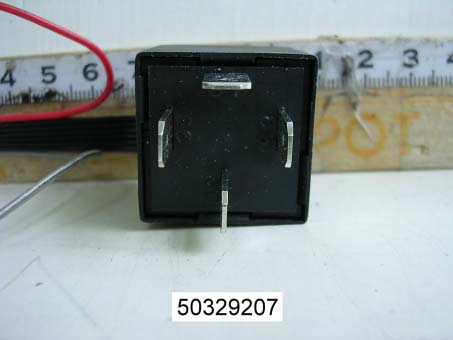

Compliance Certification Services Inc. Report No.: 50329207 Date of Issue: April 06, 2005 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 50329207 Date of Issue: April 06, 2005 Page

FCC ID LABEL FORMAT AND LOCATION Advance Security Inc. FCC ID: H5OR45 FCC ID: H5OR45 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 50329207 Date of Issue: April 06, 2005 Page Compliance Certification Services Inc. Report No.: 50329207 Date of Issue: April 06, 2005 Page Compliance Certification Services Inc. Report No.: 50329207 Date of Issue: April 06, 2005 Page

Compliance Certification Services Inc. Report No.: 50329207-F FCC ID: H5OR45 Date of Issue: April 06, 2005 Page 1 FCC 47 CFR PART 15 SUBPART B TEST REPORT For CAR ALARM RECEIVER Model: 4961 Trade Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 50329207-F FCC ID: H5OR45 Date of Issue: April 06, 2005 Page TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION..................................................................... 3 2 EUT DESCRIPTION............................................................................................. 4 3 TEST METHODOLOGY ..................................................................................... 5 3.1 EUT SYSTEM OPERATION ........................................................................ 5 3.2 DECISION OF FINAL TEST MODE........................................................... 5 4 SETUP OF EQUIPMENT UNDER TEST .......................................................... 6 5 FACILITIES AND ACCREDITATIONS ........................................................... 7 5.1 FACILITIES .................................................................................................... 7 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ............................ 7 6 INSTRUMENT AND CALIBRATION ............................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ........................................ 8 6.2 TEST AND MEASUREMENT EQUIPMENT ............................................ 8 7 LINE CONDUCTED & RADIATED EMISSION TEST .................................. 9 7.1 LIMIT............................................................................................................... 9 7.2 TEST PROCEDURE OF LINE CONDUCTED EMISSION ................... 10 7.3 TEST PROCEDURE OF RADIATED EMISSION................................... 12 7.4 TEST RESULTS ............................................................................................ 14 APPENDIX I - PHOTOGRAPHS OF TEST SETUP ........................................... 16 APPENDIX II - TEST RESULT OF FINAL DATAS........................................... 17 Compliance Certification Services Inc. Report No.: 50329207-F FCC ID: H5OR45 Date of Issue: April 06, 2005 Page 1 TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Manufacturer: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: CAR ALARM RECEIVER Trade Name: Advance Security Inc. Model: 4961 Detailed EUT Description: See Item 2 of this report Date of Test: March 31, 2005 Applicable Standard Class / Limit Te s t R e s u l t FCC Part 15 Subpart B Class B No non-compliance noted Deviation from Applicable Standard None The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedures were according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 50329207-F FCC ID: H5OR45 Date of Issue: April 06, 2005 Page 2 EUT DESCRIPTION Product CAR ALARM RECEIVER Trade Name Advance Security Inc. Model 4961 Housing Type Plastic EUT Power Rating 12VDC DC Power During Test 12VDC from DC power supply OSC/Clock Frequency N/A Receiver Frequency 302MHz Number of Channels 1 Channel Operating Mode Point-to-Point Antenna Type Internal loop, which is built in EUT Note: The product is a composite system includes Transmitter and Receiver. This submittal(s) (test report) is intended for FCC ID: H5OR45 filing to comply with FCC Part 15 Subpart B Rules. The composite system (Transmitter) is intended for FCC ID: H5OT25 is compliance with FCC Part 15 Subpart C Rules. I/O PORT OF EUT I/O Port Type Q’TY TESTED WITH Note: Client consigns only one model sample (Model Number is 4961) to test. Compliance Certification Services Inc. Report No.: 50329207-F FCC ID: H5OR45 Date of Issue: April 06, 2005 Page 3 TEST METHODOLOGY 3.1 EUT SYSTEM OPERATION 1. Turn on the EUT by connect to DC power supply. 2. EUT receive the data from transmitter by pressing and hold the button. Note: Test program is self-repeating throughout the test. 3.2 DECISION OF FINAL TEST MODE 1. The following test mode(s) were scanned during the preliminary test: Mode: 1. NORMAL MODE 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Radiation: Mode 1 Then, the EUT configuration and cable configuration of the above highest emission mode was recorded for all final test items. Compliance Certification Services Inc. Report No.: 50329207-F FCC ID: H5OR45 Date of Issue: April 06, 2005 Page 4 SETUP OF EQUIPMENT UNDER TEST Setup Diagram See test photographs attached in Appendix I for the actual connections between EUT and support equipment. Support Equipment No Device Ty pe Model Serial No. FCC ID/ BSMI ID Brand Data Cable Power Cord 1. DC Power Supply PS140YA N/A N/A DAIWA Unshielded, 0.4m Unshielded, 1.8m Note: All the above equipment/cables were placed in worse case positions to maximize emission signals during emission test. Grounding: Grounding was in accordance with the manufacturer’s requirements and conditions for the inten…
