H5OR46Car Alarm Receiver

VM-KEM1 MANUAL 1. Power On Status: All function Off 2. Learn-in Code: 1. Turn IGNITION OFF to ON (open for 15 seconds) 2. Press VALET SW.OFF/ON 3 times, LED ON turned on and activate learn-in-Code MODE. 2.1 Press Btn”1” to learn the first TX. 2.2 ---- Horn 20ms, one Beep, Press LED OFF/ON once. 2.3 Other Keys automatically activated. 2.4 Back to 2.2.1 learn the next TX, up to 4 TX code. 3. Turn IGN ON to OFF, or 15seconds time-out, ending learn-in-code process: LED OFF 3. Common TX function TX BUTTON FUNCTION REMARK Lock Door Horn 1 Chirp(2 times/3sec ,20ms) P/L 1 flashing, D/HT Dimming . Unlock Door P/L 2 flashing, D/HT On, Dimming after 30 seconds - 2-Step Unlock Press 2 times in 3seconds + Silent Lock / Unlock / DUL#2Press 2 keys at the same time AUX 0.5 sec Trunk (CH#2) 0.5sec On / 0.5sec Off (Exit Light) 3 sec PANIC (0.3”On/0.75”Off) Horn Chirping, P/L flashing 60sec, without D/L,D/UL, with CH#2 4. FEATURE PROGRAM: : RED part is Default Setting 4.1 IGN OFF TO ON (open for 15 Sec),VALET SW ON/OFF(6 times), finished in 15 Sec. 4.2 Chirp 6 Beep, LED ON, proceed Setup, as below circumstance 4.3 IGN OFF shutdown FEATURE Mode, Horn Chirp 1 short-sound 1long-sound 4.4 FEATURE TABLE Press TX Btn X One Chirp , LED 0.3 2 Chirps , LED 0.3 - 2 pulse 3 Chirps , LED 0.3 - 3 pulse 4 Chirps, LED 0.3 - 4 pulse Ign “On”TX activates Ign “On” TX No function If Ign”On”(AUX, PANIC) Rearm Off Rearm On AUX Exit Light On 3 minutes Exit Light On 5 minutes Exit Light On 10 minutes Exit Light On 15 minutes 5 Chirps , LED 0.3 - 5 pulse Exit Light On 20 minutes 5. D/HT Function: Dimming Time 5 sec 5 -1. Door Open / Close = D/HT On 20 sec, then Dimming . 5 -2. Remote Door Unlock = D/HT On 30 sec, then Dimming . 5 -3. Ext Car Remote Lock The Door then Dimming 5-4. Ign On D/HT Off then Dimming 1 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 29-Jul-2005 Sheet of File: E:\TEMP\test.Ddb Drawn By: 4MHz DOME LIGHT OUT D/HT DRV. R32,Q4,U4:G,K4 U4:E,K6 D/UL#2(-) OUTPUT VM-KEM1 IGN DETECTOR - INPUT VOLTAGE SENSOR IGNITION INPUT LED ON BOARD D/UL+,D/L- OUTPUT D/UL-,D/L+ OUTPUT CH#2 OUTPUT PARKING LIGHT OUT R27,R28,R29,C30 SW. DETECTOR U3 CODE MEMORY LED DRV. R1,Q2,R30,L3 D/UNLOCK DRV. U4:D,K7 D/LOCK DRV. U4:F,K5 CH#2 DRV.U4:A,K3,D4 P/L DRV. U4:C,U4:B,K1,K2 VOLTAGE REGULATORD6,C31,R25,U5,D11 R3,R26,C17,Q5 POWER ON RESET +12V INPUT 01 INC. ADVANCED SECCURITY 1 FLOWER 1 R21,R23,R24,C28 START OUTPUT HORN O/P DRV. R31,Q3,D7,R2 D/UL#2(-) DRV. DATA O/P RF RECEIVER C18,U2,R5 BLOCK DIAGRAM

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: August 18, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. ADVANCE SECURITY INC. TED LIN SALES MANAGER REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

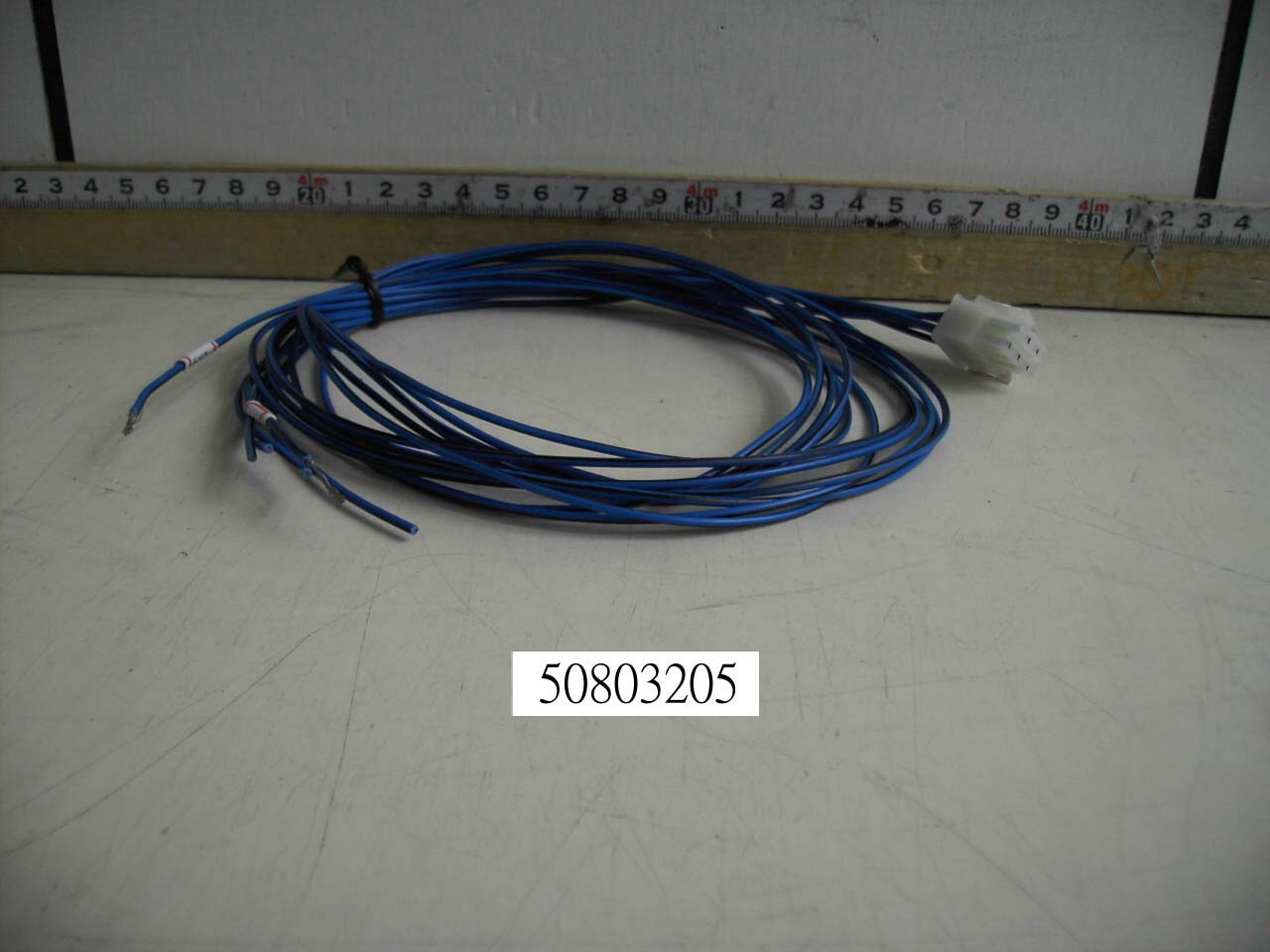

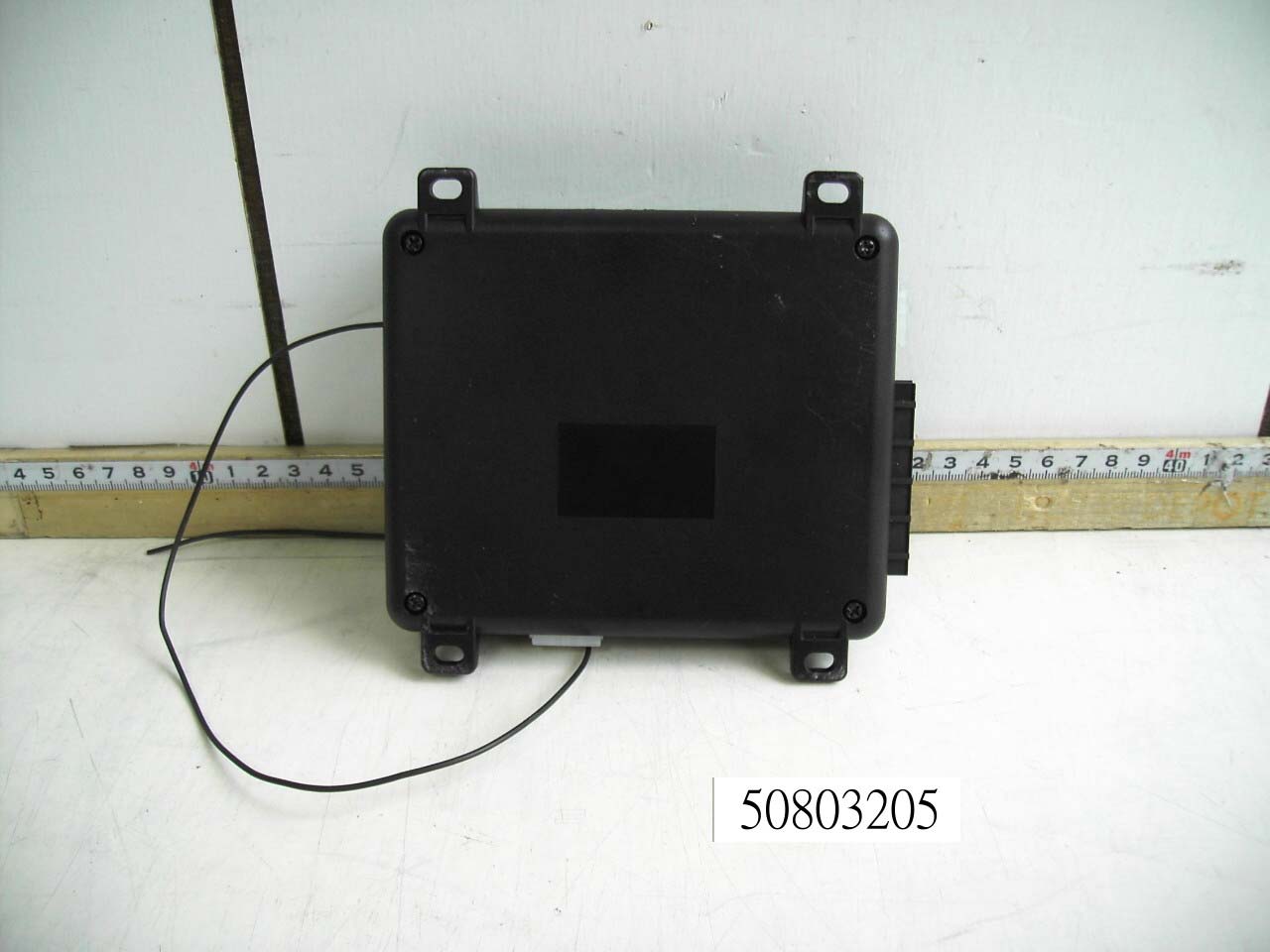

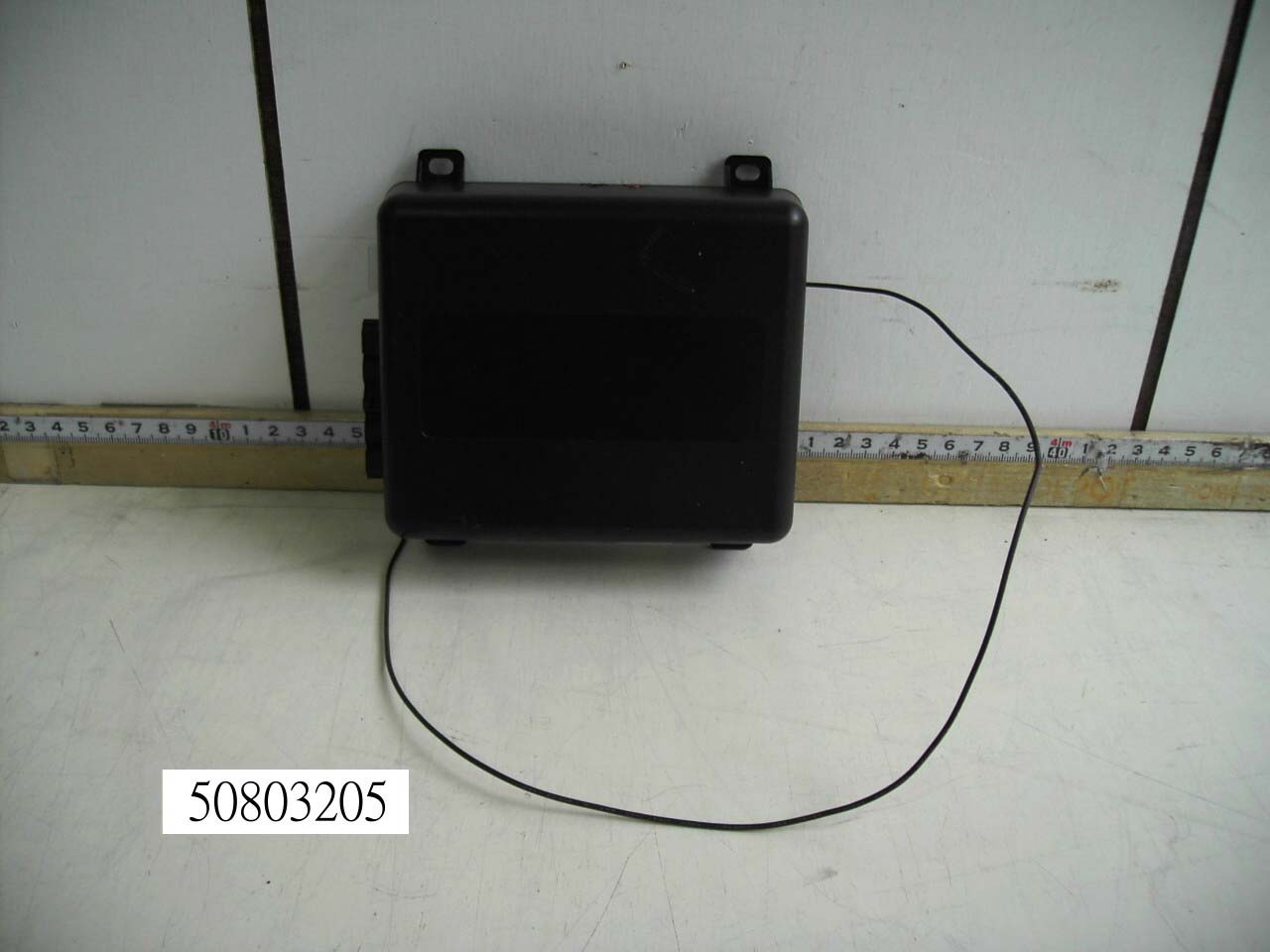

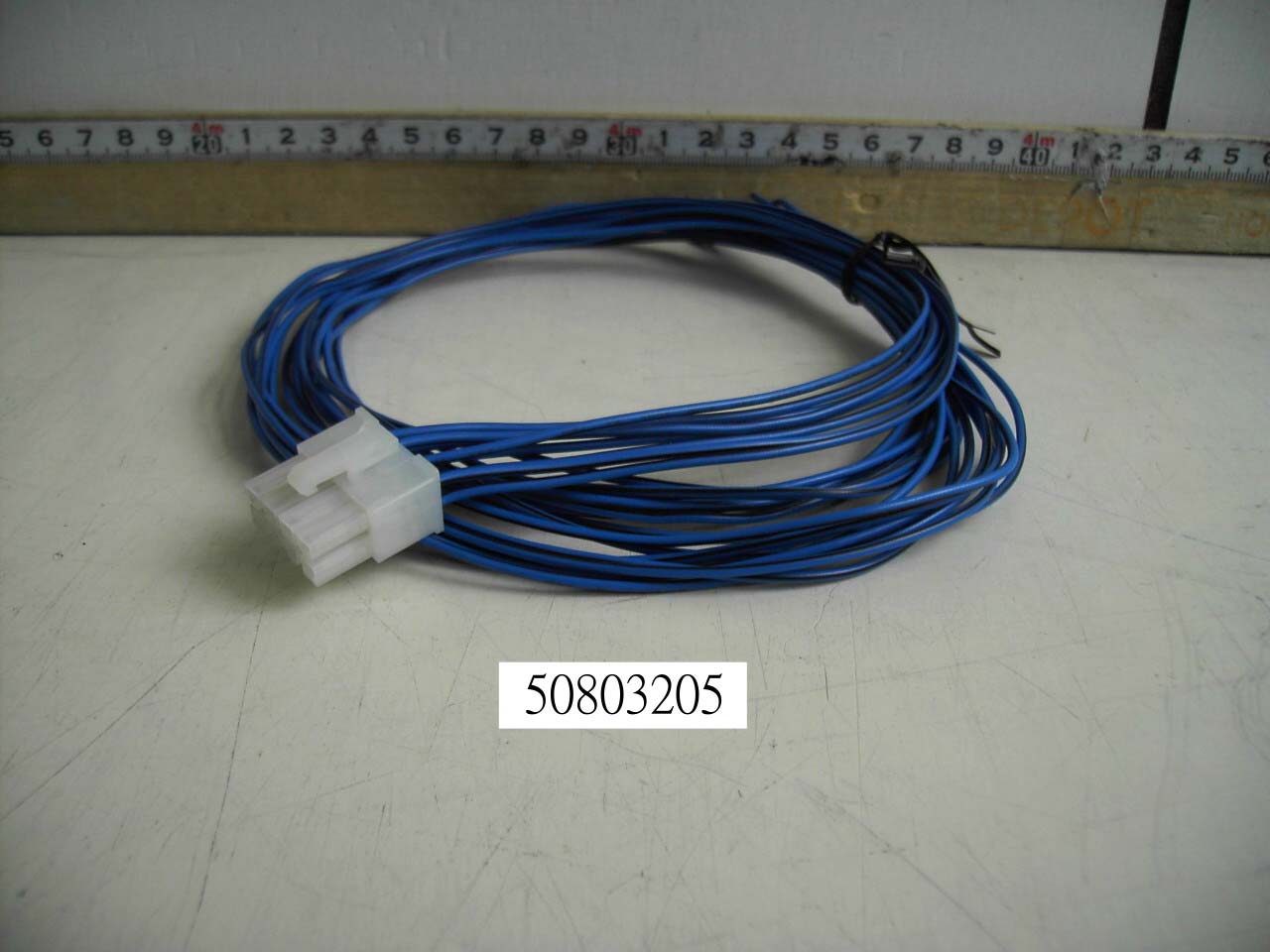

Compliance Certification Services Inc. Report No.: 50803205 Date of Issue: August 18, 2005 Page 1 Total Page: 7 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 50803205 Date of Issue: August 18, 2005 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 50803205 Date of Issue: August 18, 2005 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 50803205 Date of Issue: August 18, 2005 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 50803205 Date of Issue: August 18, 2005 Page 5 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Advance Security Inc. FCC ID: H5OR46 FCC ID: H5OR46 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 50803205 Date of Issue: August 18, 2005 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.: 50803205 Date of Issue: August 18, 2005 Page 7 Rev. 00

VM-KEM1 Operational Description The radio frequency car-alarm is a system that it controllers locking(arm) and unlocking(disarm) the door of vehicle by wireless remote controller. This system consists of transmitter and receiver. The receiver (EUT) is fixed inside the vehicle and powered 12V from car battery. It works intermittently to prevent the battery exhaustion and check the vehicle status. It is designed to operate on a single fixed frequency 433.92 MHz by frequency modulation. It runs continuously to receive the signals completely, when the receiving module in receiver detects several synchronous codes, unique identification code, security code and function code transmitted from transmitter. After receiving the signal, the 8bit CPU in receiver decides which operation will be performed. And then driving circuit in receiver performs selected operations by pressing the button of the remote transmitter. All tuning and verification are performed by the manufacturer and there are no adjustments which can be made by the user. External ground is the chassis of vehicle and receiving antenna is fixed on enclosure of the receiver.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 23-Jun-2005 Sheet of File: E:\TEMP\Test.ddb Drawn By: C35104 C16104 D8 1N4003 C20104 D3 1N4003 VZ3 180K VZ2 180K 3 W1C P/L NO Q4 AP40T03S/P R110K Q2 3904 K1 HG4185C 4 W1D CH#2 B+ D9 1N4003 8 W2H D/UL COM +5V 2 W2B D/L NC 4 W2D D/UL COM 1 W3AHORN D2 1N4003 PB5 1 PA0 6 PA1 5 PB1 9 PB0 10 PC4 17 PA6 24 PB2 8 VSS 11 VDD 20 OSC1 21 OSC2 22 PC5 18 PA7 23 PB6 28 PB7 27 PA4 26 PA2 4 INT 12 RES 19 PA5 25 PB3 7 PC0 13 PC1 14 PC2 15 PC3 16 PB4 2 PA3 3 U1 HT48R30A-1 D4 1N4003 D5 1N4003 Q3 D471 V+ V R R G G Q5 S-80833CNY B+ R1510K R16 200K R17150K C10104 6 W3F VECU I/P B+ +12V B+ B+ B+ 6 W2F D/L COM 2 W1B P/L COM 2 W3B GND 1 W1A P/L NO 5 W3E GND 3 W2C RELAY NO 5 W2E D/UL#2 NC C17104 C4 223/100V R1833K C6104 K2 HG4185C CS 1 CLK 2 DI 3 DO 4 VSS 5 ORG 6 MU 7 VCC 8 U3 93LC46 VI I GND G VO O U5 S-812C50AY D6 1N4003 C31 470uF/50V C19 10uF R19 100K R2010K C33 223/100V C32104 X2 4MHz C34104 R22 1R 1/2W R21 4K7 R234K7 R24 330K C28104 4 W3D IGN R25 330R 1W C29 470uF/25V VZ1680K R2647K 1 W2A D/HT K3 MCL-112D2H B+ 3 W3C+12V C30104 R27 150K R28 200K R2910K B+ B+ R306K8 L3 RED LED S1VALET R31 1K D7 1N4003 K4 HG4232A R32 1K B+ K5 HG4232A R2 10R 1/2W 7 W2G D/UL#2 COM VDD VDD R7 100K 1 16 89 U4A2003 710U4G 2003 2 15 U4B2003 3 14 U4C2003 4 13 U4D2003 5 12 U4E2003 6 11 U4F2003 K6HG4232AK7HG4232A B+ D10 P6KE24A D11 P6KE6.8A D12 P6KE24A R31K C36 223/100V * * * * GND +5V RF IN RF MODE * * 1F FEQ :434MHz CH#2 LED D/ULVECU P/L HORN RF I/P IGN V/SDIOCKCS D/L VALET VM-KEM1 ADVANCE SECURITY INC FLOWER GND 22 Dimming ** V-KEM1.S01 * * DomeLight D/UL#2 * * *

Compliance Certification Services Inc. Report No.: 50803205-F FCC ID: H5OR46 Date of Issue: August 18, 2005 Page 1 Total Page: 17 Rev. 00 FCC 47 CFR PART 15 SUBPART B TEST REPORT For CAR ALARM RECEIVER Model: VM-KEM1 Trade Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 50803205-F FCC ID: H5OR46 Date of Issue: August 18, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION..................................................................... 3 2 EUT DESCRIPTION............................................................................................. 4 3 TEST METHODOLOGY ..................................................................................... 5 3.1 EUT SYSTEM OPERATION ........................................................................ 5 3.2 DECISION OF FINAL TEST MODE........................................................... 5 4 SETUP OF EQUIPMENT UNDER TEST .......................................................... 6 5 FACILITIES AND ACCREDITATIONS ........................................................... 7 5.1 FACILITIES .................................................................................................... 7 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ............................ 7 6 INSTRUMENT AND CALIBRATION ............................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ........................................ 8 6.2 TEST AND MEASUREMENT EQUIPMENT ............................................ 8 7 LINE CONDUCTED & RADIATED EMISSION TEST .................................. 9 7.1 LIMIT............................................................................................................... 9 7.2 TEST PROCEDURE OF LINE CONDUCTED EMISSION ................... 10 7.3 TEST PROCEDURE OF RADIATED EMISSION................................... 12 7.4 TEST RESULTS............................................................................................ 14 APPENDIX I - PHOTOGRAPHS OF TEST SETUP ........................................... 16 APPENDIX II - TEST RESULT OF FINAL DATAS........................................... 17 Compliance Certification Services Inc. Report No.: 50803205-F FCC ID: H5OR46 Date of Issue: August 18, 2005 Page 3 Rev. 00 1 TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Manufacturer: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: CAR ALARM RECEIVER Trade Name: Advance Security Inc. Model: VM-KEM1 Detailed EUT Description: See Item 2 of this report Date of Test: August 10, 2005 Applicable Standard Class / Limit Te s t R e s u l t FCC Part 15 Subpart B IC ICES-003 Class B No non-compliance noted Deviation from Applicable Standard None The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedures were according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 50803205-F FCC ID: H5OR46 Date of Issue: August 18, 2005 Page 4 Rev. 00 2 EUT DESCRIPTION Product CAR ALARM RECEIVER Trade Name Advance Security Inc. Model VM-KEM1 Housing Type Plastic EUT Power Rating 12VDC from DC Power Supply OSC/Clock Frequencies 4MHz Receiver Frequency 433.92MHz Number of Channels 1 Channel Operating Mode Point-to-Point Antenna Type Internal loop, which is built in EUT Note: The product is a composite system includes Transmitter and Receiver. This submittal(s) (test report) is intended for FCC ID: H5OR46 filing to comply with FCC Part 15 Subpart B Rules. The composite system (Transmitter) is intended for FCC ID: H5OT24 is compliance with FCC Part 15 Subpart C Rules. I/O PORT OF EUT I/O Port Type Q’TY TESTED WITH Note: Client consigns only one model sample (Model Number is VM-KEM1) to test. Compliance Certification Services Inc. Report No.: 50803205-F FCC ID: H5OR46 Date of Issue: August 18, 2005 Page 5 Rev. 00 3 TEST METHODOLOGY 3.1 EUT SYSTEM OPERATION 1. Turn on the EUT by connect to DC power supply. 2. EUT receive the data from transmitter by pressing and hold the button. Note: Test program is self-repeating throughout the test. 3.2 DECISION OF FINAL TEST MODE 1. The following test mode(s) were scanned during the preliminary test: Mode: 1. NORMAL MODE 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Radiation: Mode 1 Then, the EUT configuration and cable configuration of the above highest emission mode was recorded for all final test items. Compliance Certification Services Inc. Report No.: 50803205-F FCC ID: H5OR46 Date of Issue: August 18, 2005 Page 6 Rev. 00 4 SETUP OF EQUIPMENT UNDER TEST Setup Diagram See test photographs attached in Appendix I for the actual connections between EUT and support equipment. Support Equipment No Device Ty pe Model Serial No. FCC ID/ BSMI ID Brand Data Cable Power Cord 1. Car Alarm Transmitter VM-KEM1 N/A N/A Advance Security Inc. N/A N/A 2. DC Power Supply PS140YA N/A N/A DAIWA Unshielded, 1.0m Unshielded, 1.8m Note: All the above equipment/cables were placed in worse case positions to…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50803205-F FCC ID: H5OR46 Date of Issue: August 18, 2005 Page 16 Rev. 00 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST
