H5OR49Car Alarm Receiver

RF-215 PROFESSIONAL VEHICLE SECURITY SYSTEM INSTALLATION MANUAL (For Authorized Dealers Only) WIRING DIAGRAM THIS PRODUCT IS DESIGNED FOR PROFESIONAL INSTALLATION ONLY H3/2 Red Wire:12V output (+) H1 : Main 5 Pin White harness H2: 6 Pin White Mini Connector H7: Black Antenna Wire 2 Pin White Plug For LED Indicator 2 Pin Blue Plug For Valet Switch H3/3 Green Wire: (-) 200mA Lock Pulse, (+) 200mA Unlock Pulse H3/1 Blue Wire: (-) 200mA Unlock Pulse, (+) 200mA Lock Pulse H3 H4 H5 H1: MAIN 5 PIN WIRE HARNESS: 15A Fuse 5. Red Wire: +12V To Constant Battery Source 4. Brown Wire: Positive output To 3. Black Wire: Ground to Vehicle FRAME 2. White Wire: Parking Light Relay Output 1. Red / White Wire: Parking Light Relay input Siren Or Horn (Programmable) H2: 6 PIN MINI CONNECTOR WIRE HARNESS: 6. Gray Wire: (-) 200mA Programmable Output 2. Blue Wire: Instant Trigger Ground 1. Violet Wire: Positive Door Pin Switch Input 4. Yellow Wire: To Ignition Switched + 12V 5. Orange Wire: 200mA Grounded when armed 85 86 30 87a 87 Cut To start solenoidFrom ignition switch Red White wire 3. Green Wire: Negative Door Pin Switch Input Orange wire 12V 12V Channel 2 / 2 Step Door Unlock / Pager Output. DOOR LOCK DIAGRAMS +12V Master Door Lock Switch X X Splice Splice Cut the Existing Lock Wire To Door Lock Motor To Slave Door Lock switches Cut the Existing Unlock Wire 3 Pin Plug To Alarm 5-WIRE ALTERNATING DOOR LOCK 30 86 87a 85 87 30 86 87a 85 87 +12V Green Wire Blue Wire VACUUM OPERATED CENTRAL LOCKING Green Wire Blue Wire +12V X Cut Compressor Door Switch 30 86 87a 85 87 30 86 87a 85 87 3 Pin Plug To Alarm VACUUM OPERATED DOOR LOCKING SYSTEM: TYPICAL OF MERCEDES BENZ AND AUDI. Locate the wire under the driver's kick panel. Use the voltmeter connecting to ground, verify that you have the correct wire with the doors unlocked, the voltmeter will receive "12 volts". Lock the doors and the voltmeter will read "0 volt". Move the alligator clip to +12V and the voltmeter will receive "12 volts". Cut this wire and make connections. Be sure to program door lock timer to 3 seconds.(See Feature II – 1 Programming.) 2 STEP DOOR UNLOCK WIRE CONNECTION FOR GROUND SWITCHED DOOR LOCKS Cut Existing Unlock X Lock Unlock OEM Door Master Lock Switch To All Other Door Lock Motors 6-Pin Plug From Alarm H2/6 Gray Wire OEM Door Lock Motor Existing Neg. Lock Wire Existing Neg. Unlock Wire 86 30 85 87 87A + 12V H7/3 Green Wire Door Lock H7/1 Blue Wire Door Unlock 3 Pin Plug To Alarm OEM Door Lock Relay 2 STEP DOOR UNLOCK WIRE CONNECTION FOR POSITIVE SWITCHED DOOR LOCKS Cut Existing Unlock X Lock Unlock OEM Door Master Lock Switch To All Other Door Lock Motors 6-Pin Plug From Alarm H2/6 Gray Wire OEM Driver's Door Lock Motor + 12V Existing Pos. Lock Wire Existing Pos. Unlock Wire 30 87A 87 86 85 +12V + 12V OEM Door Lock Relay 86 30 85 87 87A H7/1 Blue Wire Door Unlock H7/3 Green Wire Door Lock + 12V 86 30 85 87 87A STARTER DISABLE PROGRAMMING PROGRAMMING TRANSMITTER: Enter: 1. Turn the Ignition 'switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds, <Starter Wire (key side)> <Yellow> <12V (+) Ignition> <Red> Orange Starter Disable Wire <Starter Wire (motor side)> STARTER 87 87a 30 86 85 <White Wire> <Purple> RK-1 2. Push the Valet switch 3 times and hold in on the 3 rd push; when a long chirp is heard then release the valet switch. You are now in the Transmitter programming mode. Program: 1. Press any button on the first transmitter until the siren responds with a confirming chirp; the first transmitter is now programmed. 2. Press any button on the second transmitter until the siren responds with a confirming chirp; the second transmitter is now programmed. 3. Apply the same procedure to program any 3rd and 4 th transmitters. Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds. 3 long chirps will confirm exit. Note: If more than 4 transmitters programmed, the system will only keep the last 4 transmitters. ALARM FEATURE “I” PRORAMMING: 1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position. 2. Push the Valet switch 2 times and hold in on the 2 nd push; when a long chirp is heard then release the valet switch. You are now in the Alarm feature ‘I’ programming mode. 3. Press the transmitter button corresponding to the feature you want to program. a. The factory default settings is always [1] LED flash, [1] chirp. 4. Depress the transmitter button again to change the feature. Simply keep pressing the transmitter button again until the module advances to your desired setting. Press Transmitter Button One Chirp / LED one pulse Factory Default Setting Two Chirps / LED two pulse 1 Chirps on Chirps off 2 Automatic Rearm On Automatic Rearm Off 3 With Door Ajar error chirp Bypass Door Ajar error chirp. Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. 3 long chirps will confirm exit. ALARM FEATURE “II” PRORAMMING: 1 Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position. 2 Push the Valet switch 4 times and hold in on the 4 th push; when a long chirp is heard, then release the valet switch. You are now in the Alarm feature ‘II’ programming mode. 3 Press the transmitter button corresponding to the feature you want to program. Press Transmitter Button One Chirp / LED one pulse Factory Default Setting Two Chirps / LED two pulse Three Chirps / LED three pulse 1 0.9-second Door lock pulses. 3.0-second Door lock pulse. Double pulse unlock 2 Active arming Passive arming without passive door locking Passive arming with passive door locking. 3 Ignition controlled door locks & unlocks Without ignition controlled door locks & unlocks Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. 3 long chirps will confirm exit. ALARM FEATURE “III” PRORAMMING: 1 Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position. 2 Push the Valet switch 6 times and hold in on the 6 th push; when a long chirp is heard, then release the valet switch. You are now in the Alarm feature ‘III’ prog…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA 12V INPUT VOLTAGE REGULATOR IGNITION IGNITIONDETECTOR DATA O/P RF AMP LOCAL OSC & MIXER LPF1/4 U5 AMP1/4 U5 ANT MEMORY U4 DETECTOR PIN SW1DETECTOR PIN SW1DOOR SW DOOR SW OVERRIDEDETECTOR OVERRIDE SW SIRENDRIVERQ5,Q8 PARKING LIGHT PARKING LIGHT ARMOUTPUTDRIVER ARM OUTPUT CHANNEL 2DRIVER1/7 U3 CHANNEL 2 OUTPUT DOOR LOCKDOOR UNLOCK DRIVER DRIVER LED LED OUTPUT DRIVERDRIVER SIREN O/PDOOR LOCK O/PDOOR UNLOCK O/P RESET Q4 D2,U2 R26,R30 Q1,Q2,D1 Q3,R35 R22 D6 1/7 U3,K1, R57 2/7 U3,D11 RF215-BD1.SCH RF215 BLOCK SCHEMATIC 1 YAN Title Size ORCAD ADate File Number Revision Sheet of Drawn By : 1/7 U3 1/7 U3,D8,D10,Q91/7 U3,D9,D12,Q7 SHOCK SENSORDETECTORS1,1/2U5,Q6,D5 2005-9-8 E:\DDB\2600SS-1A.DDB

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: August 18, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. ADVANCE SECURITY INC. TED LIN SALES MANAGER REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

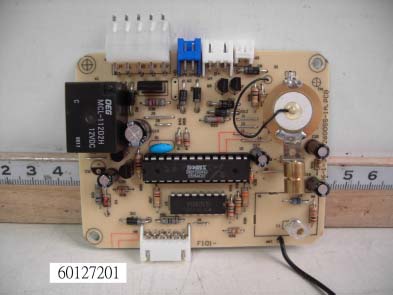

Compliance Certification Services Inc. Report No.: 60127201 Date of Issue: February 10, 2006 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60127201 Date of Issue: February 10, 2006 Page Compliance Certification Services Inc. Report No.: 60127201 Date of Issue: February 10, 2006 Page

FCC ID LABEL FORMAT AND LOCATION Advance Security Inc. FCC ID: H5OR49 FCC ID: H5OR49 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 60127201 Date of Issue: February 10, 2006 Page Compliance Certification Services Inc. Report No.: 60127201 Date of Issue: February 10, 2006 Page Compliance Certification Services Inc. Report No.: 60127201 Date of Issue: February 10, 2006 Page Compliance Certification Services Inc. Report No.: 60127201 Date of Issue: February 10, 2006 Page

RF-215 Operational Description The radio frequency car-alarm is a system that it controllers locking(arm) and unlocking(disarm) the door of vehicle by wireless remote controller. This system consists of transmitter and receiver. The receiver (EUT) is fixed inside the vehicle and powered 12V from car battery. It works intermittently to prevent the battery exhaustion and check the vehicle status. It is designed to operate on a single fixed frequency 433.92 MHz by frequency modulation. It runs continuously to receive the signals completely, when the receiving module in receiver detects several synchronous codes, unique identification code, security code and function code transmitted from transmitter. After receiving the signal, the 8bit CPU in receiver decides which operation will be performed. And then driving circuit in receiver performs selected operations by pressing the button of the remote transmitter. All tuning and verification are performed by the manufacturer and there are no adjustments which can be made by the user. External ground is the chassis of vehicle and receiving antenna is fixed on enclosure of the receiver.

1 2 3 4 ABCD 4 3 2 1 D CBA Q1 H10 ANT BLACK L2 1.5uH Q2H10 C11102 C6390P R310K R4 33K R11K R96.8K R810K R2 270 C1 100P C22103 R43100 C20104 R21 1 1/2W R38220 1/2W C19104 R4410K 7 10 U3G 2003 1 16 89 U3A2003 2 15 U3B2003 X14MHZ 3 14 U3C2003 R20 2.2K R26 4.7K R23 10K R22 100K Q4 A733 R2433KR25180K C1810uF R5 6.8K 4 13 U3D 2003 C25P L1 1.5T R19 39K D4 D2 1N4003 D1 1N4148 C9 472 R7 56K R6 27K R314.7K R30 330K C12 104 C21 223 R181K 6 11 U3F2003 5 12 U3E2003 R28 10K C539P C29 10uF C10 220uF Q83904 R504.7K C31P C71P C4 5.6P C8 470P D111N4003 R51 10 1/2W Q5772 W1/3 W2/2 W2/1 W1/4 W3/1 W3/2 W6/2 W6/3 W6/1 W1/5 +12V B+ 5V B+ 5V 5V 5V 5V 5V +12V B+ W4/2 R126.8M R10100K R11 330K C15105 R13 47K R1410M 5V R15 47 CS 1 CK 2 DI 3 DO 4 GND 5 NC 6 NC 7 VDD 8 U493LC46 VI GND VO U2 LM7805 32 1 114 U5A324 56 7 U5B324 12 W2 2P JST 90D BLUE 12 W3 2P 2.0 90D W6/6W6/5W6/4W6/3 W2/2W2/1 W3/2W3/1 123456 W6 6P JST 2.5 90D W6/2W6/1 C14104 C32 2.2uF C35104 R57200K R5810K R56150K W6/5 B+ P0.1/INT1 1 VDD 2 P5.4 3 VSS 4 P0.0/INT0 5 P5.0 6 P5.1 7 P5.2 8 P5.3/BZ1/PWM1 9 P1.0 10 P1.1 11 P1.2 12 P1.3 13 P1.4 14 P1.5 15 P1.6 16 P1.7 17 P2.0 18 P2.1 19 P2.2 20 P2.3 21 P2.4 22 P2.5 23 P2.6 24 P2.7 25 XOUT/Fcpu 26 XIN 27 RST/VPP/P0.2 28 U12604 S1 20mm R52 1.5M R6115K R5527K R17 100K R54 18K R53 22K 10 9 8 U5C 324 1213 14 U5D 324 C33103 5V D5 1N4148 5V R65100K R4927K C171uF Q6 3904 5V R59 10K R40 4.7K R60 22K R63 91K R48 180K Title Size 1520x1020Date File Number 2005-10-25 E:\DDB\2600SS-1A.DDB Revision Sheet of Drawn By : R3610K R341K Q3 3906 R39 1.5K R421.5K C26104 R37 1.5K R35330K W6/4 W6/6 B+ R62 47K W1/1 W1/2 D6 1N4003 R6610K U5/12 U5/7 U1/3 K1112D2H R2747K R32 4.7K R2947K R164.7K R33 3.3 D10 1N4003 D12 1N4003 Q92907 Q7 2907 D81N4003 D91N4003 B+ 123 W4 3P JST 2.5 90D W4/1W4/2W4/3 W4/3W4/1 12345 W1 5P 3.96 90D W1/5 W1/4 W1/3 W1/2 W1/1 J1 7MM J2 7MM B+ B+ J3 7MM J4 10MM J5 12MM J6 5MM J7 5MM B+ B+ J8 5MM 5V 5V NetD12_K NetD12_K NetD12_K NetR20_2 NetR20_2 NetR20_2 NetD10_K NetD10_K NetD10_K 5V 5V J9 10MM J10 7MM @ @@ @ @

Compliance Certification Services Inc. Report No.: 60127201-F FCC ID: H5OR49 Date of Issue: February 10, 2006 Page 1 FCC 47 CFR PART 15 SUBPART B TEST REPORT For CAR ALARM RECEIVER Model: RF-215 Trade Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 60127201-F FCC ID: H5OR49 Date of Issue: February 10, 2006 Page TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION .......................................................................................... 3 2 EUT DESCRIPTION .................................................................................................................. 4 3 TEST METHODOLOGY........................................................................................................... 5 3.1 EUT SYSTEM OPERATION............................................................................................. 5 3.2 DECISION OF FINAL TEST MODE ............................................................................... 5 4 SETUP OF EQUIPMENT UNDER TEST................................................................................ 6 5 FACILITIES AND ACCREDITATIONS................................................................................. 7 5.1 FACILITIES ........................................................................................................................ 7 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................. 7 6 INSTRUMENT AND CALIBRATION..................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ............................................................. 8 6.2 TEST AND MEASUREMENT EQUIPMENT ................................................................. 8 7 LINE CONDUCTED & RADIATED EMISSION TEST........................................................ 9 7.1 LIMIT ................................................................................................................................... 9 7.2 TEST PROCEDURE OF LINE CONDUCTED EMISSION........................................ 10 7.3 TEST PROCEDURE OF RADIATED EMISSION ....................................................... 12 7.4 TEST RESULTS ................................................................................................................ 14 APPENDIX I - PHOTOGRAPHS OF TEST SETUP.................................................................. 16 Compliance Certification Services Inc. Report No.: 60127201-F FCC ID: H5OR49 Date of Issue: February 10, 2006 Page 1 TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Manufacturer: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: CAR ALARM RECEIVER Trade Name: Advance Security Inc. Model: RF-215 Detailed EUT Description: See Item 2 of this report Date of Test: February 06, 2006 & February 08, 2006 Applicable Standard Class / Limit Te s t R e s u l t FCC Part 15 Subpart B IC ICES-003 Class B No non-compliance noted Deviation from Applicable Standard None The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedures were according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 60127201-F FCC ID: H5OR49 Date of Issue: February 10, 2006 Page 2 EUT DESCRIPTION Product CAR ALARM RECEIVER Trade Name Advance Security Inc. Model RF-215 Housing Type Plastic EUT Power Rating 12VDC from DC Power Supply OSC/Clock Frequencies 4MHz Receiver Frequency 433.92MHz Number of Channels 1 Channel Operating Mode Point-to-Point Antenna Type Internal loop, which is built in EUT Note: The product is a composite system includes Transmitter and Receiver. This submittal(s) (test report) is intended for FCC ID: H5OR49 filing to comply with FCC Part 15 Subpart B Rules. The composite system (Transmitter) is intended for FCC ID: H5OT21 is compliance with FCC Part 15 Subpart C Rules. I/O PORT OF EUT I/O Port Type Q’TY TESTED WITH Note: Client consigns only one model sample (Model Number is RF-215) to test. Compliance Certification Services Inc. Report No.: 60127201-F FCC ID: H5OR49 Date of Issue: February 10, 2006 Page 3 TEST METHODOLOGY 3.1 EUT SYSTEM OPERATION 1. Turn on the EUT by connect to DC power supply. 2. EUT receive the data from transmitter by pressing and hold the button. Note: Test program is self-repeating throughout the test. 3.2 DECISION OF FINAL TEST MODE 1. The following test mode were scanned during the preliminary test: Mode: 1. NORMAL MODE 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Radiation: Mode 1 Then, the EUT configuration and cable configuration of the above highest emission mode was recorded for all final test items. Compliance Certification Services Inc. Report No.: 60127201-F FCC ID: H5OR49 Date of Issue: February 10, 2006 Page 4 SETUP OF EQUIPMENT UNDER TEST Setup Diagram See test photographs attached in Appendix I for the actual connections between EUT and support equipment. Support Equipment No Device Type Model Serial No. FCC/ BSMI IDBrand Dat…
