H5OR50Car Alarm Receiver

1 2 3 4 A BC D 4 3 2 1 D CB A T i t l e N u m b e r R e v i s i o n S i z e A 4 D a t e : 1 2 - M a y - 2 0 0 6 S h e e t o f F i l e : D : \ d d b - w o r k \ R X - 5 7 . d d b D r a w n B y : RF Amplifer Q1,Q2 U1 LOCAL OSC& MIXER U2 COMPARATOR + 5 V I N P U T D A T A O / P G N D I N P U T ADVANCE SECURITY INC. 1 RX57

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: May 10, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. ADVANCE SECURITY INC. TED LIN SALES MANAGER REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

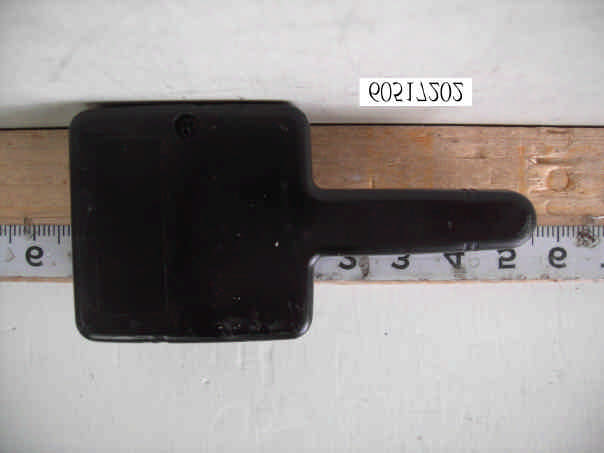

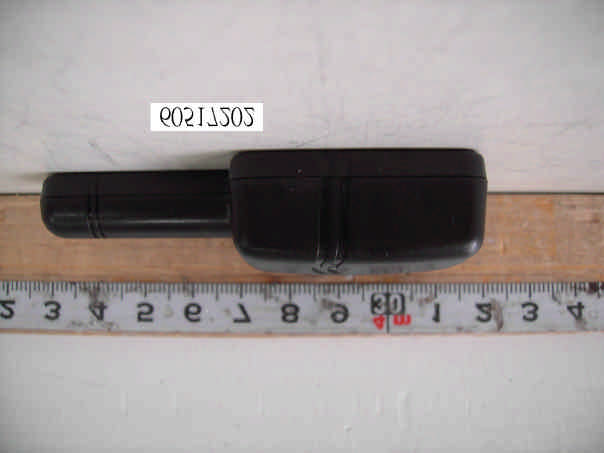

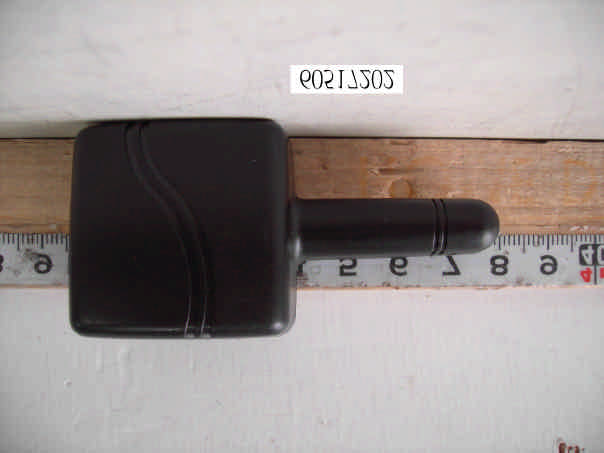

Compliance Certification Services Inc. Report No.: 60517202 Date of Issue: May 26, 2006 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60517202 Date of Issue: May 26, 2006 Page Compliance Certification Services Inc. Report No.: 60517202 Date of Issue: May 26, 2006 Page

FCC ID LABEL FORMAT AND LOCATION Advance Security Inc. FCC ID: H5OR50 FCC ID: H5OR50 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 60517202 Date of Issue: May 26, 2006 Page Compliance Certification Services Inc. Report No.: 60517202 Date of Issue: May 26, 2006 Page

(RX57 Receiver Module) Operational Description Model RX57 is the receivering portion of a muti-purose security device. The associated Transmitter is manufacture by advance Security Inc. Model No:tx555, FCC ID:H5OT21.It can be used with any alaxxx &rsxxx series alarms. The radio frequency car-alarm is a system that it controllers locking(arm) and unlocking(disarm) the door of vehicle by wireless remote controller. This system consists of transmitter and receiver. The receiver (EUT) is fixed inside the vehicle and powered 12V from car battery. It works intermittently to prevent the battery exhaustion and check the vehicle status. It is designed to operate on a single fixed frequency 433.92 MHz by frequency modulation. It runs continuously to receive the signals completely, when the receiving module in receiver detects several synchronous codes, unique identification code, security code and function code transmitted from transmitter. After receiving the signal, the 8bit CPU in receiver decides which operation will be performed. And then driving circuit in receiver performs selected operations by pressing the button of the remote transmitter. All tuning and verification are performed by the manufacturer and there are no adjustments which can be made by the user. External ground is the chassis of vehicle and receiving antenna is fixed on enclosure of the receiver.

1 2 3 4 AB CD 4 3 2 1 D C BA Title Number RX57 Revision Size A4 Date: 12-May-2006 Sheet of File: D:\ddb-work\RX-57.ddb Drawn By: 1B A D V A N C E S C U R I T Y I N C . L739nH C27 22uF VI GND VO U3 HT78l05 C2522uF +5V L6 39nH Q1 BFS520 R2470R C28103 R1330R +5V ANT1ANT +5V DATA O/P GRUND I/P W1/2 W1/3 12V I/P W1/1 C62P L310nH L215N C5100P L1 10n R93K3 C24220P C24P7 C1102 C827NH C318p C26 22UF R10220R 1234 W1 4PIN 12V I/P DATA O/P C4 NC R3 100k 12 3 4 5 U2 TC7S08 ZD15V1 1 2 G FL1SAW +5V O GND 1 OSE 2 OSB 3 VCC 4 OSC 5 TEM 6 TN 7 TP 8 PWD 9 DEMO1 10 DEMO2 11 GND 12 C GND 13 DATA 14 CPA 15 CPB 16 CPC 17 RSSI 18 LFB 19 LIN 20 VCCI 21 FA 22 MIXIN 23 M GND 24 U1 UAA3220TS C23 15P C21 15P X1 70.5367 L4 560nH C15102 R71K8 C318P2 L13 100nH R51K2 C14102 C17103 R41K5 L14 8.2nH L15 8.2nH C16102 C11 220P C10222 C9103 C18473 C13102 R11 330R M H z C425P C40104 (0805) (0805) (0805) C12 0.47UF T/C R61K C7 100P +5V FL2 10.7MHZ

Compliance Certification Services Inc. Report No.: 60517202-F FCC ID: H5OR50 Date of Issue: May 26, 2006 Page 1 FCC 47 CFR PART 15 SUBPART B TEST REPORT For CAR ALARM RECEIVER Model: RX57 Trade Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 60517202-F FCC ID: H5OR50 Date of Issue: May 26, 2006 Page TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION..........................................................................................3 2 EUT DESCRIPTION..................................................................................................................4 3 TEST METHODOLOGY...........................................................................................................5 3.1 EUT SYSTEM OPERATION.............................................................................................5 3.2 DECISION OF FINAL TEST MODE...............................................................................5 4 SETUP OF EQUIPMENT UNDER TEST................................................................................6 5 FACILITIES AND ACCREDITATIONS.................................................................................7 5.1 FACILITIES.........................................................................................................................7 5.2 LABORATORY ACCREDITATIONS AND LISTINGS.................................................7 6 INSTRUMENT AND CALIBRATION.....................................................................................8 6.1 MEASURING INSTRUMENT CALIBRATION.............................................................8 6.2 TEST AND MEASUREMENT EQUIPMENT.................................................................8 7 LINE CONDUCTED & RADIATED EMISSION TEST........................................................9 7.1 LIMIT...................................................................................................................................9 7.2 TEST PROCEDURE OF LINE CONDUCTED EMISSION........................................10 7.3 TEST PROCEDURE OF RADIATED EMISSION.......................................................12 7.4 TEST RESULTS................................................................................................................14 APPENDIX I - PHOTOGRAPHS OF TEST SETUP..................................................................16 Compliance Certification Services Inc. Report No.: 60517202-F FCC ID: H5OR50 Date of Issue: May 26, 2006 Page 1 TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Manufacturer: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: CAR ALARM RECEIVER Trade Name: Advance Security Inc. Model: RX57 Detailed EUT Description: See Item 2 of this report Date of Test: May 17, 2006 & May 19, 2006 Applicable Standard Class / Limit Test Result FCC Part 15 Subpart B IC ICES-003 Class B No non-compliance noted Deviation from Applicable Standard None The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedures were according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 60517202-F FCC ID: H5OR50 Date of Issue: May 26, 2006 Page 2 EUT DESCRIPTION Product CAR ALARM RECEIVER Trade Name Advance Security Inc. Model RX57 Housing Type Plastic EUT Power Rating 12VDC OSC/Clock Frequencies 70.5367MHz; 10MHz Receiver Frequency 433.92MHz Number of Channels 1 Channel Operating Mode Point-to-Point Antenna Type Internal loop, which is built in EUT Note: The product is a composite system includes Transmitter and Receiver. This submittal(s) (test report) is intended for FCC ID: H5OR50 filing to comply with FCC Part 15 Subpart B Rules. The composite system (Transmitter) is intended for FCC ID: H5OT21 is compliance with FCC Part 15 Subpart C Rules. I/O PORT OF EUT I/O Port Type Q’TY TESTED WITH Note: Client consigns only one model sample (Model Number is RX57) to test. Compliance Certification Services Inc. Report No.: 60517202-F FCC ID: H5OR50 Date of Issue: May 26, 2006 Page 3 TEST METHODOLOGY 3.1 EUT SYSTEM OPERATION 1. Turn on the EUT by connect to DC power supply. 2. EUT receive the data from transmitter by pressing and hold the button. Note: Test program is self-repeating throughout the test. 3.2 DECISION OF FINAL TEST MODE 1. The following test mode(s) were scanned during the preliminary test: Mode: 1. NORMAL MODE 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Radiation: Mode 1 Then, the EUT configuration and cable configuration of the above highest emission mode was recorded for all final test items. Compliance Certification Services Inc. Report No.: 60517202-F FCC ID: H5OR50 Date of Issue: May 26, 2006 Page 4 SETUP OF EQUIPMENT UNDER TEST Setup Diagram See test photographs attached in Appendix I for the actual connections between EUT and support equipment. Support Equipment No Device Type Model Serial No. FCC ID/ BSMI ID Trade Name Data Cable Power Cord 1 DC Power Supply GPC-3030D N/A N/A GW Unshielded, 2.3mx2 U…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60517202-F FCC ID: H5OR50 Date of Issue: May 26, 2006 Page APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST
