H5OR51Car Alarm Receiver

CPL100 MANUAL PROGRAMMING SPECIFICATIONS Transmitter Programming 1. Ignition ON 2. Press and Hold Override Button for 10" 3. Parking Lights will flash and horn will honk 3 times Selectable Feature Programming 1. Ignition ON 2. Press and Hold Override Button for 10" 3. Parking Lights will flash and horn will honk 3 times 4. Press and release programming button 5. Parking lights will flash and horn will honk 4 times to acknowledge feature programming Selectable Feature Chart LED flash 1LED flash 2LED flash 3 Security FunctionONoff Passive LocksOnOff 2 stage unlock2 stage1 stage Passive Armingonoff Entry Delayonoff Siren/ Hornsirenhorn Door trigger delayinstant30 second ChirpsOnOff Extended Locks0.93double pulse U/L Ignition LockOnOff Tan wire OutputTrunk2nd Unlockilluminated Entry Unlock Sense InputNEGPOS Horn output timing16ms30ms45ms ITS Functionalityoff On Changing Selectable Feature Programing Once you have entered selectable feature programming (4 chirps) Press override button to scroll through options, each press of the override button advances you to the next option. The system will honk the horn and flash the lights for each feature. For example when the user is in Feature 3 the system will horn 3 times and parking lights will flash 3 times. The LED will flash the setting that the system is currently set to. To change a desired feature press the button located on the module. The LED will change its number of flashes to represent the setting. Defaulting Selectable Features 1. Ignition ON 2. Press and Hold Override Button for 10" 3. Parking Lights will flash and horn will honk 3 times 4. Press button on Module 5. System will default all setting and honk 4 times which will place the user at the selectable feature programming bank Adjusting the Shock Sensor 1. Turn the adjustment screw clockwise (increasing sensitivity) 2. Turn the adjustment screw counter clockwise (decreasing sensitivity) Testing the Shock Sensor Arm the alarm. Wait for 6" for the zone to stabilize, and then firmly strike the vehicle's bumper. LOT MODE PROGRAMMING SPECIFICATIONS: Transmitter Programming 1. Ignition ON 2. Press and Hold Override Button for 10" 3. Parking Lights will flash and horn will honk 3 times 4. Punch in Vehicle ID from ACM Keypad and press LOCK 5. System will chirp 3 times to acknowledge LOT MODE Selectable Feature Programming 1. Ignition ON 2. Press and Hold Override Button for 10" 3. Parking Lights will flash and horn will honk 3 times 4. Press and release programming button 5. Parking lights will flash and horn will honk 4 times to acknowledge feature programming LOT MODE defaults feature Chart LED flash 1LED flash 2LED flash 3 Security FunctionONoff Passive LocksOnOff 2 stage unlock2 stage1 stage Passive Armingonoff Entry Delayonoff Siren/ Hornsirenhorn Door trigger delayinstant30 second ChirpsOnOff Extended Locks0.93double pulse U/L Ignition LockOnOff Tan wire OutputTrunk2nd Unlockilluminated Entry Unlock Sense InputNEGPOS Horn output timing16ms30ms45ms ITS Functionalityoff On

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date :April 11, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: H5OR51 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Operational Description Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ted lin sales manager

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: August 18, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. ADVANCE SECURITY INC. TED LIN SALES MANAGER REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

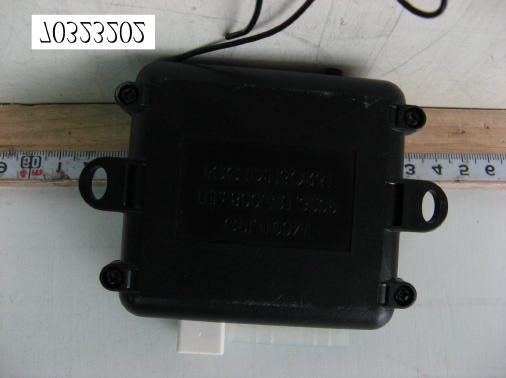

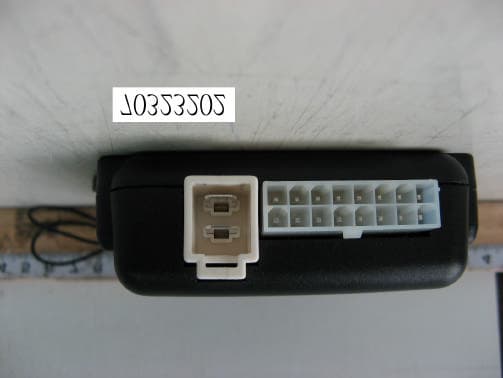

Compliance Certification Services Inc. Report No.: 70323202 Date of Issue: April 14, 2007 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70323202 Date of Issue: April 14, 2007 Page Compliance Certification Services Inc. Report No.: 70323202 Date of Issue: April 14, 2007 Page

FCC ID LABEL FORMAT AND LOCATION Advance Security Inc. FCC ID: H5OR51 FCC ID: H5OR51 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 70323202 Date of Issue: April 14, 2007 Page Compliance Certification Services Inc. Report No.: 70323202 Date of Issue: April 14, 2007 Page Compliance Certification Services Inc. Report No.: 70323202 Date of Issue: April 14, 2007 Page

Compliance Certification Services Inc. Report No.: 703232022-F FCC ID: H5OR51 Date of Issue: April 14, 2007 Page 1 FCC 47 CFR PART 15 SUBPART B TEST REPORT For CAR ALARM RECEIVER Model: CPL-100 Trade Name: Advance Security Inc. Issued to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. Sindian BU No.163-1, Jhongsheng Rd., Sindian City, Taipei County 23151, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 703232022-F FCC ID: H5OR51 Date of Issue: April 14, 2007 Page TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION..........................................................................................3 2 EUT DESCRIPTION..................................................................................................................4 3 TEST METHODOLOGY...........................................................................................................5 3.1 EUT SYSTEM OPERATION.............................................................................................5 3.2 DECISION OF FINAL TEST MODE...............................................................................5 4 SETUP OF EQUIPMENT UNDER TEST................................................................................6 5 FACILITIES AND ACCREDITATIONS.................................................................................7 5.1 FACILITIES.........................................................................................................................7 5.2 LABORATORY ACCREDITATIONS AND LISTINGS.................................................7 6 INSTRUMENT AND CALIBRATION.....................................................................................8 6.1 MEASURING INSTRUMENT CALIBRATION.............................................................8 6.2 TEST AND MEASUREMENT EQUIPMENT.................................................................8 7 LINE CONDUCTED & RADIATED EMISSION TEST........................................................9 7.1 LIMIT...................................................................................................................................9 7.2 TEST PROCEDURE OF LINE CONDUCTED EMISSION........................................10 7.3 TEST PROCEDURE OF RADIATED EMISSION.......................................................12 7.4 TEST RESULTS................................................................................................................14 APPENDIX I - PHOTOGRAPHS OF TEST SETUP..................................................................16 Compliance Certification Services Inc. Report No.: 703232022-F FCC ID: H5OR51 Date of Issue: April 14, 2007 Page 1 TEST RESULT CERTIFICATION Applicant: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Manufacturer: Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Equipment Under Test: CAR ALARM RECEIVER Trade Name: Advance Security Inc. Model: CPL-100 Detailed EUT Description: See Item 2 of this report Date of Test: March 28, 2007 Applicable Standard Class / Limit Test Result FCC Part 15 Subpart B IC ICES-003 Class B No non-compliance noted Deviation from Applicable Standard None The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedures were according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 703232022-F FCC ID: H5OR51 Date of Issue: April 14, 2007 Page 2 EUT DESCRIPTION Product CAR ALARM RECEIVER Trade Name Advance Security Inc. Model CPL-100 Housing Type Plastic EUT Power Rating 12VDC OSC/Clock Frequencies 16MHz Receiver Frequency 433.92MHz Number of Channels 1 Channel Operating Mode Point-to-Point Antenna Type Internal loop, which is built in EUT Note: The product is a composite system includes Transmitter and Receiver. This submittal(s) (test report) is intended for FCC ID: H5OR51 filing to comply with FCC Part 15 Subpart B Rules. The composite system (Transmitter) is intended for FCC ID: H5OT21 is compliance with FCC Part 15 Subpart C Rules. Compliance Certification Services Inc. Report No.: 703232022-F FCC ID: H5OR51 Date of Issue: April 14, 2007 Page 3 TEST METHODOLOGY 3.1 EUT SYSTEM OPERATION 1. Turn on the EUT by connect to DC power supply. 2. EUT receive the data from transmitter by pressing and hold the button. Note: Test program is self-repeating throughout the test. 3.2 DECISION OF FINAL TEST MODE 1. The following test mode were scanned during the preliminary test: Mode: 1. NORMAL MODE 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Radiation: Mode 1 Then, the EUT configuration and cable configuration of the above highest emission mode was recorded for all final test items. Compliance Certification Services Inc. Report No.: 703232022-F FCC ID: H5OR51 Date of Issue: April 14, 2007 Page 4 SETUP OF EQUIPMENT UNDER TEST Setup Diagram See test photographs attached in Appendix I for the actual connections between EUT and support equipment. Support Equipment No Device Type Model Serial No. FCC ID/ BSMI ID Trade Name Data Cable Power Cord 1 DC Power Supply PS-140Ya N/A N/A DAIWA 1. Unshielded, 0.6m 2. Unshielded, 0.9m Unshielded, 1.8m 2 Transmitter TX556 N/A N/A Advance Security Inc. N/A N/A Note: All the above eq…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 703232022-F FCC ID: H5OR51 Date of Issue: April 14, 2007 Page APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST
