H5OT09Car Alarm Transmitter

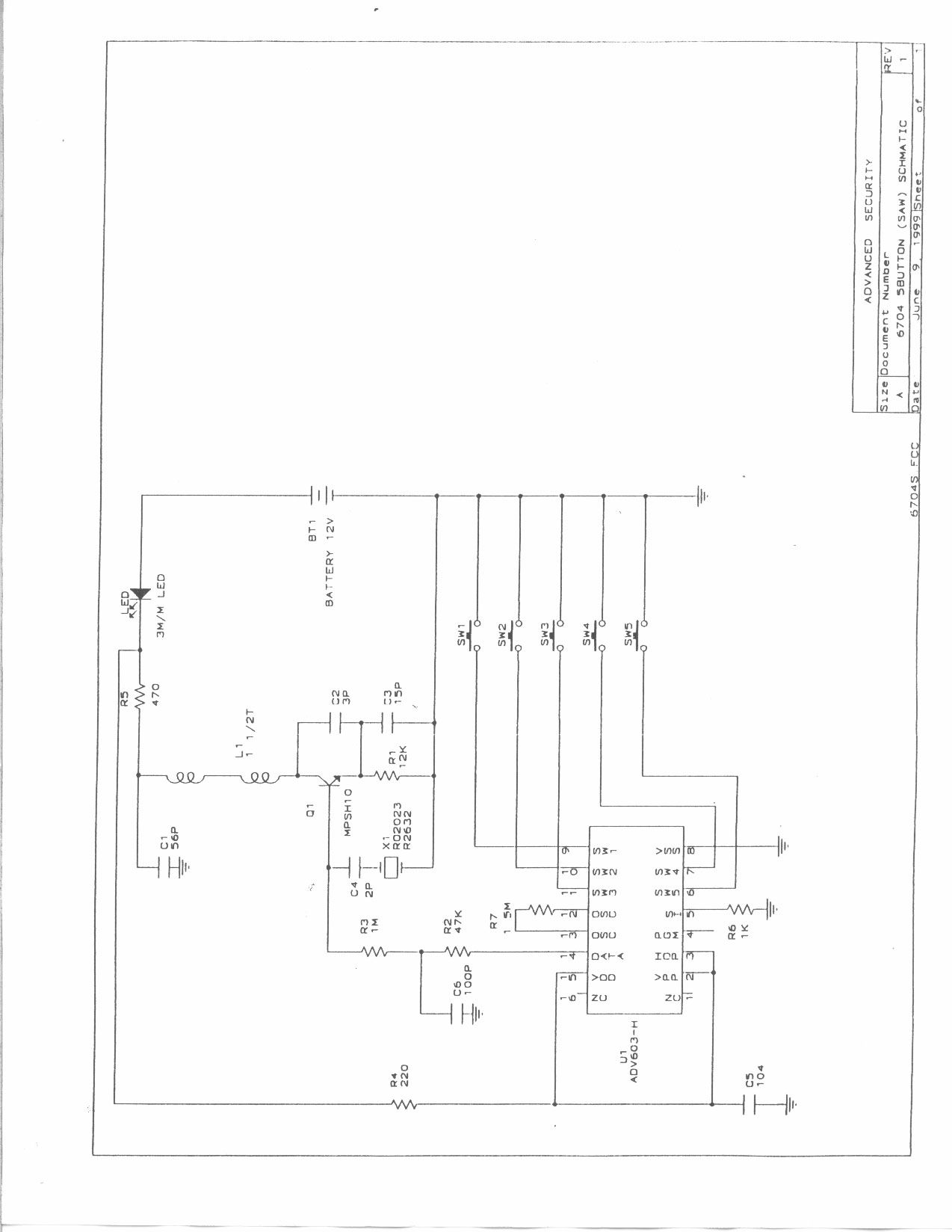

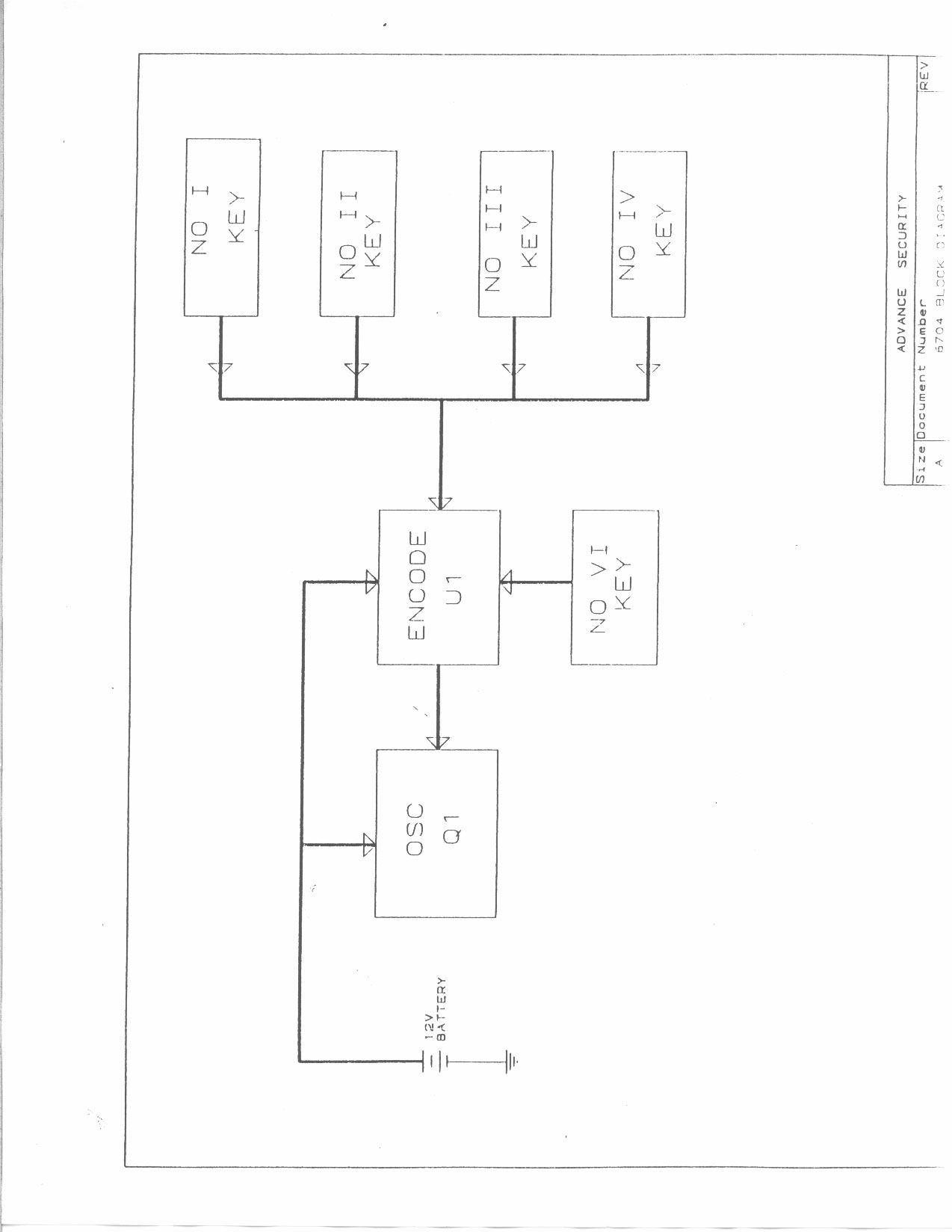

6704FIVE-BUTTON TRANSMITTER This transmitter is a replacement RF transmitter. The transmitter comes with 4 push-button and one side small button. 1). Press button I to control first receiver (channel 1). 2). Press button II to control second receiver (channel 2). 3). Press button III to control third receiver (channel 3) 4). Press button IV to control fourth receiver (channel 4). 5). The side button provides four independent channels to control appliances through single transmitter. Pressing the side button to “shift” the buttons to the nest set of the four channels (channel 5, 6, 7 and 8). TRANSMITTER BATTERY REPLACEMENT If the range of your transmitter deteriorate, it is possible that you need to replace the battery. 1). Release the screw from the back of transmitter and remove upper transmitter case with a phillips screwdriver. 2). Remove old battery from transmitter. 3). Install a new battery (12 volt) noting the (+) and (-) marks in the battery area of the transmitter. 4). Replace upper transmitter case with care, don’t damage the inside components. 5). Tighten the screw on the back of transmitter. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

PROPOSED FCC ID LABEL AND LOCATION ADVANCE SECURITY INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: H5OT09 FCC ID LABEL

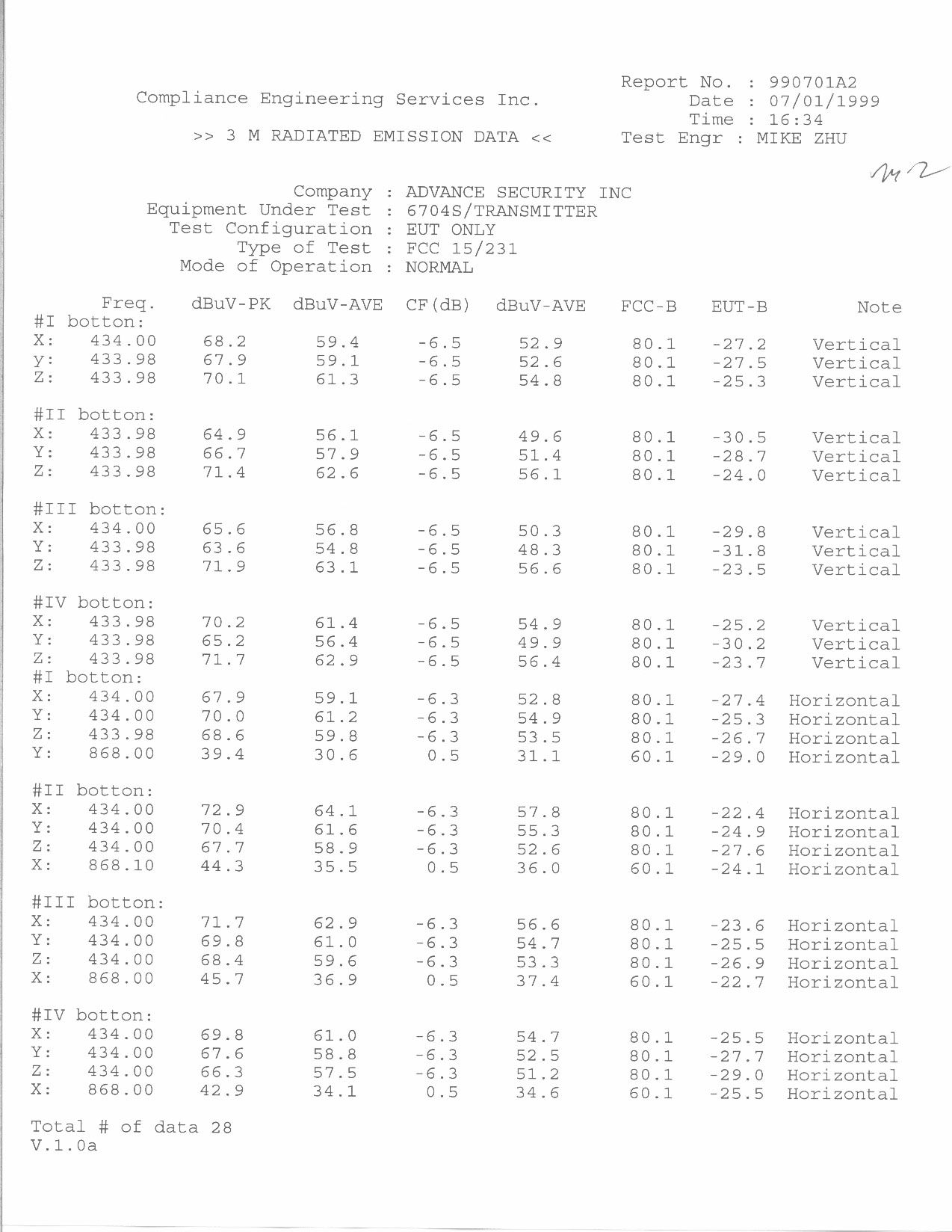

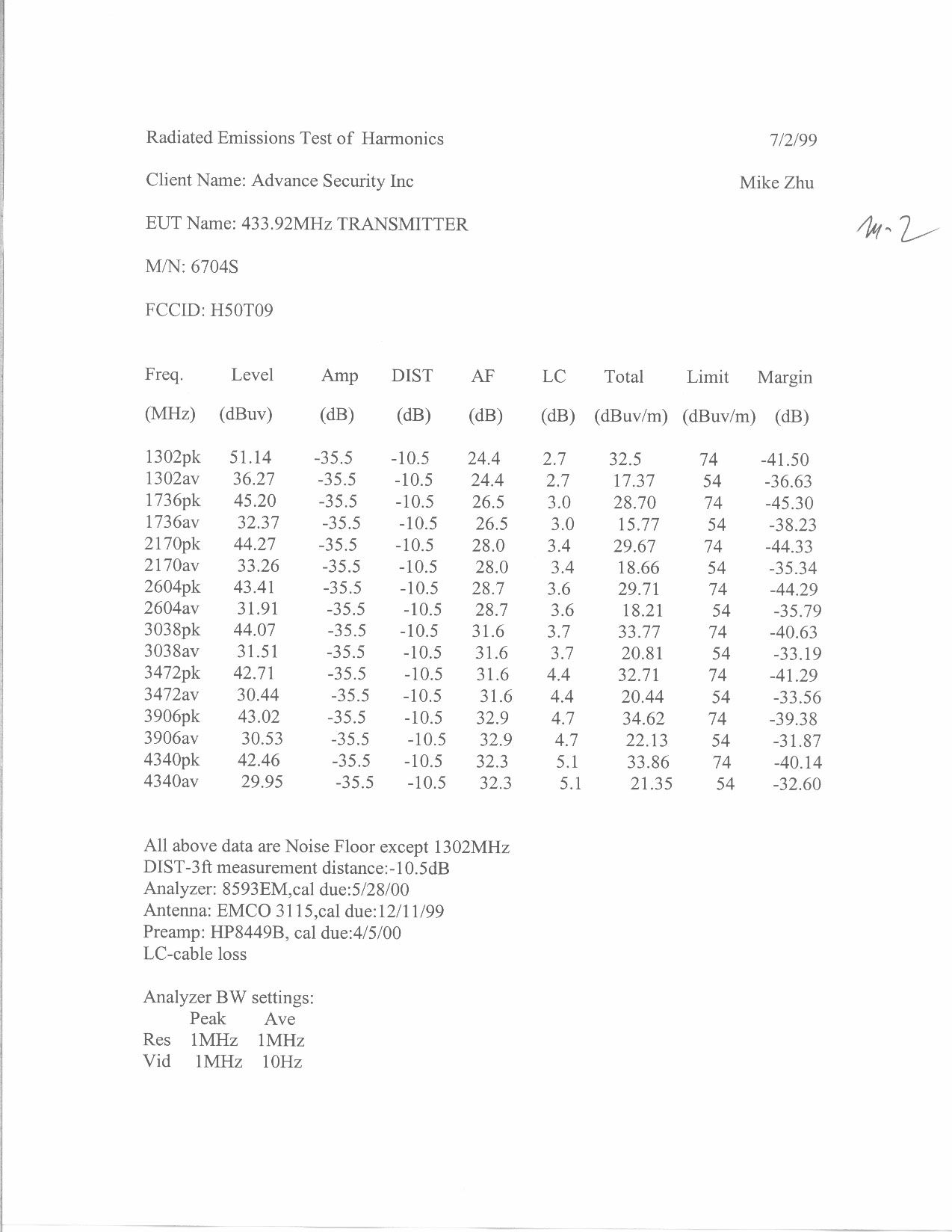

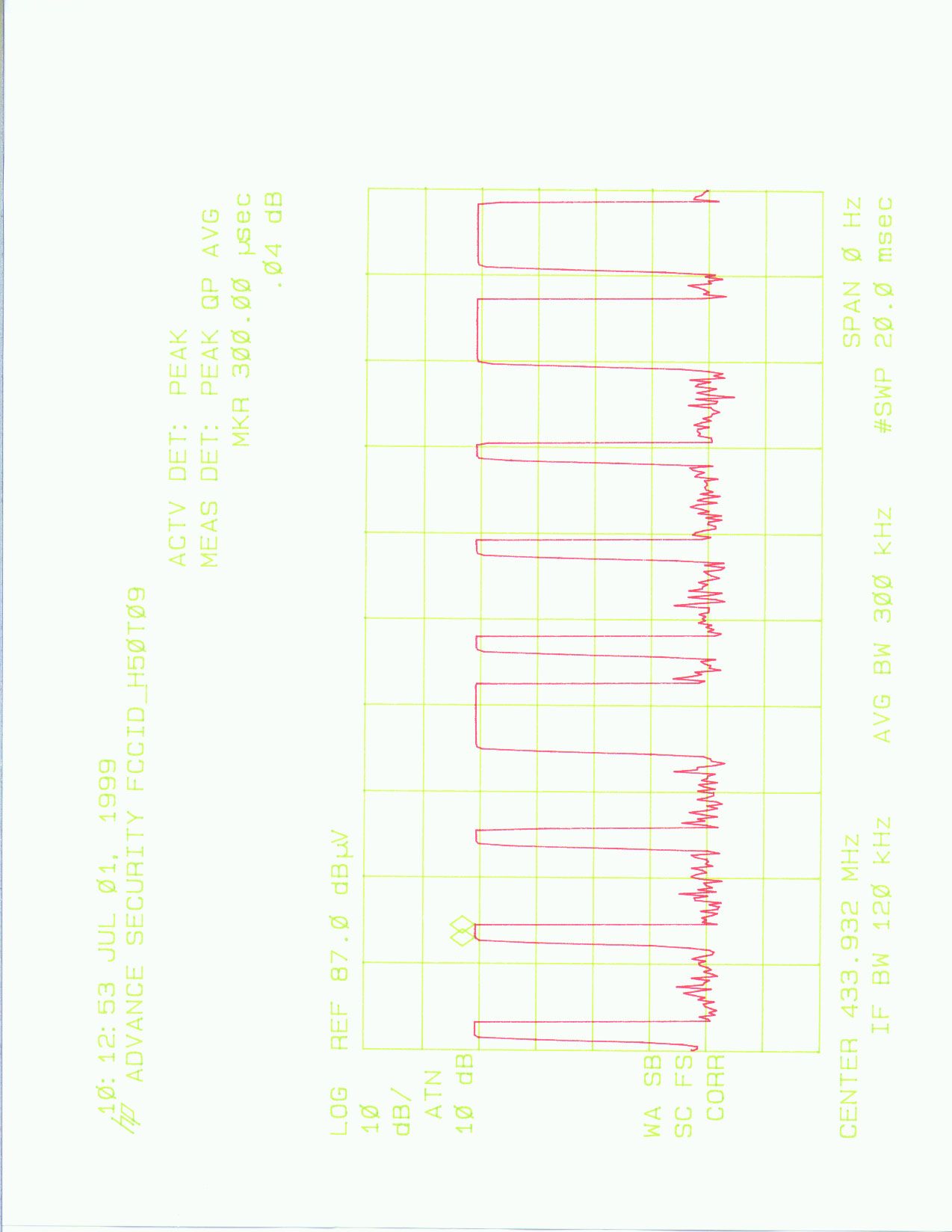

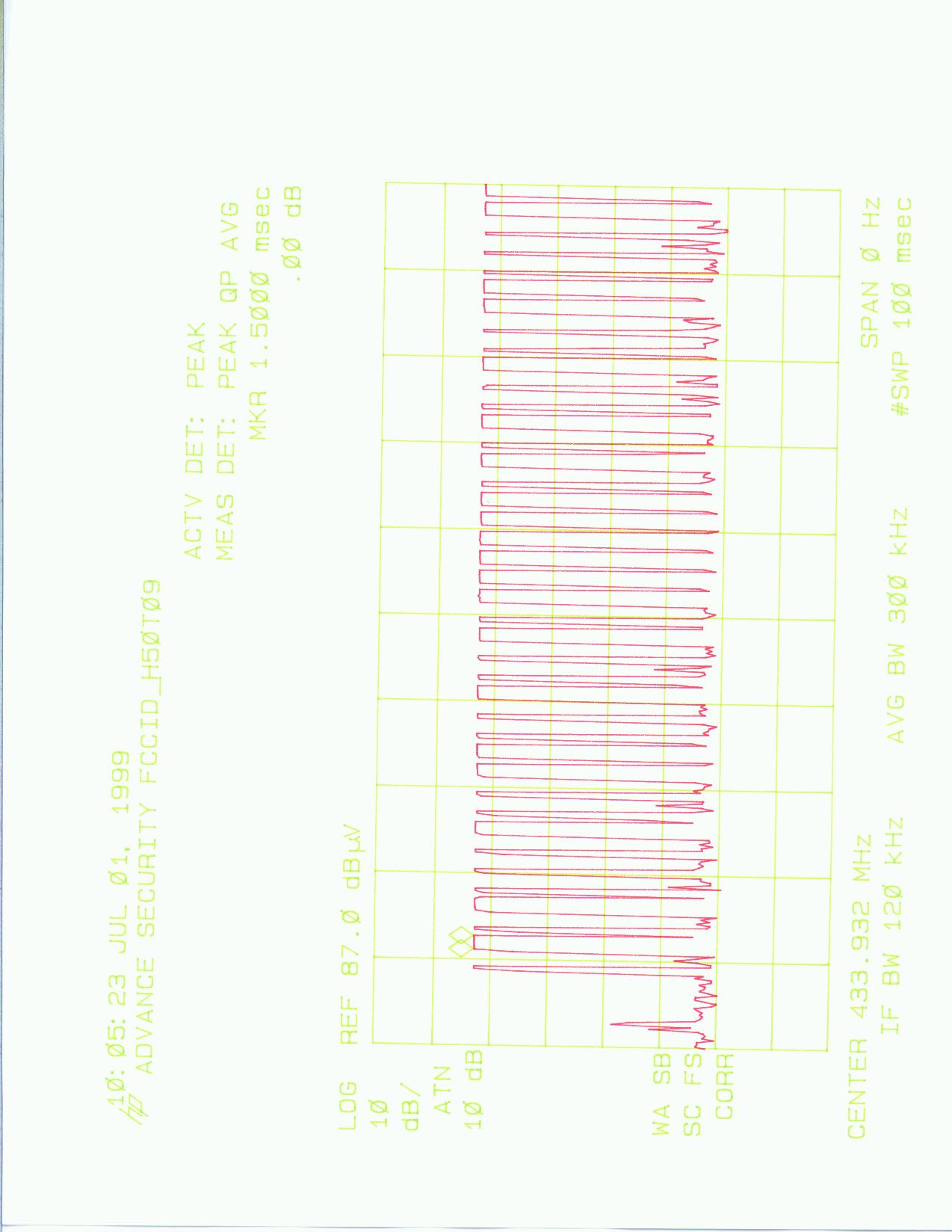

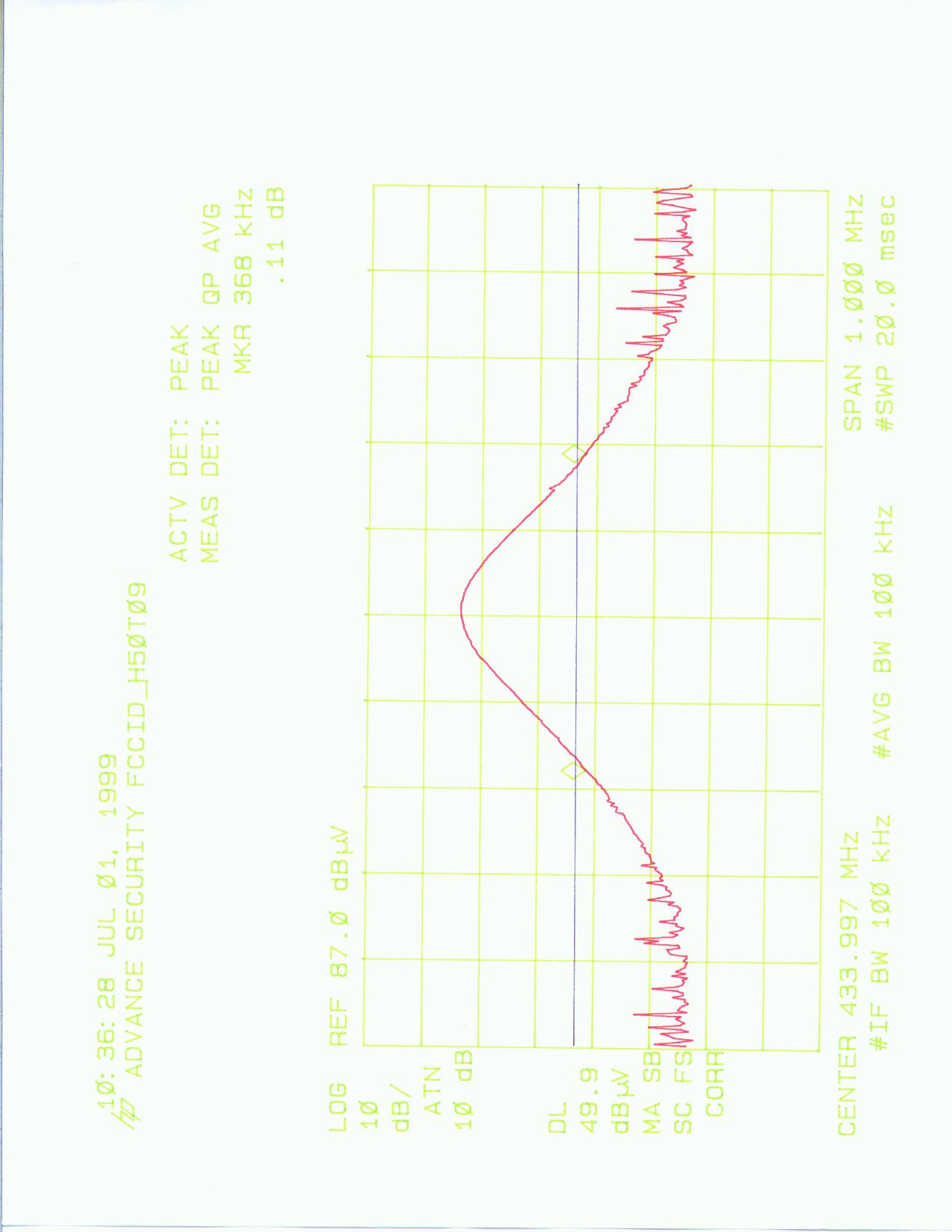

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 433.92 MHz TRANSMITTER MODEL NO: 6704S FCC ID NO: H5OT09 REPORT NO: 99T0387-1 ISSUE DATE: JULY 01, 1999 Prepared for ADVANCE SECURITY INC. 3F, 48 TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN R. O. C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:99T0387-1 FCC ID:H5OT09 DATE:JULY 01, 1999 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE.................................. 1 2. Product Description......................................... 2 3. Test Facility............................................... 2 4. Measurement Standards....................................... 2 5. Test Methodology............................................ 2 6. Measurement Equipment Used.................................. 2 7. POWERLINE RFI LIMIT......................................... 3 8. RADIATED EMISSION LIMITS.................................... 3 9. SYSTEM TEST CONFIGURATION................................... 4 10. Test Procedure............................................. 5 11. Equipment Modifications.................................... 6 12. TEST RESULT................................................ 7 12.1 Maximum Modulation Percentage (M%)........................ 7 12.2 The Emissions Bandwidth................................... 7 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement REPORT NO:99T0387-1 FCC ID:H5OT09 DATE:07/01/99 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : ADVANCE SECURITY INC. 3F, 48 TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN R. O. C. CONTACT PERSON : JESSE CHIU / SALES MANAGER TELEPHONE NO. : (02) 2643-8192 EUT DESCRIPTION : 433.92 MHz TRANSMITTER MODEL NAME/NUMBER : 6704S FCC ID :H5OT09 DATE TESTED : JULY 01, 1999 REPORT NUMBER : 99T0387-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI C63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:99T0387-1 FCC ID:H5OT09 DATE:07/01/99 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. Product Description Fundamental Frequency433.92 MHz Power Source12V Battery Transmitting TimePeriodic < 5 seconds Associated Receiver6978 / FCC ID: H50R28 3. Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. Measurement Equipment Used Manufacturer Model Number Description Cal Due Date H.P. 8568A Spectrum Analyzer (100Hz – 1.5GHz) 02/00 H.P. 8566B Spectrum Analyzer (100Hz – 22GHz) 09/99 EMCO 3146 Antenna (200-1000 MHz) 10/99 H.P. 8447D Preamplifier (0.1 - 1300 MHz) 09/99 EMCO 3115 Antenna(1 - 18GHZ) 11/99 H.P. 8449B Preamplifier (1-26.5GHZ) 03/00 REPORT NO:99T0387-1 FCC ID:H5OT09 DATE:07/01/99 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209. RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 REPORT NO:99T0387-1 FCC ID:H5OT09 DATE:07/01/99 PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 9. SYSTEM TEST CONFIGURATION The system was configured for testing in a typical fashion (as a customer would normally use it): EUT was modified at IC2 to enable continuous transmission. Remote control unit was placed on a wooden table. Buttons were pressed by using a tape to activate the operation. Please refer to the following photograph for actual setup. Radiated Open Site Test S…
