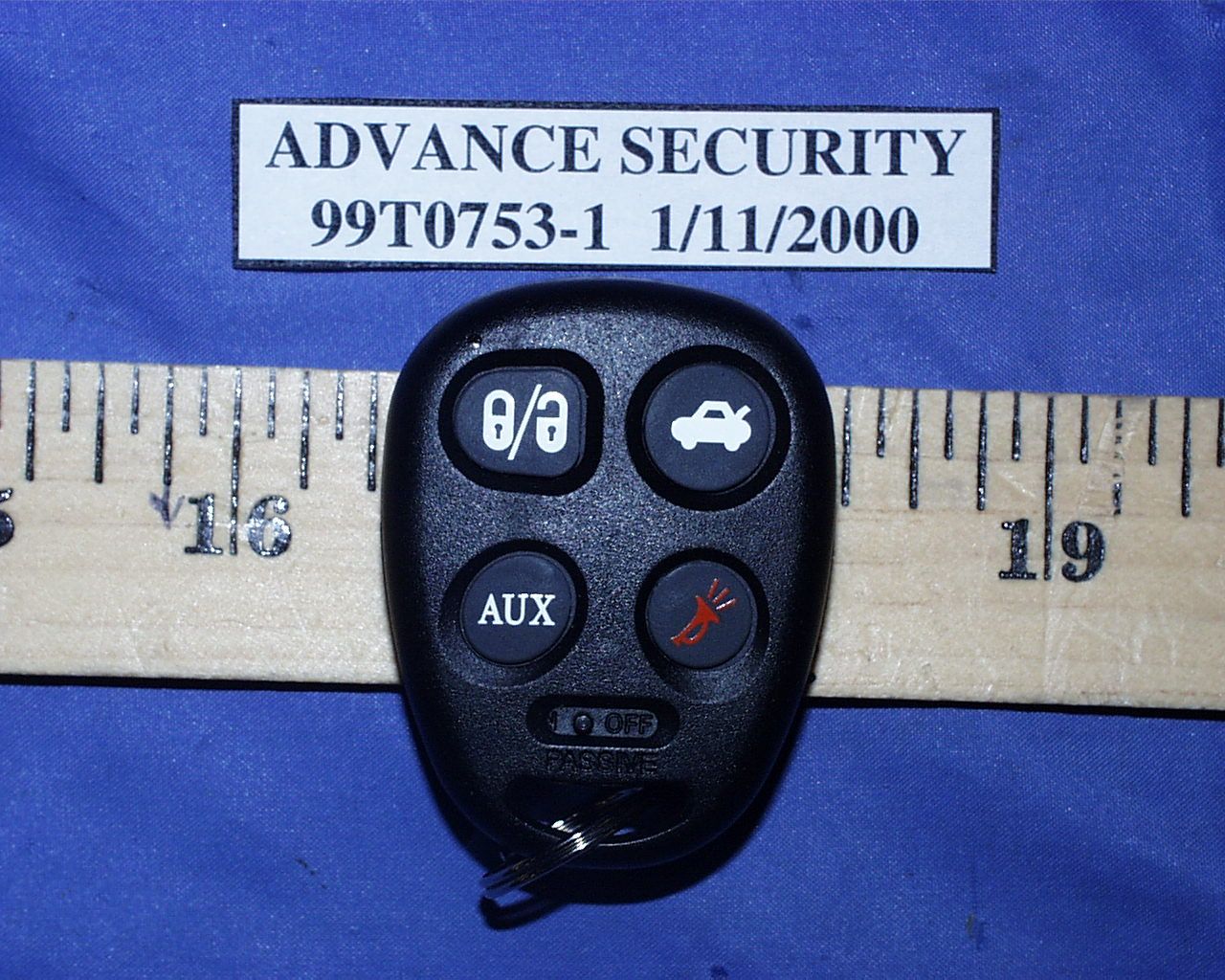

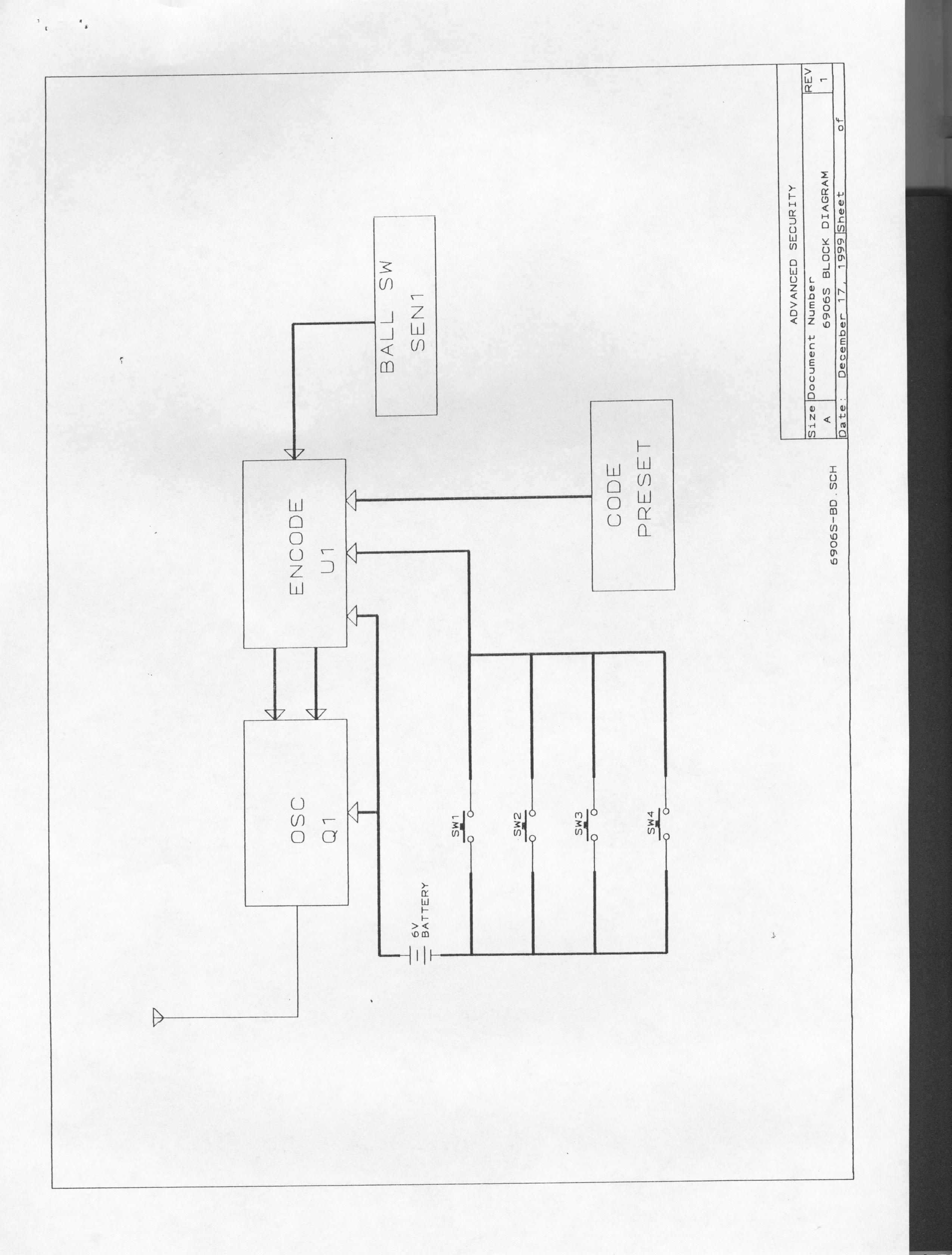

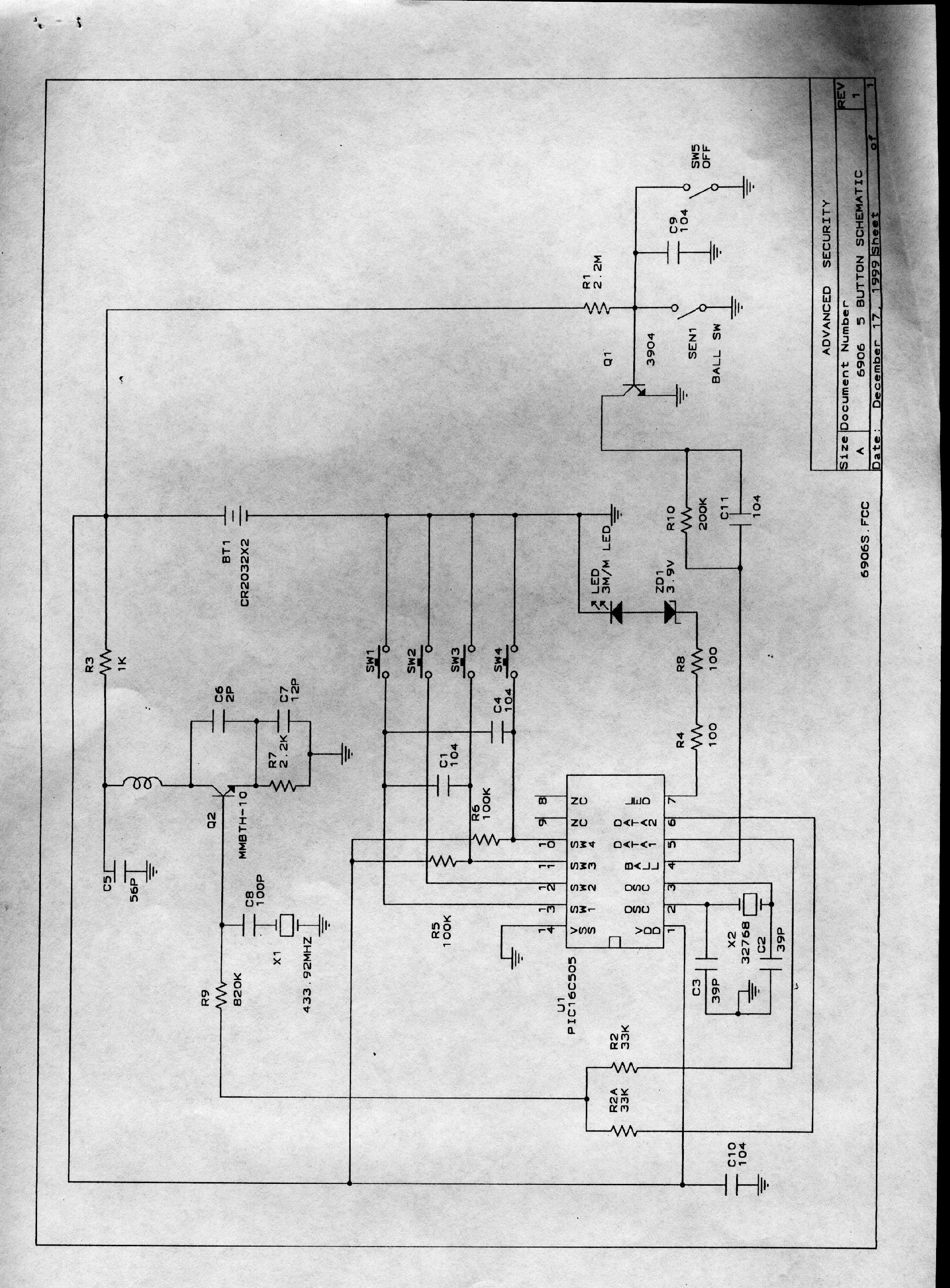

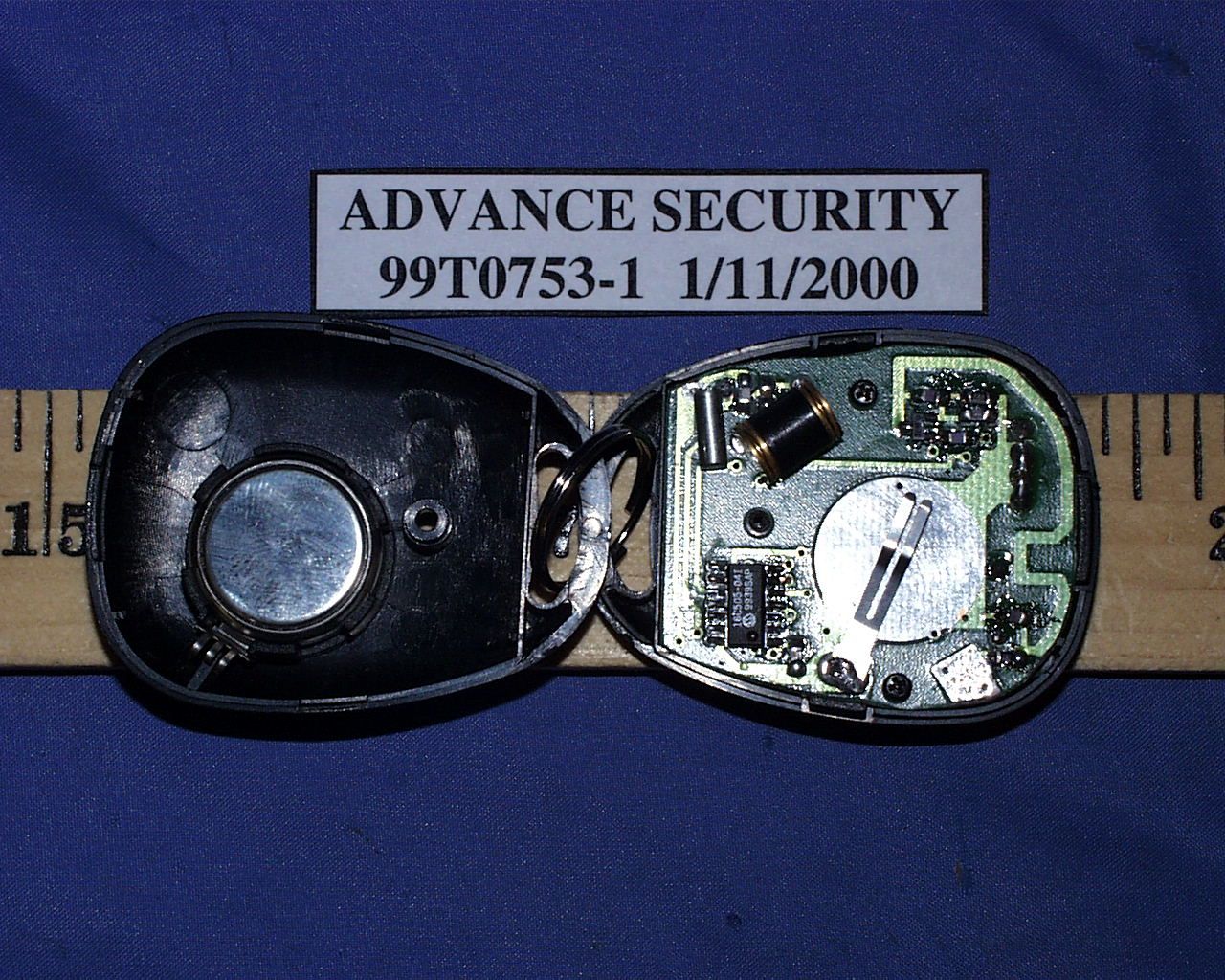

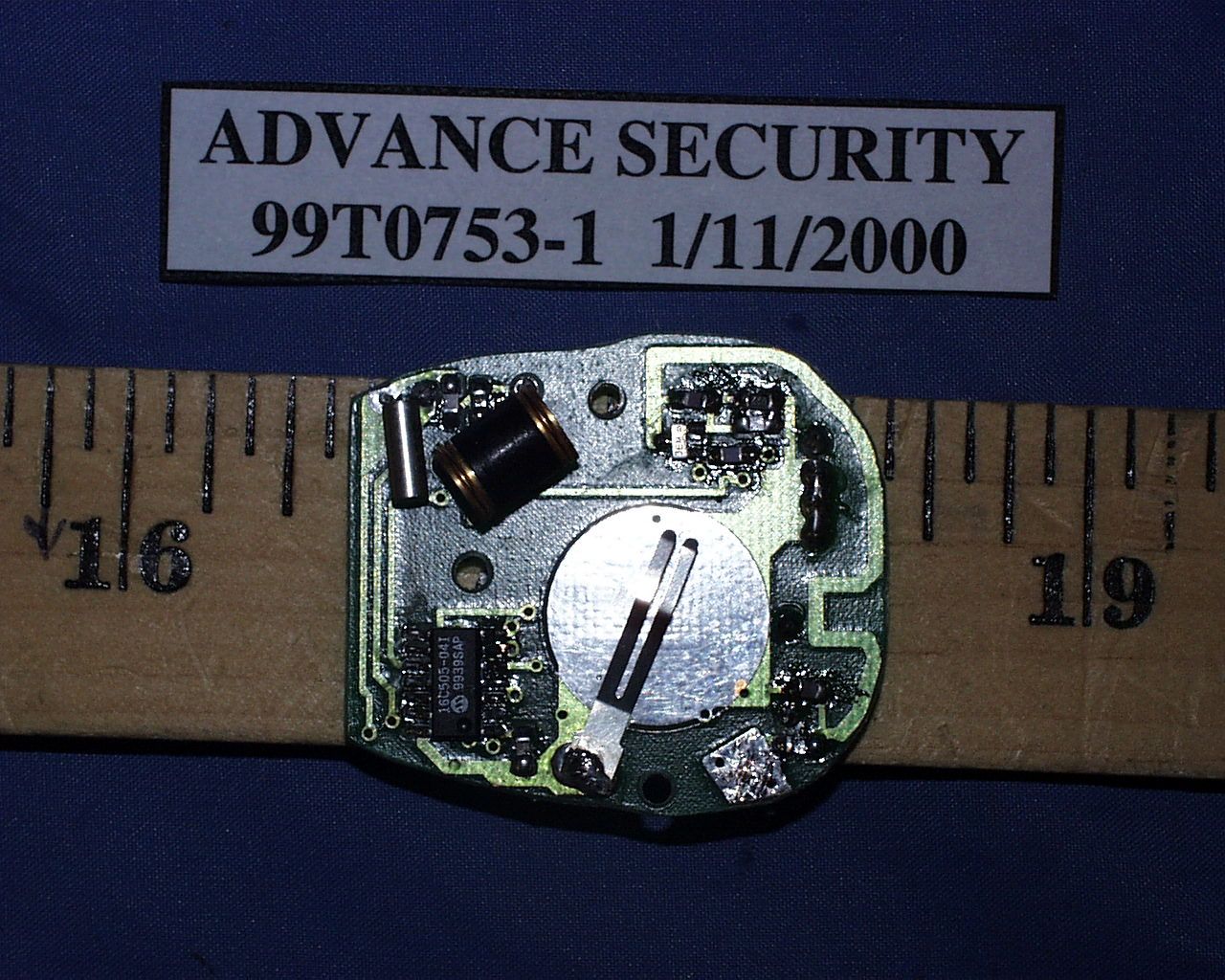

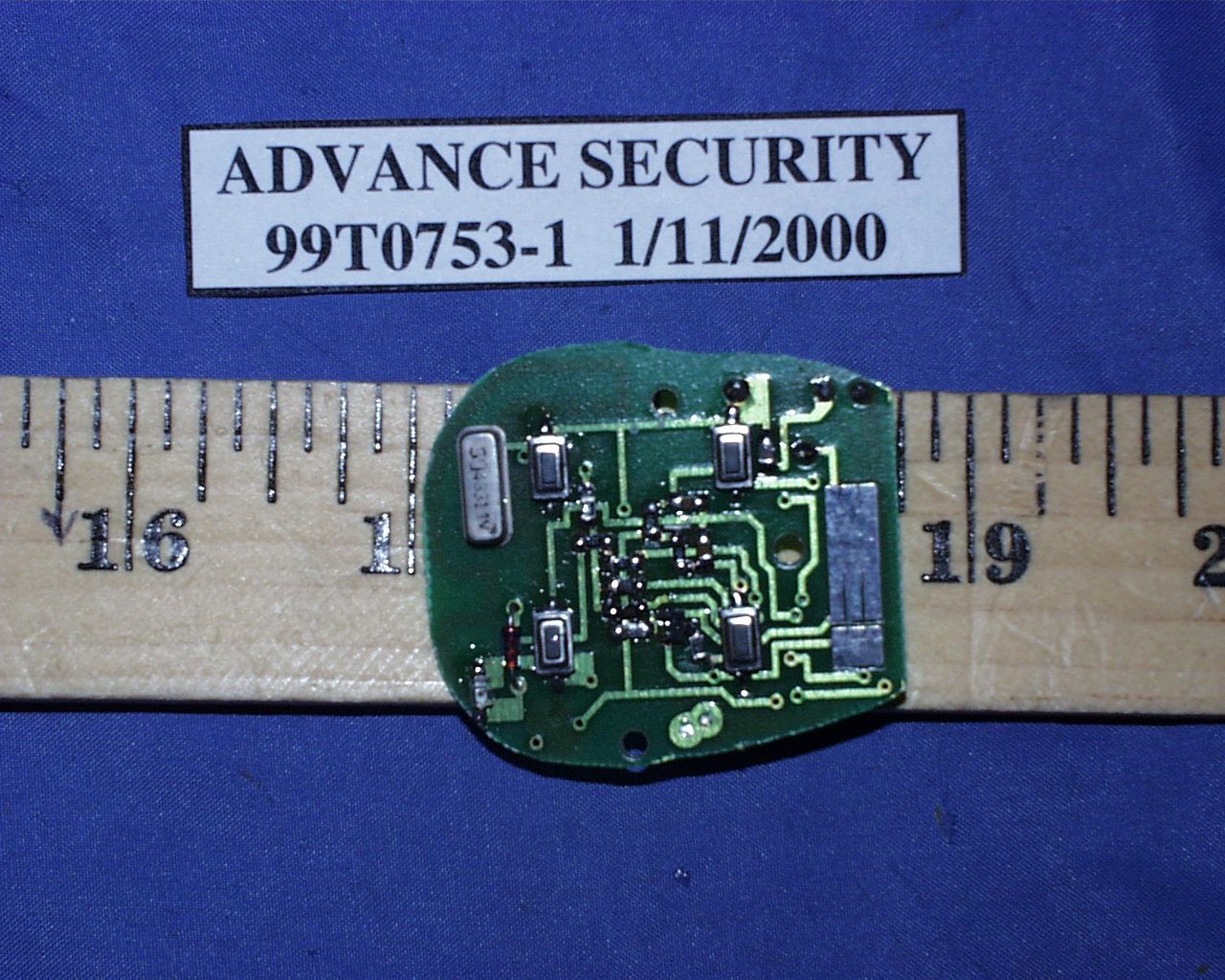

6906 FOUR-BUTTON TRANSMITTER The 6906 transmitter is a replacement RF transmitter. The transmitter comes with 4 push-button switches. 1). Press LOCK push-button switch on control first receiver (Your alarm system). 2). Press UNLOCK push-button switch to control second receiver (It can be an alarm system or electric device). 3). Press TRUNK push-button switch to control third receiver (It can be an alarm system or electric device). 4). Press PANIC push-button switch to control fourth receiver (It can be an alarm system or electric device). Unique optional passive/active transmitter : This is a passive/active transmitter that allows you to control the alarm or electric device passively or actively. Slide the passive switch ton ‘ON’ position on the front case for passive operation. TRANSMITTER BATTERY REPLACEMENT If the range of your transmitter deteriorate, it is possible that you need to replace the battery. 1). Release the screw from the back of transmitter and move upper transmitter case. 2). Remove old battery from transmitter. 3). Install a new battery (12 volt) noting the (+) and (-) marks in the battery area of the transmitter. 4). Replace upper transmitter case with area, don’t damage the inside components. 5). Tighten the screw on the back of transmitter. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference receiver, including interference that may cause undesired operation.

PROPOSED FCC ID LABEL AND LOCATION STREET ADVANCE SECURITY INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: H5OT11 FCC ID LABEL FCC ID

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 433.92 MHz FOUR-BUTTON TRANSMITTER MODEL NO: 6906 FCC ID NO: H5OT11 REPORT NO: 99T0753-1 ISSUE DATE: JANUARY 04, 2000 Prepared for ADVANCE SECURITY INC. 3F, 48 TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN R. O. C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:99T0753-1 FCC ID:H5OT11 DATE:JANUARY 04, 2000 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ........................................................................................ 1 2. Product Description..................................................................................................................... 2 3. Test Facility ................................................................................................................................. 2 4. Measurement Standards .............................................................................................................. 2 5. Test Methodology........................................................................................................................ 2 6. Measurement Equipment Used ...................................................................................................2 7. POWERLINE RFI LIMIT ..........................................................................................................3 8. RADIATED EMISSION LIMITS .............................................................................................. 3 9. SYSTEM TEST CONFIGURATION......................................................................................... 4 10. Test Procedure........................................................................................................................... 5 11. Equipment Modifications .......................................................................................................... 6 12. TEST RESULT ......................................................................................................................... 7 12.1 Maximum Modulation Percentage (M%) ............................................................................... 7 12.2 The Emissions Bandwidth....................................................................................................... 7 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement REPORT NO:99T0753-1 FCC ID:H5OT11 DATE:JANUARY 04, 2000 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME:ADVANCE SECURITY INC. 3F, 48 TA AN STREET, HSI CHIH TAIPEI HSIEN, TAIWAN R. O. C. CONTACT PERSON:JESSE CHIU / SALES MANAGER TELEPHONE NO.:(02) 2643-8192 EUT DESCRIPTION:433.92 MHz FOUR-BUTTON TRANSMITTER MODEL NAME/NUMBER :6906 FCC ID:H5OT11 DATE TESTED :JANUARY 04, 2000 REPORT NUMBER:99T0753-1 TYPE OF EQUIPMENTSECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE433.92 MHz FOUR-BUTTON TRANSMITTER MEASUREMENT PROCEDUREANSI C63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:99T0753-1 FCC ID:H5OT11 DATE:JANUARY 04, 2000 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. Product Description Fundamental Frequency 433.92 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver CS82 / FCC ID: H50R29 3. Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. Measurement Equipment Used ManufacturerModel Number DescriptionCal Due Date H.P.8568ASpectrum Analyzer (100Hz – 1.5GHz) 02/00 H.P.8566BSpectrum Analyzer (100Hz – 22GHz) 09/00 EMCO3146Antenna (200-1000 MHz) 10/00 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/00 EMCO3115Antenna(1 - 18GHZ)11/00 REPORT NO:99T0753-1 FCC ID:H5OT11 DATE:JANUARY 04, 2000 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. H.P.8449BPreamplifier (1-26.5GHZ)03/00 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ T…

Text truncated - open the document above for the full version.

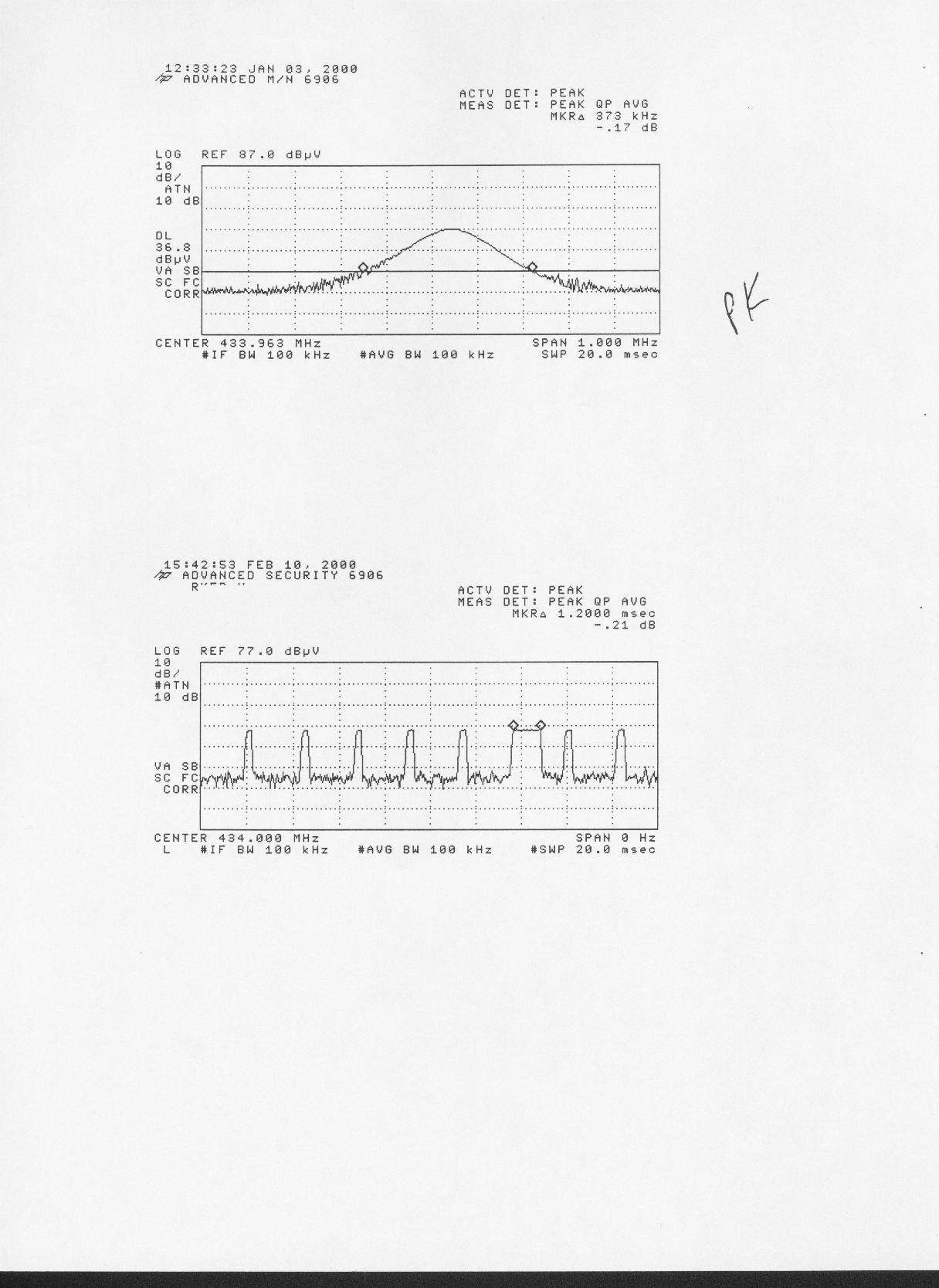

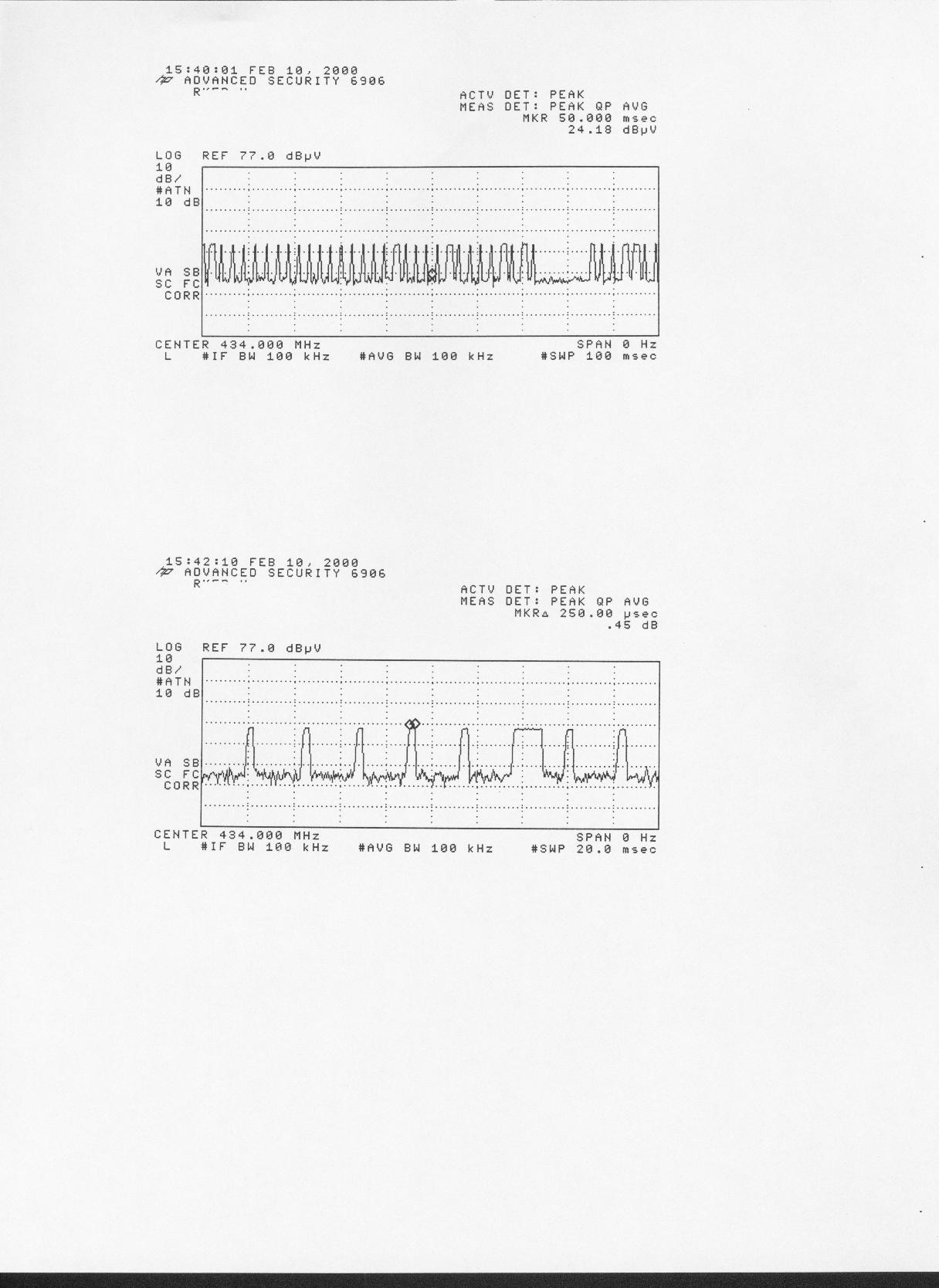

Sheet1 COMPLIANCE ENGINEERING SERVICES, INC. Radiated Emissions 01/04/2000 15.231 (B) PETE KREBILLC-SITE ADVANCED SECURITY 433.92MHz TX M/N:6906All measurements were taken with EUT in X, Y, & Z axis orientations with measurement antenna in horizontal andvertical polarity. X axis with horizontal polarity produced highest emissions. P e Readings shown are peak emissions which pass the average limits. F(MHz) READING AF CL AMP DIST HPF TOTAL LIMIT MARGIN NOTE (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk Pk Ave Pk 434.045 55.76 15.97 3.24 -27.46 0 0 47.51 80.8 -33.3 X, HOR 868.05 30.17 21.31 4.82 -27.53 0 0 28.77 60.8 -32.0 X, HOR *1302 50.5 24.7 2.55 -35 -9.5 0 33.25 54 -20.8 HOR *1736 45.7 26.2 2.55 -35 -9.5 0 29.95 60.1 -30.2 HOR *2170 44.9 28.1 3.23 -35 -9.5 0 31.73 60.1 -28.4 HOR *2604 44.9 29.2 3.48 -35 -9.5 0 33.08 60.1 -27 HOR *3038 44.3 31 3.74 -35 -9.5 0 34.54 60.1 -25.6 HOR *3472 43.2 33 4.25 -35 -9.5 0 35.95 60.1 -24.2 HOR *3906 43.1 32 4.76 -35 -9.5 0 35.36 54 -18.6 HOR *4340 42.5 32.4 5 -35 -9.5 0 35.4 54 -18.6 HOR * Measured noise floor ANALYZER SETTINGS DIST : Correction to extrapolate reading to 3m specification distance Res bw Avg. bw 1M measurement distance: -9.5dB PEAK(Pk ) : 100KHz 100KHz BELOW 1GHz AF : Antenna Factor AVERAGE(Avg): 100KHz 10Hz BELOW 1GHz AMP : Pre-amp gain PEAK(Pk ) : 1MHz 1MHz ABOVE 1GHz CL : Cable loss (17ft) AVERAGE(Avg): 1MHz 10Hz ABOVE 1GHz HPF : High pass filter insertion loss (1.8GHz) Page 1
