H5OT24Car Alarm Transmitter

VM-KEM1 MANUAL 1. Power On Status: All function Off 2. Learn-in Code: 1. Turn IGNITION OFF to ON (open for 15 seconds) 2. Press VALET SW.OFF/ON 3 times, LED ON turned on and activate learn-in-Code MODE. 2.1 Press Btn”1” to learn the first TX. 2.2 ---- Horn 20ms, one Beep, Press LED OFF/ON once. 2.3 Other Keys automatically activated. 2.4 Back to 2.2.1 learn the next TX, up to 4 TX code. 3. Turn IGN ON to OFF, or 15seconds time-out, ending learn-in-code process: LED OFF 3. Common TX function TX BUTTON FUNCTION REMARK Lock Door Horn 1 Chirp(2 times/3sec ,20ms) P/L 1 flashing, D/HT Dimming . Unlock Door P/L 2 flashing, D/HT On, Dimming after 30 seconds - 2-Step Unlock Press 2 times in 3seconds + Silent Lock / Unlock / DUL#2Press 2 keys at the same time AUX 0.5 sec Trunk (CH#2) 0.5sec On / 0.5sec Off (Exit Light) 3 sec PANIC (0.3”On/0.75”Off) Horn Chirping, P/L flashing 60sec, without D/L,D/UL, with CH#2 4. FEATURE PROGRAM: : RED part is Default Setting 4.1 IGN OFF TO ON (open for 15 Sec),VALET SW ON/OFF(6 times), finished in 15 Sec. 4.2 Chirp 6 Beep, LED ON, proceed Setup, as below circumstance 4.3 IGN OFF shutdown FEATURE Mode, Horn Chirp 1 short-sound 1long-sound 4.4 FEATURE TABLE Press TX Btn X One Chirp , LED 0.3 2 Chirps , LED 0.3 - 2 pulse 3 Chirps , LED 0.3 - 3 pulse 4 Chirps, LED 0.3 - 4 pulse Ign “On”TX activates Ign “On” TX No function If Ign”On”(AUX, PANIC) Rearm Off Rearm On AUX Exit Light On 3 minutes Exit Light On 5 minutes Exit Light On 10 minutes Exit Light On 15 minutes 5 Chirps , LED 0.3 - 5 pulse Exit Light On 20 minutes 5. D/HT Function: Dimming Time 5 sec 5 -1. Door Open / Close = D/HT On 20 sec, then Dimming . 5 -2. Remote Door Unlock = D/HT On 30 sec, then Dimming . 5 -3. Ext Car Remote Lock The Door then Dimming 5-4. Ign On D/HT Off then Dimming 1 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.

ADVANCED ADVANCE SECURITY INC. 3F, 48 Ta An Street, Hsi Chih, Phone : (886-2) 8648-1688 E-mail : [email protected] Taipei Hsien, TAIWAN R.O.C. Telexfax : (886-2) 8648-1689 Date: August 18, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. ADVANCE SECURITY INC. TED LIN SALES MANAGER REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

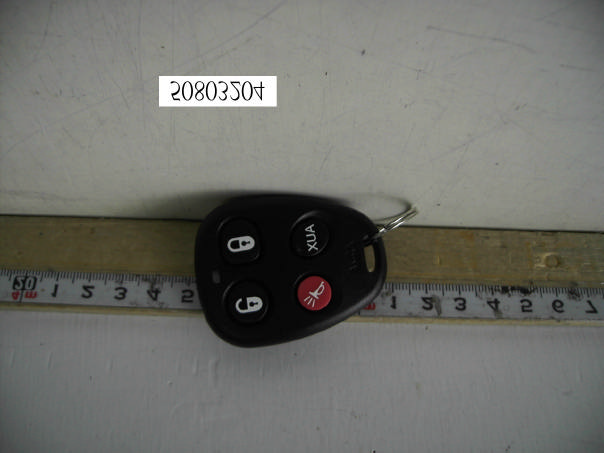

Compliance Certification Services Inc. Report No.: 50803204 Date of Issue: August 19, 2005 Page PHOTOGRAPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Advance Security Inc. FCC ID: H5OT24 FCC ID: H5OT24 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 50803204 Date of Issue: August 19, 2005 Page Compliance Certification Services Inc. Report No.: 50803204 Date of Issue: August 19, 2005 Page

VM-KEM1 TX Operational Description The car alarm transmitter is a low powered, hand held unit for remote controlling the car locks and other features. See the function descriptions in attached. The transmitter is powered by a 3 volt battery. It is designed to operated on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 4 buttons trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 434 MHz crystal (X1) and a npn transmitter (Q1). The modulated output of the RF amplifier stage is coupled to the PCB strip antenna. The coupling network comprised of L1,C2 and C3. The strip antenna is attached on PCB permanently around 20 mm. The transmitter is manually operated by the buttons pushed and will automatically deactivate within 3 seconds after the button being released. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter.

Compliance Certification Services Inc. Report No.: 50803204-RP1 FCC ID: H5OT24 Date of Issue: August 19, 2005 Page 1 of 25 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Car Alarm Transmitter FCC ID Number : H5OT24 Trade Name : Advance Security Inc. Model Number : VM-KEM1 Agency Series : N/A Report Number : 50803204-RP1 Date : August 19, 2005 Prepared to Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. Prepared by Compliance Certification Services Inc. No. 165, Chung Sheng Road, Hsin Tien City, Taipei Hsien, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 50803204-RP1 FCC ID: H5OT24 Date of Issue: August 19, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE................................................3 2. PRODUCT DESCRIPTION.................................................................4 3. TEST FACILITY...................................................................................4 4. MEASUREMENT STANDARDS.........................................................4 5. TEST METHODOLOGY.....................................................................4 6. MEASUREMENT EQUIPMENT USED.............................................5 7. POWERLINE RFI LIMIT....................................................................5 8. RADIATED EMISSION LIMITS.........................................................6 9. SYSTEM TEST CONFIGURATION...................................................6 10. TEST PROCEDURE..........................................................................7 11. Equipment Modifications.....................................................................8 12. TEST RESULT....................................................................................9 12.1 Maximum Modulation Percentage (M%)..........................................9 12.2 The Emissions Bandwidth.................................................................9 APPENDIX I............................................................................................10 Compliance Certification Services Inc. Report No.: 50803204-RP1 FCC ID: H5OT24 Date of Issue: August 19, 2005 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Advance Security Inc. 3F, 48 Ta An Street, Hsi Chih, Taipei Hsien, TAIWAN R.O.C. CONTACT PERSON : Michael Chen / President TELEPHONE NO. : 886-2-8648-1688 EUT DESCRIPTION : Car Alarm Transmitter MODEL NAME/NUMBER : VM-KEM1 FCC ID : H5OT24 DATE TESTED : August 4, 2005~August 10, 2005 REPORT NUMBER : 50803204-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE Car Alarm Transmitter MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 50803204-RP1 FCC ID: H5OT24 Date of Issue: August 19, 2005 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver FCC ID: H50R46 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 50803204-RP1 FCC ID: H5OT24 Date of Issue: August 19, 2005 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # K Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS K Site N/A 09/04/2005 MEASURE RECEIVER R&S ESVS30 828488/004 09/24/2005 SPECTRUM ANALYZER ADVANTEST R3132 120900029 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2846 05/27/2006 PRE- AMPLIFIER SCHAFFNER CPA9231A 3639 10/08/2005 CABLE SUHNER RG 214 N-TYPE #K2 02/18/2006 THERMO- HYGRO METER TFA N/A NO.4 02/17/2006 Above 1GHz Used EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 06/30/2006 ANTENNA (1-18GHz) EMCO 3115 5761 01/17/2006 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1&2 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#C1 04/28/2006 Remark: Each piece of equipment is scheduled for calibration once a year. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Compliance Certification Services Inc. Repo…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50803204-RP1 FCC ID: H5OT24 Date of Issue: August 19, 2005 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
